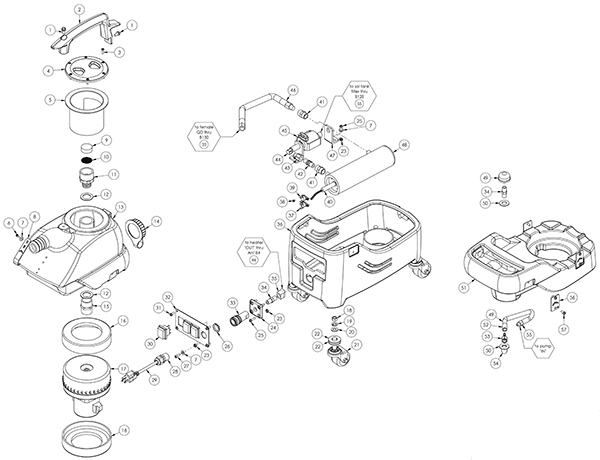

Entire Assembly - 231-0013 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
231-2899 |
Bolt 1/4-20 x 1/2 serrated |
2 |
|
| 3 |
231-2879 |
Screw 8-15 x 5/8 |
6 |
|
| 5 |
231-2863 |
Vacuum tank deflector |
1 |
|
| 6 |
231-2901 |
Screw 8-32 x 3/8 alloy |
1 |
|
| 7 |
999-0998 |
Washer #10 flat stainless steel |
4 |
|
| 10 |
231-0249 |
Mesh screen |
1 |
|
| 11 |
231-0246 |
PVC adapter |
1 |
|
| 13 |
231-0248 |
Vacuum tank |
1 |
|
| 14 |
231-2864 |
Tethered cap |
1 |
|
| 15 |
231-0250 |
PVC adapter |
1 |
|
| 16 |
231-0004 |
Vac motor gasket |
2 |
|
| 17 |
231-2862 |
115V 2 stage vacuum motor |
1 |
|
| 18 |
999-0959 |
Nut 3/8-16 hex |
4 |
|
| 21 |
231-0252 |
2 inch caster |
4 |
|
| 22 |
231-2891 |
Washer 1 1/16 |
8 |
|
| 24 |
231-4100 |
Mounting plate |
1 |
|
| 25 |
999-6668 |
Screw 10-32 x 3/4 phillips pan head zinc |
6 |
|
| 28 |
231-0007 |
Strain relief fitting |
1 |
|
| 29 |
231-0009 |
Power cord 25ft |
1 |
|
| 30 |
231-0014 |
2 position rocker switch |
3 |
|
| 31 |
231-1720 |
Screw 10 x 1/2 inch plastite |
4 |
|
| 32 |
231-0237 |
Switch plate |
1 |
|
| 33 |
231-0066 |
1/4 inch female brass quick disconnect |
1 |
|
| 34 |
231-2896 |
1/4 hex nipple |
2 |
|
| 35 |
231-1695 |
1/4 inch male NPTF street elbow brass |
1 |
|
| 37 |
231-0031 |
Thermostat 310 |
1 |
|
| 38 |
231-2867 |
Screw 6-18 x 3/16 |
5 |
|
| 39 |
231-0032 |
Thermostat 200 |
1 |
|
| 41 |
231-0035 |
Brass coupling |
2 |
|
| 42 |
231-0034 |
Brass check valve |
1 |
|
| 43 |
231-0254 |
1/4 x 1/8 inch adaptor |
1 |
|
| 46 |
231-2829 |
14.5 inch hose |
1 |
|
| 47 |
231-0256 |
Pump bracket |
2 |
|
| 48 |
231-0045 |
Aluminum casting heater |
1 |
|
| 49 |
231-1687 |
Filter strainer |
1 |
|
| 51 |
231-0257 |
Solution tank |
1 |
|
| 52 |
231-4116 |
1/4 inch brass ferrule |
2 |
|
| 54 |
231-0033 |
90 degree brass elbow |
1 |
|
| 56 |
231-1710 |
Connecting plate |
5 |
|
| 57 |
999-0371 |
Screw 10-32 x 1/2 pan head phillips zinc plated |
10 |
|
| N/S |
231-0259 |
115V heater 600w |
1 |
|
|
|

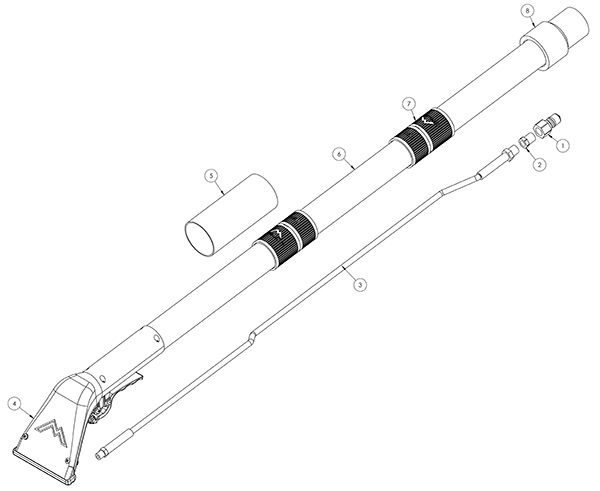

Wand Assembly - 231-0014 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
241-5021 |
Male quick connect |
1 |
|
| 2 |
231-1724 |
1/4 inch hex bushing |
1 |
|
| 3 |
231-0059 |
Solution hose |
1 |
|
| 4 |
231-1727 |
Air lite upholstery tool |
1 |
|
| 5 |
231-1725 |
Heat guard hose wrap |
1 |
|
| 6 |
231-0260 |
Vacuum hose 1.25 inch x 8 foot |
1 |
|
| 7 |
231-1726 |
1.25 inch hose |
2 |
|
| 8 |
231-0261 |
Hose cuff 1.25 x 1.5 inch |
1 |
|
|
|

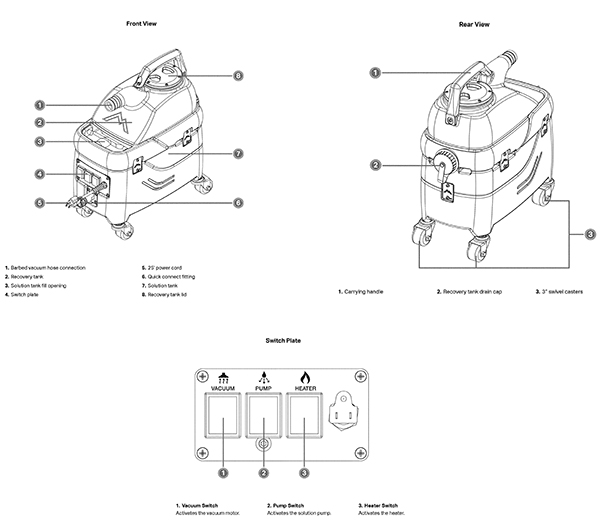

- Know Your Machine - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
- Frequently Replaced Parts - 231-0016 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
991-5006 |
16/3 replacement power cord 50 foot (yellow) |
|
|
|
991-5002 |
16/3 extension cord 50 foot (orange) |
|
|
|
231-0007 |
Strain relief fitting |
|
|
|
231-0014 |
2 position rocker switch |
|
|
|
231-2862 |
115V 2 stage vacuum motor |
|
|
|
991-1208 |
120V 2 stage vacuum motor peripheral |
|
|
|
231-0004 |
Vac motor gasket |
|
|
|
|
