Parts List Complete for MINUTE X705-15


15 Gallon painted/Stainless Steel Tank With Molded Intake - 174-2209
RefNbr Part Number Description Req Notes
001a 174-2865 15 Gallon tank 1
001b 174-2866 55 Gallon stainless steel polished tank 1
002 174-1457 Tank polished handle 1
003 174-8617 Handle clamp 2
004 174-0821 Trigger with pins 1
005 174-2401 Latch 2
006 174-2868 Plated handle 1
007 999-0460 Nut 10-32 hex 2
008 174-5259 Washer #10 helical 2
009 999-0006 Washer 3/16 flat zinc plated 2
010 999-0357 Nut 8-32 nylon insert lock stainless steel 1
011 174-5406 Washer 8 helical 1
012 999-0266 Washer #8 SAE flat stainless steel 1
013 174-2253 Intake deflector 1
014 174-2869 Molded downtube 1
015 174-0178 1/2 inch external retaining ring 2
016 174-2271 Screw 8-32 x 1/2 1
017 174-2262 Diecut poron intake gasket 1
018 174-0820 Return spring 1
019 174-2263 Complete intake assembly (aluminum) 1
020 999-1070 Screw 10-32 x 5/8 truss head phillips stainless steel 2
021 174-1453 Swivel caster 2
022 174-0822 Screw 1/4-20 x 1/3 4
023 999-0081 Screw 1/4-20 x 5/8 pan head slotted zinc 6
024 174-2899 Wheel bracket 1
025 174-0827 Plated axle 2
026 174-5159 Washer 33/64 x 1/64 wave 2
027 174-8510 8 inch wheel 2
028 174-3149 Hub cap 2
029 174-1458 Rubber washer 4
030 999-0016 Washer 1/4 flat plain finish 4
031 174-5718 Bolt 1/4 20 x 5/8 hex head 4
032 999-0855 Washer 9/16 SAE flat 2
033 174-2263 Complete intake assembly (aluminum) 1
034 174-1841 Hose adapter 1-1/4 inch
N/S 174-1839 Hose adapter 1-1/2 inch
N/S 174-2873 Complete 15 gallon stainless steel tank assembly
N/S 174-2876 Complete stainless steel tank assembly with deflector
N/S 274-4896 KIT, INTAKE REPLACE W/ 2 inch HOSE CUFF
N/S 174-2872 Complete 15 gallon tank assembly
N/S 174-1841 Hose adapter 1-1/4 inch
N/S 174-2875 Complete plated tank assembly with deflector
N/S 174-2874 Complete wheel braket assembly

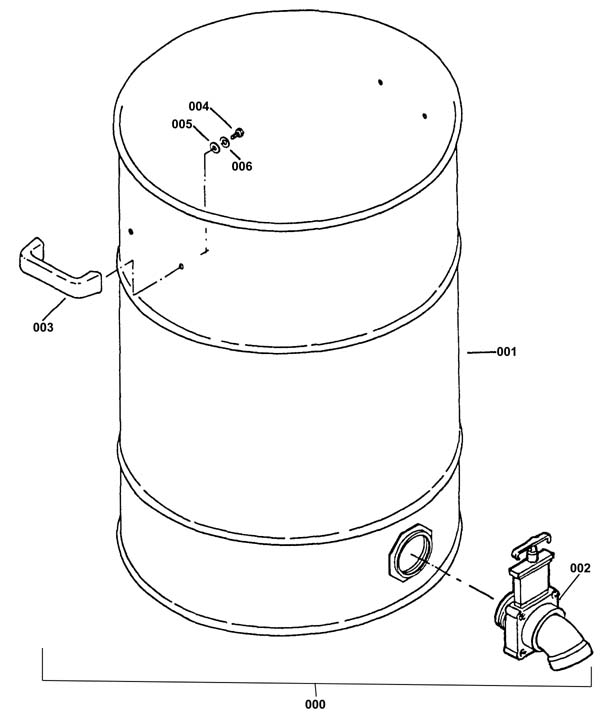

30 and 55 Gal. Tank Assembly Complete - 174-2210
RefNbr Part Number Description Req Notes
000 174-2862 Complete 30 gallon tank 4
001a 174-2859 30 Gallon tank only 1
002 174-1456 Dump valve 1
003 174-2861 Tank polished handle 2
004 174-5718 Bolt 1/4 20 x 5/8 hex head 4
005 174-1458 Rubber washer 4
006 999-0016 Washer 1/4 flat plain finish 4
N/S 174-2901 55 Gallon drum liner package of 12
N/S 174-2900 30 Gallon drum liner package of 12

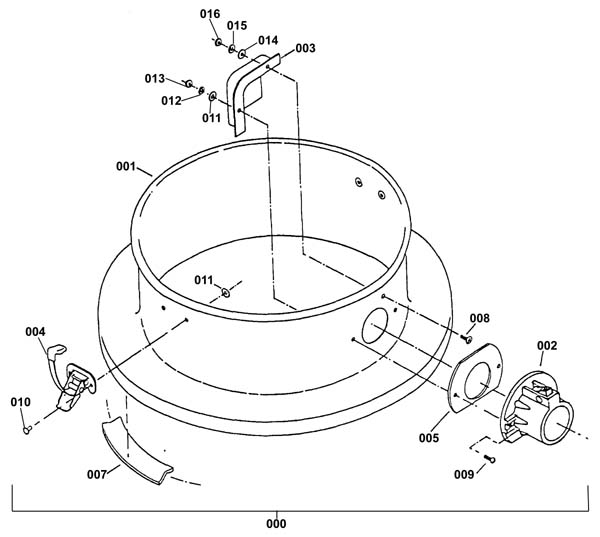

55 and 30 Gal. Adapter Assembly Complete - 174-2211
RefNbr Part Number Description Req Notes
000a 174-2857 30 Gallon adapter assembly
000b 174-2902 55 Gallon adapter assembly
001a 174-2854 Painted 55 gallon adapter 1
001b 174-2855 Painted 30 gallon adapter 1
002 174-2856 Molded intake 15/30 1
003 174-2253 Intake deflector 1
004 174-2401 Latch 2
005 174-2262 Diecut poron intake gasket 1
007 174-1495 Gasket 1
008 174-2271 Screw 8-32 x 1/2 1
009 999-0705 Screw 10-24 x 3/4 pan head phillips stainless steel 2
010 174-0824 Rivet 4
011 999-0006 Washer 3/16 flat zinc plated 6
012 174-5259 Washer #10 helical 2
013 999-0442 Nut 10-24 nylon insert lock stainless steel 2
014 999-0266 Washer #8 SAE flat stainless steel 1
015 174-5406 Washer 8 helical 1
016 999-0357 Nut 8-32 nylon insert lock stainless steel 1

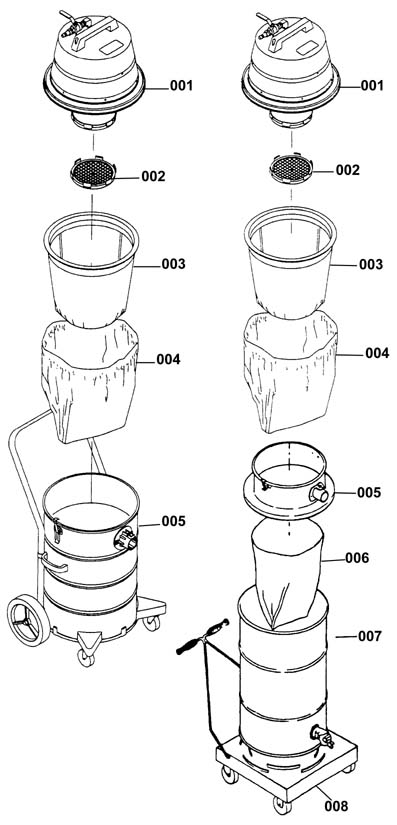

Filter Assembly - 174-2212
RefNbr Part Number Description Req Notes
001 174-2903 Air lid assembly
002 174-1500 Impact filter retainer
003 174-2248 Cloth Bag Assembly Complete
004 174-2904 Paper filter
005 174-2865 15 Gallon tank
006a 174-2900 30 Gallon drum liner package of 12
006b 174-2901 55 Gallon drum liner package of 12
007a 174-2862 Complete 30 gallon tank
008 174-1470 Complete dolly cart

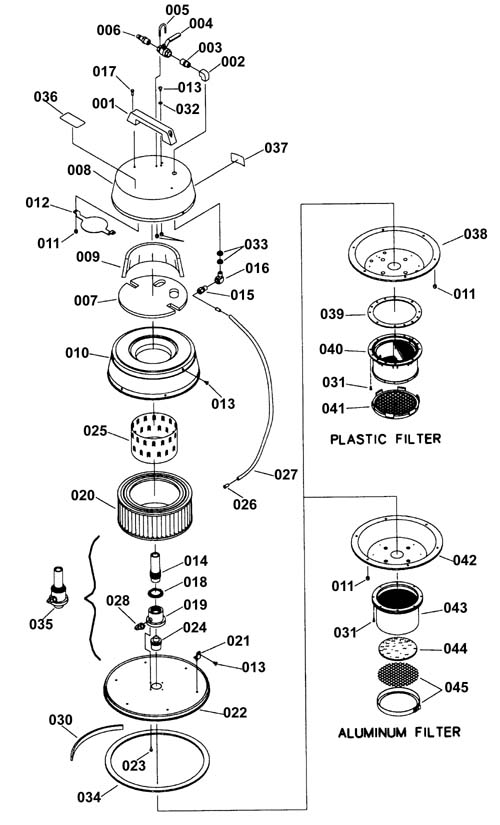

Filter Assembly Complete - 174-2213
RefNbr Part Number Description Req Notes
001 174-2278 Handle 1
002 174-1732 3/8 x 3/8 Brass elbow 1
003 174-1733 Hew nipple reducer 1
004 174-1482 Valve air 1
005 174-1734 U Bolt 1
006 174-1484 Coupler 1
007 174-2905 Dome felt 1
008 174-2906 Top cover 1
009 174-2907 Felt liner 1
010 174-2908 Filter cover 1
011 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 15
012 174-2909 Air deflector 1
013 999-0508 Screw 1/4-20 x 1/2 pan head phillips zinc plated 10
014 174-1740 Venturi exhaust tube 1
015 174-1741 Male connector 1
016 174-0075 90 Degree elbow barb 1
017 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated 2
018 174-1742 Locking nut 1
019 174-1753 Venturi assembly 1
020 174-2910 Exhaust filter 1
021 174-1745 Bracket mounting tab 6
022 174-2911 Bottom pan 1
023 999-0586 Screw 10-24 x 1/2 truss head stainless steel 4
024 174-1747 Venturi intake 1
025 174-2912 Perforated shield 1
026 174-0366 Sleeve insert 2
027 174-2913 Ply hose 32 inch long 1
028 174-0359 Male elbow and hose fitting 1
029 174-1930 Hollow rubber ball 1
030 174-2914 Rubber locating ring 1
031 174-1751 Screw 10 x 1/2 plated 8
032 999-0016 Washer 1/4 flat plain finish 1
033 174-2204 Spacer 1
034 174-2915 Gasket 1/4 x 7/8 x 1/2 1
035 174-1753 Venturi assembly 1
036 174-1754 Air pressure decal 1
037 174-5775 Serial nameplate decal 1
038 174-2916 Plastic filter adapter 1
039 174-1755 Filter gasket 1
040 174-1756 Plactic coplom filter 1
041 174-1730 Prefilter package of 6 1
042 174-2917 Water shut off adapter 1
043 174-1441 Filter copolm 1
044 274-6055 FILTER, SMALL (12 PER PACK) 1
045 174-1443 Complete retainer impact assembly 1

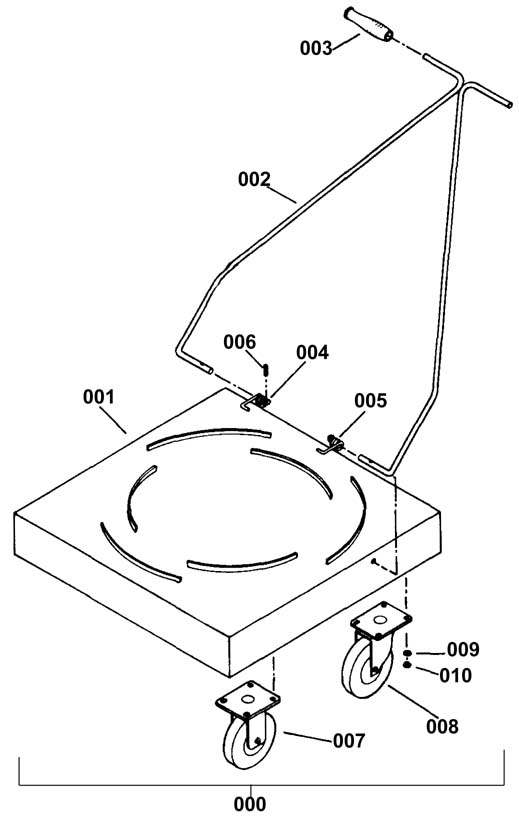

Weldment Dolly Assembly Complete - 174-2214
RefNbr Part Number Description Req Notes
000 174-1470 Complete dolly cart
001 174-1443 Complete retainer impact assembly 1
002 174-1466 Handle weldment 1
003 174-1467 Handle grip 2
004 174-5807 Right torsion spring 1
005 174-5814 Left torsion spring 1
006 174-0915 Rollpin .187 x 1 2
007 174-1468 5 Inch rigid caster 2
008 174-1469 5 Inch swivel caster 2
009 999-0028 Washer 5/16 split lock plain finish 16
010 999-0069 Nut 5/16-18 hex 16
