Parts List Complete for MINUTE PORT A SCRUB P12

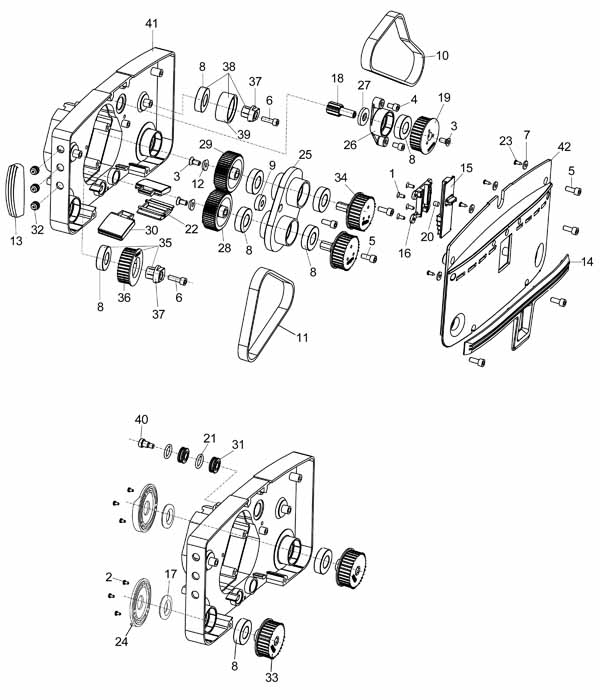

Housing Assembly - Drive Side - 174-0670
RefNbr Part Number Description Req Notes
1 374-1811 SCR-CSK M4X10, PORT A SCRUB 4
2 374-1399 CR-PAN-HEAD SCREW -SS304-M3X6 6
3 374-2735 SCR, CSK M6X14, PORT A SCRUB 3
4 374-2260 SCR-ALLEN M6X10, PORT A SCRUB 2
5 374-2734 ALLEN SCREW M6X15, PORT A SCRUB 7
6 374-2219 ALLEN SCREW M6X20, PORT A SCRUB 2
7 374-1812 WSR, 4.2 X 12 X 1.6, PORT A SCRUB 4
8 174-8559 Bearing 6003 seal 9
9 274-3698 BEARING 608 2Z, PORT A SCRUB 1
10 274-6837 BELT 500 5M, PORT A SCRUB 1
11 274-6684 Belt 1
12 374-1485 Washer 2
13 274-0954 BUMPER, PORT A SCRUB 1
14 274-0830 BUMPER, PORT A SCRUB 1
15 274-0317 BRUSH SLIDER, PORT A SCRUB 1
16 374-2756 HOUSING, SLIDER, PORT A SCRUB 1
17 274-2334 SEAL, PORT A SCRUB 2
18 274-6551 PINION, PORT A SCRUB 1
19 274-1841 DRUM SPROCKET, PORT A SCRUB 1
20 374-1818 PIN, PORT A SCRUB 1
21 374-1819 O'RING, PORT A SCRUB 2
22 374-2738 SHIELD, PORT A SCRUB 1
23 374-1845 SCR-ST, PORT A SCRUB 4
24 374-2777 CAP, PORT A SCRUB 2
25 274-5055 HOUSING-GEAR, PORT A SCRUB 1
26 274-2534 HOUSING SPROCKET, PORT A SCRUB 1
27 274-0396 SEAL, PORT A SCRUB 1
28 274-9957 Left hand gear 1
29 274-4883 GEAR - RH, PORT A SCRUB 1
30 374-1850 SLEEVE-BUMPER, PORT A SCRUB 2
31 374-1849 ROLLER, PORT A SCRUB 2
32 374-1850 SLEEVE-BUMPER, PORT A SCRUB 3
33 274-4172 BRUSH SOCKET, PORT A SCRUB 2
34 274-3547 GEAR SPROCKET, PORT A SCRUB 2
35 274-6552 IDLE ASSY, PORT A SCRUB 1 (includes 36 and 37)
36 174-3289 Sprocket 1
37 274-0613 HUB, PORT A SCRUB 2
38 274-6263 IDLER ASSY, PORT A SCRUB 1 (includes 39)
39 274-2410 SLEEVE, PORT A SCRUB 1
40 274-1344 STUB AXLE, PORT A SCRUB 1
41 274-9051 HOUSING-DRIVE, PORT A SCRUB 1
42 274-6713 COVER, PORT A SCRUB 1

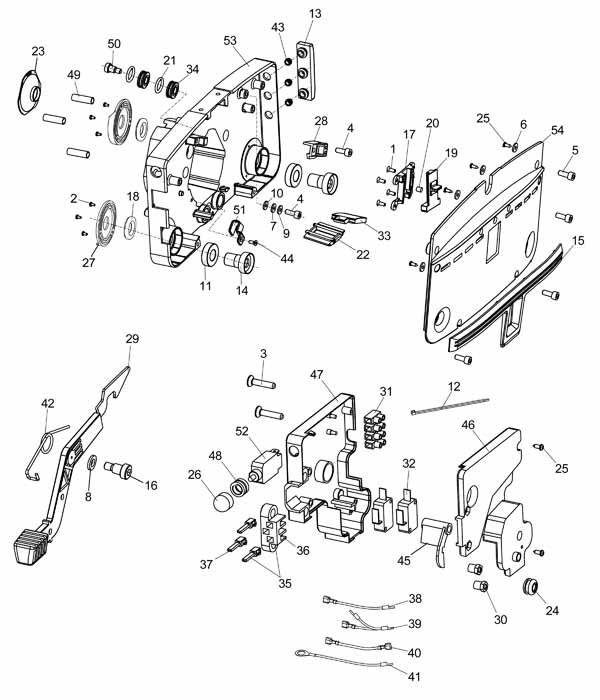

Housing Assembly - Idle Side - 174-0671
RefNbr Part Number Description Req Notes
1 374-1811 SCR-CSK M4X10, PORT A SCRUB 4
2 374-1399 CR-PAN-HEAD SCREW -SS304-M3X6 6
3 374-2021 SCR, CSK M5X25, PORT A SCRUB 2
4 374-2260 SCR-ALLEN M6X10, PORT A SCRUB 2
5 374-2734 ALLEN SCREW M6X15, PORT A SCRUB 5
6 374-1812 WSR, 4.2 X 12 X 1.6, PORT A SCRUB 4
7 374-1820 WSR-6.4X12X1.6, PORT A SCRUB 1
8 374-1836 WASHER 9X17X1.6, PORT A SCRUB 1
9 374-1824 WSR-SPRING M6, PORT A SCRUB 1
10 374-1815 WSR-TOOTHED, PORT A SCRUB 1
11 174-8559 Bearing 6003 seal 2
12 374-1816 WIRE TIE, PORT A SCRUB 3
13 274-0954 BUMPER, PORT A SCRUB 1
14 374-2119 BUSHING, PORT A SCRUB 2
15 274-0830 BUMPER, PORT A SCRUB 1
16 274-0735 STUB AXLE, PORT A SCRUB 1
17 374-2756 HOUSING, SLIDER, PORT A SCRUB 1
18 274-2334 SEAL, PORT A SCRUB 2
19 374-2991 TRANSPORT SLIDER, PORT A SCRUB 1
20 374-1818 PIN, PORT A SCRUB 1
21 374-1819 O'RING, PORT A SCRUB 2
22 374-2738 SHIELD, PORT A SCRUB 1
23 374-2301 COVER-FAN, PORT A SCRUB 1
24 374-1963 GROMMET, PORT A SCRUB 2
25 374-1845 SCR-ST, PORT A SCRUB 6
26 374-2741 CAP, PORT A SCRUB 1
27 374-2777 CAP, PORT A SCRUB 2
28 374-2921 STOPPER, PORT A SCRUB 1
29 274-2536 PEDAL, PORT A SCRUB 1
30 374-1846 NUT, PORT A SCRUB 2
31 274-0223 CONNECTOR, PORT A SCRUB 1
32 274-5901 SWITCH, PORT A SCRUB 2
33 374-2747 SHIELD, PORT A SCRUB 2
34 374-1849 ROLLER, PORT A SCRUB 2
35 274-3700 SOCKET ASSY, PORT A SCRUB 1 (includes 36 and 37)
36 174-3288 Socket 1
37 374-2736 TERMINAL, PORT A SCRUB 3
38 274-0723 CABLE, PORT A SCRUB 1
39 274-1009 CABLE, PORT A SCRUB 1
40 274-1178 CABLE, PORT A SCRUB 1
41 274-0677 CABLE, PORT A SCRUB 1
42 374-2743 SPRING-PEDAL, PORT A SCRUB 1
43 374-1850 SLEEVE-BUMPER, PORT A SCRUB 3
45 374-1809 LEVER SWITCH ACT, PORT A SCRUB 1
46 274-0722 INSULATION TOP, PORT A SCRUB 1
47 274-1003 INSULATION BOTTOM, PORT A SCRUB 1
48 374-2814 NUT, PORT A SCRUB 1
49 374-1847 SLEEVE TIE ROD, PORT A SCRUB 3
50 274-1344 STUB AXLE, PORT A SCRUB 1
52 374-2992 SWITCH-BASE, PORT A SCRUB 1
53 274-9350 HOUSING-IDLE (110V), PORT A SCRUB 1
54 274-6713 COVER, PORT A SCRUB 1

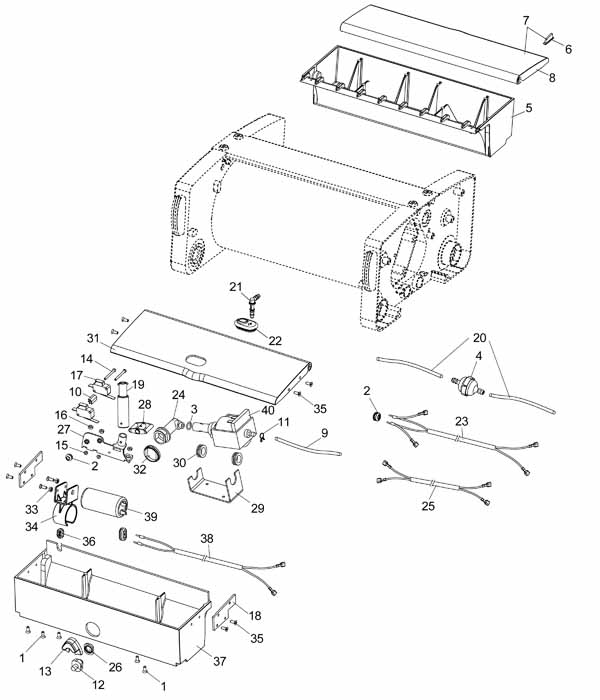

Pump Housing Assembly - 174-0672
RefNbr Part Number Description Req Notes
1 374-1811 SCR-CSK M4X10, PORT A SCRUB 5
2 374-1963 GROMMET, PORT A SCRUB 2
3 374-1837 O-RING-PUMP, PORT A SCRUB 1
4 274-2533 FILTER ASSY, PORT A SCRUB 1
5 274-6601 TANK-DIRTY WATER, PORT A SCRUB 1
6 374-2096 LID PAD, PORT A SCRUB 2
7 274-5703 LID, PORT A SCRUB 1 (includes 6 and 8)
8 274-5054 LID-DIRTY WATER, PORT A SCRUB 1
9 274-0537 HOSE-275 (10.8), PORT A SCRUB 1
10 374-1838 INSULATION, PORT A SCRUB 1
11 374-1839 CLIP-HOSE, PORT A SCRUB 1
12 274-7311 NOZZLE, PORT A SCRUB 1
13 174-8441 Spray nozzle retainer 1
14 374-1956 SCR-M3X30, PORT A SCRUB 2
15 374-1840 NUT-HEX M3, PORT A SCRUB 2
16 374-1841 NUT-HEX M4, PORT A SCRUB 3
17 274-4804 SWITCH, PORT A SCRUB 2
18 174-6551 Strip lid 2
19 374-2963 BUSHING-EXTENSION, PORT A SCRUB 1
20 374-2748 HOSE-165, PORT A SCRUB 2
21 374-1851 CONNECTOR-HOSE, PORT A SCRUB 1
22 374-2749 BOOT-LID, PORT A SCRUB 1
23 274-4058 CABLE, PORT A SCRUB 1
24 274-0852 ADAPTOR NOZZLE, PORT A SCRUB 1
25 274-2571 CABLE, PORT A SCRUB 1
26 374-2746 SEAL NOZZLE, PORT A SCRUB 1
27 374-2992 SWITCH-BASE, PORT A SCRUB 1
28 374-1843 LEVER, PORT A SCRUB 1
29 274-1081 CLAMP, PORT A SCRUB 1
30 374-1496 RING-SUPPORT, PORT A SCRUB 2
31 174-9029 Portascrub lid 1
32 174-8442 Spacer 1
33 374-1841 NUT-HEX M4, PORT A SCRUB 2
34 174-3563 Capacitor clamp 1
35 174-3564 Screw M4 x 12mm 8
36 174-3565 Grommet 2
37 274-6742 PUMP HOUSING (M12110) 1
38 174-3566 Cable 1
39 274-6123 CAPACITOR (110V), PORT A SCRUB 1
40 174-7055 Vibrating pump 1

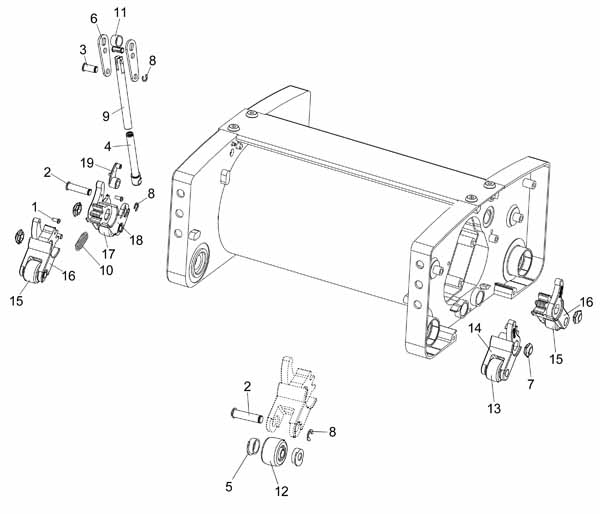

Lever and Guide Link Assembly - 174-0673
RefNbr Part Number Description Req Notes
1 374-1400 SCR-CR PH-SS 2
2 274-3164 CLEVIS PIN, PORT A SCRUB 5
3 274-0374 CLEVIS PIN, PORT A SCRUB 1
4 274-2772 LINK GUIDE, PORT A SCRUB 1
5 374-1813 SHIELD, PORT A SCRUB 8
6 274-1625 LEVEL, PORT A SCRUB 2
7 374-1821 LEVER BUTTON, PORT A SCRUB 4
8 374-1494 CIRCLIP, PORT A SCRUB 6
9 274-3288 LINK GUIDE, PORT A SCRUB 1
10 374-2815 SPRING-PEDAL, PORT A SCRUB 1
11 374-1848 BUSHING, PORT A SCRUB 1
12 274-0992 WHEEL, PORT A SCRUB 4
13 274-4622 LEVER ASSY, PORT A SCRUB 1 (includes 14)
14 274-1842 LEVER, PORT A SCRUB 1
15 274-4173 LEVER ASSY, PORT A SCRUB 2 (includes 16)
16 274-2335 LEVER, PORT A SCRUB 2
17 274-5328 LEVER ASSY, PORT A SCRUB 1 (includes 18)
18 274-2336 LEVER, PORT A SCRUB 1
19 274-0661 LEVER SWITCH, PORT A SCRUB 1

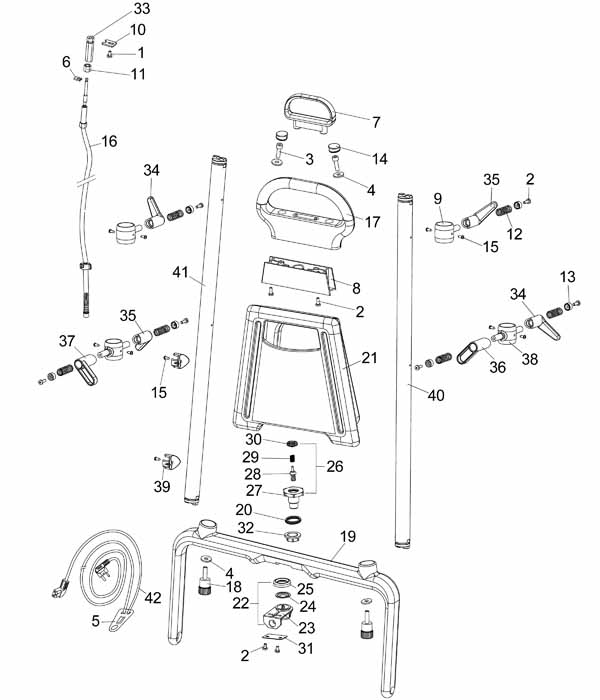

Handle Assembly - 174-0674
RefNbr Part Number Description Req Notes
1 374-1814 CRPH SCREW M4X8, PORT A SCRUB 1
2 374-1400 SCR-CR PH-SS 10
3 374-2219 ALLEN SCREW M6X20, PORT A SCRUB 2
4 374-1488 WSR-6.4X18X2, PORT A SCRUB 4
5 374-2962 CABLE RETAINER, PORT A SCRUB 1
6 174-2942 Clamp 1
7 274-1076 HANDLE-PULL, PORT A SCRUB 1
8 174-2943 Cap 1
9 274-1678 BASE-CABLE HOLDER, PORT A SCRUB 2
10 174-2944 Clamp 1
11 374-1490 NUT, PORT A SCRUB 1
12 374-1822 SPRING, PORT A SCRUB 6
13 374-1491 WASHER, PORT A SCRUB 6
14 374-1827 PLUG, PORT A SCRUB 2
15 374-1845 SCR-ST, PORT A SCRUB 10
16 274-5206 CABLE-PULL-P, PORT A SCRUB 1
17 274-7576 HANDLE-TOP, PORT A SCRUB 1
18 274-0766 KNOB, PORT A SCRUB 2
19 274-7883 HANDLE-BOTTOM, PORT A SCRUB 1
20 374-1955 GASKET, PORT A SCRUB 1
21 274-8599 TANK, PORT A SCRUB 1
22 174-8657 Valve base 1 (includes 23-25)
23 174-8657 Valve base 1
24 174-8657 Valve base 1
25 374-1828 CAP-VALVE, PORT A SCRUB 1
26 174-8658 Valve 1 (includes 27-30)
27 374-2740 BODY-VALVE, PORT A SCRUB 1
28 374-2965 SEAL, PORT A SCRUB 1
29 374-1829 SPRING, PORT A SCRUB 1
30 374-1830 CAP-SPRING, PORT A SCRUB 1
31 174-8657 Valve base 1
32 374-1493 NUT, PORT A SCRUB 1
33 174-3561 Sleeve 1
34 174-2945 Cable holder knob 2
35 374-2964 KNOB-CABLE HOLDER-I, PORT A SCRUB 2
36 274-0352 KNOB-TANK HOLDER-LH, PORT A SCRUB 1
37 274-0400 KNOB-TANK HOLDER-RH, PORT A SCRUB 1
38 274-1616 BASE-CABLE AND TANK HOLDER, PORT A SCRUB 2
39 174-2946 Guide 1
40 274-4671 PIPE-LH, PORT A SCRUB 1
41 274-4672 PIPE-RH, PORT A SCRUB 1
42 174-8119 Power cord for port a scrub 1

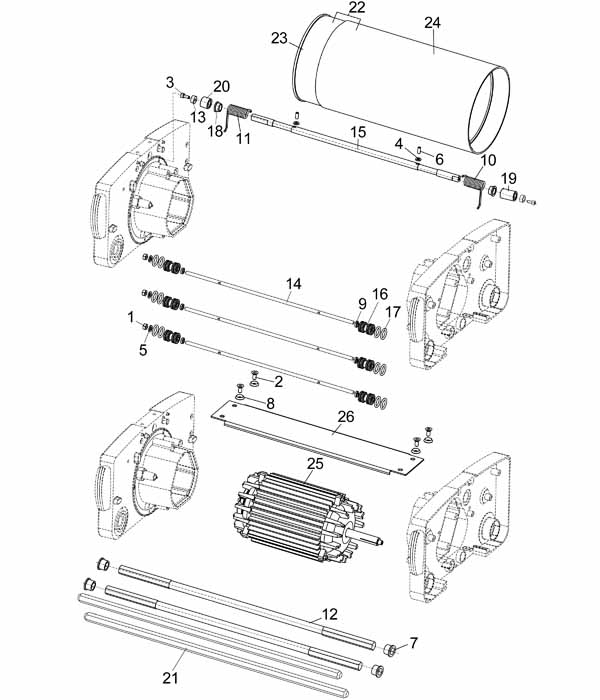

Motor and Drum Assembly - 174-0675
RefNbr Part Number Description Req Notes
1 374-1831 NUT-HEXS M6, PORT A SCRUB 3
2 374-2735 SCR, CSK M6X14, PORT A SCRUB 4
3 374-1489 SCR-ALLEN M4X10, PORT A SCRUB 2
4 374-1486 WSR-5.2X10X1.6, PORT A SCRUB 2
5 374-1820 WSR-6.4X12X1.6, PORT A SCRUB 3
6 374-1487 SCR-GRUB M5X12, PORT A SCRUB 2
7 374-1808 BUSHING, PORT A SCRUB 4
8 374-1485 Washer 4
9 374-1810 WASHER, PORT A SCRUB 6
10 274-1170 SPRING, LH, PORT A SCRUB 1
11 274-1171 SPRING, RH, PORT A SCRUB 1
12 274-3699 HEX SHAFT, PORT A SCRUB 2
13 374-1817 WASHER, PORT A SCRUB 2
14 274-2174 TIE ROD, PORT A SCRUB 3
15 274-6076 SHAFT, PORT A SCRUB 1
16 374-2737 ROLLER, PORT A SCRUB 6
17 374-1819 O'RING, PORT A SCRUB 12
18 374-1823 BUSING, PORT A SCRUB 2
19 374-1825 BUSHING, PORT A SCRUB 1
20 374-1826 BUSHING, PORT A SCRUB 1
21 274-3935 BRUSH SHAFT, PORT A SCRUB 2
22 274-8933 DRUM ASSY, PORT A SCRUB 1 (includes 23 and 24)
23 274-8236 DRUM, PORT A SCRUB 1
24 274-7710 SLEEVE-DRUM, PORT A SCRUB 1
25 374-0064 MOTOR (110V), PORT A SCRUB 1
26 274-4975 BRIDGE, PORT A SCRUB 1

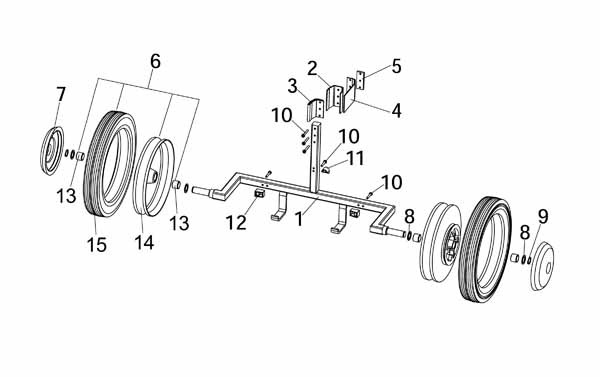

Transport Cart Assembly - 174-0676
RefNbr Part Number Description Req Notes
1 274-7617 FRAME, PORT A SCRUB 1
2 274-2337 CLAMP, PORT A SCRUB 1
3 374-2744 FIXED STRIP, PORT A SCRUB 1
4 374-2745 FLEXIBLE STRIP, PORT A SCRUB 1
5 274-0991 PLATE, PORT A SCRUB 1
6 274-7458 TIRE, PORT A SCRUB 2 (includes 13-15)
7 274-2211 CAP-WHEEL, PORT A SCRUB 2
8 374-1832 WSR-17.2x24x1.6, PORT A SCRUB 4
9 374-1833 CIRCLIP A17x1, PORT A SCRUB 2
10 374-1834 SCR-CRPH M4x25, PORT A SCRUB 6
11 374-2178 STOPPER-TOP, PORT A SCRUB 1
12 374-2113 STOPPER-BOTTOM, PORT A SCRUB 2
13 274-1915 BUSHING - WHEEL RIM, PORT A SCRUB 4
14 274-5944 WHEEL RIM, PORT A SCRUB 2
15 274-5784 TIRE MAIN WHEEL, PORT A SCRUB 2

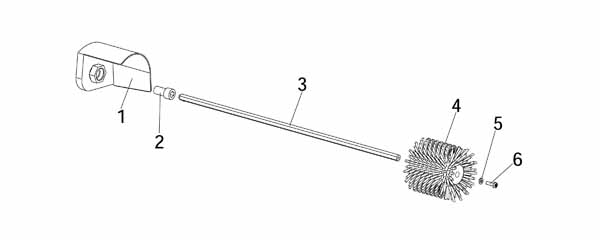

Side Brush Assembly - 174-0677
RefNbr Part Number Description Req Notes
1 274-2896 SHIELD, PORT A SCRUB 1
2 374-1842 BUSHING, PORT A SCRUB 1
3 274-3409 SHAFT, PORT A SCRUB 1
4 274-6127 BRUSH-SIDE ONLY, PORT A SCRUB 1
5 374-1835 WASHER, PORT A SCRUB 1
6 374-2095 SCR-ALLEN M5x20, PORT A SCRUB 1

- Pad Holders - 275-9029
RefNbr Part Number Description Req Notes
1 991-2214 Center-Lok II pad holder - left hand thread (red)
2a 991-2201 Center-Lok II pad holder - right hand thread (black) (Pad driver side female, Floor side male)
2b 991-8577 Pad retainer (Pad driver side male, Floor side female)
3a 991-2202 Big mouth pad holder set (blue) (includes 3 screws)
3b 991-2205 Deep lock ring and pad grip ring
4 991-2203 Big mouth pad holder male thread portion
5 991-2206 Center-Lok 3 pad holder (includes 3 screws)
6 996-0372 Big mouth pad holder (left hand thread)
7 N/A Not available
8 991-2209 Split retainer - pad holder ring (OBSOLETE)
9 N/A Not available (replaced by #3 991-2202)
10 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE)
