Parts List Complete for MINUTE PORT A SCRUB

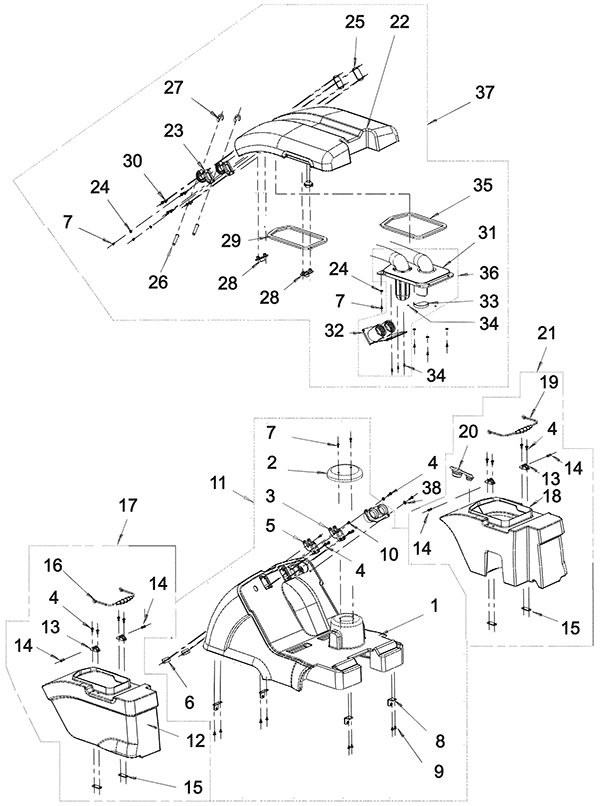

Tank Assembly - Version 1 Electric - 174-1032
RefNbr Part Number Description Req Notes
1 274-9546 HOUSING-BOTTOM 1
2 374-2798 CAP-V.M 1
3 274-0556 HINGE-YOKE-LID RIGHT 1
4 374-1400 SCR-CR PH-SS 14
5 274-0558 HINGE-YOKE LIDE LEFT 1
6 274-0601 MOUNTING PLATE-BOTTOM HOUSING 2
7 374-1431 SCR-ST-A M3.5 X 13MM PH SS 8
8 274-1019 BRACKET-HOUSING 4
9 374-1391 SCR-CRCSK-M4X12 STEEL 8
10 374-1430 SCR-PH, ST, 3.5x10mm 304 SS 2
11 274-9588 ASSY-HOUSING BOTTOM 1
12 274-8746 TANK-FRESH 1
13 374-1854 BRACKET-TANK 4
14 374-2732 PIN-SPRING DOWEL-SS 4
15 274-0993 MOUNTING PLATE-TANK 4
16 274-2898 HANDLE-FRESH 1
17 274-8848 ASSY-TANK FRESH 1
18 274-9024 TANK-COLLECTION 1
19 174-9118 Recovery tank handle 1
20 274-0408 CAP-COLLECTION TANK 1
21 274-9090 ASSY-TANK COLLECTION 1
22 274-8976 LID 1
23 274-0557 HINGE-HOOK-LID 2
24 374-1444 WSR, 4.0 x 8.0 x 0.5 304 SS 6
25 274-0602 MOUNTING PLATE-LID 2
26 374-1502 PIN-HINGE LID 2
27 374-1470 CIRCLIP-SS 2
28 374-1507 GUIDE-HOSE 2
29 274-6155 GASKET-FRESH 1
30 374-1401 SCR-CR PH 8
31 274-3410 HOLDER-FLOAT 1
32 274-0724 MOUTH-LID 1
33 374-2799 OUTLET-DISC LID 1
34 374-1471 RIVET-ALUMINIUM 5
35 274-5792 GASKET-COLLECTION 1
36 274-5787 ASSY-FLOAT 1
37 274-9470 ASSY-COVER TOP 1
38 374-1445 WSR-SS 2

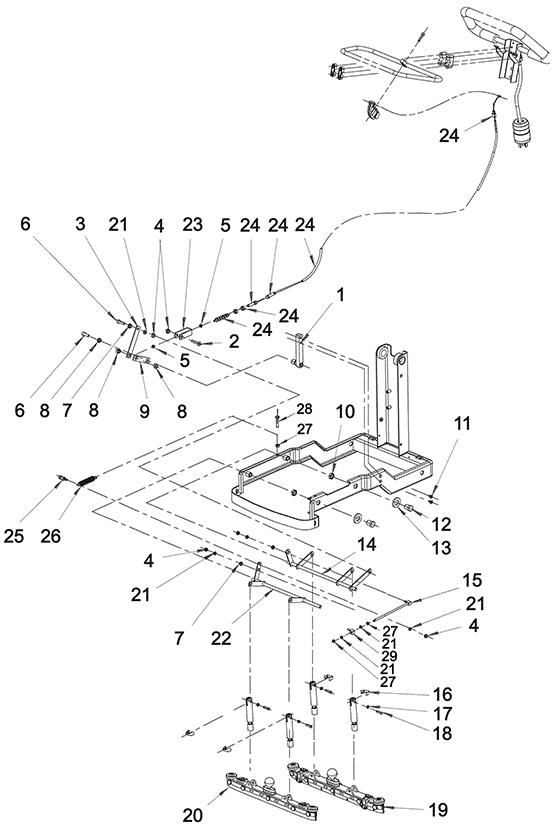

Squeegee Lift Assembly - Version 1 Electric - 174-1033
RefNbr Part Number Description Req Notes
1 274-2933 ASSY-FULCRUM 1
2 274-1118 SCR-HEX SOC CSK HEAD M6X30 1
3 274-0318 LINK-75 1
4 374-1455 HEX NYLOCK NUT-STEEL GR.8 -M6 -LOW 5
5 374-1404 NUT-HEX 2
6 374-1420 INSERT 3/8 16 BLOWMOLD 2
7 374-2070 BUSH-SQUEEGEE 3
8 374-2017 SPACER-3.25 3
9 274-0212 LINK-50 1
10 374-1501 NUT-SQUEEGEE ROD 2
11 374-1414 HEX SOC CSK HD SCREW M5X20 2
12 374-1500 SCR-PIVOT-SQUEEGEE 2
13 374-1503 WSR-SQUEEGEE 2
14 274-4885 ASSY-SQUEEGEE ROD REAR 1
15 274-2130 STUD-ADJUST 1
16 374-1858 CLIP-CLAMP 4
17 374-1864 BUSH-SQUEEGEE 9.8 4
18 374-1853 PIN-6 PILLAR SQUEEGEE 4
19 274-8547 REAR SQUEEGEE ASSY (14) 1
20 274-8584 SQUEEGEE FRONT 1
21 374-1442 WASHER STEEL - 6.4X12.5X1.6 6
22 274-4530 ASSY-SQUEEGEE ROD FRONT 1
23 274-1431 BRACKET- inchU inch-ROPE 1
24 274-4886 ASSY-SQUEEGEE CABLE 1
25 374-2271 PIN-HOOK SPRING 1
26 374-2875 HOOK-SPRING 1
27 374-1406 NUT-HEX 3
28 374-1388 SCR-HH 1
29 274-0220 CONNECTOR-LINK 1

Brush Head Assembly - Version 1 Electric - 174-1034
RefNbr Part Number Description Req Notes
1 274-7905 COVER-DRIVE END 1
2 174-8559 Bearing 6003 seal 6
3 274-2650 ASSY-GEAR SPROCKET 2
4 274-1844 Drive pulley 2
5 374-1485 Washer 2
6 374-1805 O-ring 4
7 274-5524 Idler assembly 2
8 374-1418 Screw 2
9 999-0773 Screw M6-1 x 16mm flat socket head stainless steel 8
10 274-7539 COVER-IDLER END (OBSOLETE) 1
11 274-1843 PIN-BRUSH WHEEL 2
12 374-2750 Brush wheel 2
13 274-4545 PIN-IDLER END 2
14 374-1855 SPACER-IDLER END 2
15 274-5832 SUB ASSY-BRUSH IDLER 2
16 374-1446 WSR-SS 2
17 274-0485 NUT-CAP M10 DOMED-SS 2
18 274-2432 KNOB IDLER COVER (14 inch) 1
19 374-1450 O-RING 6 X 2.0MM 1
20 374-2966 HOLDER-SQUEEGEE 4
21 374-1437 DOMED CAP NUT-SS 304-M6 8
22 274-0334 keyway 2

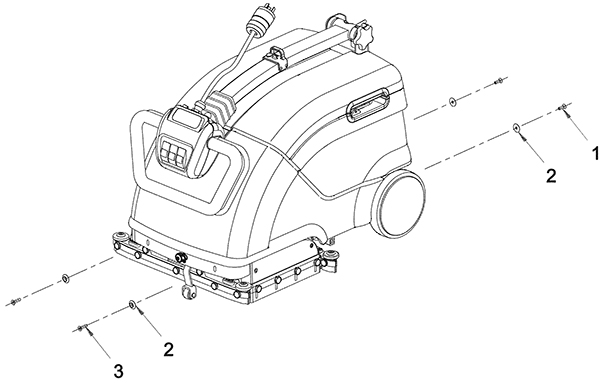

Cover Assembly - 174-1035
RefNbr Part Number Description Req Notes
1 374-1787 SCR-HEX SOC CSK HEAD-SS 2
2a 374-1506 WSR-DEFLECTOR 4 (version 1 electric models)
2b 374-1485 Washer 2 (version 2 electric models and battery model)
3 374-2051 SCR-HEX SOC CSK HEAD-SS 2 (version 1 electric models)

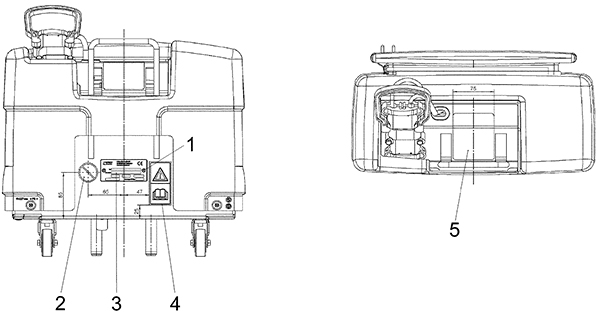

Decal Assembly - Battery Model - 174-1036
RefNbr Part Number Description Req Notes
1 274-2916 BLIND RIVET 2
2 174-5256 High pressure cleaner decal 1
3 174-9540 Nameplate 1
4 274-1313 DECAL INSTRUCTION MANUAL 1
5 N/A Not available 1 (Protection decal)

Base Frame Assembly - Version 1 Electric - 174-1037
RefNbr Part Number Description Req Notes
1 174-5204 Base frame assembly 1
2 N/A Not available 2 (spacer)
3 274-7268 WHEEL ASSY FOR 14 inch 2
4 274-3697 BEARING-6000ZZ 4
5 274-1727 PIN-WHEEL 2
6 274-0994 COVER-WHEEL 2
7 274-2699 PIN-HEX SOC HEAD 1
8 274-2154 BUSH-PILLAR HANDLE RH 1
9 274-3294 BUSH-PILLAR HANDLE LH 1
10 274-4448 KNOB-HANDLE 1
11 274-3665 COVER-PILLAR 1
12 999-1601 Screw M5 x 10 flat head stainless steel 2
13 374-1804 O-RING 10.0 X 2.5mm (14) 1
14 174-6538 Parking wheel bracket (OBSOLETE) 1
15 374-1439 SCR-CRCSK HEAD SELF TAP 2
16 374-2967 KNOB-PARKING WHEEL 1
17 374-1400 SCR-CR PH-SS 1
18 274-4884 STAND 1
19 274-0992 WHEEL, PORT A SCRUB 1
20 274-3164 CLEVIS PIN, PORT A SCRUB 1
21 374-1494 CIRCLIP, PORT A SCRUB 1
22 274-5324 KIT-PARKING WHEEL 1
23 274-0555 HANDLE-LIFTING 1
24 374-1457 WSR-SPRING-ST (14 inch) 1
25 374-1441 WASHER STEEL - 4.3X9.0X0.8 1

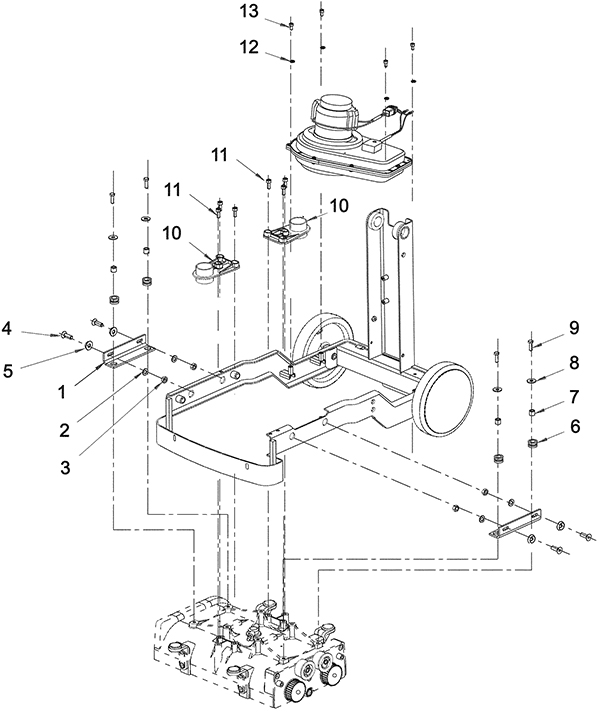

Drive Assembly - Version 1 Electric Models - 174-1038
RefNbr Part Number Description Req Notes
1 274-3295 BRACKET-BRUSH HEAD 2
2 374-1488 WSR-6.4X18X2, PORT A SCRUB 4
3 374-1455 HEX NYLOCK NUT-STEEL GR.8 -M6 -LOW 4
4 374-1787 SCR-HEX SOC CSK HEAD-SS 4
5 374-1485 Washer 4
6 374-1859 GROMMET-BRUSH HOUSING 4
7 374-2016 SLEEVE-BRUSH HOUSING 4
8 374-1443 WSR 4
9 374-1387 SCR-HH 4
10 274-1222 BASE-VALVE 2
11 174-0221 1/4 brass fitting 6
12 374-1486 WSR-5.2X10X1.6, PORT A SCRUB 4
13 374-1402 SCR-CR PH-SS 4

Electrical Assembly - Version 1 Electric Models -

RefNbr Part Number Description Req Notes

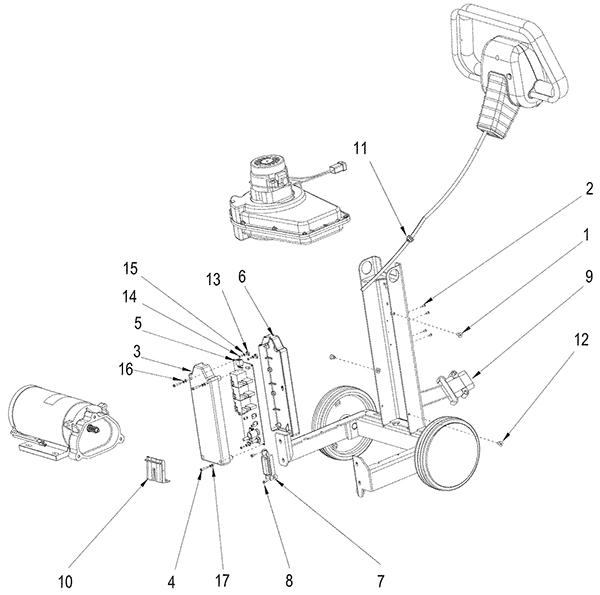

Electrical Assembly - Battery Models - 174-1040
RefNbr Part Number Description Req Notes
1 999-1601 Screw M5 x 10 flat head stainless steel 2
2 374-1439 SCR-CRCSK HEAD SELF TAP 4
3 N/A Not available 1 (top relay mounting bracket)
4 174-9149 Screw M3.5 x 25mm self tapping 3
5 174-6039 Relay board assembly 1
6 174-6040 Relay board mounting bracket 1
7 174-6048 Fuse holder 1
8 174-6053 Screw M5 x 16mm pan head stainless steel 2
9 174-6075 Battery plug assembly male 1
10 274-0101 BRACKET-CAPACITOR 1
11 174-6114 Data cable assembly 1
12 374-1438 SCR-CRCSK HEAD SELF TAP 2
13 174-6206 Relay channel 3
14 N/A Not available 3 (screw)
15 N/A Not available 3 (washer)
16 N/A Not available 3 (washer)
17 N/A Not available 3 (rubber bushing)

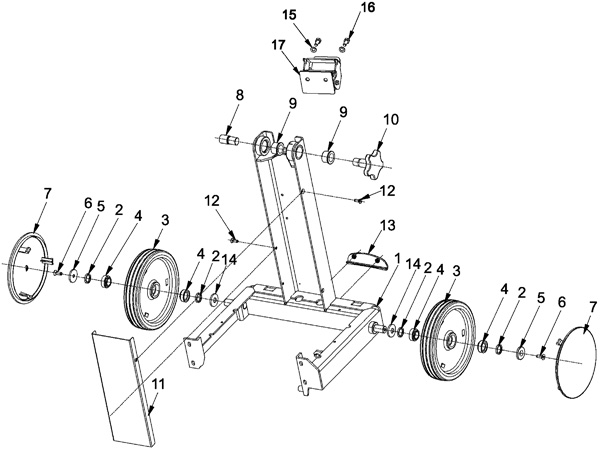

Chassis Assembly - 174-6432
RefNbr Part Number Description Req Notes
1a 174-9066 Base frame assembly 1 (battery model)
1b 174-9065 Base frame assembly 1 (electric model)
2 374-1925 SEAL - WHEEL 4
3 274-7268 WHEEL ASSY FOR 14 inch 2
4 374-1924 BUSH-WHEEL 4
5 374-2783 WASHER-MAIN WHEEL 2
6 999-0773 Screw M6-1 x 16mm flat socket head stainless steel 2
7 274-0994 COVER-WHEEL 2
8 274-2699 PIN-HEX SOC HEAD 1
9 374-1670 BUSH LH&RH- PILLAR HANDLE 2
10 274-4448 KNOB-HANDLE 1
11a 274-3356 COVER W/SEAL 1 (battery model)
11b 274-3665 COVER-PILLAR 1 (electric model)
12 999-1601 Screw M5 x 10 flat head stainless steel 2
13 174-9068 Lifting handle 1
14 174-9069 Washer 2 (battery model)
15 174-9070 Washer 2 (battery model)
16 999-0784 Screw M8-1.25 x 16mm hex head stainless steel 2 (battery model)
17 174-9067 Battery holder assembly 1 (battery model)

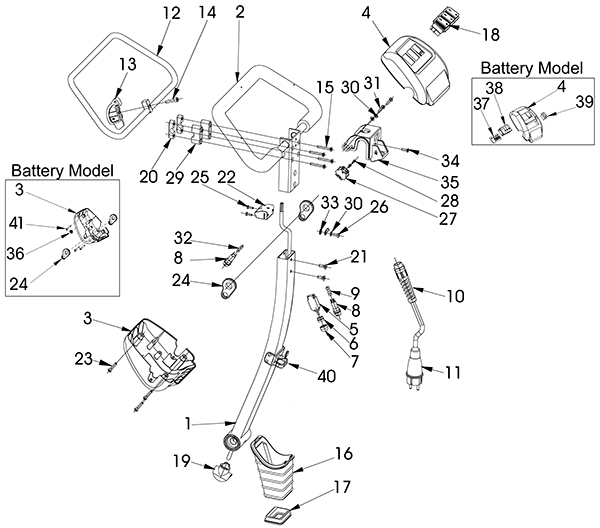

Handle Assembly - 174-6433
RefNbr Part Number Description Req Notes
1a 174-3374 Handle arm weldment 1 (version 2 electric and battery model)
1b 274-7955 ASSY-HANDLE 1 (version 1)
2a 174-3375 Steering arm 1 (version 2 and battery model)
2b 274-7927 ASSY-STEERING 1 (version 1)
3a 274-5207 SWITCH COVER - BOTTOM PORT-A-SCRUB GREY 1 (electric models)
3b 174-9077 Bottom switch cover 1 (battery models)
4a 174-9071 Top switch cover 1 (electric models)
4b 174-9079 Top switch cover 1 (battery models)
4c 274-3586 SWITCH COVER - TOP PORT-A-SCRUB 1
5 274-0765 CIRCUIT BREAKER - 9A 115 VOLT 1 (electric models)
6 374-1498 NUT-CIRCUIT BREAKER 1 (electric models)
7 374-2741 CAP, PORT A SCRUB 1 (electric models)
8 274-2897 FUSE HOLDER 2 (electric models)
9 374-2352 FUSE- T10A 115 VOLT 1 (electric models)
10 274-2356 CORD STRAIN RELIEF W/SPIRAL BS GD PG 16 1 (electric models)
11 274-7920 CORD ASY, ES14 REPLACEMENT CORD 1 (electric models)
12a 274-7357 ASSY-SHIFTER 1 (electric models)
12b 174-9078 Shifting lever assembly 1 (battery models)
13 274-2104 BRACKET-SHIFTER 1 (electric models)
14 374-1419 SCR-CAP HEX SOC HEAD M6X25 1 (electric models)
15 999-1674 Screw M5-.8 x 35mm socket head stainless steel 4
16 274-2614 BELLOW-HANDLE 1
17 174-3373 Handle cover plug 1
18a 174-9073 Switch 3 (version 2 electric models)
18b 274-7421 SWITCH-BM (version 1 electric models)
18c 274-7423 SWITCH-PUMP 1 (version 1 electric models)
18d 274-7422 SWITCH-VM 1 (version 1 electric models)
19 174-3372 Lower handle boot 1
20 274-0337 GUIDE-SHIFTER TOP 2
21a 999-0773 Screw M6-1 x 16mm flat socket head stainless steel 2 (version 2 elecric and battery model)
21b 374-1411 SCR-HEX SOC CSK HEAD 2 (version 1 model)
22 274-0886 GUIDE-ROPE 1
23 374-1434 SCR-CR PH SELF TAP 3
24 374-1860 GROMMET-SWITCH COVER 2
25 374-1400 SCR-CR PH-SS 2
26 374-1396 SCR-CR PH-ST 1 (electric models)
27 274-3335 CONNECTOR-ELEC BOX 1 (electric models)
28 374-1431 SCR-ST-A M3.5 X 13MM PH SS 2 (electric models)
29 374-1938 GUIDE-SHIFTER BOTTOM 2
30 374-1486 WSR-5.2X10X1.6, PORT A SCRUB 3
31a 374-1433 CRPH SELF TAPPING SCREW - 4.8X16 2 (electric models)
31b 374-1435 SCREW-CRPH SELF TAPPING 2 (battery models)
32 374-1862 FUSE-T0.5A 1
33 374-1458 WSR-EXTERNAL TOOTH-ST 1
34a 999-1601 Screw M5 x 10 flat head stainless steel 1 (version 2 electric models)
34b 999-1601 Screw M5 x 10 flat head stainless steel 1 (battery models)
35 174-3413 Channel bracket 1 (version 2 and battery model)
36 174-9076 Cap 1 (battery models)
37 174-7111 Control board 1 (battery models)
38 174-9072 Controller board bracket 1 (battery models)
39 174-7112 Main switch with connector 1 (battery models)
40 174-3371 Cord retainer 1
41 374-1434 SCR-CR PH SELF TAP (battery models)

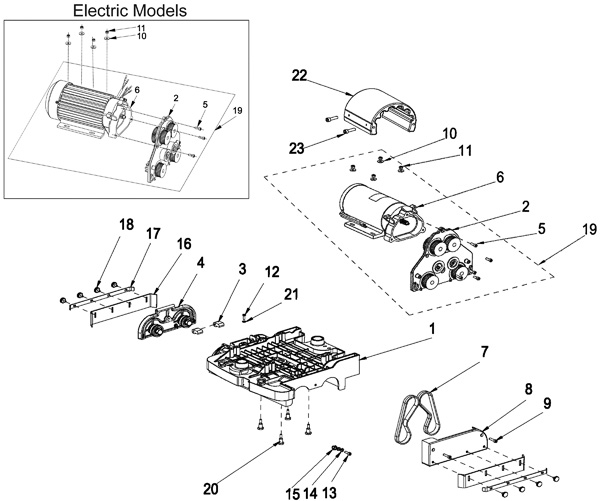

Brush Housing Assembly - 174-6434
RefNbr Part Number Description Req Notes
1a 274-8467 HOUSING - BRUSH 1 (version 2 electric models)
1b 174-9080 Brush housing with insert assembly 1 (battery models)
1c 274-9543 HOUSING-BRUSH 1 (version 1 electric models)
2a 174-9063 Gear support housing assembly 1 (version 2 electric models and battery models)
2b 274-9062 ASSY-BRUSH DRIVE SUPPORT 1 (version 1 electric models)
3 274-0449 Hinge 2
4a 274-7686 IDLER SUPPORT ASSY BRUSH 1 (version 2 electric models)
4b 174-9081 Brush idler support assembly 1 (battery models)
4c N/A Not available 1 (version 1 electric models) (brush idler support assembly)
5 174-0221 1/4 brass fitting 3
6a 274-9705 BRUSH MOTOR 1 (version 2 electric models)
6b 174-9082 Brush motor with connector 1 (battery models)
6c 274-9410 BRUSH MOTOR (14 inch) 115V 1 (version 1 electric models)
7a 274-6684 Belt 2 (version 2 electric models and battery models)
7b 274-6032 BELT-DRIVE 475-5M-15HTD 2 (version 1 electric models)
8a 274-3356 COVER W/SEAL 1 (version 2 electric models and battery models)
8b 274-3701 COVER-BELT 1 (version 1 electric models)
9 374-1419 SCR-CAP HEX SOC HEAD M6X25 2
10 374-1488 WSR-6.4X18X2, PORT A SCRUB 4
11 374-1455 HEX NYLOCK NUT-STEEL GR.8 -M6 -LOW 4
12 374-1402 SCR-CR PH-SS 1
13 174-0221 1/4 brass fitting 1
14 374-1442 WASHER STEEL - 6.4X12.5X1.6 2
15 374-1437 DOMED CAP NUT-SS 304-M6 1
16 274-5292 SQ SIDE PAS 14/E20C 2
17a 274-0289 STRIP-FLASH GUARD 2 (version 2 electric models and battery model)
17b 274-0289 STRIP-FLASH GUARD 2 (version 1 electric models)
18 374-2751 Knob 8
19a 174-9087 Geared motor with drive 1 (version 2 electric models)
19b 174-9084 Geared motor 1 (battery models)
19c 374-0037 MOTOR-GEARED 115 VOLT 1 (version 1 electric models)
20 174-9085 Brush housing stud 4 (version 2 electric models and battery models)
21 374-1486 WSR-5.2X10X1.6, PORT A SCRUB 1
22 174-9086 Motor weight 1 (battery models)
23 999-1675 Screw M6-1 x 30mm socket head stainless steel 2 (battery models)

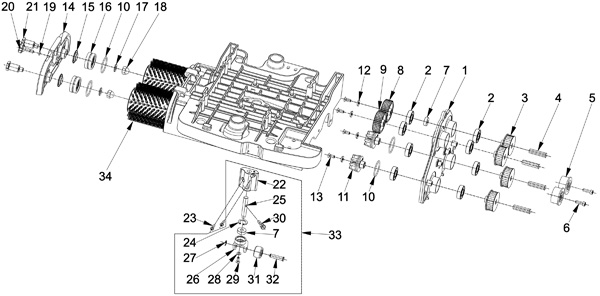

Brush Head Assembly - Version 2 Electric and Battery Model - 174-6435
RefNbr Part Number Description Req Notes
1 174-9088 Gear support housing 1
2 174-8559 Bearing 6003 seal 8
3 274-3538 Sprocket 4
4 274-0334 keyway 4
5 274-5524 Idler assembly 2
6 374-1418 Screw 2
7 274-3331 Bearing 2
8 274-7885 GEAR-LH 1
9 274-7884 Right hand gear 1
10 374-1805 O-ring 4
11 274-1844 Drive pulley 2
12 374-1485 Washer 4
13 999-0773 Screw M6-1 x 16mm flat socket head stainless steel 4
14 274-5614 COVER IDLER END 1
15 374-1855 SPACER-IDLER END 2
16 274-4623 IDLER PULLEY, BRUSH 2
17 374-1446 WSR-SS 2
18 274-0485 NUT-CAP M10 DOMED-SS 2
19 374-1450 O-RING 6 X 2.0MM 1
20 274-2432 KNOB IDLER COVER (14 inch) 1
21 174-9090 Idler pin 2
22 374-2778 BRACKET-PARKING WHEEL 1
23 374-1433 CRPH SELF TAPPING SCREW - 4.8X16 2
24 174-9091 Clip 1
25 174-9092 Parking stand pin 1
26 274-2456 BRACKET-CASTOR 1
27 374-1494 CIRCLIP, PORT A SCRUB 1
28 374-1622 WASHER-CASTOR 1
29 999-1601 Screw M5 x 10 flat head stainless steel 1
30 274-0229 KNOB-PARKING WHEEL 1
31 374-1623 PARKING WHEEL 1
32 274-1058 PIN-WHEEL 1
33 274-5324 KIT-PARKING WHEEL 1 (includes 7, 22 and 24-32)
34a 274-8698 BRUSH-MEDIUM SCRUB BLUE (SET OF 2) 2
34b 274-8605 BRUSH-LIGHT SCRUB BLACK (SET OF 2) 2
34c 274-8854 BRUSH-HEAVY SCRUB GREY (SET OF 2) 2

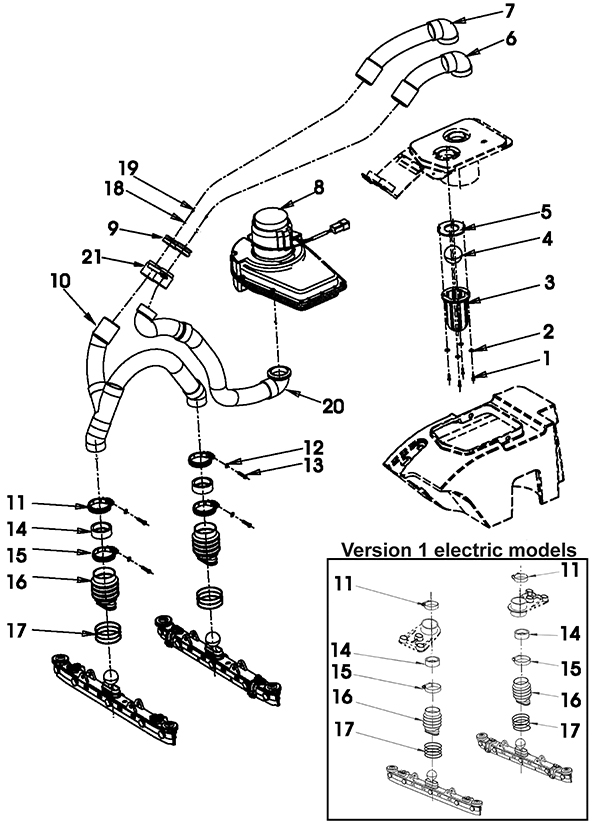

Vacuum Assembly - 174-6436
RefNbr Part Number Description Req Notes
1 374-1431 SCR-ST-A M3.5 X 13MM PH SS 4
2 374-1444 WSR, 4.0 x 8.0 x 0.5 304 SS 4
3 274-0554 GUIDE-FLOAT 1
4 274-1847 FLOAT 1
5 374-1958 GASKET-FLOAT 1
6 274-4805 ASSY-VACUUM HOSE 1
7 274-4806 ASSY-COLLECTION HOSE 1
8a 274-8217 VACUUM MOTOR SUB ASSY 1 (version 2 electric model)
8b 174-9094 Vacuum motor assembly 1 (battery model)
9 374-2753 GASKET-MOUTH 2
10 274-7080 ASSY-SQUEEGEE HOSE 1
11 374-2126 CLAMP-HOSE 4
12 174-9095 Washer 4 (battery models)
13 374-1434 SCR-CR PH SELF TAP 4 (battery models)
14 374-2752 VALVE-LIP 2
15 374-2199 CLAMP-BELLOW SQG 2
16 274-1366 BELLOW-SQUEEGEE 2
17 374-2191 RING-BELLOW 6
18 174-9096 Washer 2
19 374-1400 SCR-CR PH-SS 2
20 174-7045 Vacuum motor hose assembly 1
21 274-1845 BASE HOSE CONNECTION 1
N/S 174-7113 Vacuum motor capacitor 1

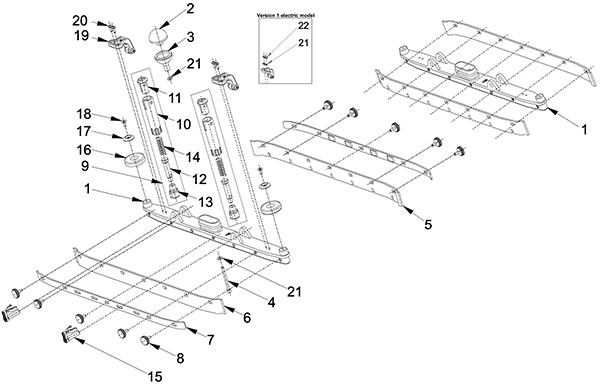

Squeegee Assembly - 174-6437
RefNbr Part Number Description Req Notes
1a 274-4783 BODY SQG 2 (version 2 electric model and battery model)
1b 274-5133 SEE NOTES SQUEEGEE-BODY FRONT 1 (version 1 electric model)
1c 274-5132 QUEEGEE-BODY REAR 1 (version 1 electric model)
2 374-2981 VALVE-BOTTOM 2
3 374-1504 VALE-TOP 2
4 374-1423 SCR-CAP HEX SOC HEAD-SS 2
5a 274-5414 SQUEEGEE-INNER, PORT A SCRUB 2
5b 174-7115 Squeegee blade rear urethane 2
6a 274-5350 SQUEEGEE-OUTER, PORT A SCRUB 14 2
6b 174-7114 Squeegee blade front urethane 2
7 274-1469 STRIP - LIP SQG 4
8 374-2751 Knob 20
9a 274-3110 ROD ASSY (14) 4 (version 2 electric model and battery model)
9b 274-5208 SUB ASSY-SQUEEGEE ROD (OBSOLETE) 4 (version 1 electric model)
10 374-2297 GUIDE - PILLAR SQG 4 (version 2 electric model and battery model)
11 374-1857 BUSH-PILLER SQUEEGEE TOP 4
12 274-2481 PIN-10 PILLAR SQUEEGEE 4
13a 274-0711 BUSH BOTTOM - PILLAR SQG 4 (version 2 electric model and battery model)
13b 274-2086 BUSH-BOTTOM-PILLAR SQUEEGEE (OBSOLETE) 4 (version 1 electric model)
14 374-1863 SPRING-PILLAR SQUEEGEE 4
15a 374-0897 CLIP (14) 4 (version 2 electric model and battery model)
15b 274-2105 KNOB-PILLAR 4 (version 1 electric model)
16 374-1957 DEFLECTOR-ROLLER 4
17 374-1506 WSR-DEFLECTOR 4
18a 374-1439 SCR-CRCSK HEAD SELF TAP 4 (version 2 electric model and battery model)
18b 374-1416 SCR-HEX SOC CSK HEAD-SS 4 (version 1 electric model)
19 174-6547 Squeegee wheel assembly 4
20 374-1435 SCREW-CRPH SELF TAPPING 8
21 374-1436 NUT-CAP DOMED-SS 8 (version 1 electric model)
22 374-1486 WSR-5.2X10X1.6, PORT A SCRUB 4 (version 1 electric model)
N/S 374-1402 SCR-CR PH-SS 8 (version 1 electric model)

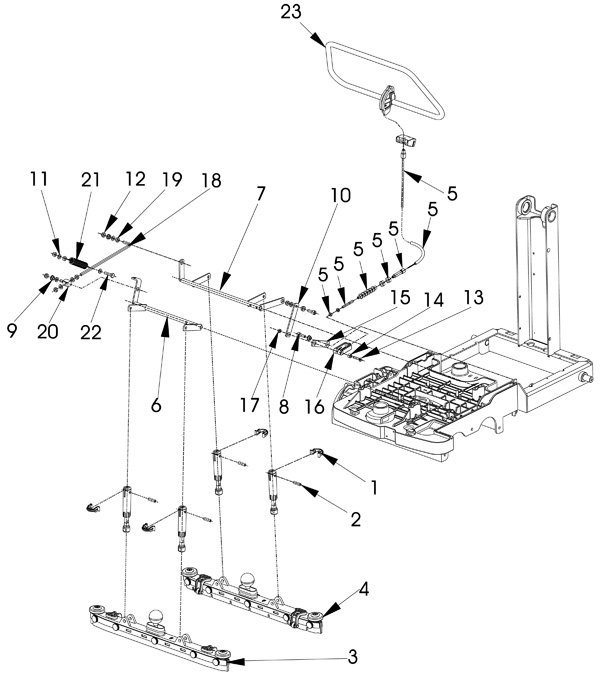

Squeegee Lift Assembly - Version 2 Electric and Battery Model - 174-6438
RefNbr Part Number Description Req Notes
1 374-1858 CLIP-CLAMP 4
2 374-1853 PIN-6 PILLAR SQUEEGEE 4
3 274-8584 SQUEEGEE FRONT 1
4 274-8547 REAR SQUEEGEE ASSY (14) 1
5 274-4886 ASSY-SQUEEGEE CABLE 1
6 174-9099 Front squeegee rod assembly 1
7 174-9100 Rear squeegee rod assembly 1
8 374-1420 INSERT 3/8 16 BLOWMOLD 2
9 174-9101 Squeegee bushing 4
10 274-0318 LINK-75 1
11 374-1442 WASHER STEEL - 6.4X12.5X1.6 7
12 374-1455 HEX NYLOCK NUT-STEEL GR.8 -M6 -LOW 4
13 374-1408 HEX-SOC-CSK-HD-SCREW 1
14 374-0896 BUSH 9.8-SQG 1
15 274-0212 LINK-50 1
16 374-1988 U BRACKET - STUD 1
17 374-1405 HEX NUT M5 3
18 174-9102 Stud 1
19 999-1308 Nut M6-1 hex stainless steel 4
20 174-9103 Connector 1
21 374-2875 HOOK-SPRING 1
22 374-1387 SCR-HH 1
23 174-9078 Shifting lever assembly 1

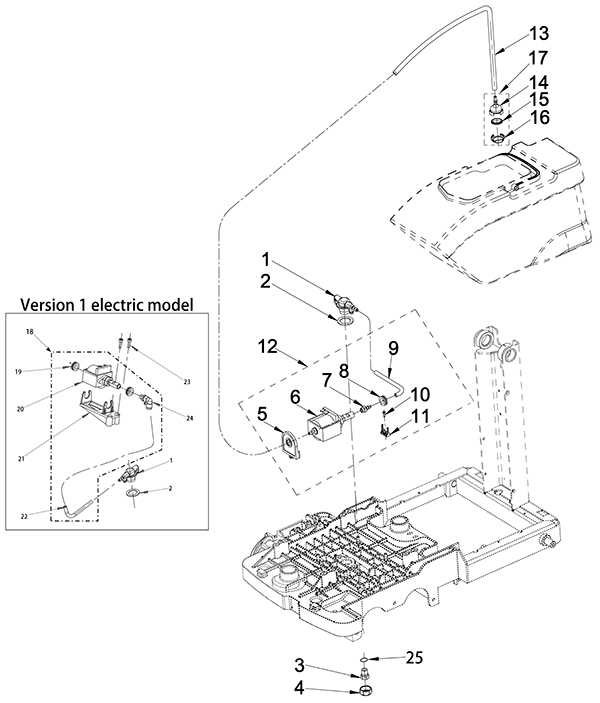

Solution Feed Assembly - 174-6439
RefNbr Part Number Description Req Notes
1 274-0995 HOLDER-NOZZLE 1
2 374-1508 WSR-NOZZLE 1
3 274-6620 ASSY-NOZZLE 1
4 374-1505 NUT-NOZZLE 1
5a 274-0466 VIBRATING PAD-PUMP 2 (electric models)
5b 174-9104 Pump bracket 2 (battery models)
6a 174-7055 Vibrating pump 1 (electric models)
6b 174-9105 Pump 1 (battery models)
7 174-9107 Pump connector 1 (version 2 electric models)
8 274-8508 PUMP VIBRATING - 230-240V50HZ 1 (version 2 electric models)
9 174-9108 Hose 1
10 374-1431 SCR-ST-A M3.5 X 13MM PH SS 1 (version 2 electric models)
11 174-9109 Pump clamp 1 (version 2 electric models)
12a 274-8209 PUMP ASSY 115V 60HZ 1 (includes 5a, 6a and 7-11) (version 2 electric models)
12b 174-9106 Pump kit 1 (includes 5b, 6b and 9) (battery models)
13 274-1846 HOSE-PUMP 1
14 174-9110 Filter housing (OBSOLETE) 1
15 274-0046 FILTER 1
16 374-1624 CAP-FILTER 1
17 174-6539 Filter 1
18 274-8582 PUMP ASSY 120V 60 HZ (14 inch) (OBSOLETE) 1 (version 1 electric model) (includes 19-24)
19 374-1493 NUT, PORT A SCRUB 2 (version 1 electric model)
20 174-7055 Vibrating pump 1 (version 1 electric model)
21 274-0863 BRACKET-PUMP (14 inch) 1 (version 1 electric model)
22 174-9108 Hose 1 (version 1 electric model)
23 374-1418 Screw 2 (version 1 electric model)
24 274-2651 ONE TOUCH MALE ELBOW (14 inch) 1 (version 1 electric model)
25 374-1451 O-RING 1 (version 1 electric model)

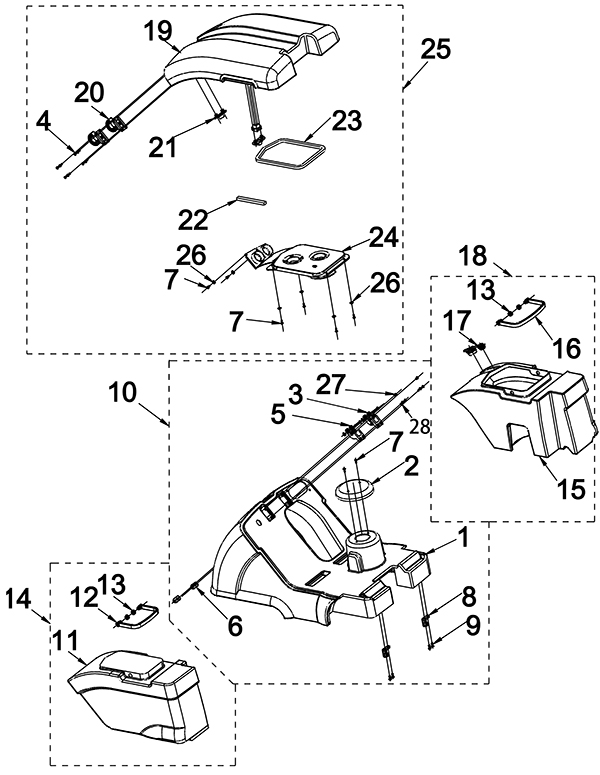

Tank Assembly - Version 2 Electric and Battery Model - 174-6440
RefNbr Part Number Description Req Notes
1 174-9111 Bottom housing 1
2 374-2798 CAP-V.M 1
3 274-0556 HINGE-YOKE-LID RIGHT 1
4a 374-1431 SCR-ST-A M3.5 X 13MM PH SS 6 (version 2 electric model)
4b 174-9149 Screw M3.5 x 25mm self tapping 12 (battery model)
5 274-0558 HINGE-YOKE LIDE LEFT 1
6 174-9112 Bottom housing mounting plate 2
7 374-1431 SCR-ST-A M3.5 X 13MM PH SS 8
8 274-1019 BRACKET-HOUSING 2
9 374-1391 SCR-CRCSK-M4X12 STEEL 4
10 174-9111 Bottom housing 1 (includes 1-9 and 27)
11 174-9114 Solution tank 1
12 174-9115 Solution tank handle 1
13 174-9116 Spacer 4
14 274-8299 TANK - FRESH ASSY 1 (includes 11-13)
15 174-9117 Recovery tank 1
16 174-9118 Recovery tank handle 1
17 274-0408 CAP-COLLECTION TANK 1
18 274-8610 TANK - COLLECTION ASSY 1 (includes 13 and 15-17)
19 274-8976 LID 1
20 274-0557 HINGE-HOOK-LID 2
21 374-1507 GUIDE-HOSE 2
22 274-6155 GASKET-FRESH 1
23 274-5792 GASKET-COLLECTION 1
24a 174-9119 Float holder assembly 1 (version 2 electric model)
24b 274-9949 Holder float assembly 1 (battery model)
25a 174-9120 Top cover assembly 1 (version 2 electric model) (includes 4, 7, 19-24 and 26)
25b 274-9950 Top cover assembly 1 (battery model)
26 374-1444 WSR, 4.0 x 8.0 x 0.5 304 SS 6
27a 374-1430 SCR-PH, ST, 3.5x10mm 304 SS 2 (version 2 electric model)
27b 374-1431 SCR-ST-A M3.5 X 13MM PH SS 2 (battery model)
28a 274-9951 Screw M3-.5 x 18mm 4 (battery model)
28b 374-1431 SCR-ST-A M3.5 X 13MM PH SS 6 (version 2 electric model)

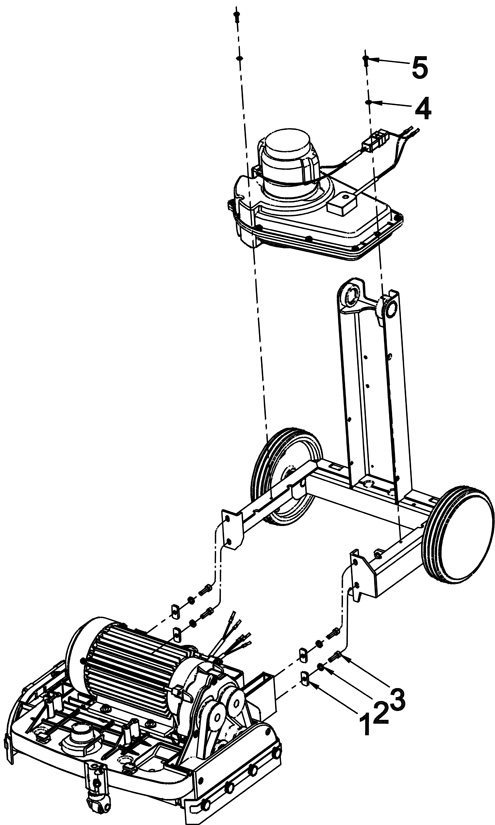

Brush Head Mount Assembly - Version 1 Electric Models and Battery Models - 174-6441
RefNbr Part Number Description Req Notes
1 174-9121 Housing support plate 4
2 374-1442 WASHER STEEL - 6.4X12.5X1.6 4
3 374-1418 Screw 4
4 374-1445 WSR-SS 2
5 374-1401 SCR-CR PH 2

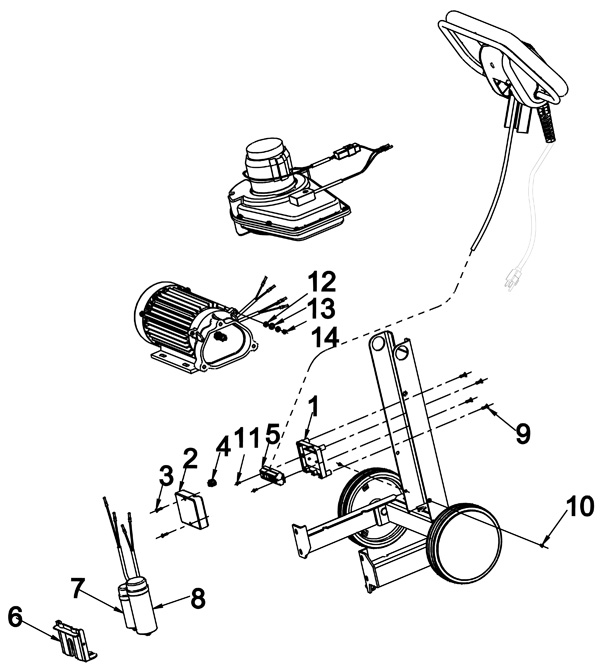

Electric Assembly - Version 2 Electric Models - 174-6442
RefNbr Part Number Description Req Notes
1 174-9122 Base terminal 1
2 374-2069 COVER-TERMINAL 1
3 374-1432 SCR-CR PH SELF TAP-SS 2
4 374-1861 GROMMET-TERMINAL 1
5 274-3953 CONNECTOR-PILLAR 1
6 274-0101 BRACKET-CAPACITOR 1
7 274-7220 ASSY-CAPACITOR 150-200?F 1
8 274-5833 CAPACITOR ASSY-60?F 1
9 374-1439 SCR-CRCSK HEAD SELF TAP 4
10 374-1438 SCR-CRCSK HEAD SELF TAP 2
11 374-1428 SCR-CR PH SELF TAP 2
12 374-1486 WSR-5.2X10X1.6, PORT A SCRUB 2
13 374-1458 WSR-EXTERNAL TOOTH-ST 1
14 374-1405 HEX NUT M5 1

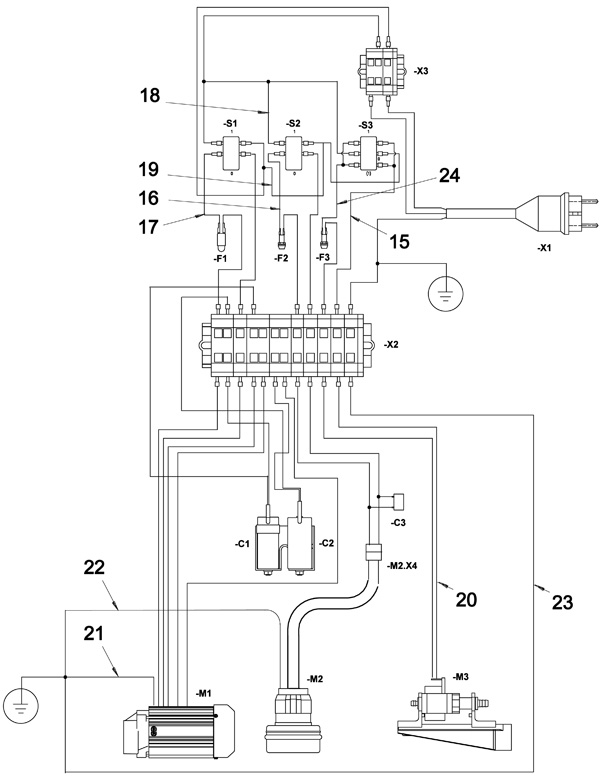

Wiring Diagram - Electric Models - 174-6443
RefNbr Part Number Description Req Notes
15 274-6555 ASSY-7 CORE CABLE 1
16 274-0573 WIRE ASSY-(S2 TO F2) 1
17 274-0667 WIRE ASSY-(S1 TO F1) 1
18 274-2080 WIRE ASSY-(X3 TO S1, S2 & S3 + VE) 1
19 274-2084 WIRE ASSY-(X3 TO S1, S2 & S3 - VE) 1
20 174-9123 2 core cable assembly (pump) 1
21 274-0717 ASSY-EARTH CABLE (BM) 1
22 174-9124 Cable assembly (vacuum motor) 1
23 274-0199 ASSY-EARTH CABLE (CONNECTOR) 1
24 274-1687 WIRE ASSY-(S2, S3 TO F3) 1

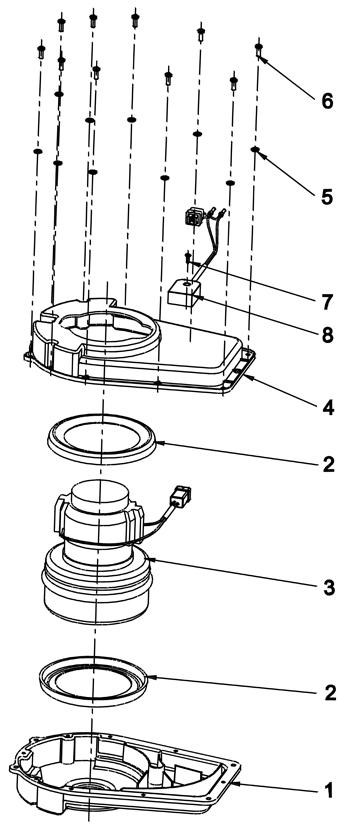

Vacuum Motor Assembly - 174-6444
RefNbr Part Number Description Req Notes
1a 274-4490 HSG BOTTOM - V.M 1 (version 2 electric model and battery model)
1b 274-4352 HOUSING-V.M BOTTOM 1 (version 1 electric model)
2 274-1077 GASKET-V.M 2
3a 274-9264 115V vacuum motor assembly with connector 1 (electric models)
3b 374-3006 Vacuum motor assembly with connector 1 (battery models)
3c 374-3007 Carbon brush (pkg of 2) 1 (battery models)
4a 274-4379 HSG TOP - V.M 1 (version 2 electric model and battery model)
4b 274-4124 HOUSING-V.M TOP 1 (version 1 electric model)
5a 374-1486 WSR-5.2X10X1.6, PORT A SCRUB 10 (version 2 electric model and battery model)
5b 374-1441 WASHER STEEL - 4.3X9.0X0.8 12 (version 1 electric model)
6a 374-1435 SCREW-CRPH SELF TAPPING 10 (version 2 electric model and battery model)
6b 374-1395 SCR-CR PH 6 (version 1 electric model)
7 374-1431 SCR-ST-A M3.5 X 13MM PH SS 1 (electric models)
8 174-7113 Vacuum motor capacitor 1 (electric models)
N/S 374-1403 NUT-HEX 6 (version 1 electric model)

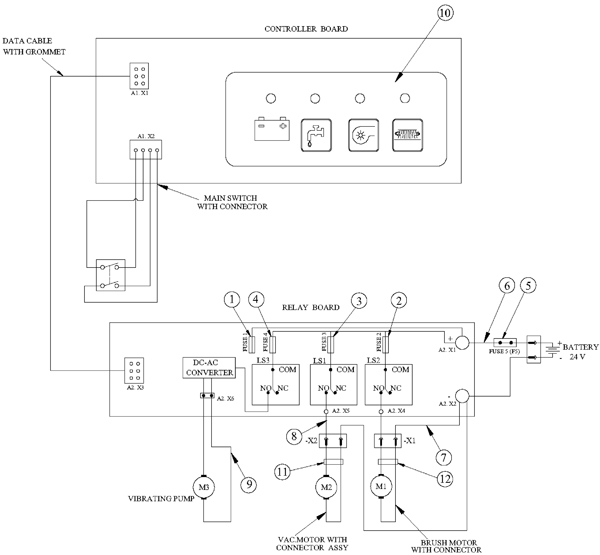

Wiring Diagram - Battery Models - 174-6445
RefNbr Part Number Description Req Notes
1 374-3008 1amp fuse 1
2 374-3009 35amp fuse 1
3 374-3010 25amp fuse 1
4 374-3011 5amp fuse 1
5 374-3012 50amp fuse 1
6 374-3013 Fuse cable link 1
7 374-3014 Brush motor cable assembly 1
8 374-3015 Vacuum motor cable assembly 1
9 374-3016 Pump cable assembly 1
10 374-3017 Panel 1
11 374-3018 Vacuum motor ferrite 1
12 374-3019 Brush motor ferrite 1

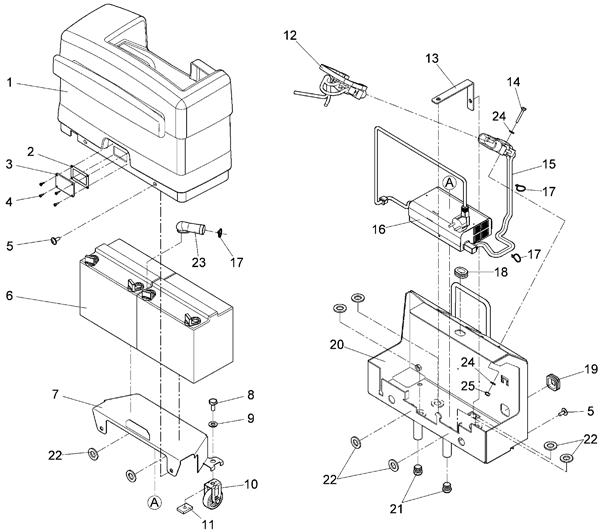

Power Trolley Assembly - Battery Models - 174-6446
RefNbr Part Number Description Req Notes
1 374-3020 Hood 1
2 274-1669 SEAL 1
3 274-1071 INSPECTION GLASS 1
4 374-3021 Screw 4
5 274-1312 LENS FLANGE SCREW 4
6 162-0001 12V 35Ah AGM battery 2
7 374-3022 Bracket 1
8 274-0632 BLT-HH M10 X 1.5 X 20 STL ZD 8.8 DIN 933 2
9 174-8888 Washer 2
10 174-8933 Fixed caster 2
11 374-3025 Spacer 2
12 374-3026 Battery cable 1
13 374-3027 Tension band 1
14 374-3028 Screw 2
15 374-3005 Onboard charger cord 1
16a 374-3004 Onboard charger 1
16b 174-9672 Charger, signet HBF300-24 1
17 274-0062 CABLE TIE 3
18 274-1310 CABLE SLEEVE 1
19 174-3494 Cable sleeve 1
20 374-3030 Console 1
21 374-3031 Sealing plug 2
22 174-9619 Rubber washer 8
23 374-3033 Lens cap 1
24 999-1261 Washer M6 flat stainless steel 4
25 999-0497 Nut M6-1 nylon insert lock stainless steel 2

- Commonly Asked For Parts - 174-9100
RefNbr Part Number Description Req Notes
01 174-8441 Spray nozzle retainer
02 174-8442 Spacer
03 174-6547 Squeegee wheel assembly
04 174-7055 Vibrating pump
05 174-2942 Clamp
06 174-2943 Cap
07 174-2944 Clamp
08 174-2945 Cable holder knob
09 174-2946 Guide
10 174-2947 Hard scrubbing brush (pkg of 2)
12 174-6551 Strip lid
13 274-4623 IDLER PULLEY, BRUSH
14 174-9063 Gear support housing assembly
15 274-8698 BRUSH-MEDIUM SCRUB BLUE (SET OF 2)
16 274-8605 BRUSH-LIGHT SCRUB BLACK (SET OF 2)
17 274-8854 BRUSH-HEAVY SCRUB GREY (SET OF 2)
18 274-5414 SQUEEGEE-INNER, PORT A SCRUB
19 274-5350 SQUEEGEE-OUTER, PORT A SCRUB 14
20 174-7111 Control board
21 174-7112 Main switch with connector
22 162-0001 12V 35Ah AGM battery 2
23 174-9672 Charger, signet HBF300-24 1
24 374-2966 HOLDER-SQUEEGEE
25 274-8129 BRUSH-STD PORT A SCRUB (SET OF 2)

- Pads - 255-1400
RefNbr Part Number Description Req Notes
01 255-1440 14 inch aqua plus burnishing pad (pkg of 5)
02 255-1435 14 inch Armadillo concrete scrubbing pad (pkg of 5)
03 255-1464 14 inch Blue ace pad (pkg of 5)
04 255-1442 14 inch Blue Jay burnishing pad (pkg of 5)
05 255-1412 14 inch Cure white pad (pkg of 5)
06 255-1477 14 inch Diamondback extreme stripping pad (pkg of 5)
07 255-1438 14 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2
08 255-1421 14 inch gorilla lite burnishing pad (pkg of 5)
09 255-1450 14 inch gorilla spray buff/polish/burnish pad (pkg of 5)
10 255-1465 14 inch Heat concrete bonding pad (pkg of 5)
11 255-1430 14 inch jaguar burnishing pad (pkg of 5)
12 255-1487 14 inch Melamine Mela-Kleen pad (pkg of 2)
13 255-1490 14 inch premium black stripping pad (pkg of 5)
14 255-1470 14 inch premium blue cleaning pad (pkg of 5)
15 255-1492 14 inch premium brown stripping pad (pkg of 5)
16 255-1480 14 inch premium green scrubbing pad (pkg of 5)
17 255-1460 14 inch premium red scrubbing pad (pkg of 5)
18 255-1452 14 inch premium tan polishing pad (pkg of 5)
19 255-1420 14 inch premium white polishing pad (pkg of 5)
20 255-1411 14 inch superspeed rubberized pad (pkg of 5)
21 255-1495 14 inch razorback stripping pad (pkg of 5)
22 255-1447 14 inch Redwood maroon floor prep pad (pkg of 10)
23 255-1455 14 inch Ruff non-abrasive brush pad (pkg of 2)
24 255-1423 14 inch sand screen driver pad (pkg of 2)
25 255-0120 14 inch Professional sand screen 100 grit (pkg of 10)
26 255-0121 14 inch Professional sand screen 120 grit (pkg of 10)
27 255-0122 14 inch Professional sand screen 180 grit (pkg of 10)
28 255-0119 14 inch Professional sand screen 60 grit (pkg of 10)
29 255-0205 14 inch Superscreen sand screen 100 grit (pkg of 10)
30 255-0206 14 inch Superscreen sand screen 120 grit (pkg of 10)
31 255-0207 14 inch Superscreen sand screen 180 grit (pkg of 10)
32 255-0204 14 inch Superscreen sand screen 60 grit (pkg of 10)
33 255-1424 14 x 20 inch Tiger carpet bonnet (pkg of 2)
34 255-9549 14 inch Diamond by Gorilla 11000 Grit (pkg of 2)
35 255-9546 14 inch Diamond by Gorilla 1500 Grit (pkg of 2)
36 255-9543 14 inch Diamond by Gorilla 200 Grit (pkg of 2)
37 255-9547 14 inch Diamond by Gorilla 3000 Grit (pkg of 2)
38 255-9544 14 inch Diamond by Gorilla 400 Grit (pkg of 2)
39 255-9545 14 inch Diamond by Gorilla 800 Grit (pkg of 2)
40 255-9548 14 inch Diamond by Gorilla 8000 Grit (pkg of 2)
41 255-9639 14 inch Diamond starter pack (1 of each grit)
42 255-1482 14 inch Turbostrip segmented rotary pad (pkg of 4)
43 255-1415 14 inch Duala clean and shine pad - low speed (pkg of 5)
44 255-1416 14 inch 2001 Duala clean and shine pad-high speed (pkg of 5)

- Pad Holders - 275-9029
RefNbr Part Number Description Req Notes
1 991-2214 Center-Lok II pad holder - left hand thread (red)
2a 991-2201 Center-Lok II pad holder - right hand thread (black) (Pad driver side female, Floor side male)
2b 991-8577 Pad retainer (Pad driver side male, Floor side female)
3a 991-2202 Big mouth pad holder set (blue) (includes 3 screws)
3b 991-2205 Deep lock ring and pad grip ring
4 991-2203 Big mouth pad holder male thread portion
5 991-2206 Center-Lok 3 pad holder (includes 3 screws)
6 996-0372 Big mouth pad holder (left hand thread)
7 N/A Not available
8 991-2209 Split retainer - pad holder ring (OBSOLETE)
9 N/A Not available (replaced by #3 991-2202)
10 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE)
Webpage Problem Reporting
