Parts List Complete for MINUTE MAX RIDE 20

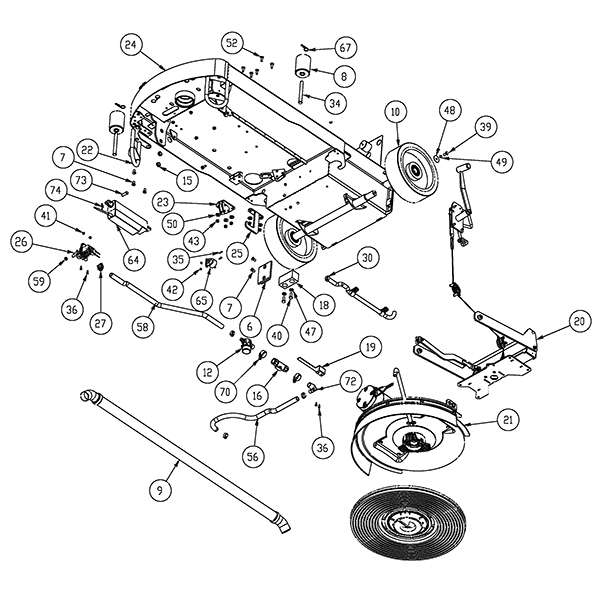

Frame Assembly 1 - 174-3521
RefNbr Part Number Description Req Notes
6 174-1072 Slide block 1
8 174-1078 2 1/2 inch bumper roller 2
9 174-1088 Vacuum hose 1 1/2 x 43 inch (clear) 1
10 174-1101 Wheel 254 x 80 mm 2
12 174-1102 Filter 1/2 x 1/2 inch 1
15 174-1103 1/2 inch flange bushing 3
16 174-1104 Ball valve 1/2 x 1/2 inch 1
18 174-1107 Pivot block 1
19 174-1108 Ball valve and filter mounting plate 1
20 174-1109 20 inch scrub head lift group (OBSOLETE) 1
21 174-1110 20 inch scrub head group 1
22 274-9829 Tip bar 1
23 274-9830 Pulley cover 1
24 174-1105 20 inch frame weldment 1
25 274-9831 Head stop 1
26 174-4433 Solution solenoid valve 1
27 174-6621 Hose clamp 1
30 174-8254 Hose clamp 4
34 174-1340 Clevis pin 1/2 x 4 1/2 inch zinc plated 2
35 999-0382 Screw 6-32 x 1/2 pan head slotted zinc plated 2
36 999-0723 Screw 10-32 x 1/2 pan head slotted stainless steel 4
39 174-5772 Bolt 5/16-18 x 5/8 hex head 2
40 999-0401 Bolt 5/16-18 x 7/8 hex head grade 5 zinc plated 2
41 999-0086 Nut 10-32 nylon insert lock zinc plated 2
42 999-0337 Nut 6-32 nylon insert lock stainless steel 2
43 999-0190 Nut 1/4-20 hex plain finish 5
47 999-0024 Washer 5/16 flat stainless steel 2
48 174-2255 Washer 5/16 x 7/8 x 3/64 flat 2
49 999-0028 Washer 5/16 split lock plain finish 2
50 999-0024 Washer 5/16 flat stainless steel 5
52 274-9832 Bolt 1/4-20 x .875 SS 5
56 174-1361 Hose 1/2 x 18 1/2 inch 1
58 174-1365 Hose 1/2 x 22 inch 1
59 174-1510 1/2 inch spacer 1
64 174-1849 Squeegee actuator - 40mm stroke - 750 n force term 1
65 174-8682 Back up alarm 1
67 174-0200 Cotter pin 2
70 174-3516 Hose clamp 2
72 174-1851 90 degree elbow fitting 1
73 174-1852 Clevis pin 3/8 x 1 1/8 zinc plated 1
74 174-1578 3/8 rue ring cotter pin 1

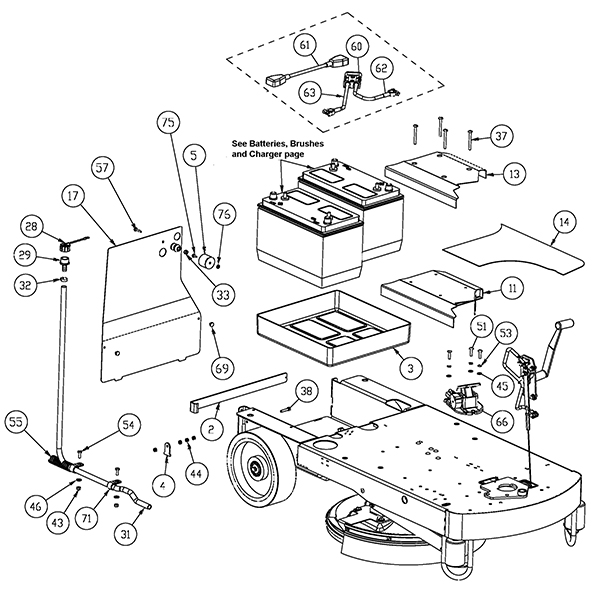

Frame Assembly 2 - 174-3522
RefNbr Part Number Description Req Notes
2 174-1853 Battery bar 1
3 174-1854 Battery box 1
4 174-1855 Battery bar retainer 1
5 174-1866 Rubber latch 1
11 174-1856 20 inch floor plate riser weldment 1
13 174-1857 20 inch riser anti skid tread 1
14 174-1858 20 inch frame anti skid tread 1
17 174-1106 20 inch rear battery box cover 1
28 174-1859 Breather cap with lanyard assembly 1
29 174-1860 1/2 inch hose barb garden hose fitting 1
31 174-1861 Hose 1/2 x 45 inch (clear) 1
32 997-2001 Hose clamp 1
33 999-9131 Nut M6 x 1 nylon lock stainless steel 1
37 174-1862 Screw truss head 1/4-20 x 2 1/2 inch stainless steel 4
38 999-0136 Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated 1
43 999-0190 Nut 1/4-20 hex plain finish 2
44 174-1943 Nut nyloc 1/4 x 20 x 1/2 4
45 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 3
46 999-0016 Washer 1/4 flat plain finish 2
51 999-1382 Screw 1/4-20 x 1 truss head phillips 4
53 999-0632 Washer 1/4 split lock stainless steel 3
54 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated 2
55 174-4444 Stainless steel compression spring 1
57 999-6728 Screw M6-1 x 25mm hex head zinc plated 1
60 162-5032 175amp charger plug only (red) SB175 1
61 174-8196 Jumper cable assembly red 4G 12 inch 1
62 174-0648 Red battery cable 1
63 174-0649 Black battery cable 1
66 174-1863 Floor throttle pedal assembly 1
69 174-1868 Rubber bumper 1/4 x 1/8 inch 2
71 174-1864 11/16 inch cable clamp 2
75 999-9116 Screw M6-1 x 12mm hex head stainless steel 1
76 999-1261 Washer M6 flat stainless steel 1

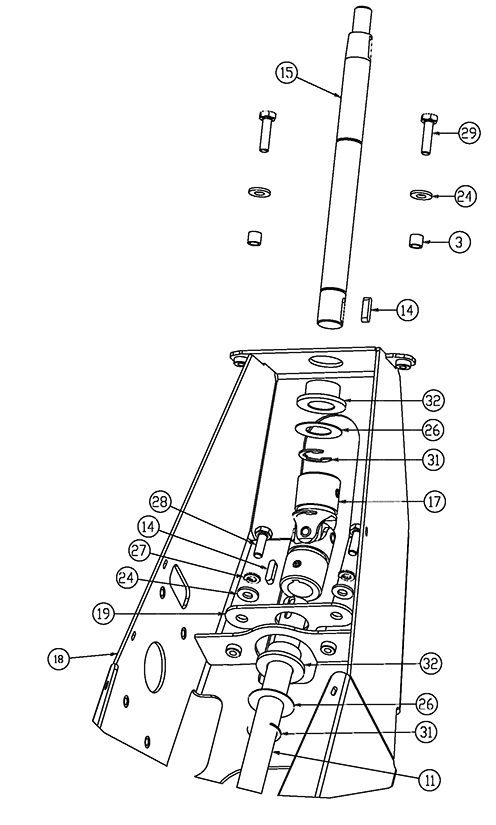

Tower Assembly 1 - 174-3523
RefNbr Part Number Description Req Notes
3 174-1869 Spacer17/64 inch 2
11 174-1870 Lower steering shaft 1
14 174-1871 Square key 3/16 x 3/16 x 3/4 inch 3
15 174-1872 Upper steering shaft 1
17 174-1873 25 degree U-joint 1
18 174-1874 Steering tower weldment 1
19 174-1875 Steering bearing plate 1
24 999-0016 Washer 1/4 flat plain finish 4
26 999-9114 Washer 3/4 flat stainless steel 2
27 999-0060 Washer 1/4 split lock plain finish 7
28 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated 2
29 999-0297 Bolt 1/4-20 x 1 hex head stainless steel 2
31 174-5728 Retaining ring 3
32 174-1265 Flanged bushing 2

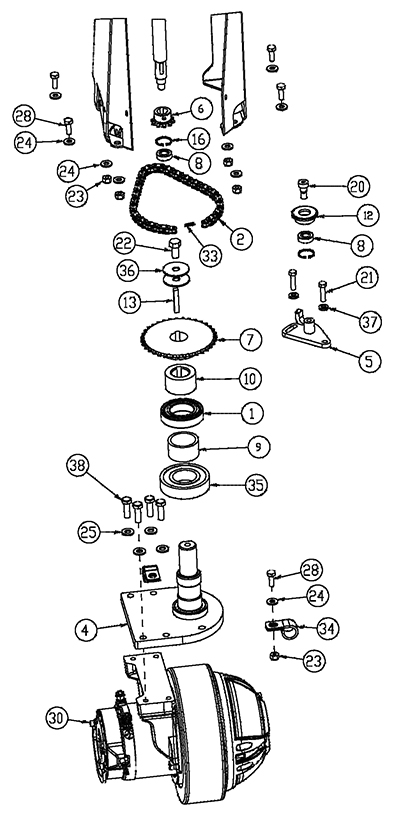

Tower Assembly 2 - 174-3524
RefNbr Part Number Description Req Notes
1 174-1876 Ball bearing 35mm x 62mm x 14mm 1
2 174-1877 #35 chain (45 links) 1
4 174-1878 Steering spindle weldment 1
5 174-1879 Chain tension bracket 1
6 174-1880 10 toothed sprocket 1
7 174-1881 35 toothed sprocket 1
8 174-1883 Ball bearing 2
9 174-1882 Spacer 1
10 174-1884 Steering stop pivot 1
12 174-1890 Chain tension guide 1
13 174-1891 Square key 1/4 x 1/4 x 1 1/2 inch 1
16 174-1892 Retaining ring 2
20 174-1893 Bolt 3/8 x 5/16 shoulder (black) 1
21 999-0297 Bolt 1/4-20 x 1 hex head stainless steel 2
22 999-0493 Bolt 3/8-16 x 3/4 hex head stainless steel 1
23 999-0190 Nut 1/4-20 hex plain finish 5
24 999-0016 Washer 1/4 flat plain finish 11
25 999-0024 Washer 5/16 flat stainless steel 4
28 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated 5
30 174-1894 Wheel drive, 24v 300w 1
33 274-0267 CHAIN MASTER LINK #35 1
34 174-1864 11/16 inch cable clamp 2
35 174-1895 Bearing 1
36 999-0035 Washer 3/8 x 1 1/2 fender 2
37 999-1049 Washer 1/4 split lock zinc plated 2
38 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel 4

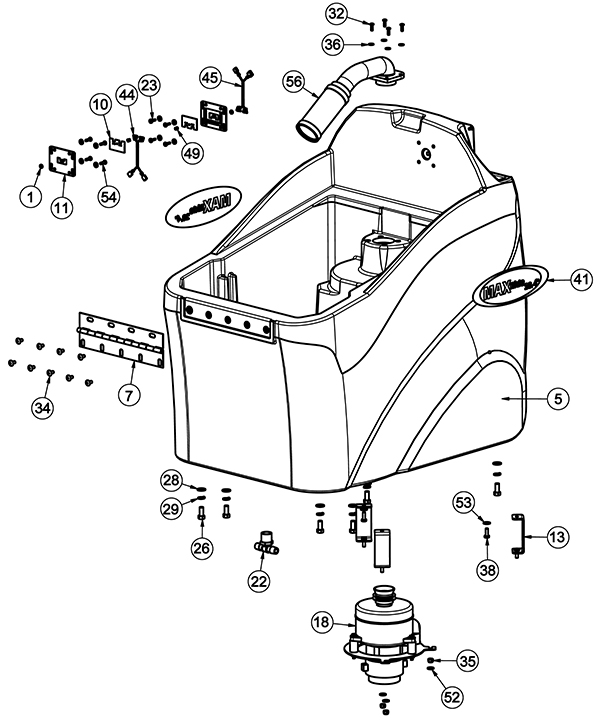

Tank Assembly 1 - 174-3525
RefNbr Part Number Description Req Notes
1 174-1899 Rivet 2
5 174-1970 Solution and recovery tank 1
7 174-1974 Hinge 1
10 174-1983 Interconnect insert plate NOT AVAILABLE - SEE NOTE 2 (This part is no longer available and is now split between - 174-6617 for the seat contact plate or 174-6618 for the tank contact plate )
11 174-2951 Interconnect base plate (OBSOLETE) 2 (use either 174-6617 for the seat contact plate or 174-6618 for the tank contact plate)
13 174-2952 Vacuum motor pillar weldment 3
18 174-2953 Vacuum and housing assembly 1
22 174-8224 Fitting 1/2 barb 3/4 mpt 1
23 999-0410 Screw 8-32 x 5/8 pan head slotted zinc plated 4
26 999-0494 Bolt 5/16-18 x 7/8 hex head stainless steel 6
28 999-0120 Washer 3/8 SAE flat 6
29 999-0034 Washer 3/8 split lock plain finish 6
32 999-0615 Screw 10-24 x 5/8 truss head slotted stainless steel 10
34 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel 9
35 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 3
36 999-0998 Washer #10 flat stainless steel 19
38 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated 3
41 174-2954 Max-ride 20 decal 2
44 174-2955 Seat switch wire assembly 1
45 174-2956 Seat swiitch connection wire assembly 1
49 174-2051 Pop rivet 2
52 999-0016 Washer 1/4 flat plain finish 3
53 374-0938 WASHER-CONICAL SPRING 1/4 3
54 174-2957 Screw 10-16 x 3/4 pan head hi/lo stainless steel 11
56 N/A Not available 1 (screened float filter unit)

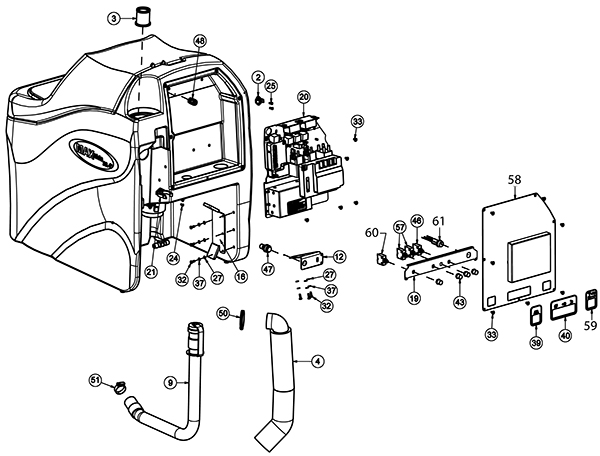

Tank Assembly 2 - 174-3526
RefNbr Part Number Description Req Notes
2 174-8263 Clip 1
3 174-8189 Fill port filter 1
4 274-6003 MUFFLER-VAC MOTOR, SCV 24/26 1
9a 174-2958 Drain hose with cap 1 1/2 x 30 1/2 inch 1
9b 991-9184 HOSE ASSEMBLY (FANG20,20T,24T,26T,28T) 1 (NON-OEM)
12 174-2959 Rear cover latch bracket 1
16 174-2960 Battery charger holder 1
19 174-2961 Circuit breaker bracket 1
20 174-2962 Electrical panel assembly 1
21 174-5968 1 1/2 inch hose clip 1
24 174-6229 Screw 8-32 x 3 3/4 flat head 2
25 174-6388 Screw #10-16 x 1/2 hi/lo 2
27 999-0412 Washer #8 SAE flat 6
32 999-0615 Screw 10-24 x 5/8 truss head slotted stainless steel 10
33 999-0585 Screw 10-24 x 3/8 truss head slotted stainless steel 12
37 999-0089 Washer #10 internal star lock zinc plated 6
39 174-2963 Brush motor decal 1
40 174-2964 Vacuum and drive motor decal 1
43 174-5824 Circuit breaker boot 4
46 174-8165 Circuit breaker 4.0 amp (push button) 1
47 174-8299 Charge status indicator 1
48 274-0381 Strain relief 1
50 174-1624 2 1/2 Hose clamp 1
51 174-3354 Hose clamp 1
57a 274-1163 30amp circuit breaker 2
51b 991-1629 35amp circuit breaker 2 (NON-OEM)
58a 174-2965 Electrical box cover 1 (Eco)
58b 174-2966 Electrical box cover 1 (Sport)
59 174-2967 Brush motor decal 1
60a 174-2968 30 amp circuit breaker 1
60b 174-5812 Circuit breaker 50amp 1
61 174-2969 Keyswitch assembly 1

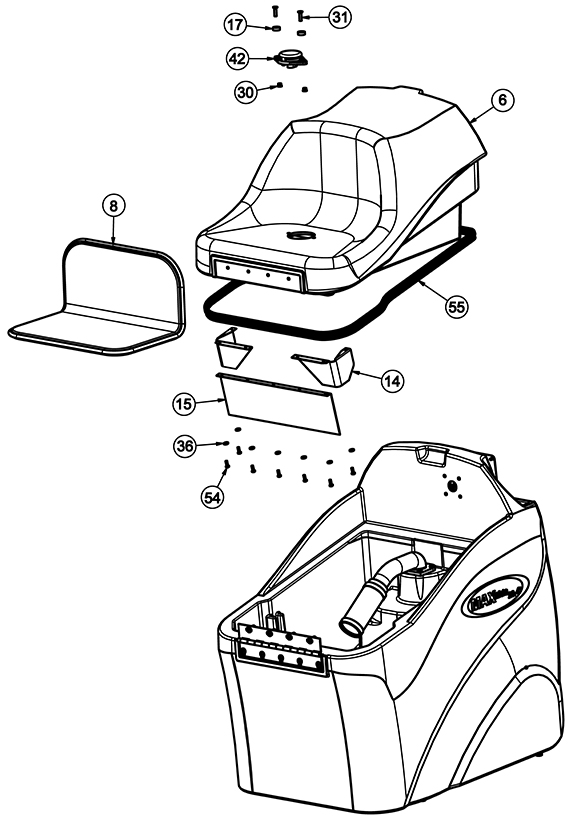

Tank Assembly 3 - 174-3527
RefNbr Part Number Description Req Notes
6 174-2970 Tank lid with seat 1
8 174-2971 Cushioned seat 1
14 174-2972 Lid drip skirt end piece 2
15 174-2973 Lid drip skirt center piece 1
17 174-2974 Spacer 25/64 2
30 174-2975 Nut 1/4-20 high torque 2
31 999-0297 Bolt 1/4-20 x 1 hex head stainless steel 2
36 999-0998 Washer #10 flat stainless steel 19
42 174-2976 Seat switch 1
54 174-2957 Screw 10-16 x 3/4 pan head hi/lo stainless steel 11
55 N/A Not available 1 (Press in rubber blade gasket)

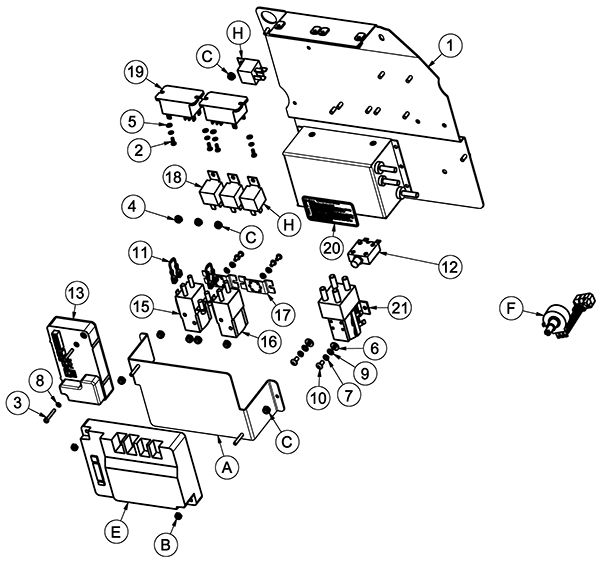

Electrical Panel Assembly - 174-3528
RefNbr Part Number Description Req Notes
1 174-2977 Electric chassis panel 1
2 174-5638 Screw 6-32 x 3/8 steel plated 4
3 999-0511 Screw 6-32 x 1 pan head phillips zinc plated 2
4 999-0086 Nut 10-32 nylon insert lock zinc plated 8
5 174-5230 Washer #6 flat 4
6 999-0006 Washer 3/16 flat zinc plated 2
7 174-5259 Washer #10 helical 2
8 174-5232 Washer #6 internal tooth locking 6
9 999-0089 Washer #10 internal star lock zinc plated 2
10 999-0817 Screw 10-24 x 5/8 round head zinc plated 2
11 174-0230 Diode assembly 2
12 174-2978 1 amp circuit breaker 1
13 174-2979 70 amp I drive 1
15 174-8375 24V brush motor relay 2 pole 80 amp 1
16 174-8389 24V vacuum motor relay 1 pole 80 amp 1
17 274-0493 BRACKET, RELAY 747615 & 747616 2
19 174-2981 40 amp dpdt relay 2
20 174-2982 Label for chargers 957760 and 957761 1
21 174-8373 24V main relay 2 pole 125 amp 1
A 174-2983 Bracket I-drive sport 1
B 999-0357 Nut 8-32 nylon insert lock stainless steel 2
C 999-0086 Nut 10-32 nylon insert lock zinc plated 3
E 174-2984 180 amp I-drive 1
F 174-2985 Potentiometer wire assembly 1

Steering Coloumn Assembly - 174-3529
RefNbr Part Number Description Req Notes
1 999-0182 Nut 1/2-20 hex plain finish 1
2 274-3207 BOOT - STEERING SHAFT, SCV 2426 1
3 174-2987 Left hand forward and reverse selector assembly 1
4 174-2988 Steering console front panel 1
5 174-2989 12 3/4 inch steering wheel 1
6 174-2990 3/16 thick pvc key switch spacer 1
7 174-2991 Key switch center panel 1
8 174-2992 Right hand function select panel 1
9 174-2993 Steering console 1
10 174-2748 Woodruff key 3/16 x 3/4 1
11 174-5638 Screw 6-32 x 3/8 steel plated 2
12 999-0337 Nut 6-32 nylon insert lock stainless steel 2
13 999-0016 Washer 1/4 flat plain finish 2
14 999-0187 Washer 1/2 flat plain finish 1
15 999-0060 Washer 1/4 split lock plain finish 2
16 999-0585 Screw 10-24 x 3/8 truss head slotted stainless steel 17
17 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated 2
18 174-2994 Decal forward and reverse selector 1
19 174-2995 Center panel key switch decal 1
20 174-2996 Brush lift decal 1
21 274-6252 Battery gauge 1
22 174-2997 Keyswitch assembly 1
23 174-8777 Horn switch 1
24 174-2998 Toggle switch 1
25 174-2999 Orange led push button switch 1
26a 174-3000 Function selector decal 1 (eco)
26b 174-3600 Function selector decal 1 (sport)
27a 174-3601 Led amber lamp assembly 1 (sport only)
27b 174-3602 Tinnerman clip 1 (sport only)

Scrub Head Assembly - 174-3530
RefNbr Part Number Description Req Notes
2 274-5508 HUB ASSEMBLY, DISC DECK 1
3 174-3603 Flange bushing 1
4 174-6640 Right angle drive stub shaft 1
5 174-3605 20 inch scrub head cover 1
6 174-3606 Pivot ring 1
7 174-3607 Retaining ring 1
8 174-3608 Square keyway 6 x 6 x .7mm 1
9 174-3609 Square keyway 6 x 6 x 2.625mm 1
10 174-3610 20 inch scrubdeck frame 1
11 174-3611 Deck skirt bracket 1
12 174-3612 Deck brush skirt 1
13 174-3613 Hose 3/8 x 16 1/2 inches 1
14 997-2001 Hose clamp 1
15 999-1070 Screw 10-32 x 5/8 truss head phillips stainless steel 2
16 999-0190 Nut 1/4-20 hex plain finish 6
17 174-3614 Washer 1/4 split lock stainless steel 4
18 999-0016 Washer 1/4 flat plain finish 4
19 174-3615 Washer 1 9/32 flat zinc 3
20 174-8169 Washer flat .37 x 1.12 x .10 1
21 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated 4
22 999-1134 Washer 1 1/4 flat stainless steel 1
23 999-0567 Screw 1/4-20 x 5/8 pan head phillips stainless steel 6
24 174-3617 Screw-socket head cap screw M6-1.0 x 12mm zinc plated 4
25 174-7184 Bolt M8-1.25 x 20mm hex head flange precote zinc plated 1
26 174-8314 Solution feed nozzle 1
27a 174-3618 Amer brush gear motor 1 (sport)
27b 174-3619 Amer brush gear motor 1 (eco) (eco)

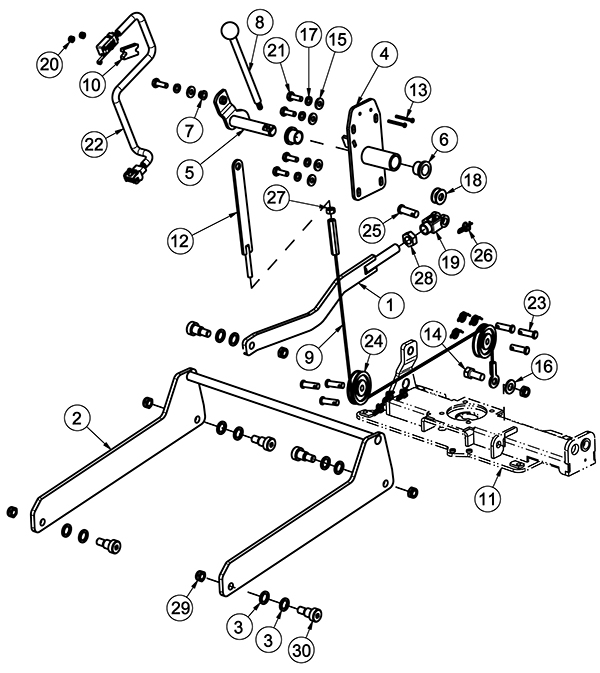

Scrub Head Lift Assembly - 174-3531
RefNbr Part Number Description Req Notes
1 174-3620 20 inch deck adjust link weldment 1
2 174-3621 20 inch scrubhead arm weldment 1
3 174-3622 Nylon flat washer 1/2 x 3/4 x 5/8 10
4 174-3623 20 inch head lift weldment 1
5 174-3624 Head lift shaft weldment 1
6 174-3625 5/8 inch flanged bushing 2
7 174-3626 1/4 inch flanged bushing 1
8 174-3627 Lever handle 1
9 174-3628 Cable 35 3/4 inch 1
10 174-3629 Switch bracket 1
11 174-3610 20 inch scrubdeck frame 1
12 174-3630 Deck lift end weldment 1
13 374-1056 SCR-MC 4-40 X 1.25 STL Z 1
14 999-0494 Bolt 5/16-18 x 7/8 hex head stainless steel 1
15 999-0016 Washer 1/4 flat plain finish 5
16 999-0120 Washer 3/8 SAE flat 1
17 999-0060 Washer 1/4 split lock plain finish 5
18 174-8193 Washer .390 x .880 x .062 flat 2
19 174-7162 Yoke clevis with pin 1
20 174-3631 Nut #4-40 nyloc stainless steel 2
21 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated 5
22 174-8264 Switch assembly (with pack conduit) 1
23 174-0190 Clevis pin 6
24 174-3632 Plastic groove pulley 2 x 1/4 inches 2
25 174-1852 Clevis pin 3/8 x 1 1/8 zinc plated 1
26 174-1578 3/8 rue ring cotter pin 7
27 174-3633 Hex nut 1/4-28 zinc plated 1
28 999-0714 Nut 1/2-20 hex jam stainless steel 1
29 999-0324 Nut 3/8-16 nylon insert lock jam zinc plated 6
30 174-5325 Bolt 1/2 x 1/2 shoulder 5

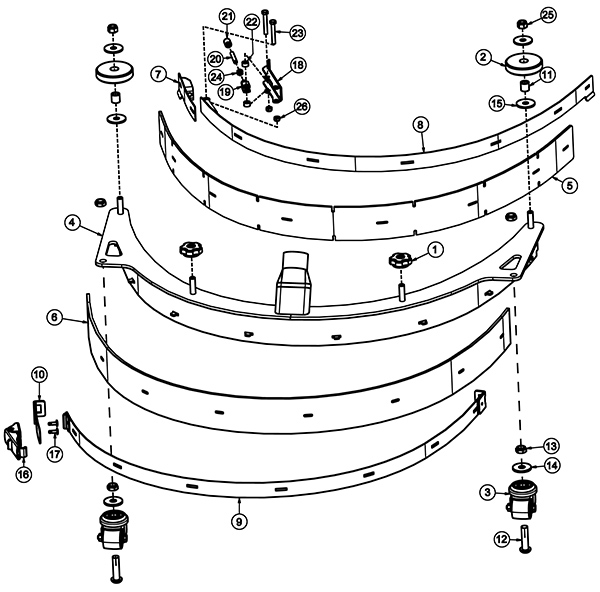

Squeegee Assembly - 174-3532
RefNbr Part Number Description Req Notes
2 174-3636 Squeegee roller 2
3 174-3637 Caster 2
4 174-3638 20 inch squeegee weldment 1
5a 174-9157 Squeegee blade 20 inch inner 1 (Gen 2 models)
5b 274-9952 Squeegee blade front primothane 1 (Gen 1 models)
6a 174-9158 Squeegee blade 20 inch outer 1 (Gen 2 models)
6b 274-9953 Squeegee blade rear primothane 1 (Gen 1 models)
7 174-3639 Left hand inner band weldment 1
8 174-3640 Right hand inner band 1
9 374-3047 Squeegee band assembly 1 (includes 10)
10 374-3047 Squeegee band assembly 1 (includes 9)
11 174-3643 Spacer 21/64 x 1/2 x 1/2 stainless steel 2
12 999-0473 Screw 3/8-16 x 1 1/2 socket head shoulder steel 2
13 999-0324 Nut 3/8-16 nylon insert lock jam zinc plated 4
14 174-8169 Washer flat .37 x 1.12 x .10 2
15 174-3644 Washer fender m8 x 24 stainless steel 4
16 174-3645 Under center latch 1
17 174-3646 Rivet blind 5/32 x 1/8 grip stainless steel 2
18 174-3647 Stainless steel body latch 1
19 174-3648 Clevis M5-0.8 1
20 174-3649 Threaded rod M5-0.8 1
21 174-3650 Nose rod 1
22 174-3651 Spacer 2
23 174-3652 Screw hex head #M5-0.8 x 35 stainless steel 2
24 999-0740 Nut M5-.8 hex stainless steel 1
25 999-0496 Nut M8-1.25 nylon insert lock stainless steel 2
26 999-0495 Nut M5-.8 nylon insert lock zinc plated 2

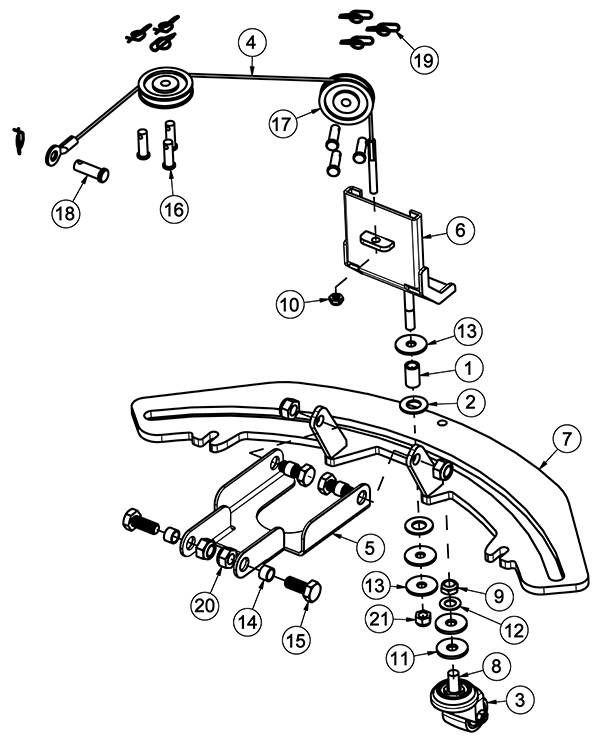

Squeegee Lift Assembly - 174-3533
RefNbr Part Number Description Req Notes
1 174-3653 Nylon spacer 1
2 174-3654 Washer 1 nylon 2
3 174-3637 Caster 1
4 174-3655 Squeegee cable 1
6 174-3657 Slider weldment 1
7 174-4531 20 inch squeegee weldment upgrade kit (See SN note) 1 (Kit only used to replace old style assembly for units before SN 20030025. All other units should use 174-4534.) (Includes 174-7230, 174-4533, and 174-3657)
8 999-0594 Screw 3/8-16 x 1 socket head alloy plain finish 1
9 999-0324 Nut 3/8-16 nylon insert lock jam zinc plated 1
10 174-3659 Nut 1/4-20 jam nyloc stainless steel 1
11 174-8169 Washer flat .37 x 1.12 x .10 2
12 174-3203 Washer 13/32 x 1/32 flat stainless steel 1
13 174-3644 Washer fender m8 x 24 stainless steel 3
14 174-3660 Spacer 13/32 x 1/2 x 21/64 inch 4
15 174-3661 Hex head screw #M10-1.50 x 25 stainless steel 4
16 174-0190 Clevis pin 6
17 174-3632 Plastic groove pulley 2 x 1/4 inches 2
18 174-1852 Clevis pin 3/8 x 1 1/8 zinc plated 1
19 174-1578 3/8 rue ring cotter pin 7
20 999-1120 Nut M10-1.5 nylon insert lock stainless steel 4
21 999-0496 Nut M8-1.25 nylon insert lock stainless steel 1

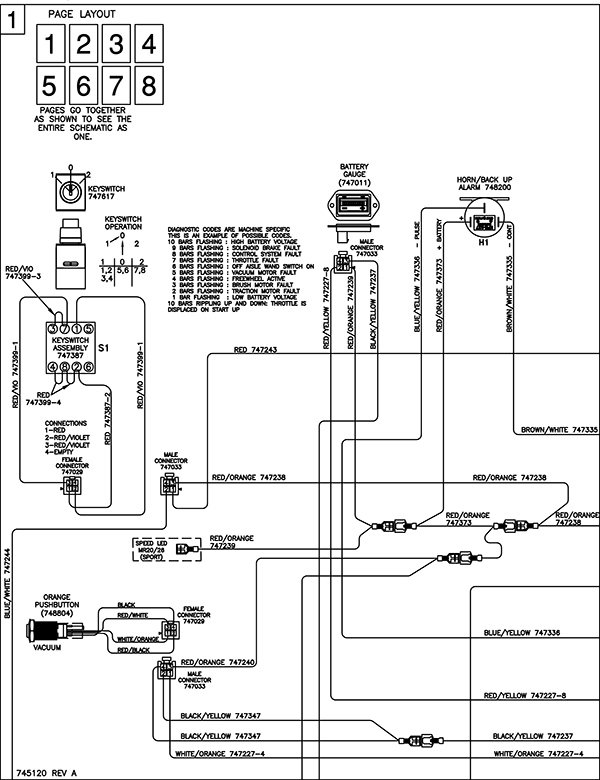

Wiring Diagram - ECO 1 -

RefNbr Part Number Description Req Notes

Wiring Diagram - ECO 2 -

RefNbr Part Number Description Req Notes

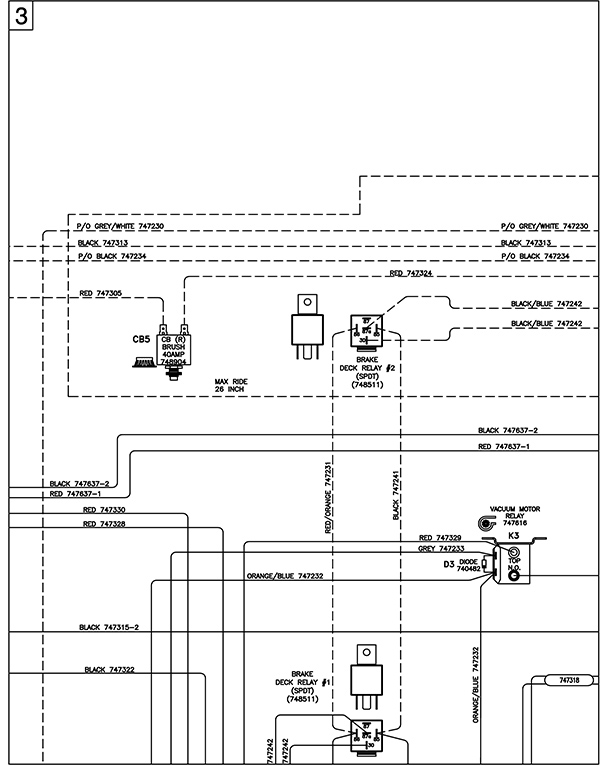

Wiring Diagram - ECO 3 -

RefNbr Part Number Description Req Notes

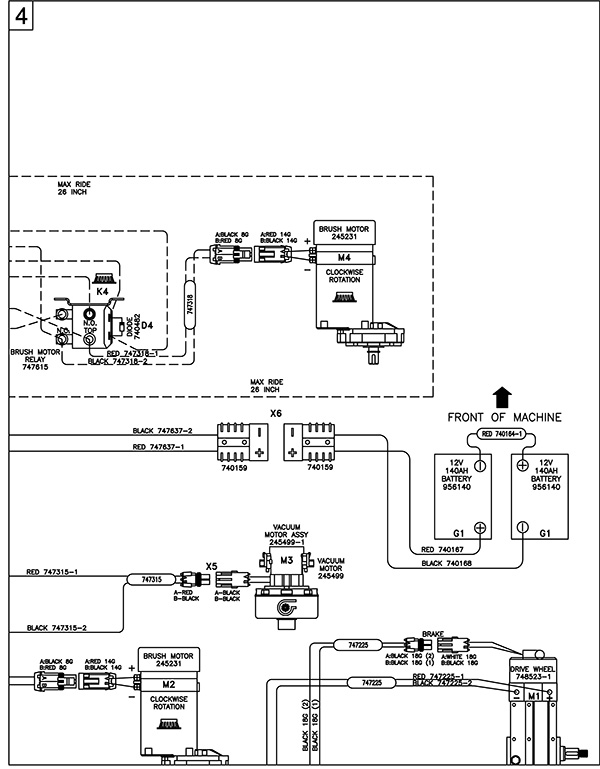

Wiring Diagram - ECO 4 -

RefNbr Part Number Description Req Notes

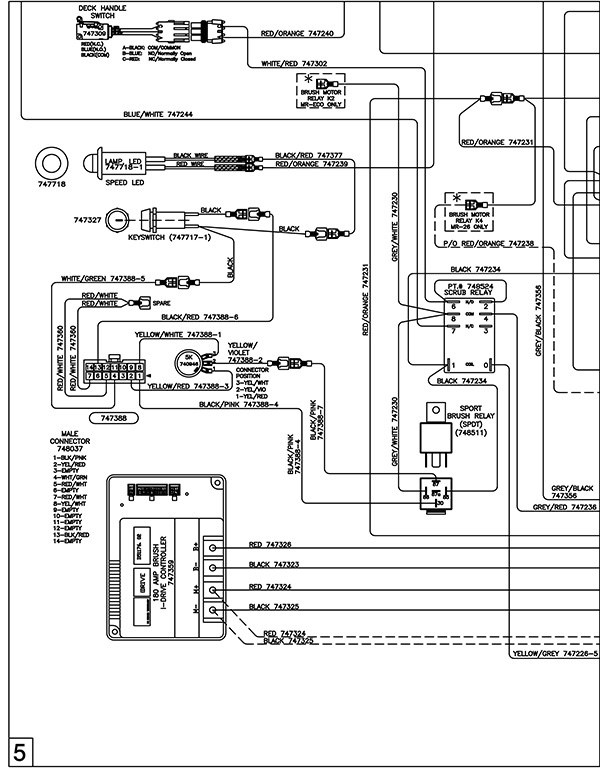

Wiring Diagram - ECO 5 -

RefNbr Part Number Description Req Notes

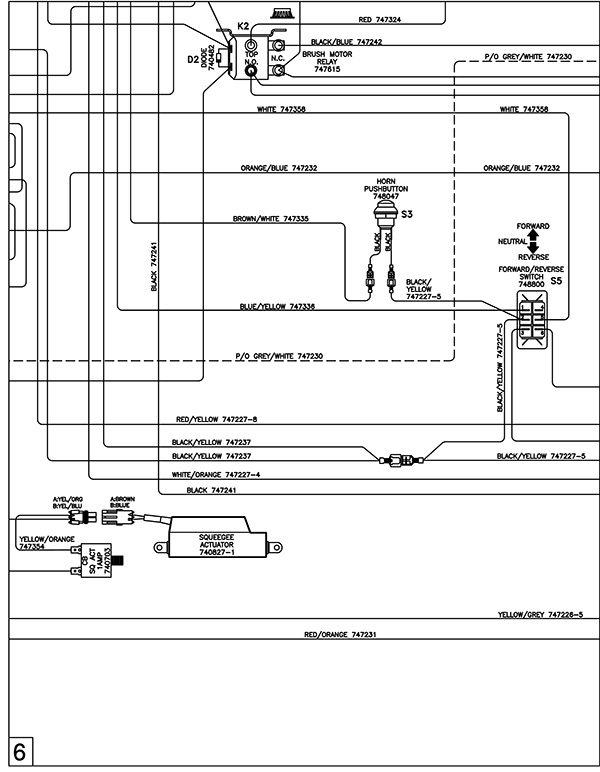

Wiring Diagram - ECO 6 -

RefNbr Part Number Description Req Notes

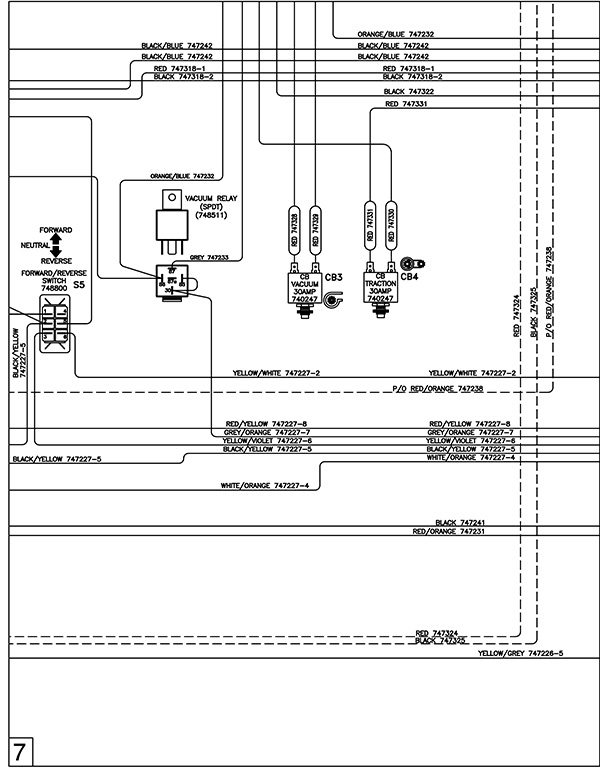

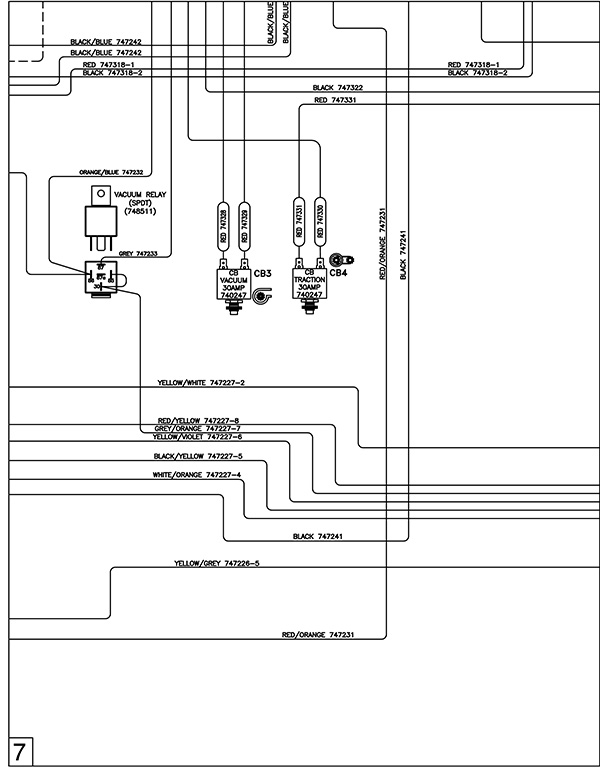

Wiring Diagram - ECO 7 -

RefNbr Part Number Description Req Notes

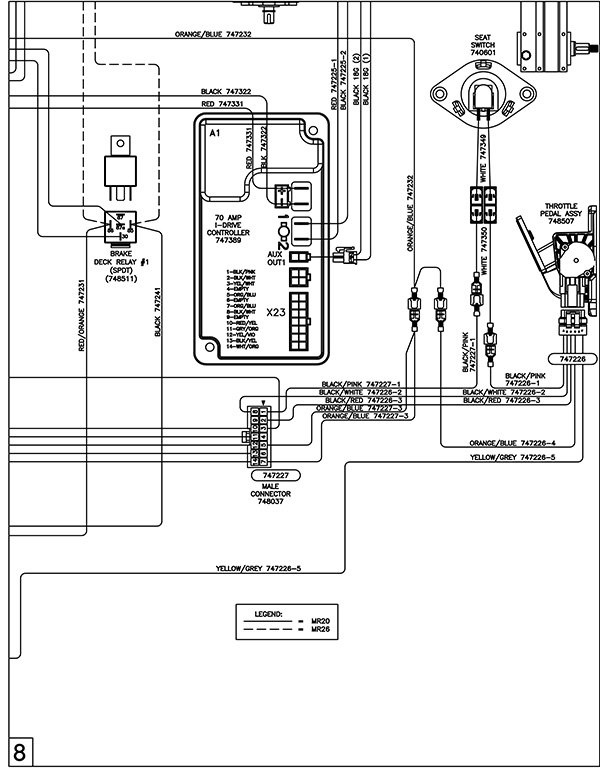

Wiring Diagram - ECO 8 -

RefNbr Part Number Description Req Notes

Wiring Diagram - Sport 1 -

RefNbr Part Number Description Req Notes

Wiring Diagram - Sport 2 -

RefNbr Part Number Description Req Notes

Wiring Diagram - Sport 3 -

RefNbr Part Number Description Req Notes

Wiring Diagram - Sport 4 -

RefNbr Part Number Description Req Notes

Wiring Diagram - Sport 5 -

RefNbr Part Number Description Req Notes

Wiring Diagram - Sport 6 -

RefNbr Part Number Description Req Notes

Wiring Diagram - Sport 7 -

RefNbr Part Number Description Req Notes

Wiring Diagram - Sport 8 -

RefNbr Part Number Description Req Notes

- Commonly Asked For Parts - 174-9907
RefNbr Part Number Description Req Notes
01 174-9158 Squeegee blade 20 inch outer
02 174-9157 Squeegee blade 20 inch inner
03 174-8456 Replacement key (set of 2)

- Batteries, Brushes and Chargers - 174-9984
RefNbr Part Number Description Req Notes
1 274-9781 CHGR, BAT SET 31D AGM 140AH SIGNET HBF3
2 174-9673 Battery charger set 31D wet 140AH signet HBF3
3 162-0057 12V 150Ah wet battery
4 162-0011 12V 105Ah wet battery (SNSR)
5 274-8186 BRUSH, 20 inch LIGHT-MED PP.5 A/S, WHITE
6 274-8320 20 inch light-medium brush
7 274-9163 BRUSH, 20 inch MEDIUM NYLON 600GR. A/S, GREY
8 274-8144 BRUSH, 20 inch MEDIUM-HEAVY PP.8 A/S
9 274-8945 BRUSH, 20 inch HEAVY NYLON 180GR. A/S, GREY
10 274-8993 BRUSH, 20 inch HEAVY-2 NYL 120GR. A/S, GREEN

- Pads - 255-2000
RefNbr Part Number Description Req Notes
01 255-2040 20 inch aqua plus burnishing pad (pkg of 5)
02 255-2035 20 inch Armadillo concrete scrubbing pad (pkg of 5)
03 255-2064 20 inch Blue ace pad (pkg of 5)
04 255-2042 20 inch Blue Jay burnishing pad (pkg of 5)
05 255-2012 20 inch Cure white pad (pkg of 5)
06 255-2077 20 inch Diamondback extreme stripping pad (pkg of 5)
07 255-2038 20 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2
08 255-2021 20 inch gorilla lite burnishing pad (pkg of 5)
09 255-2050 20 inch gorilla spray buff/polish/burnish pad (pkg of 5)
10 255-2065 20 inch Heat concrete bonding pad (pkg of 5)
11 255-2030 20 inch jaguar burnishing pad (pkg of 5)
12 255-2067 20 inch Laminated 2001 Gorilla polish pad (pkg of 5)
13 255-2087 20 inch Melamine Mela-Kleen pad (pkg of 2)
14 255-2068 20 inch Microclean daily cleaning pad (pkg of 2)
15 255-2069 20 inch Micropolish polishing and burnishing pad (pkg of 2)
16 255-2090 20 inch premium black stripping pad (pkg of 5)
17 255-2070 20 inch premium blue cleaning pad (pkg of 5)
18 255-2092 20 inch premium brown stripping pad (pkg of 5)
19 255-2080 20 inch premium green scrubbing pad (pkg of 5)
20 255-2060 20 inch premium red scrubbing pad (pkg of 5)
21 255-2052 20 inch premium tan polishing pad (pkg of 5)
22 255-2020 20 inch premium white polishing pad (pkg of 5)
23 255-2011 20 inch superspeed rubberized pad (pkg of 5)
24 255-2095 20 inch razorback stripping pad (pkg of 5)
25 255-2047 20 inch Redwood maroon floor prep pad (pkg of 10)
26 255-2055 20 inch Ruff non-abrasive brush pad (pkg of 2)
27 255-2023 20 inch sand screen driver pad (pkg of 2)
28 255-0157 20 inch Professional sand screen 100 grit (pkg of 10)
29 255-0021 20 inch Professional sand screen 120 grit (pkg of 10)
30 255-0158 20 inch Professional sand screen 150 grit (pkg of 10)
31 255-0159 20 inch Professional sand screen 180 grit (pkg of 10)
32 255-0160 20 inch Professional sand screen 220 grit (pkg of 10)
33 255-0161 20 inch Professional sand screen 400 grit (pkg of 10)
34 255-0030 20 inch Professional sand screen 60 grit (pkg of 10)
35 255-0020 20 inch Professional sand screen 80 grit (pkg of 10)
36 255-0249 20 inch Superscreen sand screen 100 grit (pkg of 10)
37 255-0250 20 inch Superscreen sand screen 120 grit (pkg of 10)
38 255-0251 20 inch Superscreen sand screen 150 grit (pkg of 10)
39 255-0252 20 inch Superscreen sand screen 180 grit (pkg of 10)
40 255-0253 20 inch Superscreen sand screen 220 grit (pkg10) (OBSOLETE)
41 255-0254 20 inch Superscreen sand screen 400 grit (pkg of 10)
42 255-0247 20 inch Superscreen sand screen 60 grit (pkg of 10)
43 255-0248 20 inch Superscreen sand screen 80 grit (pkg of 10)
45 255-9591 20 inch Diamond by Gorilla 11000 Grit (pkg of 2)
46 255-9588 20 inch Diamond by Gorilla 1500 Grit (pkg of 2)
47 255-9585 20 inch Diamond by Gorilla 200 Grit (pkg of 2)
48 255-9589 20 inch Diamond by Gorilla 3000 Grit (pkg of 2)
49 255-9586 20 inch Diamond by Gorilla 400 Grit (pkg of 2)
50 255-9587 20 inch Diamond by Gorilla 800 Grit (pkg of 2)
51 255-9590 20 inch Diamond by Gorilla 8000 Grit (pkg of 2)
52 255-9645 20 inch Diamond starter pack (1 of each grit)
53 255-2082 20 inch Turbostrip segmented rotary pad(OBSOLETE)
54 255-2015 20 inch Duala clean and shine pad - low speed (pkg of 5)
55 255-2016 20in 2001 Duala clean& shine pad-high speed(pkg 5) (OBSOLETE

- Pad Holders - 275-9029
RefNbr Part Number Description Req Notes
1 991-2214 Center-Lok II pad holder - left hand thread (red)
2a 991-2201 Center-Lok II pad holder - right hand thread (black) (Pad driver side female, Floor side male)
2b 991-8577 Pad retainer (Pad driver side male, Floor side female)
3a 991-2202 Big mouth pad holder set (blue) (includes 3 screws)
3b 991-2205 Deep lock ring and pad grip ring
4 991-2203 Big mouth pad holder male thread portion
5 991-2206 Center-Lok 3 pad holder (includes 3 screws)
6 996-0372 Big mouth pad holder (left hand thread)
7 N/A Not available
8 991-2209 Split retainer - pad holder ring (OBSOLETE)
9 N/A Not available (replaced by #3 991-2202)
10 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE)
Webpage Problem Reporting
