Parts List Complete for MINUTE M-20140-00

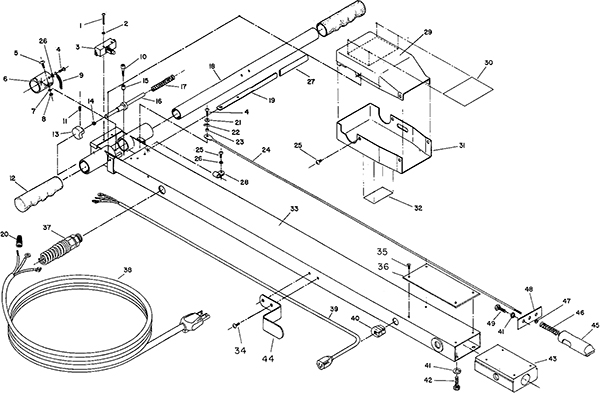

Handle Assembly - 174-0406
RefNbr Part Number Description Req Notes
1 999-0656 Screw #6-32 x 7/8 pan head phillips zinc plated 2
2 174-5232 Washer #6 internal tooth locking 2
3 174-4024 Switch 1
4 999-0726 Screw 10-32 x 5/8 pan head phillips zinc plated 3
5 999-0414 Screw 10-32 x 3/4 pan head slotted zinc plated 1
6 274-4755 CSTG-HANDLE LOCK TAPPED 1
7 999-0089 Washer #10 internal star lock zinc plated 1
8 999-0460 Nut 10-32 hex 1
9 174-5235 Spring 1
10 174-5160 Bolt 1/4-20 x .44 x 3/8 shoulder 1
11 999-1038 Screw 8-32 x 1/8 cup point socket set 1
12 174-5206 Handle Grip 2
13 274-1559 BUTTON 1
14 374-1884 BUSHING-SNAPIN NYLINER 1
15 174-0790 Spacer 1
16 174-3812 Switch pin 1
17 174-3813 Spring 1
18 274-4621 TUBE,HANDLE 1
19 174-3814 Handle release lever 1
20 174-4023 Wire cap 2
21 999-0006 Washer 3/16 flat zinc plated 1
22 174-3815 Wave washer 1/4 1
23 174-3816 Bushing 1
24 274-3321 CABLE 1
26 174-5259 Washer #10 helical 2
27 174-3817 Lever grip 1
28 174-3055 3/8 inch plastic clamp 1
29 174-3818 Rear box cover 1
30 274-0291 DECAL-VAC LEAD 1
31 274-4169 COVER, SW BOX FRONT 1
32 N/A Not available 1 (logo decal)
33 174-3819 Handle tube weldment 1
34 174-2286 Screw 10 x 1/2 2
35 999-0569 Screw 10 x 1/2 pan head phillips sheet metal 4
36 174-3820 Stair glide 1
37 174-4012 Strain relief 1
38a 174-4020 14/3 power cord 50 foot 1 (OEM)
38b 991-5005 14/3 replacement power cord 50 foot (yellow) 1 (NON-OEM)
38c 991-5001 14/3 extension cord 50 foot (yellow) 1 (NON-OEM)
39 174-4060 Interconnect cord 1
40 174-5242 Heyco Bushing 1
41 999-0060 Washer 1/4 split lock plain finish 6
42 174-5718 Bolt 1/4 20 x 5/8 hex head 4
43 174-3821 Handle lock guide 1
44 174-3822 Cord hook 1
45 274-5982 LOCK,HANDLE 1
46 374-1874 SPRING-COMP 1
47 374-1873 BUSHING-FLG .251 X .438 X .078 1
48 174-3823 Retainer 1
49 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated 2

Base Assembly - 174-0407
RefNbr Part Number Description Req Notes
1 999-1818 Screw 10-32 x 2 pan head phillips stainless steel 2
2 174-3824 Motor adapter 1
3 174-3825 Spacer 2
4 999-0030 Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated 10
5 999-0060 Washer 1/4 split lock plain finish 8
6 374-1076 SK 1/4-20 X .50 2
7 174-3826 Axle 2
8 172-3050 5 inch wheel 4
9 174-5159 Washer 33/64 x 1/64 wave 6
10 174-0178 1/2 inch external retaining ring 2
11 999-0855 Washer 9/16 SAE flat 2
12 174-6258 Axle 18 inch 1
13 174-5772 Bolt 5/16-18 x 5/8 hex head 2
14 174-3827 Bumper 1
15 999-0201 Washer 3/8 internal star lock 4
16 N/A Not available 2 (screw 1/4-28 x 5/16)
17 N/A Not available 2 (loc collar)
18 174-6255 Flangette 3 point 2
19 174-1343 Bearing with loc collar 2
20 174-4057 Carbon brush 4
21a 174-3828 Motor 1 1/2 hp dc rec 1
21b 374-0048 MOTOR-1.5 HP 230V 50/60 HZ 1
22 999-0594 Screw 3/8-16 x 1 socket head alloy plain finish 4
23 174-3829 Lower motor cover 1
24 N/A Not available 1 (logo decal)
26 999-0297 Bolt 1/4-20 x 1 hex head stainless steel 6
27 174-3831 Handle segment (OBSOLETE) 1
28 174-6257 Woodruff 1/4 x 3/4 key 1
29 174-1344 Drive shaft 1
30 174-0889 Key square 1
31a 174-6253 Pad driver assembly 1 (new style)
31b 174-3832 Pad driver (OBSOLETE) 1 (old style)
31c 174-3833 2 hole pad holder 1 (for 31a)
31d 174-3834 Pad holder 1 (for 31b)
33 999-0155 Screw 1/4-20 x 5/16 knurled point socket set plain finish 1
34 274-4552 PULLEY MOTOR 1
35 N/A Not available 1 (key)
36 274-3245 BELT-DRIVE 2300 1
37 174-1342 Drive Pulley 1
38 174-6254 Driver bracket 1
39 999-0617 Washer 3/8 x 1 flat stainless steel 1
40a 274-5272 PAD GRAB-II 1
40b 991-2209 Split retainer - pad holder ring (OBSOLETE) 1 (NON-OEM)
41 999-0525 Nut 5/16-18 flange lock serrated zinc plated 2
42 174-6256 Flangette 2 point 2
43 174-5406 Washer 8 helical 2
44 174-3835 Bracket support 1
45 174-3836 Cover bracket 1
46 174-2291 Washer finish 2
47 999-1208 Nut 1/2-13 nylon insert lock stainless steel 1
48 999-1245 Bolt 1/2-13 x 5 hex head grade 8 yellow zinc 1
49 999-0120 Washer 3/8 SAE flat 4
50 174-3149 Hub cap 2
51 174-3093 Washer .56 x 1 flat 4
52 999-0016 Washer 1/4 flat plain finish 4
54 999-0723 Screw 10-32 x 1/2 pan head slotted stainless steel 4
55 174-3837 20 inch brush housing 1
64 174-6143 Screw 8 - 32 x 1/2 1
65 174-5259 Washer #10 helical 2
66 174-0326 Wave washer 2
70 999-0412 Washer #8 SAE flat 2
71 274-8760 PULLEY/SHAFT ASY BURNISH 1 (includes 4, 13, 16-17, 19, 37-38, 41-42)

- Commonly Asked For Parts - 174-9971
RefNbr Part Number Description Req Notes
0.9835 999-1245 Bolt 1/2-13 x 5 hex head grade 8 yellow zinc

- Pad Holders - 275-9029
RefNbr Part Number Description Req Notes
1 991-2214 Center-Lok II pad holder - left hand thread (red)
2a 991-2201 Center-Lok II pad holder - right hand thread (black) (Pad driver side female, Floor side male)
2b 991-8577 Pad retainer (Pad driver side male, Floor side female)
3a 991-2202 Big mouth pad holder set (blue) (includes 3 screws)
3b 991-2205 Deep lock ring and pad grip ring
4 991-2203 Big mouth pad holder male thread portion
5 991-2206 Center-Lok 3 pad holder (includes 3 screws)
6 996-0372 Big mouth pad holder (left hand thread)
7 N/A Not available
8 991-2209 Split retainer - pad holder ring (OBSOLETE)
9 N/A Not available (replaced by #3 991-2202)
10 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE)
