Parts List Complete for MINUTE E26

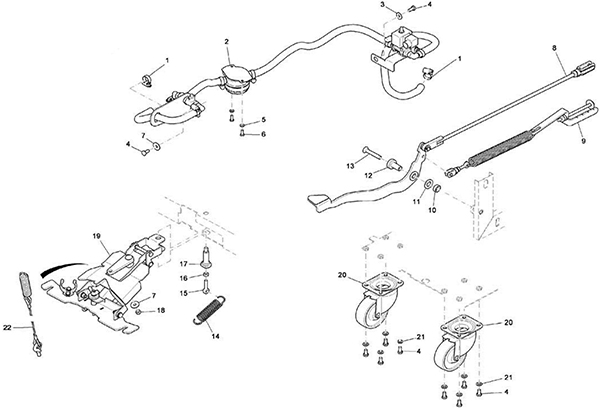

Chassis Assembly - 174-0405
RefNbr Part Number Description Req Notes
1 174-1628 Hose clamp 2
2 174-9436 Water supply 1
3 999-9097 Washer M8 flat stainless steel 1
4 999-0784 Screw M8-1.25 x 16mm hex head stainless steel 2
5 999-1261 Washer M6 flat stainless steel 2
6 999-1383 Screw M6-1 x 16mm hex head stainless steel 2
7 999-9097 Washer M8 flat stainless steel 2
8 274-4240 LIFTING PEDAL, COMPL. 1
9 274-5494 PRESSURE ADJUSTMENT ASSY 1
10 174-9657 Spacer 1
11 174-9621 Washer M17 flat 1
12 174-9658 Pedal pivot bushing 1
13 174-9641 Screw M10-1.5 x 60mm flat head 1
14 174-9659 Tension spring 1
15 174-9664 Eye bolt 1
16 999-1424 Nut M8-1.25 hex stainless steel 1
17 174-9660 Pivot 1
18 999-0496 Nut M8-1.25 nylon insert lock stainless steel 1
19 174-3504 Connection bracket 1
20 174-9661 Caster 2
21 999-9097 Washer M8 flat stainless steel 2
22 174-9669 Squeegee lift cable 1

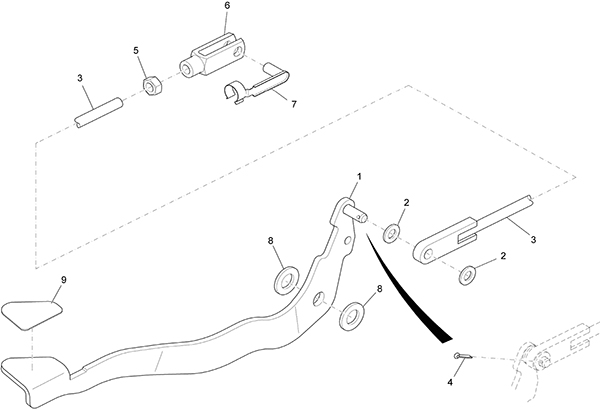

Lift Pedal Assembly - 174-0439
RefNbr Part Number Description Req Notes
1 174-8887 Lifting pedal 1
2 174-8888 Washer 2
3 174-8889 Rod weldment 1
4 174-8890 Cotter pin 1
5 999-1428 Nut M10-1.5 hex zinc finish 1
6 174-9653 Clevis yoke 1
7 174-9663 S-bolt 1
8 174-9619 Rubber washer 2
9 174-9654 Anti-slip pedal decal 1

Brush Pressure Adjustment Assembly - 174-0440
RefNbr Part Number Description Req Notes
1 174-9655 Clevis yoke 1
2 174-9665 S-bolt 1
3 174-9656 Pressure adjustment bracket 1
4 999-1428 Nut M10-1.5 hex zinc finish 1
5 174-3486 Washer 1
6 999-0022 Bolt M10-1.5 x 30mm hex head full thread 1
7 174-9662 Tension spring 1
8 174-9666 Eye bolt 1
9 999-1424 Nut M8-1.25 hex stainless steel 1

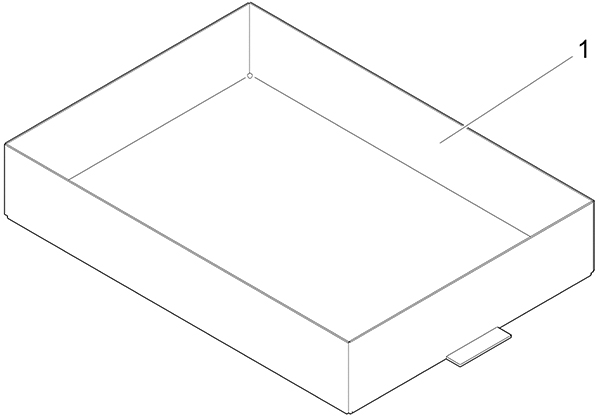

Battery Tray Assembly - 174-0441
RefNbr Part Number Description Req Notes
1 174-3485 Battery tray 1
N/S 162-0003 6V 225Ah wet battery (SNSR) 4

- Frequently Replaced Parts - 174-0442
RefNbr Part Number Description Req Notes
162-0003 6V 225Ah wet battery (SNSR) 4
274-9898 6V 220Ah battery 4
174-6603 24V on board battery charger kit 1
174-8940 18/3 power cord 1
998-0010 Battery jumper cable - ring type (red) 1
174-8914 Key switch 1
174-7079 Key (set of 2) 1
174-9633 24V solenoid valve 1
174-3670 Water filter assembly 1
174-8179 Squeegee blade rear polyurethane 1
174-8180 Squeegee blade front polyurethane 1
174-7052 Squeegee vacuum hose 1
274-7139 Recovery tank lid assembly 1
174-8923 Gasket (sold by the foot) 5 ft
174-8455 Drain hose assembly 1
174-8495 24V vacuum motor 1
174-9437 Carbon brush 4
174-8893 Carbon brush (set of 4) 1
174-8918 Carbon brush 4
274-8471 BRUSH-LIGHT DUTY (SP) 7513 2
274-8473 BRUSH-LIGHT MEDIUM (SP) 7517 2
274-8809 BRUSH-MEDIUM (SP) 2
274-8472 BRUSH-MEDIUM HEAVY (SP) 7515 2
274-8810 BRUSH-HEAVY (SP) 7519 2
274-8811 BRUSH-HEAVY EXTREME (SP) 7521 2
274-7999 PAD-DRIVER - 13 inch DIA. (SP) 2
174-7219 13 inch pad driver assembly 2
174-8903 Center lock retainer 2
174-8901 Center lock 2
991-2214 Center-Lok II pad holder - left hand thread (red) 1
991-2201 Center-Lok II pad holder - right hand thread (black) 1
991-2206 Center-Lok 3 pad holder 1

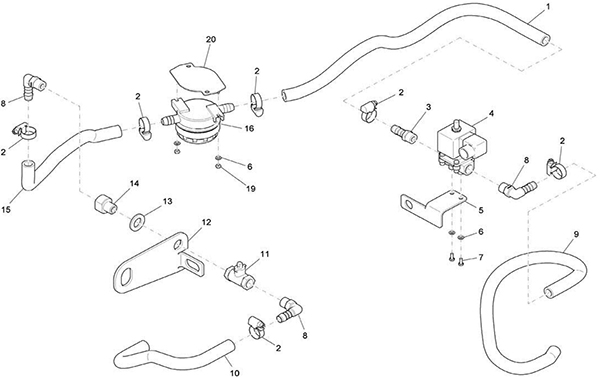

Solution Flow Assembly - 174-0649
RefNbr Part Number Description Req Notes
1 174-9631 PVC hose (Sold by the Meter) 22 in
2 174-1628 Hose clamp 6
3 174-9632 Straight hose barb fitting 1
4 174-9633 24V solenoid valve 1
5 174-3490 Solenoid valve bracket 1
6 999-9089 Washer M4 flat stainless steel 4
7 999-9104 Screw M4-.7 x 10mm hex head stainless steel 2
8 174-8955 Hose barb elbow fitting 3
9 174-9631 PVC hose (Sold by the Meter) 21 in
10 174-9631 PVC hose (Sold by the Meter) 11 in
11 174-9634 Ball valve 1
12 174-3491 Ball valve bracket 1
13 174-9621 Washer M17 flat 1
14 174-9622 Threaded fitting 1
15 174-9631 PVC hose (Sold by the Meter) 13 in
16 174-3670 Water filter assembly 1
19 999-0955 Nut M4-.7 hex nylon lock 2
20 174-9635 Water filter bracket 1

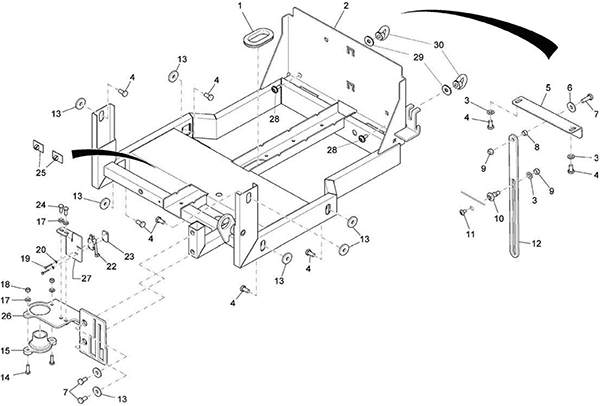

Upper Chassis Assembly - 174-0650
RefNbr Part Number Description Req Notes
1 174-8967 Grommet 1
2 274-8943 CHASSIS 1
3 999-9097 Washer M8 flat stainless steel 7
4 999-0784 Screw M8-1.25 x 16mm hex head stainless steel 14
5 174-8969 Tank support bracket 1
6 999-9097 Washer M8 flat stainless steel 3
7 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel 3
8 174-8970 Bushing 1
9 999-0496 Nut M8-1.25 nylon insert lock stainless steel 2
10 174-8971 Bushing 1
11 999-1514 Screw M6-1 x 10mm button head socket stainless steel 1
12 174-3480 Bracket 1
13 174-9630 Washer M9 conical spring with tooth 10
14 999-1312 Screw M6-1 x 20mm hex head stainless steel 2
15 174-8292 Cable guide bushing 1
17 999-1261 Washer M6 flat stainless steel 4
18 999-0497 Nut M6-1 nylon insert lock stainless steel 2
19 999-1897 Screw M3-.5 x 20mm hex head 2
20 999-1521 Washer M3 flat stainless steel 2
22 174-8931 Micro switch 1
23 174-8930 Threaded switch mount plate 1
24 999-1383 Screw M6-1 x 16mm hex head stainless steel 2
25 174-8972 Cable clip 2
26 174-8973 Pedal locking bracket 1
28 274-1312 LENS FLANGE SCREW 2
27 174-6576 Switch mount bracket 1
29 999-9097 Washer M8 flat stainless steel 2
30 174-9625 Nut M8-1.25 eye zinc 2

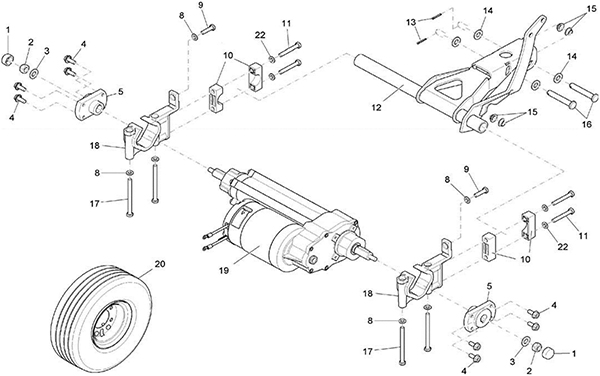

Drive Assembly - 174-0651
RefNbr Part Number Description Req Notes
1 174-8990 Protection cap 2
2 999-1122 Nut M12-1.75 hex nylon insert lock stainless steel 2
3 374-0693 Washer M13 2
4 174-9637 Bolt M8-1.25 x 20mm hex head flange 8
5 174-3546 Transaxle hub 2
8 999-9097 Washer M8 flat stainless steel 8
9 999-0785 Screw M8-1.25 x 30mm hex head stainless steel 2
10 274-0028 BEARING BLOCK, NYLON 4
11 999-1692 Screw M8-1.25 x 50mm hex stainless steel 4
12 174-9435 Deck lift lever weldment 1
13 174-7161 Cotter pin 2
14 374-0693 Washer M13 4
15 174-8992 Slide bearing 4
16 174-9639 Clevis pin 2
17 999-9159 Bolt M8-1.0 x 100mm hex cap 4
18 174-8993 Transaxle mounting bracket 2
19 174-8994 Transaxle 1
20 274-8058 WHEEL, 250x79, SOLID URETHANE YELLOW 2
22 999-9097 Washer M8 flat stainless steel 4

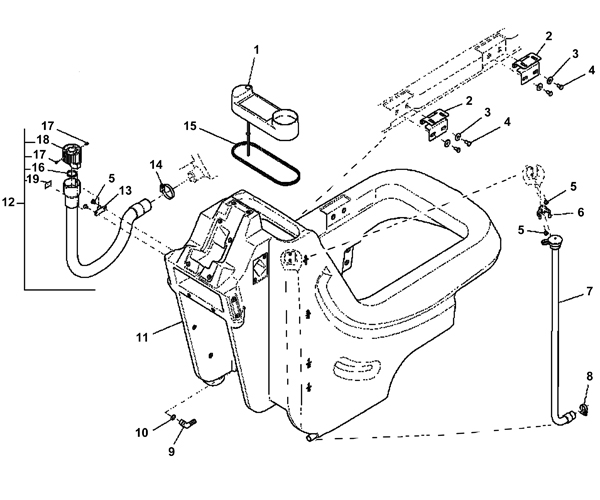

Solution Tank Assembly - 174-0653
RefNbr Part Number Description Req Notes
1 174-8952 Solution tank lid 1
2 174-8953 Tank hinge 2
3 999-9097 Washer M8 flat stainless steel 4
4 999-0784 Screw M8-1.25 x 16mm hex head stainless steel 4
5 999-1514 Screw M6-1 x 10mm button head socket stainless steel 4
6 174-8926 Hose support 1
7 174-8954 Hose 1
8 174-3516 Hose clamp 1
9 174-8955 Hose barb elbow fitting 1
10 174-8956 O-ring 1
11 174-7059 Solution tank 1
12 174-8455 Drain hose assembly 1 (includes 16-19)
13 174-8957 Hook 1
14 997-2000 Hose clamp 1
15 174-8958 Edge protection 30 in
16 174-8959 O-ring 1
17 999-9101 Screw M4-.7 x 10mm pan head stainless steel 2
18 174-8960 Drain hose cap 1
19 174-8961 Decal 1

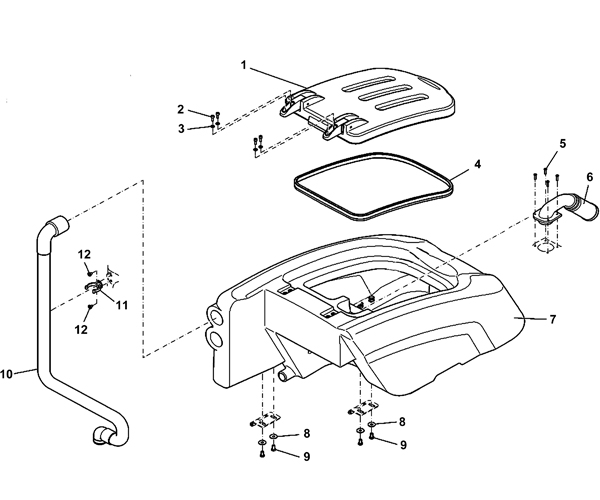

Recovery Tank Assembly - 174-0654
RefNbr Part Number Description Req Notes
1 274-7139 Recovery tank lid assembly 1
2 999-1647 Screw M6-1 x 16mm socket head stainless steel 4
3 999-1261 Washer M6 flat stainless steel 4
4 174-8923 Gasket (sold by the foot) 5 ft
5 174-9629 Screw M5 x 20mm EJOT PT stainless steel 4
6 174-8924 Filter 1
7 174-8925 Recovery tank 1
8 999-9097 Washer M8 flat stainless steel 4
9 999-0784 Screw M8-1.25 x 16mm hex head stainless steel 4
10 174-7052 Squeegee vacuum hose 1
11 174-8926 Hose support 1
12 999-1514 Screw M6-1 x 10mm button head socket stainless steel 2

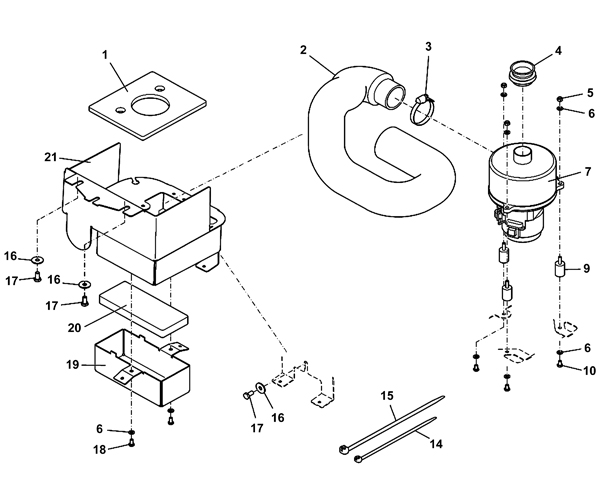

Vacuum Motor Assembly - 174-0655
RefNbr Part Number Description Req Notes
1 174-3533 Gasket 1
2 174-8949 Exhaust hose 1
3 174-1624 2 1/2 Hose clamp 1
4 174-8950 Connection 1
5 999-0497 Nut M6-1 nylon insert lock stainless steel 3
6 999-1261 Washer M6 flat stainless steel 8
7a 174-8495 24V vacuum motor 1
7b 174-9437 Carbon brush 4
9 174-8951 Isolator mount 3
10 999-0778 Screw M6-1 x 10mm hex head 3
14 997-2102 Cable tie 1
15 174-6185 Cable tie large 4
16 999-9097 Washer M8 flat stainless steel 3
17 999-0784 Screw M8-1.25 x 16mm hex head stainless steel 3
18 999-9116 Screw M6-1 x 12mm hex head stainless steel 2
19 174-3536 Cover 1
20 174-3537 Gasket 1
21 174-3538 Vacuum motor housing 1

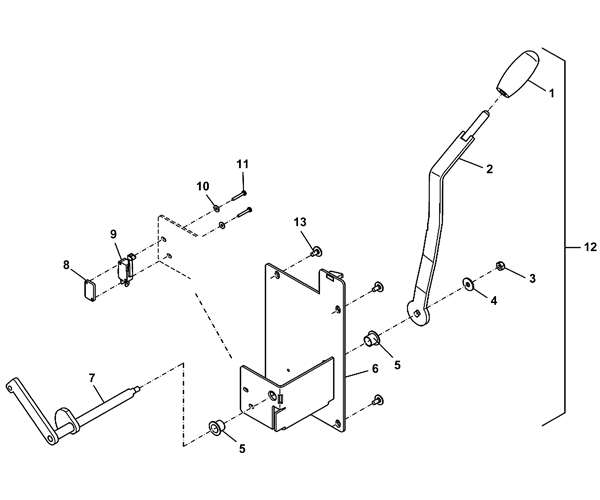

Squeegee Lift Handle Assembly - 174-0656
RefNbr Part Number Description Req Notes
1 174-8927 Handle 1
2 274-3328 Squeegee lift lever weldment 1
3 999-0497 Nut M6-1 nylon insert lock stainless steel 1
4 999-1261 Washer M6 flat stainless steel 1
5 174-8928 Slide bearing bushing 2
6 174-3510 Support plate 1
7 174-8929 Shaft 1
8 174-8930 Threaded switch mount plate 1
9 174-8931 Micro switch 1
10 999-1521 Washer M3 flat stainless steel 2
11 999-1897 Screw M3-.5 x 20mm hex head 2
12 174-3511 Squeegee lift assembly 1 (includes 1-11, 13)
13 999-1514 Screw M6-1 x 10mm button head socket stainless steel 4

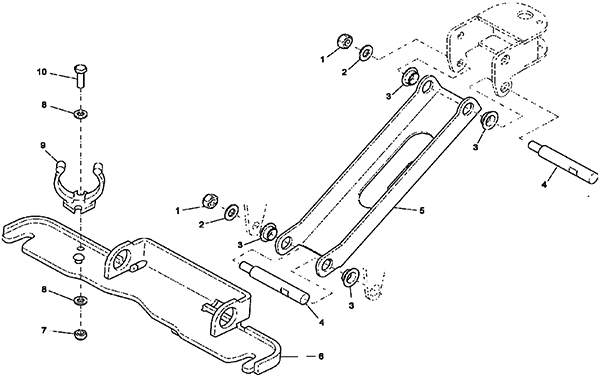

Lower Squeegee Connection Assembly - 174-0657
RefNbr Part Number Description Req Notes
1 999-0496 Nut M8-1.25 nylon insert lock stainless steel 2
2 999-9097 Washer M8 flat stainless steel 2
3 174-8974 Bushing 2
4 174-9644 Threaded pin 3
5 174-9652 Control arm 1
6 174-3502 Control arm bracket 1
7 999-0497 Nut M6-1 nylon insert lock stainless steel 1
8 999-1261 Washer M6 flat stainless steel 2
9 174-8926 Hose support 1
10 999-1312 Screw M6-1 x 20mm hex head stainless steel 1

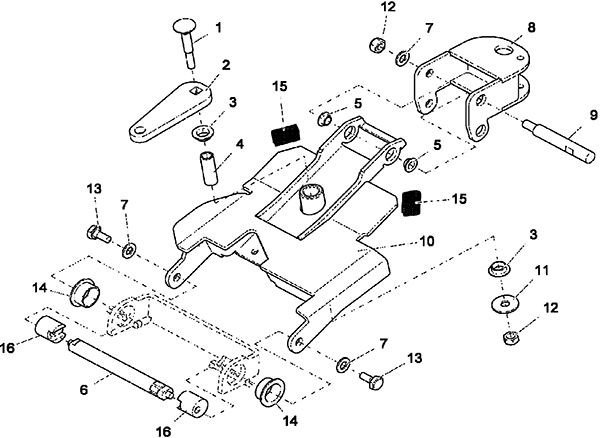

Upper Squeegee Connection Assembly - 174-0658
RefNbr Part Number Description Req Notes
1 174-9642 Bolt M8-1.25 x 55mm carriage head 1
2 174-8999 Cable attach pivot 1
3 174-8992 Slide bearing 2
4 174-3505 Bushing 1
5 174-8974 Bushing 2
6 174-4153 Shaft 1
7 999-9097 Washer M8 flat stainless steel 3
8 174-3506 Squeegee bracket 1
9 174-9644 Threaded pin 3
10 174-3507 Connection bracket 1
11 999-9097 Washer M8 flat stainless steel 1
12 999-0496 Nut M8-1.25 nylon insert lock stainless steel 4
13 999-0784 Screw M8-1.25 x 16mm hex head stainless steel 2
14 374-2358 SLIDE BEARING BUSH 2
15 174-8982 Edge protection 2 in
16 174-3508 Bearing 2

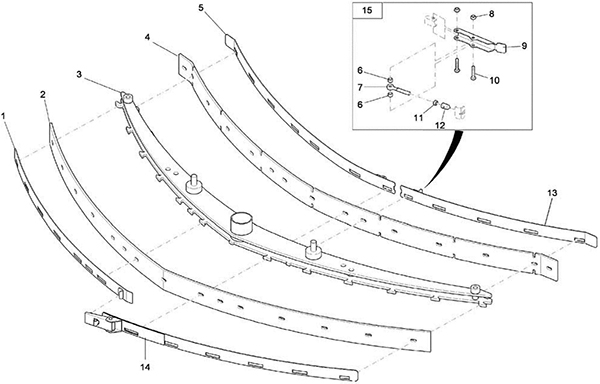

Squeegee Assembly - 174-0659
RefNbr Part Number Description Req Notes
1 174-3539 Rear left tension band 1
2 174-8179 Squeegee blade rear polyurethane 1
3 274-8804 38 inch SQG BASE ASSY, C.S. SEE NOTES (OBSOLETE) 1
4 174-8180 Squeegee blade front polyurethane 1
5 174-7103 Front left tension band 1
6 174-8328 Bushing 2
7 174-8338 Bolt M5 x 40mm eye stainless steel 1
8 999-1344 Nut 1/4-20 acorn stainless steel 2
9 174-8327 Lever 1
10 999-0621 Screw 1/4-20 x 3 truss head slotted stainless steel 2
11 999-0740 Nut M5-.8 hex stainless steel 1
12 174-8341 Pressure pin 1
13 174-7104 Front right tension band 1
14 174-3541 Rear right tension band 1
15 274-5745 STRAP W/ LATCH, FRONT LEFT, 38 inch SQG 1 (includes 6-12)

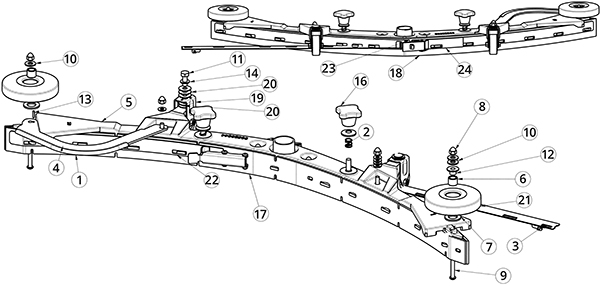

Squeegee Wheel Assembly - 174-0660
RefNbr Part Number Description Req Notes
1 174-8326 Edge trim black 5/16 x 10 inch 1
2 374-1935 SPRING, COMP .4 ID X .5FL SS 2
3 274-5745 STRAP W/ LATCH, FRONT LEFT, 38 inch SQG 1
4 174-9438 38 inch squeegee bumper 1
5 274-8804 38 inch SQG BASE ASSY, C.S. SEE NOTES (OBSOLETE) 1
6 174-8328 Bushing 2
7 999-0349 Washer 5/8 SAE flat 2
8 999-1344 Nut 1/4-20 acorn stainless steel 2
9 999-0621 Screw 1/4-20 x 3 truss head slotted stainless steel 2
10 174-8251 Washer flat stainless steel 3
11 999-9092 Screw M8-1.25 x 20mm hex head stainless steel 2
12 374-1803 BUSHING-FLG .31 X .435 X .325 NYL 1
13 274-9820 Pin-roll 1
14 999-9097 Washer M8 flat stainless steel 2
15 174-8669 Washer M10.6 serrated tooth 2
16 174-8339 Star knob 2
17 174-8180 Squeegee blade front polyurethane 1
18 174-8179 Squeegee blade rear polyurethane 1
19 174-8933 Fixed caster 2
20 374-1931 Washer flat 8.3 x 22 x 1.00mm stainless steel 10
21 174-8932 4 inch plastic roller 2
22 174-7104 Front right tension band 1
23 174-3539 Rear left tension band 1
24 174-3541 Rear right tension band 1

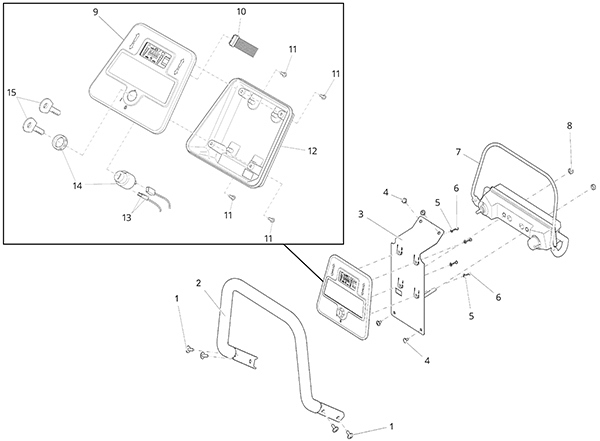

Control Panel Assembly - 174-0661
RefNbr Part Number Description Req Notes
1 999-1514 Screw M6-1 x 10mm button head socket stainless steel 4
2 174-6584 Handle bar 1
3 174-8921 Panel mount bracket 1
4 999-1514 Screw M6-1 x 10mm button head socket stainless steel 4
5 999-9089 Washer M4 flat stainless steel 4
6 174-8902 Self tapping screw 4
7 174-8922 Bail system 1
8 999-0496 Nut M8-1.25 nylon insert lock stainless steel 2
9 274-8262 DASH PANEL, E26 1 (includes 10-15)
10 174-8911 Ribbon cable 1
11 174-8912 Screw 4
12 174-3488 Console back 1
13 174-8913 Cable 1
14 174-8914 Key switch 1
15 174-7079 Key (set of 2) 1

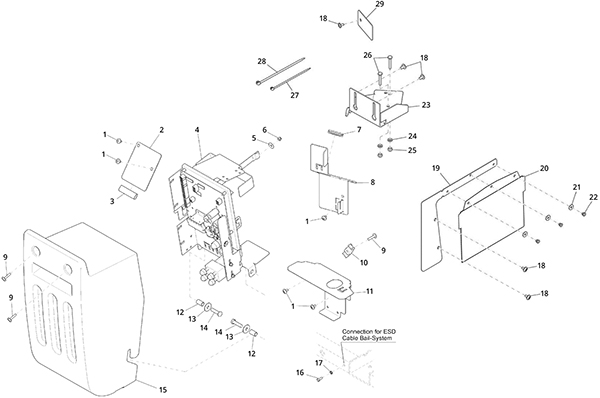

Electrical Assembly - 174-0662
RefNbr Part Number Description Req Notes
1 999-1514 Screw M6-1 x 10mm button head socket stainless steel 5
2 174-8981 Cover plate 1
3 174-8982 Edge protection 1
4 174-6593 Retainer 1
5 999-1261 Washer M6 flat stainless steel 1
6 999-0497 Nut M6-1 nylon insert lock stainless steel 1
7 174-3494 Cable sleeve 1
8 174-3495 Cover plate bracket 1
9 174-8494 Screw M6-1 x 25mm with flange 3
10 174-3500 Clamp 1
11 174-3501 Clamping plate 1
12 174-8983 Bushing 2
13 999-9097 Washer M8 flat stainless steel 2
14 999-0785 Screw M8-1.25 x 30mm hex head stainless steel 2
15 174-8984 Electrical panel cover 1
16 174-6594 Tapping screw 1
17 999-1594 Washer M5 external lock stainless steel 1
18 999-1514 Screw M6-1 x 10mm button head socket stainless steel 2
19 174-8986 Bracket 1
20 174-8987 Pouch 1
21 999-9100 Washer M5 flat stainless steel 3
22 174-8988 Blind rivet 3
23 174-3497 Bag bracket 1
24 999-1261 Washer M6 flat stainless steel 2
25 999-0497 Nut M6-1 nylon insert lock stainless steel 2
26 999-0781 Screw M6-1 x 45mm hex head 2
27 997-2102 Cable tie 12
28 174-6185 Cable tie large 18
29 174-8989 Wiring retainer plate 1
N/S 174-6598 Wiring harness w1 c 1
N/S 274-7138 WIRING HARNESS W2 1
N/S 174-6599 Wiring harness w3 c 1
N/S 174-6600 Wiring harness w9 c 1
N/S 274-7922 WIRING HARNESS W11 C 1
N/S 174-6601 2 piece cable set 1
N/S 174-6602 3 piece battery cable set 1
N/S 174-4186 Cable loom 1

Retainer Assembly - 174-0663
RefNbr Part Number Description Req Notes
1 174-6185 Cable tie large 4
2 997-2102 Cable tie 8
3 174-8962 Webbing 1
4 999-1261 Washer M6 flat stainless steel 2
5 999-1383 Screw M6-1 x 16mm hex head stainless steel 2
6 174-3518 Controller bracket 1
7 174-8958 Edge protection 5 in
8 999-0953 Nut M5-.8 hex nylon insert lock stainless steel 2
9 999-9100 Washer M5 flat stainless steel 4
10 174-9620 Bolt M5-.8 x 16 hex head 2
11 174-8373 24V main relay 2 pole 125 amp 1
12 174-8291 Nut cover safety cap M8 4
13 174-3494 Cable sleeve 1
14 174-9619 Rubber washer 4
15 174-8963 Protective cap 2
16 999-0497 Nut M6-1 nylon insert lock stainless steel 1
17 999-1261 Washer M6 flat stainless steel 1
18a 374-3186 Control board (OBSOLETE) 1
18b 274-1693 FUSE, STRIP 125AMP 80VOLT- MAIN 1
18c 174-3520 Fuse 1
18d 374-0610 FUSE, 5AMP 32VOLT 1
18e N/A Not available 1 (fuse)
18f 174-8965 50amp fuse 1
23 174-8958 Edge protection 1 in
24 174-3521 Cap 2

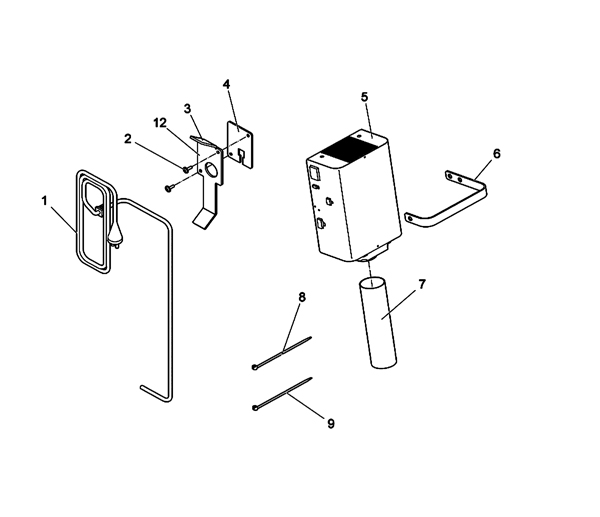

Battery Charger Assembly - 174-0664
RefNbr Part Number Description Req Notes
1a 174-8940 18/3 power cord 1
1b 174-3955 Cordset assembly with strain relief 1
2 174-8941 Lens flange screw 2
3 174-3521 Cap 2
4 174-8942 Cord attachment cover 1
5 174-9439 Battery charger with cord 1
6 174-8943 Tension band 1
7 174-8944 Hose 3
8 997-2102 Cable tie 8
9 174-6185 Cable tie large 1
12 174-8946 Cable retainer 1
N/S 274-6219 WIRING HARNESS W6 C 1
N/S 174-8457 Wiring harness 1 (machine to charger)

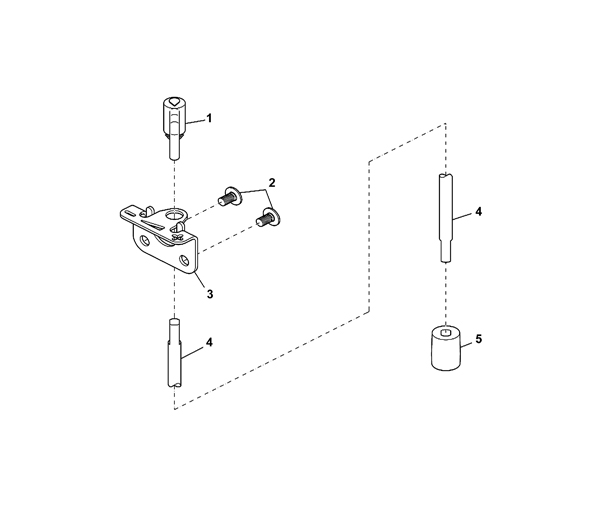

Solution Control Assembly - 174-0665
RefNbr Part Number Description Req Notes
1 174-8907 Solution control lever 1
2 999-1514 Screw M6-1 x 10mm button head socket stainless steel 2
3 174-8908 Control lever bracket 1
4 174-8909 Shaft 1
5 174-8910 Shaft connector 1

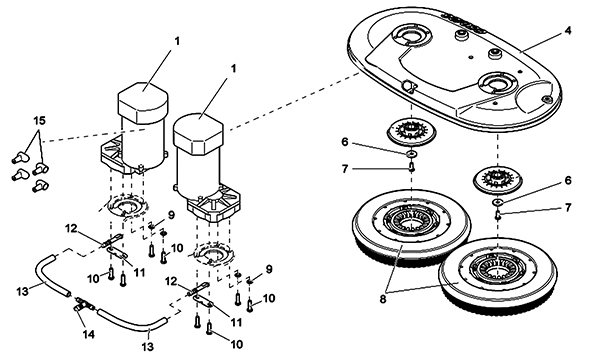

Upper Scrub Deck Assembly - 174-0666
RefNbr Part Number Description Req Notes
1a 174-8891 Brush motor 2
1b 174-8892 Fitting key 2
1c 174-8893 Carbon brush (set of 4) 1
1d 174-8904 Spring 1
1e 174-8905 Gear 1
1f 174-8906 Circlip 1
4 174-8894 26 inch brush deck housing 1
6 174-8895 Washer 2
7 999-9092 Screw M8-1.25 x 20mm hex head stainless steel 2
8 274-6006 CARRIER 2
9 999-9097 Washer M8 flat stainless steel 4
10 999-0785 Screw M8-1.25 x 30mm hex head stainless steel 8
11 174-8896 Sheet metal 2
12 174-8897 Spray tube 2
13 174-9442 Hose 3/8 x 9 inch 2
14 174-8899 T-reducer 1
15 174-8900 Protection cap 4

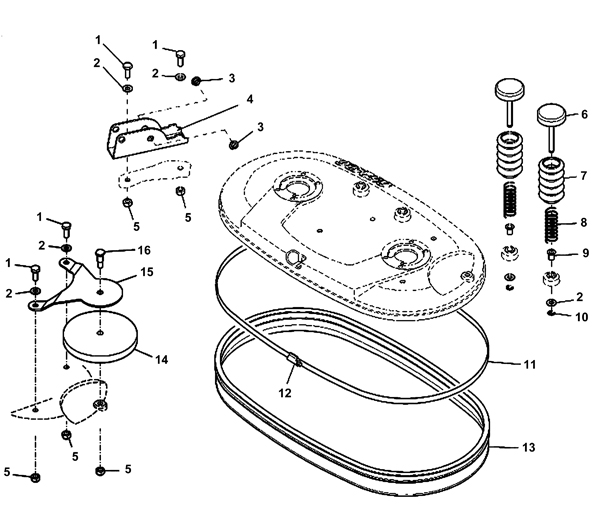

Lower Scrub Deck Assembly - 174-0667
RefNbr Part Number Description Req Notes
1 999-1372 Bolt M10-1.5 x 25mm hex head stainless steel 4
2 999-9099 Washer M10 flat stainless steel 6
3 174-8974 Bushing 2
4 274-5273 BRACKET, DISK BRUSHDECK MOUNT 1
5 999-1120 Nut M10-1.5 nylon insert lock stainless steel 5
6 174-8483 Ejector 2
7 174-8484 Bellow 2
8 174-8485 Compression spring 2
9 174-8977 Slide bearing 2
10 174-9618 Retaining washer 2
11 174-8449 Tension band 1
12 174-8450 Tension band lock 1
13 174-8979 Sealing strip 1
14 174-8980 Deflector roller 1
15 174-3479 Retainer 1
16 174-9443 Bolt M10 x 1.5 x 20 shoulder 1

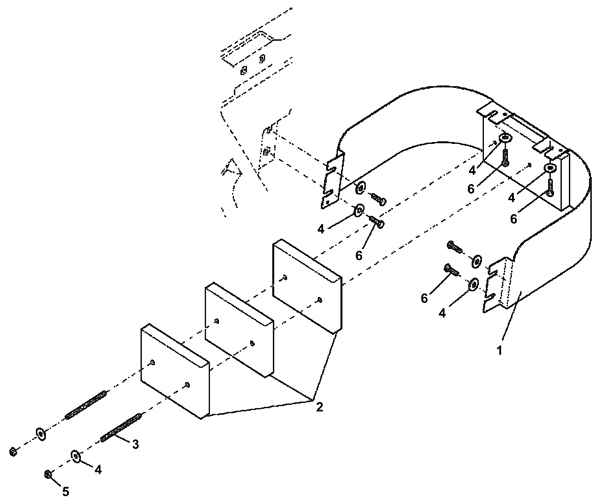

Deck Cover Assembly - 174-0668
RefNbr Part Number Description Req Notes
1 174-3530 Deck cover 1
2 174-3531 Weight 3
3 174-3532 Threaded rod 2
4 999-9097 Washer M8 flat stainless steel 2
5 999-0496 Nut M8-1.25 nylon insert lock stainless steel 2
6 999-0784 Screw M8-1.25 x 16mm hex head stainless steel 6

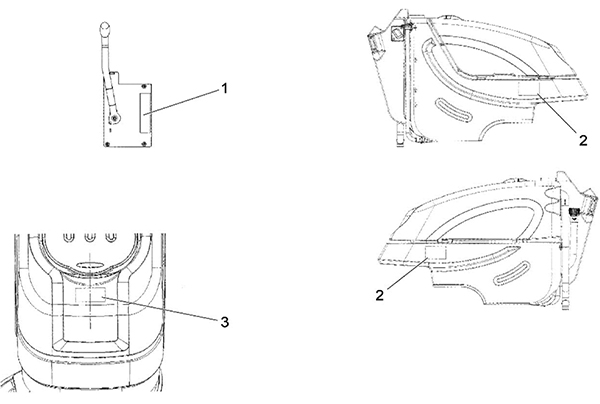

Decal Assembly - 174-0669
RefNbr Part Number Description Req Notes
1 174-8937 Decal 1
2 174-3543 Naming decal 2
3 174-8198 Minuteman decal 1

- Batteries, Brushes and Chargers - 174-8905
RefNbr Part Number Description Req Notes
162-0003 6V 225Ah wet battery (SNSR) 4
274-9898 6V 220Ah battery 4
174-6603 24V on board battery charger kit 1
274-8471 BRUSH-LIGHT DUTY (SP) 7513 2
274-8473 BRUSH-LIGHT MEDIUM (SP) 7517 2
274-8809 BRUSH-MEDIUM (SP) 2
274-8472 BRUSH-MEDIUM HEAVY (SP) 7515 2
274-8810 BRUSH-HEAVY (SP) 7519 2
274-8811 BRUSH-HEAVY EXTREME (SP) 7521 2
274-7999 PAD-DRIVER - 13 inch DIA. (SP) 2
174-7219 13 inch pad driver assembly 2
174-8903 Center lock retainer 2
174-8901 Center lock 2

- Commonly Asked For Parts - 174-9941
RefNbr Part Number Description Req Notes
0.9835 174-7059 Solution tank
0.9835 174-7079 Key (set of 2)
0.9835 174-8180 Squeegee blade front polyurethane
0.9835 174-8179 Squeegee blade rear polyurethane
0.9835 174-7081 Filter cap

- Pads - 13 inch - 255-1300
RefNbr Part Number Description Req Notes
01 255-1340 13 inch aqua plus burnishing pad (pkg of 5)
02 255-1335 13 inch Armadillo concrete scrubbing pad (pkg of 5)
03 255-1364 13 inch Blue ace pad (pkg of 5)
04 255-1342 13 inch Blue Jay burnishing pad (pkg of 5)
05 255-1312 13 inch Cure white pad (pkg of 5)
06 255-1377 13 inch Diamondback extreme stripping pad (pkg of 5)
07 255-1338 13 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2
08 255-1321 13 inch gorilla lite burnishing pad (pkg of 5)
09 255-1350 13 inch gorilla spray buff/polish/burnish pad (pkg of 5)
10 255-1365 13 inch Heat concrete bonding pad (pkg of 5)
11 255-1330 13 inch jaguar burnishing pad (pkg of 5)
12 255-1387 13 inch Melamine Mela-Kleen pad (pkg of 2)
13 255-1390 13 inch premium black stripping pad (pkg of 5)
14 255-1370 13 inch premium blue cleaning pad (pkg of 5)
15 255-1392 13 inch premium brown stripping pad (pkg of 5)
16 255-1380 13 inch premium green scrubbing pad (pkg of 5)
17 255-1360 13 inch premium red scrubbing pad (pkg of 5)
18 255-1352 13 inch premium tan polishing pad (pkg of 5)
19 255-1320 13 inch premium white polishing pad (pkg of 5)
20 255-1311 13 inch superspeed rubberized pad (pkg of 5)
21 255-1395 13 inch razorback stripping pad (pkg of 5)
22 255-1347 13 inch Redwood maroon floor prep pad (pkg of 10)
23 255-1355 13 inch Ruff non-abrasive brush pad (pkg of 2)
24 255-1323 13 inch sand screen driver pad (pkg of 2)
25 255-0198 13 inch Superscreen sand screen 100 grit (pkg of 10)
26 255-0199 13 inch Superscreen sand screen 120 grit (pkg of 10)
27 255-0200 13 inch Superscreen sand screen 150 grit (pkg of 10)
28 255-0201 13 inch Superscreen sand screen 180 grit (pkg of 10)
29 255-0202 13 inch Superscreen sand screen 220 grit (pkg of 10)
30 255-0203 13 inch Superscreen sand screen 400 grit (pkg of 10)
31 255-0196 13 inch Superscreen sand screen 60 grit(pkg of 10) (OBSOLETE
32 255-0197 13 inch Superscreen sand screen 80 grit (pkg of 10)
33 255-0113 13 inch Professional sand screen 100 grit (pkg of 10)
34 255-0114 13 inch Professional sand screen 120 grit (pkg of 10)
35 255-0115 13 inch Professional sand screen 150 grit (pkg of 10)
36 255-0116 13 inch Professional sand screen 180 grit (pkg of 10)
37 255-0117 13 inch Pro sand screen 220 grit (pkg of 10) (OBSOLETE)
38 255-0118 13 inch Professional sand screen 400 grit (pkg of 10)
39 255-0111 13 inch Professional sand screen 60 grit (pkg of 10)
40 255-0112 13 inch Professional sand screen 80 grit (pkg of 10)
41 255-1324 13 inch Tiger carpet bonnet (pkg of 2)
42 255-9542 13 inch Diamond by Gorilla 11000 Grit (pkg of 2)
43 255-9539 13 inch Diamond by Gorilla 1500 Grit (pkg of 2)
44 255-9536 13 inch Diamond by Gorilla 200 Grit (pkg of 2)
45 255-9540 13 inch Diamond by Gorilla 3000 Grit (pkg of 2)
46 255-9537 13 inch Diamond by Gorilla 400 Grit (pkg of 2)
47 255-9538 13 inch Diamond by Gorilla 800 Grit (pkg of 2)
48 255-9541 13 inch Diamond by Gorilla 8000 Grit (pkg of 2)
49 255-9638 13 inch Diamond starter pack (1 of each grit)
50 255-1382 13 inch Turbostrip segmented rotary pad (pkg of 4)
51 255-1315 13 inch Duala clean and shine pad - low speed (pkg of 5)
52 255-1316 13 inch 2001 Duala clean and shine pad-high speed (OBSOLETE)

- Pad Holders - 275-9029
RefNbr Part Number Description Req Notes
1 991-2214 Center-Lok II pad holder - left hand thread (red)
2a 991-2201 Center-Lok II pad holder - right hand thread (black) (Pad driver side female, Floor side male)
2b 991-8577 Pad retainer (Pad driver side male, Floor side female)
3a 991-2202 Big mouth pad holder set (blue) (includes 3 screws)
3b 991-2205 Deep lock ring and pad grip ring
4 991-2203 Big mouth pad holder male thread portion
5 991-2206 Center-Lok 3 pad holder (includes 3 screws)
6 996-0372 Big mouth pad holder (left hand thread)
7 N/A Not available
8 991-2209 Split retainer - pad holder ring (OBSOLETE)
9 N/A Not available (replaced by #3 991-2202)
10 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE)

- Batteries - 999-5047
RefNbr Part Number Description Req Notes
1 162-0003 6V 225Ah wet battery (SNSR) 4
2 162-0043 6V 224Ah AGM battery (Group GC2) 4

- Chargers - 999-5075
RefNbr Part Number Description Req Notes
1 162-5060 24V 20amp battery charger with small SB50 red plug 1
2 162-5070 24V 20amp AGM battery charger with small SB50 red plug 1
3 174-6603 24V on board battery charger kit 1
4 991-2103 50amp charger plug SB50 with pins (red) 1
5a 162-5079 SCR assembly kit 1
5b 372-1254 Fuse assembly 1
5 162-5087 AC cord set kit 1
7 162-5081 Control board assembly 1
Webpage Problem Reporting
