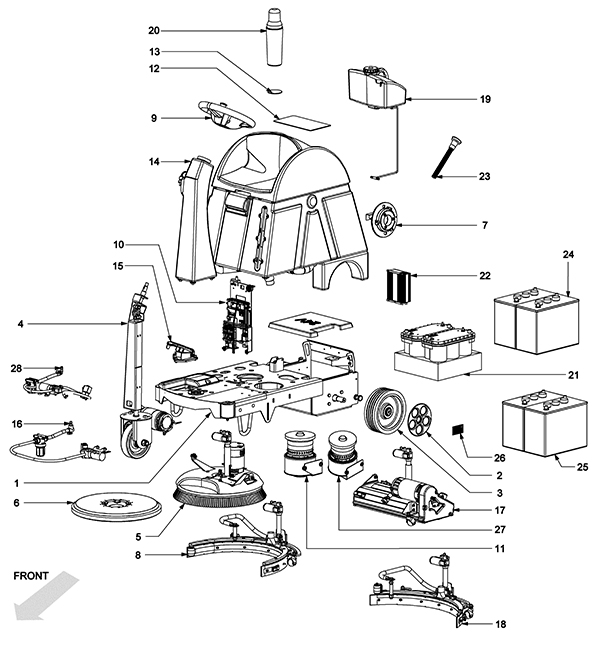

General View Assembly - 174-6192 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
174-9697 |
Frame assembly |
1 |
|
| 2 |
174-9698 |
Rear wheel cover |
2 |
|
| 3 |
174-9699 |
Rear wheel assembly |
2 |
|
| 4 |
174-9700 |
Front drive wheel |
1 |
|
| 5 |
174-9701 |
Disc deck assembly |
1 |
|
| 6 |
174-9702 |
Pad holder kit |
1 |
|
| 7 |
174-9702 |
Pad holder kit |
1 |
|
| 8 |
174-9704 |
Disc deck squeegee assembly |
1 |
|
| 9 |
174-9705 |
Steering wheel assembly |
1 |
|
| 10 |
174-9706 |
Electrical system assembly |
1 |
|
| 11 |
174-9707 |
Suction assembly |
1 |
|
| 12 |
174-9708 |
Detergent tank seat covering mat |
1 |
|
| 13 |
174-9709 |
Seat beacon light covering mat |
1 |
|
| 14 |
174-9710 |
Cowlings assembly |
1 |
|
| 15 |
174-9711 |
Accelerator pedal assembly |
1 |
|
| 16 |
174-9712 |
Disc deck hydraulic system assembly |
1 |
|
| 17 |
174-9713 |
Cylindrical brush assembly |
1 |
|
| 18 |
174-9714 |
Squeegee assembly |
1 |
|
| 19 |
174-9715 |
Detergent system |
1 |
(optional) |
| 20 |
174-9716 |
Beacon light assembly |
1 |
|
| 21 |
174-9717 |
Optima batteries kit |
1 |
|
| 22 |
174-9718 |
Optima battery charger |
1 |
|
| 23 |
174-9719 |
Refilling hose assembly |
1 |
|
| 24 |
162-0057 |
12V 150Ah wet battery |
2 |
|
| 25 |
162-6022 |
12V 102Ah gel battery (SNSR) |
2 |
|
| 26 |
174-9722 |
Clever S01 decal |
1 |
|
| 27 |
174-9723 |
Cylindrical deck suction assembly |
1 |
|
| 28 |
174-9724 |
Cylindrical solution system |
1 |
|
|
|

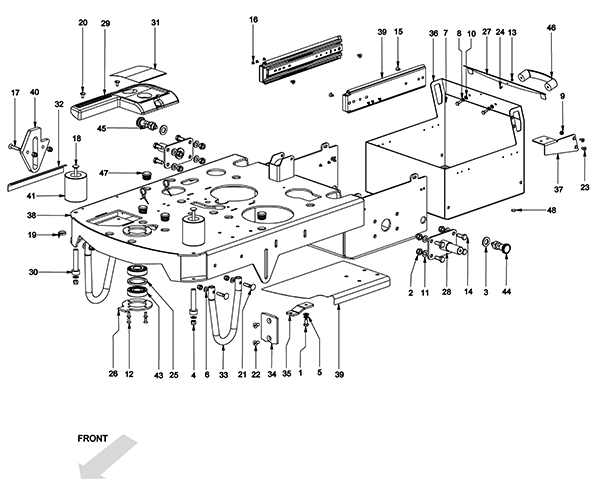

Chassis System Assembly - 174-6193 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
174-9725 |
Screw M8 x 16mm |
8 |
|
| 2 |
174-9726 |
Nut M10 self locking |
2 |
|
| 3 |
174-9727 |
Washer M 16x 30mm |
4 |
|
| 4 |
174-9728 |
Nut M8 self locking |
2 |
|
| 6 |
174-9730 |
Washer M8 flat |
2 |
|
| 7 |
174-9731 |
Screw M6 x 16mm |
2 |
|
| 8 |
174-9732 |
Screw M6 x 16mm |
8 |
|
| 10 |
174-9734 |
Washer M6 flat |
4 |
|
| 11 |
174-9735 |
Washer M10 flat |
6 |
|
| 12 |
174-9736 |
Screw M6 x 16mm |
2 |
|
| 13 |
174-9737 |
Nut M3 self locking |
1 |
|
| 14 |
174-9738 |
Screw M10 x 25mm |
2 |
|
| 15 |
174-9739 |
Screw M6 x 10mm thread locking |
3 |
|
| 16 |
174-9740 |
Screw M4 x 6mm thread locking |
3 |
|
| 17 |
174-9741 |
Screw M8 x 40mm |
2 |
|
| 18 |
174-9742 |
Bolt M8 x 110mm |
1 |
|
| 19 |
174-9743 |
Band 58x205x20mm |
2 |
|
| 20 |
174-9744 |
Screw M6 x 12mm |
3 |
|
| 21 |
174-9745 |
Screw M8 x 40mm |
1 |
|
| 22 |
174-9746 |
Screw M8 x 16mm thread locking |
1 |
|
| 23 |
174-9747 |
Screw M6 x 12mm thread locking |
2 |
|
| 24 |
174-9748 |
Screw M3 x 8mm thread locking |
1 |
|
| 25 |
174-9749 |
Spacer bearings |
1 |
|
| 26 |
174-9750 |
Locking sleeve flange bearings holder |
2 |
|
| 27 |
174-9751 |
Battery water stopper |
1 |
|
| 28 |
174-9752 |
Rear wheel support |
1 |
|
| 29 |
174-9752 |
Rear wheel support |
2 |
|
| 30 |
174-9754 |
Shock proof spacer roll |
1 |
|
| 31 |
174-9755 |
Support heal anti slip mat |
1 |
|
| 32 |
174-9756 |
Right hand anti slip mat |
1 |
|
| 33 |
174-9757 |
Anti overturning tube |
1 |
|
| 34 |
174-9758 |
Squeegee actuator wishbone guide |
1 |
|
| 35 |
174-9759 |
Squeegee stop |
1 |
|
| 36 |
174-9760 |
Battery box |
2 |
|
| 37 |
174-9761 |
Battery connector support |
2 |
|
| 39 |
174-9763 |
Left hand anti slip mat |
1 |
|
| 40 |
174-9764 |
Side bumper |
1 |
|
| 41 |
174-9765 |
Shockproof roll |
2 |
|
| 43 |
174-9766 |
Stearing column bearing |
2 |
|
| 45 |
174-9768 |
Piston with lock |
1 |
|
| 46 |
174-9769 |
Handle (black) |
1 |
|
| N/S |
174-9772 |
Double guide for battery box |
2 |
|
|
|

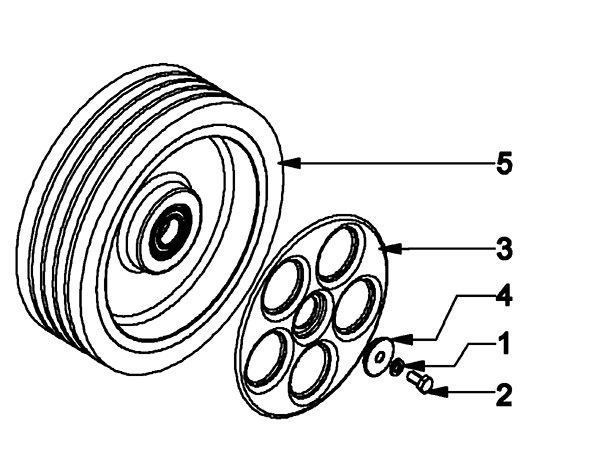

Rear Wheel Assembly - 174-6194 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
174-9773 |
Screw M8 x 16mm thread locking |
1 |
|
| 3 |
174-9698 |
Rear wheel cover |
1 |
|
| 4 |
174-9774 |
Rear wheel spacer |
1 |
|
|
|

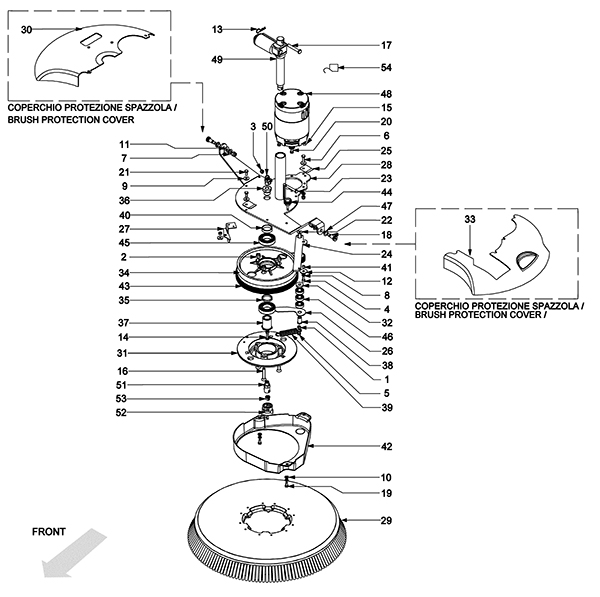

Deck System (DISC) Assembly - 174-6195 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
174-9728 |
Nut M8 self locking |
5 |
|
| 4 |
174-9778 |
Screw M6 x 16mm |
1 |
|
| 5 |
174-9731 |
Screw M6 x 16mm |
1 |
|
| 6 |
174-9779 |
Screw M6 x 30mm |
1 |
|
| 7 |
174-9780 |
Washer M10 grower |
2 |
|
| 8 |
174-9732 |
Screw M6 x 16mm |
3 |
|
| 9 |
174-9781 |
Washer M6 flat |
5 |
|
| 10 |
174-9734 |
Washer M6 flat |
3 |
|
| 11 |
174-9735 |
Washer M10 flat |
2 |
|
| 12 |
174-9782 |
Washer M6 flat |
1 |
|
| 13 |
174-9783 |
Split pin 2mm galvanized steel |
1 |
|
| 14 |
174-9784 |
Screw M6 x 25mm |
1 |
|
| 15 |
174-9785 |
Screw M6 x 12mm locking thread |
1 |
|
| 16 |
174-9786 |
Screw M8 x 45mm |
3 |
|
| 17 |
174-9787 |
Pin 8 x 55mm |
1 |
|
| 18 |
174-9788 |
Screw M8 x 16mm |
2 |
|
| 19 |
174-9789 |
Screw M6 x 12mm |
2 |
|
| 20 |
174-9790 |
Screw M6 x 12mm locking thread |
3 |
|
| 21 |
174-9791 |
Screw M6 x 14mm |
3 |
|
| 22 |
174-9792 |
Screw M8 x 30mm |
1 |
|
| 23 |
174-9793 |
Screw M6 x 65mm |
1 |
|
| 24 |
174-9794 |
Brush belt tensioning plate |
1 |
|
| 25 |
174-9795 |
Brush casing plate |
2 |
|
| 26 |
174-9796 |
Brush drive support belt |
1 |
|
| 27 |
174-9797 |
Solenoid support bracket |
1 |
|
| 28 |
174-9798 |
Brush holder |
1 |
|
| 29 |
174-9799 |
530mm brush (blue) |
1 |
|
| 30 |
174-9800 |
Right hand brush protective casing |
1 |
|
| 31 |
174-9801 |
Brush attachment hub |
1 |
|
| 32 |
174-9802 |
Brush belt spacer bearings |
1 |
|
| 33 |
174-9803 |
Left brush protective casing |
1 |
|
| 34 |
174-9804 |
Brush pulley |
1 |
|
| 35 |
174-9805 |
Brush bearings spacer |
1 |
|
| 36 |
174-9806 |
Bolt 1/4 x 1/2 drilled |
1 |
|
| 37 |
174-9807 |
Bolt 1/2 x 30 drilled |
1 |
|
| 39 |
174-9809 |
Brush belt tensioning spring |
1 |
|
| 40 |
174-9810 |
Spacer brush bearings |
1 |
|
| 41 |
174-9811 |
Brush belt tensioning spacer |
1 |
|
| 42 |
174-9812 |
Brush belt carter |
1 |
|
| 45 |
174-9815 |
Brush pulley bearing |
2 |
|
| 46 |
174-9816 |
Grooved bearing M12 x 28 x 8mm |
3 |
|
| 47 |
174-9817 |
Brush/squeegee auto lubricating bearing |
2 |
|
| 48 |
174-9818 |
24V brush motor |
1 |
|
| 49 |
174-9819 |
Brush lifting jack |
1 |
|
| 50 |
174-9820 |
90 degree barbed connector |
1 |
|
| 51 |
174-9821 |
1/4 inch sprayer holder |
1 |
|
| 52 |
174-9822 |
Quick connection kit (blue) |
1 |
|
| 54 |
174-9824 |
Carbon brush |
1 |
|
|
|

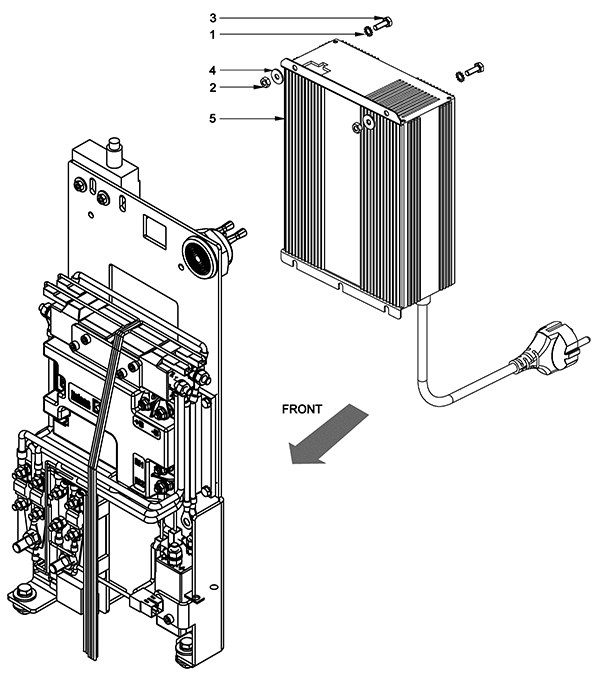

Battery Charger System Assembly - 174-6196 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
174-9825 |
Washer M4 grooved |
2 |
|
| 3 |
174-9827 |
Screw M4 x 12mm |
2 |
|
| 4 |
174-9828 |
Washer M4 flat |
2 |
|
| 5 |
174-9829 |
Battery charger |
1 |
|
|
|

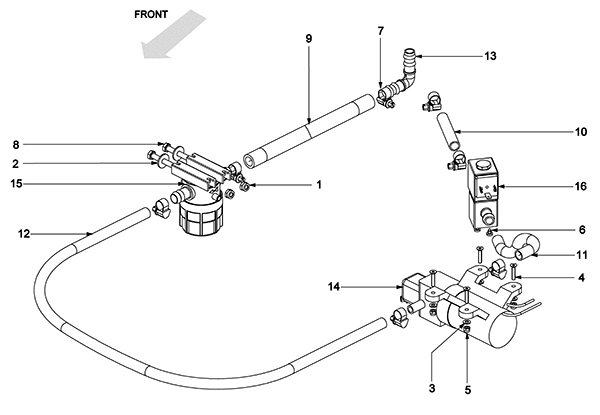

Solution System (DISC) Assembly - 174-6197 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
174-9781 |
Washer M6 flat |
2 |
|
| 3 |
174-9830 |
Washer M4 flat |
4 |
|
| 4 |
174-9831 |
Screw M4 x 20mm |
4 |
|
| 5 |
174-9832 |
Nut M4 self locking |
4 |
|
| 6 |
174-9833 |
Screw M3, 9x6,5 6954 DIN 7981 |
2 |
|
| 8 |
174-9835 |
Screw M6 x 75mm |
2 |
|
| 9 |
174-9836 |
16 meter braided hose (clear) |
1 |
|
| 10 |
174-9837 |
72M waterpatterned transparent hose |
1 |
|
| 11 |
174-9838 |
250M waterpatterned transparent hose |
1 |
|
| 12 |
174-9839 |
850M waterpatterned transparent hose |
1 |
|
| 13 |
174-9840 |
90 degree rubber holder |
1 |
|
| 14 |
174-9841 |
24V water pump |
1 |
|
| 15 |
174-9842 |
Water filter |
1 |
|
| 16 |
174-9843 |
24V Dc solenoid |
1 |
|
|
|

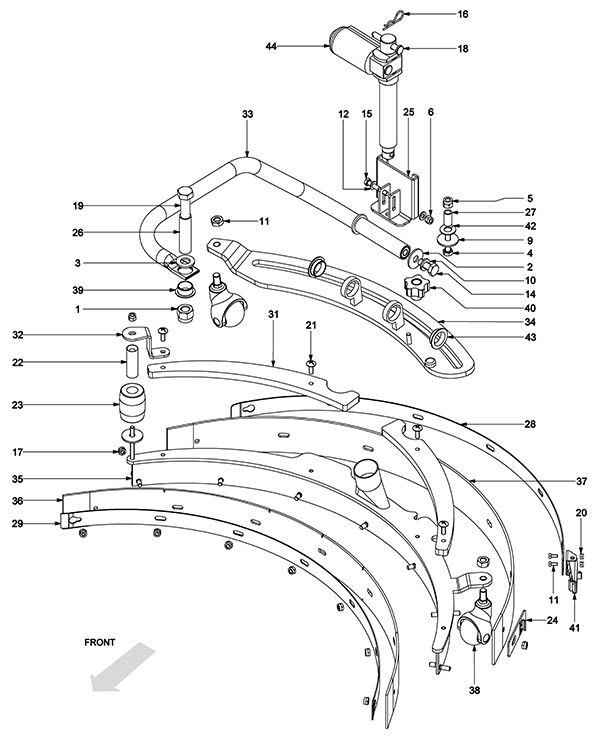

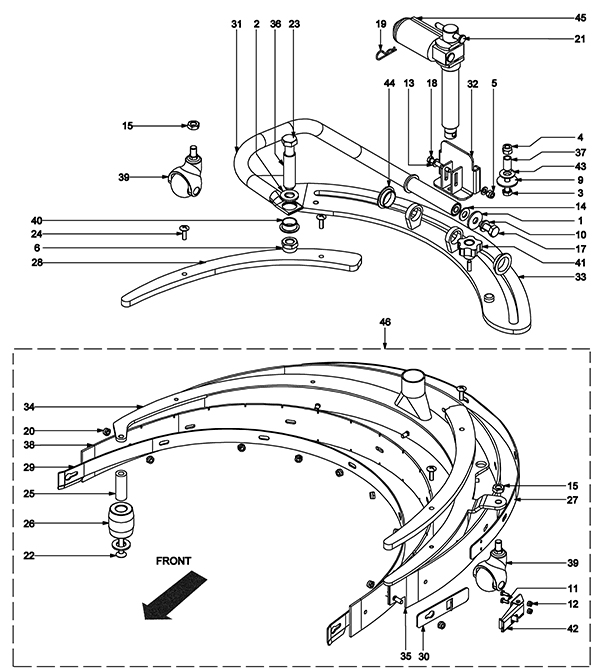

Squeegee System (DISC) Assembly - 174-6198 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 3 |
999-0785 |
Screw M8-1.25 x 30mm hex head stainless steel |
1 |
|
| 4 |
174-9728 |
Nut M8 self locking |
1 |
|
| 6 |
174-9847 |
Nut M14mm self locking |
1 |
|
| 8 |
174-9730 |
Washer M8 flat |
1 |
|
| 10 |
174-9780 |
Washer M10 grower |
1 |
|
| 11 |
174-9849 |
Screw M4 x 10mm stainless steel |
2 |
|
| 12 |
174-9850 |
Nut M4 self locking stainless steel |
2 |
|
| 13 |
174-9734 |
Washer M6 flat |
2 |
|
| 14 |
174-9735 |
Washer M10 flat |
1 |
|
| 16 |
174-9852 |
Screw M8 x 12mm |
1 |
|
| 17 |
174-9738 |
Screw M10 x 25mm |
1 |
|
| 18 |
174-9853 |
Screw M6 x 40mm |
1 |
|
| 19 |
174-9783 |
Split pin 2mm galvanized steel |
1 |
|
| 21 |
174-9787 |
Pin 8 x 55mm |
1 |
|
| 22 |
174-9855 |
Screw M8 x 50mm |
1 |
|
| 23 |
174-9856 |
Screw M14 x 85mm |
1 |
|
| 24 |
174-9857 |
Screw M6 x 20mm |
4 |
|
| 25 |
174-9858 |
Squeegee roll spacer |
1 |
|
| 26 |
174-9859 |
Squeegee roll |
1 |
|
| 27 |
174-9860 |
Squeegee support blade rear |
1 |
|
| 28 |
174-9861 |
Squeegee counterweight |
1 |
|
| 29 |
174-9862 |
Squeegee support blade front |
1 |
|
| 30 |
174-9863 |
Squeegee plate clip |
2 |
|
| 31 |
174-9864 |
Squeegee guide tube |
1 |
|
| 32 |
174-9865 |
Squeegee wishbone actuator |
1 |
|
| 33 |
174-9866 |
Squeegee hoder |
1 |
|
| 35 |
174-9868 |
Squeegee blade rear |
1 |
|
| 36 |
174-9869 |
Squeegee tube spacer guide |
1 |
|
| 37 |
174-9870 |
Squeegee wishbone spacer actuator |
1 |
|
| 38 |
174-9871 |
Squeegee bland front (gray) |
1 |
|
| 39 |
174-9872 |
Pivoting wheel |
2 |
|
| 40 |
174-9873 |
Bearing squeegee guide |
1 |
|
| 43 |
174-9876 |
Squeegee thrust washer |
1 |
|
| 45 |
174-9878 |
Squeegee lifting jack |
1 |
|
| 46 |
174-9879 |
Disco wiper kit |
1 |
(includes items 11,12,15, 20,22,25,26,27,29,30, 34, 35,38,39, 42) |
|
|

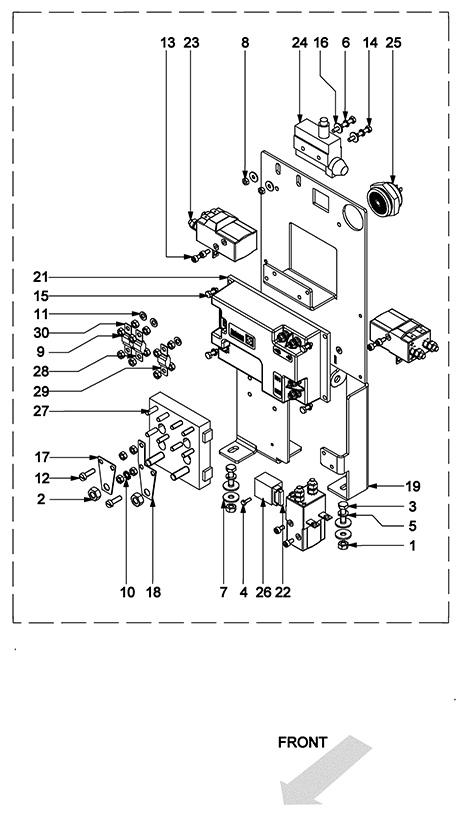

Battery Charger Assembly - 174-6199 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 3 |
174-9881 |
Screw M6 x 20mm |
2 |
|
| 4 |
174-9882 |
Screw M3 x 10mm |
1 |
|
| 5 |
174-9732 |
Screw M6 x 16mm |
2 |
|
| 6 |
174-9825 |
Washer M4 grooved |
6 |
|
| 7 |
174-9781 |
Washer M6 flat |
4 |
|
| 10 |
174-9884 |
Washer M5 grooved |
1 |
|
| 11 |
174-9885 |
Washer M5 flat |
3 |
|
| 12 |
174-9886 |
Screw M5 x 16mm |
2 |
|
| 13 |
174-9887 |
Screw M4 x 8mm |
6 |
|
| 14 |
174-9888 |
Screw M4 x 30mm |
2 |
|
| 15 |
174-9827 |
Screw M4 x 12mm |
4 |
|
| 16 |
174-9828 |
Washer M4 flat |
4 |
|
| 17 |
174-9889 |
Front fuse holder link |
1 |
|
| 18 |
174-9890 |
Rear fuse holder link |
1 |
|
| 19 |
174-9891 |
Electrical components plate |
1 |
|
| 20 |
174-9892 |
Battery box cover |
1 |
|
| 21 |
174-7214 |
Electronic traction board |
1 |
|
| 22 |
174-9893 |
Lamellar fuse |
1 |
|
| 24 |
174-9895 |
Seat microswitch |
1 |
|
| 26 |
174-9897 |
Fuze holder |
1 |
|
| 27 |
174-9898 |
Fuse holder |
2 |
|
| 28 |
174-9899 |
30amp lamellar fuse |
1 |
|
| 29 |
174-9900 |
40amp lamellar fuse |
1 |
|
| 30 |
174-9901 |
80amp lamellar fuse |
1 |
|
| 31 |
174-9902 |
Battery connector |
1 |
|
|
|

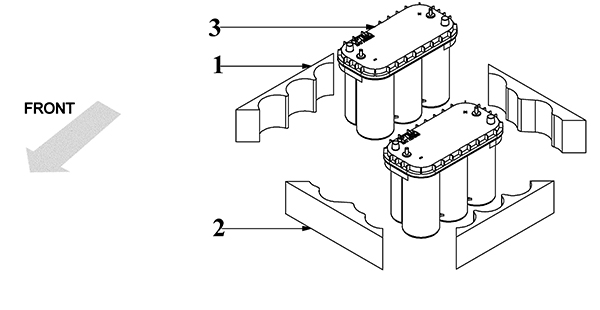

Battery Assembly - 174-6200 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
174-9903 |
Battery box panel POS1 |
2 |
|
| 2 |
174-9904 |
Battery box panel POS2 |
2 |
|
| 3 |
174-9905 |
12C 75Ah battery |
2 |
|
|
|

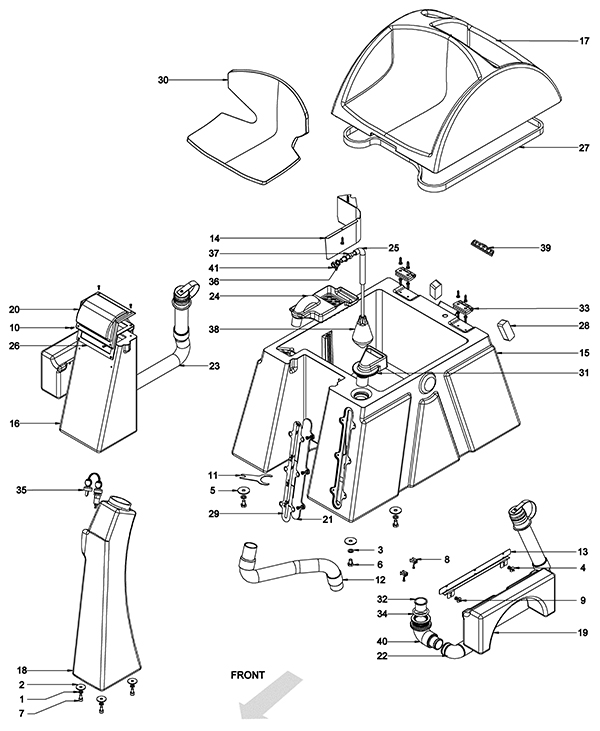

Cowlings Assembly - 174-6201 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 3 |
174-9780 |
Washer M10 grower |
4 |
|
| 4 |
174-9781 |
Washer M6 flat |
4 |
|
| 5 |
174-9906 |
Washer M10 flat |
4 |
|
| 6 |
174-9907 |
Screw M10 x 16mm |
4 |
|
| 7 |
174-9908 |
Screw M8 x 16mm |
4 |
|
| 9 |
174-9910 |
Screw M6 x 25mm trilobate |
18 |
|
| 10 |
174-9911 |
Screw M4 x 14mm trilobate |
6 |
|
| 11 |
174-9912 |
Suction hose support |
1 |
|
| 12 |
174-9913 |
Suction hose |
1 |
|
| 13 |
174-9914 |
Drain tube support |
1 |
|
| 14 |
174-9915 |
Tank wall cover |
1 |
|
| 16 |
174-9917 |
Electrical components box |
1 |
|
| 18 |
174-9919 |
Steering column |
1 |
|
| 19 |
174-9920 |
Rear fender |
2 |
|
| 20 |
174-9921 |
Electrical components cover |
1 |
|
| 21 |
174-9922 |
Water level window |
1 |
|
| 23 |
174-9924 |
Clean water drain tube |
1 |
|
| 24 |
174-9925 |
Debris tray |
1 |
|
| 25 |
174-9926 |
Floating switch hose |
1 |
|
| 26 |
174-9927 |
Electrical components seal |
1 |
|
| 28 |
174-9929 |
Rubber hose holder |
2 |
|
| 29 |
174-9930 |
Water level decal |
1 |
|
| 31 |
174-9932 |
Suction motor protection |
1 |
|
| 32 |
174-9933 |
Tank union pipe brush |
1 |
|
| 34 |
174-9935 |
Tank union pipe |
1 |
|
| 35 |
174-9936 |
Ignition key |
1 |
|
| 36 |
174-9937 |
Washer 1/4 dowty |
2 |
|
| 37 |
174-9938 |
1/4 inch bulkhead |
1 |
|
| 38 |
174-9939 |
Dirty water floating switch |
1 |
|
|
|

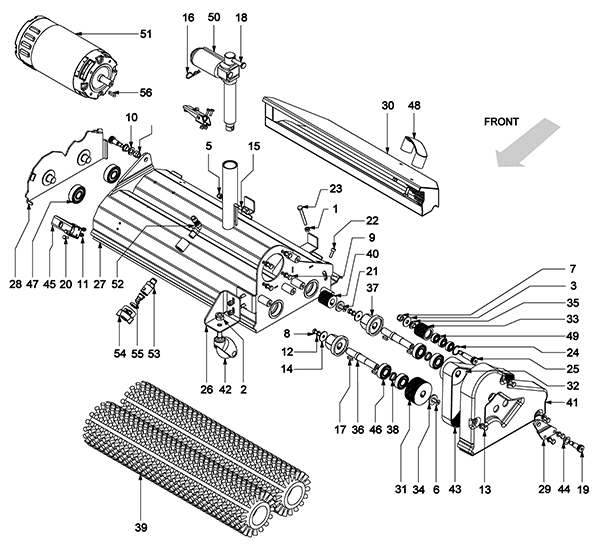

Cylindric Deck Assembly - 174-6202 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
174-9726 |
Nut M10 self locking |
1 |
|
| 3 |
174-9943 |
Washer M8 x 24mm |
1 |
|
| 4 |
174-9728 |
Nut M8 self locking |
1 |
|
| 6 |
174-9944 |
Screw M6 x 20mm |
2 |
|
| 8 |
174-9881 |
Screw M6 x 20mm |
2 |
|
| 9 |
174-9731 |
Screw M6 x 16mm |
11 |
|
| 10 |
174-9780 |
Washer M10 grower |
1 |
|
| 12 |
174-9732 |
Screw M6 x 16mm |
8 |
|
| 13 |
174-9734 |
Washer M6 flat |
5 |
|
| 14 |
174-9782 |
Washer M6 flat |
2 |
|
| 15 |
174-9947 |
Screw M6 x 45mm |
1 |
|
| 16 |
174-9783 |
Split pin 2mm galvanized steel |
1 |
|
| 17 |
174-9948 |
Square keyway 5 x 5 x 15mm |
4 |
|
| 18 |
174-9787 |
Pin 8 x 55mm |
1 |
|
| 19 |
174-9788 |
Screw M8 x 16mm |
2 |
|
| 20 |
174-9827 |
Screw M4 x 12mm |
4 |
|
| 21 |
174-9944 |
Screw M6 x 20mm |
1 |
|
| 22 |
174-9950 |
Screw M5 X 16mm |
1 |
|
| 23 |
174-9951 |
Screw M6 x 55mm |
1 |
|
| 25 |
174-9952 |
Screw M8 x 30mm |
1 |
|
| 26 |
174-9954 |
Deck wheel support |
1 |
|
| 27 |
174-9955 |
Deck chassis |
1 |
|
| 29 |
174-9957 |
Deck lift support |
1 |
|
| 30 |
174-9958 |
Deck debris tray |
1 |
|
| 31 |
174-9959 |
Brush pulley |
1 |
|
| 32 |
174-9960 |
Squeegee blade rear |
1 |
|
| 33 |
174-9961 |
Brush pulley |
1 |
|
| 34 |
174-9962 |
Deck positioning washer |
3 |
|
| 35 |
174-9963 |
Deck pulley bearing spacer |
1 |
|
| 36 |
174-9964 |
Deck brushes shaft |
2 |
|
| 38 |
174-9966 |
Deck bearing spacer |
2 |
|
| 39 |
174-9967 |
Cylindrical brush |
2 |
|
| 40 |
174-9968 |
Drive brush pulley |
1 |
|
| 41 |
174-9969 |
Deck belt carter |
1 |
|
| 42 |
174-9872 |
Pivoting wheel |
1 |
|
| 44 |
174-9817 |
Brush/squeegee auto lubricating bearing |
2 |
|
| 46 |
174-9971 |
Bearing 15 x 74mm |
4 |
|
| 47 |
174-9972 |
Bearing 15 x 42mm |
2 |
|
| 48 |
174-9769 |
Handle (black) |
1 |
|
| 49 |
174-9973 |
Bearing 8 x 22mm |
3 |
|
| 50 |
174-9819 |
Brush lifting jack |
1 |
|
| 51 |
174-9974 |
Brush motor |
1 |
|
| 52 |
174-9820 |
90 degree barbed connector |
1 |
|
| 53 |
174-9821 |
1/4 inch sprayer holder |
1 |
|
| 54 |
174-9822 |
Quick connection kit (blue) |
1 |
|
| 56 |
174-9976 |
Square keyway 5 x 5 x 20mm |
1 |
|
|
|
Squeegee System Assembly (Cylindrical) - 174-6203 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 4 |
999-0785 |
Screw M8-1.25 x 30mm hex head stainless steel |
1 |
|
| 5 |
174-9728 |
Nut M8 self locking |
1 |
|
| 10 |
174-9780 |
Washer M10 grower |
1 |
|
| 11 |
174-9979 |
Screw M4 x 10mm |
2 |
|
| 12 |
174-9734 |
Washer M6 flat |
2 |
|
| 13 |
174-9980 |
Screw M8 x 12mm |
1 |
|
| 14 |
174-9738 |
Screw M10 x 25mm |
1 |
|
| 15 |
174-9853 |
Screw M6 x 40mm |
1 |
|
| 16 |
174-9783 |
Split pin 2mm galvanized steel |
1 |
|
| 18 |
174-9787 |
Pin 8 x 55mm |
1 |
|
| 19 |
174-9981 |
Screw M14 x 90mm |
1 |
|
| 20 |
174-9832 |
Nut M4 self locking |
2 |
|
| 21 |
174-9982 |
Screw M6 x 16mm |
4 |
|
| 22 |
174-9858 |
Squeegee roll spacer |
1 |
|
| 23 |
174-9859 |
Squeegee roll |
1 |
|
| 24 |
174-9863 |
Squeegee plate clip |
1 |
|
| 25 |
174-9865 |
Squeegee wishbone actuator |
1 |
|
| 26 |
174-9869 |
Squeegee tube spacer guide |
1 |
|
| 27 |
174-9870 |
Squeegee wishbone spacer actuator |
1 |
|
| 28 |
174-9983 |
Squeegee support blade rear |
1 |
|
| 29 |
174-9984 |
Squeegee support blade front |
1 |
|
| 30 |
174-9985 |
Squeegee support wheel |
1 |
|
| 31 |
174-9986 |
Squeegee counterweight |
2 |
|
| 32 |
174-9987 |
Squeegee roll support |
1 |
|
| 33 |
174-9988 |
Squeegee tube guide |
1 |
|
| 34 |
174-9989 |
Squeegee holder |
1 |
|
| 36 |
174-9190 |
Squeegee blade front (gray) |
1 |
|
| 37 |
174-9868 |
Squeegee blade rear |
1 |
|
| 38 |
174-9872 |
Pivoting wheel |
2 |
|
| 39 |
174-9873 |
Bearing squeegee guide |
1 |
|
| 42 |
174-9876 |
Squeegee thrust washer |
1 |
|
| 44 |
174-9878 |
Squeegee lifting jack |
1 |
|
|
|

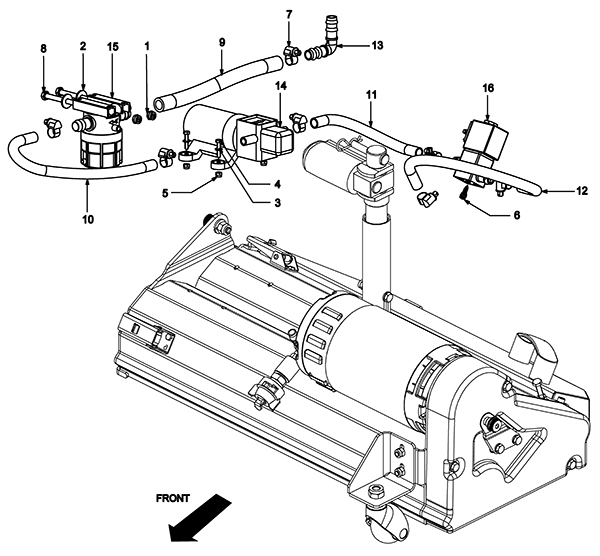

Solution System Assembly (Cylindrical) - 174-6204 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
174-9781 |
Washer M6 flat |
2 |
|
| 3 |
174-9830 |
Washer M4 flat |
4 |
|
| 4 |
174-9994 |
Screw M4 x 60mm |
4 |
|
| 5 |
174-9832 |
Nut M4 self locking |
4 |
|
| 6 |
174-9911 |
Screw M4 x 14mm trilobate |
2 |
|
| 8 |
174-9835 |
Screw M6 x 75mm |
2 |
|
| 9 |
174-9836 |
16 meter braided hose (clear) |
1 |
|
| 10 |
174-9995 |
12 inch braided hose |
1 |
|
| 11 |
174-9996 |
35 inch braided hose |
1 |
|
| 12 |
174-9997 |
11 inch braided hose |
1 |
|
| 13 |
174-9840 |
90 degree rubber holder |
1 |
|
| 14 |
174-9841 |
24V water pump |
1 |
|
| 15 |
174-9842 |
Water filter |
1 |
|
| 16 |
174-9843 |
24V Dc solenoid |
1 |
|
|
|

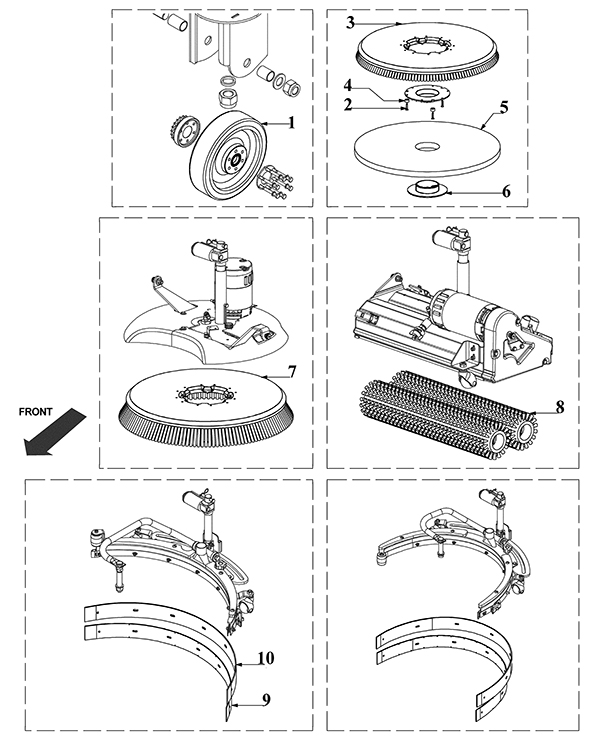

Pad Holder, Deck Brush (Disc), Deck Brush (Cylindrical), and Blades Kit (Disc) Accessories - 174-6205 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
174-9998 |
Drive wheel 200 x 50mm |
1 |
|
| 2 |
174-9999 |
Screw M4.8 x 25mm |
3 |
|
| 3 |
174-9702 |
Pad holder kit |
1 |
|
| 4 |
174-4071 |
Pad holder spacer |
3 |
|
| 5a |
174-4072 |
530mm white pad |
1 |
|
| 5b |
174-4073 |
530mm red pad |
1 |
|
| 5c |
174-4074 |
530mm black pad |
1 |
|
| 5d |
174-4075 |
530mm brown pad |
1 |
|
| 5e |
174-4076 |
530mm green pad |
1 |
|
| 6 |
174-9702 |
Pad holder kit |
1 |
|
| 7a |
174-9799 |
530mm brush (blue) |
1 |
|
| 7b |
174-4077 |
530mm shampoo fiber brush |
1 |
|
| 7c |
174-4079 |
530mm brush mid grit |
1 |
|
| 7d |
174-4080 |
530mm grit brush midlite |
1 |
|
| 7e |
174-4081 |
530mm fibre brush |
1 |
|
| 7f |
174-4082 |
530mm nylon brush |
1 |
|
| 7g |
174-4083 |
530mm brush |
1 |
|
| 8a |
174-4084 |
Cylindrical nylon brush |
2 |
|
| 8b |
174-4085 |
Cylindrical grit brush 110x515 320 0.6mm |
2 |
|
| 8c |
174-9967 |
Cylindrical brush |
2 |
|
| 9 |
174-9190 |
Squeegee blade front (gray) |
1 |
|
| 10a |
174-9868 |
Squeegee blade rear |
1 |
|
| 10b |
174-4089 |
Squeegee blade SH40 rear |
1 |
|
| 10c |
174-9191 |
Squeegee blade rear (red) |
1 |
|
| 10d |
174-4089 |
Squeegee blade SH40 rear |
1 |
|
| 10e |
174-4089 |
Squeegee blade SH40 rear |
1 |
|
|
|

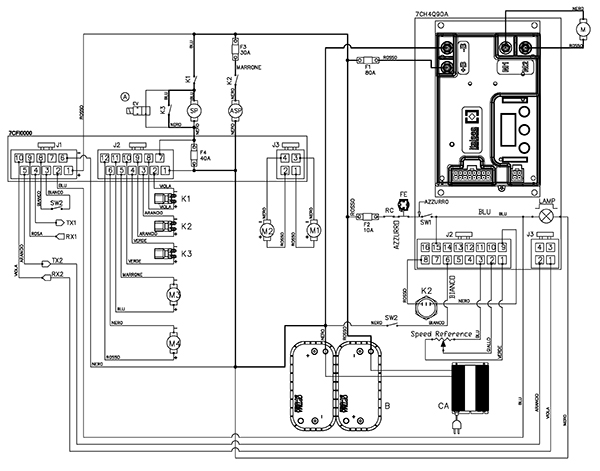

Electrical System Assembly - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

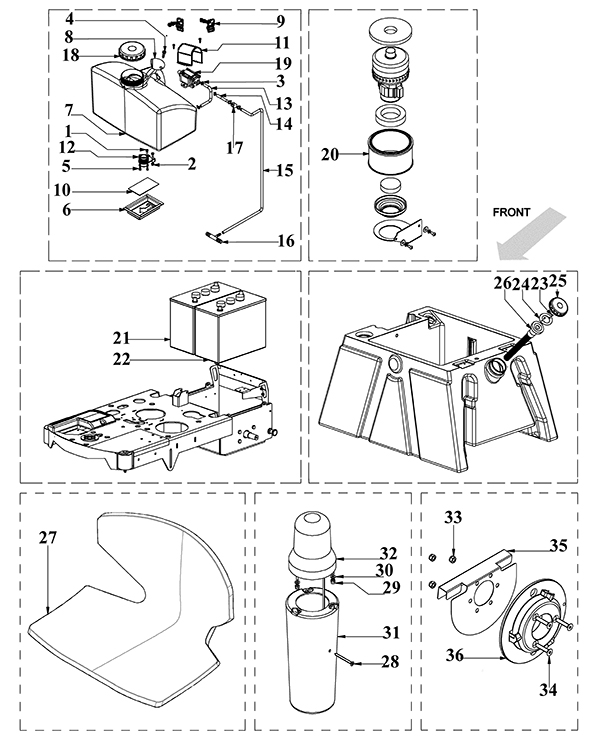

Hepa Filter, Batteries, Refilling Hose, Cover, Flashing Light, and Pad Holder Support Assembly - 174-6207 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
174-9849 |
Screw M4 x 10mm stainless steel |
2 |
|
| 2 |
174-9850 |
Nut M4 self locking stainless steel |
2 |
|
| 3 |
174-4091 |
Bifilar band 1x68 |
5 |
|
| 4 |
174-9910 |
Screw M6 x 25mm trilobate |
1 |
|
| 5 |
174-9911 |
Screw M4 x 14mm trilobate |
10 |
|
| 6 |
174-4092 |
Detergent valve tray |
1 |
|
| 7 |
174-4093 |
Detergent tank |
1 |
|
| 8 |
174-4094 |
Detergent tank holder |
1 |
|
| 9 |
174-4096 |
Detergent tank hook |
2 |
|
| 11 |
174-4098 |
Pump protector |
1 |
|
| 12 |
174-4099 |
Detergent tank valve |
1 |
|
| 13 |
174-4100 |
Silicone hose 1.5x7 x 150mm |
1 |
|
| 14 |
174-4101 |
Silicone hose 1.5 x 7 x 30mm |
1 |
|
| 15 |
174-4102 |
Silicone hose 1.5x7x 1600mm |
1 |
|
| 17 |
174-4104 |
Detergent system unidirectional valve |
1 |
|
| 20 |
174-4107 |
Hepa filter cartridge H100 |
1 |
|
| 21 |
162-0057 |
12V 150Ah wet battery |
2 |
|
| 22 |
162-6022 |
12V 102Ah gel battery (SNSR) |
2 |
|
| 23 |
174-4108 |
Screw M29 x 95mm self threading |
2 |
|
| 24 |
174-4109 |
Filling hose holder |
1 |
|
| 26 |
174-4110 |
Filling hose |
1 |
|
| 28 |
174-4111 |
Screw M42 x 45mm self threading |
1 |
|
| 30 |
174-9830 |
Washer M4 flat |
3 |
|
| 31 |
174-4112 |
Flashing light support |
1 |
|
| 32 |
174-4113 |
Flashing light |
1 |
|
| 34 |
174-9741 |
Screw M8 x 40mm |
3 |
|
| 35 |
174-4114 |
Pad holder support |
1 |
|
| 36 |
174-9795 |
Brush casing plate |
1 |
|
|
|

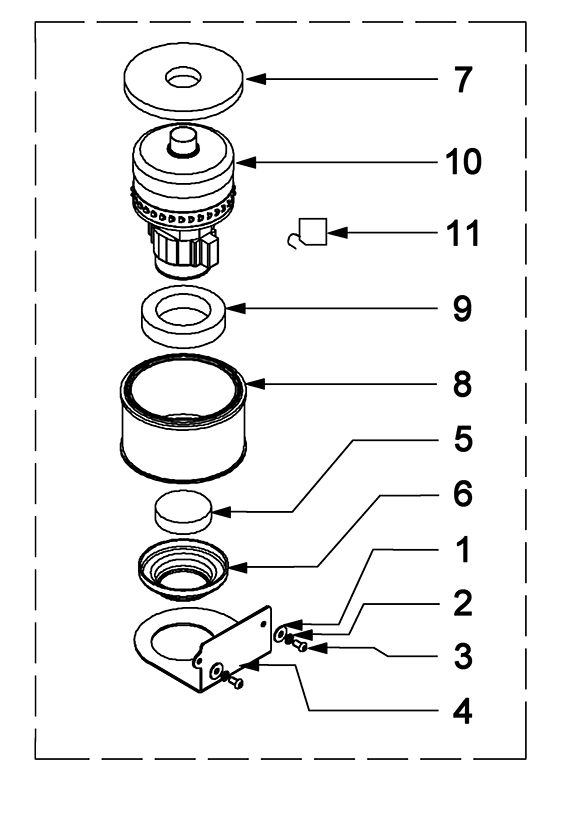

Hepa Filter Assembly - 174-6208 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
174-9943 |
Washer M8 x 24mm |
2 |
|
| 3 |
174-4115 |
Screw M8 x 16mm |
2 |
|
| 4a |
174-4116 |
Motor support |
1 |
|
| 4b |
174-4120 |
Bottom motor filter |
1 |
|
| 6 |
174-4121 |
Bottom motor suction |
1 |
|
| 8 |
174-4107 |
Hepa filter cartridge H100 |
1 |
|
| 9 |
174-4127 |
Lower acoustic seal |
1 |
|
| 11 |
174-4131 |
Carbon brush |
1 |
|
|
|
- Commonly Asked For Parts - 174-9913 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
174-7214 |
Electronic traction board |
|
|
| 03 |
174-4422 |
Squeegee blade rear |
|
|
| 04 |
174-9190 |
Squeegee blade front (gray) |
|
|
|
|
- Pads - 255-2100 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-2140 |
21 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 02 |
255-2135 |
21 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-2164 |
21 inch Blue ace pad (pkg of 5) |
|
|
| 04 |
255-2142 |
21 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 05 |
255-2112 |
21 inch Cure white pad (pkg of 5) (OBSOLETE) |
|
|
| 06 |
255-2177 |
21 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 07 |
255-2138 |
21 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 08 |
255-2121 |
21 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 09 |
255-2150 |
21 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 10 |
255-2165 |
21 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 11 |
255-2130 |
21 inch jaguar burnishing pad (pkg of 5) |
|
|
| 12 |
255-2167 |
21 inch Laminated 2001 Gorilla polish pad (pkg of 5) |
|
|
| 13 |
255-2190 |
21 inch premium black stripping pad (pkg of 5) |
|
|
| 14 |
255-2170 |
21 inch premium blue cleaning pad (pkg of 5) |
|
|
| 15 |
255-2192 |
21 inch premium brown stripping pad (pkg of 5) |
|
|
| 16 |
255-2180 |
21 inch premium green scrubbing pad (pkg of 5) |
|
|
| 17 |
255-2160 |
21 inch premium red scrubbing pad (pkg of 5) |
|
|
| 18 |
255-2152 |
21 inch premium tan polishing pad (pkg of 5) |
|
|
| 19 |
255-2120 |
21 inch premium white polishing pad (pkg of 5) |
|
|
| 20 |
255-2111 |
21 inch superspeed rubberized pad (pkg of 5) |
|
|
| 21 |
255-2195 |
21 inch razorback stripping pad (pkg of 5) |
|
|
| 22 |
255-2147 |
21 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 23 |
255-2155 |
21 inch Ruff non-abrasive brush pad (pkg of 2) |
|
|
| 25 |
255-0164 |
21 inch Professional sand screen 120 grit (pkg of 10) |
|
|
| 26 |
255-0165 |
21 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 27 |
255-0162 |
21 inch Professional sand screen 60 grit (pkg of 10) |
|
|
| 28 |
255-0256 |
21 inch Superscreen sand screen 100 grit (pkg of 10) |
|
|
| 29 |
255-0257 |
21 inch Superscreen sand screen 120 grit (pkg of 10) |
|
|
| 30 |
255-0258 |
21 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 31 |
255-0255 |
21 inch Superscreen sand screen 60 grit (pkg of 10) |
|
|
| 32 |
255-2124 |
21 inch Tiger carpet bonnet (pkg of 2) |
|
|
| 33 |
255-9598 |
21 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 34 |
255-9595 |
21 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 35 |
255-9592 |
21 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 36 |
255-9596 |
21 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 37 |
255-9593 |
21 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 38 |
255-9594 |
21 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 39 |
255-9597 |
21 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 40 |
255-9646 |
21 inch Diamond starter pack (1 of each grit) |
|
|
| 41 |
255-2115 |
21 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 42 |
255-2116 |
21 inch 2001 Duala clean and shine pad - high speed (pkg 5) |
|
|
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
