Parts List Complete for MASTRCRAFT SURFER MSR-15E

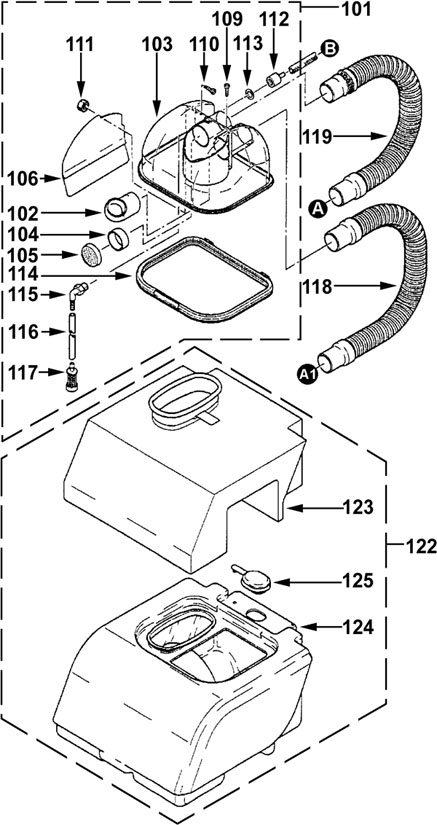

Tank Assembly - 195-6801
RefNbr Part Number Description Req Notes
101 295-0161 Tank cover assembly
102 295-0489 Elbow
103 295-4000 Tank cover
104 195-6097 Retaining ring
105 195-6096 Filter (OBSOLETE)
106a 195-7784 Complete partition
106b 295-4001 Partition
106c 295-4002 Partition seal
109 295-4003 Screw KA30 x 6mm
110 295-4004 Screw M3 x 10 socket hex head
111 295-1648 Locknut
112 295-4005 Fitting
113 295-0463 Gasket
114 295-0288 Seal cover
115 195-8413 Angled elbow fitting
116 295-4006 Hose
117 295-0042 Water filter
118 295-0460 Complete hose assembly
119a 195-7756 Complete vacuum hose
119b 295-0491 Complete recovery hose
119c 295-4007 Air control slide
122 295-0568 Recovery tank with bladder
123 295-0192 Solution tank bladder
124 295-0569 Recovery tank
125 295-0396 Cover (OBSOLETE)

Wheels and Bottom Assembly - 195-6802
RefNbr Part Number Description Req Notes
101 295-0698 Bottom plate 1
102 295-0728 Wheel
103 295-4008 Spacer
104 295-0081 Washer M8 x 25mm
105 295-4009 Screw M8 x 55 hex head
106 195-7757 Wheel cover
107 195-7758 Insulator
108 295-4010 Screw M8 x 10 hex head
109 195-8402 Washer lock serrated
110 295-4011 Round buffer
111 295-4012 Complete idler pulley
112 195-6211 Washer M6
113 295-4013 Retaining ring 28mm
114 195-7759 Ball bearing
115 295-4014 Pulley 34 x 20mm
116 295-4015 Bearing pin
117 295-4016 Pulley plate
118 295-4017 Screw M6 x 20 hex head
119 295-4018 Lockwasher M6
120 295-4019 Screw M6 x 12 hex head
121 295-4020 Guide pulley
122 295-4019 Screw M6 x 12 hex head
123 295-4022 Screw M6 x 30
124 295-0773 Stop-nut M6
125 295-4023 Screw M4 x 14 hex head
126 295-4024 Pulley holder
127 295-4021 Pop rivet
128 195-6211 Washer M6

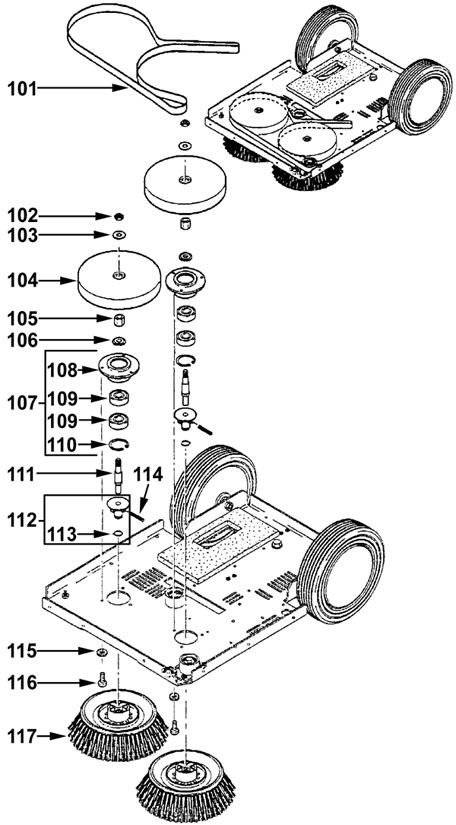

Brush Assembly - 195-6803
RefNbr Part Number Description Req Notes
101 295-0191 Belt (OBSOLETE)
102 999-1292 Nut M8 hex nickel plated brass
103 195-7761 Washer M8
104 295-4025 Wheel
105 295-4026 Hub bushing
106 295-4027 Washer
107 195-7762 Bearing housing
108 295-4028 Bearing housing
109 295-0020 Ball bearing (OBSOLETE)
110 195-6183 Retaining ring
111 295-0268 Axle
112 295-0267 Centering pin
113 195-7763 O ring
114 295-4029 Pin 4 x 30mm
115 295-0537 Washer M4
116 295-0727 Screw M8 x 10mm hex head
117a 195-6099 Nylon brush
117b 295-4030 Pad driver optional

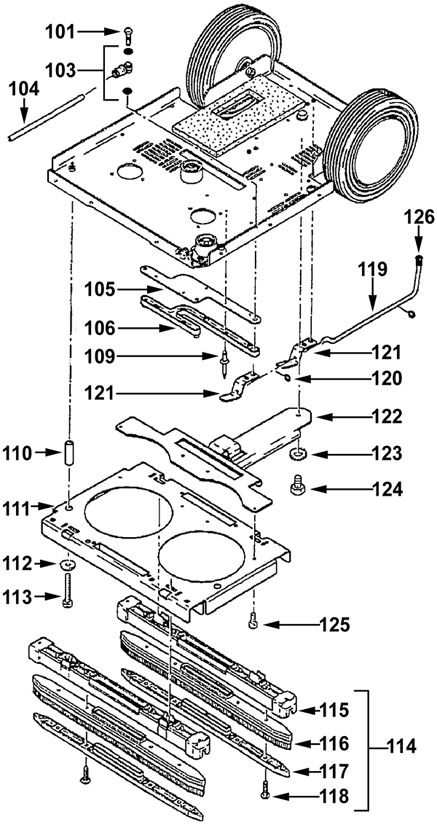

Squeegee Assembly - 195-6804
RefNbr Part Number Description Req Notes
101 295-0459 Screw
103 295-4031 Angled fitting
104 195-7776 Solution hose connector
105 295-0699 Isolated water canal
106 295-0700 Water canal
109 N/A Not available Rivet 3 x 10mm
110 295-0458 Guide sleeve
111 195-7764 Vac bracket
112 195-6211 Washer M6
113 295-0457 Screw
114 195-6108 Squeegee assembly complete (OBSOLETE)
115 195-6098 Vac nozzle
116 295-0190 Squeegee blade
117 195-7765 Squeegee blade bracket
118 295-4032 Screw KA50 x 16 PT
119 295-0186 Squeegee lever
120 295-0456 Safety ring
121 295-0685 Lever guide
122 295-0726 Canal support
123 295-4033 Lockwasher M8 serrated
124 295-4010 Screw M8 x 10 hex head
125 295-0727 Screw M8 x 10mm hex head
126 295-0455 Cover

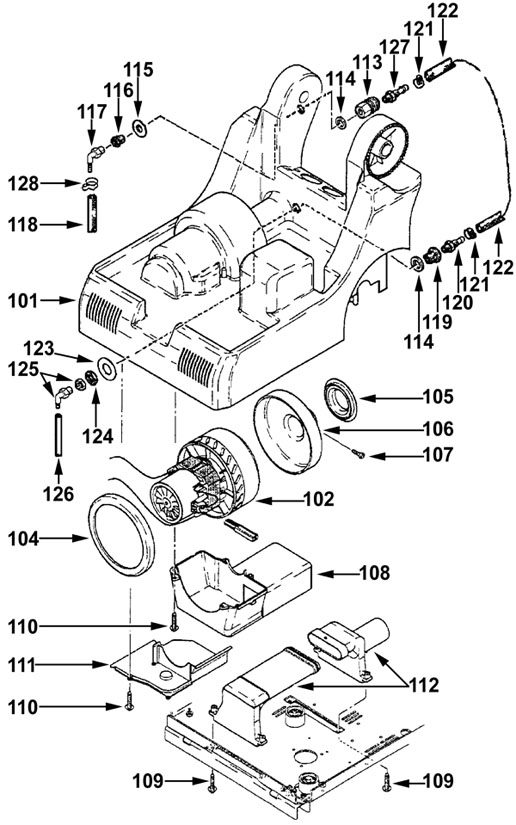

Motor and Chassis Assembly - 195-6805
RefNbr Part Number Description Req Notes
101 195-7766 Chassis cover housing
102a 295-4034 Vacuum motor
102b 295-4035 Carbon brushes (set of 2)
104 195-7777 Motor seal gasket
105 195-7778 Sealing gasket
106 261-0018 Hose connector
107 295-4036 Screw 2.9 x 9.5
108 195-7779 Motor cover
109 295-4037 Screw KA50 x 16 PT
110 295-0641 Screw M12 x 16mm phillips head
111 295-4038 Air canal cover
112 195-7768 Air compressor canal
113 295-4039 Coupling
114 295-0258 Washer
115 195-7769 Washer M12
116 195-7770 Brass reducer fitting
117 195-7773 Angeled connector fitting
118 295-4040 Pressure hose
119 295-4041 Straight nipple
120 195-7772 Brass barb fitting
121 295-0596 90 degree fitting
122 195-7774 Solution hose connection
123 295-0258 Washer
124 295-8411 Nut G3/8 inch hex head
125 195-7775 Angled nipple fitting stainless steel
126 195-7776 Solution hose connector
127 195-7771 Male quick disconnect fitting
128 173-8894 Hose clip d=50

- Pad Holders - 275-9029
RefNbr Part Number Description Req Notes
1 991-2214 Center-Lok II pad holder - left hand thread (red)
2a 991-2201 Center-Lok II pad holder - right hand thread (black) (Pad driver side female, Floor side male)
2b 991-8577 Pad retainer (Pad driver side male, Floor side female)
3a 991-2202 Big mouth pad holder set (blue) (includes 3 screws)
3b 991-2205 Deep lock ring and pad grip ring
4 991-2203 Big mouth pad holder male thread portion
5 991-2206 Center-Lok 3 pad holder (includes 3 screws)
6 996-0372 Big mouth pad holder (left hand thread)
7 N/A Not available
8 991-2209 Split retainer - pad holder ring (OBSOLETE)
9 N/A Not available (replaced by #3 991-2202)
10 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE)
