Parts List Complete for MASTRCRAFT P41505


12 and 16 Gallon Tank Assembly - 195-6044
RefNbr Part Number Description Req Notes
001a 295-1285 12 gallon tank assembly 1
001b 295-1284 12 gallon tank assembly stainless steel 1
001c 295-1269 16 gallon tank assembly 1
001d 295-1270 16 gallon tank assembly stainless steel 1
002 195-6136 Handle assembly 1
003a 295-1205 Large tool caddy (OBSOLETE) - replacement options available 1 (This part is no longer available but has replacement options listed below as 003b and 003c)
003b 295-8516 Small tool caddy 1
003c 195-9084 White tool caddy 1
004 195-9323 Die cast handle 2
005 195-9469 Bead with ring chain 2
006 295-1203 Pop rivet 4
007 195-9113 Spring loaded clamp 3
008 195-9695 Wheel 8 inch 2
009 195-6034 Hub cap 2
010 295-1207 Pal nut 2
011 999-0187 Washer 1/2 flat plain finish 4
012a 195-9448 Mobile glide ring complete 1
012b 295-1533 Bolt 1/4-20 x 1 1/2 carriage head 1
012c 999-0190 Nut 1/4-20 hex plain finish 1
015 295-1078 Swivel caster 2
016a 195-7978 Swivel connector 1 1/4 inch 1 12 gallon
016b 195-9032 Swivel connector 1 1/2 inch 1 16 gallon
017 295-1265 Inlet connector 1
018 195-9364 Cast drain valve assembly (OBSOLETE) 1 Stainless steel tank only
019 195-9349 Sealing gasket 1 Stainless steel tank only

Filters and Bags Assembly - 195-6045
RefNbr Part Number Description Req Notes
001a 295-1055 14 inch pancake filter assembly 1
001b 295-1056 14 inch 5 gallon complete filter 1
001c 195-6105 16 inch deep dish filter assembly 1
002a 295-1057 14 inch cloth filter with gasket 1
002b 295-1058 14 inch 5 gallon cloth filter with gasket 1
002c 295-1059 16 inch cloth filter with gasket 1
003a 195-7485 14 inch filter frame 1
003b 195-7483 14 inch 5 gallon filter frame 1
003c 195-7482 16 inch filter frame 1
004a 195-6160 14 inch 3.5 gallon paper bags (pkg of 5) 1
004b 195-3529 14 inch 5 gallon paper bags (pkg of 5) 1
004d 195-6106 16 inch 15 gallon paper bags (pkg of 5) 1
N/S 195-9261 HEPA adapter kit with prefilter 1
N/S 295-1517 Hose 1.5 in x 10 ft vinyl 1

Wet Pickup Adaptors - 195-6046
RefNbr Part Number Description Req Notes
000a 295-1042 Wet pick up adapter 1
000b 195-6144 Adaptor assembly 1
001a 195-9317 14 inch wet pick up gasket 1
001b 195-9316 16 inch gasket 1
002a 195-9640 14 inch float pan adaptor 1
002b 195-9641 16 inch float pan adaptor 1
003 195-6142 Float gasket 1
004 195-6146 Washer 2
005 195-6145 Retaining ring 2
006 195-6143 Valve plate 1
007 195-6141 Spacer rod 1
008 999-0190 Nut 1/4-20 hex plain finish 1
009 195-9273 Float cage 1
010 195-6140 Float ball 1

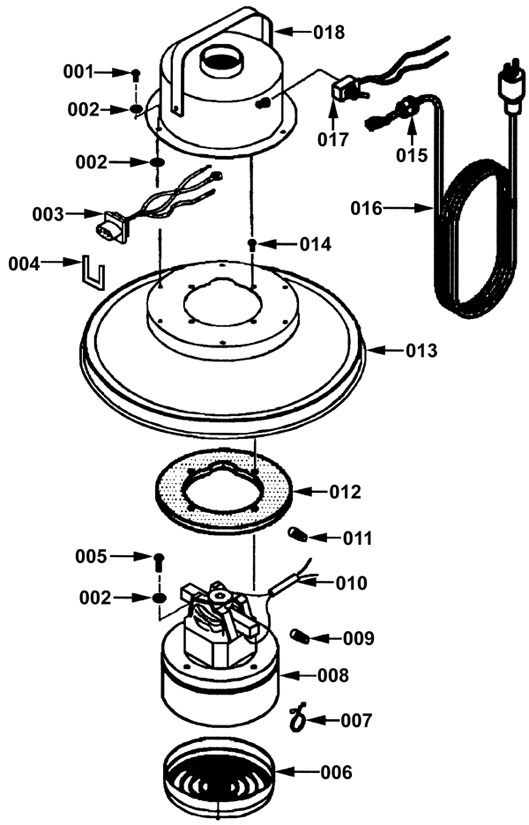

05 Compact Motor Head Assembly - 195-6047
RefNbr Part Number Description Req Notes
001 195-9642 Screw #10 x 1/2 6
002 195-9172 Washer 3
003 295-1487 Electrical convenience outlet 1
004 295-1490 Clip retainer 1
005 195-9597 Screw 10-32 x .31 phillips 1
006 295-0292 Motor guard without foam 1
007 195-9204 Large purse lock 1
008 991-1205 120V 2 stage vacuum motor peripheral 1
009 195-6150 Wire connector 2
010 195-9645 Insulation tube 1
011 295-1617 Wire connector 1
012 195-9203 Motor gasket 1
013 295-1107 Cover assembly 14 in chrome 1
014 295-1110 Screw 4
015 295-0560 Strain relief 1
016 195-6616 18/3 power cord 30 foot 1
017 295-1067 Toggle switch 1
018 195-9643 Screw #10 x 1/2 1

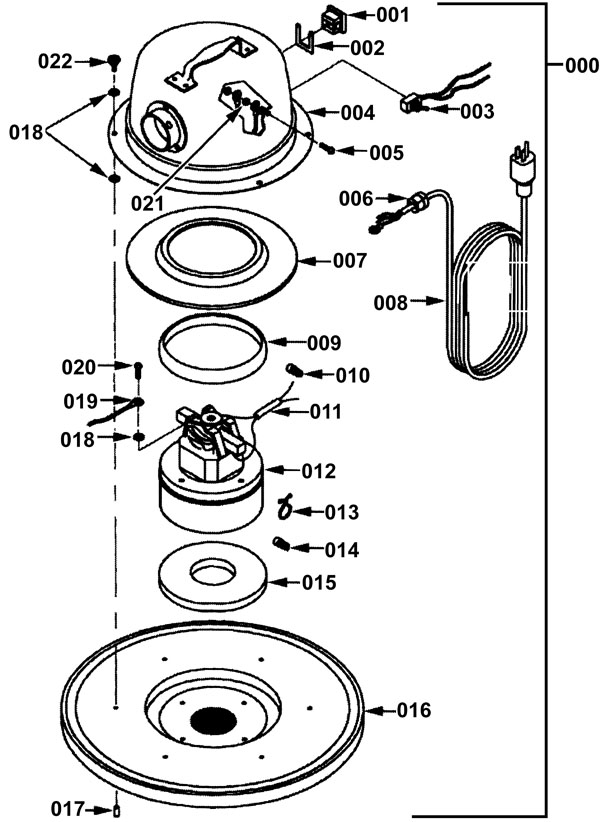

05 Motor Head Assembly - 195-6048
RefNbr Part Number Description Req Notes
000a 195-9646 115V 14 inch motor head assembly 1 includes 001 thru 022
000b 195-9647 115V 16 inch motor head assembly 1 includes 001 thru 022
001 295-1487 Electrical convenience outlet 1
002 295-1490 Clip retainer 1
003 295-1067 Toggle switch 1
004 295-1297 Dome assembly 1
005 295-1411 Screw 1
006 195-9648 Strain relief 1
007 295-1160 Motor adapter 1
008 195-6616 18/3 power cord 30 foot 1
009 195-7465 Motor gasket rubber 1
010 295-1617 Wire connector 1
011 195-9645 Insulation tube 1
012 991-1205 120V 2 stage vacuum motor peripheral 1
013 195-9204 Large purse lock 1
014 195-6150 Wire connector 2
015 195-9348 Gasket 1
016a 295-1291 16 inch cover assembly chrome 1
016b 295-1330 14 inch cover assembly 1
017 295-1483 Screw protector 6
018 195-9172 Washer 3
019 295-1079 Lead #16 with terminal green 1
020 195-9597 Screw 10-32 x .31 phillips 1
021 295-1352 Nut #10 hex with extended lockwasher 3
022 295-1149 Screw 6

Squeegee Assembly - 195-6307
RefNbr Part Number Description Req Notes
001 295-1891 Height adjustment lever 1
002 295-1892 Bolt 1/4-20 x 1 1/2 hex head 2
003 195-7168 Squeegee hose assembly 1.5 x 22 1
004a 295-1893 Squeegee lift cable assembly - SQ4-EZ 1
004b 295-1894 Squeegee lift cable assembly - SQ5-EZ 1
004c 295-1895 Squeegee lift cable assembly - SQ10-EZ 1
005 295-1896 Lever clamp bracket 1
006 999-0152 Nut 1/4-20 nylon insert lock zinc plated 2
007 295-1897 Support cable bracket 1
008a 295-1898 Bracket assembly - SQ1 1
008b 295-1899 Bracket assembly - SQ2/3/4/5/6 1
008c 295-1900 Bracket assembly - SQ8/9/10 1
009 295-1901 Retainer pin 1
010 295-1376 Support arm tube 2
011a 295-1363 Air groove blade assembly (pkg of 2) 2
011b 195-9138 Squeegee blade rear 1
011c 195-9139 Squeegee blade front 1
011d 295-1907 Squeegee brush rear 1
011e 295-1908 Squeegee brush front notched 1
012 295-1903 Retainer ring 2
013 295-1373 Nozzle and shoe assembly 1 includes items 015 thru 021
014 295-1308 Screw 1/4-20 x 1/2 phillips 6
015 295-1904 Squeegee nozzle 30 inch 1
016 295-1905 Screw 1/4-20 x 1/2 2
017 195-9137 Gasket for 30 inch squeegee 1
018 295-1906 Extruded shoe aluminum 1
019 195-9140 End cap casting 1
020 195-8435 Bumper for 30 in squeegee 1
021 295-1538 End cap casting 1
N/S 295-0321 Caster kit 1
