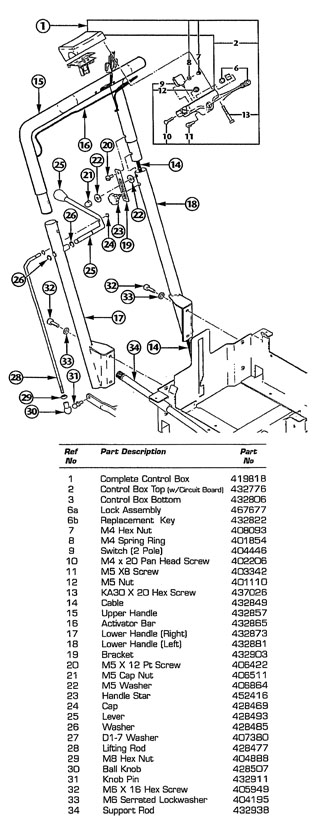

Handle Assembly - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

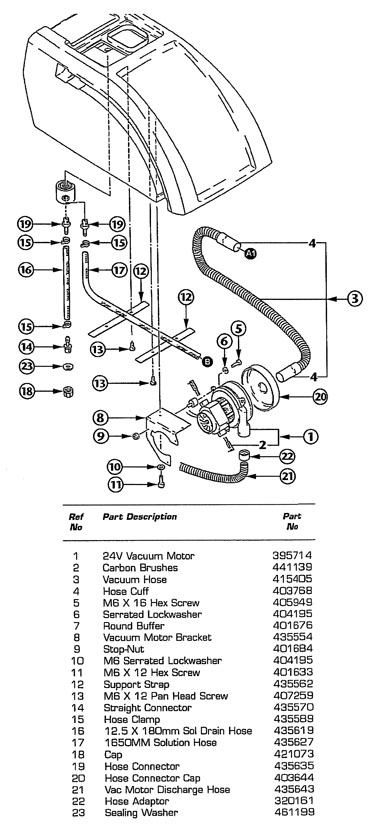

Motor Assembly - 195-6940 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

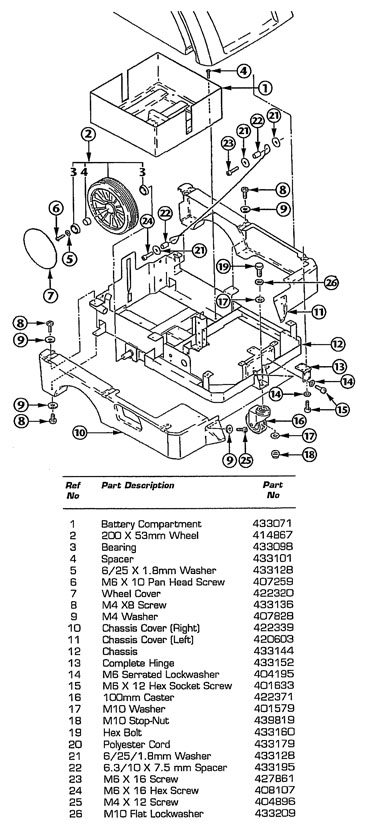

Battery Compartment - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

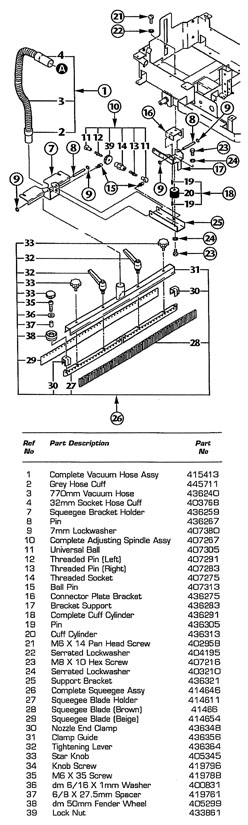

Squeegee Assembly - 195-6942 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 28 |
295-3054 |
Squeegee blade set |
1 |
|
| 29 |
295-3054 |
Squeegee blade set |
1 |
|
|
|

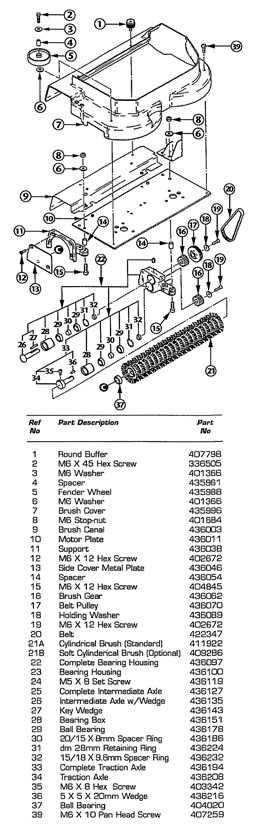

Cylindrical Brush Assembly - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

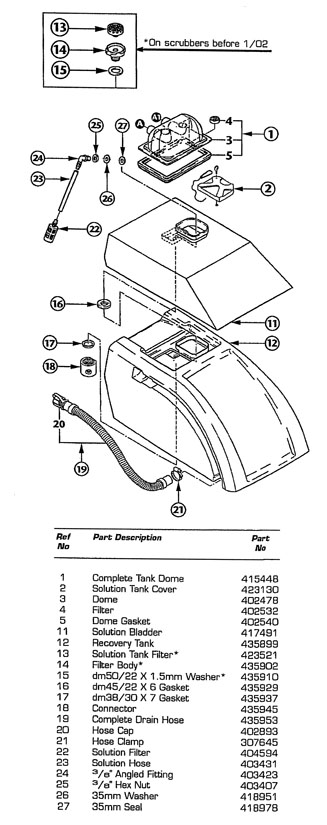

Tank Assembly - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

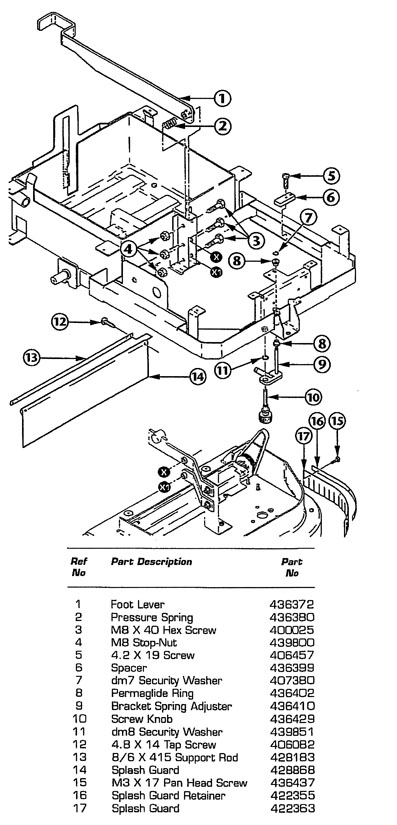

Brush Lift Assembly - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

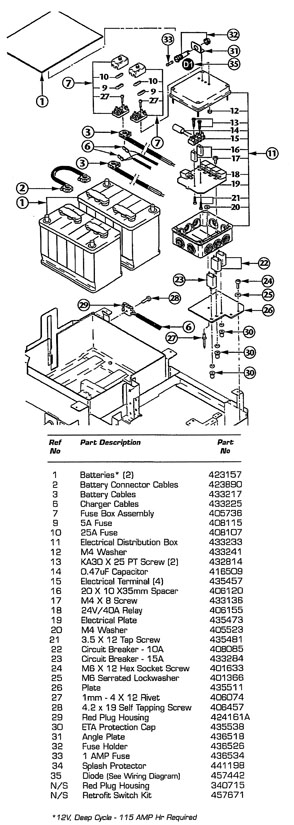

Batteries and Electrical Assembly - 195-6946 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| N/S |
195-8187 |
Microswitch SPDT 20amp |
1 |
(silver push button switch with three wires going to batteries) |
| 7 |
295-0060 |
Distribution box |
|
|
|
|

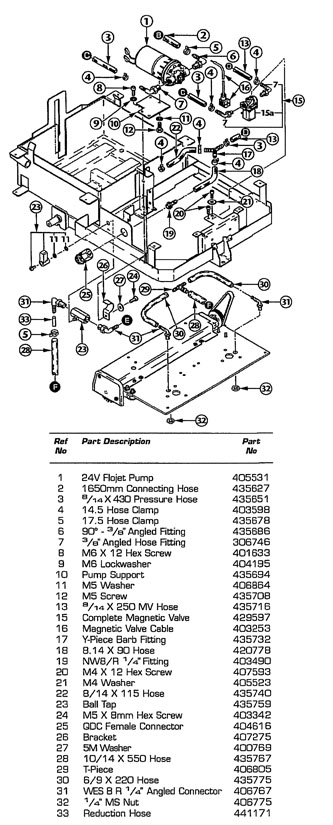

Pump Assembly - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

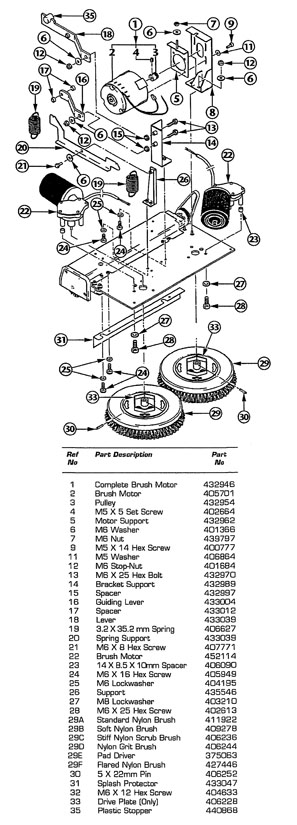

Brush Motor Assembly - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

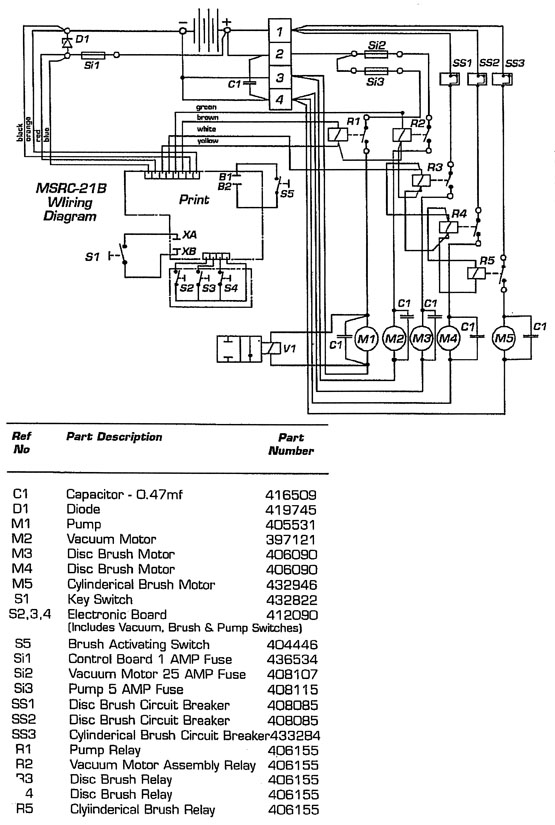

Wiring Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
- Pads - 255-2100 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-2140 |
21 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 02 |
255-2135 |
21 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-2164 |
21 inch Blue ace pad (pkg of 5) |
|
|
| 04 |
255-2142 |
21 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 05 |
255-2112 |
21 inch Cure white pad (pkg of 5) (OBSOLETE) |
|
|
| 06 |
255-2177 |
21 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 07 |
255-2138 |
21 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 08 |
255-2121 |
21 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 09 |
255-2150 |
21 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 10 |
255-2165 |
21 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 11 |
255-2130 |
21 inch jaguar burnishing pad (pkg of 5) |
|
|
| 12 |
255-2167 |
21 inch Laminated 2001 Gorilla polish pad (pkg of 5) |
|
|
| 13 |
255-2190 |
21 inch premium black stripping pad (pkg of 5) |
|
|
| 14 |
255-2170 |
21 inch premium blue cleaning pad (pkg of 5) |
|
|
| 15 |
255-2192 |
21 inch premium brown stripping pad (pkg of 5) |
|
|
| 16 |
255-2180 |
21 inch premium green scrubbing pad (pkg of 5) |
|
|
| 17 |
255-2160 |
21 inch premium red scrubbing pad (pkg of 5) |
|
|
| 18 |
255-2152 |
21 inch premium tan polishing pad (pkg of 5) |
|
|
| 19 |
255-2120 |
21 inch premium white polishing pad (pkg of 5) |
|
|
| 20 |
255-2111 |
21 inch superspeed rubberized pad (pkg of 5) |
|
|
| 21 |
255-2195 |
21 inch razorback stripping pad (pkg of 5) |
|
|
| 22 |
255-2147 |
21 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 23 |
255-2155 |
21 inch Ruff non-abrasive brush pad (pkg of 2) |
|
|
| 25 |
255-0164 |
21 inch Professional sand screen 120 grit (pkg of 10) |
|
|
| 26 |
255-0165 |
21 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 27 |
255-0162 |
21 inch Professional sand screen 60 grit (pkg of 10) |
|
|
| 28 |
255-0256 |
21 inch Superscreen sand screen 100 grit (pkg of 10) |
|
|
| 29 |
255-0257 |
21 inch Superscreen sand screen 120 grit (pkg of 10) |
|
|
| 30 |
255-0258 |
21 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 31 |
255-0255 |
21 inch Superscreen sand screen 60 grit (pkg of 10) |
|
|
| 32 |
255-2124 |
21 inch Tiger carpet bonnet (pkg of 2) |
|
|
| 33 |
255-9598 |
21 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 34 |
255-9595 |
21 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 35 |
255-9592 |
21 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 36 |
255-9596 |
21 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 37 |
255-9593 |
21 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 38 |
255-9594 |
21 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 39 |
255-9597 |
21 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 40 |
255-9646 |
21 inch Diamond starter pack (1 of each grit) |
|
|
| 41 |
255-2115 |
21 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 42 |
255-2116 |
21 inch 2001 Duala clean and shine pad - high speed (pkg 5) |
|
|
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
