Solution Tank Kit - NON-OEM - 172-2089 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000a |
209-0013 |
4 gallon solution tank kit for round handle side x sides |
1 |
(includes 001-018) |
| 000b |
209-0014 |
4 gallon solution tank kit for square handle side x sides |
1 |
|
| 000c |
209-0017 |
2 1/2 gallon solution tank kit (OBSOLETE) |
1 |
|
| 001 |
209-0033 |
Cap (black) |
1 |
|
| 002 |
209-0034 |
Brass handle rod (OBSOLETE) |
1 |
|
| 003 |
209-0035 |
1/8 inch grommet |
1 |
|
| 004 |
N/A |
Not available |
1 |
(Tank only) |
| 005 |
209-0036 |
Solution valve |
1 |
(includes 006 and 007) |
| 006 |
N/A |
Not available |
1 |
(Washer) |
| 007 |
209-0038 |
Nut 1/4 brass pipe thread straight |
1 |
|
| 008 |
209-0039 |
Hose barb 1/4 |
1 |
|
| 009 |
209-0040 |
Hose 3/8 x 24 inch |
1 |
|
| 010 |
209-0041 |
Coupling 1/8 brass |
1 |
|
| 011 |
209-0042 |
1/8 inch brass nipple |
1 |
|
| 012 |
209-0043 |
Washer 1/8 brass |
2 |
|
| 013 |
209-0044 |
Nut 1/8 brass lock (OBSOLETE) |
1 |
|
| 014 |
209-0045 |
Hose assembly (OBSOLETE) |
1 |
(includes 009-013) |
| 015 |
209-0046 |
5/16 inch u bolt |
2 |
(only used for round handle buffers) |
| 016 |
209-0047 |
Washer bar |
2 |
|
| 017 |
999-0069 |
Nut 5/16-18 hex |
2 |
|
| 018 |
209-0049 |
U bolt assembly (set of 2) |
1 |
(only used for round handle side x sides) (includes 015-017) |
| 019 |
209-0051 |
Advance adapter U-bolts assembly (set of 2) (OBSOLETE) |
1 |
|
|
|

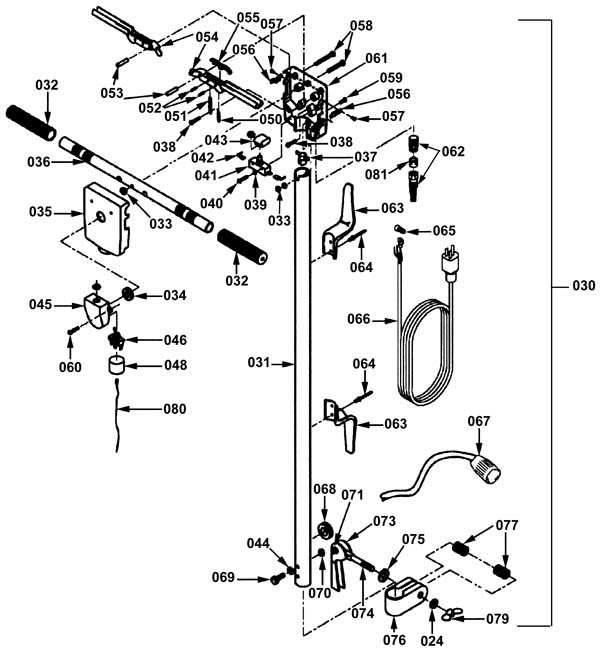

Handle Assembly - 195-6219 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 030 |
195-9361 |
Handle cord and switchbox assembly |
1 |
includes 031 thru 081 |
| 031 |
195-6128 |
Handle tube |
1 |
|
| 032 |
195-6076 |
Ribbed handle grip |
2 |
|
| 033 |
195-6077 |
Nut hex #12-24 with washer |
3 |
|
| 035 |
195-9363 |
Switch box cover |
1 |
|
| 036 |
195-6079 |
Handle bar |
1 |
|
| 037 |
195-6080 |
Cord clamp |
1 |
|
| 038 |
195-0107 |
Handle assembly |
3 |
|
| 039 |
195-6081 |
Washer internal tooth |
2 |
|
| 040 |
195-6082 |
Screw 6-32 x 1 inch |
2 |
|
| 041a |
195-6151 |
Switch |
1 |
Old style switch McGill - 4 holes. For new style Cherryl switch with 2 holes please order 195-6151. |
| 041b |
195-6151 |
Switch |
1 |
New style Cherryl switch with 2 holes. For the old style switch McGill - 4 holes please order 195-9318 |
| 042 |
195-6083 |
Flag terminal |
2 |
|
| 043 |
195-6084 |
Leaf spring |
1 |
|
| 044 |
295-1856 |
Lock washer 5/16 inch internal toothed |
1 |
|
| 050 |
195-6072 |
Trigger lock spring |
2 |
|
| 051 |
195-6085 |
Extension spring |
2 |
|
| 053 |
195-6087 |
Trigger pin |
2 |
|
| 054a |
195-6088 |
Plastic handle |
2 |
|
| 054b |
195-6089 |
Trigger and spring assembly |
2 |
|
| 055 |
195-6090 |
Trigger lock |
2 |
|
| 056 |
195-6091 |
Reinforcing plate |
2 |
|
| 057 |
195-6092 |
Screw 6-32 x 1/4 |
4 |
|
| 058 |
195-6093 |
Screw 12-24 x 1 7/16 |
4 |
|
| 059 |
195-6094 |
Screw 12-24 x 1/2 |
2 |
|
| 060 |
195-9583 |
Screw 8-32 x 1/4 phillips |
2 |
|
| 061a |
295-1857 |
Switch box assembly |
1 |
|
| 061b |
195-6152 |
Switch box |
1 |
|
| 062 |
195-6148 |
Strain relief |
1 |
|
| 065 |
195-6150 |
Wire connector |
1 |
|
| 066 |
195-6071 |
14/3 power cord 50ft |
1 |
|
| 067 |
295-0158 |
Handle cord 14/3 49 inch |
1 |
|
| 069 |
195-6014 |
Bolt 5/16-18 x 1 1/2 |
2 |
|
| 070 |
999-0069 |
Nut 5/16-18 hex |
2 |
|
| 071a |
195-6157 |
Clamp lever kit with U-clamp |
1 |
|
| 071b |
195-6157 |
Clamp lever kit with U-clamp |
1 |
|
| 073a |
195-6157 |
Clamp lever kit with U-clamp |
1 |
|
| 073b |
195-6157 |
Clamp lever kit with U-clamp |
1 |
|
| 074 |
195-6158 |
Bolt .37-16 x 3.37 |
1 |
|
| 075 |
195-6117 |
Washer flat square hole |
1 |
|
| 076 |
195-6157 |
Clamp lever kit with U-clamp |
1 |
|
| 077 |
195-6157 |
Clamp lever kit with U-clamp |
2 |
|
| 079 |
195-6157 |
Clamp lever kit with U-clamp |
1 |
|
| 080 |
195-9360 |
Switch lead |
1 |
|
| 081 |
195-6148 |
Strain relief |
1 |
|
|
|

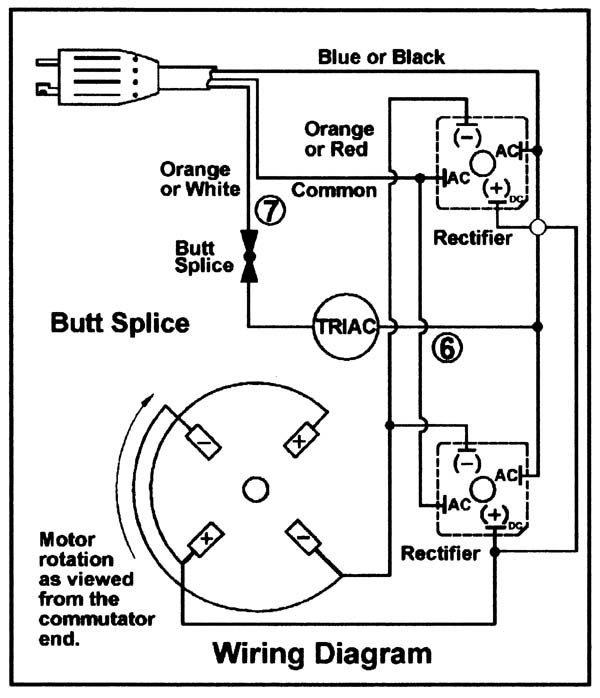

Wiring Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

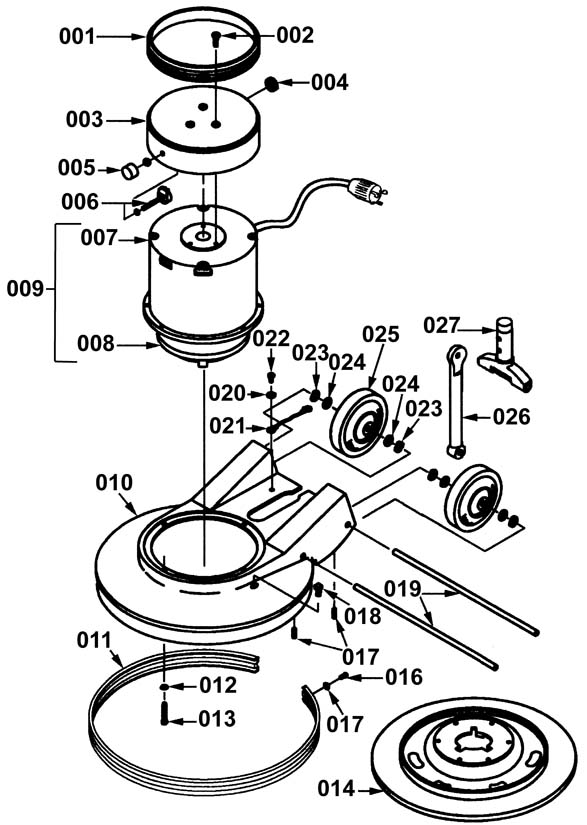

Motor and Chassis Assembly - 195-6221 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
295-1858 |
Canopy bumper |
1 |
|
| 002 |
195-9583 |
Screw 8-32 x 1/4 phillips |
4 |
|
| 003a |
295-1392 |
Variable speed motor canopy |
1 |
|
| 003b |
195-9359 |
Dual speed motor canopy |
1 |
|
| 005 |
295-1394 |
Adjustment knob |
1 |
|
| 006 |
295-0697 |
Potentiometer 500k |
1 |
|
| 007 |
295-1860 |
Dual speed motor 1 1/2HP |
1 |
|
| 009a |
295-1861 |
Variable speed motor and gear box |
1 |
MTSV-17E, MTSV-20E |
| 009b |
295-1862 |
Dual speed motor and gear box |
1 |
MTS-17E, MTS-20E |
| 010a |
195-6133 |
Apron 17 inch |
1 |
|
| 010b |
195-9074 |
Apron 20 inch |
1 |
|
| 011a |
295-1863 |
Bumper 17 inch |
1 |
|
| 011b |
195-6138 |
Bumper 20 inch |
1 |
|
| 012 |
999-1049 |
Washer 1/4 split lock zinc plated |
4 |
|
| 013 |
295-0852 |
Screw 1/4-20 x 3/4 inch |
4 |
|
| 014 |
NOTE |
Please See Batteries, Brushes, Pad Holders and Charger Pages |
1 |
|
| 015 |
195-6333 |
Washer flat 3/16 inch |
5 |
|
| 017 |
999-0121 |
Screw 5/16-18 x 1/2 cup point socket set alloy plain finish |
2 |
|
| 019 |
195-6074 |
Axle shaft |
2 |
|
| 020 |
195-9374 |
Washer lock |
1 |
|
| 022 |
195-6304 |
Screw 10-24 x 1/2 type F |
1 |
|
| 023 |
195-6023 |
Spring washer |
5 |
|
| 024 |
999-0617 |
Washer 3/8 x 1 flat stainless steel |
7 |
|
| 025 |
195-6073 |
Wheel 5 inch |
2 |
|
| 026 |
195-6319 |
Support strut casting |
1 |
|
| N/S |
195-9327 |
Variable speed triac (OBSOLETE) |
1 |
|
| N/S |
195-6068 |
Rectifier only (OBSOLETE) |
1 |
|
| N/S |
192-9478 |
24 inch dust mop tool |
1 |
Dual speed |
| N/S |
195-6065 |
Carbon brush Ohio motor |
1 |
|
| N/S |
195-9478 |
Speed control assembly |
1 |
|
| N/S |
192-9327 |
2 pole plug |
1 |
Variable speed |
|
|
- Pads - 255-1700 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-1740 |
17 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 02 |
255-1735 |
17 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-1764 |
17 inch Blue ace pad (pkg of 5) |
|
|
| 04 |
255-1742 |
17 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 05 |
255-1712 |
17 inch Cure white pad (pkg of 5) (OBSOLETE) |
|
|
| 06 |
255-1777 |
17 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 07 |
255-1738 |
17 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 08 |
255-1721 |
17 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 09 |
255-1750 |
17 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 10 |
255-1765 |
17 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 11 |
255-1730 |
17 inch jaguar burnishing pad (pkg of 5) |
|
|
| 12 |
255-1767 |
17 inch Laminated 2001 Gorilla polish pad (pkg of 5) |
|
|
| 13 |
255-1768 |
17 inch Microclean daily cleaning pad (pkg of 2) |
|
|
| 14 |
255-1769 |
17 inch Micropolish polishing and burnishing pad (pkg of 2) |
|
|
| 15 |
255-1790 |
17 inch premium black stripping pad (pkg of 5) |
|
|
| 16 |
255-1770 |
17 inch premium blue cleaning pad (pkg of 5) |
|
|
| 17 |
255-1792 |
17 inch premium brown stripping pad (pkg of 5) |
|
|
| 18 |
255-1780 |
17 inch premium green scrubbing pad (pkg of 5) |
|
|
| 19 |
255-1760 |
17 inch premium red scrubbing pad (pkg of 5) |
|
|
| 20 |
255-1752 |
17 inch premium tan polishing pad (pkg of 5) |
|
|
| 21 |
255-1720 |
17 inch premium white polishing pad (pkg of 5) |
|
|
| 22 |
255-1711 |
17 inch superspeed rubberized pad (pkg of 5) |
|
|
| 23 |
255-1795 |
17 inch razorback stripping pad (pkg of 5) |
|
|
| 24 |
255-1747 |
17 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 25 |
255-1755 |
17 inch Ruff non-abrasive brush pad (pkg of 2) |
|
|
| 26 |
255-1723 |
17 inch sand screen driver pad (pkg of 2) |
|
|
| 27 |
255-0139 |
17 inch Professional sand screen 100 grit (pkg of 10) |
|
|
| 28 |
255-0019 |
17 inch Professional sand screen 120 grit (pkg of 10) |
|
|
| 29 |
255-0140 |
17 inch Professional sand screen 150 grit (pkg of 10) |
|
|
| 30 |
255-0141 |
17 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 31 |
255-0142 |
17 inch Professional sand screen 220 grit (pkg of 10) |
|
|
| 32 |
255-0143 |
17 inch Professional sand screen 400 grit (pkg of 10) |
|
|
| 33 |
255-0138 |
17 inch Professional sand screen 60 grit (pkg of 10) |
|
|
| 34 |
255-0018 |
17 inch Professional sand screen 80 grit (pkg of 10) |
|
|
| 35 |
255-0225 |
17 inch Superscreen sand screen 100 grit (pkg of 10) |
|
|
| 36 |
255-0226 |
17 inch Superscreen sand screen 120 grit (pkg of 10) |
|
|
| 37 |
255-0227 |
17 inch Superscreen sand screen 150 grit (pkg of 10) |
|
|
| 38 |
255-0228 |
17 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 39 |
255-0229 |
17 inch Superscreen sand screen 220 grit (pkg of 10) |
|
|
| 40 |
255-0230 |
17 inch Superscreen sand screen 400 grit (pkg of 10) |
|
|
| 41 |
255-0223 |
17 inch Superscreen sand screen 60 grit (pkg of 10) |
|
|
| 42 |
255-0224 |
17 inch Superscreen sand screen 80 grit (pkg of 10) |
|
|
| 43 |
255-1724 |
17 inch Tiger carpet bonnet (pkg of 2) |
|
|
| 44 |
255-9570 |
17 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 45 |
255-9567 |
17 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 46 |
255-9564 |
17 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 47 |
255-9568 |
17 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 48 |
255-9565 |
17 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 49 |
255-9566 |
17 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 50 |
255-9569 |
17 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 51 |
255-9642 |
17 inch Diamond starter pack (1 of each grit) |
|
|
| 52 |
255-1782 |
17 inch Turbostrip segmented rotary pad (pkg of 4) |
|
|
| 53 |
255-1715 |
17 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 54 |
255-1716 |
17 inch 2001 Duala clean and shine pad - high speed (pkg 5) |
|
|
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
