Solution Tank Kit - NON-OEM - 172-2089 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000a |
209-0013 |
4 gallon solution tank kit for round handle side x sides |
1 |
(includes 001-018) |
| 000b |
209-0014 |
4 gallon solution tank kit for square handle side x sides |
1 |
|
| 000c |
209-0017 |
2 1/2 gallon solution tank kit (OBSOLETE) |
1 |
|
| 001 |
209-0033 |
Cap (black) |
1 |
|
| 002 |
209-0034 |
Brass handle rod (OBSOLETE) |
1 |
|
| 003 |
209-0035 |
1/8 inch grommet |
1 |
|
| 004 |
N/A |
Not available |
1 |
(Tank only) |
| 005 |
209-0036 |
Solution valve |
1 |
(includes 006 and 007) |
| 006 |
N/A |
Not available |
1 |
(Washer) |
| 007 |
209-0038 |
Nut 1/4 brass pipe thread straight |
1 |
|
| 008 |
209-0039 |
Hose barb 1/4 |
1 |
|
| 009 |
209-0040 |
Hose 3/8 x 24 inch |
1 |
|
| 010 |
209-0041 |
Coupling 1/8 brass |
1 |
|
| 011 |
209-0042 |
1/8 inch brass nipple |
1 |
|
| 012 |
209-0043 |
Washer 1/8 brass |
2 |
|
| 013 |
209-0044 |
Nut 1/8 brass lock (OBSOLETE) |
1 |
|
| 014 |
209-0045 |
Hose assembly (OBSOLETE) |
1 |
(includes 009-013) |
| 015 |
209-0046 |
5/16 inch u bolt |
2 |
(only used for round handle buffers) |
| 016 |
209-0047 |
Washer bar |
2 |
|
| 017 |
999-0069 |
Nut 5/16-18 hex |
2 |
|
| 018 |
209-0049 |
U bolt assembly (set of 2) |
1 |
(only used for round handle side x sides) (includes 015-017) |
| 019 |
209-0051 |
Advance adapter U-bolts assembly (set of 2) (OBSOLETE) |
1 |
|
|
|

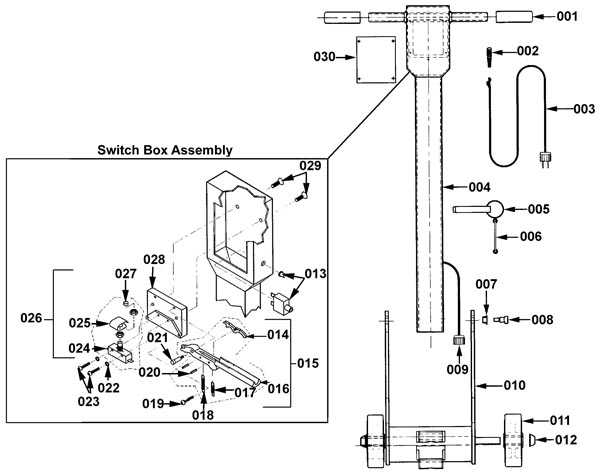

Handle Assembly - 16 inch - 195-6021 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
195-6500 |
Rubber handle grip |
2 |
|
| 002 |
195-6501 |
Strain relief assembly |
1 |
|
| 003 |
195-9214 |
12/3 power cord 30 ft |
1 |
|
| 004a |
195-6503 |
Handle assembly |
1 |
MTHC-16HR and MTHC-16LR |
| 004b |
195-6522 |
Handle assembly |
1 |
MTHC-16E DLX WET model |
| 005 |
195-6504 |
Quick release pin with cable |
1 |
|
| 006 |
195-6505 |
Wire retainer |
1 |
|
| 007 |
195-6506 |
Bronze bushing |
2 |
|
| 008 |
195-6507 |
Bolt .37 - 16 x 1/2 shoulder |
2 |
|
| 009 |
195-6508 |
Motor cord with female plug |
1 |
|
| 010 |
195-6509 |
Wheel base assembly |
1 |
|
| 011 |
195-6510 |
Wheel 6 x 2 |
2 |
|
| 013a |
195-6512 |
15 amp circuit breaker |
1 |
MTHC-16LR |
| 013b |
195-6521 |
20 amp circuit breaker |
1 |
MTHC-16HR and MTHC-16E DLX WET models |
| 014 |
195-6090 |
Trigger lock |
1 |
|
| 015 |
195-6089 |
Trigger and spring assembly |
2 |
includes 014 and 016 |
| 016 |
195-6088 |
Plastic handle |
1 |
|
| 017 |
195-6085 |
Extension spring |
1 |
|
| 018 |
195-6072 |
Trigger lock spring |
1 |
|
| 019 |
195-6332 |
Screw 8-32 x 5/8 swage |
1 |
|
| 021 |
195-6514 |
Screw 10 - 24 x.63 shoulder |
1 |
|
| 022 |
195-6081 |
Washer internal tooth |
2 |
|
| 023 |
195-6082 |
Screw 6-32 x 1 inch |
2 |
|
| 024 |
195-6515 |
Microswitch |
1 |
|
| 025 |
195-6084 |
Leaf spring |
1 |
|
| 026 |
195-6516 |
Microswitch |
1 |
includes 024, 025 and 027 |
| 028 |
195-6866 |
Mount bracket |
1 |
|
| 029 |
195-6519 |
Screw 1/4 - 20 x 1/2 |
2 |
|
| 030 |
195-6520 |
Switch box plate |
1 |
|
|
|

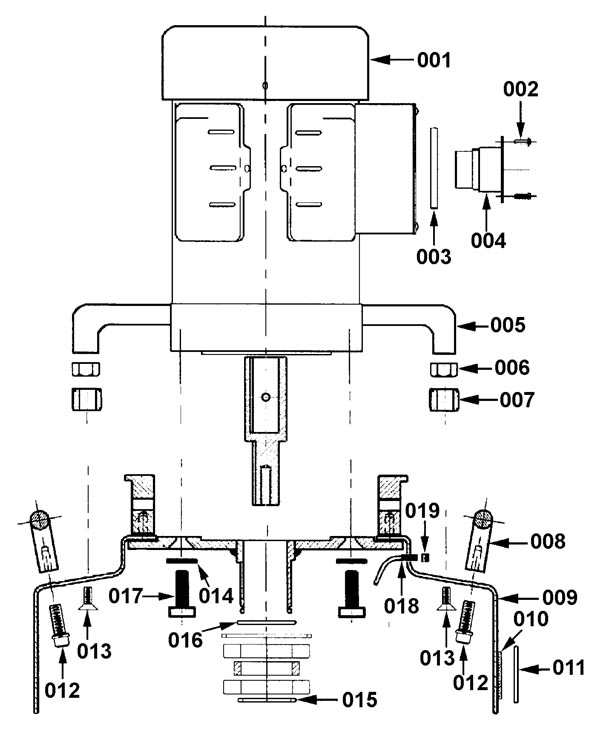

Outer Bowl Assembly - 16 inch - 195-6022 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001a |
195-6023 |
Spring washer |
1 |
MTHC-16LR |
| 001b |
195-6538 |
1.5 hp motor |
1 |
MTHC-16E DLX, MTHC-16HR |
| 004 |
195-6526 |
Recess plug |
1 |
|
| 005 |
195-6527 |
20 pound weight (optional) |
1 |
|
| 006 |
999-0152 |
Nut 1/4-20 nylon insert lock zinc plated |
.3 |
|
| 007 |
195-6528 |
Weight knob |
3 |
|
| 008 |
195-6529 |
Bowl handle |
2 |
|
| 009a |
195-6530 |
16 inch outer bowl white |
1 |
MTHC-16LR |
| 009b |
195-6539 |
16 inch outer bowl assembly |
1 |
MTHC-16E DLX, MTHC-16HR |
| 010 |
195-6531 |
Velcro strip |
1 |
|
| 011 |
195-6532 |
Rubber dust skirt |
1 |
|
| 012 |
195-6533 |
Screw 1/2 - 20 x 5/8 |
4 |
|
| 013 |
195-6061 |
Screw 1/4-20 x 3/4 |
3 |
|
| 014 |
195-6040 |
Washer 3/8 lock |
4 |
|
| 015 |
195-6534 |
External snap ring 1 3/4 inch |
1 |
|
| 016a |
195-6535 |
Felt gasket |
1 |
MTHC-16LR |
| 016b |
195-6540 |
Felt gasket |
1 |
MTHC-16E DLX, MTHC-16HR |
| 017 |
195-6041 |
Bolt 3/8-16 x 1/2 inch |
4 |
|
| 018 |
195-6536 |
Tube assembly |
1 |
|
| 019 |
195-6537 |
Nut .12 hex |
1 |
|
|
|

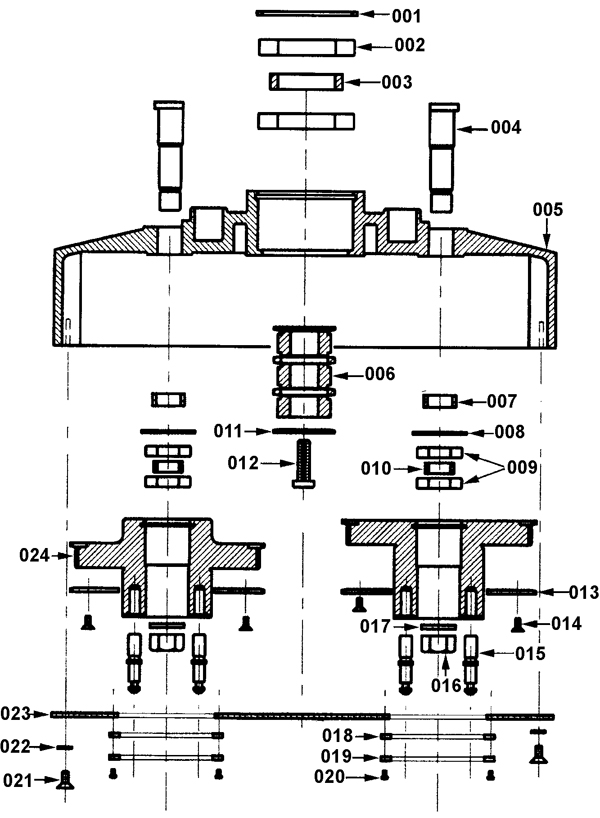

Inner Bowl Assembly - 16 inch - 195-6023 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
195-6541 |
Internal snap ring 2 7/8 |
1 |
|
| 003 |
195-6543 |
Large bearing spacer |
1 |
|
| 004a |
195-6544 |
Outer pulley shaft |
3 |
MTHC-16LR and MTHC-16HR |
| 004b |
195-6571 |
Outer pulley shaft |
1 |
MTHC-16E DLX |
| 005a |
195-6545 |
Inner bowl 16 inch |
1 |
MTHC-16LR and MTHC-16HR |
| 005b |
195-6555 |
Inner bowl 16 inch |
1 |
MTHC-16E DLX |
| 006a |
195-6546 |
Center cog pulley |
1 |
(new style) |
| 006b |
195-8991 |
Toothed center cog pulley and snap ring kit |
1 |
(old style) |
| 007 |
195-6547 |
Shaft spacer |
3 |
|
| 008 |
195-6548 |
Internal snap ring |
3 |
|
| 009 |
195-6549 |
Ball bearing with seals |
6 |
|
| 010 |
195-6550 |
Small bearing spacer (OBSOLETE) |
3 |
|
| 012 |
195-6552 |
Low profile bolt |
1 |
|
| 013 |
195-6553 |
Ring 3 in ID x 6 in OD |
3 |
|
| 014 |
195-6554 |
Screw 10 - 32 x 1/2 phillips |
9 |
|
| 015a |
195-6557 |
Accessory pin (pkg of 12) |
12 |
MTHC-16LR and MTHC-16HR |
| 015b |
195-6572 |
Accessory pin |
12 |
MTHC-16E DLX |
| 016 |
195-6558 |
Nut .62 - 11 nylock |
3 |
|
| 018 |
195-6560 |
Felt gasket |
3 |
|
| 019 |
195-6561 |
Aluminum ring |
3 |
|
| 020 |
195-6562 |
Pop rivet |
12 |
|
| 021 |
195-6563 |
Screw 1/4 - 20 x .5 phillips |
9 |
|
| 022 |
195-6564 |
Washer 14 .43 in OD lock |
9 |
|
| 023 |
195-6565 |
Aluminum cover plate |
1 |
|
| 023a |
195-6565 |
Aluminum cover plate |
1 |
|
| 024a |
195-6870 |
Timing belt 16 inch (Set of 3) |
1 |
|
| 024b |
195-6567 |
High pulley with bearings and retaining ring |
1 |
|
| 024c |
195-6568 |
Middle pulley with bearings and retaining ring |
1 |
|
| 024d |
195-8071 |
Lower pulley with bearings |
1 |
|
|
|

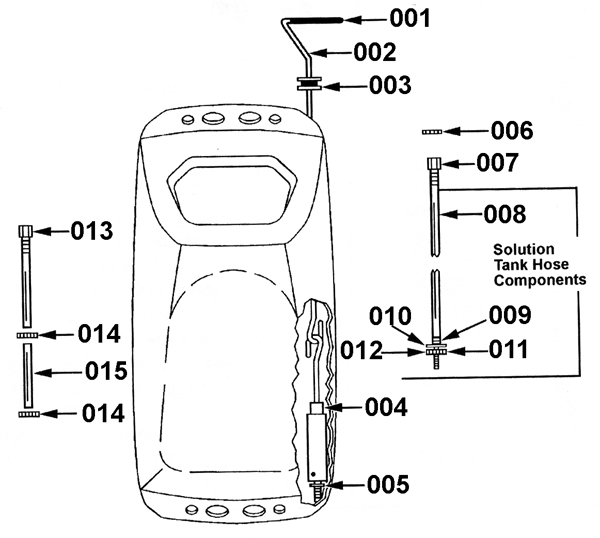

Solution Tank Assembly - 195-6024 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 002 |
195-6574 |
Rod activator |
1 |
|
| 003 |
195-6575 |
Rubber grommet |
1 |
|
| 004 |
195-6576 |
Brass valve assembly |
1 |
|
| 005 |
195-6577 |
Large rubber washer |
1 |
|
| 006 |
195-6578 |
Large locknut |
1 |
|
| 007 |
195-6579 |
Brass hose fitting |
1 |
|
| 008 |
195-6580 |
Plastic hose 26 in x 3.75 in |
1 |
|
| 009 |
195-6581 |
Housing fitting |
1 |
|
| 010 |
195-6582 |
Brass washer |
2 |
|
| 011 |
195-6583 |
Small locknut |
1 |
|
| 012 |
195-6584 |
Brass nipple |
1 |
|
| 013 |
195-6585 |
Bolt 1/4 - 20 x 4.00 |
4 |
|
| 014 |
999-0617 |
Washer 3/8 x 1 flat stainless steel |
8 |
|
|
|
- Pads - 16 inch - 255-1600 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-1640 |
16 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 02 |
255-1635 |
16 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-1664 |
16 inch Blue ace pad (pkg of 5) |
|
|
| 04 |
255-1642 |
16 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 05 |
255-1612 |
16 inch Cure white pad (pkg of 5) |
|
|
| 06 |
255-1677 |
16 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 07 |
255-1638 |
16 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 08 |
255-1621 |
16 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 09 |
255-1650 |
16 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 10 |
255-1665 |
16 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 11 |
255-1630 |
16 inch jaguar burnishing pad (pkg of 5) |
|
|
| 12 |
255-1687 |
16 inch Melamine Mela-Kleen pad (pkg of 2) |
|
|
| 13 |
255-1690 |
16 inch premium black stripping pad (pkg of 5) |
|
|
| 14 |
255-1670 |
16 inch premium blue cleaning pad (pkg of 5) |
|
|
| 15 |
255-1692 |
16 inch premium brown stripping pad (pkg of 5) |
|
|
| 16 |
255-1680 |
16 inch premium green scrubbing pad (pkg of 5) |
|
|
| 17 |
255-1660 |
16 inch premium red scrubbing pad (pkg of 5) |
|
|
| 18 |
255-1652 |
16 inch premium tan polishing pad (pkg of 5) |
|
|
| 19 |
255-1620 |
16 inch premium white polishing pad (pkg of 5) |
|
|
| 20 |
255-1611 |
16 inch superspeed rubberized pad (pkg of 5) |
|
|
| 21 |
255-1695 |
16 inch razorback stripping pad (pkg of 5) |
|
|
| 22 |
255-1647 |
16 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 23 |
255-1655 |
16 inch Ruff non-abrasive brush pad (pkg of 2) |
|
|
| 24 |
255-1623 |
16 inch sand screen driver pad (pkg of 2) |
|
|
| 25 |
255-0132 |
16 inch Professional sand screen 100 grit (pkg of 10) |
|
|
| 26 |
255-0133 |
16 inch Professional sand screen 120 grit (pkg of 10) |
|
|
| 27 |
255-0134 |
16 inch Professional sand screen 150 grit (pkg of 10) |
|
|
| 28 |
255-0135 |
16 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 29 |
255-0136 |
16 inch Professional sand screen 220 grit (pkg of 10) |
|
|
| 30 |
255-0137 |
16 inch Professional sand screen 400 grit (pkg of 10) |
|
|
| 31 |
255-0130 |
16 inch Professional sand screen 60 grit (pkg of 10) |
|
|
| 32 |
255-0131 |
16 inch Professional sand screen 80 grit (pkg of 10) |
|
|
| 33 |
255-0217 |
16 inch Superscreen sand screen 100 grit (pkg of 10) |
|
|
| 34 |
255-0218 |
16 inch Superscreen sand screen 120 grit (pkg of 10) |
|
|
| 35 |
255-0219 |
16 inch Superscreen sand screen 150 grit (pkg of 10) |
|
|
| 36 |
255-0220 |
16 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 37 |
255-0221 |
16 inch Superscreen sand screen 220 grit (pkg of 10) |
|
|
| 38 |
255-0222 |
16 inch Superscreen sand screen 400 grit (pkg of 10) |
|
|
| 39 |
255-0215 |
16 inch Superscreen sand screen 60 grit (pkg of 10) |
|
|
| 40 |
255-0216 |
16 inch Superscreen sand screen 80 grit (pkg of 10) |
|
|
| 41 |
255-1624 |
16 inch Tiger carpet bonnet (pkg of 2) |
|
|
| 42 |
255-9563 |
16 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 43 |
255-9560 |
16 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 44 |
255-9557 |
16 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 45 |
255-9561 |
16 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 46 |
255-9558 |
16 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 47 |
255-9559 |
16 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 48 |
255-9562 |
16 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 49 |
255-9641 |
16 inch Diamond starter pack (1 of each grit) |
|
|
| 50 |
255-1682 |
16 inch Turbostrip segmented rotary pad (pkg of 4) |
|
|
| 51 |
255-1615 |
16 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 52 |
255-1616 |
16 inch 2001 Duala clean and shine pad - high speed (pkg 5) |
|
|
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
