Parts List Complete for MASTRCRAFT MD-10C


Solution Tank Kit - NON-OEM - 172-2089
RefNbr Part Number Description Req Notes
000a 209-0013 4 gallon solution tank kit for round handle side x sides 1 (includes 001-018)
000b 209-0014 4 gallon solution tank kit for square handle side x sides 1
000c 209-0017 2 1/2 gallon solution tank kit (OBSOLETE) 1
001 209-0033 Cap (black) 1
002 209-0034 Brass handle rod (OBSOLETE) 1
003 209-0035 1/8 inch grommet 1
004 N/A Not available 1 (Tank only)
005 209-0036 Solution valve 1 (includes 006 and 007)
006 N/A Not available 1 (Washer)
007 209-0038 Nut 1/4 brass pipe thread straight 1
008 209-0039 Hose barb 1/4 1
009 209-0040 Hose 3/8 x 24 inch 1
010 209-0041 Coupling 1/8 brass 1
011 209-0042 1/8 inch brass nipple 1
012 209-0043 Washer 1/8 brass 2
013 209-0044 Nut 1/8 brass lock (OBSOLETE) 1
014 209-0045 Hose assembly (OBSOLETE) 1 (includes 009-013)
015 209-0046 5/16 inch u bolt 2 (only used for round handle buffers)
016 209-0047 Washer bar 2
017 999-0069 Nut 5/16-18 hex 2
018 209-0049 U bolt assembly (set of 2) 1 (only used for round handle side x sides) (includes 015-017)
019 209-0051 Advance adapter U-bolts assembly (set of 2) (OBSOLETE) 1

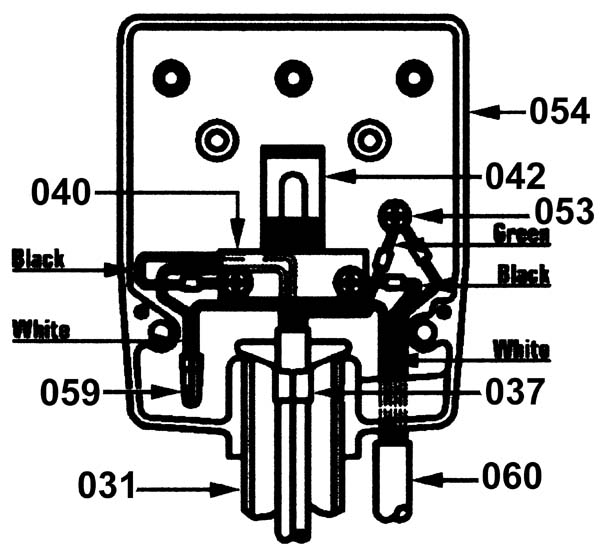

Electrical Parts Assembly - 195-6227
RefNbr Part Number Description Req Notes
031a 295-1875 Handle tube 1 10 inch models
031b 195-6128 Handle tube 1 13 inch models
037 195-6080 Cord clamp 1
040a 195-6151 Switch 1 Old style switch McGill - 4 holes. For new style Cherryl switch with 2 holes please order 195-6151.
040b 195-6151 Switch 1 New style Cherryl switch with 2 holes. For the old style switch McGill - 4 holes please order 195-9318
042 195-6084 Leaf spring 1
053 195-6095 Screw 8-32 x 1/4 3
054 195-8180 Switch box blue (OBSOLETE) 1
059 295-1617 Wire connector 1
060a 195-9321 16/3 power cord 50 ft 1 MD-10A, MD-10B, MD-13A, MD-13B
060b 195-6071 14/3 power cord 50ft 1 MD-10C, MD13-C, MD-13D

Handle Assembly - 195-6229
RefNbr Part Number Description Req Notes
031a 295-1875 Handle tube 1 10 inch models
031b 195-6128 Handle tube 1 13 inch models
032 195-6076 Ribbed handle grip 2
033 195-6077 Nut hex #12-24 with washer 3
034 195-8179 Switch box cover blue 1
035 195-6079 Handle bar 1
037 195-6080 Cord clamp 1
038 195-6081 Washer internal tooth 2
039 195-6082 Screw 6-32 x 1 inch 2
040a 195-6151 Switch 1 Old style switch McGill - 4 holes. For new style Cherryl switch with 2 holes please order 195-6151.
040b 195-6151 Switch 1 New style Cherryl switch with 2 holes. For the old style switch McGill - 4 holes please order 195-9318
041 195-6083 Flag terminal 2
042 195-6084 Leaf spring 1
043 195-6072 Trigger lock spring 2
044 195-6085 Extension spring 2
045 195-6086 Roll pin 4
046 195-6087 Trigger pin 2
047 195-6088 Plastic handle 2
048 195-6090 Trigger lock 2
049 195-6091 Reinforcing plate 2
050 195-6092 Screw 6-32 x 1/4 4
051 195-6093 Screw 12-24 x 1 7/16 4
052 195-6094 Screw 12-24 x 1/2 2
053 195-6095 Screw 8-32 x 1/4 3
054 195-8180 Switch box blue (OBSOLETE) 1
055 295-1876 Bushing reducer brass 1 MD-10A and MD-13A
056a 295-1877 Strain relief 1 MD-10A, MD-10B, MD-13A, MD-13B
056b 295-0560 Strain relief 1 MD-10B, MD-10C, MD-13B, MD-13C, MD-13D
057 195-6139 Cord hook 2
058 195-6153 Pop rivet 4
059 295-1617 Wire connector 1
060a 195-9321 16/3 power cord 50 ft 1 MD-10A, MD-10B, MD-13A, MD-13B
060b 195-6071 14/3 power cord 50ft 1 MD-10C, MD-13C, MD-13D
061 195-6156 Grommet 1
062 195-6014 Bolt 5/16-18 x 1 1/2 2
063 999-0069 Nut 5/16-18 hex 2
064a 195-6157 Clamp lever kit with U-clamp 1
064b 195-6157 Clamp lever kit with U-clamp 1
066a 195-6157 Clamp lever kit with U-clamp 1
066b 195-6157 Clamp lever kit with U-clamp 1
067 195-9444 Bolt 1
068 195-6117 Washer flat square hole 1
069 195-6157 Clamp lever kit with U-clamp 1
071 999-0617 Washer 3/8 x 1 flat stainless steel 1
072 195-6157 Clamp lever kit with U-clamp 1
073 195-6155 Sleeve connector grey 1
075a 295-0581 14/3 power cord 48 inch 1 13 inch models
075b 195-6154 Handle cable 1 10 inch models

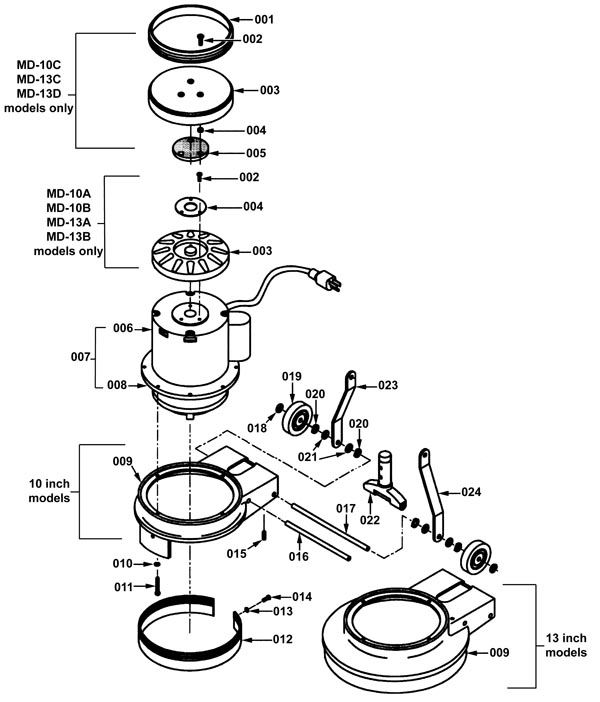

Motor and Chassis Assembly - 195-6300
RefNbr Part Number Description Req Notes
0.9835 295-8509 13 inch pad driver assembly
001 195-8357 Canopy bumper blue 1 MD-10C, MD-13C, MD-13D
002a 295-1865 Canopy screw 3 MD-10A, MD-10B, MD-13A, MD-13B
002b 195-6554 Screw 10 - 32 x 1/2 phillips 3 MD-10C, MD-13C, MD-13D
003a 195-9296 Motor canopy 1 MD-10A, MD-10B, MD-13A, MD-13B
003b 195-9070 Motor canopy 1 MD-10C, MD-13C, MD-13D
004a 295-1866 Canopy holdown 1 MD-10A, MD-10B, MD-13A, MD-13B
004b 295-0850 Canopy spacer 3 MD-10C, MD-13C, MD-13D
005 195-9088 Canopy gasket 1 MD-10C, MD-13C, MD-13D
006a 295-1867 120V motor 1/3HP 1 MD-10A, MD-13A
006c 295-1869 120V motor 3/4HP 1 MD-10C, MD-13C
006d 295-1870 120V motor 1HP 1 MD-13D
007a 295-1871 120V motor and gear box 1/3HP 1 MD-10A, MD-13A
007b 295-1872 120V 1/2HP motor and gear box 1 MD-10B, MD-13B
007c 295-0851 120V 3/4HP motor and gearbox 1 MD-10C, MD-13C
007d 295-1873 120V motor and gear box 1HP 1 MD-13D
008a 195-9482 2 Idler gear box 1 MD-10A, MD-10B, MD-13A, MD-13B
008b 195-9477 3 Idler gear box 1 MD-10C, MD-13C, MD-13D
009b 195-9160 Apron 13 inch 1
010 999-1049 Washer 1/4 split lock zinc plated 4
011a 195-7033 Screw .25-20 x .75 4 MD-10A, MD-10B, MD-13A, MD-13B
011b 295-0852 Screw 1/4-20 x 3/4 inch 4 MD-10C, MD-13C, MD-13D
012a 295-0853 Bumper 10 inch 1
012b 195-8358 Bumper 13 inch 1
013 195-6333 Washer flat 3/16 inch 3
014a 195-9303 Pop rivet 5 13 inch models
014b 195-6304 Screw 10-24 x 1/2 type F 3 10 inch models
015 999-0121 Screw 5/16-18 x 1/2 cup point socket set alloy plain finish 2
016 295-0855 Axle 1
017 295-0856 Axle shaft 1
018 195-6031 Retaining ring 3
019 195-9071 3 inch wheel 2
020 195-6023 Spring washer 4
021 999-0617 Washer 3/8 x 1 flat stainless steel 4
022 195-9135 Handle tee (OBSOLETE) 1
023 295-0857 Strut support left 1
024 295-0858 Strut support right 1

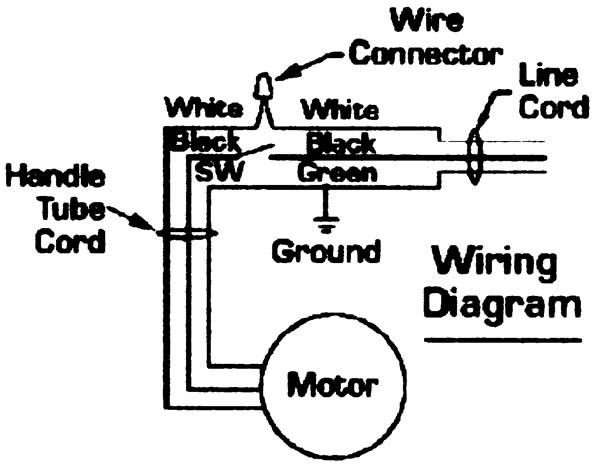

Wiring Diagram -

RefNbr Part Number Description Req Notes

- Pads - 255-1000
RefNbr Part Number Description Req Notes
01 255-1040 10 inch aqua plus burnishing pad (pkg of 20)
03 255-1035 10 inch Armadillo concrete scrubbing pad (pkg of 5)
07 255-1042 10 inch Blue Jay burnishing pad (pkg of 20)
09 255-1012 10 inch Cure white pad (pkg of 5)
11 255-1077 10 inch Diamondback extreme stripping pad (pkg of 20)
13 255-1038 10 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2
14 255-1021 10 inch gorilla lite burnishing pad (pkg of 20)
16 255-1050 10 inch gorilla spray buff/polish/burnish pad (pkg of 20)
18 255-1065 10 inch Heat concrete bonding pad (pkg of 5)
20 255-1030 10 inch jaguar burnishing pad (pkg of 20)
22 255-1087 10 inch Melamine Mela-Kleen pad (pkg of 2)
23 255-1090 10 inch premium black stripping pad (pkg of 20)
25 255-1070 10 inch premium blue cleaning pad (pkg of 20)
27 255-1092 10 inch premium brown stripping pad (pkg of 20)
29 255-1080 10 inch premium green scrubbing pad (pkg of 20)
31 255-1060 10 inch premium red scrubbing pad (pkg of 20)
33 255-1052 10 inch premium tan polishing pad (pkg of 20)
35 255-1020 10 inch premium white polishing pad (pkg of 20)
37 255-1095 10 inch razorback stripping pad (pkg of 20)
39 255-1047 10 inch Redwood maroon floor prep pad (pkg of 10)
41 255-1055 10 inch Ruff non-abrasive brush pad (pkg of 2)
42 255-1011 10 inch superspeed rubberized pad (pkg of 20)
44 255-9521 10 inch Diamond by Gorilla 11000 Grit (pkg of 2)
45 255-9518 10 inch Diamond by Gorilla 1500 Grit (pkg of 2)
46 255-9515 10 inch Diamond by Gorilla 200 Grit (pkg of 2)
47 255-9519 10 inch Diamond by Gorilla 3000 Grit (pkg of 2)
48 255-9516 10 inch Diamond by Gorilla 400 Grit (pkg of 2)
49 255-9517 10 inch Diamond by Gorilla 800 Grit (pkg of 2)
50 255-9520 10 inch Diamond by Gorilla 8000 Grit (pkg of 2)
51 255-9635 10 inch Diamond starter pack (1 of each grit)

- Pad Holders - 275-9029
RefNbr Part Number Description Req Notes
1 991-2214 Center-Lok II pad holder - left hand thread (red)
2a 991-2201 Center-Lok II pad holder - right hand thread (black) (Pad driver side female, Floor side male)
2b 991-8577 Pad retainer (Pad driver side male, Floor side female)
3a 991-2202 Big mouth pad holder set (blue) (includes 3 screws)
3b 991-2205 Deep lock ring and pad grip ring
4 991-2203 Big mouth pad holder male thread portion
5 991-2206 Center-Lok 3 pad holder (includes 3 screws)
6 996-0372 Big mouth pad holder (left hand thread)
7 N/A Not available
8 991-2209 Split retainer - pad holder ring (OBSOLETE)
9 N/A Not available (replaced by #3 991-2202)
10 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE)
