Tank Assembly - 195-6705 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 002 |
195-9113 |
Spring loaded clamp |
3 |
|
| 003 |
195-7480 |
Washer steel |
9 |
|
| 004 |
195-9263 |
Plastic wheel socket |
4 |
|
| 005 |
295-1078 |
Swivel caster |
4 |
|
| 006 |
295-1265 |
Inlet connector |
1 |
|
| 007 |
195-9257 |
7 gallon poly can with hardware |
1 |
|
|
|

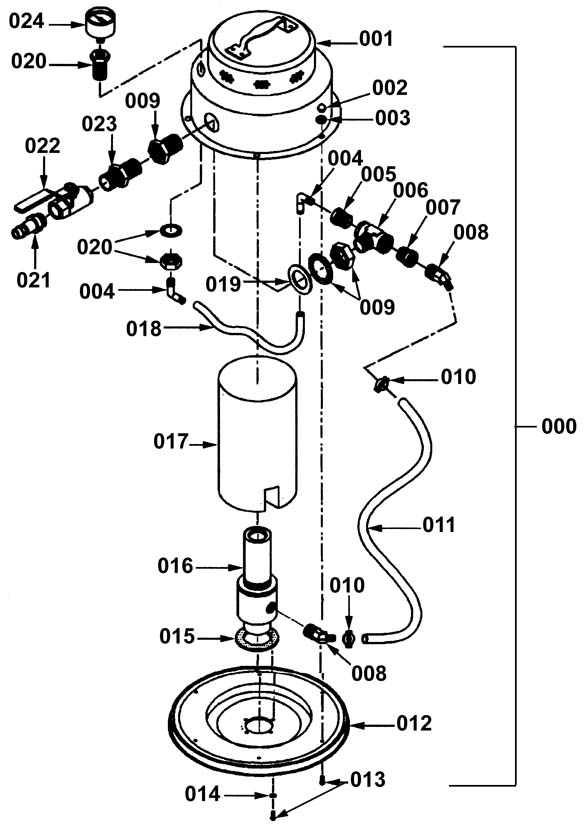

Motor Head Assembly - 195-6706 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000 |
295-1970 |
Air operated head assembly |
1 |
includes items 001 thru 024 |
| 001 |
195-7481 |
Dome assembly |
1 |
|
| 002 |
999-0345 |
Nut 10-24 acorn brass |
6 |
|
| 003 |
295-1352 |
Nut #10 hex with extended lockwasher |
6 |
|
| 004 |
295-1941 |
Elbow fitting |
2 |
|
| 006 |
195-7499 |
Tee fitting |
1 |
|
| 007 |
295-1876 |
Bushing reducer brass |
1 |
|
| 008 |
295-1943 |
Male connector |
2 |
|
| 009 |
295-1944 |
Bulk head assembly 1/2 inch |
1 |
|
| 010 |
295-1945 |
Hose clamp |
2 |
|
| 011 |
295-1946 |
High pressure hose |
1 |
|
| 013 |
295-1947 |
Screw #10-24 x 1/2 inch |
10 |
|
| 014 |
195-9374 |
Washer lock |
4 |
|
| 015 |
295-0215 |
Flat gasket |
1 |
|
| 018 |
295-1949 |
Tubing 1/4 inch |
1 |
|
| 019 |
295-1866 |
Canopy holdown |
1 |
|
| 020 |
295-1950 |
Bulk head assembly |
1 |
|
| 021 |
295-1007 |
Quick coupler |
1 |
|
| 022 |
295-1005 |
Ball valve |
1 |
|
| 023 |
295-1972 |
1/2 inch brass fitting |
1 |
|
| 024 |
195-7484 |
Pressure gauge |
1 |
|
|
|
|
