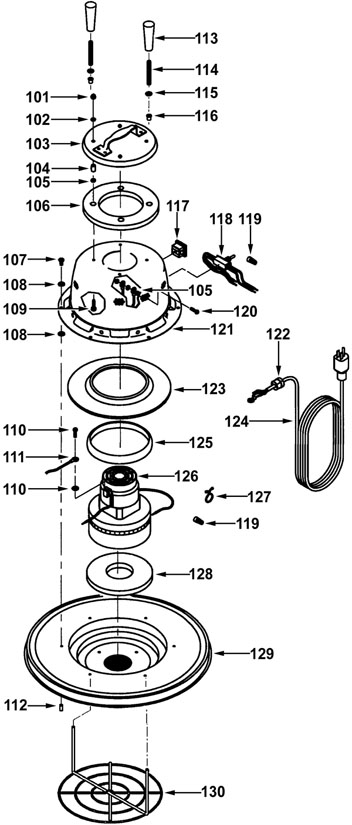

Motor Head Assembly - 195-6244 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 101 |
999-0345 |
Nut 10-24 acorn brass |
4 |
|
| 102 |
195-6333 |
Washer flat 3/16 inch |
8 |
|
| 104 |
295-1360 |
Nylon spacer |
4 |
|
| 105 |
295-1352 |
Nut #10 hex with extended lockwasher |
7 |
|
| 106 |
195-9123 |
Silencer disc |
1 |
|
| 109 |
295-1390 |
Screw 10-24 x 1 |
4 |
|
| 110 |
195-9597 |
Screw 10-32 x .31 phillips |
1 |
|
| 111 |
295-1079 |
Lead #16 with terminal green |
1 |
|
| 112 |
295-1483 |
Screw protector |
6 |
|
| 113 |
195-6803 |
Plastic taper handle |
2 |
|
| 114 |
195-8163 |
Coiled spring |
2 |
|
| 115 |
295-0485 |
Washer flat |
2 |
|
| 116 |
195-6804 |
Black nylon bushing |
2 |
|
| 117 |
195-8382 |
Push in plug |
1 |
|
| 119 |
195-6150 |
Wire connector |
2 |
|
| 121 |
295-0680 |
Dome white |
1 |
|
| 122 |
195-9648 |
Strain relief |
1 |
|
| 123 |
295-1160 |
Motor adapter |
1 |
|
| 124 |
295-1066 |
16/3 power cord 30 ft |
1 |
|
| 125 |
195-7465 |
Motor gasket rubber |
1 |
|
| 126 |
195-9675 |
115V vacuum motor 2 HP |
1 |
|
| 127 |
195-9204 |
Large purse lock |
1 |
|
| 129 |
295-1117 |
Deep cover assembly with screen |
1 |
|
| 130 |
195-6841 |
Filter shaker frame |
1 |
|
|
|

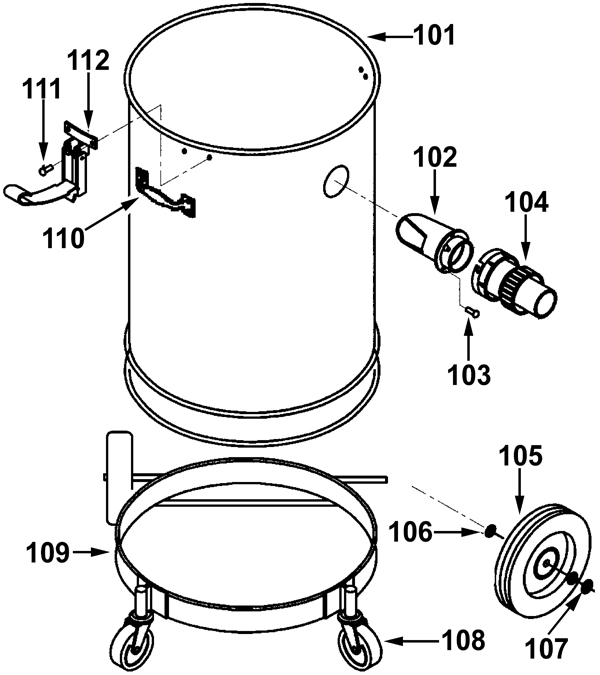

Tank Assembly - 195-6245 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 101a |
195-9681 |
Tank assembly without caster (8 gal) |
1 |
|
| 101b |
195-8250 |
Tank assembly without caster (10 gal) |
1 |
|
| 102 |
295-1265 |
Inlet connector |
1 |
|
| 103 |
195-6622 |
Tubular rivet |
3 |
|
| 104 |
195-9032 |
Swivel connector 1 1/2 inch |
1 |
|
| 105 |
195-9695 |
Wheel 8 inch |
2 |
|
| 106 |
999-0187 |
Washer 1/2 flat plain finish |
4 |
|
| 108 |
295-1078 |
Swivel caster |
2 |
|
| 109 |
295-1500 |
Split dolly 14 in |
1 |
|
| 111 |
195-9682 |
Steel tubular rivet .187 inch |
6 |
|
| 112 |
195-9113 |
Spring loaded clamp |
3 |
|
|
|

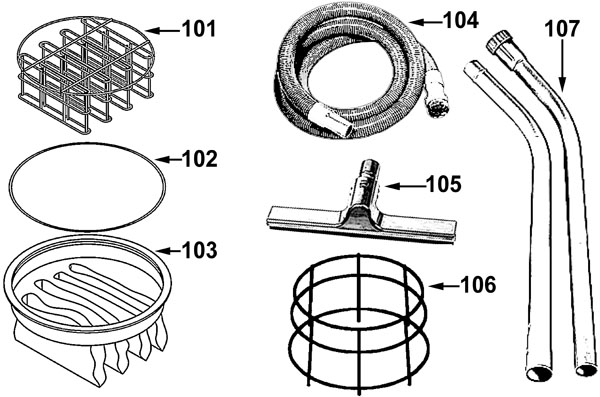

Accessories - 195-6246 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 101 |
195-6839 |
Concrete filter frame |
1 |
|
| 102 |
295-1176 |
Filter ring 14 in |
1 |
|
| 103 |
195-8161 |
Cloth filter |
1 |
|
| 104a |
295-1517 |
Hose 1.5 in x 10 ft vinyl |
1 |
|
| 104b |
195-9032 |
Swivel connector 1 1/2 inch |
1 |
|
| 105 |
195-8211 |
Combo floor tool 14 inch |
1 |
|
| 106 |
295-1135 |
Hose cage 14 in |
1 |
|
| 107 |
195-9683 |
Metal wand 5 ft. 2 pc |
1 |
|
|
|
