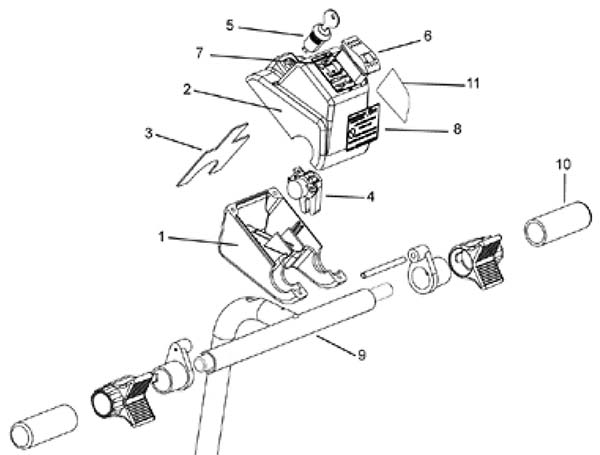

Control Box Assembly - 153-1010 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
153-1001 |
Control box bottom cover |
1 |
|
| 2 |
153-1002 |
Control box top cover |
1 |
|
| 3 |
153-1003 |
Control box divider |
1 |
|
| 4 |
153-1065 |
Potentiometer assembly |
1 |
|
| 6 |
153-1006 |
Rocker switch assembly |
1 |
|
| 7 |
153-1007 |
Top control box overlay |
1 |
|
| 8 |
153-1066 |
Front control box overlay |
1 |
|
| 9 |
153-1009 |
Steering column with rod and grips |
1 |
|
| 10 |
153-1010 |
Grip, PVC-FREE |
1 |
|
| KIT1 |
153-1102 |
15amp circuit breaker |
1 |
(includes 1-4, 6-8) |
| KIT2 |
153-1103 |
Keyed control box |
1 |
(includes 1-8) |
| KIT3 |
153-1069 |
Keyless top control box |
1 |
(includes 2, 4, 6-8) |
| KIT4 |
153-1070 |
Keyed top control box |
1 |
(includes 2, 4-8) |
| KIT5 |
153-1071 |
Box top with decals |
1 |
(includes 2, 7, 8) |
|
|

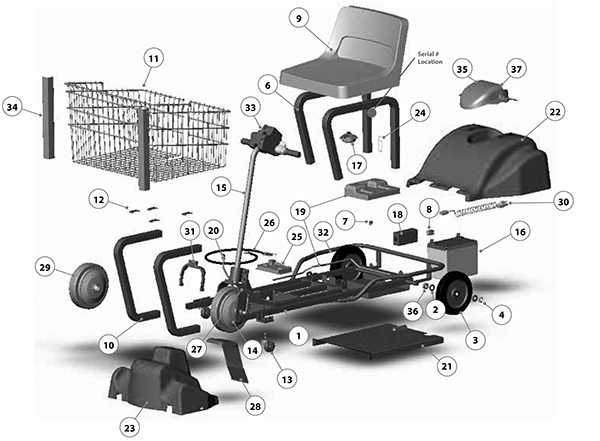

General Assembly - 153-1011 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
153-1018 |
Hardware and bumper frame (includes bumper) |
1 |
|
| 2 |
153-1104 |
5/8 inch bushing |
2 |
(2 on each wheel) |
| 4 |
153-1105 |
5/8 inch "E" type retaining ring |
2 |
|
| 6 |
153-1035 |
Seat mount tube |
1 |
|
| 7 |
153-1074 |
5amp mini fuse |
1 |
|
| 8 |
153-1075 |
15amp circuit breaker |
1 |
|
| 10 |
153-1077 |
Basket tube |
2 |
|
| 11 |
153-1106 |
LIL Max basket |
1 |
|
| 12 |
153-1042 |
Basket mounting clips |
4 |
|
| 13 |
153-1048 |
Caster assembly |
2 |
|
| 14 |
153-1114 |
Hub motor/Wheel/Tire |
2 |
|
| 15 |
N/A |
Not available |
1 |
(see control box assembly for parts) |
| 16 |
162-0122 |
12V 35Ah AGM deep cycle battery |
1 |
|
| 17 |
153-1033 |
Seat switch |
1 |
|
| 18 |
153-1107 |
12V 10amp battery charger |
1 |
|
| 19 |
153-1108 |
Main wire harness/battery cover assembly |
2 |
|
| 20 |
153-1109 |
Steering wire harness with connectors |
1 |
|
| 21 |
153-1052 |
Floor cover |
1 |
|
| 23 |
153-1084 |
Front cover (OBSOLETE) |
1 |
|
| 24 |
153-1034 |
Seat latch assembly |
1 |
|
| 25 |
153-1111 |
Motor controller |
1 |
|
| 26 |
153-1086 |
Wire harness - controller to motor |
1 |
|
| 27 |
153-1047 |
Steering fork assembly |
1 |
|
| 28 |
153-1051 |
Bridge cover |
1 |
|
| 29 |
153-1063 |
Tire/outer shell |
2 |
|
| 30 |
153-1088 |
Coiled charging cord |
1 |
|
| 32 |
153-1089 |
Rear bumper |
1 |
|
| 33 |
N/A |
Not available |
1 |
(see control box assembly for parts) |
| 34 |
153-1041 |
Basket bumpers (blue) |
2 |
|
| 36 |
153-1021 |
5/8 inch grommet |
2 |
|
| 37 |
153-1027 |
Cord cover lid |
1 |
|
| N/S |
153-1120 |
Wire guide and harness assembly |
1 |
(includes 26 and 31) |
| N/S |
153-1121 |
Cord cover and lid assembly |
1 |
(includes 35 and 37) |
|
|

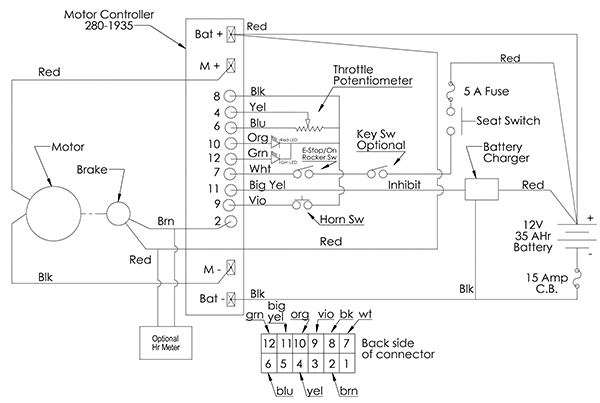

Wiring Diagram I - 153-1012 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| N/S |
153-1017 |
UL motor controller |
|
|
|
|
Wiring Diagram II - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
|
