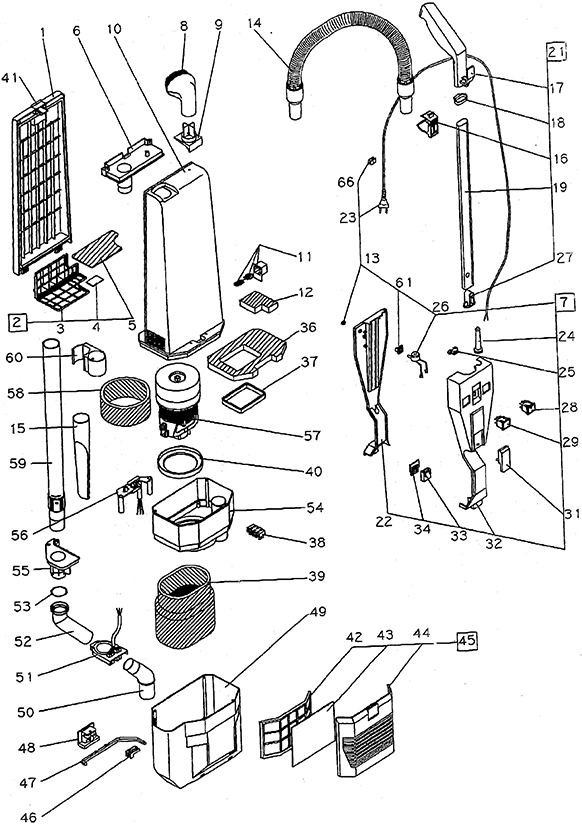

Upper Body Assembly - 172-2046 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
172-1440 |
Bag housing cover |
1 |
|
| 002 |
181-1182 |
Complete grill (OBSOLETE) |
1 |
(includes 003-005) |
| 003 |
181-1183 |
Filter holder |
1 |
|
| 004 |
181-1184 |
Scented pad (pkg of 10) (OBSOLETE) |
1 |
|
| 006 |
181-1186 |
Bag attachment |
1 |
|
| 007 |
172-1441 |
120V 3 wire electrical system (OBSOLETE) |
1 |
(includes 013, 022-026, 028-029, 031-034, 061, 066) |
| 008 |
181-1188 |
Round dusting brush |
1 |
|
| 009 |
172-1442 |
Round dusting brush support |
1 |
|
| 010 |
172-1443 |
Bag housing |
1 |
|
| 011 |
181-1191 |
Relief valve |
1 |
|
| 012 |
181-1192 |
Valve filter |
1 |
|
| 014 |
172-8017 |
Semi-flex hose with cuffs (black) |
1 |
|
| 015 |
181-1194 |
Crevice tool |
1 |
|
| 016 |
181-1195 |
Upper hook for flex hose |
1 |
|
| 017 |
181-1196 |
Handle grip with cord hook |
1 |
|
| 019 |
181-1197 |
Chrome handle tube |
1 |
|
| 021 |
181-1199 |
Handle tube assembly |
1 |
(includes 016-019, 027) |
| 022 |
172-1445 |
Handle cover |
1 |
|
| 023a |
181-1201 |
18/3 power cord 40 foot |
1 |
(OEM) |
| 023b |
991-5007 |
18/3 replacement power cord 50 foot (black) |
1 |
(NON-OEM) |
| 023c |
991-5008 |
18/3 replacement power cord 50 foot (beige) |
1 |
(NON-OEM) |
| 024 |
181-1202 |
Strain relief |
1 |
|
| 025 |
181-1203 |
Cord clamp |
1 |
|
| 026 |
181-1204 |
Vacuum sensor |
1 |
|
| 027 |
181-1205 |
Button with support and spring (OBSOLETE) |
1 |
|
| 028 |
172-0457 |
Master switch |
1 |
|
| 029 |
172-1425 |
Red indicator light |
1 |
|
| 032 |
172-1446 |
Frame handle assembly |
1 |
|
| 033 |
181-1209 |
4 position contact housing (OBSOLETE) |
1 |
|
| 034 |
181-1210 |
4 position contact cover (OBSOLETE) |
1 |
|
| 037 |
181-1212 |
Exhaust gasket |
1 |
|
| 038 |
203-0013 |
Terminal block |
1 |
|
| 039 |
181-1214 |
Foam motor filter (OBSOLETE) |
1 |
|
| 040 |
181-1215 |
Gasket (OBSOLETE) |
1 |
|
| 041 |
172-1447 |
Bag latch with spring |
1 |
|
| 042 |
172-1448 |
Filter holder grill |
1 |
|
| 043 |
181-1218 |
Exhaust filter (pkg of 5) |
1 |
|
| 044 |
172-1449 |
Exhaust filter cover (OBSOLETE) |
1 |
|
| 045 |
172-1450 |
Complete grill (OBSOLETE) |
1 |
(includes 042-044) |
| 047 |
181-1222 |
Blocking joint pin |
1 |
|
| 048 |
181-1223 |
Control pin slide |
1 |
|
| 049 |
172-1451 |
Vacuum motor housing |
1 |
|
| 050 |
181-1225 |
Lower curve |
1 |
|
| 051 |
181-1226 |
Curve support |
1 |
|
| 052 |
181-1227 |
Upper curve |
1 |
|
| 054 |
172-1452 |
Inner vacuum motor housing |
1 |
|
| 055 |
192-3217 |
Hose inlet (OBSOLETE) |
1 |
|
| 056 |
228-2070 |
Hose inlet |
1 |
|
| 057a |
181-0734 |
120V vacuum motor |
1 |
|
| 057b |
272-6297 |
Carbon brush |
2 |
|
| 058 |
181-1233 |
Foam vacuum motor insulation |
1 |
|
| 059 |
172-1453 |
Telescopic wand |
1 |
|
| 061 |
172-1240 |
Adapter (OBSOLETE) |
1 |
|
| 066 |
372-3731 |
Cord clip (OBSOLETE) |
1 |
|
| N/S |
272-2031 |
Vacuum bags (pkg of 10) |
1 |
(OEM) |
| N/S |
991-9001 |
Paper vacuum bags (pkg of 10) |
1 |
(NON-OEM) |
| N/S |
172-8168 |
Cloth bag (reusable) (OBSOLETE) |
1 |
|
| N/S |
172-6100 |
Clip for cloth bag (OBSOLETE) |
1 |
|
| N/S |
172-1241 |
Upholstery tool |
1 |
|
| N/S |
172-8016 |
Extension tube (OBSOLETE) |
1 |
|
|
|
Wiring Diagram - 172-2048 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
172-0457 |
Master switch |
1 |
|
| 002 |
181-1204 |
Vacuum sensor |
1 |
|
| 003 |
172-1425 |
Red indicator light |
1 |
|
| 004a |
181-0734 |
120V vacuum motor |
1 |
|
| 004b |
272-6297 |
Carbon brush |
2 |
|
| 005 |
172-1249 |
Brush motor switch |
1 |
|
| 006 |
272-2634 |
120V 4 prong circuit board (OBSOLETE) |
1 |
|
| 007a |
172-1242 |
120V brush motor |
1 |
(Carpetwin 14) |
| 007b |
172-1996 |
120V brush motor |
1 |
(Carpetwin 18) |
| 007c |
172-1243 |
Carbon brush (pkg of 2) |
2 |
|
|
|
Base Assembly - 172-2081 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000a |
172-1455 |
14 inch brush housing assembly (OBSOLETE) |
1 |
(includes 001-57) |
| 000b |
172-1993 |
18 inch brush housing assembly (OBSOLETE) |
1 |
(includes 001-57) |
| 001a |
172-1456 |
14 inch main brush head body (dark gray) |
1 |
|
| 001b |
172-1994 |
18 inch main brush head body (light gray) |
1 |
|
| 002a |
172-1457 |
14 inch electric brush cover with gasket and lens |
1 |
|
| 002b |
172-1995 |
18 inch electric brush cover with gasket and lens (OBSOLETE) |
1 |
|
| 003 |
172-1458 |
Complete joint with pin slide (OBSOLETE) |
1 |
|
| 004 |
172-1459 |
Joint pin slide |
1 |
|
| 005 |
172-1460 |
Right joint support with felt seal |
1 |
|
| 008 |
172-1462 |
Double pin washer (OBSOLETE) |
1 |
|
| 009 |
172-1463 |
Double release plate |
1 |
|
| 010 |
172-1464 |
Handle release pedal |
1 |
|
| 011 |
172-1465 |
Left joint support with felt seal |
1 |
|
| 012 |
172-1246 |
Switch activator pin |
1 |
|
| 014 |
172-1249 |
Brush motor switch |
1 |
|
| 015 |
172-1413 |
Brush adjuster (OBSOLETE) |
1 |
|
| 016 |
172-1467 |
Brush adjustment knob (OBSOLETE) |
1 |
|
| 017 |
172-1468 |
Front axle |
1 |
|
| 018 |
172-1409 |
Front wheel rubber |
2 |
|
| 019 |
172-1469 |
Brush adjustment spring |
1 |
|
| 021 |
172-1471 |
Rear wheel |
2 |
|
| 022 |
172-1410 |
Wheel retainer |
2 |
|
| 023 |
172-1421 |
Screw M3 x 16mm (OBSOLETE) |
4 |
|
| 024 |
172-1472 |
Filter grill |
1 |
|
| 025 |
272-2577 |
Brush motor filter |
1 |
|
| 026 |
172-1473 |
Grill stop plate |
1 |
|
| 027a |
172-1242 |
120V brush motor |
1 |
(14 inch) |
| 027b |
172-1996 |
120V brush motor |
1 |
(18 inch) |
| 027c |
172-1243 |
Carbon brush (pkg of 2) |
1 |
|
| 028 |
172-1474 |
Brush motor support kit (OBSOLETE) |
1 |
|
| 029 |
172-1253 |
Metal spacer |
1 |
|
| 030 |
172-1256 |
Metal pulley |
1 |
|
| 032 |
272-2634 |
120V 4 prong circuit board (OBSOLETE) |
1 |
|
| 033 |
172-1476 |
Channel cover |
1 |
|
| 034 |
172-1477 |
Transmission support (OBSOLETE) |
1 |
|
| 035 |
172-1258 |
Brush pulley |
1 |
|
| 037a |
272-7014 |
Drive belt |
1 |
(OEM) |
| 037b |
991-5103 |
Drive belt (OBSOLETE) |
1 |
(NON-OEM) |
| 038 |
172-1478 |
Wheel support |
1 |
|
| 039 |
172-1251 |
Screw 3.9 x 16mm |
4 |
|
| 040 |
172-1479 |
Roller support |
1 |
(includes o-ring 172-1489) |
| 041 |
172-6250 |
Side lever |
1 |
|
| 042a |
172-1480 |
14 inch front bumper gasket |
1 |
|
| 042b |
172-1997 |
18 inch front bumper gasket |
1 |
|
| 043a |
172-1481 |
14 inch back bumper gasket |
1 |
|
| 043b |
172-1998 |
18 inch back bumper gasket (OBSOLETE) |
1 |
|
| 044 |
172-1482 |
Screw 4.8 x 50mm |
5 |
|
| 045 |
172-1483 |
Screw 3.5 x 38 mm |
2 |
|
| 046 |
172-1484 |
Side cover |
1 |
|
| 047a |
192-8590 |
38mm brush roller assembly |
1 |
|
| 047b |
172-1749 |
18 inch brush roller |
1 |
|
| 048 |
172-1254 |
Brush motor filter (OBSOLETE) |
1 |
|
| 049 |
172-1419 |
Screw 3.9 x 13mm (OBSOLETE) |
5 |
|
| 050 |
172-1485 |
Screw 3.5 x 22mm (OBSOLETE) |
2 |
|
| 051 |
172-1247 |
Screw 2.2 x 16mm (OBSOLETE) |
1 |
|
| 052 |
172-1486 |
Lens set (red/green) (OBSOLETE) |
1 |
|
| 053 |
172-1487 |
Felt for brush housing |
1 |
|
| 054a |
172-1488 |
14 inch shoe kit (OBSOLETE) |
1 |
|
| 054b |
172-1999 |
18 inch shoe kit |
1 |
|
| 056 |
172-1490 |
Prong set with 3 cables |
1 |
|
| 057 |
999-0412 |
Washer #8 SAE flat |
3 |
|
|
|
Head Assembly - 228-2016 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 027 |
228-2063 |
Carbon brush (pkg of 2) |
|
|
| 034 |
228-2718 |
Pulley with shaft |
|
|
| 040 |
172-1479 |
Roller support |
|
|
| 046 |
228-2728 |
Side cover (blue) |
|
|
| 047a |
228-2729 |
18 inch brush roller (black) |
|
|
| 047b |
228-2730 |
18 inch brush roller (red) |
|
|
| 054 |
272-0154 |
14 inch base metal guides set |
|
|
|
|
Handle Assembly - 228-2017 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 005 |
228-2667 |
Internal filter |
1 |
|
| 028 |
228-2001 |
Main switch |
1 |
|
| N/S |
991-9001 |
Paper vacuum bags (pkg of 10) |
|
|
|
|
- Commonly Asked For Parts - 228-9991 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
228-2000 |
Spring stop plate |
|
|
| 06 |
991-5006 |
16/3 replacement power cord 50 foot (yellow) |
|
|
| 07 |
228-7025 |
Exhaust filter (pkg of 12) |
|
|
| 08 |
228-2009 |
Paper vacuum bags (pkg of 8 with 2 filters) |
|
|
|
|
- NON-OEM Vacuum Tool Assembly - 992-9976 |
|
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
991-8018 |
1 1/4 inch x 13 in Chrome curved wand w/ metal swivel sleeve |
|
|
| 02 |
991-8019 |
1 1/4in x 19 Chrome friction fit straight wand w/nylon collr |
|
|
| 04 |
991-8126 |
Friction fit reducer |
|
|
| 06 |
991-8214 |
1.5 inch hose cuff (black) |
|
|
| 07 |
991-8215 |
Plastic vacuum hose 1.5 inch x 50 foot |
|
|
| 08 |
991-8010 |
1 1/4 inch pedal style rug/floor combo tool |
|
|
| 09 |
991-8011 |
1 1/4 inch deluxe dusting brush with horsehair fill |
|
|
| 10 |
991-8012 |
1 1/4 inch scallop face carpet tool |
|
|
| 11 |
991-8013 |
1 1/4 inch Articulated round dusting brush |
|
|
| 12 |
172-1988 |
Flexible nozzle |
|
|
| 13 |
991-8014 |
Crevice tool 1 1/4 x 9 inch |
|
|
| 14 |
991-8016 |
1 1/4 inch x 13 inch crevice tool |
|
|
| 15 |
991-8015 |
1 1/4 inch upholstery tool |
|
|
| 16 |
991-8017 |
1 1/4 inch horsehair bristle slide for 991-8015 |
|
|
|
|
- Frequently Replaced Parts - 999-9885 |
|
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
181-1201 |
18/3 power cord 40 foot |
|
(OEM) |
| 02 |
991-5007 |
18/3 replacement power cord 50 foot (black) |
|
(NON-OEM) |
| 03 |
181-1202 |
Strain relief |
|
|
| 04 |
172-0457 |
Master switch |
|
(power) |
| 05a |
272-7014 |
Drive belt |
|
(OEM) |
| 05b |
991-5103 |
Drive belt (OBSOLETE) |
|
(NON-OEM) |
| 07 |
172-1460 |
Right joint support with felt seal |
|
|
| 08 |
172-1465 |
Left joint support with felt seal |
|
|
| 09 |
192-8590 |
38mm brush roller assembly |
|
|
| 10 |
172-1242 |
120V brush motor |
|
|
| 11 |
172-1254 |
Brush motor filter (OBSOLETE) |
|
|
| 12 |
181-0734 |
120V vacuum motor |
|
|
| 13 |
181-1218 |
Exhaust filter (pkg of 5) |
|
|
| 14 |
172-8017 |
Semi-flex hose with cuffs (black) |
|
|
| 16 |
991-9001 |
Paper vacuum bags (pkg of 10) |
|
|
| 18 |
172-1480 |
14 inch front bumper gasket |
|
|
|
|
