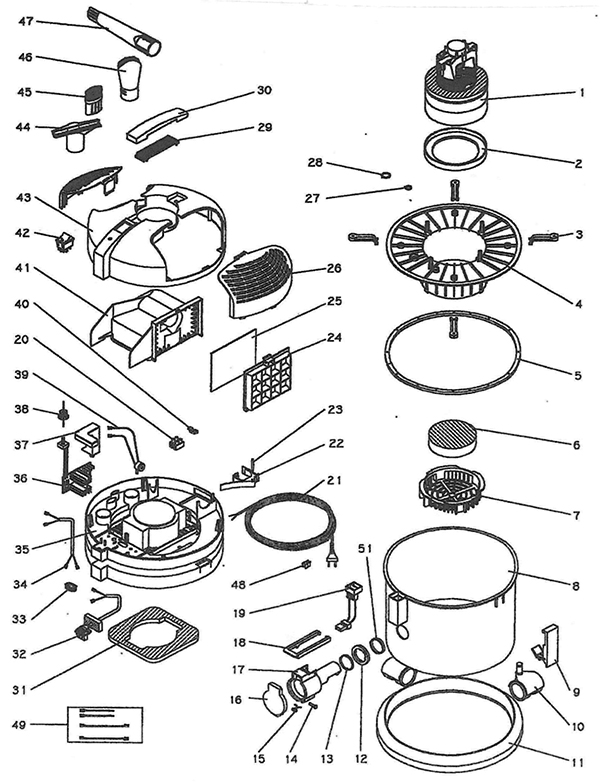

Body Assembly - 228-2200 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1a |
228-2194 |
Vacuum motor |
1 |
|
| 1c |
228-2587 |
Carbon brush (set of 2) |
1 |
|
| 1d |
228-2499 |
Thermal protector |
1 |
|
| 2 |
228-2401 |
Vacuum motor gasket |
1 |
|
| 4 |
228-2403 |
Motor support |
1 |
|
| 7 |
228-2405 |
Filter housing |
1 |
|
| 8a |
228-2406 |
Bag housing (grey) |
1 |
|
| 8b |
228-2407 |
Bag housing (red) |
1 |
|
| 10 |
228-2409 |
Wheels (set of 4) |
1 |
|
| 11 |
228-2410 |
Gasket bumper |
1 |
|
| 12 |
228-2411 |
Clutch ring |
1 |
|
| 13 |
228-2888 |
O-ring 31x43 |
1 |
|
| 16 |
228-2414 |
Collar cover |
1 |
|
| 18 |
228-2416 |
Collar blocking bridge |
1 |
|
| 19 |
228-2417 |
Lower connection kit |
1 |
|
| 20 |
228-2805 |
16A 2 position terminal block |
1 |
|
| 21 |
228-2581 |
2 prong 2 wire cord 2 x 17 |
1 |
|
| 24 |
228-2011 |
Exhaust grill |
1 |
|
| 25a |
228-7025 |
Exhaust filter (pkg of 12) |
1 |
|
| 25b |
228-2472 |
HEPA filter and grill |
1 |
|
| 25c |
228-2493 |
Carbon active exhaust filter |
1 |
|
| 26a |
228-2420 |
Grill cover (grey) |
1 |
|
| 26b |
228-2421 |
Grill cover (blue) |
1 |
|
| 29 |
228-2423 |
Lower handle |
1 |
|
| 30a |
228-2424 |
Handle (grey) |
1 |
|
| 30b |
228-2425 |
Handle (blue) |
1 |
|
| 31 |
228-2426 |
Filter gasket |
1 |
|
| 32 |
228-2427 |
Upper connection kit |
1 |
|
| 33 |
228-2428 |
Strain relief |
1 |
|
| 34 |
228-2429 |
Vacuum motor cord |
1 |
|
| 35 |
228-2430 |
Inner housing (light grey) |
1 |
|
| 36 |
228-2431 |
Circuit board |
1 |
|
| 38 |
228-2433 |
Adjusting knob |
1 |
|
| 39 |
228-2434 |
Vacuum sensor |
1 |
|
| 42 |
228-2436 |
Main switch |
1 |
|
| 43a |
228-2437 |
Cover (grey) |
1 |
|
| 43b |
228-2438 |
Cover (red) |
1 |
|
| 44 |
228-2505 |
Upholstery tool with center strip |
1 |
|
| 45 |
228-2439 |
Radiator brush |
1 |
|
| 46 |
181-1188 |
Round dusting brush |
1 |
|
| 47a |
228-2440 |
Telescopic crevice tool |
1 |
|
| 47b |
181-1194 |
Crevice tool |
1 |
|
|
|

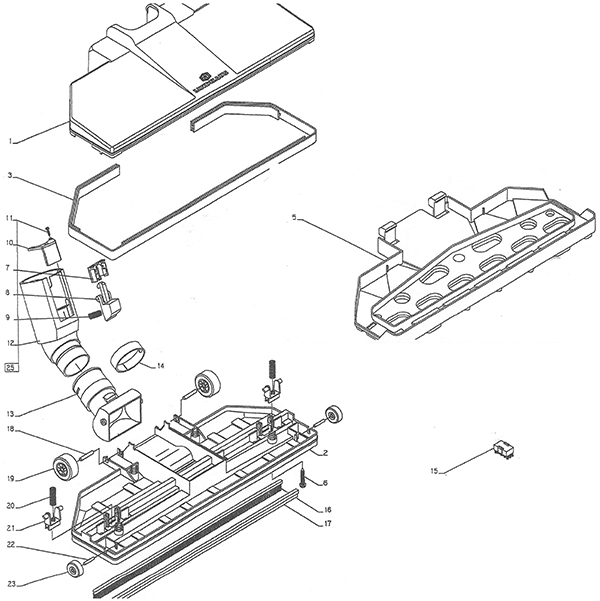

Floor Tool Assembly - 228-2201 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1a |
228-2448 |
Cover (light grey) |
1 |
|
| 1b |
228-2449 |
Cover (silver red) |
1 |
|
| 1c |
228-2450 |
Cover (silver blue) |
1 |
|
| 2b |
228-2453 |
Base with bristles |
1 |
|
| 3 |
228-2452 |
Floor tool bumper |
1 |
|
| 5 |
228-2958 |
Felt pad replacement |
1 |
|
| 6 |
228-2959 |
Screw 3.9 x 22 |
1 |
|
| 7 |
228-2960 |
Contacts guide |
1 |
|
| 10 |
228-2963 |
Blocking guide bracket |
1 |
|
| 11 |
228-2964 |
Screw 2.9 x 19 |
1 |
|
| 12 |
228-2965 |
Connector and curve |
1 |
|
| 13 |
228-2966 |
Floor tool joint |
1 |
|
| 14 |
228-2967 |
Floor tool clip |
1 |
|
| 16 |
228-2969 |
Base bristles |
1 |
|
| 18 |
228-2971 |
Big wheel pin |
1 |
|
| 20 |
228-2973 |
Strip spring |
1 |
|
| 21 |
228-2974 |
Strip support |
1 |
|
| 22 |
228-2975 |
Floor tool front wheel pin |
1 |
|
| 23 |
228-2976 |
Small wheel |
1 |
|
| 25 |
228-2977 |
Floor tool joint complete |
1 |
(includes 7-12) |
| N/S |
228-2512 |
Hard floor tool |
1 |
(complete hard floor tool) |
| N/S |
228-2979 |
Felt floor tool complete (white) |
1 |
(complete felt flool tool) |
|
|

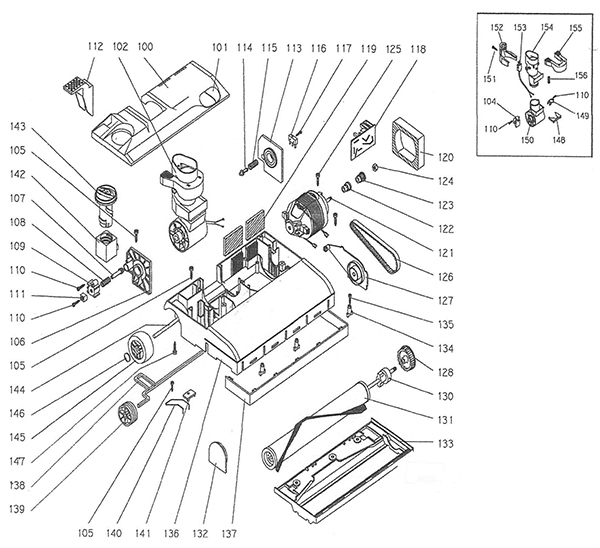

Power Brush Assembly - 228-2202 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 100a |
228-2980 |
Base housing cover (white) |
1 |
|
| 100b |
228-2517 |
Throat cover with spring and felt strip |
1 |
|
| 100c |
172-1487 |
Felt for brush housing |
1 |
|
| 101 |
228-2062 |
Red and green lens set |
1 |
|
| 102 |
228-2215 |
Quick release joint |
1 |
|
| 104 |
228-2216 |
Quick release joint pin slide |
1 |
|
| 105 |
228-2650 |
Screw 3.9x13 |
5 |
|
| 106 |
228-2529 |
Right hand joint support |
1 |
|
| 110 |
228-2523 |
Screw 2.9 x 16 |
2 |
|
| 112 |
228-2068 |
Foot pedal (grey) |
1 |
|
| 113 |
228-2525 |
Left hand joint support |
1 |
|
| 114 |
172-1246 |
Switch activator pin |
1 |
|
| 116 |
172-1249 |
Brush motor switch |
1 |
|
| 117 |
228-2526 |
Screw 2.2 x 16 |
1 |
|
| 118a |
228-2530 |
Circuit board |
1 |
|
| 118b |
228-2528 |
DP/HEPA BR circuit board |
1 |
|
| 119 |
228-2064 |
Exhaust filter |
2 |
|
| 121a |
228-2141 |
120V motor |
1 |
|
| 121b |
228-2063 |
Carbon brush (pkg of 2) |
1 |
|
| 121c |
999-0740 |
Nut M5-.8 hex stainless steel |
1 |
|
| 122 |
172-1253 |
Metal spacer |
1 |
|
| 123 |
172-1256 |
Metal pulley |
1 |
|
| 125 |
228-2531 |
Screw 3.9 x 16 |
1 |
|
| 127 |
228-2532 |
Left hand support |
1 |
|
| 128 |
228-2135 |
Toothed gear |
1 |
|
| 130a |
228-2533 |
12 inch brush shaft |
1 |
|
| 130b |
228-2534 |
14 inch brush shaft (OBSOLETE) |
1 |
|
| 131a |
228-2536 |
12 inch 1 bristle brush roll |
1 |
|
| 131b |
228-2535 |
12 inch 2 bristle brush roll |
1 |
|
| 132 |
228-2066 |
Right hand brush support with bearing |
1 |
|
| 133a |
228-3166 |
12 inch brush shoe plate |
1 |
|
| 133b |
228-2180 |
14 inch brush shoe plate |
1 |
|
| 134 |
228-2181 |
Roller cover clip (pkg of 20) |
1 |
|
| 135 |
228-2644 |
Screw 3.5 x 9.5 TG |
1 |
|
| 136a |
228-2981 |
Base housing cover with clips (light grey) |
1 |
|
| 136b |
228-2183 |
Base housing |
1 |
|
| 137a |
228-9159 |
12 inch bumper (light gray) |
1 |
|
| 137b |
228-2065 |
14 inch front bumper (grey) |
1 |
|
| 138 |
215-0994 |
Front axle |
1 |
|
| 139 |
172-1409 |
Front wheel rubber |
1 |
|
| 140 |
228-2544 |
Axle spring |
1 |
|
| 141 |
228-2545 |
Stop plate spring |
1 |
|
| 142 |
228-2136 |
Brush adjuster |
1 |
|
| 143 |
228-2546 |
Adjusting knob (dark gray) |
1 |
|
| 147 |
228-2548 |
Screw 3.9 x 19 |
1 |
|
| 148 |
228-2217 |
Joint cover |
1 |
|
| 149 |
228-2218 |
Blocking joint |
1 |
|
| 150 |
228-2219 |
Lower joint |
1 |
|
| 151 |
228-2693 |
Screw 3.5 x 13 |
1 |
|
| 152 |
228-2220 |
Cable cover |
1 |
|
| 153 |
228-2221 |
11.22 inch power cord |
1 |
|
| 154 |
228-2222 |
Upper joint |
1 |
|
| 155 |
228-2223 |
Foot pedal |
1 |
|
| 156 |
228-2224 |
Foot pedal spring |
1 |
|
| N/S |
228-2914 |
Deep cleaning system converter |
1 |
(deep cleaning system converter) |
| N/S |
228-2982 |
Wand locking mechanism |
1 |
(wand locking mechanism) |
| N/S |
228-2130 |
Flex hose with handle |
1 |
(electrified hose complete) |
| N/S |
228-2211 |
Electrified telescopic wand |
1 |
(electrified telescopic wand) |
| N/S |
228-2212 |
Telescopic wand internal cord |
1 |
(internal cord for electrified telescopic wand) |
| N/S |
228-2954 |
Lindhaus PB12e 12 inch high performance power brush assembly |
1 |
(power brush replacement) |
|
|
Accessories - 228-2203 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
228-2443 |
Nonelectric flexible hose |
1 |
|
|
228-2444 |
Tube with air control |
1 |
|
|
228-2052 |
Paper vacuum bags (pkg of 6 and 2 filters) |
1 |
|
|
228-2446 |
Flex hose with control handle |
1 |
|
|
228-2952 |
Telescopic aluminum wand |
1 |
|
|
228-2208 |
14 inch eco force power brush replacement |
1 |
|
|
228-2209 |
Electrified hose and wand kit (OBSOLETE) |
1 |
|
|
228-2210 |
Electrified hose |
1 |
|
|
|
- Commonly Asked For Parts - 228-9962 |
|
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
228-2052 |
Paper vacuum bags (pkg of 6 and 2 filters) |
|
|
|
|
