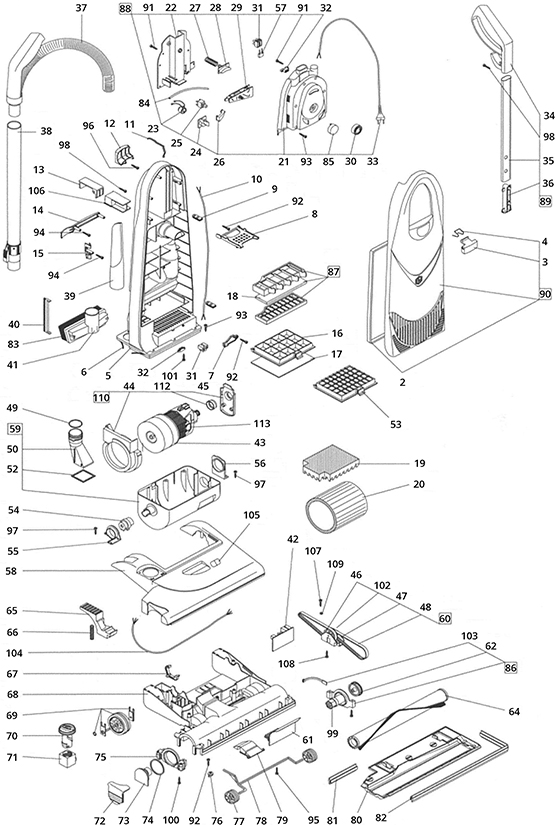

Entire Assembly - 228-2102 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
228-2553 |
Bag door gasket |
1 |
|
| 3a |
228-2554 |
Bag door latch |
1 |
|
| 3b |
228-2916 |
Bag door latch (blue) |
1 |
|
| 4 |
228-2555 |
Bag door spring |
1 |
|
| 5 |
228-2556 |
Bag housing (dark gray) |
1 |
|
| 6 |
228-2557 |
Bag housing gasket |
1 |
|
| 7 |
228-2558 |
Exhaust grill hook |
1 |
|
| 8 |
228-2559 |
Bag safety support |
1 |
|
| 9 |
228-2560 |
Strain relief kit (2 pcs) |
1 |
|
| 10a |
228-2561 |
2 wire internal cord |
1 |
|
| 10b |
228-2562 |
3 wire internal cord |
1 |
|
| 11 |
228-2563 |
Antistatic spring |
1 |
|
| 12 |
228-2564 |
Hose support |
1 |
|
| 13 |
228-7023 |
Lower cord hook |
1 |
|
| 14 |
228-2565 |
Transport handle |
1 |
|
| 15 |
228-2566 |
Accessory clip |
1 |
|
| 16 |
228-2011 |
Exhaust grill |
1 |
|
| 17 |
228-7025 |
Exhaust filter (pkg of 12) |
1 |
|
| 18b |
228-2567 |
Carbon active motor protection filter (pkg of 5) |
1 |
|
| 19 |
228-2568 |
Foam filter |
1 |
|
| 20 |
228-2569 |
Vacuum motor filter |
1 |
|
| 21 |
228-2570 |
Electric panel housing |
1 |
|
| 22 |
228-2571 |
Electric panel cover |
1 |
|
| 23 |
228-2572 |
Vacuum sensor with light |
1 |
|
| 25 |
228-2129 |
Main switch |
1 |
|
| 26 |
228-2574 |
Switch button |
1 |
|
| 27 |
228-2575 |
Handle spring |
1 |
|
| 28 |
228-2576 |
Handle button |
1 |
|
| 29 |
228-2577 |
Circuit board |
1 |
|
| 30 |
228-2578 |
Power adjusting knob |
1 |
|
| 31a |
228-2579 |
2 pole terminal block |
2 |
|
| 31b |
228-2580 |
3 pole terminal block |
2 |
|
| 31c |
228-2490 |
4 pole terminal block |
2 |
|
| 33a |
228-2581 |
2 prong 2 wire cord 2 x 17 |
1 |
|
| 33b |
181-1201 |
18/3 power cord 40 foot |
1 |
|
| 34a |
228-2917 |
Handle grip (blue) |
1 |
|
| 34b |
228-2918 |
Handle grip cap (blue) |
1 |
|
| 35 |
228-2583 |
Chrome tube |
1 |
|
| 36 |
228-2476 |
2 position handle button assembly |
1 |
|
| 37a |
228-7029 |
Extension hose with handle |
1 |
|
| 37b |
228-8025 |
Handle grip kit |
1 |
|
| 37c |
228-2584 |
Hose with cuff |
1 |
|
| 38 |
228-2500 |
Telescopic wand |
1 |
|
| 39 |
181-1194 |
Crevice tool |
1 |
|
| 40 |
228-2507 |
Upholstery tool with center strip (black) |
1 |
|
| 41a |
228-2504 |
Upholstery tool with natural bristles |
1 |
|
| 41b |
228-2505 |
Upholstery tool with center strip |
1 |
|
| 42 |
228-8046 |
Circuit board |
1 |
|
| 43a |
228-2586 |
120V vacuum motor with pulley |
1 |
|
| 43b |
228-2587 |
Carbon brush (set of 2) |
1 |
|
| 44 |
228-2588 |
Motor gasket |
1 |
|
| 45 |
228-2589 |
Brush holder gasket |
1 |
|
| 46 |
228-2590 |
Double pulley with bearings |
1 |
|
| 47 |
228-2591 |
Double support |
1 |
|
| 48 |
228-2059 |
6mm timing belt |
1 |
|
| 52 |
228-2593 |
Throat gasket |
1 |
|
| 53a |
228-2472 |
HEPA filter and grill |
1 |
|
| 53b |
228-2493 |
Carbon active exhaust filter |
1 |
|
| 55a |
228-2596 |
Right hand metal support |
1 |
|
| 55b |
228-2595 |
Right hand support |
1 |
|
| 56 |
228-2597 |
Left hand support |
1 |
|
| 58a |
228-2919 |
Base housing cover with lens (grey) |
1 |
|
| 58b |
228-2602 |
Base housing cover with lens (silver blue) |
1 |
|
| 59 |
228-2605 |
Vacuum motor housing kit (dark gray) |
1 |
(includes 52) |
| 60 |
228-2123 |
Central transmission width belt |
1 |
(includes 46-48, 102) |
| 61 |
228-2606 |
Deep cleaning system converter |
1 |
|
| 62 |
228-2135 |
Toothed gear |
1 |
|
| 64a |
228-8047 |
Brush roll |
1 |
|
| 64b |
228-2607 |
Brush roller stiff bristle |
1 |
|
| 64c |
172-7987 |
Brush roller 15 |
1 |
|
| 65 |
228-2608 |
Foot pedal (gray) |
1 |
|
| 66 |
228-2610 |
Foot pedal spring |
1 |
|
| 67 |
228-2611 |
Base lift lever |
1 |
|
| 68a |
228-2612 |
12 inch base housing (dark gray) |
1 |
|
| 68b |
228-2613 |
15 inch base housing (dark gray) |
1 |
|
| 68c |
228-2614 |
Base felt gasket |
1 |
|
| 69 |
228-2615 |
Rear wheel assembly |
2 |
|
| 70a |
228-2186 |
Adjusting knob (blue) |
1 |
|
| 70b |
228-2616 |
Adjusting knob |
1 |
|
| 71 |
228-2136 |
Brush adjuster |
1 |
|
| 72a |
228-2920 |
Side cover (blue) |
1 |
|
| 72b |
228-2617 |
Side cover |
1 |
|
| 73 |
172-1479 |
Roller support |
1 |
|
| 75 |
228-2618 |
Wheel support |
1 |
|
| 77a |
228-2620 |
Front wheel nylon (silver gray) |
1 |
|
| 77b |
172-1409 |
Front wheel rubber |
1 |
|
| 79 |
228-2622 |
Channel cover |
1 |
|
| 80a |
228-2921 |
12 inch roller cover with squeegee and wheels |
1 |
|
| 80b |
228-2627 |
Squeegee kit for roller cover |
1 |
|
| 80c |
228-2057 |
Roller cover |
1 |
|
| 80d |
228-2623 |
Base shoe plate |
1 |
|
| 80e |
228-2624 |
Roller cover with felt |
1 |
|
| 80f |
228-2625 |
Roller cover with felt |
1 |
|
| 81a |
228-2628 |
Rear bumper |
1 |
|
| 81b |
228-2922 |
15 inch back bumper (blue) |
1 |
|
| 82a |
228-2629 |
Front bumper |
1 |
|
| 82b |
228-2923 |
12 inch front bumper (blue) |
1 |
|
| 82c |
228-2630 |
Front bumper |
1 |
|
| 82d |
228-2924 |
15 inch front bumper (blue) |
1 |
|
| 83 |
228-2477 |
Natural bristle brush upholstery tool |
1 |
|
| 84 |
228-2631 |
Rubber tube |
1 |
|
| 85 |
228-2632 |
Electric panel cap |
1 |
|
| 86 |
228-2633 |
Transmission support complete with sensor |
1 |
(includes 62, 103) |
| 87 |
228-2634 |
Grill |
1 |
(inclides 18) |
| 88a |
228-2635 |
120V 2 wire electric panel |
1 |
(includes 22, 27-29, 31, 32, 57, 91) |
| 88b |
228-2636 |
120V 3 wire electric panel |
1 |
|
| 88c |
228-2637 |
120V electric panel with electronic 2 wires |
1 |
|
| 89a |
228-2925 |
Handle tube assembly (grey) |
1 |
(includes 34-36, 89, 98) |
| 89b |
228-2926 |
Handle tube assembly (blue) |
1 |
|
| 90a |
228-2927 |
Bag door assembly (light grey) |
1 |
(includes 3, 4) |
| 90b |
228-2928 |
Bag door assembly (silver blue) |
1 |
|
| 91 |
228-2643 |
Screw 2.9 x 19 |
3 |
|
| 92 |
228-2644 |
Screw 3.5 x 9.5 TG |
3 |
|
| 93 |
228-2645 |
Screw 3.5 x 25 |
2 |
|
| 94 |
228-2531 |
Screw 3.9 x 16 |
2 |
|
| 95 |
228-2647 |
Screw 4.8 x 13 TG |
1 |
|
| 96 |
228-2648 |
Screw 3.5 x 32 |
1 |
|
| 97 |
228-2649 |
Screw 3.9 x 19 |
2 |
|
| 98 |
228-2650 |
Screw 3.9x13 |
2 |
|
| 99 |
228-2651 |
Drive joint clutch kit |
1 |
|
| 100 |
228-2652 |
Screw 3.9 x 25 |
1 |
|
| 101 |
228-2523 |
Screw 2.9 x 16 |
1 |
|
| 102 |
228-2653 |
Shaft 5 x 28 |
1 |
|
| 103 |
228-2654 |
Speed sensor |
1 |
|
| 104a |
228-2655 |
3 wire cord |
1 |
|
| 104b |
228-2656 |
4 wire cord |
1 |
|
| 105 |
228-2657 |
Red and green lens set |
1 |
|
| 106 |
228-2658 |
Cord hook spacer |
1 |
|
| 107 |
228-2548 |
Screw 3.9 x 19 |
1 |
|
| 108 |
228-2520 |
Screw 3.9 x 13 TG |
1 |
|
| 110 |
228-2660 |
Motor gasket kit |
1 |
(includes 44, 45, 112) |
| 112 |
228-2661 |
Motor gasket bushing |
1 |
|
| 113a |
228-2662 |
Thermal protector |
1 |
|
| 113b |
228-2663 |
Cord with thermal protector |
1 |
|
| 113c |
228-2929 |
Electric system kit |
1 |
|
| N/S |
228-2009 |
Paper vacuum bags (pkg of 8 with 2 filters) |
1 |
|
| N/S |
228-2515 |
Extension tube |
1 |
|
| N/S |
228-2911 |
12 quarts pure power oxy-gen |
1 |
|
| N/S |
228-2912 |
2 liter all angle sprayer bottle |
1 |
|
|
|
- Commonly Asked For Parts - 228-9961 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
228-2123 |
Central transmission width belt |
|
|
|
228-2471 |
Paper vacuum bags (pkg of 10 with 2 filters) |
|
|
|
|
|
