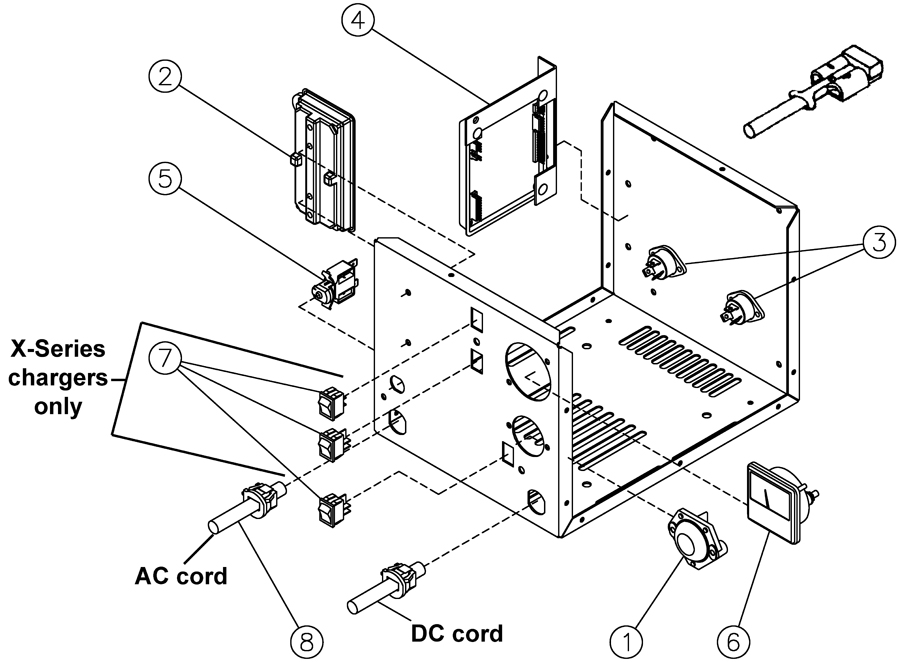

Entire Assembly - 162-8999 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
372-1254 |
Fuse assembly |
1 |
|
| 2a |
162-5076 |
Relay board assembly (OBSOLETE) |
1 |
(24V 25amp - E series) |
| 2b |
162-5077 |
Relay board assembly (OBSOLETE) |
1 |
(36V 25amp - E series) |
| 2c |
162-5078 |
Relay board assembly (OBSOLETE) |
1 |
(36V 30amp - X series) |
| 3a |
162-5079 |
SCR assembly kit |
1 |
(E series) |
| 3b |
162-5080 |
SCR assembly kit (OBSOLETE) |
1 |
(X series) |
| 4a |
162-5081 |
Control board assembly |
1 |
(E series) |
| 4b |
162-5082 |
Control board assembly |
1 |
(X series) |
| 5a |
162-5083 |
AC circuit breaker |
1 |
(24V 25amp - E series) |
| 5b |
162-5084 |
AC circuit breaker (OBSOLETE) |
1 |
(36V 25amp - E series and 36V 30amp - X series) |
| 6a |
162-5085 |
Ammeter |
1 |
(E series) |
| 6b |
162-5056 |
Ammeter (OBSOLETE) |
1 |
(X series) |
| 7 |
162-5086 |
Switch kit |
1 |
(X series) |
| 8a |
162-5087 |
AC cord set kit |
1 |
(24V 25amp - E series and 36V 30amp - X series) |
| 8b |
162-5088 |
AC cord set kit |
1 |
(36V 25amp - E series) |
| 8c |
162-5011 |
AC cord set with molded plug |
1 |
(E series model 25940) |
| N/S |
162-5089 |
Wiring kit (LEDs, control cables and wires) |
1 |
(E series) |
| N/S |
162-5090 |
Wiring kit (LEDs, control cables and wires) |
1 |
(X series) |
| N/S |
162-5091 |
Transformer (36V 25amp E series charger) (OBSOLETE) |
1 |
|
| N/S |
162-5092 |
Transformer (24V 25amp E series charger) (OBSOLETE) |
1 |
|
| N/S |
162-5093 |
Transformer (36V 30amp X series charger) (OBSOLETE) |
1 |
|
|
|
|
