Parts List Complete for KENT WD225F MICRO VAC

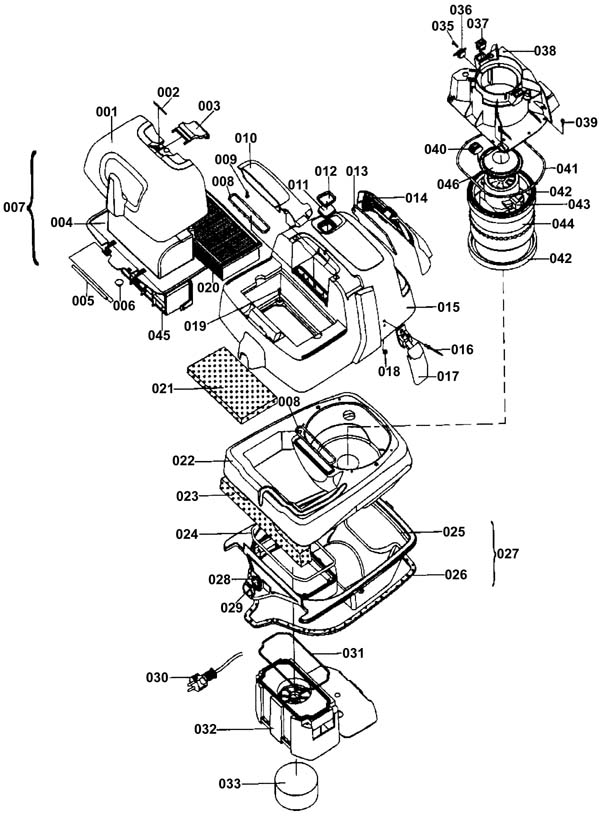

Motor Top - 172-2104
RefNbr Part Number Description Req Notes
001a 172-3821 Filter lid (OBSOLETE) 1
001b 172-3822 Filter lid (OBSOLETE) 1
002 172-3823 Spring (OBSOLETE) 1
003a 172-3824 Lockarm (blue) (OBSOLETE) 1
003b 172-3825 Lockarm (grey) (OBSOLETE) 1
004a 172-3826 Filter holder (OBSOLETE) 1
004b 172-3827 Filter holder (OBSOLETE) 1
005 172-3828 Shaft 1
006 N/A Not available 1 (rubber foot)
007a 172-3829 Filter lid complete (OBSOLETE) 1
007b 172-3830 Filter lid assembly (grey) (OBSOLETE) 1
008 172-3831 Sealing ring 2
009 172-3832 Screw 2
010a 172-3833 Handle 1
010b 172-3834 Handle (OBSOLETE) 1
011 172-3835 Protection hood 1
012 N/A Not available 1 Locking ring
013 172-3837 Exhaust filter 1
014a 172-3838 Filter holder (OBSOLETE) 1
014b N/A Not available 1 filter holder grey
015a 172-3841 Cover (OBSOLETE) 1 blue, WD245,260 Euroclean logo screen printed
015b 172-3875 Cover (OBSOLETE) 1 blue WD 215,225 Euroclean logo screen printed
015c 172-3848 Cover with latches (OBSOLETE) 1 Kent WD245/260
015d 172-3842 Cover (OBSOLETE) 1 Kent WD225
015e 172-3848 Cover with latches (OBSOLETE) 1 R/B 140
015f 172-3842 Cover (OBSOLETE) 1 WD215
015g 172-3843 Cover (OBSOLETE) 1 grey Nilfisk 215,225
015h 172-3844 Cover (OBSOLETE) 1 grey Nilfisk 245/260
015i 172-3845 Cover (OBSOLETE) 1 grey Nilfisk Sprite 12/16
015j 172-3846 Cover with latches (OBSOLETE) 1 blue Euroclean
015k 172-3847 Cover with latches (OBSOLETE) 1 blue UL kent
015l 172-3849 Cover with latches (OBSOLETE) 1 grey no logo
015m 172-3850 Cover with latches (grey) (OBSOLETE) 1 grey UL no logo
016 172-3851 Rivet (OBSOLETE) 4
017 N/A Not available 2 Fastener clamp
018 N/A Not available 4 washer
019 172-3852 Screw 4
020 172-3853 Filter (OBSOLETE) 1
021 172-3854 Pre-filter (OBSOLETE) 1
022 172-3855 Motor box (OBSOLETE) 1
023 172-3856 Diffusor 1
024 172-3857 Sealing ring 1
025 172-3858 Middle part (OBSOLETE) 1
026 172-3859 Gasket lid 1
027 172-3860 Middle part complete (OBSOLETE) 1
028 172-3861 Screw 1
029b 181-0527 Protection sleeve kit (OBSOLETE) 1 This part is no longer available separately. You must purchase this kit.
030a 272-0113 16/3 power cord 50 foot 1
030b 991-5005 14/3 replacement power cord 50 foot (yellow) 1 (NON-OEM) (does not include strain relief)
030c 991-5001 14/3 extension cord 50 foot (yellow) 1 (NON-OEM)
031 N/A Not available 1 basket carrier
032a N/A Not available 1 float body
032b N/A Not available 1 float basket
033 N/A Not available 1 screw
034 172-3864 Suppresser (OBSOLETE) 1
035 N/A Not available 1 screw
036 172-3865 Thermal protection (OBSOLETE) 1
037 181-1384 On/off switch (OBSOLETE) 1
038 172-3863 Cover (OBSOLETE) 1
039 172-3832 Screw 4
040 N/A Not available 1
041 172-3867 O-Ring 1
042 172-3868 Sealing ring (OBSOLETE) 2
043 N/A Not available 2 carbon brush
044 N/A Not available 1 fan unit
045 172-3869 HEPA filter 1
046 N/A Not available 1 extract damping
047 172-3870 Toothed plate connector (OBSOLETE) 1
048 172-3871 Screw grounded (OBSOLETE) 1
049a 172-3872 Nilfisk WD-series decal (OBSOLETE) 1
049b 172-3873 Advance Sprite decal (OBSOLETE) 1
KIT 172-3874 Float system kit (OBSOLETE) Float system kit

Motor Top Larger Float System - 172-2105
RefNbr Part Number Description Req Notes
001a 172-3821 Filter lid (OBSOLETE) 1
001b 172-3822 Filter lid (OBSOLETE) 1
002 172-3823 Spring (OBSOLETE) 1
003a 172-3824 Lockarm (blue) (OBSOLETE) 1
003b 172-3825 Lockarm (grey) (OBSOLETE) 1
004a 172-3826 Filter holder (OBSOLETE) 1
004b 172-3827 Filter holder (OBSOLETE) 1
005 172-3828 Shaft 1
006 N/A Not available 1 (rubber foot)
007a 172-3829 Filter lid complete (OBSOLETE) 1
007b 172-3830 Filter lid assembly (grey) (OBSOLETE) 1
008 172-3831 Sealing ring 2
009 172-3832 Screw 2
010a 172-3833 Handle 1
010b 172-3834 Handle (OBSOLETE) 1
011 172-3835 Protection hood 1
012 N/A Not available 1 Locking ring
013 172-3837 Exhaust filter 1
014a 172-3838 Filter holder (OBSOLETE) 1
014b N/A Not available 1 (filter holder grey)
015a 172-3841 Cover (OBSOLETE) 1 WD 245, 260
015b 172-3875 Cover (OBSOLETE) 1 WD 215, 225
015c 172-3848 Cover with latches (OBSOLETE) 1 Kent/WD 245/260
015d 172-3842 Cover (OBSOLETE) 1 Kent/WD 225
015e 172-3848 Cover with latches (OBSOLETE) 1 cover r/b
015f 172-3842 Cover (OBSOLETE) 1 WD 215
015g 172-3843 Cover (OBSOLETE) 1 Nilfisk 215, 225
015h 172-3844 Cover (OBSOLETE) 1 Nilfisk 245/260
015i 172-3845 Cover (OBSOLETE) 1 Sprite 12/16
015j 172-3846 Cover with latches (OBSOLETE) 1
015k 172-3847 Cover with latches (OBSOLETE) 1 Euroclean blue
015l 172-3848 Cover with latches (OBSOLETE) 1 WD 260
015m 172-3849 Cover with latches (OBSOLETE) 1 Grey no logo
015n 172-3850 Cover with latches (grey) (OBSOLETE) 1 Grey no logo
016 172-3851 Rivet (OBSOLETE) 4
017 N/A Not available 2 Fastener clamp
018 N/A Not available 4 (washer)
019 172-3852 Screw 4
020 172-3853 Filter (OBSOLETE) 1
021 172-3854 Pre-filter (OBSOLETE) 1
022 172-3855 Motor box (OBSOLETE) 1
023 172-3856 Diffusor 1
024 172-3857 Sealing ring 1
025 172-3858 Middle part (OBSOLETE) 1
026 172-3859 Gasket lid 1
027 172-3860 Middle part complete (OBSOLETE) 1
028 172-3861 Screw 2
029b 181-0527 Protection sleeve kit (OBSOLETE) 1 This part is no longer available seperatly. You must purchase this kit.
030 272-0113 16/3 power cord 50 foot 1
031 N/A Not available 1 basket carrier
032a N/A Not available 1 float body
032b N/A Not available 1 float basket
033 N/A Not available 2 screw
034 172-3864 Suppresser (OBSOLETE) 1
035 N/A Not available 1 Screw
036 172-3805 Retaining ring (OBSOLETE) 1
037 181-1384 On/off switch (OBSOLETE) 1 Switch
038 172-3863 Cover (OBSOLETE) 1 Cover
039 172-3832 Screw 4
040 N/A Not available 1
041 172-3867 O-Ring 1
042 172-3868 Sealing ring (OBSOLETE) 2
043 172-3933 Carbon brush 2 Carbon brush
044 172-3934 Fan unit 1 fan unit
045 172-3869 HEPA filter 1 hepa filter
046 N/A Not available 1 extract damping
047 172-3870 Toothed plate connector (OBSOLETE) 1
048 172-3871 Screw grounded (OBSOLETE) 1
049a 172-3872 Nilfisk WD-series decal (OBSOLETE) 1
049b 172-3873 Advance Sprite decal (OBSOLETE) 1
KIT 172-3874 Float system kit (OBSOLETE)

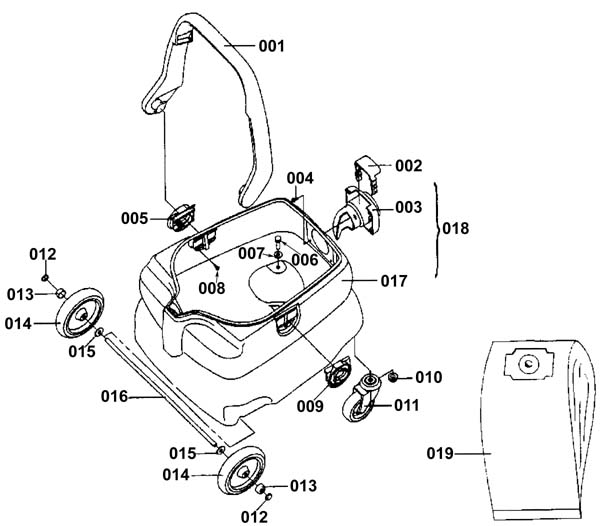

Tank WD215 - 172-2106
RefNbr Part Number Description Req Notes
001 172-3876 Handle 1
002 272-0892 Inlet kit with screws (OBSOLETE) 1
003 172-3878 Inlet 1
004 172-3852 Screw 4
005 172-3879 Left bracket 1
006 N/A Not available 2 Screw
007 172-3880 Washer (OBSOLETE) 2
008 N/A Not available 6 Screw
009 172-3881 Right bracket 1
010 N/A Not available 2 collar nut M6
011 N/A Not available 2 (Caster wheel)
012 272-3423 Locking cap 2
013 172-3884 Protective washer 2
014 272-3423 Locking cap 2
015 999-0024 Washer 5/16 flat stainless steel 2 washer
016 172-3886 Shaft 1
017 172-3887 Tank (OBSOLETE) 1
018 N/A Not available Tank Cpl
019 N/A Not available (bag dust 3 pk)

Tank WD225 and Microvac 6 - 172-2107
RefNbr Part Number Description Req Notes
002 272-0892 Inlet kit with screws (OBSOLETE) 1
003 172-3878 Inlet 1
004 172-3852 Screw 4
005 172-3879 Left bracket 1
006 172-3890 Screw (OBSOLETE) 2
007 172-3891 Washer (OBSOLETE) 2
008 N/A Not available 6 screw
009 172-3881 Right bracket 1
010 N/A Not available 2 nut
011 N/A Not available 2 linkwheel
012 272-3423 Locking cap 2
013 172-3884 Protective washer 2
014 172-3892 Wheel (OBSOLETE) 2
015 999-0024 Washer 5/16 flat stainless steel 2 washer
016 N/A Not available 1 Shaft
017 N/A Not available 1 tank 25 L
018 N/A Not available Tank Cpl 25L
019 N/A Not available (bag dust 3 pk)

Old Handle Tank WD245 and 260 - 172-2108
RefNbr Part Number Description Req Notes
002 172-3894 Handle 1
003 N/A Not available 2 screw
004 N/A Not available 4
005 N/A Not available 2 spacer
006 172-3896 Wheel 2
007 N/A Not available 1
008 N/A Not available 2 Bolt
009 172-3898 Bracket (OBSOLETE) 1
010 N/A Not available 2 Screw
011 172-3899 Link wheel (OBSOLETE) 2
012 N/A Not available 2 locking nut
013 N/A Not available trolley cpl
014 172-3852 Screw 4
015 272-0892 Inlet kit with screws (OBSOLETE) 1
016 172-3878 Inlet 1
017 N/A Not available 1 drain hose
018 172-3901 Plastic strip (OBSOLETE) 1
019 172-3902 Hose holder (OBSOLETE) 1
020 172-3903 Hose clamp (OBSOLETE) 1
021 N/A Not available 1 tank 60L
022 172-3904 Tank complete (OBSOLETE)
023 N/A Not available 1 tank 45L
024 N/A Not available tank cpl 45L
025a 181-0731 Vacuum bags 3 pack
025b 172-3905 Wet resistant dust bag (OBSOLETE)

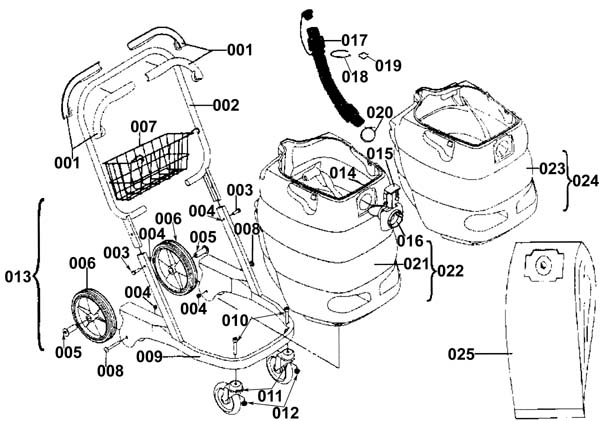

New Handle Tank WD245 and 260 Microvac 12 and 16 Sprite 12 and 16 - 172-2109
RefNbr Part Number Description Req Notes
002 172-3906 Handle (OBSOLETE) 1
003 N/A Not available 2 (Screw)
004 N/A Not available 4
005 N/A Not available 2 (Spacer)
006 172-3896 Wheel 2
007 N/A Not available 1
008 N/A Not available 2 (Bolt)
009 172-3907 Carriage stand (OBSOLETE) 1
010 N/A Not available 2 (Screw)
011 172-3899 Link wheel (OBSOLETE) 2
012 N/A Not available 2 (Locking nut)
013 N/A Not available (Trolley complete)
014 172-3852 Screw 4
015 272-0892 Inlet kit with screws (OBSOLETE) 1
016 172-3878 Inlet 1
017 272-0891 Hose 1 (Drain hose)
018 N/A Not available 1 (Hook)
020 172-3903 Hose clamp (OBSOLETE) 1
021 N/A Not available 1 Tank (16gal)
022 172-3904 Tank complete (OBSOLETE) Tank complete (16gal)
023 N/A Not available 1 (Tank 12gal)
024 N/A Not available (Tank complete 12gal)
025a 181-0731 Vacuum bags 3 pack (pkg of 3)
025b 172-3905 Wet resistant dust bag (OBSOLETE)
N/S 991-5005 14/3 replacement power cord 50 foot (yellow) 1 (NON-OEM) (does not include strain relief)
N/S 991-5001 14/3 extension cord 50 foot (yellow) 1 (NON-OEM)

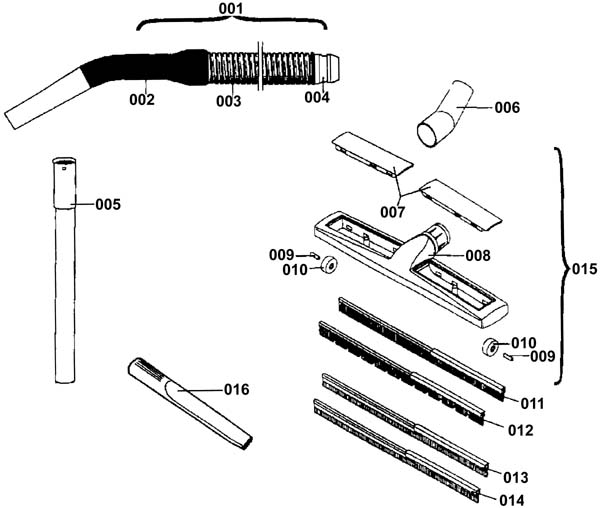

Hose Nozzle and Tubes - 172-2110
RefNbr Part Number Description Req Notes
001 172-3908 9 1/2 foot hose assembly with handle 1 includes 002-004
002 172-3910 Hose handle 1
003 N/A Not available 1 2.5 inch hose (available in 001 only)
004 172-3911 Inlet 1
005 172-3912 19 inch extension tube (pkg of 2) 2
006 N/A Not available 1 swivel elbow (available in 015 only)
007 N/A Not available 2 cover (available in 015 only)
008 N/A Not available 1 base unit (available in 015 only)
009 N/A Not available 2 (Shaft)
010 172-0953 Roll (OBSOLETE) 2
014a 172-3923 1 1/2 inch crevice nozzle
014b 172-3918 Plastic crevice tool
015a 172-3915 14 inch plastic wet tool 1 includes 006-010
015b 172-3916 14 inch plastic dry tool (OBSOLETE) 1

Bracket - 172-2111
RefNbr Part Number Description Req Notes
002a N/A Not available 1 (hose)(1 1/2x27 1/2)
002b 172-3928 Hose 1 1/2x19.6 (OBSOLETE) 1
003 172-3925 Hose frame (OBSOLETE) 1
004 172-3911 Inlet 1
005 N/A Not available 1 (frame)
006 N/A Not available 2 (bracket)
007 N/A Not available 1 (mounting spring)
008 172-3930 Pedal complete (OBSOLETE) 1 (pedal)
009 N/A Not available 1 (rivet)
010 N/A Not available 1 (spring)
011 N/A Not available 2 (screw 1.4 in M6x35 FZ)
012 N/A Not available 1 (screw 1.7 in M6x FZ)
013 N/A Not available 3 (collar nut M6)
014 N/A Not available 2 (distance tube)
015 N/A Not available 2 (washer 6.4x12 FZ)
016 272-2056 Nut 5/16 thumb 2
N/S 172-3928 Hose 1 1/2x19.6 (OBSOLETE)
N/S 172-3929 Frame (OBSOLETE)

Front Nozzle - 172-2112
RefNbr Part Number Description Req Notes
000 272-5111 24 inch squeegee assembly
010 272-5114 24 inch squeegee housing 1
011 272-5112 24 inch squeegee retainer 1
012 272-5115 Guide wheel 2
013 172-0454 Squeegee blade 24 inch (blue) 2
014 272-5113 Axle 2
015 272-5254 Nut 1/4 push cap 4
016 272-5116 Wheel 2
017 999-0688 Bolt 5/16-18 x 1 1/4 hex head stainless steel 2
018 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel 4
019 999-0998 Washer #10 flat stainless steel 2
020 272-5255 Screw 10-16 X .38 phillips pan head stainless steel type b 2

Top Assembly -

RefNbr Part Number Description Req Notes

Bottom Assembly -

RefNbr Part Number Description Req Notes

Nozzle Assembly -

RefNbr Part Number Description Req Notes

Base Assembly -

RefNbr Part Number Description Req Notes

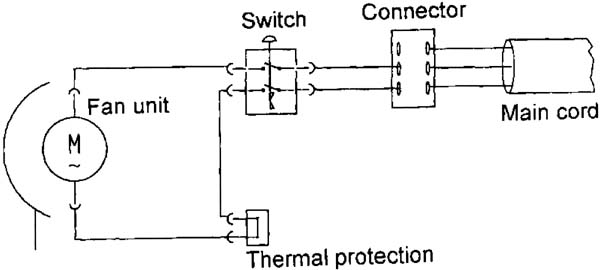

Wiring Diagram Assembly -

RefNbr Part Number Description Req Notes

- Commonly Asked For Parts - 181-9984
RefNbr Part Number Description Req Notes
172-3837 Exhaust filter
172-3853 Filter (OBSOLETE)
172-3854 Pre-filter (OBSOLETE)
172-3874 Float system kit (OBSOLETE)
172-3892 Wheel (OBSOLETE)
172-3899 Link wheel (OBSOLETE)
172-3908 9 1/2 foot hose assembly with handle
172-3914 Rear rubber strip kit
181-1384 On/off switch (OBSOLETE)
272-0024 Rubber strip 394mm Order two
272-0025 Rubber strip 300 mm Order two
272-0033 Front rubber strip (OBSOLETE)
991-5005 14/3 replacement power cord 50 foot (yellow) (NON-OEM) (does not include strain relief)
991-5001 14/3 extension cord 50 foot (yellow) (NON-OEM)
Webpage Problem Reporting
