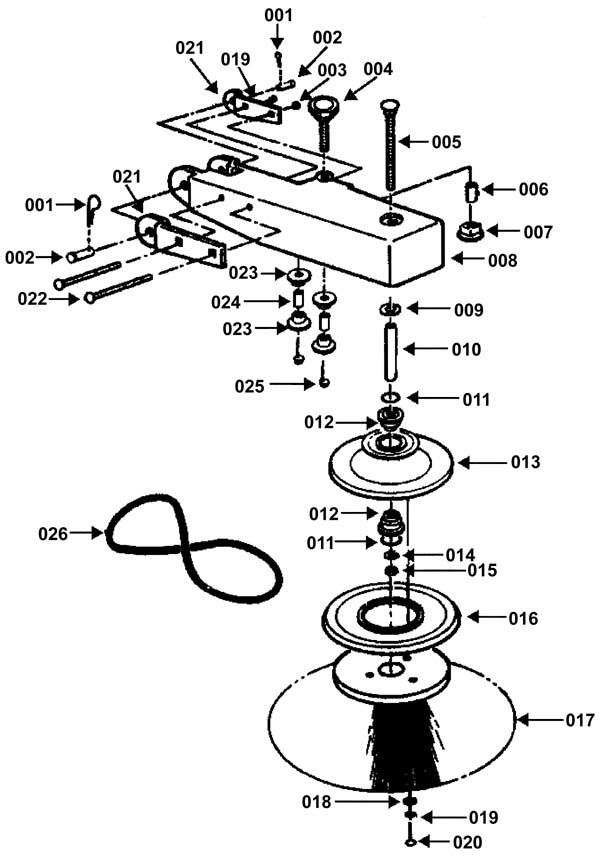

Adjusting Side Broom Arm - 172-9008 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
997-2511 |
Cotter pin |
2 |
|
| 002 |
272-1735 |
Clevis pin (OBSOLETE) |
2 |
|
| 003 |
N/A |
Not available |
2 |
(nut) |
| 004 |
272-1736 |
Adjustment knob stop (OBSOLETE) |
1 |
|
| 005 |
N/A |
Not available |
1 |
(bolt) |
| 006 |
N/A |
Not available |
1 |
(threaded insert) |
| 007 |
372-1996 |
Stop foot adjustment (OBSOLETE) |
1 |
|
| 008 |
272-1738 |
Sidebroom arm (OBSOLETE) |
1 |
|
| 009 |
N/A |
Not available |
1 |
(flat washer) |
| 010 |
N/A |
Not available |
1 |
(sidebroom shaft) |
| 011 |
272-1740 |
O-ring (OBSOLETE) |
2 |
|
| 012 |
272-1741 |
Bearing (OBSOLETE) |
2 |
|
| 013 |
272-1742 |
Cover sidebroom (OBSOLETE) |
1 |
|
| 014 |
N/A |
Not available |
1 |
(lock washer) |
| 015 |
N/A |
Not available |
1 |
(nut) |
| 016 |
N/A |
Not available |
1 |
(sidebroom bumper) |
| 017 |
272-1744 |
Sidebroom (OBSOLETE) |
1 |
|
| 018 |
N/A |
Not available |
3 |
(flat washer) |
| 019 |
N/A |
Not available |
3 |
(lock washer) |
| 020 |
N/A |
Not available |
3 |
(screw) |
| 021 |
N/A |
Not available |
2 |
(sidearm bracket) |
| 022 |
N/A |
Not available |
2 |
(screw) |
| 023 |
N/A |
Not available |
4 |
(guide belt) |
| 024 |
N/A |
Not available |
2 |
(spacer) |
| 025 |
N/A |
Not available |
2 |
(screw) |
| 026 |
272-1748 |
Belt (OBSOLETE) |
1 |
|
|
|

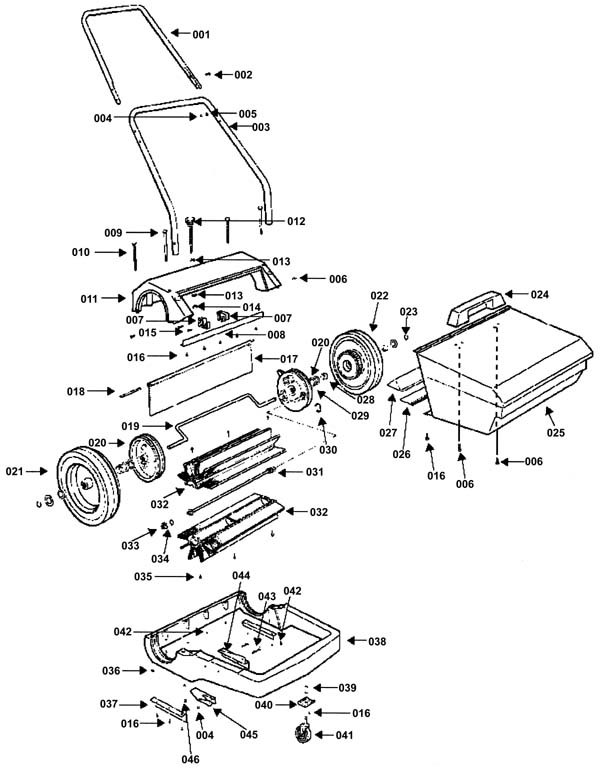

Main Unit - 172-9009 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
272-1749 |
Upper handle (OBSOLETE) |
1 |
|
| 002 |
N/A |
Not available |
4 |
(screw) |
| 003 |
272-1750 |
Lower handle (OBSOLETE) |
1 |
|
| 004 |
N/A |
Not available |
6 |
(nut) |
| 005 |
N/A |
Not available |
4 |
(external tool lockwasher) |
| 006 |
N/A |
Not available |
6 |
(screw) |
| 007 |
272-1751 |
Nut 1/2 height adjustment (OBSOLETE) |
1 |
|
| 008 |
272-1752 |
Hopper seal (OBSOLETE) |
1 |
|
| 009 |
N/A |
Not available |
2 |
(bolt) |
| 010 |
N/A |
Not available |
2 |
(bolt) |
| 011 |
N/A |
Not available |
1 |
(rear housing) |
| 012 |
272-1754 |
main broom adjustment knob (OBSOLETE) |
1 |
|
| 013 |
N/A |
Not available |
2 |
(flat washer) |
| 014 |
272-1755 |
Collar with set screw (OBSOLETE) |
1 |
|
| 015 |
N/A |
Not available |
2 |
(screw) |
| 016 |
N/A |
Not available |
15 |
(screw) |
| 017 |
272-1756 |
Rear seal (OBSOLETE) |
1 |
|
| 018 |
372-1997 |
Rear seal support rod (OBSOLETE) |
1 |
|
| 019 |
272-1758 |
Axle (OBSOLETE) |
1 |
|
| 020 |
272-1759 |
Pivot hub (OBSOLETE) |
2 |
|
| 021 |
272-1760 |
Wheel bearing assembly (OBSOLETE) |
1 |
|
| 022 |
N/A |
Not available |
1 |
(wheel clutch assembly) |
| 023 |
272-1762 |
Retaining ring (OBSOLETE) |
2 |
|
| 024 |
272-1763 |
Handle hopper (OBSOLETE) |
1 |
|
| 025 |
272-1764 |
Hopper (OBSOLETE) |
1 |
|
| 026 |
272-1765 |
Squeegee blade (OBSOLETE) |
1 |
|
| 027 |
272-1766 |
Squeegee blade (OBSOLETE) |
1 |
|
| 028 |
272-1767 |
Wheel bearing (OBSOLETE) |
4 |
|
| 029 |
N/A |
Not available |
8 |
(flatwasher |
| 030 |
272-1768 |
Retaining ring (OBSOLETE) |
1 |
|
| 031 |
272-1769 |
Brush shaft assembly (OBSOLETE) |
1 |
|
| 032 |
N/A |
Not available |
2 |
(broom half, set of 2) |
| 033 |
272-1741 |
Bearing (OBSOLETE) |
1 |
|
| 034 |
272-1740 |
O-ring (OBSOLETE) |
1 |
|
| 035 |
N/A |
Not available |
6 |
(screw) |
| 036 |
N/A |
Not available |
4 |
(nut) |
| 037 |
272-1771 |
Side seal (OBSOLETE) |
2 |
|
| 038 |
272-1772 |
Main frame (OBSOLETE) |
1 |
|
| 039 |
272-1773 |
Socket caster (OBSOLETE) |
1 |
|
| 040 |
272-1774 |
Support caster (OBSOLETE) |
1 |
|
| 041 |
272-1775 |
Caster (OBSOLETE) |
1 |
|
| 042 |
N/A |
Not available |
6 |
(screw) |
| 043 |
N/A |
Not available |
2 |
(screw) |
| 044 |
372-1998 |
Inner sidearm bracket (OBSOLETE) |
1 |
|
| 045 |
372-1999 |
Outer sidearm bracket (OBSOLETE) |
1 |
|
| 046 |
N/A |
Not available |
2 |
(lock washer) |
|
|
|
