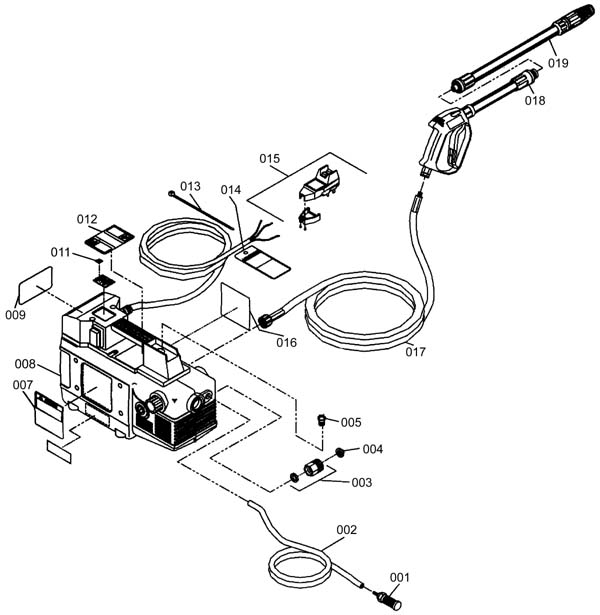

Frame Assembly - 172-8500 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
172-6300 |
Detergent Strainer (OBSOLETE) |
1 |
|
| 002 |
172-6301 |
Hose outlet (OBSOLETE) |
4 ft |
|
| 003 |
172-6302 |
Water inlet (OBSOLETE) |
1 |
|
| 004 |
172-6303 |
Water filter inlet (OBSOLETE) |
1 |
|
| 005 |
172-6304 |
Oil cap (OBSOLETE) |
1 |
|
| 007 |
N/A |
Not available |
1 |
(Not Available) Caution decal |
| 008 |
N/A |
Not available |
1 |
(Not Available) Motor/Pump Assembly |
| 009 |
N/A |
Not available |
1 |
(Not Available) Kent logo decal |
| 011 |
N/A |
Not available |
1 |
(Not Available) Warning Label |
| 012 |
172-6306 |
Warning label (OBSOLETE) |
1 |
|
| 013 |
N/A |
Not available |
1 |
(Not Available) Cable tie |
| 014 |
N/A |
Not available |
1 |
(Not Available) Hang tag UL |
| 015a |
172-6305 |
GRFI without a cord (OBSOLETE) |
1 |
|
| 015b |
172-6307 |
Power cord 15amp (OBSOLETE) |
1 |
|
| 016 |
N/A |
Not available |
1 |
(Not Available) Warning decal |
| 017 |
172-6308 |
HP hose (OBSOLETE) |
1 |
|
| 018 |
172-6309 |
Spraygun lance with screw (OBSOLETE) |
1 |
|
| 019 |
172-6310 |
Variable nozzle assembly (OBSOLETE) |
1 |
|
|
|

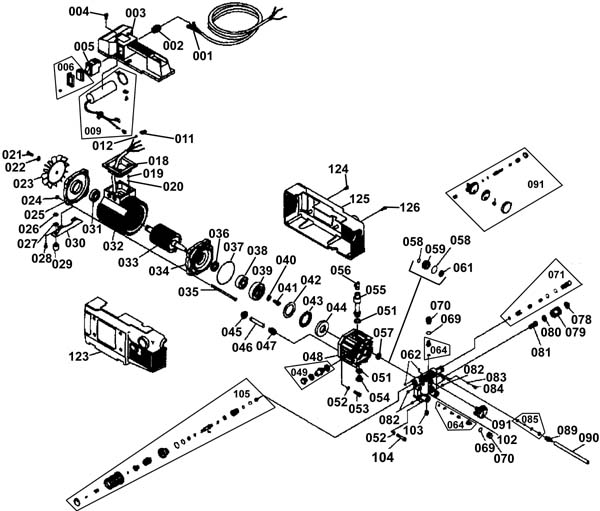

Motor Pump Assembly - 172-8501 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001a |
172-6305 |
GRFI without a cord (OBSOLETE) |
1 |
|
| 001b |
172-6307 |
Power cord 15amp (OBSOLETE) |
1 |
|
| 002 |
172-6313 |
Strain relief (OBSOLETE) |
1 |
|
| 003 |
172-6314 |
Top cover handle (OBSOLETE) |
1 |
|
| 004 |
172-6315 |
Motor screw (OBSOLETE) |
4 |
|
| 005 |
172-6316 |
Switch (OBSOLETE) |
1 |
|
| 006 |
172-6381 |
Cover switch kit (OBSOLETE) |
1 |
|
| 009a |
172-6389 |
Capacitor kit (OBSOLETE) |
2 |
|
| 009b |
172-6317 |
Capacitor (OBSOLETE) |
1 |
|
| 011 |
N/A |
Not available |
4 |
Electric Connection Protector - Male |
| 012 |
N/A |
Not available |
4 |
Electric Connector - Female |
| 018 |
172-6318 |
Motor gasket (OBSOLETE) |
1 |
|
| 019 |
172-6362 |
Screw (OBSOLETE) |
1 |
|
| 020 |
172-6363 |
Washer (OBSOLETE) |
1 |
|
| 021 |
172-6319 |
Screw (OBSOLETE) |
1 |
|
| 022 |
172-6320 |
Washer (OBSOLETE) |
2 |
|
| 023 |
172-6321 |
Motor fan (OBSOLETE) |
1 |
|
| 024 |
172-6322 |
Nut (OBSOLETE) |
4 |
|
| 025 |
172-6323 |
Rear motor flange (OBSOLETE) |
1 |
|
| 026 |
172-6324 |
Hex nut (OBSOLETE) |
4 |
|
| 027 |
172-6325 |
Washer (OBSOLETE) |
4 |
|
| 028 |
172-6326 |
Screw (OBSOLETE) |
4 |
|
| 029 |
172-6327 |
Rubber foot (OBSOLETE) |
4 |
|
| 030 |
172-6328 |
Motor support angle (OBSOLETE) |
2 |
|
| 031 |
172-6329 |
Ball bearing (OBSOLETE) |
1 |
|
| 032 |
172-6330 |
Motor stator (OBSOLETE) |
1 |
|
| 033 |
172-6331 |
Rotor (OBSOLETE) |
1 |
|
| 034 |
172-6332 |
Front motor flange (OBSOLETE) |
1 |
|
| 035 |
172-6333 |
Screw (OBSOLETE) |
4 |
|
| 036 |
172-6334 |
Oil seal (OBSOLETE) |
1 |
|
| 037 |
172-6335 |
O-ring (OBSOLETE) |
1 |
|
| 038 |
172-6336 |
Ball bearing (OBSOLETE) |
1 |
|
| 039 |
172-6337 |
Wobble plate (OBSOLETE) |
1 |
|
| 040 |
172-6338 |
Washer (OBSOLETE) |
1 |
|
| 041 |
172-6339 |
Screw (OBSOLETE) |
1 |
|
| 042 |
172-6340 |
Disc bearing (OBSOLETE) |
1 |
|
| 044 |
172-6342 |
Disc bearing (OBSOLETE) |
1 |
|
| 045 |
172-6343 |
Retainer spring (OBSOLETE) |
3 |
|
| 046 |
172-6344 |
Piston (OBSOLETE) |
3 |
|
| 047 |
172-6345 |
Spring (OBSOLETE) |
3 |
|
| 048 |
172-6346 |
Pump housing (OBSOLETE) |
1 |
|
| 049a |
172-6382 |
Oil sight glass kit (OBSOLETE) |
1 |
|
| 049b |
172-6347 |
Oil gasket port (OBSOLETE) |
3 |
|
| 051 |
172-6347 |
Oil gasket port (OBSOLETE) |
3 |
|
| 052 |
172-6348 |
Washer lock (OBSOLETE) |
8 |
|
| 053 |
172-6349 |
Screw (OBSOLETE) |
4 |
|
| 054 |
172-6383 |
Oil drain plug kit (OBSOLETE) |
1 |
|
| 055 |
172-6350 |
Oil port extension (OBSOLETE) |
1 |
|
| 056 |
172-6304 |
Oil cap (OBSOLETE) |
1 |
|
| 057 |
N/A |
Not available |
3 |
Oil Seal |
| 058 |
N/A |
Not available |
3 |
O-Ring |
| 059 |
172-6364 |
Packing retainer (OBSOLETE) |
3 |
|
| 060 |
N/A |
Not available |
3 |
O-Ring |
| 061 |
N/A |
Not available |
3 |
Pressure Seal |
| 062 |
172-6353 |
Screw (OBSOLETE) |
2 |
|
| 064 |
172-6385 |
Valve kit (OBSOLETE) |
6 |
|
| 069 |
172-6355 |
O-ring pump (OBSOLETE) |
6 |
|
| 070 |
172-6354 |
Valve plug pump (OBSOLETE) |
6 |
|
| 071 |
172-6390 |
Check valve unloader kit (OBSOLETE) |
1 |
|
| 078 |
172-6303 |
Water filter inlet (OBSOLETE) |
1 |
|
| 079 |
172-6302 |
Water inlet (OBSOLETE) |
1 |
|
| 080 |
172-6366 |
Garden hose gasket (OBSOLETE) |
1 |
|
| 081 |
172-6367 |
Filter inlet (OBSOLETE) |
1 |
|
| 082 |
172-6368 |
Screw (OBSOLETE) |
4 |
|
| 083 |
172-6369 |
O-ring (OBSOLETE) |
1 |
|
| 084 |
172-6370 |
Screw (OBSOLETE) |
1 |
|
| 085 |
172-6388 |
Detergent repair kit (OBSOLETE) |
1 |
|
| 089 |
172-6371 |
Connector (OBSOLETE) |
1 |
|
| 090 |
172-6372 |
Detergent hose (OBSOLETE) |
4 ft |
|
| 091 |
172-6373 |
Pressure gauge (OBSOLETE) |
1 |
|
| 102 |
172-6374 |
Manifold pump (OBSOLETE) |
1 |
|
| 103 |
172-6375 |
Screw (OBSOLETE) |
1 |
|
| 104 |
N/A |
Not available |
4 |
Screw |
| 105 |
172-6392 |
Unloader kit (OBSOLETE) |
1 |
|
| 123 |
N/A |
Not available |
1 |
Right Hand Cover Housing |
| 124 |
172-6378 |
Screw (OBSOLETE) |
8 |
|
| 125 |
172-6379 |
Left housing cover (OBSOLETE) |
1 |
|
| 126 |
172-6380 |
Screw metric (OBSOLETE) |
4 |
|
| KIT |
172-6384 |
Pump packing kit (OBSOLETE) |
|
Includes 1 each of items 058-061 |
| KIT |
172-6387 |
MFLD assembly (OBSOLETE) |
|
|
|
|

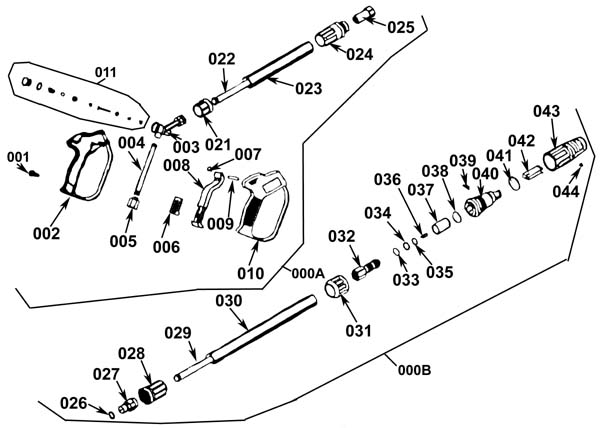

Gun and Wand Assembly - 172-8502 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000a |
172-6309 |
Spraygun lance with screw (OBSOLETE) |
|
Spraygun lance with screw - includes items 001 thru 025 |
| 000b |
172-6310 |
Variable nozzle assembly (OBSOLETE) |
|
Variable Nozzle Assembly - includes items 026 thru 044 |
| 001 |
172-6356 |
Screw (OBSOLETE) |
7 |
|
| 002 |
N/A |
Not available |
1 |
Plastic housing left |
| 003 |
N/A |
Not available |
1 |
Brass housing |
| 004 |
172-6311 |
Pipe gun handle (OBSOLETE) |
1 |
|
| 005 |
172-6312 |
Gun nipple (OBSOLETE) |
1 |
|
| 006 |
N/A |
Not available |
1 |
Trigger lock safety |
| 007 |
N/A |
Not available |
1 |
Trigger rest |
| 008 |
N/A |
Not available |
1 |
Trigger |
| 009 |
172-6396 |
Trigger pin (OBSOLETE) |
1 |
|
| 010 |
N/A |
Not available |
1 |
Plastic housing right with warning |
| 011 |
172-6420 |
Spraygun kit (OBSOLETE) |
1 |
|
| 012 |
172-6420 |
Spraygun kit (OBSOLETE) |
1 |
|
| 013 |
172-6420 |
Spraygun kit (OBSOLETE) |
1 |
|
| 014 |
172-6420 |
Spraygun kit (OBSOLETE) |
1 |
|
| 015 |
172-6420 |
Spraygun kit (OBSOLETE) |
1 |
|
| 017 |
172-6420 |
Spraygun kit (OBSOLETE) |
1 |
|
| 018 |
172-6420 |
Spraygun kit (OBSOLETE) |
1 |
|
| 020 |
172-6420 |
Spraygun kit (OBSOLETE) |
1 |
|
| 021 |
172-6398 |
Gun and wand connector (OBSOLETE) |
1 |
|
| 022 |
172-6399 |
Pipe stainless steel (OBSOLETE) |
1 |
|
| 023 |
172-6400 |
Wand protector (OBSOLETE) |
1 |
|
| 024 |
172-6401 |
Plastic screw connector (OBSOLETE) |
1 |
|
| 025 |
172-6402 |
Female quick connector (OBSOLETE) |
1 |
|
| 026 |
172-6403 |
O-ring (OBSOLETE) |
1 |
|
| 027 |
172-6404 |
Terminal (OBSOLETE) |
1 |
|
| 028 |
172-6405 |
Female screw connector (OBSOLETE) |
1 |
|
| 029 |
172-6406 |
Pipe ss 560mm (OBSOLETE) |
1 |
|
| 030 |
N/A |
Not available |
1 |
Wand protector |
| 031 |
N/A |
Not available |
1 |
Collar |
| 032 |
N/A |
Not available |
1 |
Nozzle Body |
| 033 |
N/A |
Not available |
1 |
O-Ring |
| 034 |
N/A |
Not available |
1 |
Back-Up Ring |
| 035 |
N/A |
Not available |
1 |
O-Ring |
| 036 |
N/A |
Not available |
1 |
Nozzle 1.20mm |
| 037 |
N/A |
Not available |
1 |
Brass sleeve |
| 038 |
172-6414 |
O-ring (OBSOLETE) |
1 |
|
| 039 |
172-6415 |
Pin (OBSOLETE) |
1 |
|
| 040 |
N/A |
Not available |
1 |
Housing |
| 041 |
172-6416 |
O-ring (OBSOLETE) |
1 |
|
| 042 |
172-6417 |
Nozzle angle plate (OBSOLETE) |
1 |
|
| 043 |
172-6418 |
Nozzle protector (OBSOLETE) |
1 |
|
| 044 |
172-6419 |
Identification pin (OBSOLETE) |
1 |
|
|
|

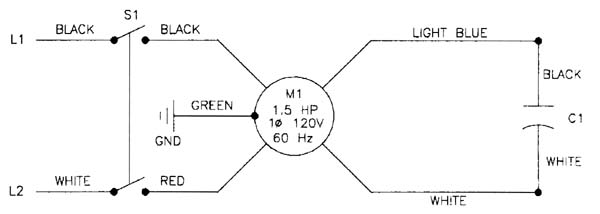

Wiring Schematic - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

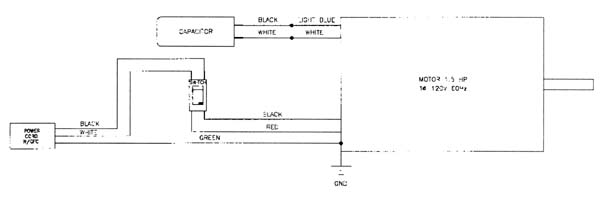

Wiring Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
