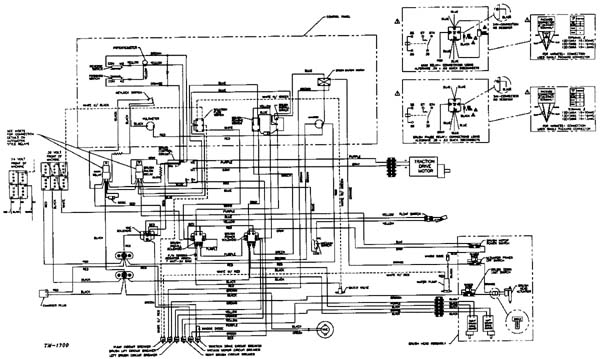

Wiring Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

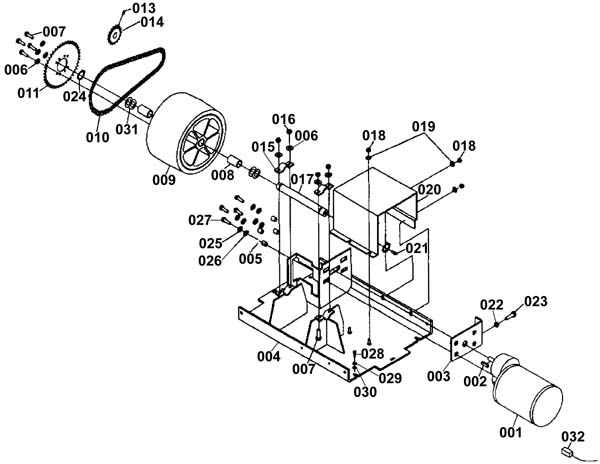

Chassis Assembly - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

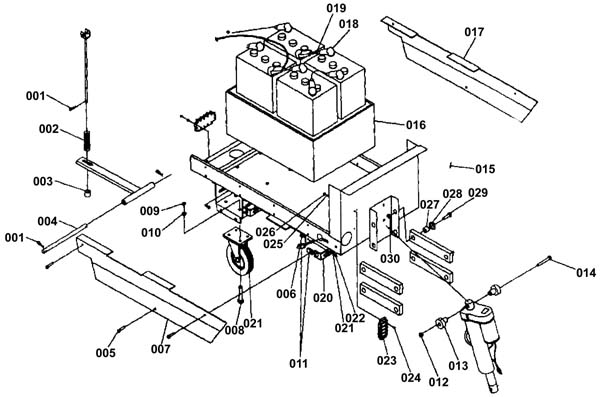

Frame Assembly - 181-0230 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 21a |
172-8073 |
Caster wheel |
|
|
| 21b |
991-2011 |
Caster wheel assembly |
|
(NON-OEM) |
|
|

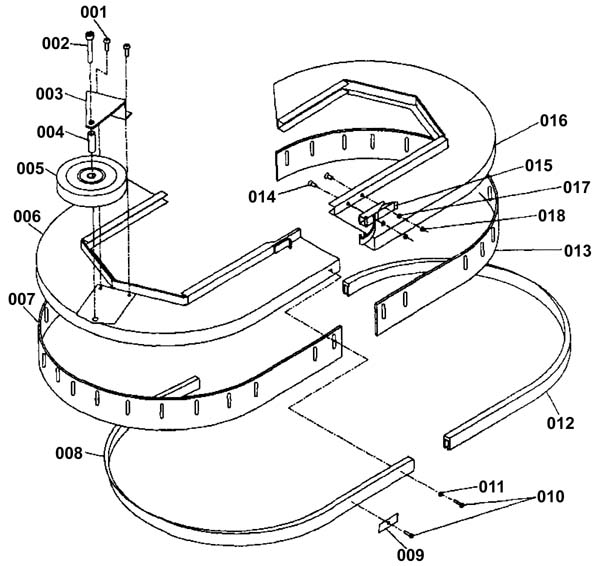

Brush Cover Assembly - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

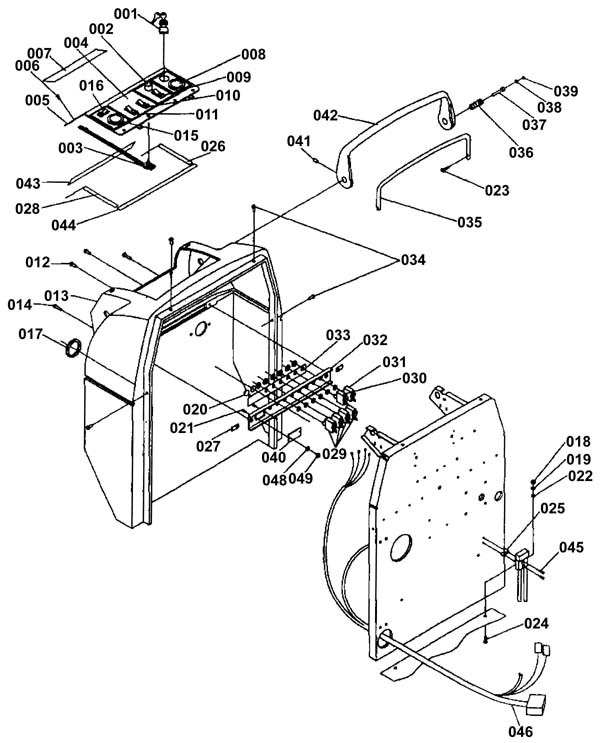

Rear Cover Assembly - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

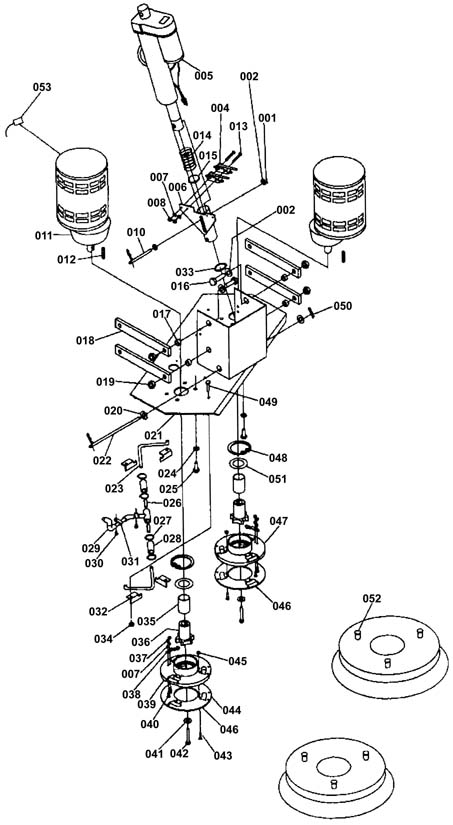

Brush Head Assembly - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

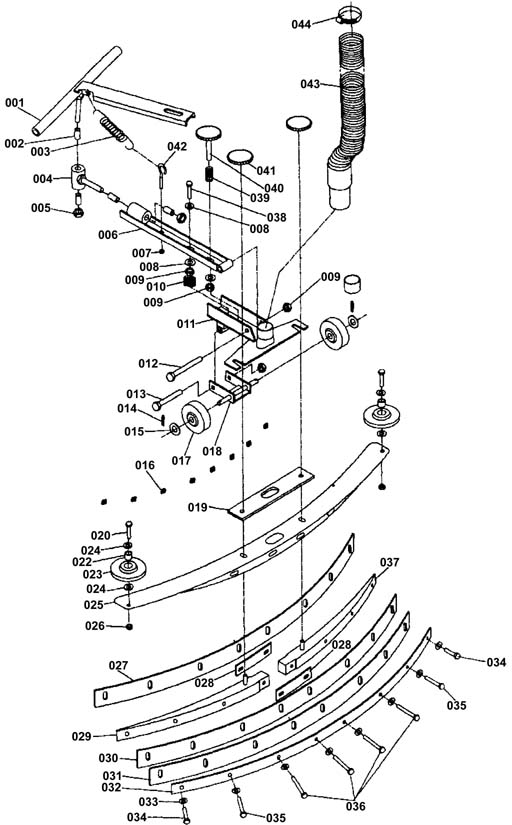

Squeegee Assembly - 181-0234 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 027 |
172-8075 |
Squeegee blade front (OBSOLETE) |
1 |
|
| 030 |
172-8076 |
Squeegee blade rear rubber (OBSOLETE) |
1 |
|
| 031 |
172-8385 |
Squeegee blade back up (OBSOLETE) |
1 |
|
|
|

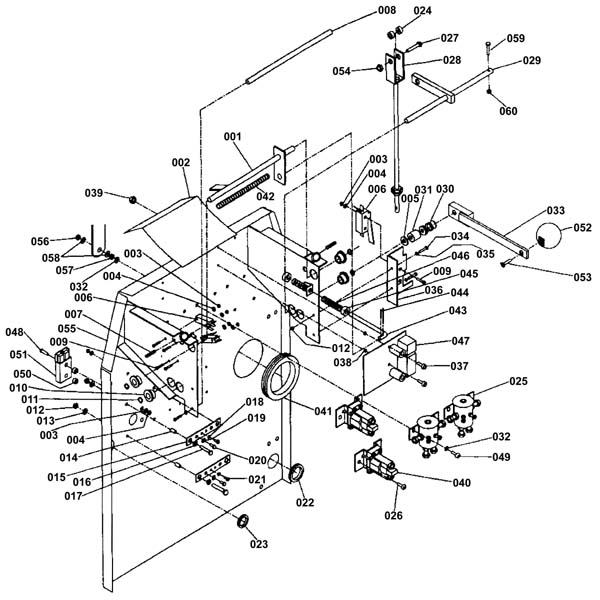

Back Panel Assembly - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
Recovery Tank Assembly - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

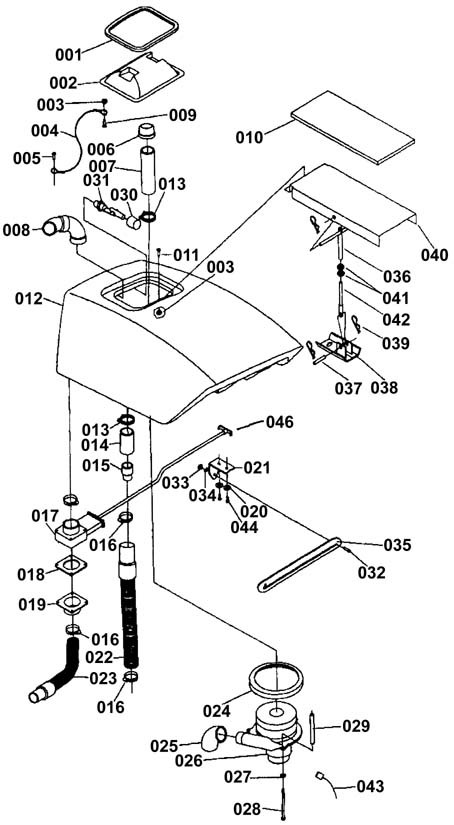

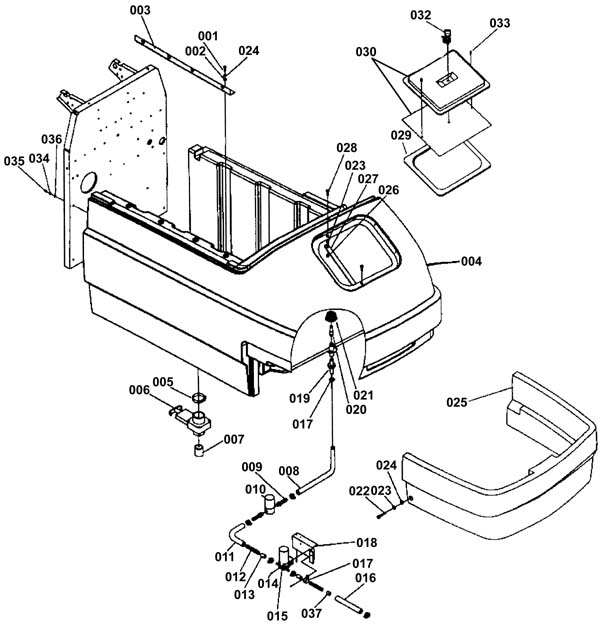

Solution Tank Assembly - 181-0237 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 021 |
172-8020 |
Line strainer |
1 |
|
| 023 |
181-0133 |
Spacer, Phen (OBSOLETE) |
2 |
|
| 026 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
2 |
|
| 027 |
N/A |
Not available |
1 |
(Steel bar) |
| 028 |
999-0400 |
Screw 10-24 x 1 pan head phillips zinc plated |
2 |
|
| 029 |
181-1471 |
Trim seal (OBSOLETE) |
1 |
|
| 030 |
181-1469 |
Solution tank lid (OBSOLETE) |
1 |
|
| 032 |
181-1468 |
Twist latch |
1 |
|
| 033 |
172-4450 |
Rivet 9/64 x 9/32 semi tub tress head (OBSOLETE) |
2 |
|
|
|
- Batteries, Brushes and Chargers - 181-9948 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
996-0174 |
13 inch heavy grit stripping brush - 80 grit |
1 |
|
| 02 |
996-0125 |
13 inch medium grit scrubbing brush - 180 grit |
1 |
|
| 03 |
996-0101 |
13 inch lite grit scrubbing brush - 500 grit |
1 |
|
| 04 |
996-0276 |
13 inch polypropelene scrubbing brush |
1 |
|
| 05 |
996-0335 |
13 inch Pad driver |
1 |
|
| 06 |
996-0339 |
Drive lugs - metal |
1 |
|
| 08 |
162-5060 |
24V 20amp battery charger with small SB50 red plug |
1 |
|
| 09 |
991-2103 |
50amp charger plug SB50 with pins (red) |
1 |
|
| 07 |
162-0003 |
6V 225Ah wet battery (SNSR) |
4 |
|
| 07 |
162-0043 |
6V 224Ah AGM battery (Group GC2) |
4 |
|
|
|
- Commonly Asked For Parts - 181-9985 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
996-0339 |
Drive lugs - metal |
1 |
|
| 02 |
996-0276 |
13 inch polypropelene scrubbing brush |
1 |
|
| 03 |
181-0074 |
Rocker switch DPST (OBSOLETE) |
|
|
| 04 |
N/A |
Not available |
|
(Slide valve assembly) |
| 05 |
181-0244 |
Clear lid (OBSOLETE) |
|
|
| 06 |
172-0452 |
Handle valve (OBSOLETE) |
|
(Handle valve) |
| 07 |
N/A |
Not available |
|
(Brush motor) |
| 08 |
181-0605 |
Chain roller (OBSOLETE) |
|
|
| 09 |
181-0170 |
Squeegee hose assembly (OBSOLETE) |
|
|
| 10 |
181-0257 |
Pump assembly |
|
|
|
|
- Pads - 255-1300 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-1340 |
13 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 02 |
255-1335 |
13 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-1364 |
13 inch Blue ace pad (pkg of 5) |
|
|
| 04 |
255-1342 |
13 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 05 |
255-1312 |
13 inch Cure white pad (pkg of 5) |
|
|
| 06 |
255-1377 |
13 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 07 |
255-1338 |
13 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 08 |
255-1321 |
13 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 09 |
255-1350 |
13 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 10 |
255-1365 |
13 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 11 |
255-1330 |
13 inch jaguar burnishing pad (pkg of 5) |
|
|
| 12 |
255-1387 |
13 inch Melamine Mela-Kleen pad (pkg of 2) |
|
|
| 13 |
255-1390 |
13 inch premium black stripping pad (pkg of 5) |
|
|
| 14 |
255-1370 |
13 inch premium blue cleaning pad (pkg of 5) |
|
|
| 15 |
255-1392 |
13 inch premium brown stripping pad (pkg of 5) |
|
|
| 16 |
255-1380 |
13 inch premium green scrubbing pad (pkg of 5) |
|
|
| 17 |
255-1360 |
13 inch premium red scrubbing pad (pkg of 5) |
|
|
| 18 |
255-1352 |
13 inch premium tan polishing pad (pkg of 5) |
|
|
| 19 |
255-1320 |
13 inch premium white polishing pad (pkg of 5) |
|
|
| 20 |
255-1311 |
13 inch superspeed rubberized pad (pkg of 5) |
|
|
| 21 |
255-1395 |
13 inch razorback stripping pad (pkg of 5) |
|
|
| 22 |
255-1347 |
13 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 23 |
255-1355 |
13 inch Ruff non-abrasive brush pad (pkg of 2) |
|
|
| 24 |
255-1323 |
13 inch sand screen driver pad (pkg of 2) |
|
|
| 25 |
255-0198 |
13 inch Superscreen sand screen 100 grit (pkg of 10) |
|
|
| 26 |
255-0199 |
13 inch Superscreen sand screen 120 grit (pkg of 10) |
|
|
| 27 |
255-0200 |
13 inch Superscreen sand screen 150 grit (pkg of 10) |
|
|
| 28 |
255-0201 |
13 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 29 |
255-0202 |
13 inch Superscreen sand screen 220 grit (pkg of 10) |
|
|
| 30 |
255-0203 |
13 inch Superscreen sand screen 400 grit (pkg of 10) |
|
|
| 31 |
255-0196 |
13 inch Superscreen sand screen 60 grit(pkg of 10) (OBSOLETE |
|
|
| 32 |
255-0197 |
13 inch Superscreen sand screen 80 grit (pkg of 10) |
|
|
| 33 |
255-0113 |
13 inch Professional sand screen 100 grit (pkg of 10) |
|
|
| 34 |
255-0114 |
13 inch Professional sand screen 120 grit (pkg of 10) |
|
|
| 35 |
255-0115 |
13 inch Professional sand screen 150 grit (pkg of 10) |
|
|
| 36 |
255-0116 |
13 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 37 |
255-0117 |
13 inch Pro sand screen 220 grit (pkg of 10) (OBSOLETE) |
|
|
| 38 |
255-0118 |
13 inch Professional sand screen 400 grit (pkg of 10) |
|
|
| 39 |
255-0111 |
13 inch Professional sand screen 60 grit (pkg of 10) |
|
|
| 40 |
255-0112 |
13 inch Professional sand screen 80 grit (pkg of 10) |
|
|
| 41 |
255-1324 |
13 inch Tiger carpet bonnet (pkg of 2) |
|
|
| 42 |
255-9542 |
13 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 43 |
255-9539 |
13 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 44 |
255-9536 |
13 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 45 |
255-9540 |
13 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 46 |
255-9537 |
13 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 47 |
255-9538 |
13 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 48 |
255-9541 |
13 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 49 |
255-9638 |
13 inch Diamond starter pack (1 of each grit) |
|
|
| 50 |
255-1382 |
13 inch Turbostrip segmented rotary pad (pkg of 4) |
|
|
| 51 |
255-1315 |
13 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 52 |
255-1316 |
13 inch 2001 Duala clean and shine pad-high speed (OBSOLETE) |
|
|
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
