Parts List Complete for KENT RAZOR SV17

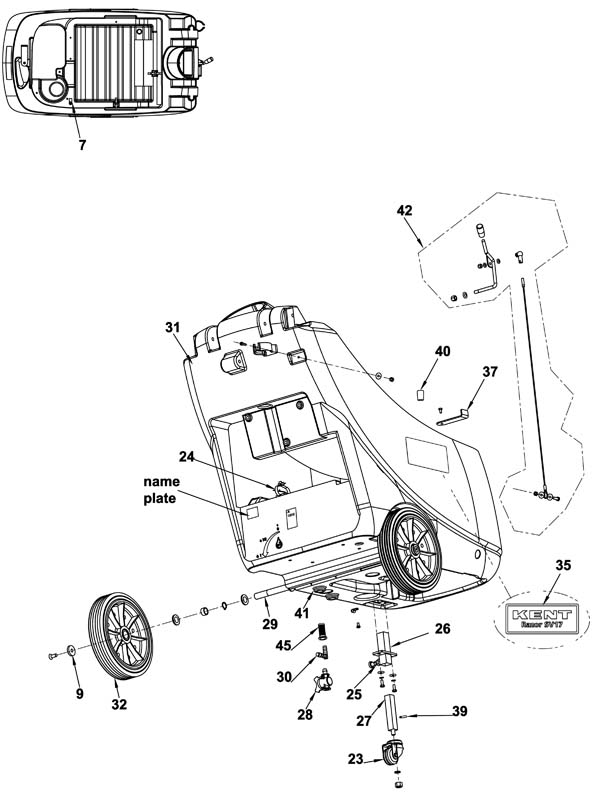

Solution Tank - 181-0600
RefNbr Part Number Description Req Notes
7 272-8416 P clamp 2
9 272-8089 Spacer 2
23 272-5445 Machine support assembled 1
24 272-0678 Wire tie (OBSOLETE) 8
25 272-5450 Joint 1
26 272-5445 Machine support assembled 1
27 272-5445 Machine support assembled 1
28 272-5363 Drain valve 1
29 272-8629 Wheel shaft hardware kit 1
30 272-5444 90 degree elbow (OBSOLETE) 1
31 N/A Not available 1 (Solution tank)
32 272-8628 Wheel (gray) 2
35 N/A Not available 1 (Decal kit)
37 172-3002 Brush bracket support 1
40 172-4699 Cap (black) 1
41 272-8076 Gasket 2
42 170-9234 Squeegee lift cable kit 1
N/S 170-9237 Solution tank hardware kit 1
N/S 172-4768 Solution tank filter 1
N/S 272-5454 Rubber shock absorber (OBSOLETE) 1
N/S 170-9238 Rubber shock absorber installation instructions (OBSOLETE) 1

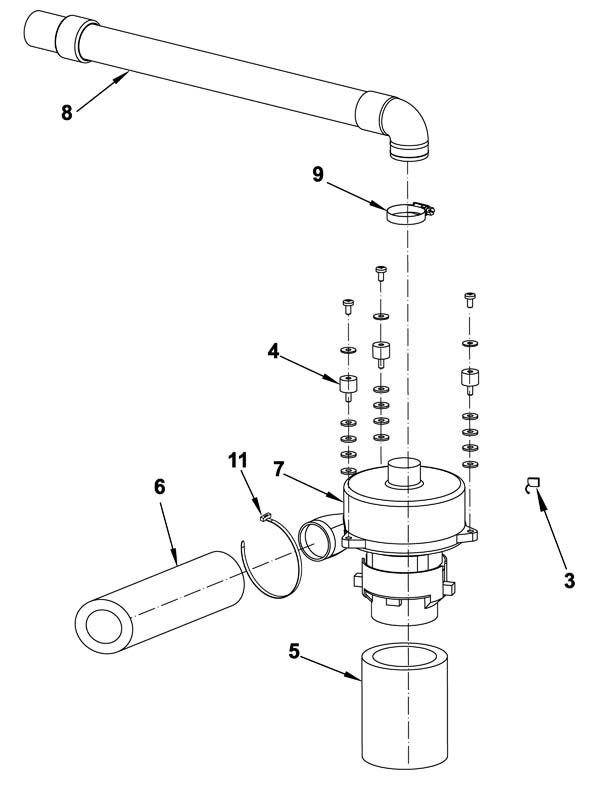

Vacuum Assembly - 181-0601
RefNbr Part Number Description Req Notes
3 272-0627 Carbon brush 2
4 272-5455 Vibration damping M6 3
5 272-5456 Acoustic pipe insulation 1
6 272-5457 Acoustic pipe insulation 1
7 181-2010 24V vacuum motor kit 1
8 272-5458 Vacuum motor hose 1
9 N/A Not available 1
11 272-5462 Clamp 4.8 x 30 (white) (OBSOLETE) 1
N/S 272-5460 Vacuum system hardware kit 1

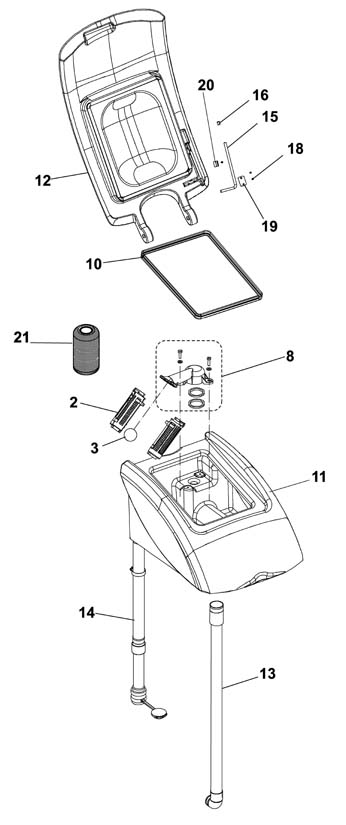

Recovery Assembly - 181-0602
RefNbr Part Number Description Req Notes
2 172-0517 Float cage half (2 required for full float cage) 2
3 172-0192 Float ball 1
8 N/A Not available 1 (Float cage holder kit)
10 181-2002 Recovery tank lid gasket 1
11 181-2013 Recovery tank 1
12 181-2012 Recovery tank cover (OBSOLETE) 1
13 181-2000 Squeegee vacuum hose (OBSOLETE) 1
14 272-9628 Drain hose kit 1
15 170-9241 Lever 1
16 272-8031 Plug 1
18 172-3732 Screw M2 9 x 9.5mm stainless steel 3
19 170-9243 Lever plate (OBSOLETE) 1
20 170-9244 Lever clamp 1
21 272-7206 Antifoaming filter 1
N/S N/A Not available 1 (Installtion instructions)
N/S 272-5467 Recovery tank hardware kit (OBSOLETE) 1

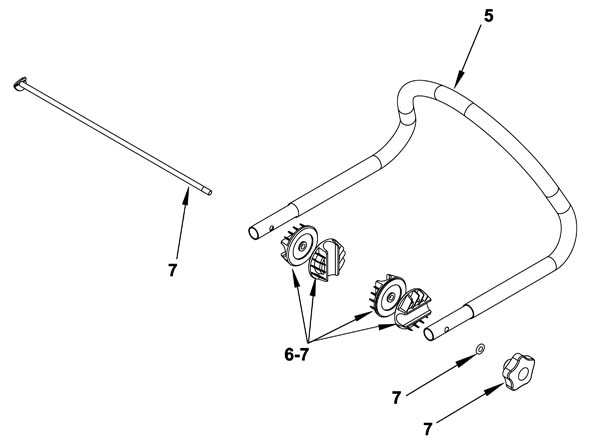

Handle Assembly - 181-0603
RefNbr Part Number Description Req Notes
5 272-5362 Handle 1
6 181-0896 Handle adjuster kit 1
7 272-5473 Handle adjustment kit 1

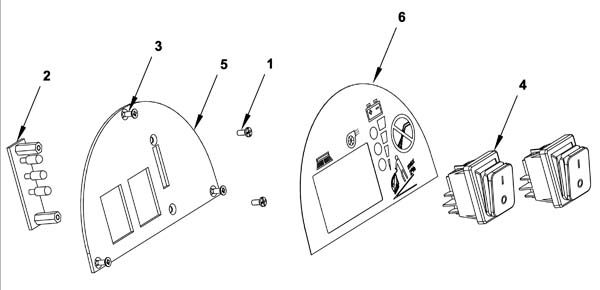

Control Panel Assembly - 181-0604
RefNbr Part Number Description Req Notes
2 272-5469 LED card 1
3 172-3732 Screw M2 9 x 9.5mm stainless steel 3
4 272-0638 Rocker switch 2
5 170-9250 Control panel 1
6 172-3003 Control panel decal (OBSOLETE) 1

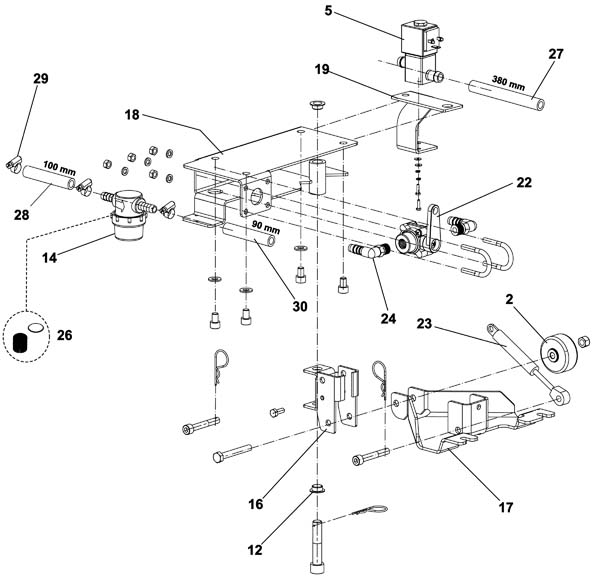

Solution Assembly - 181-0605
RefNbr Part Number Description Req Notes
2 272-5476 Wheel 1
5 272-5487 24V solenoid valve 1
12 172-3717 Flanged bearing 2
14 181-0924 Solution filter assembly 1
16 170-9252 Bracket 1
17 170-9253 Support (OBOLETE) 1
18 170-9254 Plate 1
19 272-5480 Bracket 1
22 270-0104 Valve kit (OBSOLETE) 1
23 270-0409 Gas spring 1
24 272-5481 Rubber elbow holder 2
26 181-0923 Solution screen and gasket kit 1
27 272-5483 Hose 12 x 380mm 1
28 272-7108 100mm hose 1
29 272-2669 Hose clamp (OBSOLETE) 3
30 272-5484 Hose 10 x 90mm 1
N/S 272-5485 Connector 1
N/S 181-1010 Solenoid valve kit (OBSOLETE) 1
N/S 272-5486 Solution system hardware kit 1
N/S N/A Not available 1 (Solenoid valve kit installation instructions)

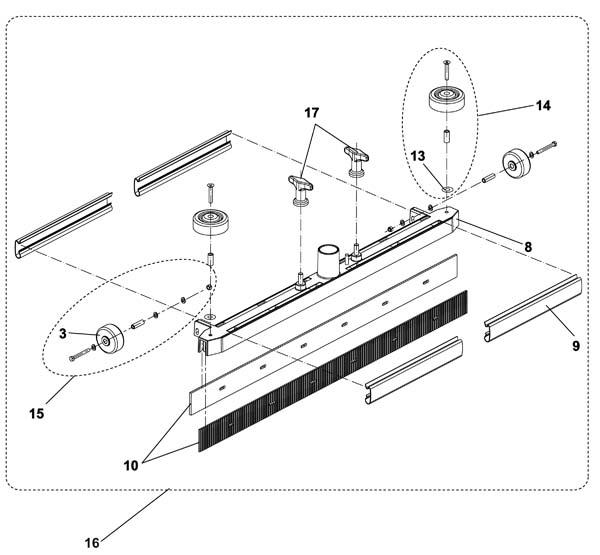

Squeegee Assembly - 181-0606
RefNbr Part Number Description Req Notes
3 272-5476 Wheel 2
8 272-5488 Squeegee weldment 1
9 272-5319 Squeegee blade profile (pkg of 2) 2
10 272-5318 17 inch squeegee blade kit 1
13 272-5489 Washer M6 x 18mm flathead stainless steel 2
14 181-0937 Squeegee bumper roller kit 1
15 272-5490 Squeegee wheel kit 1
16 270-0105 Squeegee assembly 1 (includes 3, 8-10 and 13-15)
17 272-6579 Squeegee fixing kit 1
N/S 272-5491 Squeegee hardware kit 1
N/S N/A Not available 1 (Curved squeegee kit)
N/S N/A Not available 1 (Curved squeegee kit installation instructions)

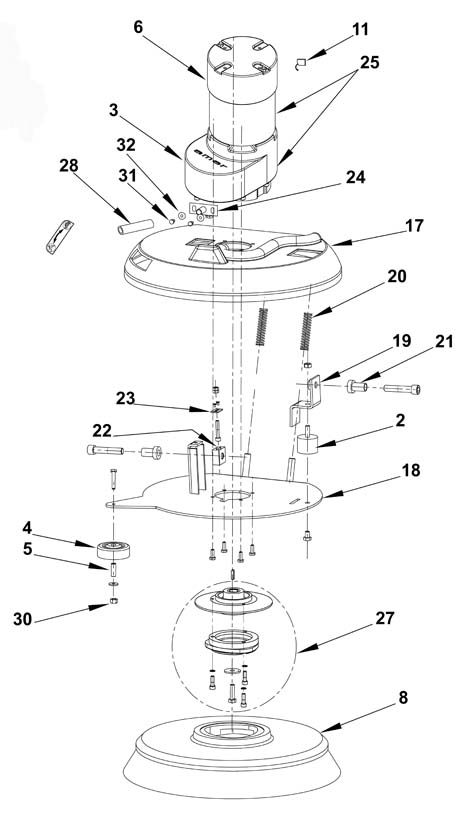

Brush Assembly - Before SN 054920337 - 181-0607
RefNbr Part Number Description Req Notes
2 272-1919 Vibration damping M8 (set of 2) 1
3 272-5493 Reduction gear 1
4 172-0274 Guide wheel 1
5 272-0788 Spacer 1
6 272-5505 24V brush motor 1
8 NOTE Please See Batteries, Brushes, Pad Holders and Charger Pages 1
17 272-5495 Brush protection 1
18 272-5496 Brush support plate (OBSOLETE) 1
19 170-9259 Bracket (OBSOLETE) 1
20 272-5317 Spring 2
21 272-5497 Bushing (OBSOLETE) 2
22 272-5498 Brush deck adjuster block (OBSOLETE) 1
23 272-5499 Plate (OBSOLETE) 1
24 272-5506 Copper hose (OBSOLETE) 1
25 272-8659 Reduction gearmotor 1
27 172-4845 Polygonal holder with flange kit 1
28 272-0748 640mm hose (OBSOLETE) 1
30 999-0497 Nut M6-1 nylon insert lock stainless steel 1
31 172-3796 Screw M4-.7 x 8mm 2
32 272-9285 Washer M4 flat 2
N/S 272-5502 Brush system hardware kit 1

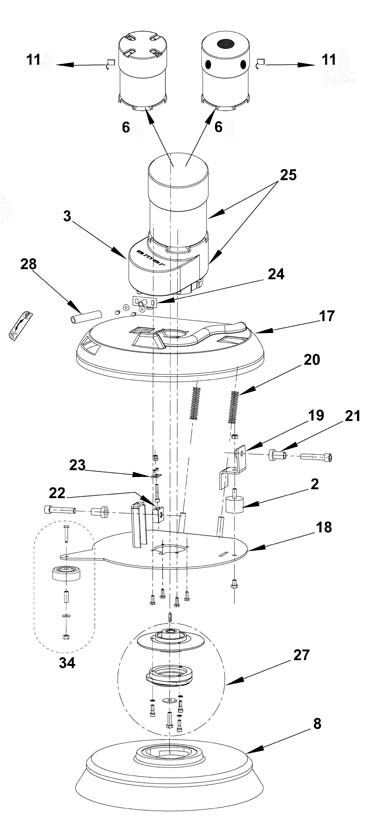

Brush Assembly - After SN 054920336 - 181-0608
RefNbr Part Number Description Req Notes
2 272-1919 Vibration damping M8 (set of 2) 1
3 272-5493 Reduction gear 1
6a 272-5505 24V brush motor 1
6b 272-5505 24V brush motor 1
8 NOTE Please See Batteries, Brushes, Pad Holders and Charger Pages 1
11b 172-4883 Nut 3/4-10 hex nylok 1
11c 172-4846 Carbon brush kit (one kit each motor) 1
17 272-5495 Brush protection 1
18 272-5496 Brush support plate (OBSOLETE) 1
19 170-9259 Bracket (OBSOLETE) 1
20 272-5317 Spring 2
21 272-5497 Bushing (OBSOLETE) 2
22 272-5498 Brush deck adjuster block (OBSOLETE) 1
23 272-5499 Plate (OBSOLETE) 1
24 272-5506 Copper hose (OBSOLETE) 1
25 272-8659 Reduction gearmotor 1
27 172-4845 Polygonal holder with flange kit 1
28 272-0748 640mm hose (OBSOLETE) 1
34 272-5507 Bumper roller kit 1
N/S 272-5502 Brush system hardware kit 1

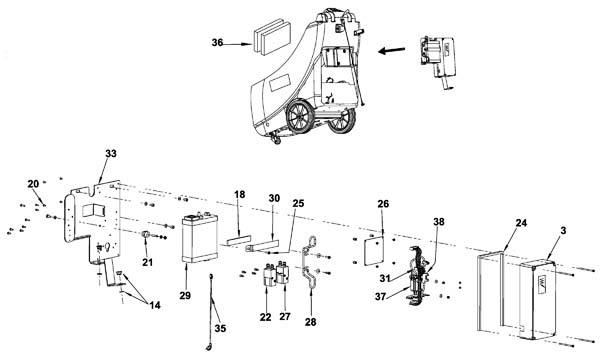

Wiring Assembly - 181-0609
RefNbr Part Number Description Req Notes
3 272-5509 Electronic cover card 1
14 272-5512 Cable guide and retaining ring 2
18 172-3820 Seal (OBSOLETE) 1
20 172-3788 Screw M4x8 4
21 272-9579 Insulator 1
22 272-7142 Electromagnetic switch 1
24 272-5511 750mm gasket 1
26 181-0957 Electronic card 1
27 272-7141 24V switch 1
28 272-0659 On-board charger cord wrap 1
30a N/A Not available 1 (Bracket)
30b 170-9261 Battery charger bracket 1
31a 272-5515 Electronic card harness (OBSOLETE) 1
31b 272-5516 Electronic card harness (OBSOLETE) 1
33 N/A Not available 1 (Electrical components fitting plate)
35 272-9290 Onboard charger cord 1
36 272-5517 Battery spacer 2
37 181-0966 Fuse holder 1
38 472-1367 HOLDER FUSE THERMOPL. UL 94-V0 1
N/S 172-3006 Machine harness (OBSOLETE) 1
N/S 181-0962 5 amp fuse 1
N/S 272-6292 40amp brush fuse strip 1
N/S 272-7144 30amp fuse 1
N/S 272-5520 Power cable (OBSOLETE) 1
N/S 272-5521 Outlet cable (OBSOLETE) 1
N/S 272-5522 Cooling fan (OBSOLETE) 1
N/S 172-0223 Battery cable boot 4
N/S 272-5519 Battery harness 1
N/S 172-3007 Battery cable interconnect 1
N/S 272-5523 Wiring system hardware kit 1
N/S 181-0963 40amp fuse 1
N/S 372-1151 24V 8amp onboard battery charger 1
N/S 272-5525 Battery charger cover 1
N/S 372-1151 24V 8amp onboard battery charger 1
N/S 272-5527 Battery charger cap (OBSOLETE) 1
N/S 272-9142 24V 8amp battery charger 1

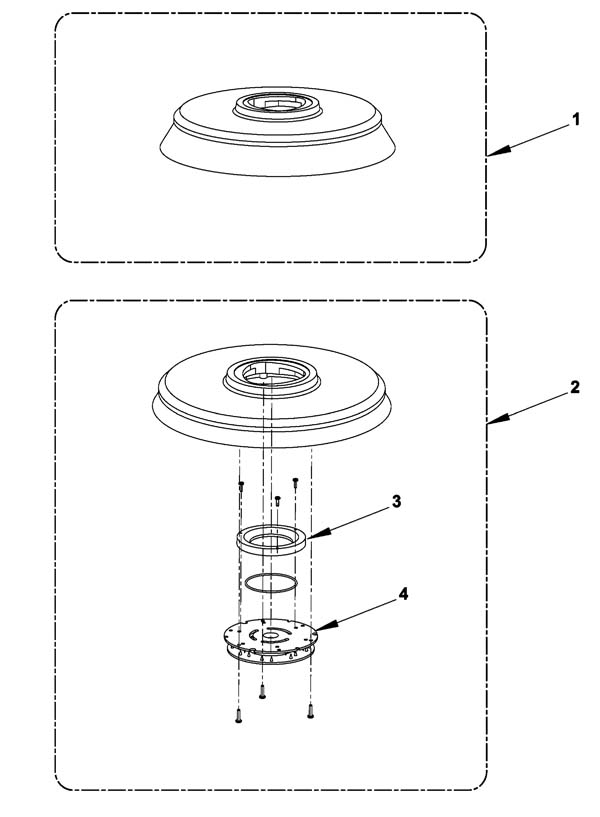

Accessories 1 - 181-0610
RefNbr Part Number Description Req Notes
1 NOTE Please See Batteries, Brushes, Pad Holders and Charger Pages 1
3 272-5503 Nylon ring 1
4a 272-5504 Pad retainer 1
4b 991-2206 Center-Lok 3 pad holder 1 (NON-OEM)

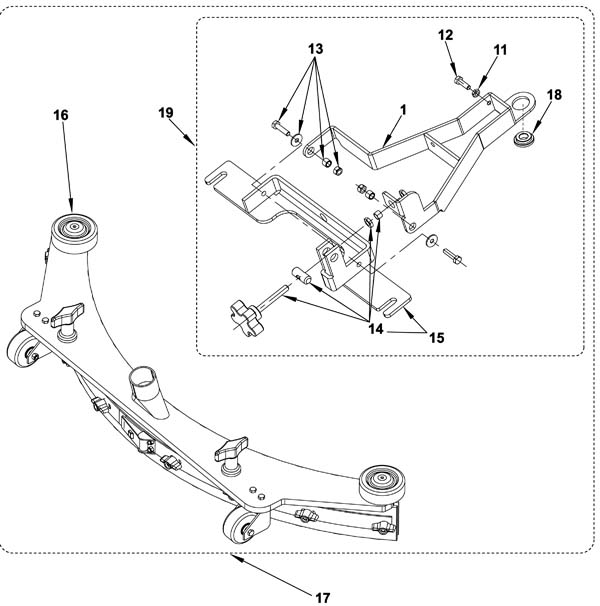

Accessories 2 - 181-0611
RefNbr Part Number Description Req Notes
1 N/A Not available 1 (Bracket)
11 172-3013 Nut M6 hex low 1
12 999-1312 Screw M6-1 x 20mm hex head stainless steel 1
13 272-1999 Squeegee support hardware kit 1
14 272-2008 Adjustment screw kit 1
15 272-5530 Squeegee holder kit 1
17 N/A Not available 1 (Curved squeegee assembly)
18 272-5532 Spacer 1
19 272-5533 Squeegee support kit 1
N/S 272-6569 Squeegee blade front neoprene 1
N/S 272-2026 Squeegee blade kit gum rubber 1 (OEM)
N/S 991-3110 20 inch squeegee blade kit Linatex 1 (NON-OEM)
N/S 172-4741 Flanged bushing 1

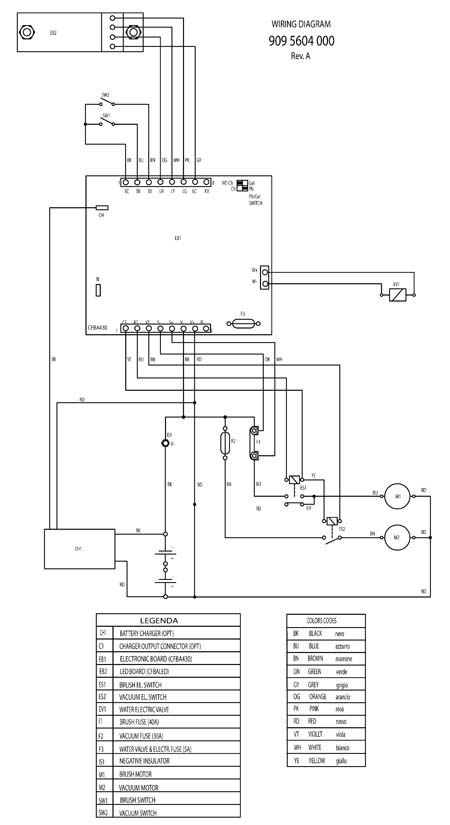

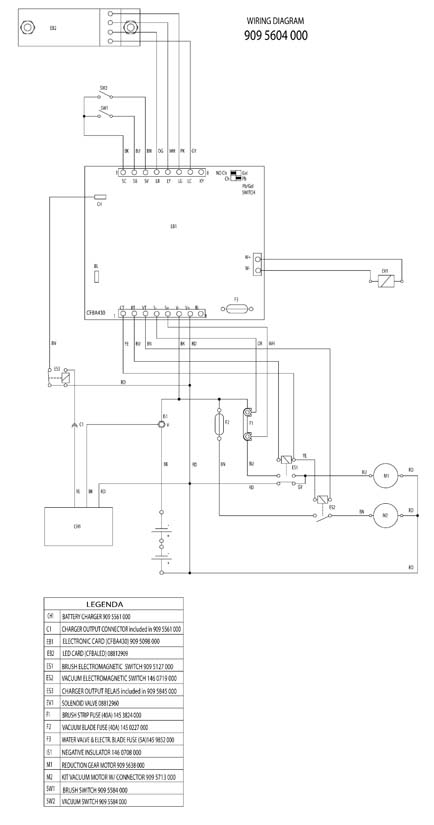

Wiring Diagram - Before SN 072820310 -

RefNbr Part Number Description Req Notes

Wiring Diagram - After SN 072820309 -

RefNbr Part Number Description Req Notes

- Batteries, Brushes and Chargers - 181-9939
RefNbr Part Number Description Req Notes
1 162-0011 12V 105Ah wet battery (SNSR) 2
2 162-0042 12V 115Ah AGM battery (Group 31) 2
3a 162-5124 24V 12amp smart battery charger with small SB50 red plug 1 (dual mode charger; can be changed to support AGM and wet batteries)
3b 162-5124 24V 12amp smart battery charger with small SB50 red plug 1
4 991-2103 50amp charger plug SB50 with pins (red) 1
4.5 996-1732 16 inch heavy grit stripping brush - 80 grit 1
5 996-1715 16 inch medium grit scrubbing brush - 180 grit 1
6 996-1716 16 inch lite grit scrubbing brush - 500 grit 1
7 996-1717 16 inch polypropelene scrubbing brush 1
8 996-0894 Polypropelene scrubbing brush 1
9 996-0895 Polypropelene scrubbing brush 1
10 996-0896 Polypropelene scrubbing brush 1
11 996-0897 Medium grit scrubbing brush - 180 grit 1
12 996-0898 Medium grit scrubbing brush - 180 grit 1
13 996-0893 Pad driver 1
14 996-0338 Clutch plate 1

- Pads - 255-1700
RefNbr Part Number Description Req Notes
01 255-1740 17 inch aqua plus burnishing pad (pkg of 5)
02 255-1735 17 inch Armadillo concrete scrubbing pad (pkg of 5)
03 255-1764 17 inch Blue ace pad (pkg of 5)
04 255-1742 17 inch Blue Jay burnishing pad (pkg of 5)
05 255-1712 17 inch Cure white pad (pkg of 5) (OBSOLETE)
06 255-1777 17 inch Diamondback extreme stripping pad (pkg of 5)
07 255-1738 17 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2
08 255-1721 17 inch gorilla lite burnishing pad (pkg of 5)
09 255-1750 17 inch gorilla spray buff/polish/burnish pad (pkg of 5)
10 255-1765 17 inch Heat concrete bonding pad (pkg of 5)
11 255-1730 17 inch jaguar burnishing pad (pkg of 5)
12 255-1767 17 inch Laminated 2001 Gorilla polish pad (pkg of 5)
13 255-1768 17 inch Microclean daily cleaning pad (pkg of 2)
14 255-1769 17 inch Micropolish polishing and burnishing pad (pkg of 2)
15 255-1790 17 inch premium black stripping pad (pkg of 5)
16 255-1770 17 inch premium blue cleaning pad (pkg of 5)
17 255-1792 17 inch premium brown stripping pad (pkg of 5)
18 255-1780 17 inch premium green scrubbing pad (pkg of 5)
19 255-1760 17 inch premium red scrubbing pad (pkg of 5)
20 255-1752 17 inch premium tan polishing pad (pkg of 5)
21 255-1720 17 inch premium white polishing pad (pkg of 5)
22 255-1711 17 inch superspeed rubberized pad (pkg of 5)
23 255-1795 17 inch razorback stripping pad (pkg of 5)
24 255-1747 17 inch Redwood maroon floor prep pad (pkg of 10)
25 255-1755 17 inch Ruff non-abrasive brush pad (pkg of 2)
26 255-1723 17 inch sand screen driver pad (pkg of 2)
27 255-0139 17 inch Professional sand screen 100 grit (pkg of 10)
28 255-0019 17 inch Professional sand screen 120 grit (pkg of 10)
29 255-0140 17 inch Professional sand screen 150 grit (pkg of 10)
30 255-0141 17 inch Professional sand screen 180 grit (pkg of 10)
31 255-0142 17 inch Professional sand screen 220 grit (pkg of 10)
32 255-0143 17 inch Professional sand screen 400 grit (pkg of 10)
33 255-0138 17 inch Professional sand screen 60 grit (pkg of 10)
34 255-0018 17 inch Professional sand screen 80 grit (pkg of 10)
35 255-0225 17 inch Superscreen sand screen 100 grit (pkg of 10)
36 255-0226 17 inch Superscreen sand screen 120 grit (pkg of 10)
37 255-0227 17 inch Superscreen sand screen 150 grit (pkg of 10)
38 255-0228 17 inch Superscreen sand screen 180 grit (pkg of 10)
39 255-0229 17 inch Superscreen sand screen 220 grit (pkg of 10)
40 255-0230 17 inch Superscreen sand screen 400 grit (pkg of 10)
41 255-0223 17 inch Superscreen sand screen 60 grit (pkg of 10)
42 255-0224 17 inch Superscreen sand screen 80 grit (pkg of 10)
43 255-1724 17 inch Tiger carpet bonnet (pkg of 2)
44 255-9570 17 inch Diamond by Gorilla 11000 Grit (pkg of 2)
45 255-9567 17 inch Diamond by Gorilla 1500 Grit (pkg of 2)
46 255-9564 17 inch Diamond by Gorilla 200 Grit (pkg of 2)
47 255-9568 17 inch Diamond by Gorilla 3000 Grit (pkg of 2)
48 255-9565 17 inch Diamond by Gorilla 400 Grit (pkg of 2)
49 255-9566 17 inch Diamond by Gorilla 800 Grit (pkg of 2)
50 255-9569 17 inch Diamond by Gorilla 8000 Grit (pkg of 2)
51 255-9642 17 inch Diamond starter pack (1 of each grit)
52 255-1782 17 inch Turbostrip segmented rotary pad (pkg of 4)
53 255-1715 17 inch Duala clean and shine pad - low speed (pkg of 5)
54 255-1716 17 inch 2001 Duala clean and shine pad - high speed (pkg 5)

- Commonly Asked For Parts - 272-9100
RefNbr Part Number Description Req Notes
0.9835 181-2006 Brush prolite
0.9835 272-5363 Drain valve
0.9835 272-5362 Handle
0.9835 272-9142 24V 8amp battery charger

- Pad Holders - 275-9029
RefNbr Part Number Description Req Notes
1 991-2214 Center-Lok II pad holder - left hand thread (red)
2a 991-2201 Center-Lok II pad holder - right hand thread (black) (Pad driver side female, Floor side male)
2b 991-8577 Pad retainer (Pad driver side male, Floor side female)
3a 991-2202 Big mouth pad holder set (blue) (includes 3 screws)
3b 991-2205 Deep lock ring and pad grip ring
4 991-2203 Big mouth pad holder male thread portion
5 991-2206 Center-Lok 3 pad holder (includes 3 screws)
6 996-0372 Big mouth pad holder (left hand thread)
7 N/A Not available
8 991-2209 Split retainer - pad holder ring (OBSOLETE)
9 N/A Not available (replaced by #3 991-2202)
10 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE)

- Frequently Replaced Parts - 999-2014
RefNbr Part Number Description Req Notes
162-5124 24V 12amp smart battery charger with small SB50 red plug 1
1 162-0011 12V 105Ah wet battery (SNSR) (2)
2 162-0042 12V 115Ah AGM battery (Group 31) (2)
3 162-5124 24V 12amp smart battery charger with small SB50 red plug
4 372-1151 24V 8amp onboard battery charger
5 991-2103 50amp charger plug SB50 with pins (red)
6 998-0010 Battery jumper cable - ring type (red)
7 272-0638 Rocker switch (power)
8 272-0638 Rocker switch (vacuum and brush)
9 272-5487 24V solenoid valve
10 270-0104 Valve kit (OBSOLETE)
11 181-0924 Solution filter assembly
12 272-5318 17 inch squeegee blade kit
13 181-2000 Squeegee vacuum hose (OBSOLETE)
14 181-2012 Recovery tank cover (OBSOLETE)
15 181-2002 Recovery tank lid gasket
16 272-9628 Drain hose kit
17 181-2010 24V vacuum motor kit
18 996-6156 16 inch daily cleaning brush
19 996-1716 16 inch lite grit scrubbing brush - 500 grit
20 996-1715 16 inch medium grit scrubbing brush - 180 grit
21 996-1732 16 inch heavy grit stripping brush - 80 grit
22 996-0893 Pad driver
23 996-0339 Drive lugs - metal
Webpage Problem Reporting
