- Batteries, Brushes and Chargers - 181-9910 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
162-0011 |
12V 105Ah wet battery (SNSR) |
|
|
|
272-5385 |
Polygonal holder with flange kit |
|
|
|
272-5504 |
Pad retainer |
|
(OEM) |
|
991-2206 |
Center-Lok 3 pad holder |
|
(NON-OEM) |
|
272-8144 |
24V onboard battery charger |
|
|
|
272-8374 |
120amp connector (red) |
|
|
|
996-0663 |
Medium grit scrubbing brush - 180 grit |
|
|
|
996-0664 |
Medium polypropelene scrubbing brush |
|
|
|
996-0665 |
Lite grit scrubbing brush - 500 grit |
|
|
|
996-0666 |
Pad driver assembly |
|
|
|
996-0705 |
Lite polypropelene scrubbing brush |
|
|
|
996-1581 |
19 inch medium grit scrubbing brush - 180 grit |
|
|
|
998-0010 |
Battery jumper cable - ring type (red) |
|
|
|
|
- Commonly Asked For Parts - 181-9912 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 0.9835 |
272-7293 |
Hose kit (OBSOLETE) |
|
|
| 0.9835 |
270-0365 |
Caster wheel kit |
|
|
| 0.9835 |
272-8549 |
Drain hose assembly with plug |
|
|
| 0.9835 |
272-7163 |
Cable kit |
|
|
| 01a |
272-2026 |
Squeegee blade kit gum rubber |
|
(OEM) |
| 01b |
991-3110 |
20 inch squeegee blade kit Linatex |
|
(NON-OEM) |
|
|
- Pads - 255-2000 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-2040 |
20 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 02 |
255-2035 |
20 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-2064 |
20 inch Blue ace pad (pkg of 5) |
|
|
| 04 |
255-2042 |
20 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 05 |
255-2012 |
20 inch Cure white pad (pkg of 5) |
|
|
| 06 |
255-2077 |
20 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 07 |
255-2038 |
20 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 08 |
255-2021 |
20 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 09 |
255-2050 |
20 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 10 |
255-2065 |
20 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 11 |
255-2030 |
20 inch jaguar burnishing pad (pkg of 5) |
|
|
| 12 |
255-2067 |
20 inch Laminated 2001 Gorilla polish pad (pkg of 5) |
|
|
| 13 |
255-2087 |
20 inch Melamine Mela-Kleen pad (pkg of 2) |
|
|
| 14 |
255-2068 |
20 inch Microclean daily cleaning pad (pkg of 2) |
|
|
| 15 |
255-2069 |
20 inch Micropolish polishing and burnishing pad (pkg of 2) |
|
|
| 16 |
255-2090 |
20 inch premium black stripping pad (pkg of 5) |
|
|
| 17 |
255-2070 |
20 inch premium blue cleaning pad (pkg of 5) |
|
|
| 18 |
255-2092 |
20 inch premium brown stripping pad (pkg of 5) |
|
|
| 19 |
255-2080 |
20 inch premium green scrubbing pad (pkg of 5) |
|
|
| 20 |
255-2060 |
20 inch premium red scrubbing pad (pkg of 5) |
|
|
| 21 |
255-2052 |
20 inch premium tan polishing pad (pkg of 5) |
|
|
| 22 |
255-2020 |
20 inch premium white polishing pad (pkg of 5) |
|
|
| 23 |
255-2011 |
20 inch superspeed rubberized pad (pkg of 5) |
|
|
| 24 |
255-2095 |
20 inch razorback stripping pad (pkg of 5) |
|
|
| 25 |
255-2047 |
20 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 26 |
255-2055 |
20 inch Ruff non-abrasive brush pad (pkg of 2) |
|
|
| 27 |
255-2023 |
20 inch sand screen driver pad (pkg of 2) |
|
|
| 28 |
255-0157 |
20 inch Professional sand screen 100 grit (pkg of 10) |
|
|
| 29 |
255-0021 |
20 inch Professional sand screen 120 grit (pkg of 10) |
|
|
| 30 |
255-0158 |
20 inch Professional sand screen 150 grit (pkg of 10) |
|
|
| 31 |
255-0159 |
20 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 32 |
255-0160 |
20 inch Professional sand screen 220 grit (pkg of 10) |
|
|
| 33 |
255-0161 |
20 inch Professional sand screen 400 grit (pkg of 10) |
|
|
| 34 |
255-0030 |
20 inch Professional sand screen 60 grit (pkg of 10) |
|
|
| 35 |
255-0020 |
20 inch Professional sand screen 80 grit (pkg of 10) |
|
|
| 36 |
255-0249 |
20 inch Superscreen sand screen 100 grit (pkg of 10) |
|
|
| 37 |
255-0250 |
20 inch Superscreen sand screen 120 grit (pkg of 10) |
|
|
| 38 |
255-0251 |
20 inch Superscreen sand screen 150 grit (pkg of 10) |
|
|
| 39 |
255-0252 |
20 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 40 |
255-0253 |
20 inch Superscreen sand screen 220 grit (pkg10) (OBSOLETE) |
|
|
| 41 |
255-0254 |
20 inch Superscreen sand screen 400 grit (pkg of 10) |
|
|
| 42 |
255-0247 |
20 inch Superscreen sand screen 60 grit (pkg of 10) |
|
|
| 43 |
255-0248 |
20 inch Superscreen sand screen 80 grit (pkg of 10) |
|
|
| 45 |
255-9591 |
20 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 46 |
255-9588 |
20 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 47 |
255-9585 |
20 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 48 |
255-9589 |
20 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 49 |
255-9586 |
20 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 50 |
255-9587 |
20 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 51 |
255-9590 |
20 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 52 |
255-9645 |
20 inch Diamond starter pack (1 of each grit) |
|
|
| 53 |
255-2082 |
20 inch Turbostrip segmented rotary pad(OBSOLETE) |
|
|
| 54 |
255-2015 |
20 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 55 |
255-2016 |
20in 2001 Duala clean& shine pad-high speed(pkg 5) (OBSOLETE |
|
|
|
|

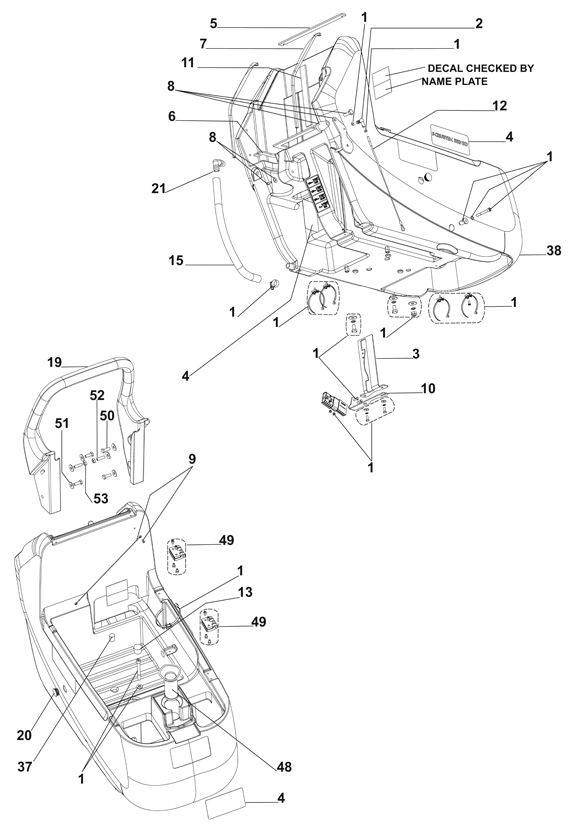

Solution Tank Assembly - 272-7559 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
272-8941 |
Solution tank hardware kit |
1 |
|
| 3 |
172-4689 |
Pedal support |
1 |
|
| 4 |
N/A |
Not available |
|
(Decal kit) |
| 8 |
272-0005 |
Squeegee lever fixing kit |
1 |
|
| 10 |
272-6300 |
Bracket support (OBSOLETE) |
1 |
|
| 11 |
272-6301 |
Handle bar gasket |
1 |
|
| 15 |
272-6302 |
Fresh water hose (OBSOLETE) |
1 |
|
| 19 |
N/A |
Not available |
|
(Handle) |
| 20 |
172-4695 |
Locking tank cap |
2 |
|
| 21 |
572-3422 |
FITTING M 3/8-18 NPT HOSE D.19 |
1 |
|
| 37 |
172-4699 |
Cap (black) |
1 |
|
| 38 |
272-6304 |
Solution tank (OBSOLETE) |
1 |
|
| 48 |
272-6305 |
Water inlet filter |
1 |
|
| 50 |
999-0581 |
Bolt M8-1.25 x 25mm hex head full thread zinc |
4 |
|
| 51 |
999-1267 |
Washer M8 flat zinc |
6 |
|
| 52 |
270-0383 |
Screw M8-1.25 x 30mm grub (OBSOLETE) |
2 |
|
| 53 |
999-0579 |
Nut M8-1.25 hex coarse thread zinc |
2 |
|
|
|

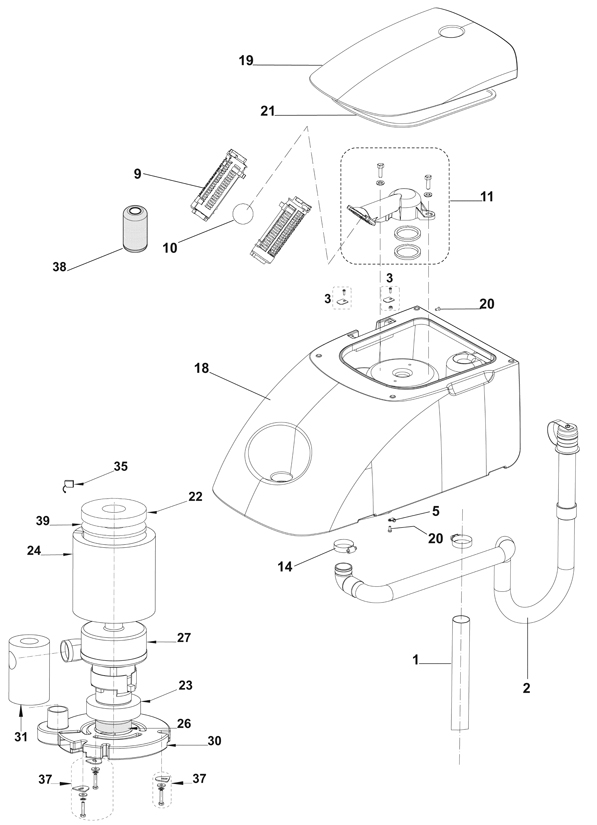

Recovery Tank Assembly - 272-7560 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1a |
272-0618 |
Squeegee vacuum hose kit |
1 |
|
| 1b |
991-3105 |
Squeegee vacuum hose assembly |
1 |
|
| 2 |
272-8549 |
Drain hose assembly with plug |
1 |
|
| 3 |
272-6307 |
Tank fixing kit |
1 |
|
| 9 |
172-0517 |
Float cage half (2 required for full float cage) |
2 |
|
| 11 |
270-8255 |
Float holder cage kit |
1 |
|
| 18 |
272-6308 |
Recovery tank (OBSOLETE) |
1 |
|
| 19 |
272-6309 |
Recovery tank lid (OBSOLETE) |
1 |
|
| 20 |
999-1220 |
Screw M5-.8 x 12mm hex head stainless steel |
2 |
|
| 21 |
181-2002 |
Recovery tank lid gasket |
1 |
|
| 22 |
270-0364 |
Vacuum motor gasket |
1 |
|
| 23 |
172-4730 |
Vacuum motor gasket |
1 |
|
| 24 |
172-4731 |
Acoustic insulation panel |
1 |
|
| 27 |
272-6578 |
24V 2 stage vacuum motor |
1 |
|
| 30 |
172-4733 |
Vacuum motor cover |
1 |
|
| 31 |
172-4734 |
Acoustic insulation pipe |
1 |
|
| 35 |
272-0627 |
Carbon brush |
2 |
|
| 37 |
172-4736 |
Vacuum motor hardware kit |
1 |
|
| 38 |
272-7206 |
Antifoaming filter |
1 |
|
| 39 |
N/A |
Not available |
1 |
(Vac motor gasket) |
| NS |
172-4735 |
Recovery tank hardware kit |
1 |
|
| NS |
272-6310 |
Elbow suction hose kit |
1 |
|
|
|

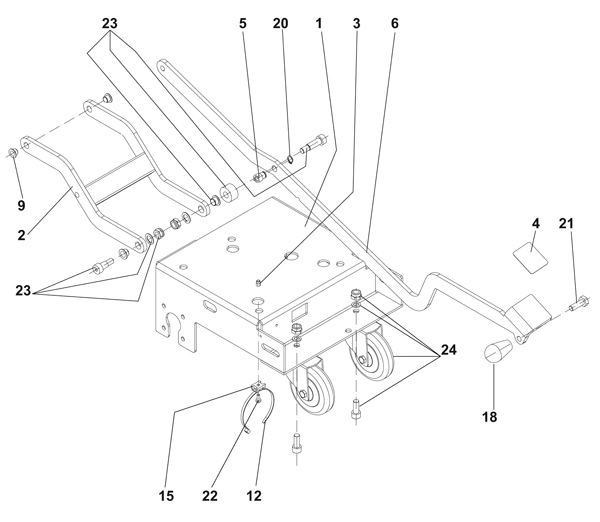

Chassis Assembly - 272-7561 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
172-4738 |
Deck lifting lever |
1 |
|
| 4 |
172-4740 |
Anti-skid mat |
1 |
|
| 5 |
172-4741 |
Flanged bushing |
1 |
|
| 6 |
272-6311 |
Brush lift pedal (OBSOLETE) |
1 |
|
| 9 |
172-4742 |
Flanged bushing |
3 |
|
| 12 |
272-0678 |
Wire tie (OBSOLETE) |
3 |
|
| 15 |
172-4710 |
Wire tie holder |
1 |
|
| 18 |
172-4711 |
Knob |
1 |
(with drive) |
| 20 |
172-4746 |
Retaining ring |
1 |
|
| 21 |
999-1302 |
Screw M10-1.5 x 30mm hex head |
1 |
(with drive) |
| 22 |
999-9096 |
Screw M5-.8 x 12mm socket head stainless steel |
1 |
|
| 23 |
172-4747 |
Chassis hardware kit |
1 |
|
| 24 |
270-0365 |
Caster wheel kit |
2 |
|
|
|

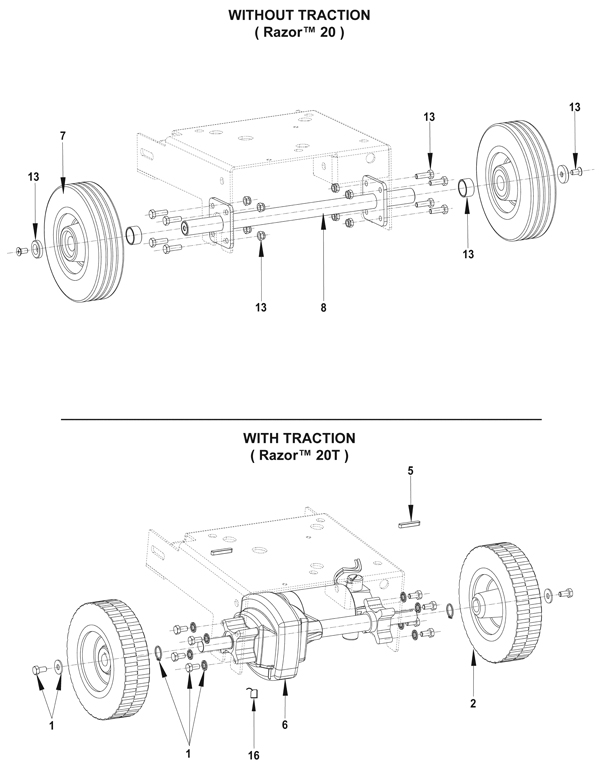

Wheel Assembly - 272-7562 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
272-6312 |
Drive wheel hardware kit |
1 |
|
| 2 |
272-6313 |
Front wheel (OBSOLETE) |
2 |
|
| 5 |
172-4750 |
Square keyway |
2 |
|
| 6 |
172-4753 |
24V transaxle |
1 |
|
| 13 |
272-6316 |
Wheel hardware kit |
1 |
|
| 16 |
272-0760 |
Carbon brush |
2 |
|
|
|

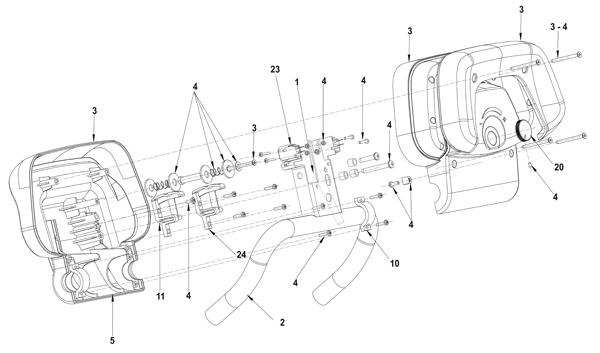

Handle Assembly - 272-7566 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
172-4756 |
Handle harness |
1 |
|
| 3 |
270-0643 |
Upper/lower handle covers |
1 |
|
| 4 |
172-4765 |
Handle hardware kit |
1 |
|
| 5 |
272-6317 |
Lower switch housing |
1 |
|
| 11 |
272-6318 |
Micro switch cam |
2 |
|
| 20 |
172-4762 |
Potentiometer knob |
1 |
|
| 23 |
272-5299 |
Microswitch |
1 |
|
| 24 |
172-4764 |
Microswitch cam handle |
1 |
|
| NS |
172-4766 |
Speed potentiometer harness |
1 |
|
|
|

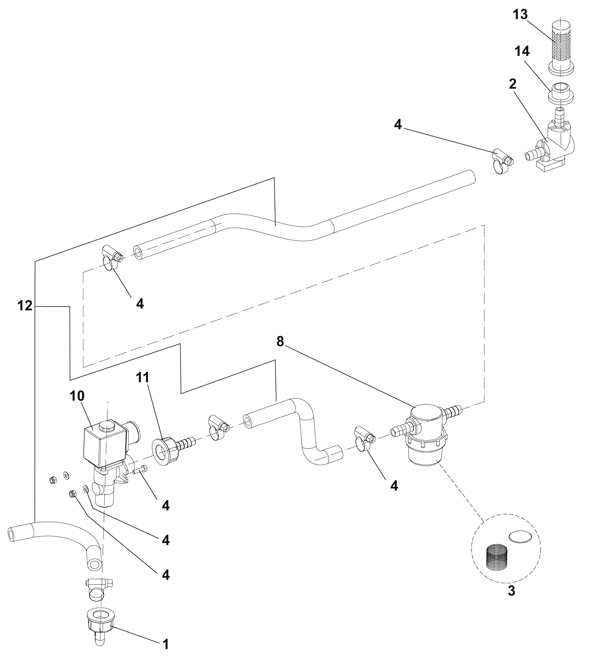

Solution Assembly - 272-7567 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
172-4773 |
90 degree rubber holder |
1 |
|
| 3 |
181-0923 |
Solution screen and gasket kit |
1 |
|
| 4 |
272-6319 |
Solution hardware kit |
1 |
|
| 8 |
181-0924 |
Solution filter assembly |
1 |
|
| 10 |
272-8536 |
24V solution solenoid valve |
1 |
|
| 11 |
272-8535 |
1/2 female rubber holder |
1 |
|
| 12 |
272-7293 |
Hose kit (OBSOLETE) |
1 |
|
| 13 |
172-4768 |
Solution tank filter |
1 |
|
|
|

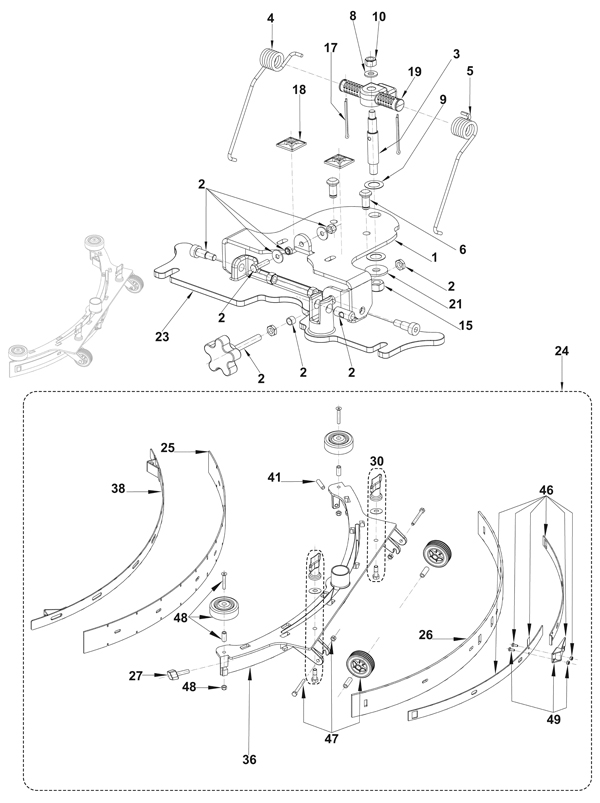

Squeegee Assembly - 272-7568 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
172-4774 |
Squeegee support bracket |
1 |
|
| 2 |
172-4796 |
Hardware fixing kit |
1 |
|
| 3 |
270-0395 |
Squeegee pin |
1 |
|
| 4 |
172-4776 |
Right hand squeegee torsion spring |
1 |
|
| 6 |
270-0398 |
Squeegee fixing pin |
2 |
|
| 8 |
999-1267 |
Washer M8 flat zinc |
1 |
|
| 9 |
272-2000 |
Washer M15 x 25mm plain nylon |
2 |
|
| 10 |
999-0496 |
Nut M8-1.25 nylon insert lock stainless steel |
3 |
|
| 15 |
172-4782 |
Nut M10 self locking |
1 |
|
| 18 |
172-4784 |
Wire tie holder |
2 |
|
| 19 |
270-0114 |
Spring support |
1 |
|
| 21 |
999-9099 |
Washer M10 flat stainless steel |
1 |
|
| 23 |
272-7000 |
Squeegee mounting bracket kit |
1 |
|
| 24 |
272-7162 |
Squeegee kit |
1 |
(includes 25-49) |
| 25 |
272-2026 |
Squeegee blade kit gum rubber |
1 |
|
| 26 |
272-2026 |
Squeegee blade kit gum rubber |
1 |
|
| 27 |
272-8529 |
Knob M8 x 30mm stainless steel |
1 |
|
| 30 |
272-6579 |
Squeegee fixing kit |
1 |
|
| 36 |
172-4788 |
Squeegee weldment |
1 |
|
| 38 |
172-4789 |
Front squeegee strap (OBSOLETE) |
1 |
|
| 41 |
172-4790 |
Dowel M8 x 30mm |
1 |
|
| 46 |
172-4792 |
Rear squeegee strap and hardware kit |
1 |
|
| 47 |
172-4793 |
Squeegee wheel kit |
2 |
|
| 48 |
172-4794 |
Squeegee bumper wheel kit |
2 |
|
| 49 |
172-4795 |
Squeegee latch kit |
1 |
|
| NS |
272-2026 |
Squeegee blade kit gum rubber |
1 |
|
| NS |
272-6320 |
Squeegee adjustment washer kit |
1 |
|
|
|

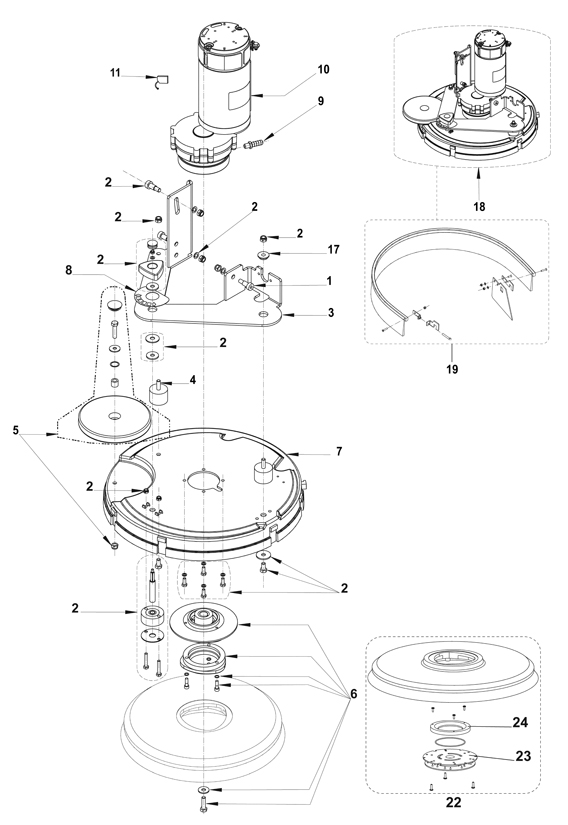

Brush Deck Assembly - 272-7570 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
172-4807 |
Bolt M10 x 16mm shoulder |
2 |
|
| 2 |
272-6321 |
Brush deck hardware kit |
1 |
|
| 3 |
172-4812 |
Brush deck holder plate |
1 |
|
| 4 |
272-1919 |
Vibration damping M8 (set of 2) |
1 |
|
| 5 |
172-4817 |
Bumper wheel kit |
1 |
|
| 6 |
272-5385 |
Polygonal holder with flange kit |
1 |
|
| 8 |
N/A |
Not available |
1 |
(Decal kit) |
| 10 |
372-1270 |
24V brush motor |
1 |
|
| 11 |
272-6322 |
Carbon brush (4 pcs) |
1 |
|
| 18 |
172-4804 |
Brush deck kit |
1 |
|
| 19 |
272-8568 |
20 inch splash guard kit |
1 |
|
| 22 |
996-0666 |
Pad driver assembly |
1 |
|
| 23 |
272-5504 |
Pad retainer |
11 |
|
| NS |
272-6323 |
Protection motor kit |
1 |
|
|
|

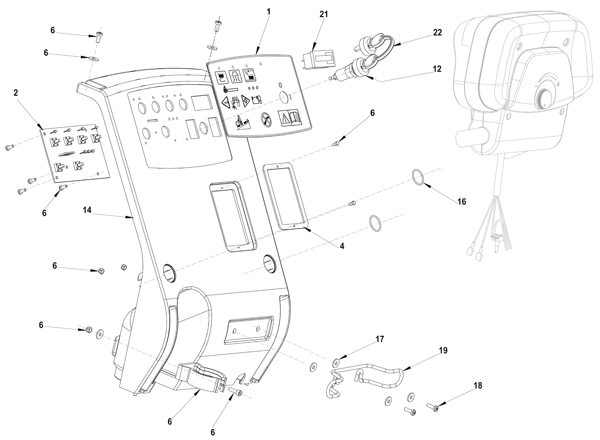

Control Panel Assembly - 272-7572 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
272-6325 |
Control panel decal (OBSOLETE) |
1 |
|
| 2 |
172-4854 |
Electronic control panel card |
1 |
|
| 6 |
272-6324 |
Control panel hardware kit |
1 |
|
| 12a |
172-3785 |
Key switch with two keys |
1 |
|
| 12b |
991-1634 |
Key (pkg of 2) |
1 |
|
| 14 |
272-7317 |
Control panel cover |
1 |
|
| 17 |
999-9100 |
Washer M5 flat stainless steel |
4 |
|
| 18 |
999-0531 |
Screw M5-.8 x 16mm pan head slotted zinc |
2 |
|
| 19 |
272-0659 |
On-board charger cord wrap |
1 |
|
| 21 |
272-9274 |
24V hour meter |
1 |
|
|
|

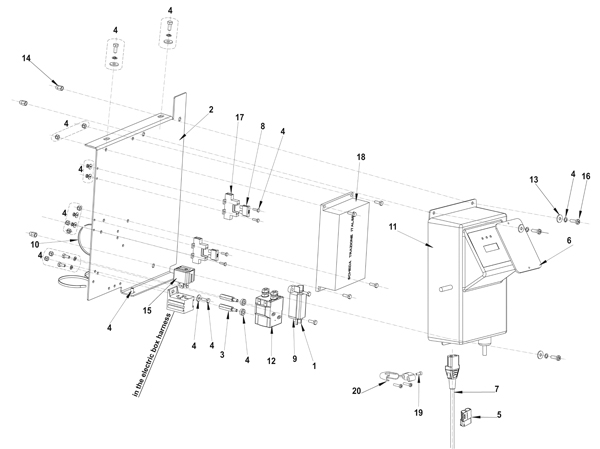

Electrical Assembly - 272-7574 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 4 |
272-6326 |
Electrical hardware kit |
1 |
|
| 5 |
272-8374 |
120amp connector (red) |
1 |
|
| 6 |
272-0640 |
Inspection plate |
1 |
|
| 7 |
272-9290 |
Onboard charger cord |
1 |
|
| 9 |
272-6292 |
40amp brush fuse strip |
1 |
|
| 11 |
272-8144 |
24V onboard battery charger |
1 |
|
| 12 |
272-6328 |
24V electromagnetic switch |
1 |
|
| 13 |
172-3762 |
Washer 6 X 12 1/2 flat (OBSOLETE) |
3 |
|
| 16 |
272-9291 |
Screw M5 X 20 |
3 |
|
| 17 |
472-1367 |
HOLDER FUSE THERMOPL. UL 94-V0 |
2 |
|
| 18 |
272-7389 |
Electronic card traction kit |
1 |
|
| 19 |
272-9293 |
Screw M4 x 12mm |
1 |
|
| 20 |
272-9292 |
Cord holder |
1 |
|
| NS |
172-0223 |
Battery cable boot |
4 |
|
| NS |
272-9289 |
Electrical box harness |
1 |
|
| NS |
272-6329 |
Machine harness |
1 |
|
| NS |
272-5392 |
Vacuum cleaner harness |
1 |
|
| NS |
270-0606 |
Battery harness |
1 |
|
|
|

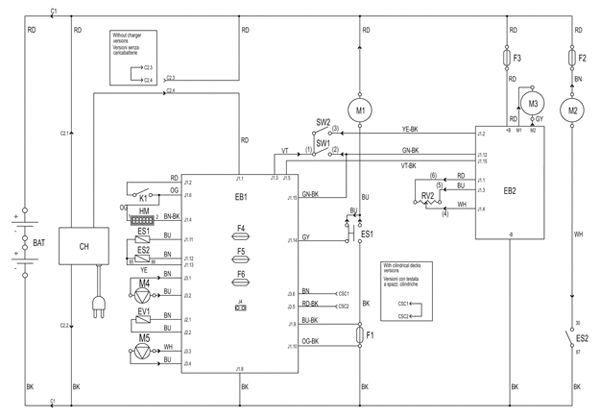

Wiring Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
