Parts List Complete for KENT RAZOR 20


- Batteries, Brushes and Chargers - 181-8870
RefNbr Part Number Description Req Notes
162-5124 24V 12amp smart battery charger with small SB50 red plug 1
1 162-0011 12V 105Ah wet battery (SNSR) 2
2 162-0042 12V 115Ah AGM battery (Group 31) 2
5 162-5124 24V 12amp smart battery charger with small SB50 red plug 1 (dual mode charger; can be switched to support AGM or wet batteries)
6 996-1580 19 inch heavy grit stripping brush - 80 grit 1
7 996-1581 19 inch medium grit scrubbing brush - 180 grit 1
8 996-1582 19 inch lite grit scrubbing brush - 500 grit 1
9 996-1583 19 inch polypropelene scrubbing brush 1
10 996-1584 Pad driver 1
11 996-0338 Clutch plate 1

- Pads - 255-2000
RefNbr Part Number Description Req Notes
01 255-2040 20 inch aqua plus burnishing pad (pkg of 5)
02 255-2035 20 inch Armadillo concrete scrubbing pad (pkg of 5)
03 255-2064 20 inch Blue ace pad (pkg of 5)
04 255-2042 20 inch Blue Jay burnishing pad (pkg of 5)
05 255-2012 20 inch Cure white pad (pkg of 5)
06 255-2077 20 inch Diamondback extreme stripping pad (pkg of 5)
07 255-2038 20 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2
08 255-2021 20 inch gorilla lite burnishing pad (pkg of 5)
09 255-2050 20 inch gorilla spray buff/polish/burnish pad (pkg of 5)
10 255-2065 20 inch Heat concrete bonding pad (pkg of 5)
11 255-2030 20 inch jaguar burnishing pad (pkg of 5)
12 255-2067 20 inch Laminated 2001 Gorilla polish pad (pkg of 5)
13 255-2087 20 inch Melamine Mela-Kleen pad (pkg of 2)
14 255-2068 20 inch Microclean daily cleaning pad (pkg of 2)
15 255-2069 20 inch Micropolish polishing and burnishing pad (pkg of 2)
16 255-2090 20 inch premium black stripping pad (pkg of 5)
17 255-2070 20 inch premium blue cleaning pad (pkg of 5)
18 255-2092 20 inch premium brown stripping pad (pkg of 5)
19 255-2080 20 inch premium green scrubbing pad (pkg of 5)
20 255-2060 20 inch premium red scrubbing pad (pkg of 5)
21 255-2052 20 inch premium tan polishing pad (pkg of 5)
22 255-2020 20 inch premium white polishing pad (pkg of 5)
23 255-2011 20 inch superspeed rubberized pad (pkg of 5)
24 255-2095 20 inch razorback stripping pad (pkg of 5)
25 255-2047 20 inch Redwood maroon floor prep pad (pkg of 10)
26 255-2055 20 inch Ruff non-abrasive brush pad (pkg of 2)
27 255-2023 20 inch sand screen driver pad (pkg of 2)
28 255-0157 20 inch Professional sand screen 100 grit (pkg of 10)
29 255-0021 20 inch Professional sand screen 120 grit (pkg of 10)
30 255-0158 20 inch Professional sand screen 150 grit (pkg of 10)
31 255-0159 20 inch Professional sand screen 180 grit (pkg of 10)
32 255-0160 20 inch Professional sand screen 220 grit (pkg of 10)
33 255-0161 20 inch Professional sand screen 400 grit (pkg of 10)
34 255-0030 20 inch Professional sand screen 60 grit (pkg of 10)
35 255-0020 20 inch Professional sand screen 80 grit (pkg of 10)
36 255-0249 20 inch Superscreen sand screen 100 grit (pkg of 10)
37 255-0250 20 inch Superscreen sand screen 120 grit (pkg of 10)
38 255-0251 20 inch Superscreen sand screen 150 grit (pkg of 10)
39 255-0252 20 inch Superscreen sand screen 180 grit (pkg of 10)
40 255-0253 20 inch Superscreen sand screen 220 grit (pkg10) (OBSOLETE)
41 255-0254 20 inch Superscreen sand screen 400 grit (pkg of 10)
42 255-0247 20 inch Superscreen sand screen 60 grit (pkg of 10)
43 255-0248 20 inch Superscreen sand screen 80 grit (pkg of 10)
45 255-9591 20 inch Diamond by Gorilla 11000 Grit (pkg of 2)
46 255-9588 20 inch Diamond by Gorilla 1500 Grit (pkg of 2)
47 255-9585 20 inch Diamond by Gorilla 200 Grit (pkg of 2)
48 255-9589 20 inch Diamond by Gorilla 3000 Grit (pkg of 2)
49 255-9586 20 inch Diamond by Gorilla 400 Grit (pkg of 2)
50 255-9587 20 inch Diamond by Gorilla 800 Grit (pkg of 2)
51 255-9590 20 inch Diamond by Gorilla 8000 Grit (pkg of 2)
52 255-9645 20 inch Diamond starter pack (1 of each grit)
53 255-2082 20 inch Turbostrip segmented rotary pad (pkg of 4)
54 255-2015 20 inch Duala clean and shine pad - low speed (pkg of 5)
55 255-2016 20in 2001 Duala clean& shine pad-high speed(pkg 5) (OBSOLETE

- Commonly Asked For Parts - 272-5027
RefNbr Part Number Description Req Notes
272-5584 Control panel decal
272-8144 24V onboard battery charger
272-8536 24V solution solenoid valve
272-8549 Drain hose assembly with plug
272-2026 Squeegee blade kit gum rubber
272-7079 Right front wheel

Solution Tank Assembly - 272-7559
RefNbr Part Number Description Req Notes
1 272-8941 Solution tank hardware kit 1
2 272-7164 Elbow joint 1
3 172-4689 Pedal support 1
4 N/A Not available (Decal kit)
5 172-4694 Gasket 1
6 172-4696 Gasket 1
7 172-4697 Gasket 2
8 272-0005 Squeegee lever fixing kit 1
9 172-4714 Cable kit 1
10 272-6300 Bracket support (OBSOLETE) 1
11 272-6301 Handle bar gasket 1
12 272-7163 Cable kit 1
13 172-4706 Plug 1
15 272-6302 Fresh water hose (OBSOLETE) 1
19 N/A Not available (Handle)
20 172-4695 Locking tank cap 2
21 572-3422 FITTING M 3/8-18 NPT HOSE D.19 1
37 172-4699 Cap (black) 1
38 272-6304 Solution tank (OBSOLETE) 1
48 272-6305 Water inlet filter 1
49 272-6306 Hinge kit 1
50 999-0581 Bolt M8-1.25 x 25mm hex head full thread zinc 4
51 999-1267 Washer M8 flat zinc 6
52 270-0383 Screw M8-1.25 x 30mm grub (OBSOLETE) 2
53 999-0579 Nut M8-1.25 hex coarse thread zinc 2

Recovery Tank Assembly - 272-7560
RefNbr Part Number Description Req Notes
1a 272-0618 Squeegee vacuum hose kit 1
1b 991-3105 Squeegee vacuum hose assembly 1
2 272-8549 Drain hose assembly with plug 1
3 272-6307 Tank fixing kit 1
5 172-4759 Clamp 1
9 172-0517 Float cage half (2 required for full float cage) 2
10 172-0192 Float ball 1
11 270-8255 Float holder cage kit 1
14 997-2000 Hose clamp 2
18 272-6308 Recovery tank (OBSOLETE) 1
19 272-6309 Recovery tank lid (OBSOLETE) 1
20 999-1220 Screw M5-.8 x 12mm hex head stainless steel 2
21 181-2002 Recovery tank lid gasket 1
22 270-0364 Vacuum motor gasket 1
23 172-4730 Vacuum motor gasket 1
24 172-4731 Acoustic insulation panel 1
26 172-4732 Filter 1
27 272-6578 24V 2 stage vacuum motor 1
30 172-4733 Vacuum motor cover 1
31 172-4734 Acoustic insulation pipe 1
35 272-0627 Carbon brush 2
37 172-4736 Vacuum motor hardware kit 1
38 272-7206 Antifoaming filter 1
39 N/A Not available 1 (Vac motor gasket)
NS 172-4735 Recovery tank hardware kit 1
NS 272-6310 Elbow suction hose kit 1

Chassis Assembly - 272-7561
RefNbr Part Number Description Req Notes
1 272-5379 Chassis 1
2 172-4738 Deck lifting lever 1
3 272-9283 Insert M5 1
4 172-4740 Anti-skid mat 1
5 172-4741 Flanged bushing 1
6 272-6311 Brush lift pedal (OBSOLETE) 1
9 172-4742 Flanged bushing 3
12 272-0678 Wire tie (OBSOLETE) 3
15 172-4710 Wire tie holder 1
18 172-4711 Knob 1 (with drive)
20 172-4746 Retaining ring 1
21 999-1302 Screw M10-1.5 x 30mm hex head 1 (with drive)
22 999-9096 Screw M5-.8 x 12mm socket head stainless steel 1
23 172-4747 Chassis hardware kit 1
24 270-0365 Caster wheel kit 2

Solution Assembly - 272-7567
RefNbr Part Number Description Req Notes
1 172-4773 90 degree rubber holder 1
2 272-9260 Elbow valve 1
3 181-0923 Solution screen and gasket kit 1
4 272-6319 Solution hardware kit 1
8 181-0924 Solution filter assembly 1
10 272-8536 24V solution solenoid valve 1
11 272-8535 1/2 female rubber holder 1
12 272-7293 Hose kit (OBSOLETE) 1
13 172-4768 Solution tank filter 1
14 272-8076 Gasket 1

Squeegee Assembly - 272-7568
RefNbr Part Number Description Req Notes
1 172-4774 Squeegee support bracket 1
2 172-4796 Hardware fixing kit 1
3 270-0395 Squeegee pin 1
4 172-4776 Right hand squeegee torsion spring 1
5 172-4777 Spring 1
6 270-0398 Squeegee fixing pin 2
8 999-1267 Washer M8 flat zinc 1
9 272-2000 Washer M15 x 25mm plain nylon 2
10 999-0496 Nut M8-1.25 nylon insert lock stainless steel 3
15 172-4782 Nut M10 self locking 1
17 270-0399 Split pin 2
18 172-4784 Wire tie holder 2
19 270-0114 Spring support 1
21 999-9099 Washer M10 flat stainless steel 1
23 272-7000 Squeegee mounting bracket kit 1
24 272-7162 Squeegee kit 1 (includes 25-49)
25 272-2026 Squeegee blade kit gum rubber 1
26 272-2026 Squeegee blade kit gum rubber 1
27 272-8529 Knob M8 x 30mm stainless steel 1
30 272-6579 Squeegee fixing kit 1
36 172-4788 Squeegee weldment 1
38 172-4789 Front squeegee strap (OBSOLETE) 1
41 172-4790 Dowel M8 x 30mm 1
46 172-4792 Rear squeegee strap and hardware kit 1
47 172-4793 Squeegee wheel kit 2
48 172-4794 Squeegee bumper wheel kit 2
49 172-4795 Squeegee latch kit 1
NS 272-2026 Squeegee blade kit gum rubber 1
NS 272-6320 Squeegee adjustment washer kit 1

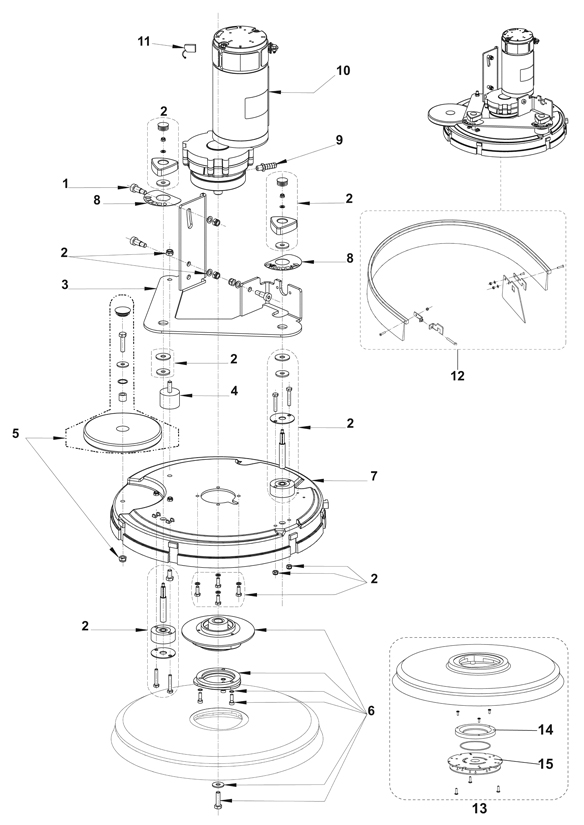

Brush Deck Assembly - 272-7569
RefNbr Part Number Description Req Notes
1 172-4807 Bolt M10 x 16mm shoulder 3
2 272-6321 Brush deck hardware kit 1
3 172-4812 Brush deck holder plate 1
4 272-1919 Vibration damping M8 (set of 2) 1
5 172-4817 Bumper wheel kit 1
6 272-5385 Polygonal holder with flange kit 1
7 172-4811 Brush deck 1
8 N/A Not available 1 (Decal kit)
9 272-1978 Rubber barb 1
10 372-1270 24V brush motor 1
11 272-6322 Carbon brush (4 pcs) 1
12 272-8568 20 inch splash guard kit 1
13 996-0666 Pad driver assembly 1
14 272-5503 Nylon ring 1
15 272-5504 Pad retainer 1
NS 272-6323 Protection motor kit 1

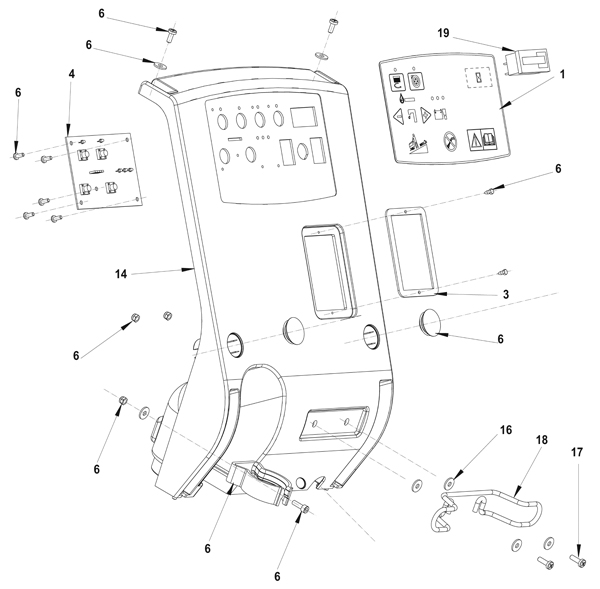

Control Panel Assembly - 272-7571
RefNbr Part Number Description Req Notes
1 272-5584 Control panel decal 1
3 172-4856 Gasket 1
4 272-8546 Control panel 1
6 272-6324 Control panel hardware kit 1
14 272-7317 Control panel cover 1
16 999-9100 Washer M5 flat stainless steel 4
17 999-0531 Screw M5-.8 x 16mm pan head slotted zinc 2
18 272-0659 On-board charger cord wrap 1
19 272-9274 24V hour meter 1
NS 572-3491 FUSE BLADE 3A PKD 1

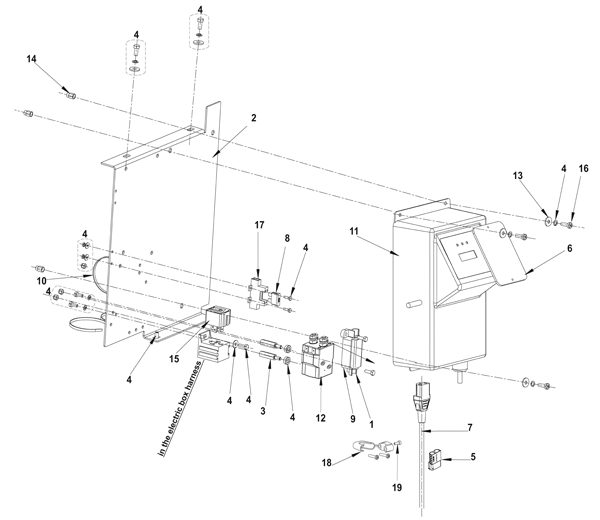

Electrical Assembly - 272-7573
RefNbr Part Number Description Req Notes
1 181-0966 Fuse holder 1
2 272-3770 Support 1
3 272-9277 Spacer 2
4 272-6326 Electrical hardware kit 1
5 272-8374 120amp connector (red) 1
6 272-0640 Inspection plate 1
7 272-9290 Onboard charger cord 1
8 272-7144 30amp fuse 1
9 272-6292 40amp brush fuse strip 1
10 272-8376 Wire tie 3
11 272-8144 24V onboard battery charger 1
12 272-6327 24V electromagnetic switch 1
13 172-3762 Washer 6 X 12 1/2 flat (OBSOLETE) 3
14 272-9283 Insert M5 3
15 272-9288 24V relay 1
16 272-9291 Screw M5 X 20 3
17 472-1367 HOLDER FUSE THERMOPL. UL 94-V0 2
18 272-9292 Cord holder 1
19 272-9293 Screw M4 x 12mm 1
NS 172-0223 Battery cable boot 4
NS 272-5390 Electric box harness (OBSOLETE) 1
NS 272-5391 Machine harness 1
NS 272-5392 Vacuum cleaner harness 1
NS 270-0606 Battery harness 1

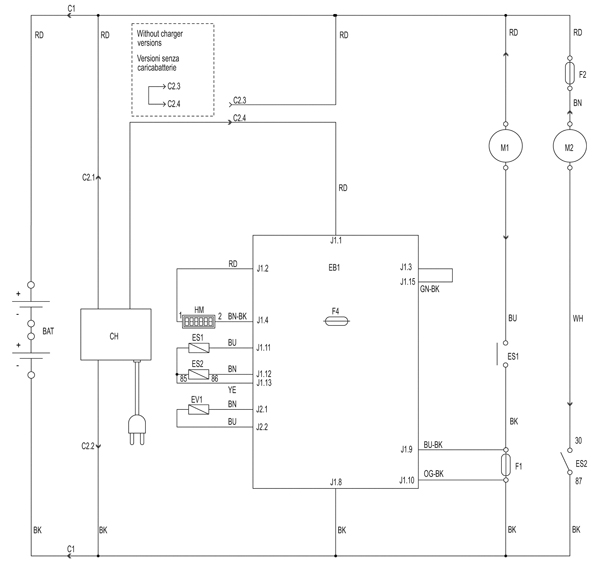

Wiring Diagram -

RefNbr Part Number Description Req Notes

Wheel Assembly -

RefNbr Part Number Description Req Notes

- Pad Holders - 275-9029
RefNbr Part Number Description Req Notes
1 991-2214 Center-Lok II pad holder - left hand thread (red)
2a 991-2201 Center-Lok II pad holder - right hand thread (black) (Pad driver side female, Floor side male)
2b 991-8577 Pad retainer (Pad driver side male, Floor side female)
3a 991-2202 Big mouth pad holder set (blue) (includes 3 screws)
3b 991-2205 Deep lock ring and pad grip ring
4 991-2203 Big mouth pad holder male thread portion
5 991-2206 Center-Lok 3 pad holder (includes 3 screws)
6 996-0372 Big mouth pad holder (left hand thread)
7 N/A Not available
8 991-2209 Split retainer - pad holder ring (OBSOLETE)
9 N/A Not available (replaced by #3 991-2202)
10 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE)

- Frequently Replaced Parts - 999-2036
RefNbr Part Number Description Req Notes
162-5124 24V 12amp smart battery charger with small SB50 red plug 1
1 162-0011 12V 105Ah wet battery (SNSR) (2)
2 162-0042 12V 115Ah AGM battery (Group 31) (2)
3 162-5124 24V 12amp smart battery charger with small SB50 red plug
4 272-8144 24V onboard battery charger
5 272-9290 Onboard charger cord
6 991-2103 50amp charger plug SB50 with pins (red)
7 998-0010 Battery jumper cable - ring type (red)
8 172-3785 Key switch with two keys (power)
9 991-1634 Key (pkg of 2)
10 172-4854 Electronic control panel card (vacuum and brush)
11 272-8536 24V solution solenoid valve
12 181-0924 Solution filter assembly
13 272-2026 Squeegee blade kit gum rubber
14 272-2026 Squeegee blade kit gum rubber
15 272-2026 Squeegee blade kit gum rubber
16 272-0618 Squeegee vacuum hose kit
17 181-2002 Recovery tank lid gasket
18 272-8549 Drain hose assembly with plug
19 272-6578 24V 2 stage vacuum motor (OEM)
20 272-0627 Carbon brush
20.5 996-6157 19 inch daily cleaning brush
21 996-1582 19 inch lite grit scrubbing brush - 500 grit
22 996-1581 19 inch medium grit scrubbing brush - 180 grit
23 996-1580 19 inch heavy grit stripping brush - 80 grit
24 996-1584 Pad driver
25 996-0338 Clutch plate
26 272-5504 Pad retainer
Webpage Problem Reporting
