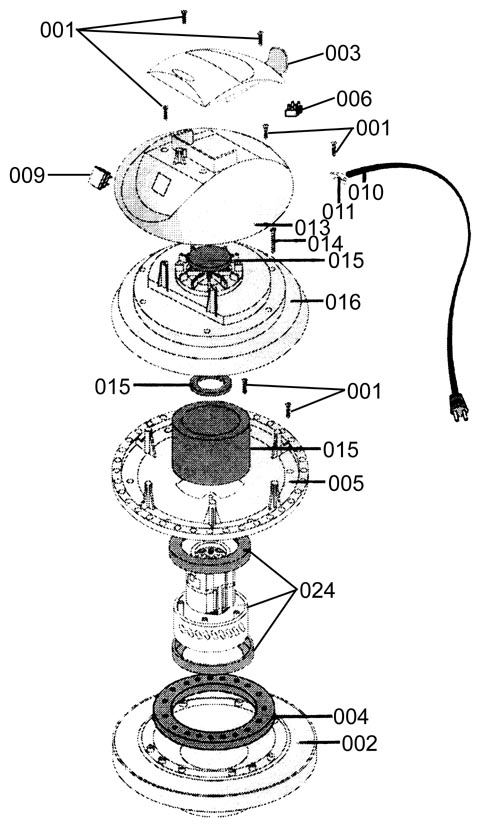

Vac Motor Assembly - 181-2023 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
N/A |
Not available |
1 |
Vac motor hardware kit |
| 002 |
172-1506 |
Base (OBSOLETE) |
1 |
|
| 003 |
172-1507 |
Top cover (OBSOLETE) |
1 |
|
| 004 |
172-1508 |
Noise reduction disk (OBSOLETE) |
1 |
|
| 005 |
172-1511 |
Motor base (OBSOLETE) |
1 |
|
| 006 |
172-1510 |
Terminal block (OBSOLETE) |
1 |
|
| 009 |
172-1513 |
On/off switch (OBSOLETE) |
1 |
|
| 010 |
172-1514 |
Power cord (OBSOLETE) |
1 |
|
| 011 |
172-1515 |
Strain relief clamp (OBSOLETE) |
1 |
|
| 013 |
172-1516 |
Dome cover (OBSOLETE) |
1 |
|
| 014 |
999-0432 |
Screw 1/4-20 x 1 1/4 pan head phillips zinc plated |
6 |
also available in the vac motor hardware kit |
| 015 |
172-1517 |
Exhaust filter kit (OBSOLETE) |
1 |
|
| 016 |
172-1512 |
Mid cover (OBSOLETE) |
1 |
|
| 024 |
172-1509 |
Vacuum motor kit (OBSOLETE) |
1 |
|
|
|

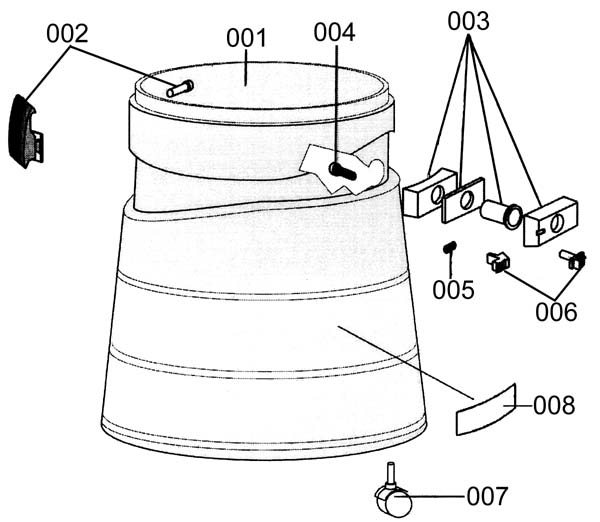

Tank Assembly - 181-2024 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
172-1538 |
Tank 10 gallon (OBSOLETE) |
1 |
|
| 002 |
172-1526 |
Clamp kit (OBSOLETE) |
1 |
|
| 003 |
172-1539 |
Hose adaptor kit (10 gallon) (OBSOLETE) |
1 |
|
| 004 |
999-0432 |
Screw 1/4-20 x 1 1/4 pan head phillips zinc plated |
4 |
|
| 005 |
172-1540 |
Push button spring (OBSOLETE) |
1 |
|
| 006 |
172-1536 |
Push button (blue) (OBSOLETE) |
1 |
|
| 007 |
172-1541 |
Caster (OBSOLETE) |
6 |
|
| 008 |
172-1537 |
Decal (OBSOLETE) |
1 |
|
| N/S |
272-0055 |
Hose 8 ft. x 1.5 (OBSOLETE) |
|
|
|
|
Filter Assembly - 181-2025 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
172-1518 |
Filter hardware kit (OBSOLETE) |
1 |
|
| 002 |
172-1519 |
Filter support body kit (OBSOLETE) |
1 |
|
| 003 |
172-1521 |
Strainer (OBSOLETE) |
1 |
|
| 004 |
172-1542 |
Filter kit - 10 gallon (OBSOLETE) |
1 |
|
|
|
