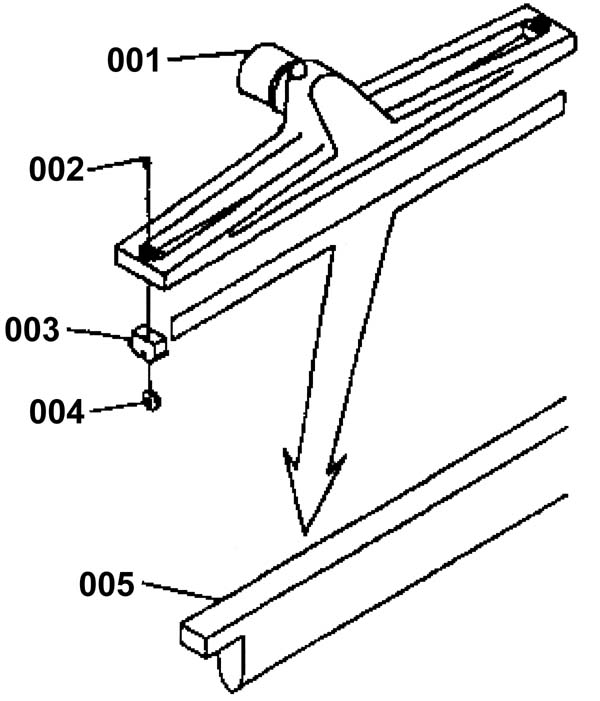

Carpet Tool - 181-2005 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
181-0672 |
16 inch plastic housing tool |
1 |
|
| 002 |
181-0673 |
Screw 8 x 3/8 pan head phillips type b |
2 |
|
| 003 |
181-0674 |
16 inch plastic housing wheel tool |
2 |
|
| 004 |
181-0675 |
16 inch plastic wheel tool |
2 |
|
| 005 |
181-0676 |
16 inch bar rub carpet tool (OBSOLETE) |
2 |
|
|
|

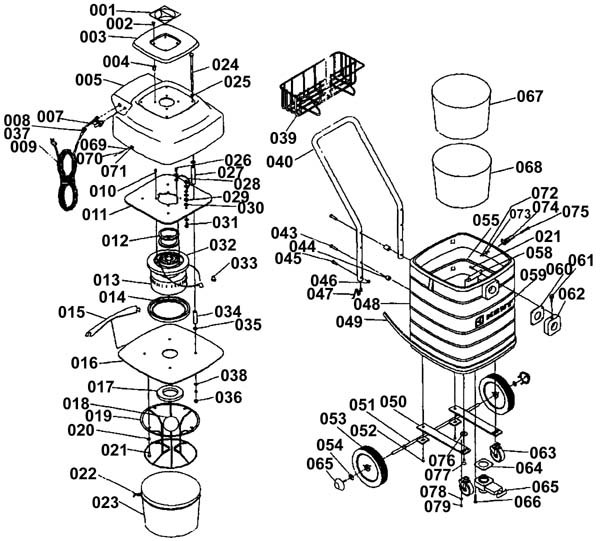

Assembly - 181-2006 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
N/A |
Not available |
1 |
(Logo decal) |
| 005 |
N/A |
Not available |
1 |
(Motor cover) |
| 006 |
181-0294 |
Toggle switch |
1 |
|
| 007 |
272-5225 |
Switch nut |
1 |
|
| 008 |
181-0473 |
Strain relief (OBSOLETE) |
1 |
|
| 009 |
N/A |
Not available |
1 |
(50 foot power cord) |
| 010 |
182-0012 |
Screw 10-14 x .88 phillips pan plastite |
4 |
|
| 011 |
N/A |
Not available |
1 |
(not available) Steel plate |
| 012 |
N/A |
Not available |
2 |
(Vacuum motor gasket) |
| 013a |
N/A |
Not available |
1 |
(115V 2 stage vacuum motor) |
| 013b |
N/A |
Not available |
2 |
(Brush motor) |
| 014 |
N/A |
Not available |
1 |
Motor mounting ring |
| 015 |
181-0685 |
Foam gasket (OBSOLETE) |
4 |
|
| 016 |
N/A |
Not available |
1 |
(Support plate) |
| 017 |
181-0687 |
Vacuum motor gasket (OBSOLETE) |
1 |
|
| 018 |
181-0688 |
4 inch plastic ball (OBSOLETE) |
1 |
|
| 019 |
N/A |
Not available |
1 |
(Float frame) |
| 020 |
N/A |
Not available |
4 |
(Washer) |
| 022 |
N/A |
Not available |
1 |
(Bag wire separator) |
| 023 |
181-0692 |
Separator assembly (OBSOLETE) |
1 |
|
| 024 |
999-0699 |
Bolt 1/4-20 x 8 hex head grade 5 zinc plated |
4 |
|
| 025 |
999-0123 |
Washer 1/4 SAE flat zinc plated |
8 |
|
| 026 |
999-0409 |
Screw 10-24 x 3/8 pan head slotted zinc plated |
1 |
|
| 027 |
181-0693 |
Spacer (OBSOLETE) |
4 |
|
| 028 |
181-0694 |
Wire assembly (OBSOLETE) |
1 |
|
| 029 |
999-0077 |
Nut 8-32 k-lock zinc plated |
2 |
|
| 030 |
999-0053 |
Washer #10 split lock plain finish |
4 |
|
| 031 |
999-0054 |
Screw 8-32 x 1 round head slotted zinc plated |
1 |
|
| 033 |
998-0062 |
Wire nut (blue) |
1 |
|
| 034 |
181-0696 |
Spacer (OBSOLETE) |
4 |
|
| 035 |
999-0355 |
Washer 3/8 x 7/8 SAE flat stainless steel |
4 |
|
| 036 |
999-0632 |
Washer 1/4 split lock stainless steel |
4 |
|
| 037 |
172-4536 |
Nut 1/2-14 conduit lock |
1 |
|
| 038 |
999-0441 |
Nut 1/4-20 nylon lock jam zinc plated |
4 |
|
| 039 |
N/A |
Not available |
1 |
(Tool basket) |
| 040 |
181-1698 |
Lower cover |
1 |
|
| 043 |
999-0744 |
Screw 10-32 x 1 3/4 pan head phillips zinc plated |
4 |
|
| 044 |
N/A |
Not available |
4 |
(Not Available) Spacer |
| 045 |
999-0389 |
Screw 10-32 x 1 round head slotted zinc plated |
2 |
|
| 046 |
999-0086 |
Nut 10-32 nylon insert lock zinc plated |
2 |
|
| 047 |
N/A |
Not available |
2 |
(Chrome S hook) |
| 048 |
N/A |
Not available |
1 |
(not available) Tank |
| 049 |
N/A |
Not available |
1 |
(not available) Furniture guard |
| 050 |
N/A |
Not available |
2 |
(Caster kit) |
| 052 |
999-0435 |
Screw 1/4-20 x 5/8 socket head alloy plain finish |
2 |
|
| 053 |
N/A |
Not available |
2 |
(Wheel) |
| 054 |
172-4017 |
1/2 inch push cap |
2 |
|
| 055 |
181-0314 |
Hub cap (OBSOLETE) |
2 |
|
| 058 |
N/A |
Not available |
1 |
(Inlet deflector) |
| 060 |
N/A |
Not available |
1 |
(Gasket) |
| 061 |
181-0707 |
Knob assembly (OBSOLETE) |
1 |
|
| 063a |
N/A |
Not available |
2 |
(Caster kit) |
| 063b |
N/A |
Not available |
2 |
(Caster plate) |
| 064 |
181-0236 |
Foam gasket (OBSOLETE) |
1 |
|
| 065 |
N/A |
Not available |
1 |
(T handle valve slide) |
| 066 |
999-0744 |
Screw 10-32 x 1 3/4 pan head phillips zinc plated |
4 |
|
| 067 |
N/A |
Not available |
1 |
(Flannel filter bag) |
| 068 |
N/A |
Not available |
1 |
(Polyester filter bag) |
| 069 |
999-0006 |
Washer 3/16 flat zinc plated |
4 |
|
| 071 |
N/A |
Not available |
2 |
(Strike dolly latch) |
| 072 |
999-0227 |
Nut 6-32 hex nylon insert lock jam zinc plated |
4 |
|
| 073 |
999-0377 |
Washer 6 SAE flat plain finish |
4 |
|
| 075 |
999-0447 |
Screw 6-32 x 1/2 pan head phillips zinc plated |
4 |
|
| 076 |
999-0328 |
Washer 7/16 USS flat |
2 |
|
| 077 |
999-0605 |
Screw 1/4-20 x 2 carriage head stainless steel |
2 |
|
| 078 |
999-0060 |
Washer 1/4 split lock plain finish |
8 |
|
| 079 |
181-0716 |
Screw 10-32 x 5/16 pan head machine (OBSOLETE) |
8 |
|
|
|

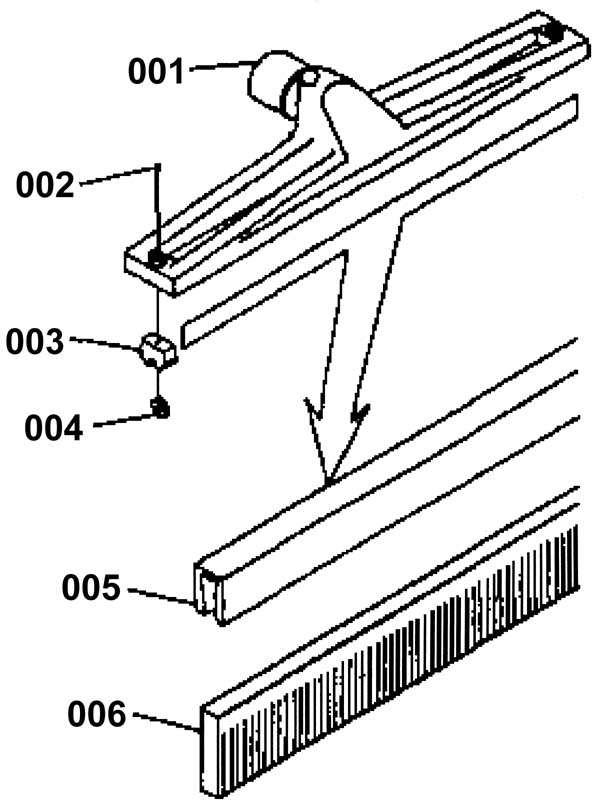

Squeegee Tool Part - 181-2007 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
181-0672 |
16 inch plastic housing tool |
1 |
|
| 002 |
181-0673 |
Screw 8 x 3/8 pan head phillips type b |
2 |
|
| 003 |
181-0674 |
16 inch plastic housing wheel tool |
2 |
|
| 004 |
181-0675 |
16 inch plastic wheel tool |
2 |
|
| 005 |
181-0717 |
Plastic squeegee channel 16 inch (OBSOLETE) |
2 |
|
| 006 |
181-0718 |
Rubber squeegee blade 16 inch |
2 |
|
|
|

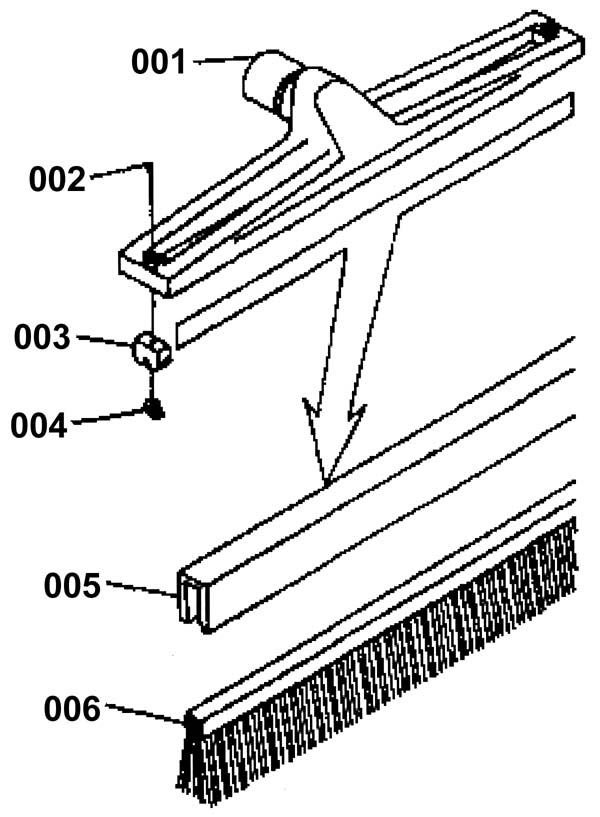

Brush Tool Part - 181-2008 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
181-0672 |
16 inch plastic housing tool |
1 |
|
| 002 |
181-0673 |
Screw 8 x 3/8 pan head phillips type b |
2 |
|
| 003 |
181-0674 |
16 inch plastic housing wheel tool |
2 |
|
| 004 |
181-0675 |
16 inch plastic wheel tool |
2 |
|
| 005 |
181-0717 |
Plastic squeegee channel 16 inch (OBSOLETE) |
2 |
|
|
|

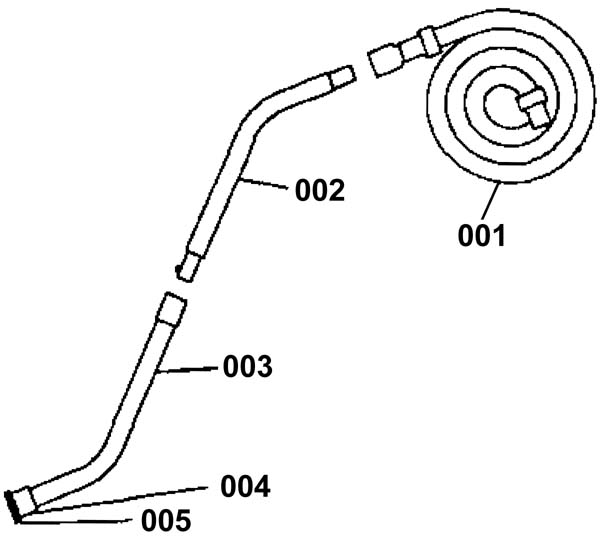

Hose and Wand - 181-2009 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
N/A |
Not available |
1 |
(Hose assembly) |
| 002 |
181-0722 |
Upper wand assembly |
1 |
|
| 003 |
181-0723 |
Lower wand assembly |
1 |
|
| 004 |
181-0724 |
Wand seal ring |
1 |
|
| 005 |
181-0725 |
Nut flange (OBSOLETE) |
1 |
|
|
|
