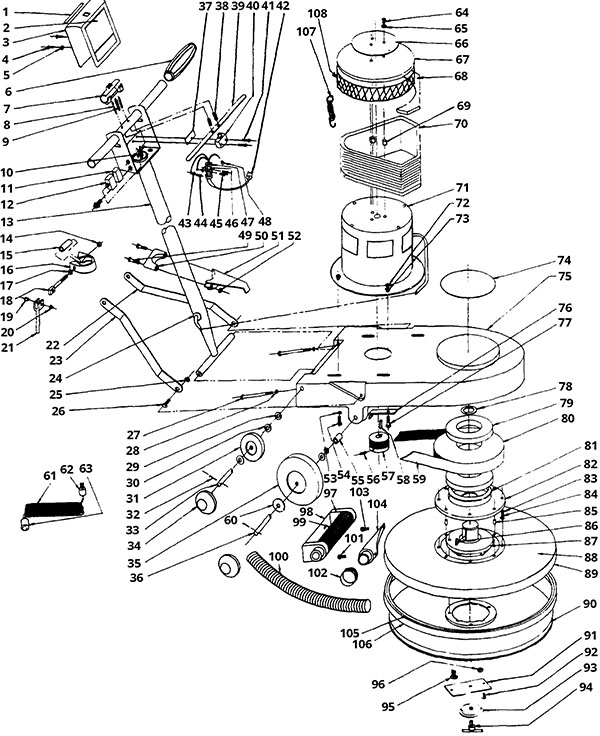

Entire Assembly - 181-1112 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
172-7389 |
Label (OBSOLETE) |
1 |
|
| 2 |
172-7388 |
Label (OBSOLETE) |
1 |
|
| 3 |
181-2038 |
Switchbox cover (chrome) (OBSOLETE) |
1 |
|
| 4 |
999-1104 |
Screw 10-24 x 3/4 pan head phillips thread rolling zinc |
2 |
|
| 5 |
N/A |
Not available |
2 |
(washer) |
| 7 |
172-1746 |
Lock off switch (OBSOLETE) |
1 |
|
| 9 |
172-6270 |
Spring ext (OBSOLETE) |
1 |
|
| 10 |
172-6985 |
Loop spring (OBSOLETE) |
1 |
|
| 11 |
181-2039 |
Insulated tubing (OBSOLETE) |
1 |
|
| 12a |
172-5795 |
Circuit breaker (OBSOLETE) |
1 |
(20amp) |
| 12b |
N/A |
Not available |
1 |
(10amp circuit breaker) |
| 13 |
181-2040 |
Handle weldment (OBSOLETE) |
1 |
|
| 14 |
999-0188 |
Nut 3/8-16 nylon insert lock zinc plated |
1 |
|
| 15 |
172-0892 |
Spacer guide (OBSOLETE) |
1 |
|
| 16 |
172-0885 |
Handle lock clamp (OBSOLETE) |
1 |
|
| 17 |
272-0373 |
Hardened washer |
1 |
|
| 19 |
181-2041 |
Solid pan head rivet (OBSOLETE) |
1 |
|
| 20 |
181-2042 |
Push nut (OBSOLETE) |
1 |
|
| 21 |
181-0565 |
Cam lock assembly (OBSOLETE) |
1 |
|
| 22 |
172-7380 |
Connecting leg (OBSOLETE) |
1 |
|
| 23 |
172-7380 |
Connecting leg (OBSOLETE) |
1 |
|
| 24 |
172-6986 |
Grommet (OBSOLETE) |
1 |
|
| 25 |
372-3341 |
Nut hex lock (OBSOLETE) |
2 |
|
| 26 |
999-1489 |
Screw 3/8-16 x 1 1/2 hex head stainless steel |
2 |
|
| 27 |
N/A |
Not available |
2 |
(screw 1/4-20 x 5 1/2 hex full thread) |
| 28 |
N/A |
Not available |
2 |
(washer) |
| 29 |
272-5215 |
Washer 17/32 |
2 |
|
| 30 |
999-1416 |
Washer 7/16 flat stainless steel |
8 |
|
| 31 |
172-6271 |
5 in wheel with 3 holes (OBSOLETE) |
2 |
|
| 34 |
181-0314 |
Hub cap (OBSOLETE) |
4 |
|
| 35 |
172-7626 |
6in wheel with 3 holes |
2 |
|
| 36 |
172-7638 |
Axle (OBSOLETE) |
1 |
|
| 37 |
181-0289 |
Insulation Paper |
1 |
|
| 38 |
181-0288 |
Compressed Spring |
2 |
|
| 40 |
181-0286 |
Push switch |
1 |
|
| 41 |
999-0511 |
Screw 6-32 x 1 pan head phillips zinc plated |
2 |
|
| 42 |
N/A |
Not available |
1 |
(125V 15amp 3 wire plug connector) |
| 43 |
999-0412 |
Washer #8 SAE flat |
1 |
|
| 44 |
999-0452 |
Screw 8-32 x 3/8 pan head phillips zinc plated |
1 |
|
| 45 |
999-1152 |
Screw 10-24 x 3/8 pan head phillips thread rolling zinc |
3 |
|
| 46 |
181-0817 |
Loop clamp (OBSOLETE) |
1 |
|
| 47 |
N/A |
Not available |
1 |
(15 inch 14-3 electric cable) |
| 48 |
181-2043 |
12 gauge wire connector (OBSOLETE) |
1 |
|
| 49 |
172-4345 |
Screw 5/16-18 x 1 3/4 phillips pan head |
2 |
|
| 50 |
172-0890 |
Cord hook cap (OBSOLETE) |
1 |
|
| 51 |
172-0891 |
Cord hook body (OBSOLETE) |
1 |
|
| 52 |
999-0593 |
Nut 5/16-18 hex stainless steel |
2 |
|
| 53 |
999-9004 |
Washer 5/16 SAE flat stainless steel |
2 |
|
| 54 |
999-0031 |
Bolt 5/16-18 x 1 hex head grade 5 zinc plated |
2 |
|
| 55 |
172-7637 |
Spacer (OBSOLETE) |
2 |
|
| 56 |
181-0079 |
Screw 5/16-18 x 5/8 socket set lock |
1 |
|
| 57 |
172-7522 |
Pulley (OBSOLETE) |
1 |
|
| 58 |
N/A |
Not available |
1 |
(square key) |
| 59 |
172-7941 |
Belt (OBSOLETE) |
1 |
|
| 61a |
N/A |
Not available |
1 |
(OEM) (14-3 power cord (gray)) |
| 61b |
N/A |
Not available |
1 |
(OEM) (75 foot 14-3 power cord (gray)) |
| 61c |
991-5005 |
14/3 replacement power cord 50 foot (yellow) |
1 |
(NON-OEM) |
| 61d |
991-5001 |
14/3 extension cord 50 foot (yellow) |
1 |
(NON-OEM) |
| 62 |
N/A |
Not available |
1 |
(125V 15amp 3 wire plug connector) |
| 63 |
N/A |
Not available |
1 |
(125V 15amp 3 wire connector) |
| 64 |
999-0389 |
Screw 10-32 x 1 round head slotted zinc plated |
3 |
|
| 65 |
N/A |
Not available |
3 |
(washer) |
| 66 |
181-2044 |
Identification decal (OBSOLETE) |
1 |
|
| 67 |
272-0603 |
Drip cover for motor (OBSOLETE) |
1 |
|
| 68 |
172-7387 |
Motor cover (OBSOLETE) |
1 |
|
| 69 |
172-7410 |
Phenolic spacer (OBSOLETE) |
3 |
|
| 70 |
172-7397 |
Motor cover (OBSOLETE) |
1 |
|
| 71a |
181-2045 |
115V motor (OBSOLETE) |
1 |
|
| 71b |
181-2046 |
230V motor (OBSOLETE) |
1 |
|
| 71c |
172-6823 |
Ring brush asm (OBSOLETE) |
1 |
|
| 71d |
174-4057 |
Carbon brush |
4 |
|
| 71e |
172-2054 |
Brush spring |
4 |
|
| 71f |
172-6267 |
Bridge rectifier (OBSOLETE) |
1 |
|
| 71g |
172-6825 |
Capacitor (OBSOLETE) |
1 |
|
| 72 |
999-0069 |
Nut 5/16-18 hex |
4 |
|
| 73 |
N/A |
Not available |
4 |
(washer) |
| 74 |
172-7771 |
Identification label (OBSOLETE) |
1 |
|
| 75 |
172-7376 |
Frame (OBSOLETE) |
1 |
|
| 76 |
181-2047 |
Belt adjustment bracket (OBSOLETE) |
4 |
|
| 77 |
172-4403 |
Key sq. .25 x 3.00 |
2 |
|
| 78 |
181-2048 |
Retaining ring (OBSOLETE) |
1 |
|
| 79 |
172-6493 |
Ballbearing (OBSOLETE) |
2 |
|
| 80 |
172-7770 |
Grooved pulley (OBSOLETE) |
1 |
|
| 81 |
181-2049 |
Spring tension washer (OBSOLETE) |
1 |
|
| 82 |
172-7377 |
Bearing housing (OBSOLETE) |
1 |
|
| 83 |
372-3342 |
Split washer (OBSOLETE) |
4 |
|
| 84 |
999-0197 |
Screw 1/4-20 x 1 socket head alloy plain finish |
4 |
|
| 85 |
181-2051 |
Dowel pin (OBSOLETE) |
2 |
|
| 86 |
272-0610 |
Woodruff key (OBSOLETE) |
1 |
|
| 87 |
181-2052 |
Clutch and shaft weldment (OBSOLETE) |
1 |
|
| 88 |
172-7940 |
Cover brush (OBSOLETE) |
1 |
|
| 89 |
472-3793 |
BUMPER FM--VINYL BLK 21 |
1 |
|
| 90a |
172-5583 |
19 inch pad driver (OBSOLETE) |
1 |
|
| 90b |
172-5584 |
Pad holder asm (OBSOLETE) |
1 |
|
| 91 |
172-7690 |
Steel bar .179x1.25x6.12L (OBSOLETE) |
1 |
|
| 92 |
182-0034 |
Screw 10-14 x 1/2 pan head plastite |
2 |
|
| 93 |
N/A |
Not available |
1 |
(clamping plate) |
| 94 |
172-6601 |
Screw plate clamping pad |
1 |
|
| 95 |
999-1345 |
Screw 1/4-20 x 1 flat head phillips stainless steel |
3 |
|
| 96 |
172-7627 |
Spacer .315x.50od .13l (OBSOLETE) |
2 |
|
| 98 |
172-7855 |
Weldment bracket filter (OBSOLETE) |
1 |
|
| 99 |
172-7600 |
Filter 4 1/4dia x5 1/4len |
1 |
|
| 100 |
172-7804 |
Vinyl hose (black) |
1 |
|
| 101 |
999-0705 |
Screw 10-24 x 3/4 pan head phillips stainless steel |
1 |
|
| 102 |
997-2008 |
Hose clamp |
2 |
|
| 103 |
999-0817 |
Screw 10-24 x 5/8 round head zinc plated |
2 |
|
| 104 |
172-7858 |
Nozzle (OBSOLETE) |
1 |
|
| 105 |
181-2053 |
Air guard weldment (OBSOLETE) |
1 |
|
| 106 |
172-7939 |
Vinyl Extrusion (OBSOLETE) |
1 |
|
| 107 |
182-0011 |
Foot pedal spring |
1 |
|
| 108 |
172-7943 |
Perferated Screen (OBSOLETE) |
1 |
|
|
|
- Commonly Asked For Parts - 181-9899 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 0.9835 |
999-0412 |
Washer #8 SAE flat |
|
|
| 0.9835 |
999-1152 |
Screw 10-24 x 3/8 pan head phillips thread rolling zinc |
|
|
| 0.9835 |
999-0452 |
Screw 8-32 x 3/8 pan head phillips zinc plated |
|
|
| 0.9835 |
272-5223 |
Wire connector |
|
|
|
|
- Pads - 255-2000 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-2040 |
20 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 02 |
255-2035 |
20 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-2064 |
20 inch Blue ace pad (pkg of 5) |
|
|
| 04 |
255-2042 |
20 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 05 |
255-2012 |
20 inch Cure white pad (pkg of 5) |
|
|
| 06 |
255-2077 |
20 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 07 |
255-2038 |
20 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 08 |
255-2021 |
20 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 09 |
255-2050 |
20 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 10 |
255-2065 |
20 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 11 |
255-2030 |
20 inch jaguar burnishing pad (pkg of 5) |
|
|
| 12 |
255-2067 |
20 inch Laminated 2001 Gorilla polish pad (pkg of 5) |
|
|
| 13 |
255-2087 |
20 inch Melamine Mela-Kleen pad (pkg of 2) |
|
|
| 14 |
255-2068 |
20 inch Microclean daily cleaning pad (pkg of 2) |
|
|
| 15 |
255-2069 |
20 inch Micropolish polishing and burnishing pad (pkg of 2) |
|
|
| 16 |
255-2090 |
20 inch premium black stripping pad (pkg of 5) |
|
|
| 17 |
255-2070 |
20 inch premium blue cleaning pad (pkg of 5) |
|
|
| 18 |
255-2092 |
20 inch premium brown stripping pad (pkg of 5) |
|
|
| 19 |
255-2080 |
20 inch premium green scrubbing pad (pkg of 5) |
|
|
| 20 |
255-2060 |
20 inch premium red scrubbing pad (pkg of 5) |
|
|
| 21 |
255-2052 |
20 inch premium tan polishing pad (pkg of 5) |
|
|
| 22 |
255-2020 |
20 inch premium white polishing pad (pkg of 5) |
|
|
| 23 |
255-2011 |
20 inch superspeed rubberized pad (pkg of 5) |
|
|
| 24 |
255-2095 |
20 inch razorback stripping pad (pkg of 5) |
|
|
| 25 |
255-2047 |
20 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 26 |
255-2055 |
20 inch Ruff non-abrasive brush pad (pkg of 2) |
|
|
| 27 |
255-2023 |
20 inch sand screen driver pad (pkg of 2) |
|
|
| 28 |
255-0157 |
20 inch Professional sand screen 100 grit (pkg of 10) |
|
|
| 29 |
255-0021 |
20 inch Professional sand screen 120 grit (pkg of 10) |
|
|
| 30 |
255-0158 |
20 inch Professional sand screen 150 grit (pkg of 10) |
|
|
| 31 |
255-0159 |
20 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 32 |
255-0160 |
20 inch Professional sand screen 220 grit (pkg of 10) |
|
|
| 33 |
255-0161 |
20 inch Professional sand screen 400 grit (pkg of 10) |
|
|
| 34 |
255-0030 |
20 inch Professional sand screen 60 grit (pkg of 10) |
|
|
| 35 |
255-0020 |
20 inch Professional sand screen 80 grit (pkg of 10) |
|
|
| 36 |
255-0249 |
20 inch Superscreen sand screen 100 grit (pkg of 10) |
|
|
| 37 |
255-0250 |
20 inch Superscreen sand screen 120 grit (pkg of 10) |
|
|
| 38 |
255-0251 |
20 inch Superscreen sand screen 150 grit (pkg of 10) |
|
|
| 39 |
255-0252 |
20 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 40 |
255-0253 |
20 inch Superscreen sand screen 220 grit (pkg10) (OBSOLETE) |
|
|
| 41 |
255-0254 |
20 inch Superscreen sand screen 400 grit (pkg of 10) |
|
|
| 42 |
255-0247 |
20 inch Superscreen sand screen 60 grit (pkg of 10) |
|
|
| 43 |
255-0248 |
20 inch Superscreen sand screen 80 grit (pkg of 10) |
|
|
| 45 |
255-9591 |
20 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 46 |
255-9588 |
20 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 47 |
255-9585 |
20 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 48 |
255-9589 |
20 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 49 |
255-9586 |
20 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 50 |
255-9587 |
20 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 51 |
255-9590 |
20 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 52 |
255-9645 |
20 inch Diamond starter pack (1 of each grit) |
|
|
| 53 |
255-2082 |
20 inch Turbostrip segmented rotary pad (pkg of 4) |
|
|
| 54 |
255-2015 |
20 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 55 |
255-2016 |
20in 2001 Duala clean& shine pad-high speed(pkg 5) (OBSOLETE |
|
|
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
