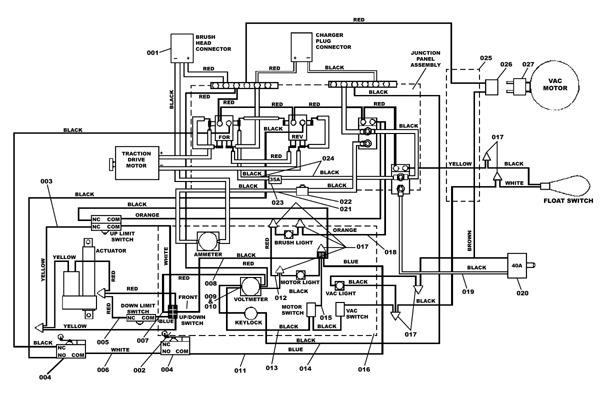

Wiring Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

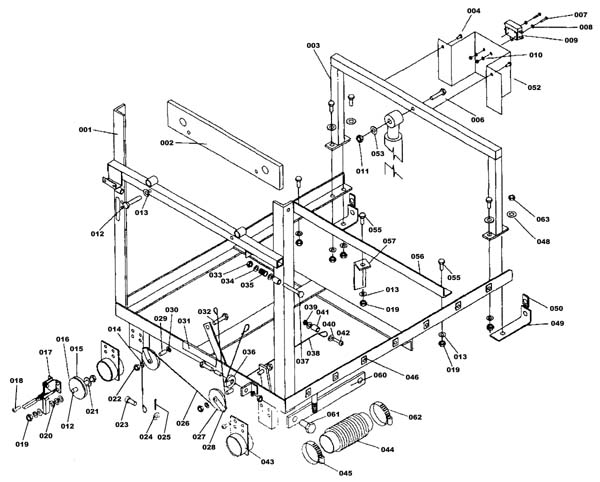

Lower Chassis - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

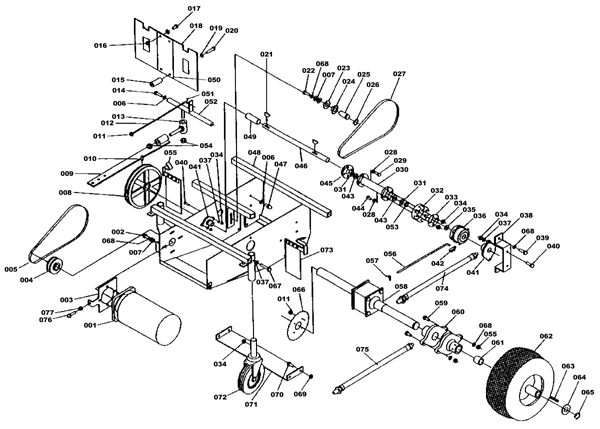

Upper Chassis - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

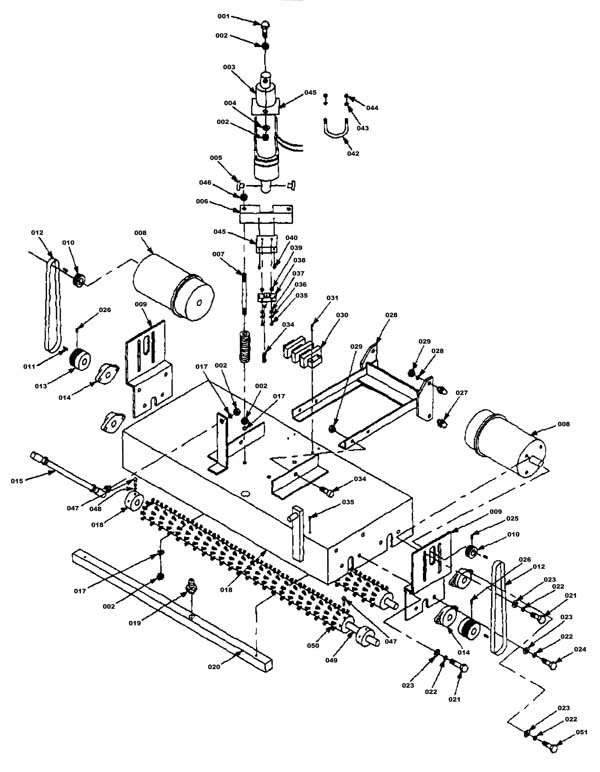

Brush Head Assembly - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

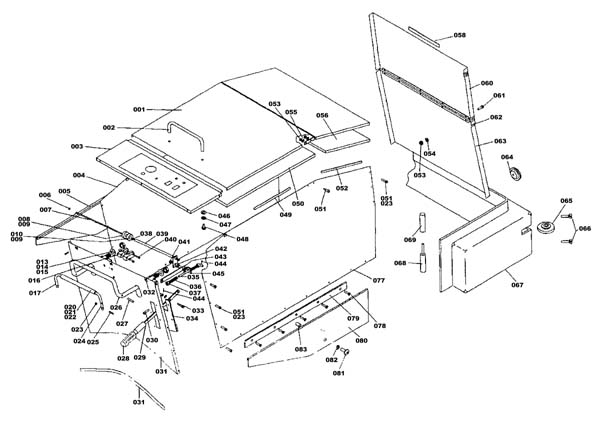

Outer Cover Assembly - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

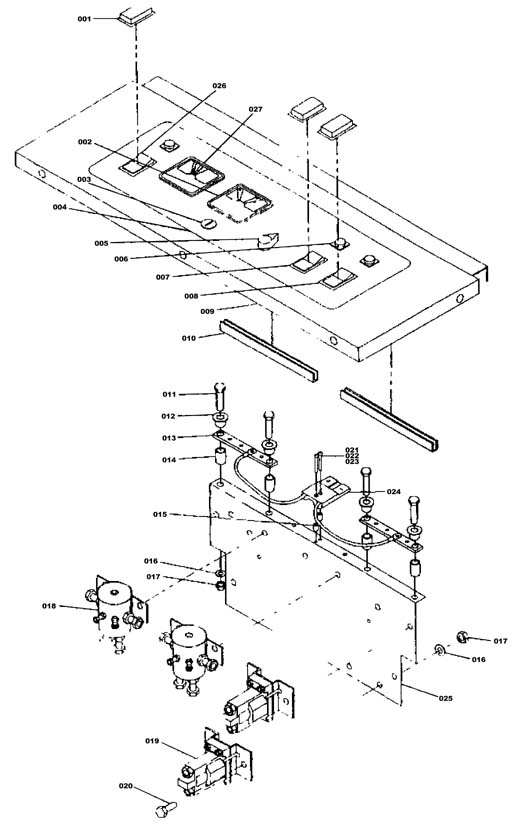

Instrument Panel Assembly - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

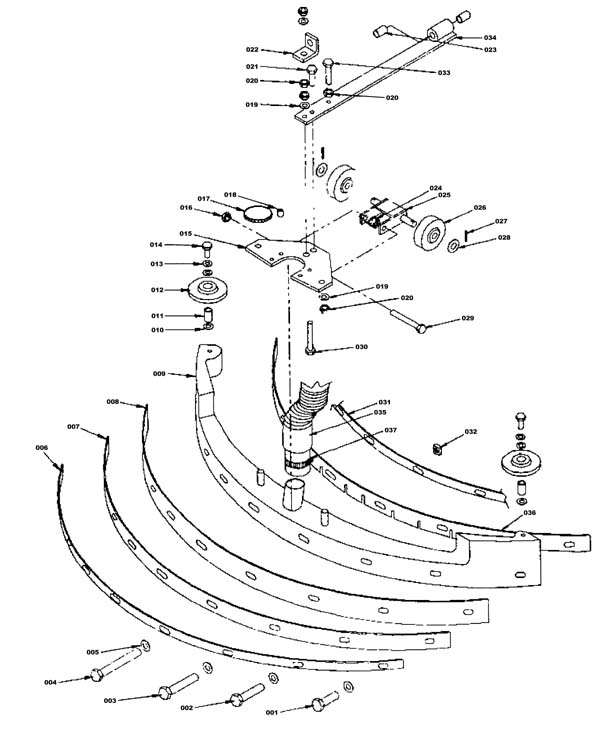

Squeegee Assembly - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

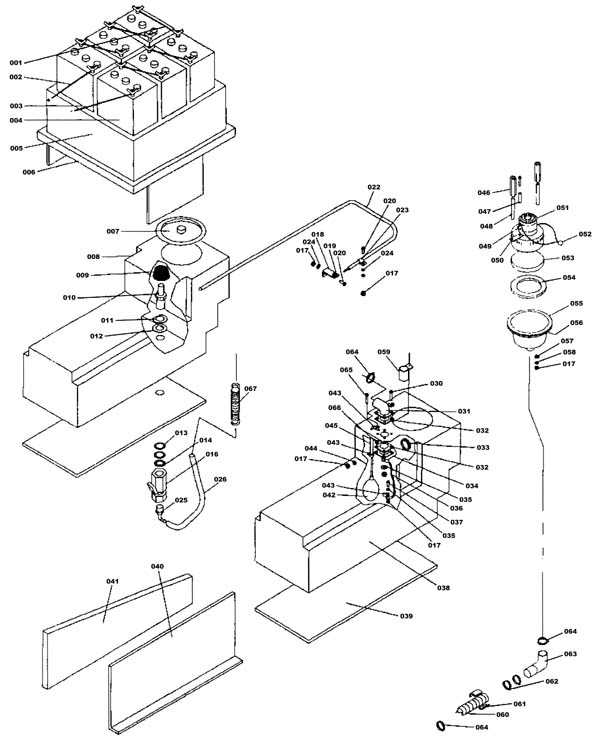

Tank Assemblies - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
- Batteries, Brushes and Chargers - 181-8869 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
996-0174 |
13 inch heavy grit stripping brush - 80 grit |
2 |
|
| 02 |
996-0125 |
13 inch medium grit scrubbing brush - 180 grit |
2 |
|
| 03 |
996-0101 |
13 inch lite grit scrubbing brush - 500 grit |
2 |
|
| 04 |
996-0276 |
13 inch polypropelene scrubbing brush |
2 |
|
| 05 |
996-0335 |
13 inch Pad driver |
2 |
|
| 06 |
996-0339 |
Drive lugs - metal |
2 |
|
|
|
- Pads - 255-1400 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-1440 |
14 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 02 |
255-1435 |
14 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-1464 |
14 inch Blue ace pad (pkg of 5) |
|
|
| 04 |
255-1442 |
14 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 05 |
255-1412 |
14 inch Cure white pad (pkg of 5) |
|
|
| 06 |
255-1477 |
14 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 07 |
255-1438 |
14 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 08 |
255-1421 |
14 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 09 |
255-1450 |
14 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 10 |
255-1465 |
14 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 11 |
255-1430 |
14 inch jaguar burnishing pad (pkg of 5) |
|
|
| 12 |
255-1487 |
14 inch Melamine Mela-Kleen pad (pkg of 2) |
|
|
| 13 |
255-1490 |
14 inch premium black stripping pad (pkg of 5) |
|
|
| 14 |
255-1470 |
14 inch premium blue cleaning pad (pkg of 5) |
|
|
| 15 |
255-1492 |
14 inch premium brown stripping pad (pkg of 5) |
|
|
| 16 |
255-1480 |
14 inch premium green scrubbing pad (pkg of 5) |
|
|
| 17 |
255-1460 |
14 inch premium red scrubbing pad (pkg of 5) |
|
|
| 18 |
255-1452 |
14 inch premium tan polishing pad (pkg of 5) |
|
|
| 19 |
255-1420 |
14 inch premium white polishing pad (pkg of 5) |
|
|
| 20 |
255-1411 |
14 inch superspeed rubberized pad (pkg of 5) |
|
|
| 21 |
255-1495 |
14 inch razorback stripping pad (pkg of 5) |
|
|
| 22 |
255-1447 |
14 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 23 |
255-1455 |
14 inch Ruff non-abrasive brush pad (pkg of 2) |
|
|
| 24 |
255-1423 |
14 inch sand screen driver pad (pkg of 2) |
|
|
| 25 |
255-0120 |
14 inch Professional sand screen 100 grit (pkg of 10) |
|
|
| 26 |
255-0121 |
14 inch Professional sand screen 120 grit (pkg of 10) |
|
|
| 27 |
255-0122 |
14 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 28 |
255-0119 |
14 inch Professional sand screen 60 grit (pkg of 10) |
|
|
| 29 |
255-0205 |
14 inch Superscreen sand screen 100 grit (pkg of 10) |
|
|
| 30 |
255-0206 |
14 inch Superscreen sand screen 120 grit (pkg of 10) |
|
|
| 31 |
255-0207 |
14 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 32 |
255-0204 |
14 inch Superscreen sand screen 60 grit (pkg of 10) |
|
|
| 33 |
255-1424 |
14 x 20 inch Tiger carpet bonnet (pkg of 2) |
|
|
| 34 |
255-9549 |
14 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 35 |
255-9546 |
14 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 36 |
255-9543 |
14 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 37 |
255-9547 |
14 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 38 |
255-9544 |
14 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 39 |
255-9545 |
14 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 40 |
255-9548 |
14 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 41 |
255-9639 |
14 inch Diamond starter pack (1 of each grit) |
|
|
| 42 |
255-1482 |
14 inch Turbostrip segmented rotary pad (pkg of 4) |
|
|
| 43 |
255-1415 |
14 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 44 |
255-1416 |
14 inch 2001 Duala clean and shine pad-high speed (pkg of 5) |
|
|
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
