Parts List Complete for KENT Champion 28

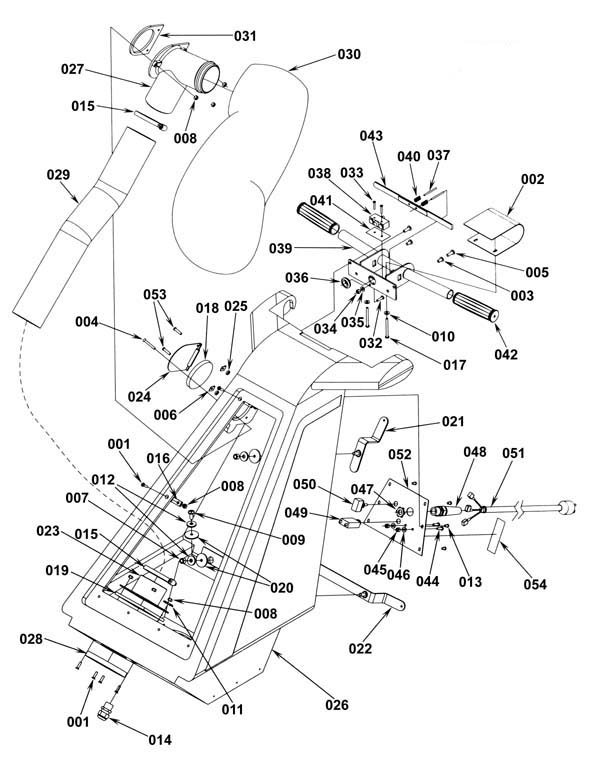

Handle Assembly - 172-2019
RefNbr Part Number Description Req Notes
001 999-0417 Screw 10-24 x 3/4 flat head slotted zinc plated 6
002 181-0267 Switchbox weldment 1
003 999-0508 Screw 1/4-20 x 1/2 pan head phillips zinc plated 2
005 999-0705 Screw 10-24 x 3/4 pan head phillips stainless steel 2
006 N/A Not available 2 (P clamp)
007 999-0430 Nut 5/16-18 hex jam plain finish 3
008 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 9
009 999-0399 Screw 5/16-18 x 3/4 pan head phillips zinc plated 2
010 999-0053 Washer #10 split lock plain finish 2
011 172-4536 Nut 1/2-14 conduit lock 2
012 172-2067 Washer 11/32 x 1/8 flat 5
013 999-0332 Screw 10-24 x 5/8 pan head phillips stainless steel 6
014 172-4018 Strain relief 2
015 997-2009 Hose clamp 2
016 181-0267 Switchbox weldment 2
017 272-5203 Screw 10-24 X 2 1/4 phillips pan 2
018 N/A Not available 1 (Foam gasket)
019 181-0271 Foam gasket 1
020 272-5204 Washer 1/4 x 1 3/8 x 15/16 neoprene 1
021 N/A Not available 1 (Not available) Cord hook weldment
022 181-0273 Lower Cord Hook Weldment (OBSOLETE) 1
023 181-0274 Hose connector weldment 1
024 N/A Not available 1 (Accessory door weldment)
025 N/A Not available 2 (Spacer)
026 N/A Not available 1 (Upper tank)
027 N/A Not available 1 (Elbow valve)
028 181-0279 Foam gasket 1
029 181-0280 Vac hose 1
030a 172-4198 Disposable dust bag package of 5 1
030b 172-2883 Bag clip for cloth bag 1 Slides on the bottom of cloth bag
030c 172-6255 Paper bags (pkg of 6) 1 for SN 981358763 (OEM)
030d 991-9032 Paper vacuum bags (pkg of 3) 1 (NON-OEM)
031 N/A Not available 1 (Foam gasket)
032 999-0477 Screw 10-24 x 5/16 truss head phillips zinc 1
033 182-0012 Screw 10-14 x .88 phillips pan plastite 2
034 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 1
035 999-0053 Washer #10 split lock plain finish 1
036 181-0284 Grommet (OBSOLETE) 1
037 181-0285 Pin 2
038 181-0286 Push switch 1
039 181-0287 Handle Weldment 1
040 181-0288 Compressed Spring 2
041 181-0289 Insulation Paper 1
042 181-0290 Handle grip 2
043 181-0291 Trigger 1
044 999-0477 Screw 10-24 x 5/16 truss head phillips zinc 2
045 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 2
046 999-0053 Washer #10 split lock plain finish 2
047 172-4536 Nut 1/2-14 conduit lock 1
048 174-3053 Strain relief 1
049 172-2160 10amp circuit breaker 1
050 181-0294 Toggle switch 1
051a 181-0295 14/3 power cord 75 foot 1
051b 991-5005 14/3 replacement power cord 50 foot (yellow) 1 (NON-OEM) (does not include strain relief)
051c 991-5001 14/3 extension cord 50 foot (yellow) 1 (NON-OEM)
052 181-0296 Access cover 1
053 182-0012 Screw 10-14 x .88 phillips pan plastite 2
054 181-0297 Warning decal 1
N/S 181-0292 Electrical assembly 1 includes items 044 - 052
N/S 181-0283 Handle assembly 1 includes items 032 - 043

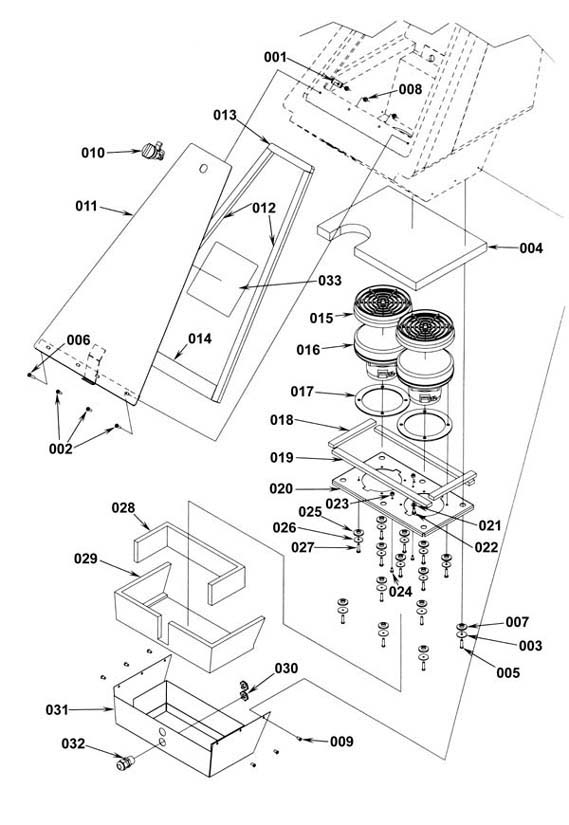

Vac Motor Assembly - 172-2020
RefNbr Part Number Description Req Notes
001 172-2122 P clamp 1
002 999-0269 Screw 10-24 x 5/8 pan head phillips zinc plated 3
003 N/A Not available 6 (Washer)
004 181-0298 Bag guard 1
005 182-0012 Screw 10-14 x .88 phillips pan plastite 6
006 999-0400 Screw 10-24 x 1 pan head phillips zinc plated 1
007 181-0299 Bushing 6
008 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 4
009 999-0332 Screw 10-24 x 5/8 pan head phillips stainless steel 12
010 181-0301 Twist latch 1
011 181-0302 Door Weldment 1
012 181-0303 Gasket 2
013 999-0332 Screw 10-24 x 5/8 pan head phillips stainless steel 12
014 181-0304 Gasket 1
015 991-5119 Vacuum motor filter 2
016a 172-6251 120V vacuum motor 2
016b 991-1206 120V 1 stage vacuum motor peripheral 2 (NON-OEM)
017 172-0351 Vacuum motor gasket 2
018 181-0305 Foam Gasket 2
019 181-0306 Foam Gasket 2
020 181-0307 Vac Motor Mounting Plate 1
021 999-0053 Washer #10 split lock plain finish 1
022 999-0545 Screw 10-24 x 1/2 pan head phillips self-tapping 1
023 999-1036 Nut 8-32 hex NTM nylon insert jam lock stainless steel 2
024 999-0452 Screw 8-32 x 3/8 pan head phillips zinc plated 2
025 181-0299 Bushing 8
026 999-0588 Washer 7/8 flat stainless steel 8
027 999-0400 Screw 10-24 x 1 pan head phillips zinc plated 8
028 181-0310 Foam Gasket 1
029 181-0311 Foam Gasket 1
030 172-4536 Nut 1/2-14 conduit lock 2
031 181-0312 Muffler weldment 1
032 172-4018 Strain relief 1
033 181-0313 Wiring decal (OBSOLETE) 1
KIT 181-0300 Door assembly 1 includes items 010 - 014
KIT 181-0309 Muffler assembly 1 includes items 028 - 032
KIT 272-5210 Vacuum motor assembly 1 includes items 015 - 027

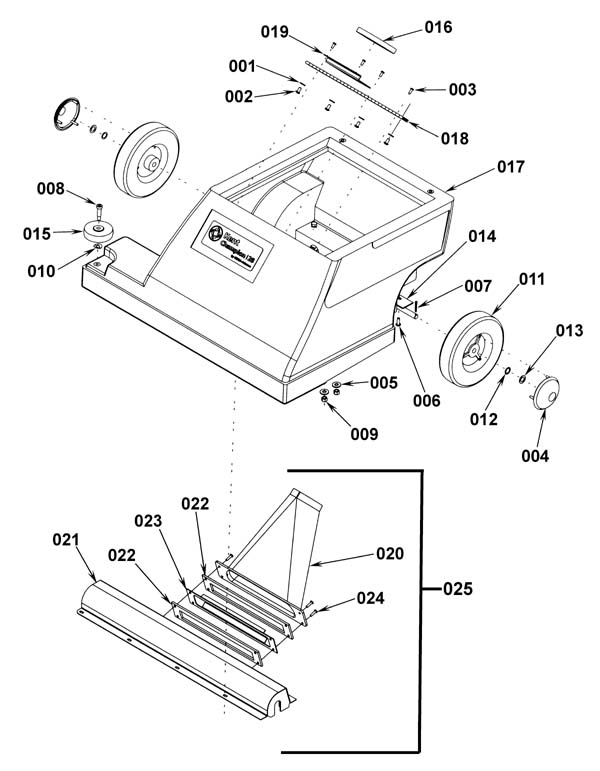

Base Housing - 172-2021
RefNbr Part Number Description Req Notes
001 999-0123 Washer 1/4 SAE flat zinc plated 4
002 999-0508 Screw 1/4-20 x 1/2 pan head phillips zinc plated 4
003 999-0413 Screw 10-32 x 1/2 pan head slotted zinc plated 4
004 181-0314 Hub cap (OBSOLETE) 2
005 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 4
006 999-0705 Screw 10-24 x 3/4 pan head phillips stainless steel 2
007 997-2503 Cotter pin 1/8 x 1 2
008 999-1256 Screw 5/16-18 x 3/8 x 1 socket head shoulder 1
009 999-0430 Nut 5/16-18 hex jam plain finish 4
010 172-6237 Washer 3/8 bowed (OBSOLETE) 1
011 181-0315 8 inch wheel 1
012 272-5215 Washer 17/32 2
013 181-0109 Washer 17/32 x 7/8 x 1/32 flat 2
014 181-0316 Rear axle weldment 1
015 181-0317 Wheel 1
016 181-0279 Foam gasket 1
017 272-2861 28 inch upright base 1
018 181-0319 Butt hinge 1
019 181-0320 Intake tube bracket 1
020 181-0322 Intake tube 1
021 181-0323 Brush housing weldment 1
022 181-0324 Foam gasket 2
023 181-0325 Steel plate 1
024 999-0705 Screw 10-24 x 3/4 pan head phillips stainless steel 1
025 181-0321 Brush housing assembly 1 Includes items 020-024
N/S 181-0321 Brush housing assembly 1 includes items 20 - 24

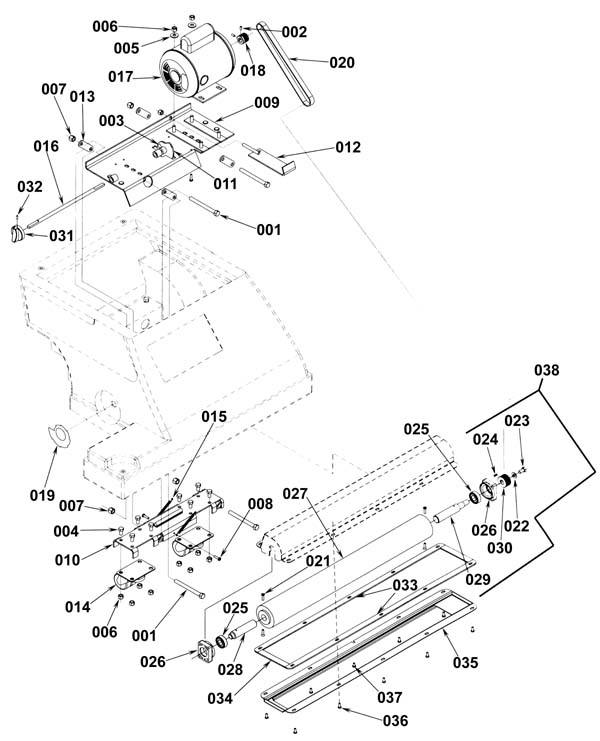

Brush Motor Assembly - 172-2022
RefNbr Part Number Description Req Notes
001 N/A Not available 4 (Not available) Screw
002 999-0903 Screw 10-24 x 3/8 knurled point socket set plain finish 2
003 999-0157 Screw 5/16-18 x 3/8 cup point socket set alloy plain finish 1
004 999-0030 Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated 8
005 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 5
006 999-0430 Nut 5/16-18 hex jam plain finish 11
007 999-0188 Nut 3/8-16 nylon insert lock zinc plated 4
008 999-1104 Screw 10-24 x 3/4 pan head phillips thread rolling zinc 4
009 181-0326 Motor bracket weldment 1
010 181-0327 Caster bracket weldment 1
011 181-0328 Height adjustment weldment 1
012 181-0329 Adjustment bracket weldment 1
013 181-0330 Steel bar 4
014 181-0331 Caster wheel 2
015 181-0332 Extension spring 2
016 181-0333 Height adjustment shaft 1
017a 181-0334 120V 1/3 HP Motor 1
017b 181-0335 Replacement capacitor 1
018 181-0336 Pulley 1
019 181-0337 Height adjustment instruction decal 1
020 181-0338 Poly V belt 1
021 999-0417 Screw 10-24 x 3/4 flat head slotted zinc plated 4
022 999-0412 Washer #8 SAE flat 1
023 999-0030 Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated 1
024 181-0339 Square keyway 1
025 181-0340 Ball bearing 2
026 181-0341 Bearing mount 2
027 181-0342 Cylindrical brush 1
028 181-0343 Brush shaft 1
029 181-0344 Brush shaft 1
030 181-0345 Pulley 1
031 172-6088 Knob (OBSOLETE) 1
032 999-0431 Screw 8-32 x 1/4 set socket cup point alloy plain finish 1
033 181-0346 Foam gasket 2
034 181-0347 Foam gasket strip 2
035 272-7351 28 inch bottom plate 1
036 999-0413 Screw 10-32 x 1/2 pan head slotted zinc plated 7
037 999-0409 Screw 10-24 x 3/8 pan head slotted zinc plated 1
038 181-0670 Brush assembly 1 includes 021 thru 030

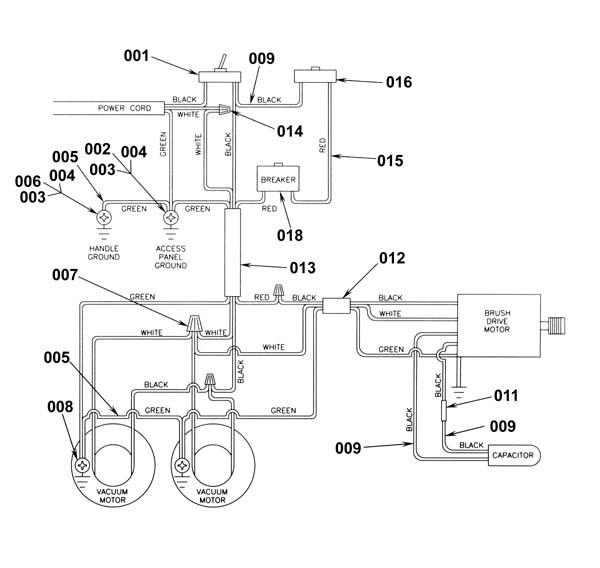

Wiring Diagram - 172-2023
RefNbr Part Number Description Req Notes
001 181-0294 Toggle switch 1
002 999-0705 Screw 10-24 x 3/4 pan head phillips stainless steel 1
003 999-0053 Washer #10 split lock plain finish 6
004 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 6
005 181-0350 Wire Assembly (OBSOLETE) 2
006 999-0269 Screw 10-24 x 5/8 pan head phillips zinc plated 1
007 272-5223 Wire connector 1
008 999-0409 Screw 10-24 x 3/8 pan head slotted zinc plated 2
009 181-0351 Wire assembly 1
011 181-0353 Conductor splice (OBSOLETE) 1
012 181-0354 Electric cable 1
013 181-0355 Wire assembly (OBSOLETE) 1
014 172-4513 Wire connector 3
015 181-0356 Wire Assembly 1
016 181-0286 Push switch 1
018 172-2160 10amp circuit breaker 1
029b 991-9015 Paper vacuum bags (pkg of 10) (OBSOLETE) 1 (NON-OEM)
