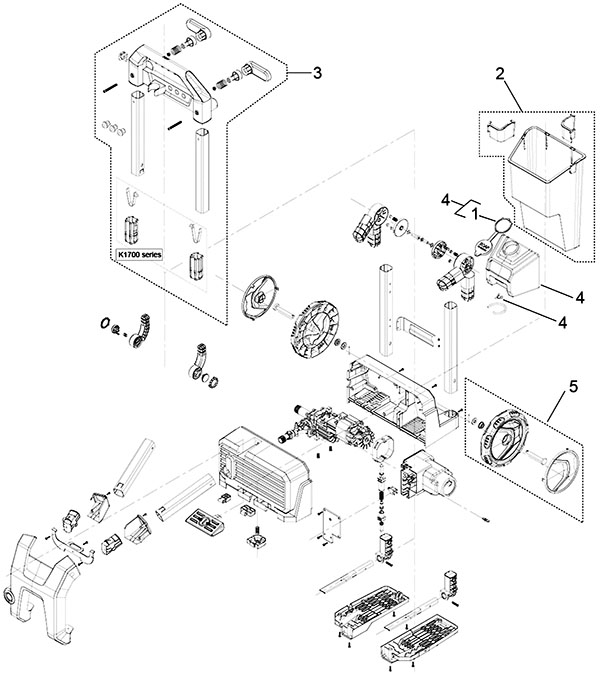

Body Assembly - 173-2653 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
173-0725 |
Soap tank cover |
1 |
|
| 2b |
173-0727 |
Bucket (gray) |
1 |
|
| 4 |
173-0729 |
Detergent tank kit |
1 |
(includes 1) |
| 5 |
173-0730 |
8 inch wheel kit |
1 |
|
|
|
Electric Box Assembly - 173-2654 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
173-0731 |
Ground fault circuit interrupter |
1 |
|
|
|

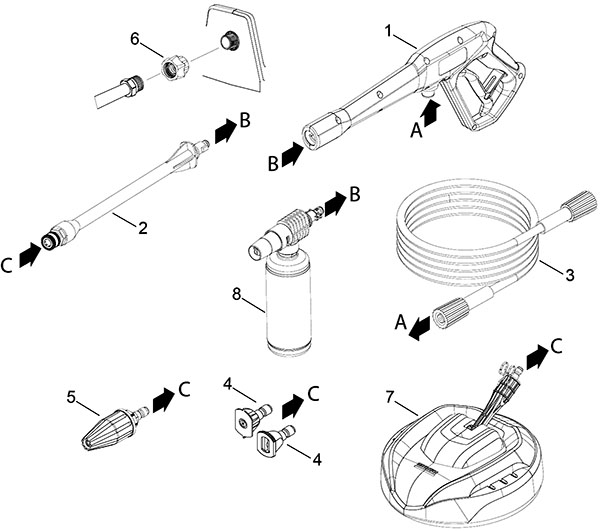

Accessories Assembly - 173-2655 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 3 |
373-3051 |
High pressure hose |
1 |
|
| 4 |
173-0733 |
Nozzle (pkg of 2) |
1 |
|
| 5 |
173-0734 |
Turbo nozzle |
1 |
|
| 6 |
173-0735 |
Garden hose connection (metal) |
1 |
|
| 7 |
173-0736 |
11 inch surface cleaner |
1 |
|
|
|
- Commonly Asked For Parts - 273-9947 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
373-3051 |
High pressure hose |
|
|
|
|
