Parts List Complete for KARCHER G1800LB

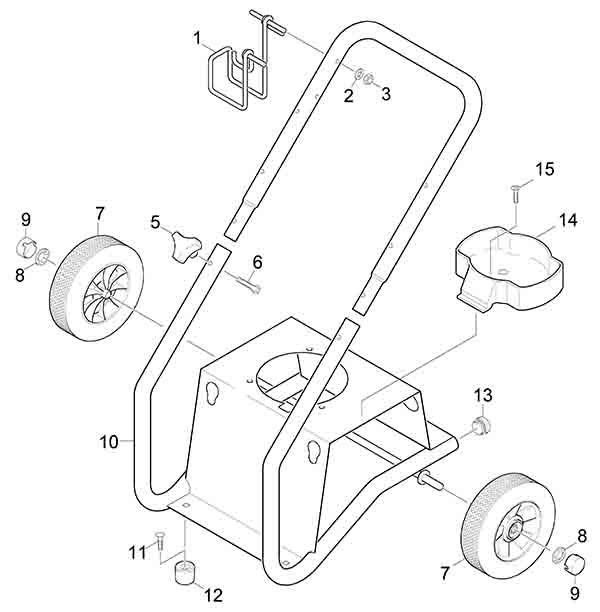

Frame Assembly - 173-6317
RefNbr Part Number Description Req Notes
1 273-7962 Bracket 1
2 273-7963 Washer 2
3 273-7964 Nut 2
5 273-7965 Control knob 2
6 273-7966 Screw 1
7 273-7967 Wheel 2
8 273-7968 Quick fastener (OBSOLETE) 2
9 273-7969 Wheel cab 2
10 273-7970 Frame 1
12 273-7971 Rubber buffer 2
13 273-7972 Plug 2
14 273-7973 Detergent tray 1
15 273-7974 Screw 1

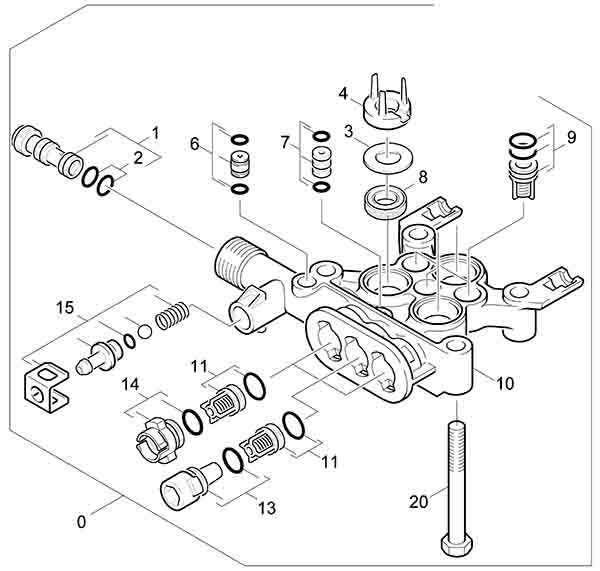

Cylinder Head Assembly - 173-6318
RefNbr Part Number Description Req Notes
1 273-7975 Nozzle insert 1
2 273-7976 Gasket 2
3 273-7977 Washer 3
4 273-7978 Washer (OBSOLETE) 3
6 273-7979 Throttle 1
7 273-7980 Joining piece 1
8 273-7981 Grooved ring 3
9 273-7982 Valve 3
10 273-7983 Cylinder head 1
11 273-7984 Pressure valve 3
13 273-7985 Plug 1
14 273-7986 Plug 1
15 273-7987 Spare part set 1
20 273-7988 Screw M8 x 75-8.8 hex head 4
0 273-7989 Pump assembly 1

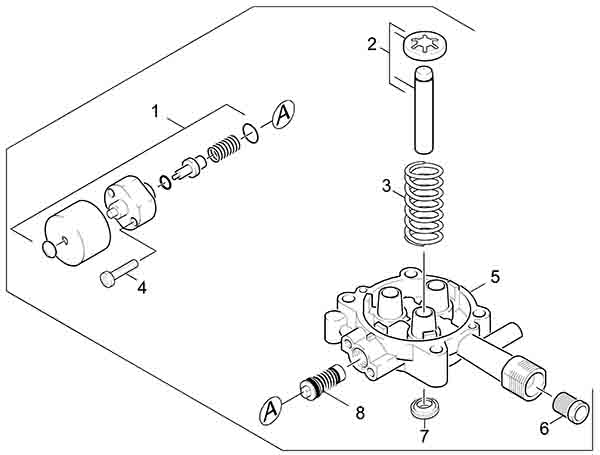

Piston Assembly - 173-6319
RefNbr Part Number Description Req Notes
1 273-7990 Valve 1
2 273-7991 Piston 3
3 273-7992 Pressure spring 3
4 273-9446 Screw M6 x 32 torx drive pan head 2
5 273-7994 Piston guidance (OBSOLETE) 1
6 273-7995 Strainer 1
7 273-7996 Grooved ring 3
8 273-7997 Spill valve 1

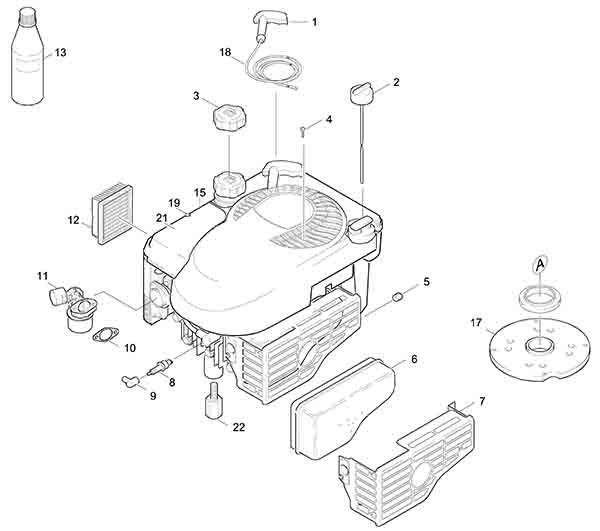

Motor Assembly - 173-6320
RefNbr Part Number Description Req Notes
1 273-7998 Starter cord 1
2 273-7999 Oil dip rod 1
3 273-8000 Tank cap 1
4 273-8001 Screw (OBSOLETE) 1
5 273-8002 Drain screw (OBSOLETE) 1
6 273-8003 Exhaust (OBSOLETE) 1
7 273-8004 Protective grille 1
8 273-8005 Ignition plug (OBSOLETE) 1
9 273-8006 Spark plug connector 1
10 273-8007 Seal (OBSOLETE) 1
11 273-8008 Carburetor 1
12 273-8009 Air filter element 1
13 273-8010 Engine oil 1L 1
15 273-8011 Covering cap (OBSOLETE) 1
17 273-8012 Flange 1
18 273-8013 Starter cord 1
19 273-8014 Screw 1
21 273-8015 Filter cover 1
22 273-8016 Bolt 1

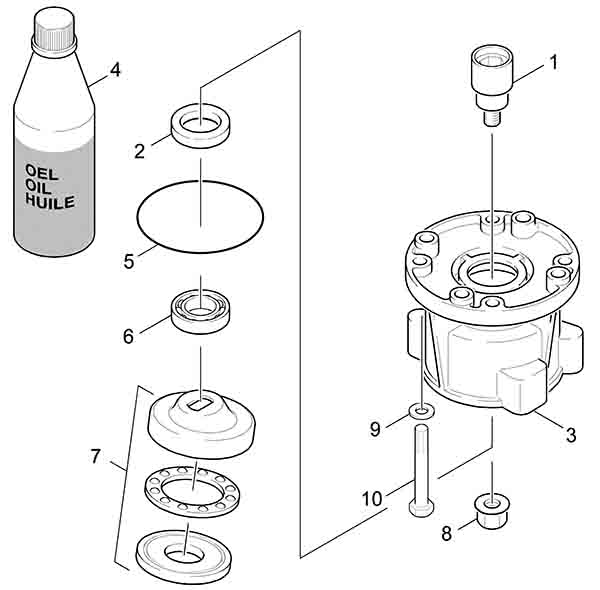

Gear Assembly - 173-6321
RefNbr Part Number Description Req Notes
1 273-8017 Coupler 1
2 273-8018 Radial shaft seal ring 1
3 273-8019 Vertical housing 1
4 273-8010 Engine oil 1L 1
5 273-8020 Gasket 1
6 273-9453 Ball bearing 1
7 273-8022 Wobble plate 1
8 273-8023 Nut (OBSOLETE) 1
9 273-9455 Washer 4
10 273-8025 Screw 4

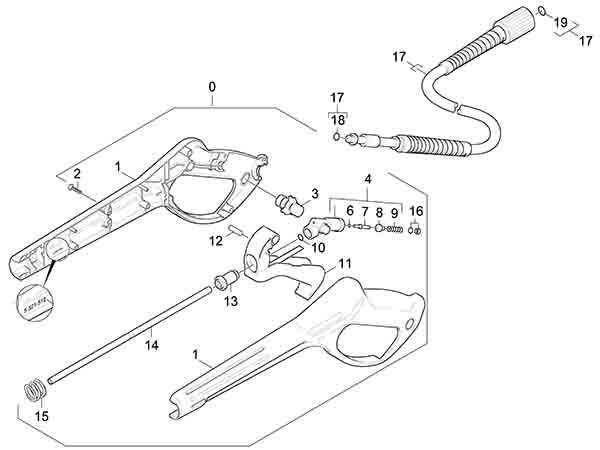

Trigger Gun Assembly - 173-6322
RefNbr Part Number Description Req Notes
0 273-8026 Pistol 1
1 273-8027 Handles 1
2 173-2946 Screw M4-.7 x 13mm pan head 9
3 273-8028 Lever 1
4 273-8029 Manifold 1
6 273-8030 Gasket 1
7 273-8031 Bar 1
8 273-8032 Valve disc 1
9 273-8033 Helical spring 1
10 273-8034 Gasket 1
11 273-8035 Lever 1
12 273-8036 Pin 1
13 273-8037 Sleeve 1
14 273-8038 Tube pistol 1
15 273-8039 Pressure spring 1
16 273-8040 Gasket 1
17 273-8041 High pressure hose 1
18 273-8042 Gasket (OBSOLETE) 1
19 273-3838 O-ring set 1

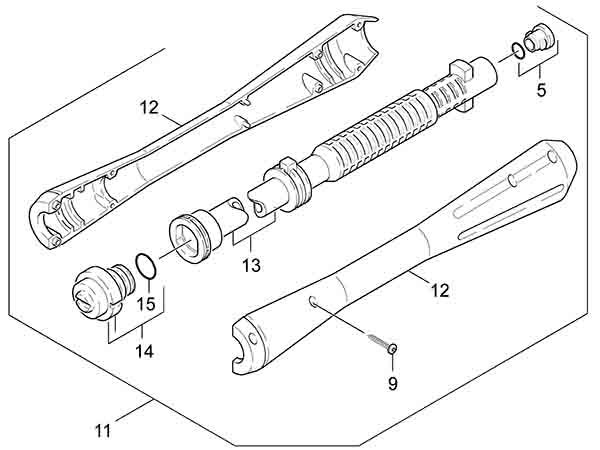

Jet Pipe Assembly - 173-6323
RefNbr Part Number Description Req Notes
5 273-2131 Gasket set 1
9 173-2946 Screw M4-.7 x 13mm pan head 8
11 273-8045 Jet pipe 1
12 273-8046 Handles 1
13 273-8047 Jet pipe 1
14 273-8048 Nozzle cap 1
15 273-8049 Gasket 1
