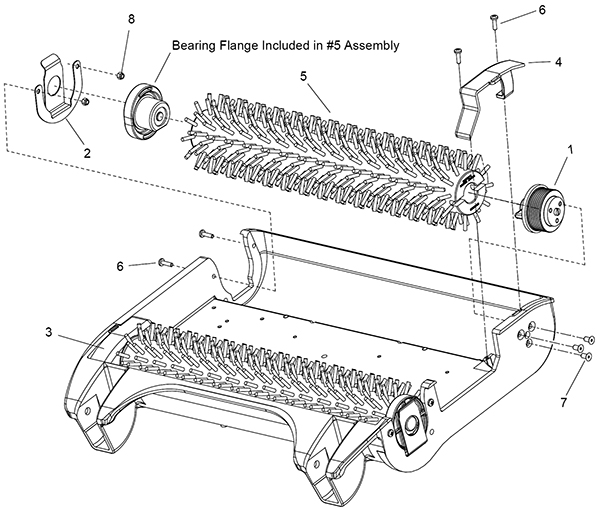

Brush Assembly-Model 1.006-713.0 - 273-7430 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
273-7174 |
Brush drive assembly |
2 |
|
| 2 |
173-8688 |
Brush spring clip |
2 |
(service part) (includes 1 clip, 2 screws, and 2 nuts) |
| 3 |
273-5424 |
Right hand belt cover |
1 |
|
| 4 |
273-5425 |
Left hand belt cover |
1 |
|
| 5a |
273-0095 |
Brush and hub assembly |
2 |
|
| 5c |
373-9229 |
12 row brush |
1 |
|
| 6 |
173-8687 |
Screw M4 x 14mm pan head phillips |
8 |
|
| 7 |
273-5426 |
Screw M5 x 10mm pan head stainless steel |
6 |
|
| 8 |
999-0954 |
Nut M4-.7 nylon insert lock stainless steel |
4 |
|
|
|

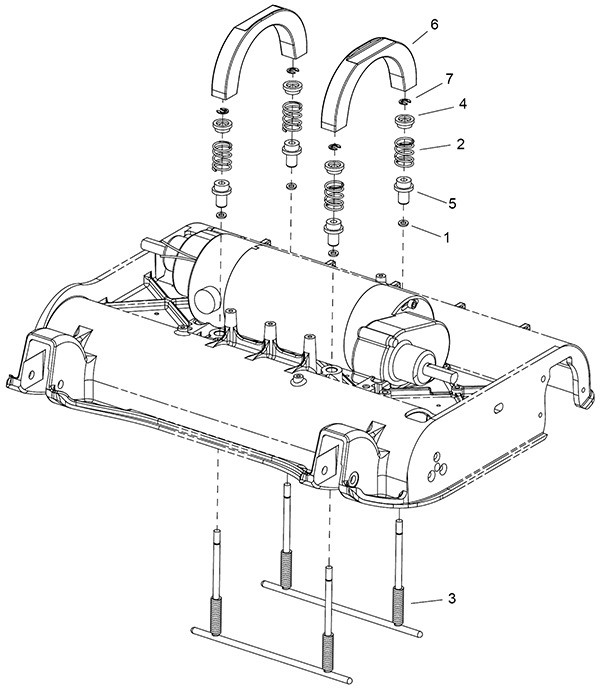

Lifting Assembly-Model 1.006-713.0 - 273-7431 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
273-7175 |
Compression spring |
4 |
|
| 4 |
273-5430 |
Flanged bearing |
4 |
|
| 5 |
273-5432 |
Flanged bearing |
4 |
|
| 6 |
273-5428 |
Crossover push bracket |
2 |
|
| 7 |
273-5429 |
Retaining ring |
4 |
|
|
|

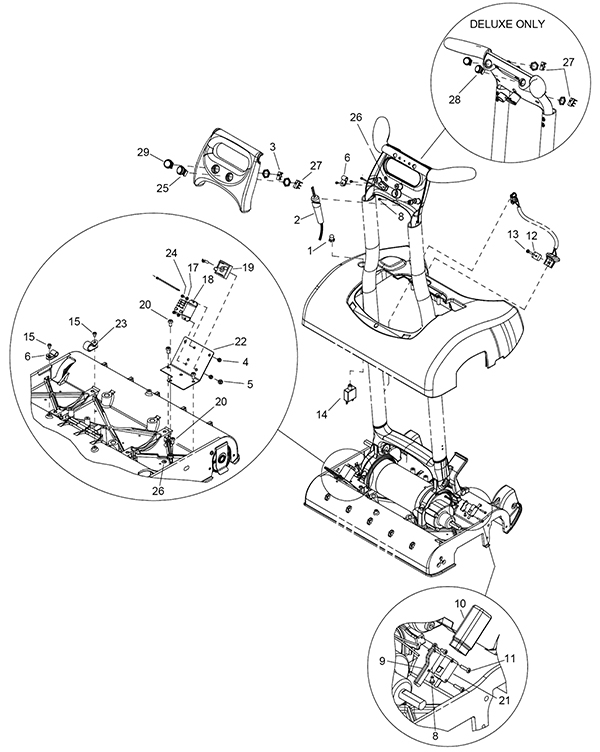

120V Electrical Assembly-Model 1.006-713.0 - 273-7432 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
189-0312 |
3/8 inch circuit breaker boot |
1 |
|
| 2a |
273-8781 |
SJT cord set 18/3 x 40 feet (yellow) |
1 |
(oem) |
| 2b |
991-5008 |
18/3 replacement power cord 50 foot (beige) |
1 |
(non oem) |
| 2c |
991-5100 |
18/3 power cord 40 foot (blue) |
1 |
(non oem) |
| 3 |
273-5462 |
Switch with coupler |
1 |
|
| 4 |
999-1161 |
Nut M3-.5 hex nylock stainless steel |
2 |
|
| 5 |
999-0954 |
Nut M4-.7 nylon insert lock stainless steel |
1 |
|
| 6 |
173-1800 |
5/16 nylon clamp (OBSOLETE) |
2 |
|
| 8 |
273-5441 |
Screw M3 x 6mm button socket head (OBSOELTE) |
2 |
|
| 9 |
273-5442 |
Switch bracket |
1 |
|
| 10 |
273-5443 |
Switch bracket cover |
1 |
|
| 11 |
273-5444 |
Screw M3 x 12 button socket head |
2 |
|
| 13 |
273-5446 |
Screw M4 x 20mm pan head phillips |
1 |
|
| 14 |
273-5447 |
8amp circuit breaker |
1 |
|
| 15 |
273-5448 |
Screw M4 x 6mm button socket head |
5 |
|
| 18 |
273-5451 |
120V 15amp mini relay |
1 |
|
| 19 |
273-1134 |
50amp bridge rectifier |
1 |
|
| 20 |
273-5452 |
Screw M5 x 10mm button socket head |
4 |
|
| 21 |
273-5453 |
120V roller switch |
1 |
|
| 22 |
273-8783 |
Electrical box base plate |
1 |
|
| 24 |
273-8784 |
Screw M3 1/2 x 8 inch stainless steel |
2 |
|
| 25 |
273-5461 |
Button assembly with bezel (green) |
1 |
|
| 26 |
273-5457 |
Ground symbol decal |
2 |
|
| 27 |
273-5458 |
Switch with coupler |
1 |
(deluxe model uses quantity of 3) |
| 28 |
273-5459 |
Button assembly with bezel (blue) |
2 |
(deluxe models only) |
| 29 |
273-5460 |
Button assembly with bezel (red) |
1 |
|
|
|

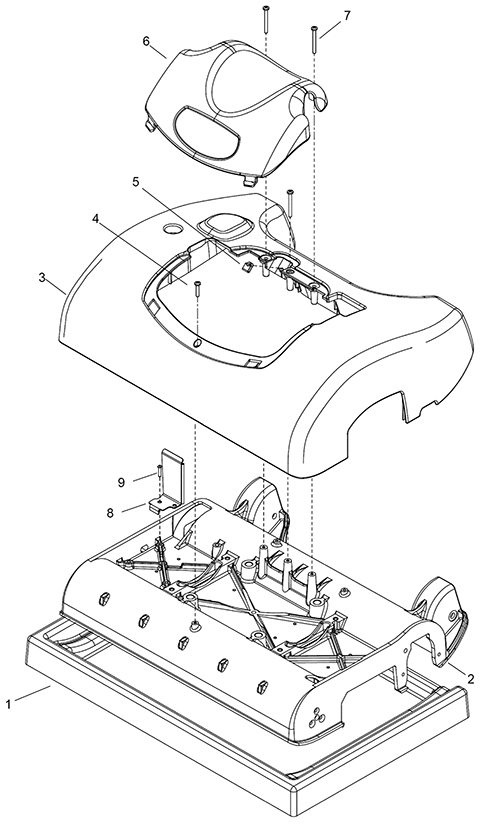

Basic Frame Assembly-Model 1.006-713.0 - 273-7433 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
273-5463 |
iCapsol mini tray |
1 |
|
| 2 |
273-5464 |
Single motor frame |
1 |
|
| 3 |
273-8785 |
Brs 43/500 frame cover |
1 |
|
| 4 |
273-5446 |
Screw M4 x 20mm pan head phillips |
1 |
|
| 5 |
273-5465 |
Nut M4 x .7 x 3mm u-clamp |
1 |
|
| 6 |
273-5466 |
Dome assembly |
1 |
|
| 7 |
999-9169 |
Screw M4-0.7 x 40mm pan head ss |
3 |
|
| 8 |
273-7177 |
Splash guard plate (OBSOLETE) |
1 |
|
| 9 |
273-5452 |
Screw M5 x 10mm button socket head |
1 |
|
|
|

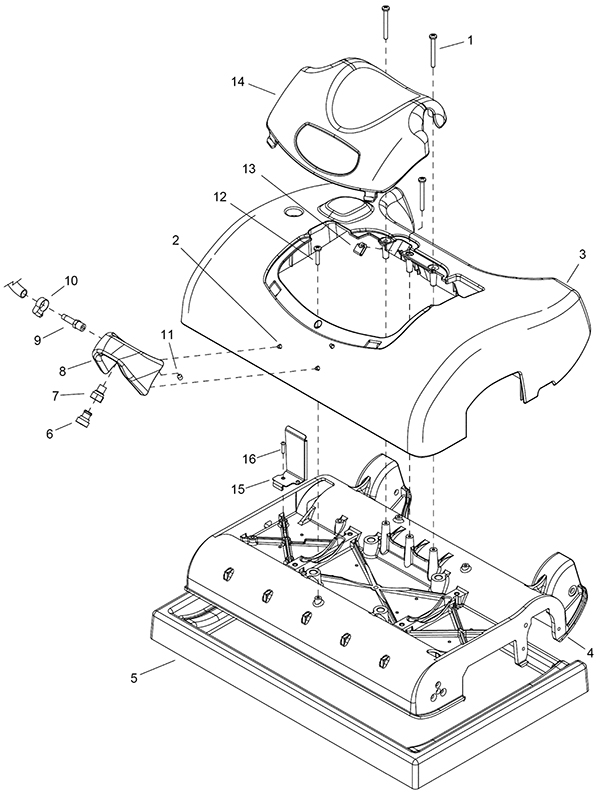

Deluxe Frame Assembly-Model 1.006-713.0 - 273-7434 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
999-9169 |
Screw M4-0.7 x 40mm pan head ss |
3 |
|
| 2 |
273-5499 |
Screw M4 x 10mm button head socket cap |
3 |
|
| 3 |
273-8785 |
Brs 43/500 frame cover |
1 |
|
| 4 |
273-5464 |
Single motor frame |
1 |
|
| 5 |
273-5463 |
iCapsol mini tray |
1 |
|
| 6 |
173-8641 |
Promax jet 11001 |
1 |
|
| 8 |
173-8642 |
Sprayer manifold |
1 |
|
| 9 |
173-4999 |
Hose barb 1/8 x 1/4 |
1 |
|
| 11 |
273-5468 |
Screw M6 x 8mm set |
1 |
|
| 12 |
273-5446 |
Screw M4 x 20mm pan head phillips |
1 |
|
| 13 |
273-5465 |
Nut M4 x .7 x 3mm u-clamp |
1 |
|
| 14 |
273-5466 |
Dome assembly |
1 |
|
| 15 |
273-7177 |
Splash guard plate (OBSOLETE) |
1 |
|
| 16 |
273-5452 |
Screw M5 x 10mm button socket head |
1 |
|
|
|

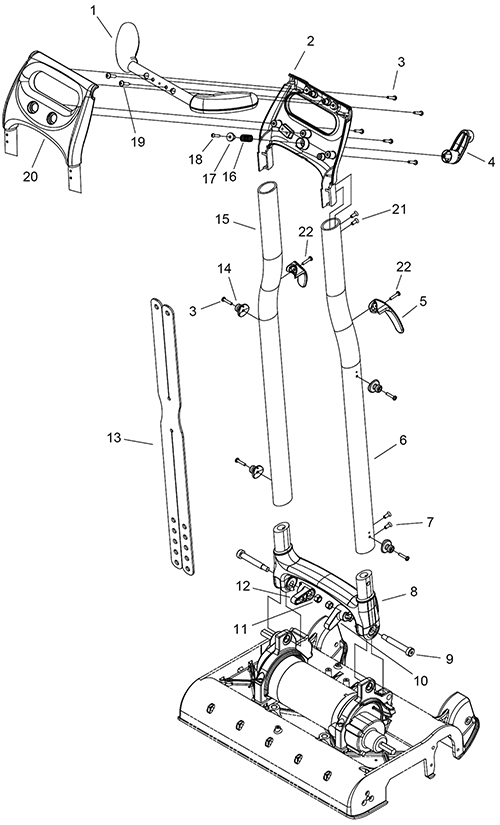

Handle Assembly-Model 1.006-713.0 - 273-7435 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2a |
273-8792 |
Karcher bottom console |
1 |
(deluxe) |
| 2b |
273-8793 |
ICAPSOL bottom console |
1 |
(basic) |
| 3 |
273-5446 |
Screw M4 x 20mm pan head phillips |
9 |
|
| 4 |
273-8790 |
Small upper cord hook (yellow) |
1 |
|
| 5 |
273-5472 |
Lower cord hook |
2 |
|
| 6a |
273-5474 |
Left side extrusion handle |
1 |
(basic) |
| 6b |
273-5473 |
Left side extrusion handle |
1 |
(deluxe) |
| 7 |
273-5491 |
Screw M5 x 12mm with locking |
4 |
|
| 8 |
273-8791 |
Karcher pivot casting |
1 |
|
| 9 |
273-5478 |
Screw M10 x M8 x 55mm shoulder |
2 |
|
| 10 |
273-5479 |
Left hand lifting cam |
1 |
|
| 11 |
999-0496 |
Nut M8-1.25 nylon insert lock stainless steel |
2 |
|
| 12 |
273-5481 |
Right hand lifting cam |
1 |
|
| 13 |
273-5482 |
Hold down sprayer strap |
1 |
|
| 14 |
273-5483 |
Rubber strap hook |
4 |
|
| 15a |
273-5485 |
Right side extrusion handle |
1 |
(basic) |
| 15b |
273-5484 |
Right side extrusion handle |
1 |
(deluxe) |
| 16 |
273-5486 |
Compression spring |
1 |
|
| 17 |
273-5487 |
Spring retainer |
1 |
|
| 18 |
273-5488 |
Screw 40 x 35 oval head |
5 |
|
| 19 |
273-5489 |
Screw M5 x 20mm pan head phillips stainless steel |
2 |
|
| 20 |
273-8788 |
ICAPSOL top console (black) |
1 |
|
| 21 |
273-5493 |
Screw M5 x 30mm countersunk oval head |
4 |
|
| 22 |
173-8687 |
Screw M4 x 14mm pan head phillips |
2 |
|
|
|

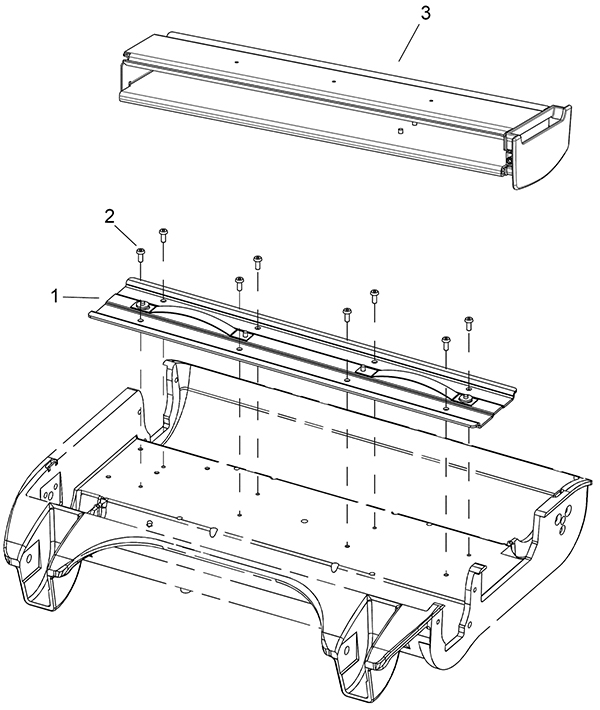

Hopper Assembly-Model 1.006-713.0 - 273-7436 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1a |
273-5498 |
Hopper guide assembly |
1 |
(includes 1b-1e) |
| 1b |
373-9231 |
Spring clip |
2 |
|
| 2 |
273-5499 |
Screw M4 x 10mm button head socket cap |
8 |
|
| 3 |
273-8794 |
Hopper frame and plate assembly |
1 |
|
|
|

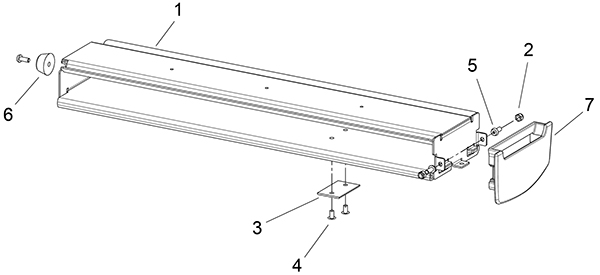

Hopper Frame and Plate Assembly-Model 1.006-713.0 - 273-7437 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
373-9234 |
Basic hopper |
1 |
|
| 2 |
999-0954 |
Nut M4-.7 nylon insert lock stainless steel |
3 |
|
| 3 |
373-9235 |
Spring lock plate |
1 |
|
| 5 |
273-5499 |
Screw M4 x 10mm button head socket cap |
3 |
|
| 6 |
273-5501 |
Hopper stop bumper |
1 |
|
| 7 |
273-8795 |
Front hopper cover |
1 |
|
|
|

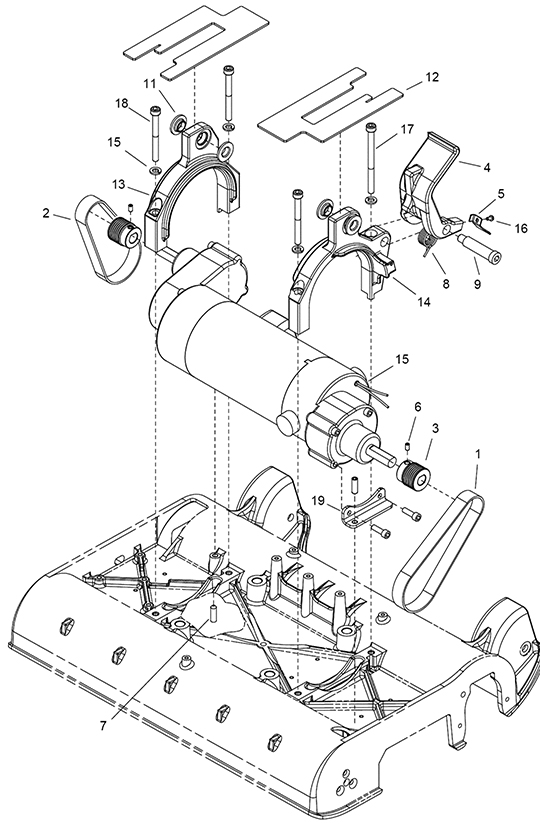

Motor Assembly-Model 1.006-713.0 - 273-7438 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
273-7179 |
Left side flex v-belt |
1 |
|
| 2 |
273-7178 |
Right side flex v-belt |
1 |
|
| 4 |
273-8797 |
Foot pedal release handle (yellow) |
1 |
|
| 5 |
273-5512 |
Foot pedal switch bracket |
1 |
|
| 6 |
273-5468 |
Screw M6 x 8mm set |
2 |
|
| 7 |
173-5563 |
Screw M6 x 25mm set nickel plated |
2 |
|
| 8 |
273-5513 |
Torsion spring |
1 |
|
| 9 |
273-8798 |
Shoulder bolt M8 x 40 inch |
1 |
|
| 10 |
273-5515 |
Brush motor |
1 |
|
| 11 |
273-5508 |
Flanged bearing |
4 |
|
| 13 |
273-5505 |
Right side motor mount bracket |
1 |
|
| 14 |
273-5514 |
Left side motor mount bracket |
1 |
|
| 15 |
273-5506 |
Washer 6mm spring lock (OBSOLETE) |
4 |
|
| 16 |
273-5441 |
Screw M3 x 6mm button socket head (OBSOELTE) |
1 |
|
| 17 |
273-5510 |
Screw M6 x 80mm socket head cap |
1 |
|
| 18 |
273-5507 |
Screw M6 x 60mm socket head cap |
3 |
|
| 19 |
273-7181 |
Motor adjustment bracket |
1 |
|
| N/S |
273-8796 |
87/100 belt conversion kit |
1 |
|
|
|

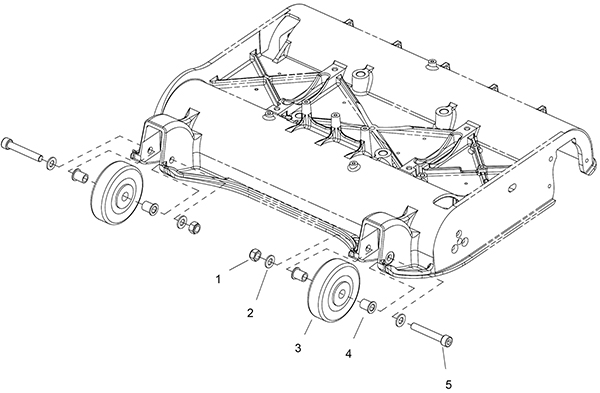

Rear Wheel Assembly-Model 1.006-713.0 - 273-7439 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
999-0496 |
Nut M8-1.25 nylon insert lock stainless steel |
2 |
|
| 2 |
273-5523 |
Washer M8 flat stainless steel |
4 |
|
| 3 |
173-1630 |
3 inch rubber wheel |
2 |
|
| 5 |
273-5521 |
Screw M8 x 50mm socket head cap |
2 |
|
|
|

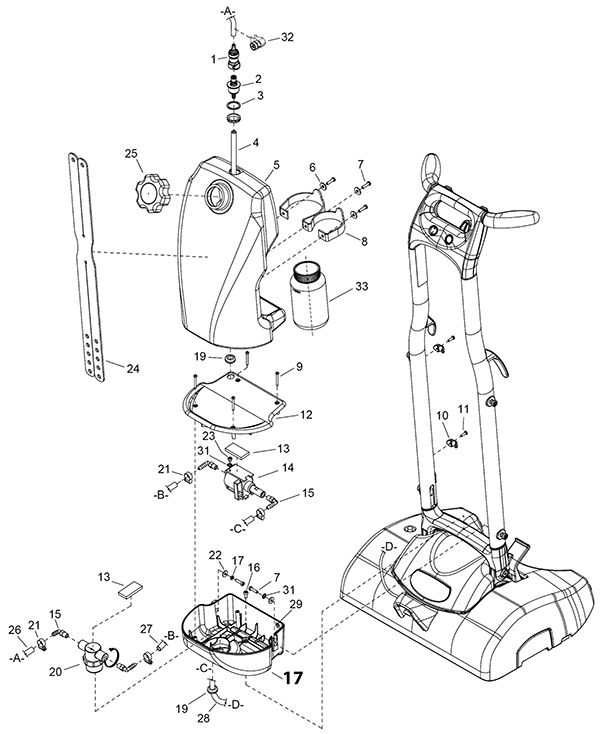

Deluxe Solution Tank Assembly-Model 1.006-713.0 - 273-7440 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
273-5524 |
Female quick connect |
1 |
|
| 2 |
273-5525 |
Male quick connect |
1 |
|
| 3 |
273-5526 |
Coupler seal |
1 |
|
| 4 |
273-5527 |
Suction hose |
1 |
|
| 5 |
273-5528 |
Solution tank |
1 |
|
| 6 |
173-4178 |
Washer M6 flat plated (OBSOLETE) |
3 |
|
| 7 |
273-5489 |
Screw M5 x 20mm pan head phillips stainless steel |
3 |
|
| 8 |
273-5530 |
Chemical bottle strap |
1 |
|
| 9 |
273-5488 |
Screw 40 x 35 oval head |
5 |
|
| 11 |
173-8687 |
Screw M4 x 14mm pan head phillips |
2 |
|
| 12 |
273-5532 |
Top pump cover |
1 |
|
| 13 |
273-5533 |
Neoprene gasket |
2 |
|
| 14 |
173-7036 |
120V flojet pump |
1 |
|
| 15 |
273-5543 |
Hosebarb 1/8 x 1/4 inch |
4 |
|
| 16 |
273-5534 |
Screw M6 x 12mm button socket head stainless steel |
3 |
|
| 17 |
273-5535 |
Washer M5 spring lock |
2 |
|
| 22 |
273-5539 |
Washer M5 stainless steel |
2 |
|
| 23 |
173-8400 |
Screw 10-32 x 1/4 |
1 |
|
| 24 |
273-5482 |
Hold down sprayer strap |
1 |
|
| 25 |
273-8802 |
Cap 2 1/4 inch power grip (yellow) |
1 |
|
| 26 |
273-5540 |
Urethane hose 1/4 x 30 inch |
1 |
|
| 27 |
273-5541 |
Urethane hose 1/4 x 8 inch |
1 |
|
| 28 |
273-5542 |
Urethane hose 1/4 x 27 inch |
1 |
|
| 29 |
273-5457 |
Ground symbol decal |
1 |
|
| 31 |
999-0311 |
Washer #10 external star lock zinc plated |
2 |
|
| 32 |
373-9236 |
Jet holder assembly |
1 |
|
| 33 |
273-8803 |
500ml bottle |
1 |
|
|
|

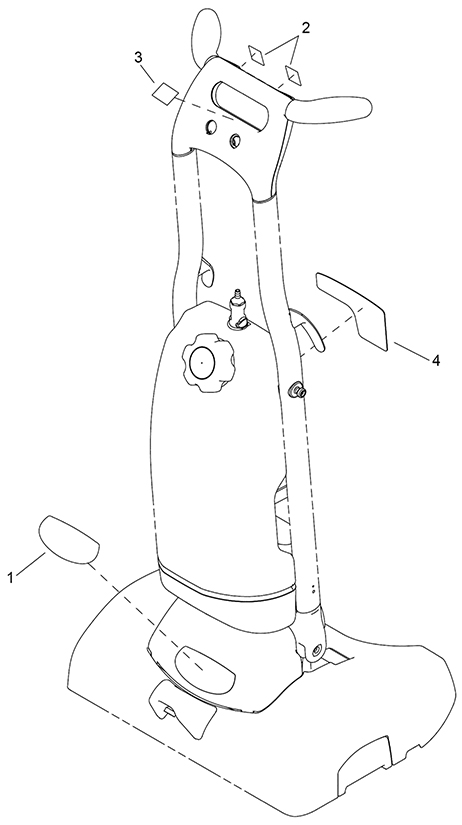

Decal Assembly-Model 1.006-713.0 - 273-7441 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
373-9240 |
BRS 43/500 decal |
1 |
|
| 2 |
373-9237 |
Spray icon decal |
2 |
|
| 3 |
373-9238 |
Brush icon decal |
1 |
|
| 4 |
373-9239 |
Karcher chemical instrument decal |
1 |
|
|
|

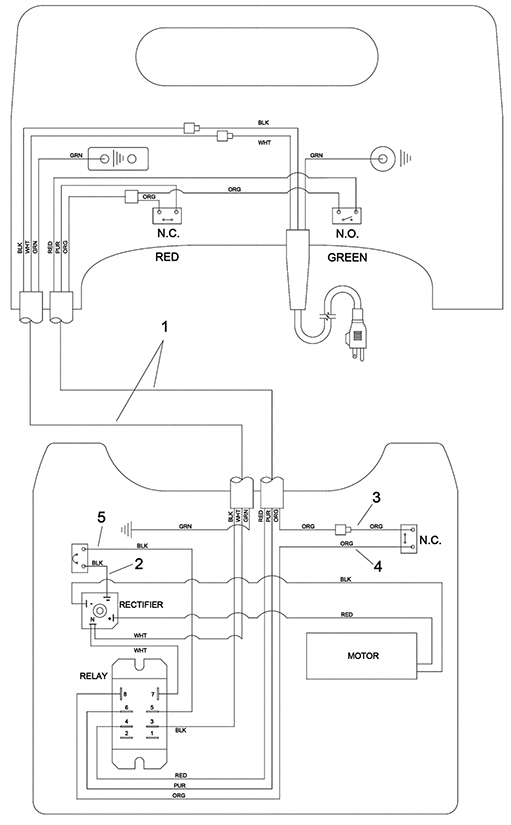

120V Basic Wiring Diagram-Model 1.006-713.0 - 273-7442 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
273-5544 |
Main harness |
1 |
|
| 2 |
273-5545 |
10 inch wire (black) |
1 |
|
| 3 |
273-5546 |
15 inch wire (orange) |
1 |
|
| 4 |
273-5547 |
18 inch wire (orange) |
1 |
|
| 5 |
273-5548 |
9 inch wire (black) |
1 |
|
|
|

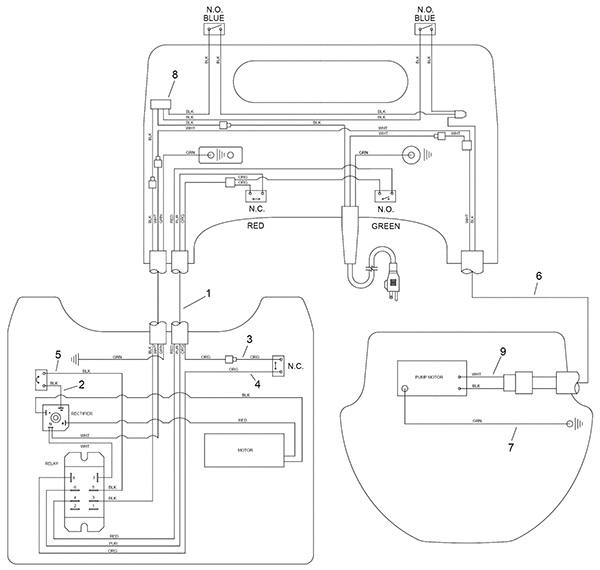

120V Deluxe Wiring Diagram-Model 1.006-713.0 - 273-7443 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
273-5544 |
Main harness |
1 |
|
| 2 |
273-5545 |
10 inch wire (black) |
1 |
|
| 3 |
273-5546 |
15 inch wire (orange) |
1 |
|
| 4 |
273-5547 |
18 inch wire (orange) |
1 |
|
| 5 |
273-5548 |
9 inch wire (black) |
1 |
|
| 6 |
273-7182 |
Deluxe pump housing harness |
1 |
|
| 7 |
273-7183 |
9 1/2 inch wire (green) |
1 |
|
| 8 |
273-7184 |
4 way wire joint (black) |
1 |
|
| 9 |
273-7185 |
Wire assembly with 2 pin connectors |
1 |
|
|
|
-Frequently Replaced Parts - 273-7444 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
273-8781 |
SJT cord set 18/3 x 40 feet (yellow) |
1 |
|
|
273-7179 |
Left side flex v-belt |
1 |
|
|
273-7178 |
Right side flex v-belt |
1 |
|
|
|
- Extractor Fit All Parts - 999-9400 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001a |
991-8000 |
12 inch stainless head wand, 1 jet 120 PSI plastic valve |
|
(wands) |
| 001b |
991-8001 |
12 inch aluminum head wand, 2 jet, 120 PSI (OBSOLETE) |
|
(wands) |
| 001c |
991-8002 |
12 inch aluminum head wand, 3 jet, 120 PSI plastic valve |
|
(wands) |
| 001d |
991-8227 |
500psi brass valve |
|
(wands) |
| 002a |
991-8222 |
30 inch stair wand (open spray) |
|
(stair wand) |
| 002b |
991-8223 |
30 inch swivel head ergonomic stair wand (open spray) |
|
(stair wand) |
| 004 |
991-8129 |
Handle 1-1/2 inch low profile comfort grip assist |
|
(wands) |
| 005a |
991-8128 |
120 PSI, acetel plastic valve, low heat 140 degrees |
|
(wands) |
| 005b |
991-8127 |
120 PSI, brass valve, stainless steel stem |
|
(wands) |
| 005d |
991-8171 |
400psi cast aluminum valve |
|
|
| 007 |
991-8130 |
3-1/2 inch wide 120 PSI standard detailer, external spray |
|
(wands) |
| 008 |
991-8132 |
10ft hide-a-hose vac/sol hose assembly w/1/4 male fittings |
|
(hose assemblies and parts) |
| 009 |
991-8133 |
20ft hide-a-hose vac/sol hose assembly w/1/4 male fittings |
|
(hose assemblies and parts) |
| 010 |
991-8136 |
10ft hide-a-hose vac/sol hose assembly w 1/4 male & 1/4 feml |
|
(hose assemblies and parts) |
| 011 |
991-8137 |
20ft hide-a-hose vac/sol hose assembly w/1/4 male & 1/4 feml |
|
(hose assemblies and parts) |
| 012 |
991-8134 |
10ft hide-a-hose vac/sol hose w/1/4 female fittings 300psi |
|
(hose assemblies and parts) |
| 013 |
991-8135 |
20ft hide-a-hose vac/sol hose assembly w/1/4 female fittings |
|
(hose assemblies and parts) |
| 014 |
991-8138 |
10ft 100psi vac/sol hose assembly w/ 1/4 male fittings |
|
(hose assemblies and parts) |
| 015 |
991-8139 |
20ft 100psi vac/sol hose assembly with male fittings |
|
(hose assemblies and parts) (Maximum heat rating of 70 degrees and 100 PSI) |
| 016 |
991-8142 |
10ft 100psi vac/sol hose assembly w/1/4 female & 1/4 male |
|
(hose assemblies and parts) |
| 017 |
991-8143 |
20ft 100psi vac/sol hose assembly w/1/4 female & 1/4 male |
|
(hose assemblies and parts) |
| 018 |
991-8140 |
10ft 100psi vac/sol hose assembly w/ 1/4 female fittings |
|
(hose assemblies and parts) |
| 021 |
991-8004 |
1 1/2 inch vacuum hose (sold by the foot) |
|
(hose assemblies and parts) |
| 022 |
991-8005 |
1 1/2 inch replacement hose cuff (black) |
|
(hose assemblies and parts) |
| 023 |
991-8131 |
1 1/2 inch hide-a-hose cuff (no swivel) |
|
(hose assemblies and parts) |
| 026 |
991-8045 |
1/8 inch brass vee jet 8001 |
|
(1/8 brass vee jet) |
| 027 |
991-8046 |
1/8 inch brass vee jet 8001.5 |
|
(1/8 brass vee jet) |
| 028 |
991-8047 |
1/8 inch brass vee jet 8002 |
|
(1/8 brass vee jet) |
| 029 |
991-8048 |
1/8 inch brass vee jet 8003 |
|
(1/8 brass vee jet) |
| 030 |
991-8049 |
1/8 inch brass vee jet 8004 |
|
(1/8 brass vee jet) |
| 031 |
991-8050 |
1/8 inch brass vee jet 8005 (OBSOLETE) |
|
(1/8 brass vee jet) |
| 032 |
991-8051 |
1/8 inch brass vee jet 8006 |
|
(1/8 brass vee jet) |
| 033 |
991-8052 |
1/8 inch brass vee jet 8008 |
|
(1/8 brass vee jet) |
| 034 |
991-8053 |
1/8 inch brass vee jet 8010 |
|
(1/8 brass vee jet) |
| 035 |
991-8054 |
1/8 inch brass vee jet 9502 |
|
(1/8 brass vee jet) |
| 036 |
991-8055 |
1/8 inch brass vee jet 9503 |
|
(1/8 brass vee jet) |
| 037 |
991-8056 |
1/8 inch brass vee jet 9504 |
|
(1/8 brass vee jet) |
| 038 |
991-8057 |
1/8 inch brass vee jet 9505 |
|
(1/8 brass vee jet) |
| 039 |
991-8058 |
1/8 inch brass vee jet 9506 |
|
(1/8 brass vee jet) |
| 040 |
991-8059 |
1/8 inch brass vee jet 9508 |
|
(1/8 brass vee jet) |
| 041 |
991-8060 |
1/8 inch brass vee jet 11001 |
|
(1/8 brass vee jet) |
| 042 |
991-8061 |
1/8 inch brass vee jet 11001.5 |
|
(1/8 brass vee jet) |
| 043 |
991-8062 |
1/8 inch brass vee jet 11002 |
|
(1/8 brass vee jet) |
| 044 |
991-8063 |
1/8 inch brass vee jet 11003 |
|
(1/8 brass vee jet) |
| 045 |
991-8064 |
1/8 inch brass vee jet 11004 |
|
(1/8 brass vee jet) |
| 046 |
991-8065 |
1/8 inch brass vee jet 11005 |
|
(1/8 brass vee jet) |
| 047 |
991-8066 |
1/8 inch brass vee jet 11006 |
|
(1/8 brass vee jet) |
| 048 |
991-8067 |
1/8 inch brass vee jet 11008 |
|
(1/8 brass vee jet) |
| 049 |
991-8068 |
1/8 inch brass vee jet 11010 |
|
(1/8 brass vee jet) |
| 050 |
991-8021 |
1/4 inch brass vee jet 8001 |
|
(1/4 brass vee jet) |
| 051 |
991-8022 |
1/4 inch brass vee jet 8001.5 |
|
(1/4 brass vee jet) |
| 052 |
991-8023 |
1/4 inch brass vee jet 8002 |
|
(1/4 brass vee jet) |
| 053 |
991-3005 |
1/4 inch brass vee jet 8003 |
|
(1/4 brass vee jet) |
| 054 |
991-8025 |
1/4 inch brass vee jet 8004 |
|
(1/4 brass vee jet) |
| 055 |
991-8026 |
1/4 inch brass vee jet 8005 |
|
(1/4 brass vee jet) |
| 056 |
991-8027 |
1/4 inch brass vee jet 8006 |
|
(1/4 brass vee jet) |
| 057 |
991-8028 |
1/4 inch brass vee jet 8008 |
|
(1/4 brass vee jet) |
| 058 |
991-8029 |
1/4 inch brass vee jet 8010 |
|
(1/4 brass vee jet) |
| 059 |
991-8030 |
1/4 inch brass vee jet 9502 |
|
(1/4 brass vee jet) |
| 060 |
991-8031 |
1/4 inch brass vee jet 9503 |
|
(1/4 brass vee jet) |
| 061 |
991-8032 |
1/4 inch brass vee jet 9504 |
|
(1/4 brass vee jet) |
| 062 |
991-8033 |
1/4 inch brass vee jet 9505 |
|
(1/4 brass vee jet) |
| 063 |
991-8034 |
1/4 inch brass vee jet 9506 |
|
(1/4 brass vee jet) |
| 064 |
991-8035 |
1/4 inch brass vee jet 9508 |
|
(1/4 brass vee jet) |
| 065 |
991-8036 |
1/4 inch brass vee jet 11001 |
|
(1/4 brass vee jet) |
| 066 |
991-8037 |
1/4 inch brass vee jet 11001.5 |
|
(1/4 brass vee jet) |
| 067 |
991-8038 |
1/4 inch brass vee jet 11002 |
|
(1/4 brass vee jet) |
| 068 |
991-8039 |
1/4 inch brass vee jet 11003 |
|
(1/4 brass vee jet) |
| 069 |
991-8040 |
1/4 inch brass vee jet 11004 |
|
(1/4 brass vee jet) |
| 070 |
991-8041 |
1/4 inch brass vee jet 11005 (OBSOLETE) |
|
(1/4 brass vee jet) |
| 071 |
991-8042 |
1/4 inch brass vee jet 11006 |
|
(1/4 brass vee jet) |
| 072 |
991-3006 |
1/4 inch brass vee jet 11008 |
|
(1/4 brass vee jet) |
| 073 |
991-8044 |
1/4 inch brass vee jet 11010 |
|
(1/4 brass vee jet) |
| 074 |
991-8069 |
1/4 inch stainless vee jet 8001 |
|
(1/4 stainless vee jet) |
| 075 |
991-8070 |
1/4 inch stainless vee jet 8002 |
|
(1/4 stainless vee jet) |
| 076 |
991-8071 |
1/4 inch stainless vee jet 8003 |
|
(1/4 stainless vee jet) |
| 077 |
991-8072 |
1/4 inch stainless vee jet 8004 |
|
(1/4 stainless vee jet) |
| 078 |
991-8073 |
1/4 inch stainless vee jet 9501 |
|
(1/4 stainless vee jet) |
| 079 |
991-8074 |
1/4 inch stainless vee jet 9502 |
|
(1/4 stainless vee jet) |
| 080 |
991-8085 |
1/4 inch stainless/plastic tee jet 9502 |
|
(1/4 stainless vee jet) |
| 081 |
991-8076 |
1/4 inch stainless vee jet 9504 |
|
(1/4 stainless vee jet) |
| 082 |
991-8077 |
1/4 inch stainless vee jet 11003 |
|
(1/4 stainless vee jet) |
| 083 |
991-8078 |
1/4 inch stainless vee jet 11004 |
|
(1/4 stainless vee jet) |
| 084 |
991-8079 |
1/4 inch stainless vee jet 11006 |
|
(1/4 stainless vee jet) |
| 085 |
991-8080 |
1/4 inch stainless vee jet 11008 |
|
(1/4 stainless vee jet) |
| 086 |
991-8081 |
1/4 inch stainless/plastic tee jet 8002 |
|
(1/4 stainless/plastic tee jet) |
| 087 |
991-8082 |
1/4 inch stainless/plastic tee jet 8003 |
|
(1/4 stainless/plastic tee jet) |
| 088 |
991-8083 |
1/4 inch stainless/plastic tee jet 8004 |
|
(1/4 stainless/plastic tee jet) |
| 089 |
991-8084 |
1/4 inch stainless/plastic tee jet 9501 (OBSOLETE) |
|
(1/4 stainless/plastic tee jet) |
| 090 |
991-8085 |
1/4 inch stainless/plastic tee jet 9502 |
|
(1/4 stainless/plastic tee jet) |
| 091 |
991-8086 |
1/4 inch stainless/plastic tee jet 9504 |
|
(1/4 stainless/plastic tee jet) |
| 092 |
991-3010 |
1/4 inch stainless/plastic tee jet 11003 |
|
(1/4 stainless/plastic tee jet) |
| 093 |
991-8088 |
1/4 inch stainless/plastic tee jet 11004 |
|
(1/4 stainless/plastic tee jet) |
| 094 |
991-8089 |
1/4 inch stainless/plastic tee jet 11006 |
|
(1/4 stainless/plastic tee jet) |
| 095 |
991-8090 |
1/4 inch stainless/plastic tee jet 11008 |
|
(1/4 stainless/plastic tee jet) |
| 096 |
991-8091 |
1/4 inch x 1/8 hex nipple H21 |
|
|
| 097 |
991-8092 |
1/4 inch x 1/4 hex nipple H22 |
|
|
| 098 |
991-8093 |
1/4 inch x 3/8 hex nipple H23 |
|
|
| 099 |
991-8094 |
45 degree street elbow 1/4 inch H24 |
|
|
| 100 |
991-8095 |
45 degree street elbow 1/8 inch H25 |
|
|
| 101 |
991-8096 |
45 degree union elbow 1/4 inch H26 |
|
|
| 102 |
991-8098 |
90 degree street elbow short 1/4 inch H28 |
|
|
| 103 |
991-8098 |
90 degree street elbow short 1/4 inch H28 |
|
|
| 104 |
991-8099 |
90 degree street elbow 1/8 inch H29 |
|
|
| 105 |
991-8100 |
90 degree street elbow short 1/8 inch H30 |
|
|
| 106 |
991-8101 |
90 degree union elbow 1/4 inch H31 |
|
|
| 107 |
991-8102 |
90 degree union elbow 1/8 inch H32 |
|
|
| 108 |
991-8103 |
30 degree union elbow 1/4 inch H33 |
|
|
| 109 |
991-8104 |
1/4 inch coupling H34 |
|
|
| 110 |
991-8105 |
1/8 inch coupling H35 |
|
|
| 111 |
991-8106 |
1/4 inch adapter H36 |
|
|
| 112 |
991-8107 |
1/8 inch adapter H37 |
|
|
| 113 |
991-8108 |
1/4 inch branch tee H38 |
|
|
| 114 |
991-8109 |
1/8 inch branch tee H39 |
|
|
| 115 |
991-8110 |
1/8 inch tee H40 |
|
|
| 116 |
991-8111 |
7/16 inch stainless steel hose clamp H41 |
|
|
| 117 |
997-2002 |
Hose clamp #6 |
|
|
| 118 |
991-8113 |
Strainer for 1/8 inch vee jets H43 |
|
|
| 119 |
991-8114 |
Strainer for 1/4 inch vee jets H44 |
|
|
| 120 |
991-8115 |
Strainer/check valve for 1/4 inch vee jets H45 |
|
|
| 121 |
991-8116 |
Brass strainer/check valve for tee jets H46 |
|
|
| 122 |
991-8117 |
500 PSI ball valve 1/4 inch fpt x 1/4 inch fpt H47 |
|
|
| 123 |
991-8118 |
500 PSI ball valve 3/8 inch fpt x 3/8 inch fpt H48 |
|
|
| 124 |
991-8119 |
500 PSI ball valve 1/4 inch mpt x 3/8 inch fpt H49 |
|
|
| 125 |
991-8120 |
1/4 inch brass flood jets K1 or K2 H54 |
|
|
| 126 |
991-8158 |
1/4 inch BH2-60 female coupler (mate to QD40) |
|
|
| 127 |
991-8150 |
1/4 inch BH2-61 male nipple (mate to QD80) |
|
|
| 128 |
991-8144 |
B2C, 1/4 inch mpt, male nipple, mate to QD50 or QD55 |
|
|
| 129 |
991-8152 |
B12, 1/4 inch mpt, female coupler, mate to QD10 or QD15 |
|
|
| 130 |
991-8145 |
B3C, 1/4 inch fpt, male nipple, mate to QD50 or QD55 |
|
|
| 131 |
991-8153 |
B13, 1/4 inch fpt, female coupler, mate to QD10 or QD15 |
|
|
| 132 |
991-8146 |
BH2C, 1/4 inch, mpt male nipple, mate to QD60 or QD65 |
|
|
| 133 |
991-8154 |
B22, 1/4 inch mpt, female coupler, mate to QD20 or QD25 |
|
|
| 134 |
991-8147 |
BH3C, 1/4 inch fpt, male nipple, mate to QD60 or QD65 |
|
|
| 135 |
991-8155 |
B23, 1/4 inch fpt, female coupler, mate to QD20 or QD25 |
|
|
| 136 |
991-8148 |
Hansen 02 male nipple, mate to QD70 |
|
|
| 137 |
991-8156 |
Quick disconnect socket female to QD30 |
|
|
| 138 |
991-8149 |
1/8 inch male quick disconnect |
|
|
| 139 |
991-8157 |
1/8 inch female quick disconnect socket |
|
|
| 140 |
991-8151 |
BH3-61,3/8 inch FPT, Male Nipple, mate to QD85 |
|
|
| 141 |
991-8159 |
BH3-60, 3/8 inch fpt, female coupler, mate to QD45 |
|
|
| 142 |
991-8123 |
Bottom hex nut for Kingston or P valve H57 |
|
|
| 143 |
991-8121 |
1/8 inch brass flood jets K1 or K2 H55 |
|
|
| 144 |
991-8124 |
Inline filter H58 |
|
|
| 145 |
991-8122 |
1/8 inch special brass flood jets for V1245 H56 |
|
|
| 146 |
991-8008 |
120V 50 PSI Flo Jet pump |
|
(pumps) |
| 147 |
991-8009 |
120V 100 PSI Flo Jet pump |
|
(pumps) |
| 148 |
991-8218 |
120V 120 PSI pump |
|
(pumps) |
| 149 |
991-8220 |
1/8 fpt brass female connector |
|
|
| 150 |
991-1835 |
Crevice tool |
|
|
|
|
