Parts List Complete for KARCHER BD 43/25 C BP

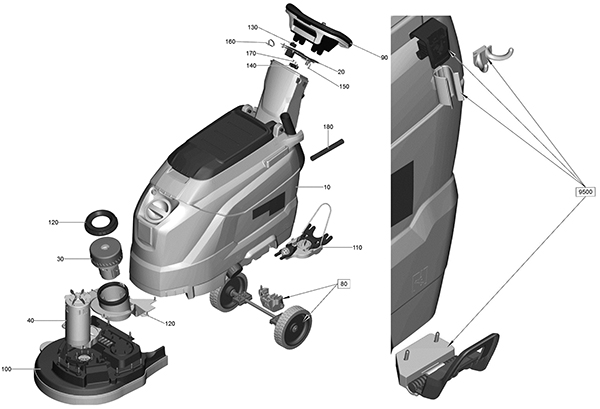

General Assembly-Model 1.515-405.0 - 273-9047
RefNbr Part Number Description Req Notes
10a N/A Not available 1 (tank) (version 2: with solenoid valve)
10b N/A Not available 1 (tank) (version 1: without solenoid valve)
20 273-0806 Electronics 1
30 373-1637 Vacuum motor 1
40 373-1638 24V motor 1
80 N/A Not available 1 (carriage)
90 N/A Not available 1 (control panel)
100a 273-0808 Brush deck 1
100b N/A Not available 1 (brush head)
110 N/A Not available 1 (suction bar lifting)
130 373-1639 Microswitch 1
140 373-1640 24V switch code 1
150 173-6202 Screw M5 x 20mm 2
160 373-1641 Cable tie 1
170 173-9084 Screw M4 x 12 countersunk 2
180 273-0810 Corrugated tube 2
9500 373-1644 Mop holder 1
N/S 162-0042 12V 115Ah AGM battery (Group 31) 2
N/S 273-0804 Battery mounting kit 1
N/S 273-0807 Battery spacer 2
N/S 273-3480 36 inch squeegee assembly 1

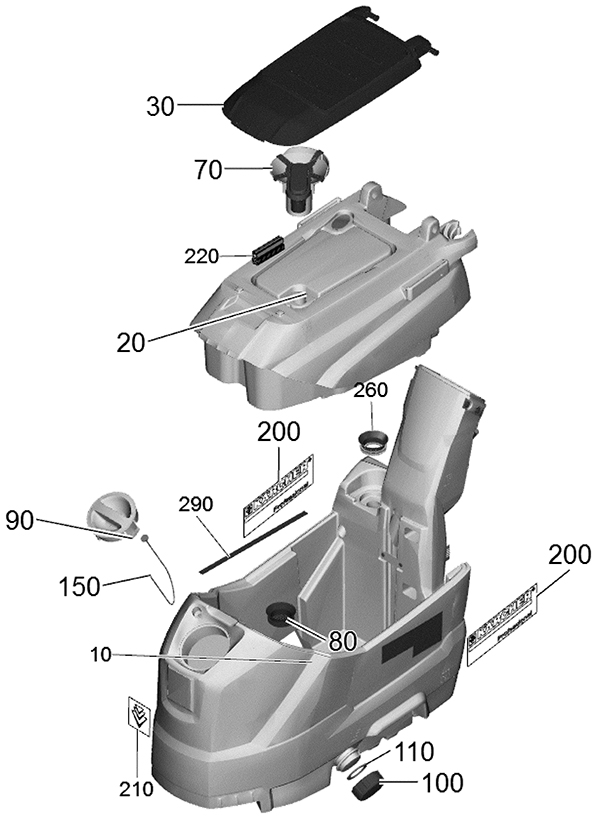

Tank Assembly-1-Model 1.515-405.0 - 273-9048
RefNbr Part Number Description Req Notes
10a 273-0813 Fresh water tank 1 (version 2 with solenoid)
10b 273-0812 Fresh water tank 1 (version 1 without solenoid)
20 273-0814 Waste water tank 1
30 373-1648 Cap 1
70 273-0815 Float regulator 1
80 373-1653 Seal 1
90a 273-0816 Fresh water tank cover 1 (version 2 with solenoid)
90b 373-1654 Cover 1 (version 1 without solenoid)
100 273-3593 Solution cap 1
110 273-3594 Gasket 1
150 273-0817 Cover mounting rope 1
200 273-0818 Decal 2
210 373-1662 Decal 1
220 373-1663 Gasket 1
260 373-1667 Seal 1
290 373-1671 Sealing tape 1

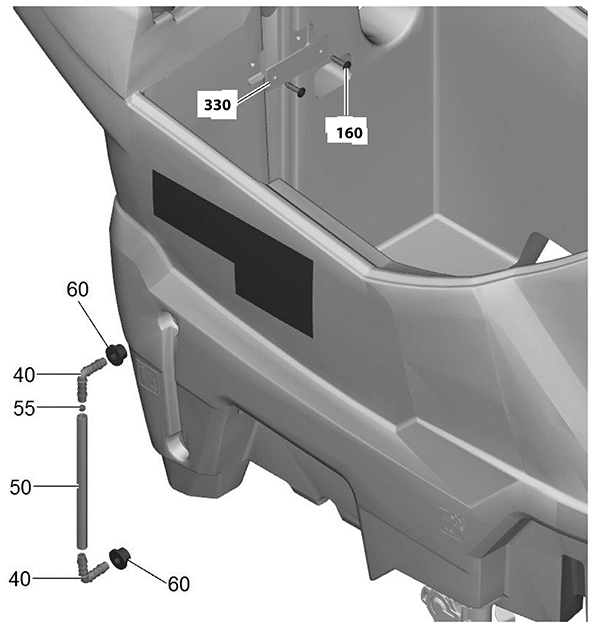

Tank Assembly-2-Model 1.515-405.0 - 273-9049
RefNbr Part Number Description Req Notes
40 373-1649 Elbow 2
50 273-0819 Silicon hose level indicator 1
55a 373-1651 Level indicator sphere 1 (version 2 with solenoid)
55b 273-0820 Level indicator sphere 2 (version 1 without solenoid)
60 373-1652 Wire protection sleeve 1
160 173-6202 Screw M5 x 20mm 8
330 273-0821 Cable support plate 1

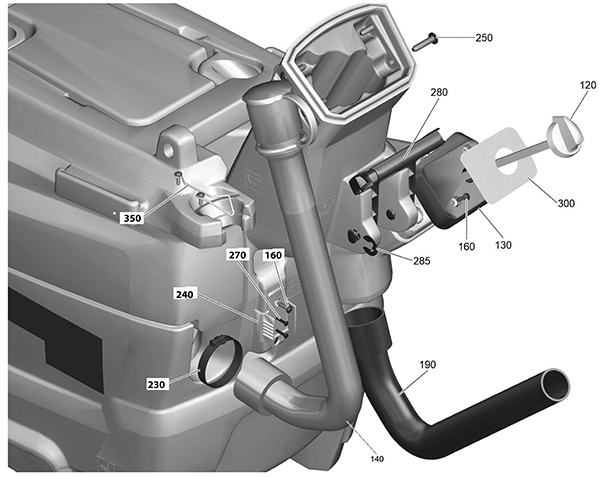

Tank Assembly-3-Model 1.515-405.0 - 273-9050
RefNbr Part Number Description Req Notes
120a N/A Not available 1 (solenoid valve ball valve) (24V)
120b 273-0823 Ball valve complete 1
120c N/A Not available 1 (ball valve complete)
130 373-1655 Cap 1
140 273-8805 Drain hose 1
160 173-6202 Screw M5 x 20mm 8
190 273-0824 Suction hose 1
230 183-0081 Hose clamp 1
240 373-1665 Anderson plug retainer 1
250 373-1666 Screw M8 x 35mm 4
270 273-0962 Screw M4-10.9 x 25mm phillips head 2
280 373-1669 Lever 1
285 373-1670 Lock washer 1
300 373-1672 Decal 1
350 273-0822 Hose wire bracket 1

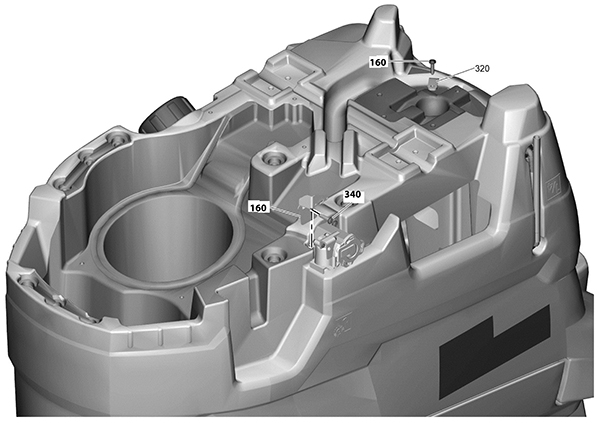

Tank Assembly-4-Model 1.515-405.0 - 273-9051
RefNbr Part Number Description Req Notes
160 173-6202 Screw M5 x 20mm 8
320 273-0825 Cable clamp 1
340 273-9435 Solenoid valve retaining plate 1

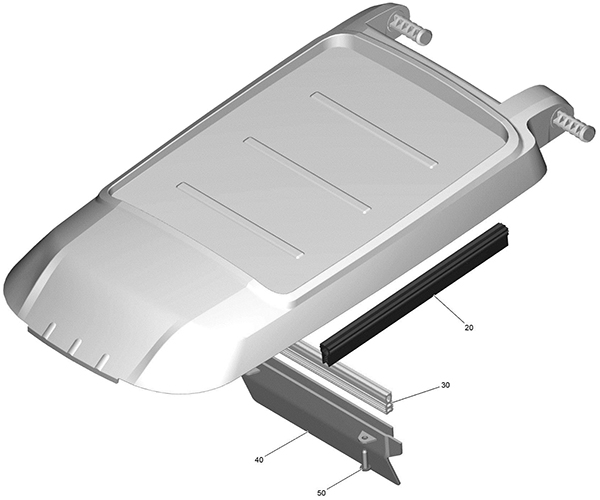

Waste Water Tank Cover Assembly-Model 1.515-405.0 - 273-9052
RefNbr Part Number Description Req Notes
20 373-1663 Gasket 1
30 273-0826 Sealing profile baffle plate 1
40 273-0827 Waste water tank bulkhead cover 1
50 173-6202 Screw M5 x 20mm 2

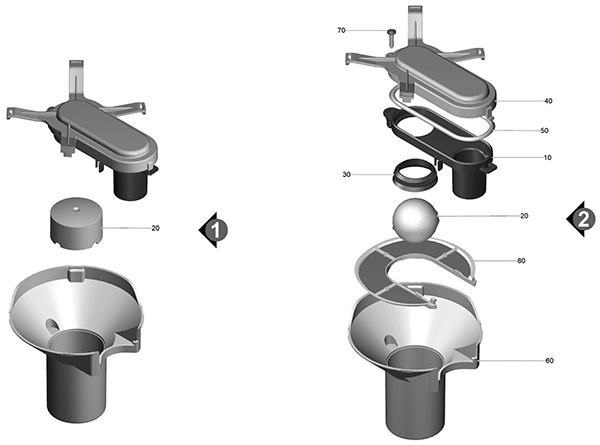

Float Regulator Assembly-Model 1.515-405.0 - 273-9053
RefNbr Part Number Description Req Notes
10 373-1675 Float regulator bottom 1
20a 273-0828 Cone float regulator 1 (version 1)
20b 373-1676 Float ball 1 (version 2)
30 373-1677 Seal 1
40 373-1678 Float regulator cover 1
50 373-1679 Seal 1
60 373-1680 Float cage 1
70 173-6202 Screw M5 x 20mm 1
80 273-0830 Regulator strainer float (yellow) 1

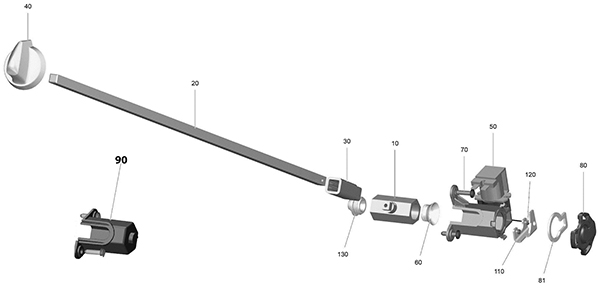

Solenoid Valve and Ball Valve Assembly-Model 1.515-405.0 - 273-9054
RefNbr Part Number Description Req Notes
10a 273-0831 Ball valve replacement 1 (version 2)
10b 373-1681 Ball valve 1 (version 1)
20 273-0832 Ball valve bar 1
30 273-8557 Ball valve coupling 1
40 173-4491 Handle 1
50 373-1683 24V solenoid valve 1
60 373-1684 Seal 1
70 173-6202 Screw M5 x 20mm 2
80 273-9462 Cover ball valve 1
81 373-1685 Cover seal 1
90 273-0835 Ball valve holder 1
110 273-9433 Solenoid valve plate cover 1
120 273-9434 Screw 3x6 A2-70 4
130a 273-0833 Ball valve seal 1 (version 2) (d 12.5)
130b 273-0834 Ball valve seal 1 (version 1) (d 16.5)

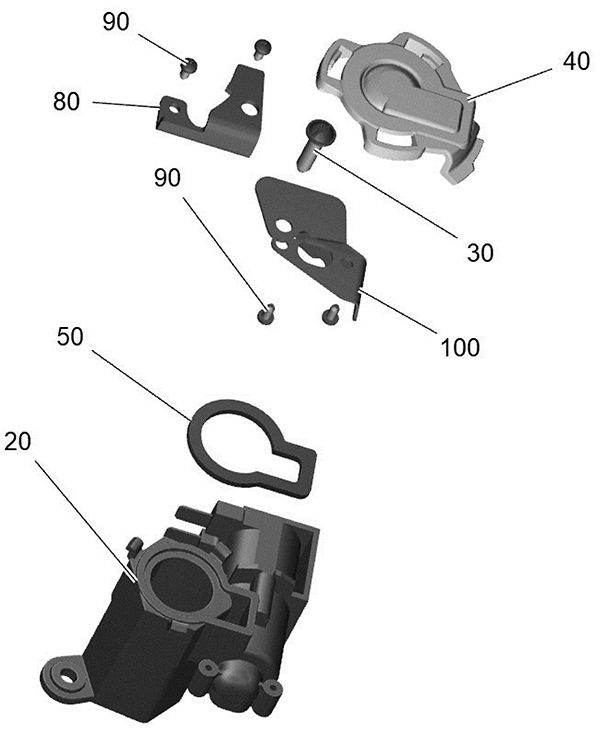

Solenoid Valve Replacement Assembly-Model 1.515-405.0 - 273-9055
RefNbr Part Number Description Req Notes
20 373-1683 24V solenoid valve 1
30 173-6202 Screw M5 x 20mm 1
40 273-9462 Cover ball valve 1
50 373-1685 Cover seal 1
80 273-9433 Solenoid valve plate cover 1
90 273-9434 Screw 3x6 A2-70 4
100 273-9435 Solenoid valve retaining plate 1

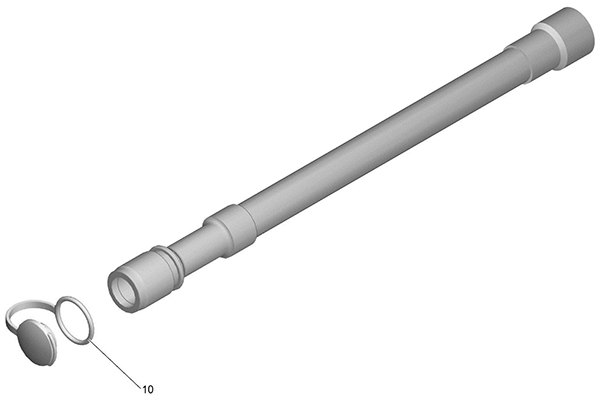

Drain Hose Cover Assembly-Model 1.515-405.0 - 273-9056
RefNbr Part Number Description Req Notes
10 273-1329 Drain hose cover (yellow) 1

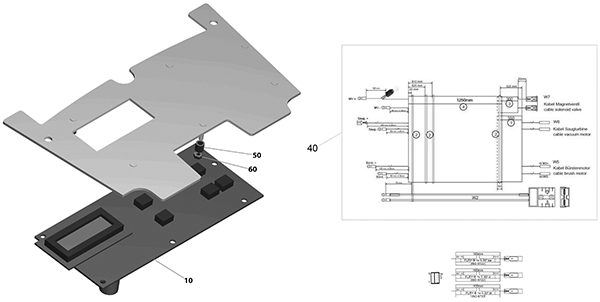

Electronics Assembly-Model 1.515-405.0 - 273-9057
RefNbr Part Number Description Req Notes
10 273-0836 Control board 1
40 273-0837 Solenoid valve cable harness 1
50 373-1690 Sleeve 6
60 999-1419 Nut M3-.5 hex stainless steel 6

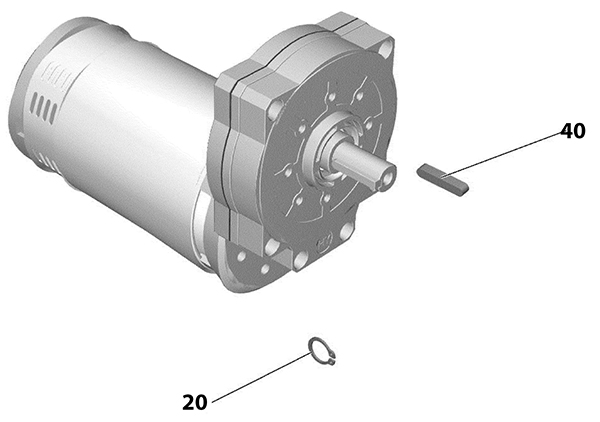

Gear Motor Assembly-Model 1.515-405.0 - 273-9058
RefNbr Part Number Description Req Notes
20 373-1700 Locking ring 1
40 273-0839 Parallel key 1
N/S 273-0838 Carbon brush set 1

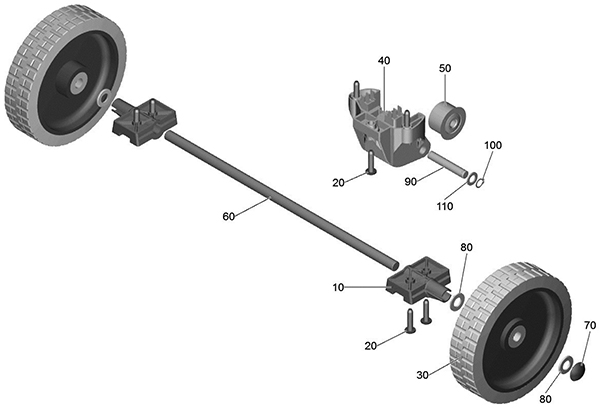

Wheel Assembly-Model 1.515-405.0 - 273-9059
RefNbr Part Number Description Req Notes
10 373-1692 Holder 2
20 373-1666 Screw M8 x 35mm 7
30 373-1693 Wheel 2
40 373-1694 Wheel holder 1
50 373-1695 Roller with ball bearing 1
60 373-1696 Axle 1
70 373-1697 Lock washer 2
80 373-1698 Washer 4
90 373-1699 Axle tipping roll 1
100 373-1700 Locking ring 2
110 273-0841 Washer D12 2

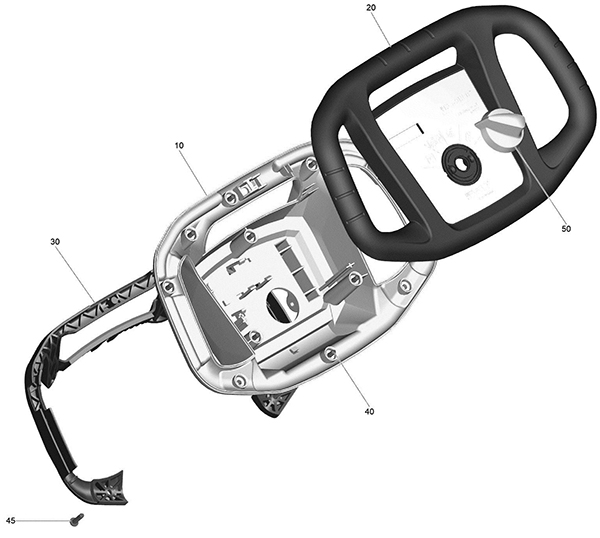

Control Panel Assembly-Model 1.515-405.0 - 273-9060
RefNbr Part Number Description Req Notes
10 373-1702 Control panel bottom 1
20 273-0842 Control panel top 1
30 373-1704 Handhold switch 1
40 173-6202 Screw M5 x 20mm 9
45 999-1425 Screw M5-.8 x 25mm pan head stainless steel 2
50a 273-9368 Knob w/ spring clip 1
50b 273-9368 Knob w/ spring clip 1

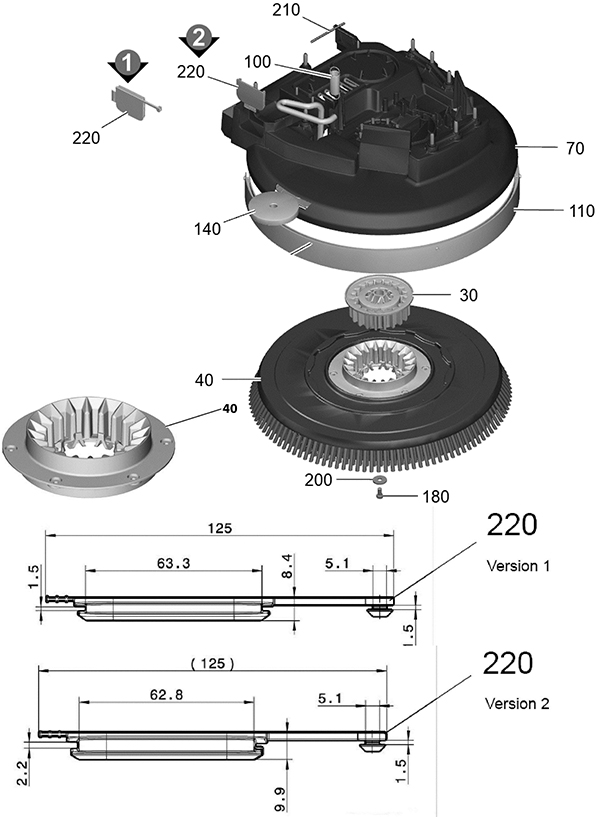

Brush Head Assembly-1-Model 1.515-405.0 - 273-9061
RefNbr Part Number Description Req Notes
30 373-1707 Retainer 1
40a 273-0844 430mm disc brush (red) 1
40b 273-0845 Brush retainer 1
70a 273-0846 Brush head covering cap 1 (version 1: for machines without solenoid valve)
70b 273-0847 Brush head covering cap 1 (version 2: for machines with solenoid valve)
100 373-1713 Extension spring 1
110 273-0848 Brush splash guard 1
140 373-1714 Deflector roll 1
180 273-8159 Screw M8 x 16 hex head 1
200 173-9870 Washer #8 1
210 373-1718 Seal 1
220a 273-0849 Ball valve cover rubber 1 (version 2: for machines with solenoid valve)
220b 273-0850 Ball valve stopper rubber 1 (version 1: for machines without solenoid valve)
N/S 273-0843 Sheet metal screw 6

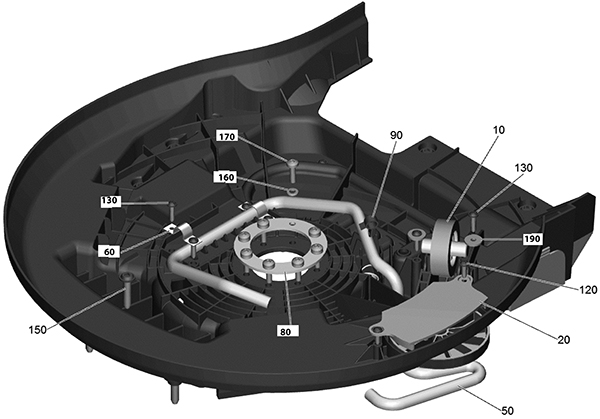

Brush Head Assembly-2-Model 1.515-405.0 - 273-9062
RefNbr Part Number Description Req Notes
10 273-0851 Brush contact pressure 1
20 373-1706 Deflector roll 1
50 373-1708 Bracket 1
60 373-1709 Pipe clamp 2
80 373-1711 Threaded plate 1
90 373-1712 Hose clip 1
120 183-0075 Screw 5-16 x 10.9mm 2
130 173-6202 Screw M5 x 20mm 9
150 373-1666 Screw M8 x 35mm 9
160 999-1261 Washer M6 flat stainless steel 8
170 373-1716 Screw M6 x 20mm 8
190 373-1717 Washer 2

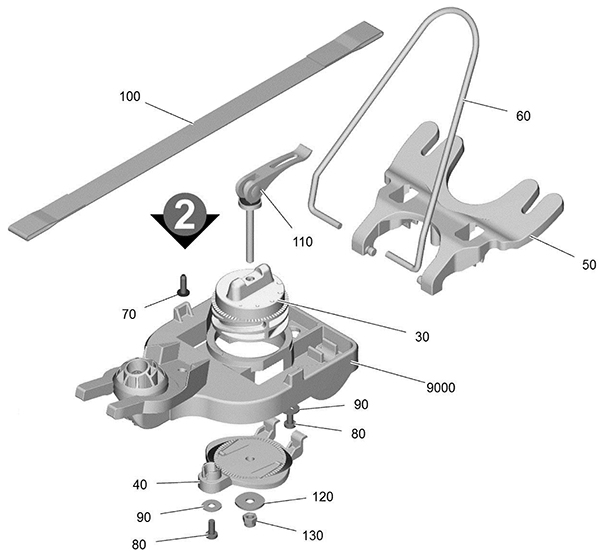

Suction Bar Lifting Assembly-Model 1.515-405.0 - 273-9063
RefNbr Part Number Description Req Notes
30 273-4233 Knob 1
40 373-1722 Cap 1
50 373-1723 Rocker 1
60 373-1724 Retaining bracket 1
70 183-0075 Screw 5-16 x 10.9mm 1
80 273-1341 SCREW M5X12-A2/70-ISO 7045 (IN6RD) 2 (with microencapsulation)
90 999-9100 Washer M5 flat stainless steel 2
100 373-1725 Strap 1
110 273-0852 Eccentric lever 1
120 273-7540 Washer 6 1
130 999-1308 Nut M6-1 hex stainless steel 1
9000 373-3057 Suction bar holder assembly 1 (version 2)

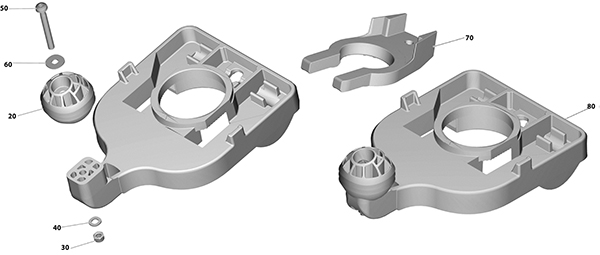

Suction Bar Holder Assembly-Model 1.515-405.0 - 273-9064
RefNbr Part Number Description Req Notes
20a 273-1342 Suction bar suspension sphere 1
20b 273-1342 Suction bar suspension sphere 1
30 183-4190 Nut hex 1
40 173-9042 Washer #5 1
50 273-1343 Screw M5 x 45-8.8 1
60 999-9100 Washer M5 flat stainless steel 1
70 273-4232 Plate 1
80 373-1721 Holder 1

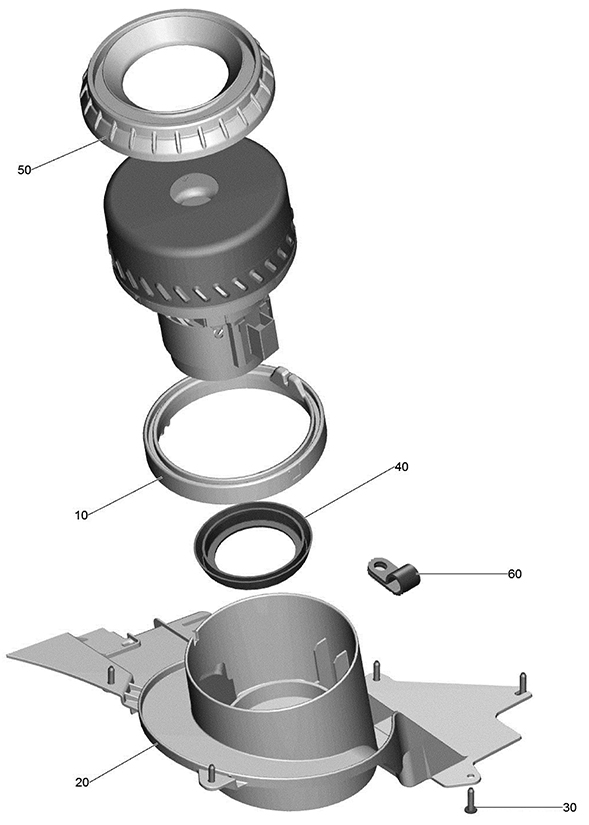

Turbine Retainer Assembly-Model 1.515-405.0 - 273-9065
RefNbr Part Number Description Req Notes
10 273-0854 Turbine joint ring 1
20 373-1729 Air circulation turbine 1
30 173-6202 Screw M5 x 20mm 7
40 173-5828 Seal 1
50 373-1730 Bearing 1
60 373-1731 Cable clamp 2

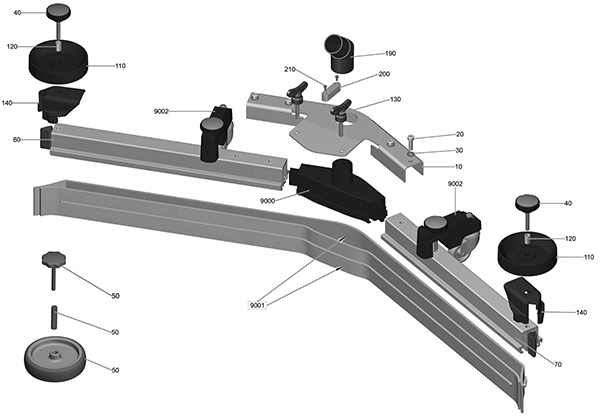

Squeegee Assembly-1-Model 1.515-405.0 - 273-9066
RefNbr Part Number Description Req Notes
10 273-0869 Holder complete V-profile 1
20 273-3477 Screw 4
30 999-0150 Washer #8 medium split lock 4
40 373-1737 Star grip 2 (version 1)
50 273-0870 Deflector roll assembly 1 (version 2)
60a 273-0871 Right hand preassembled profile 1
60b 373-1743 Right hand end piece 1
70a 273-0872 Left hand preassembled profile 1
70b 373-1742 Left hand end piece 1
110 273-3481 Guide wheel 2 (version 1)
120 273-5924 Sleeve suction bar 2 (version 1)
130 N/A Not available 2 (wing screw M8 x 30 VA)
140 273-3475 Left and right end pieces 1
190 273-0873 Angle adapter pipe 1
200 273-0874 Level 1
210a 373-1452 Screw M4 x 16mm 2
210b 373-1355 Screw M4 x 8mm 2
9000 273-0875 Nipple suction assembly 1
9001 373-3087 Squeegee blade rubber oil resistant 1
9002a 373-1738 Support 2
9002b 273-0876 Support roller 2

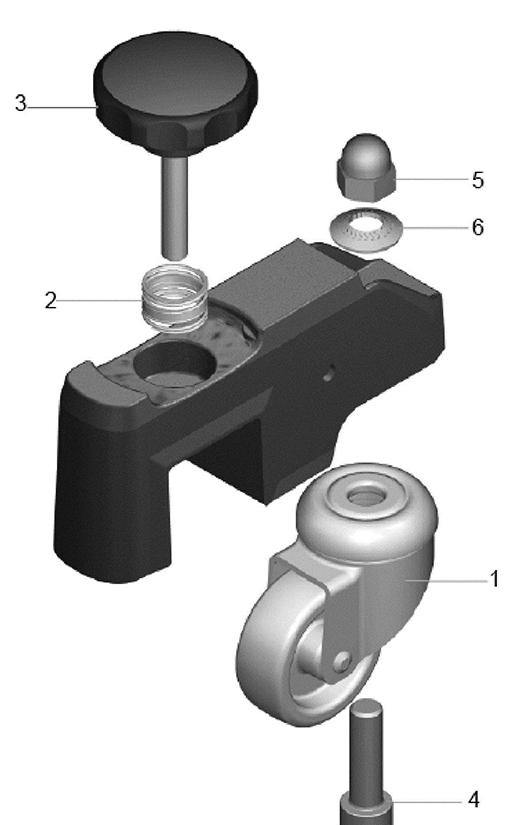

Support Roller Assembly-1-Model 1.515-405.0 - 273-9067
RefNbr Part Number Description Req Notes
1 373-1745 Castor 1
2 273-4235 Pressure spring 1
3 273-3484 Star grip 1
4 999-9211 Screw M10-1.5 x 35 socket head cap 1
5 373-1744 Nut 1
6 999-9212 Washer M10 serrated locking 1

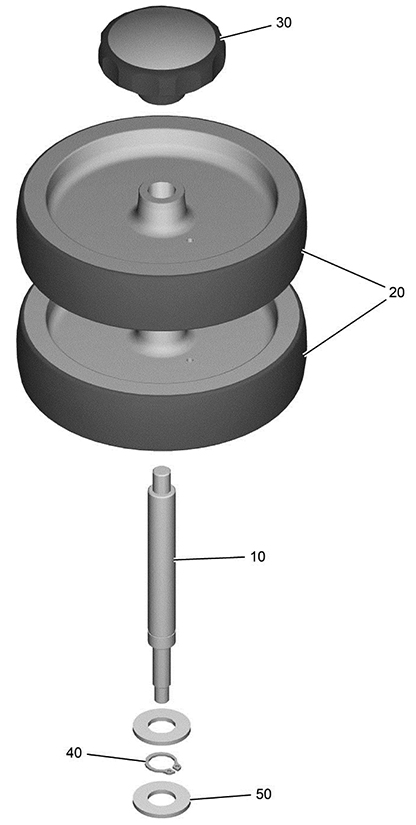

Deflector Stack Assembly-Model 1.515-405.0 - 273-9068
RefNbr Part Number Description Req Notes
10 273-0885 Suction bar axle 2
20 273-0886 Deflector roll 4
30 173-6205 Knob (gray) 2
40 373-1700 Locking ring 2
50 273-6048 Washer 4

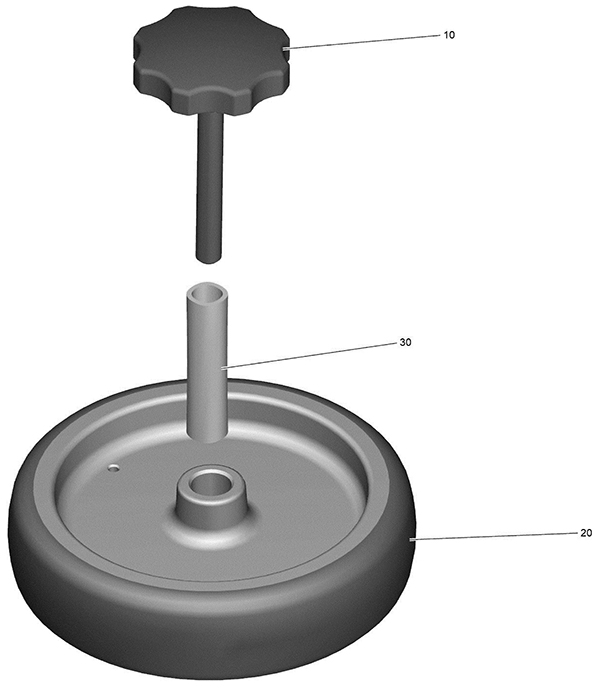

Suction Bar Roll Assembly-Model 1.515-405.0 - 273-9069
RefNbr Part Number Description Req Notes
10 273-0877 Star grip knob 2
20a 273-0888 Wheel gummed 2
20b 273-0886 Deflector roll 2
30 273-0889 Sleeve suction bar 2

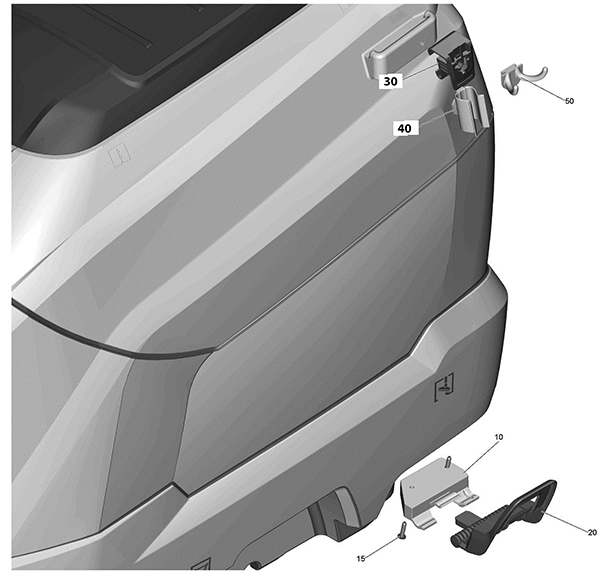

Mop Holder Assembly-Model 1.515-405.0 - 273-9070
RefNbr Part Number Description Req Notes
10 373-1752 Mop support bracket 1
15 999-1425 Screw M5-.8 x 25mm pan head stainless steel 3
20 373-1753 Support mop 1
30 273-4228 Adapter 2
40 373-1754 Handle (grey) 1
50 373-1755 Double hook 1

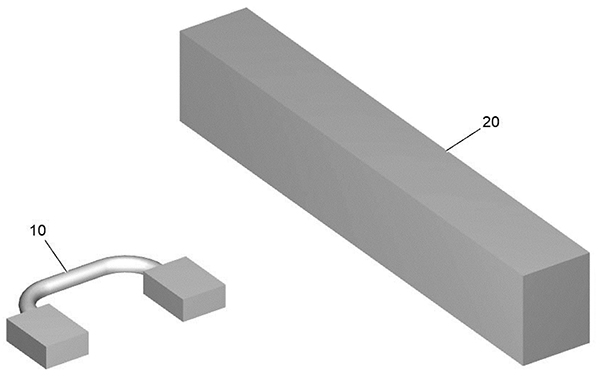

Battery Mounting Assembly-Model 1.515-405.0 - 273-9071
RefNbr Part Number Description Req Notes
10 273-1380 320mm cable battery 1
20 273-0855 Battery spacer 1

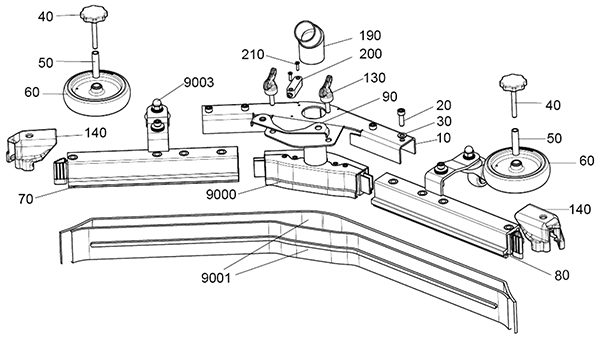

Squeegee Assembly-2-Model 1.515-405.0 - 273-9079
RefNbr Part Number Description Req Notes
10 273-0869 Holder complete V-profile 1
20 273-3477 Screw 4
30 999-0150 Washer #8 medium split lock 4
40 273-0877 Star grip knob 2
50 273-0878 Revolving signal light sleeve 2
60 273-0879 Wheel 2
70a 273-0871 Right hand preassembled profile 1
70b 373-1743 Right hand end piece 1
80a 273-0872 Left hand preassembled profile 1
80b 373-1742 Left hand end piece 1
90 N/A Not available 1 (bracket)
130 N/A Not available 2 (Wing screw M8 x 30)
140 273-3475 Left and right end pieces 1
190 N/A Not available 1 (angle pipe)
210 N/A Not available 2 (screw)
9000 273-0875 Nipple suction assembly 1
9001 373-3087 Squeegee blade rubber oil resistant 1
9003 273-0881 Support roller 1

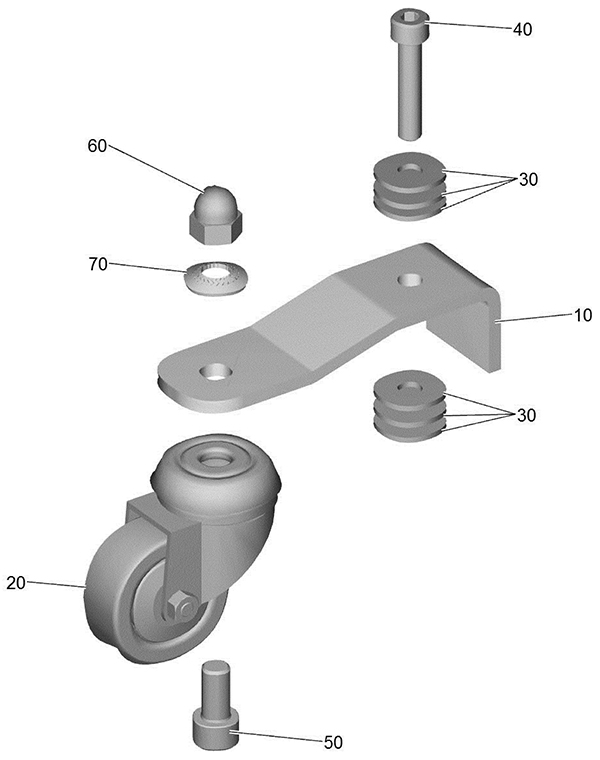

Support Roller Assembly-2-Model 1.515-405.0 - 273-9080
RefNbr Part Number Description Req Notes
10 273-0882 Castor suction bar retaining plate 1
20a 373-1745 Castor 1
20b 373-1745 Castor 1 (replacement)
30a 273-8187 Washer 6
30b 173-6204 Washer 8M 6
40 183-0215 Cheese head screw (Obsolete) 1
50a 183-0462 Screw 1
50b 273-0884 Screw M10 x 25 cylinder head 1
60 373-1744 Nut 1
70a N/A Not available 1
70b N/A Not available 1 (serrated locking washer)

- Commonly Asked For Parts - 373-9988
RefNbr Part Number Description Req Notes
1 373-3057 Suction bar holder assembly
Webpage Problem Reporting
