- Pads - 255-1500 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-1540 |
15 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 02 |
255-1535 |
15 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-1564 |
15 inch Blue ace pad (pkg of 5) |
|
|
| 04 |
255-1542 |
15 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 05 |
255-1512 |
15 inch Cure white pad (pkg of 5) |
|
|
| 06 |
255-1577 |
15 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 07 |
255-1538 |
15 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 09 |
255-1550 |
15 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 10 |
255-1565 |
15 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 11 |
255-1530 |
15 inch jaguar burnishing pad (pkg of 5) |
|
|
| 12 |
255-1590 |
15 inch premium black stripping pad (pkg of 5) |
|
|
| 13 |
255-1570 |
15 inch premium blue cleaning pad (pkg of 5) |
|
|
| 14 |
255-1592 |
15 inch premium brown stripping pad (pkg of 5) |
|
|
| 15 |
255-1580 |
15 inch premium green scrubbing pad (pkg of 5) |
|
|
| 16 |
255-1560 |
15 inch premium red scrubbing pad (pkg of 5) |
|
|
| 17 |
255-1552 |
15 inch premium tan polishing pad (pkg of 5) |
|
|
| 18 |
255-1520 |
15 inch premium white polishing pad (pkg of 5) |
|
|
| 19 |
255-1595 |
15 inch razorback stripping pad (pkg of 5) |
|
|
| 20 |
255-1547 |
15 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 21 |
255-1511 |
15 inch superspeed rubberized pad (pkg of 5) |
|
|
| 22 |
255-1555 |
15 inch Ruff non-abrasive brush pad (pkg of 2) |
|
|
| 23 |
255-1523 |
15 inch sand screen driver pad (pkg of 2) |
|
|
| 24 |
255-0125 |
15 inch Professional sand screen 100 grit (pkg of 10) |
|
|
| 25 |
255-0126 |
15 inch Professional sand screen 120 grit (pkg of 10) |
|
|
| 26 |
255-0127 |
15 inch Professional sand screen 150 grit (pkg of 10) |
|
|
| 27 |
255-0128 |
15 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 28 |
255-0129 |
15 inch Professional sand screen 220 grit (pkg of 10) |
|
|
| 29 |
255-0123 |
15 inch Professional sand screen 60 grit (pkg of 10) |
|
|
| 30 |
255-0124 |
15 inch Professional sand screen 80 grit (pkg of 10) |
|
|
| 31 |
255-0210 |
15 inch Superscreen sand screen 100 grit (pkg of 10) |
|
|
| 32 |
255-0211 |
15 inch Superscreen sand screen 120 grit (pkg of 10) |
|
|
| 33 |
255-0212 |
15 inch Superscreen sand screen 150 grit (pkg of 10) |
|
|
| 34 |
255-0213 |
15 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 35 |
255-0214 |
15 inch Superscreen sand screen 220 grit (pkg of 10) |
|
|
| 36 |
255-0208 |
15 inch Superscreen sand screen 60 grit (pkg of 10) |
|
|
| 37 |
255-0209 |
15 inch Superscreen sand screen 80 grit (pkg of 10) |
|
|
| 38 |
255-1524 |
15 inch Tiger carpet bonnet (pkg of 2) |
|
|
| 39 |
255-9556 |
15 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 40 |
255-9553 |
15 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 41 |
255-9550 |
15 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 42 |
255-9554 |
15 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 43 |
255-9551 |
15 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 44 |
255-9552 |
15 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 45 |
255-9555 |
15 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 46 |
255-9640 |
15 inch Diamond starter pack (1 of each grit) |
|
|
| 47 |
255-1582 |
15 inch Turbostrip segmented rotary pad (pkg of 4) |
|
|
| 48 |
255-1515 |
15 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 49 |
255-1516 |
15 inch 2001 Duala clean and shine pad - high speed (pkg 5) |
|
|
|
|

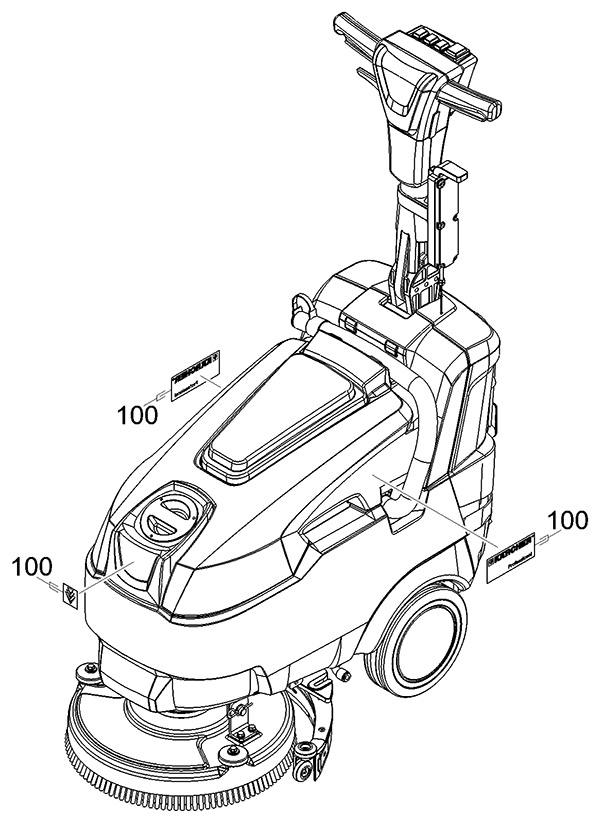

Decal Assembly - 273-6629 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 100 |
273-8810 |
Replacement decal set |
1 |
|
|
|
Handhold Assembly - 273-6630 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 3 |
273-8820 |
Hand grip assembly |
1 |
|
| 4 |
273-8822 |
Switch housing |
1 |
|
| 5 |
273-8812 |
Bend protection |
1 |
|
| 6 |
273-8823 |
On/off switch |
1 |
|
| 7 |
999-0740 |
Nut M5-.8 hex stainless steel |
1 |
|
| 8 |
999-9100 |
Washer M5 flat stainless steel |
1 |
|
| 10 |
273-8816 |
Push handle |
1 |
|
| 13 |
273-8814 |
Joint assembly |
1 |
|
| 15 |
273-8821 |
Seal housing |
1 |
|
| 16a |
273-8824 |
Screen (grey) |
1 |
|
| 16b |
273-8825 |
Screen (yellow) |
1 |
|
|
|

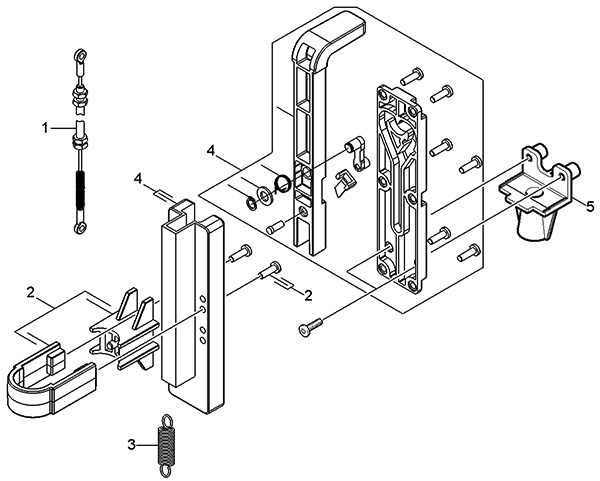

Handhold Bracket Assembly - 273-6631 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
273-3669 |
Bowden cable |
1 |
|
| 3 |
273-8826 |
Extension spring |
1 |
|
| 4 |
273-8827 |
Housing lever set |
1 |
|
|
|

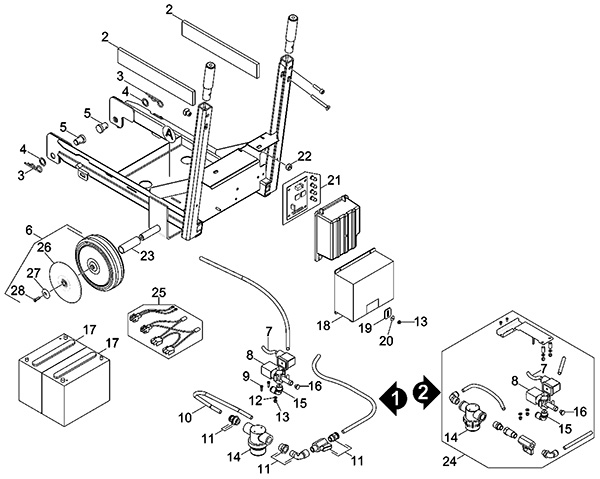

Frame Assembly - 273-6632 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
273-8844 |
Battery distance holder |
2 |
|
| 3 |
273-8843 |
Spring clip (OBSOLETE) |
2 |
|
| 5 |
273-8841 |
Bolt brush head |
2 |
|
| 6 |
273-7627 |
Wheel |
2 |
(includes 26,27,28) |
| 7 |
273-8560 |
Cable solenoid |
1 |
|
| 8 |
273-7625 |
Solenoid valve |
1 |
|
| 9 |
173-6178 |
Screw M5 x 12mm |
2 |
|
| 11 |
273-8838 |
Water tap kit |
1 |
(version 1) |
| 12 |
273-4506 |
Washer (OBSOLETE) |
2 |
|
| 14 |
273-7626 |
Water filter |
1 |
|
| 15 |
273-8837 |
1/4 inch angle connection |
1 |
|
| 17 |
162-0114 |
12V 50Ah AGM battery |
2 |
|
| 18a |
273-8836 |
24V battery charger |
1 |
|
| 18b |
273-7623 |
120V 5ah battery charger |
1 |
|
| 18c |
273-8832 |
Battery charger |
1 |
|
| 19 |
273-8835 |
Plate bracket |
1 |
|
| 20 |
273-7132 |
Washer (OBSOLETE) |
1 |
|
| 21 |
273-8834 |
Control system circuit board |
1 |
|
| 24 |
273-8833 |
Water distributor add on kit |
1 |
(includes 7,8,14,15,16) |
| 25 |
273-7624 |
Add on cable connection kit |
1 |
|
| 28 |
999-0773 |
Screw M6-1 x 16mm flat socket head stainless steel |
1 |
|
|
|

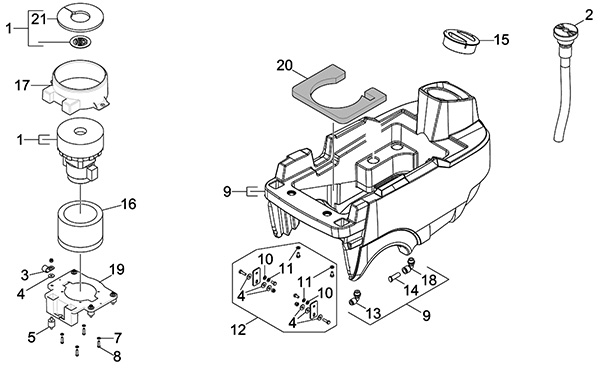

Fresh Water Tank Assembly - 273-6633 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
273-7628 |
Vacuum motor |
1 |
(includes 21) |
| 2 |
273-8849 |
Fresh water hose |
1 |
|
| 3 |
273-8858 |
Clamp with rubber |
1 |
|
| 5 |
273-8857 |
Rubber buffer |
4 |
|
| 7 |
173-7679 |
Screw M5 x 20mm st r2r |
4 |
|
| 8 |
273-8846 |
Screw 5 x 20mm (OBSOLETE) |
4 |
|
| 9 |
273-8855 |
Fresh water tank set |
1 |
(includes 13,14,18) |
| 10 |
999-1261 |
Washer M6 flat stainless steel |
2 |
|
| 11 |
273-8845 |
Spring washer |
2 |
|
| 12 |
273-8854 |
Tank fixing set |
1 |
(includes 4,10,11) |
| 13 |
273-8852 |
3/8 inch connection |
1 |
|
| 14 |
273-8850 |
Cap closure |
1 |
|
| 16 |
273-8856 |
Sound insulation |
1 |
|
| 17 |
273-8848 |
Turbine guard ring |
1 |
|
| 19 |
273-8847 |
Turbine holder |
1 |
|
| 20 |
273-8859 |
Covering cap |
1 |
|
|
|

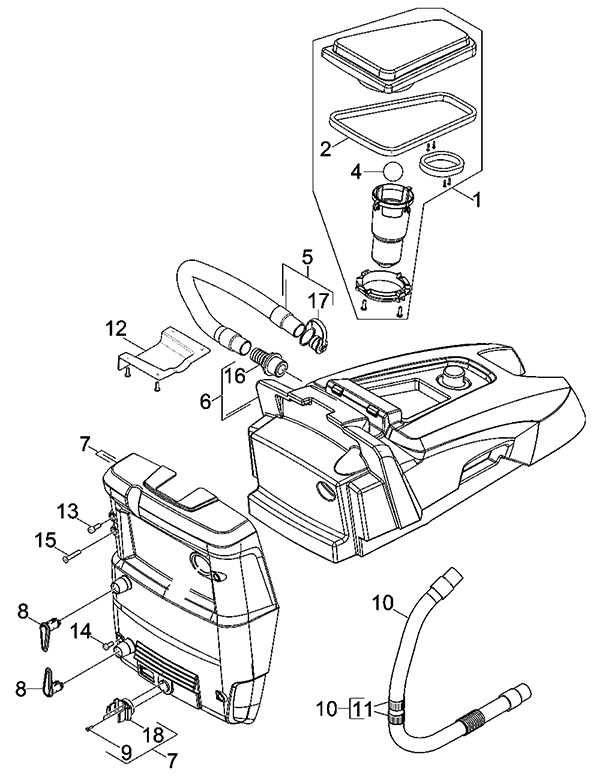

Wase Water Tank Assembly - 273-6634 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
273-8864 |
Cover |
1 |
(includes 2,4) |
| 2 |
273-8867 |
Seal profile |
1 |
|
| 5 |
273-7565 |
Drain hose assembly |
1 |
(includes 17) |
| 6 |
273-8865 |
Waste water tank (yellow) |
1 |
(includes 16) |
| 7 |
273-3542 |
Covering cap complete |
1 |
(includes 9,18) |
| 8 |
273-8868 |
Cable catch (yellow) |
2 |
|
| 10 |
273-7564 |
Hose extraction system |
1 |
(includes 11) |
| 12 |
273-8869 |
Covering cap |
1 |
|
| 13 |
273-8860 |
Screw M6 x 25mm cylinder head |
2 |
|
| 14 |
183-0093 |
Screw M6-1 x 16mm |
2 |
|
| 15 |
999-6737 |
Screw M6-1 x 50mm countersunk stainless steel |
1 |
|
| 16 |
273-8863 |
Connection nipple |
1 |
|
| 17 |
273-8862 |
Drain hose cover |
1 |
|
|
|

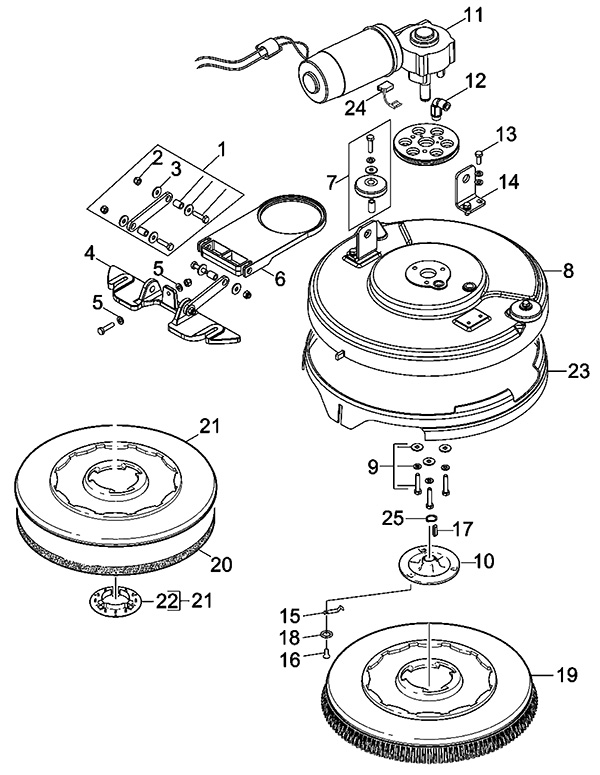

Power Brush Transmission Assembly - 273-6635 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
273-8881 |
Plate holder set |
2 |
(includes 2,3) |
| 2 |
999-1308 |
Nut M6-1 hex stainless steel |
2 |
|
| 4 |
273-8880 |
Rocker suction bar |
1 |
|
| 5 |
999-1261 |
Washer M6 flat stainless steel |
6 |
|
| 6 |
273-8878 |
Boom brush housing set |
1 |
|
| 7 |
273-8879 |
Deflector roll set |
1 |
|
| 9 |
273-8876 |
Motor hardware kit |
3 |
|
| 12 |
273-8874 |
1/4 inch connection |
1 |
|
| 13 |
273-8209 |
Screw M6 x 20 hex head |
4 |
|
| 15 |
173-9872 |
Plate spring |
3 |
|
| 16 |
173-9871 |
Screw M5 x 6 |
3 |
|
| 17 |
273-8184 |
Parallel key |
1 |
|
| 18 |
173-6307 |
Serrated lock washer (OBSOLETE) |
3 |
|
| 19a |
273-7632 |
16 inch brush (white) |
1 |
|
| 19b |
273-7631 |
16 inch brush |
1 |
|
| 19c |
273-7630 |
16 inch brush (black) |
1 |
|
| 19d |
183-4752 |
Grout brush |
1 |
|
| 20a |
273-8882 |
Diamond pad set (yellow) |
1 |
|
| 20b |
273-8883 |
Diamond pad set (white) (OBSOLETE) |
1 |
|
| 20c |
273-8884 |
Diamond pad set (green) |
1 |
|
| 20e |
273-8886 |
Pad (green) |
1 |
|
| 20f |
273-8887 |
Pad (black) |
1 |
|
| 21 |
273-8870 |
Disc pad |
1 |
(includes 22) |
| 23 |
273-8872 |
Splash guard |
1 |
|
| 24 |
273-7629 |
Carbon brush set |
1 |
|
|
|
Power Brush Splash Guard Assembly - 273-6636 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 0 |
273-8895 |
Suction bar set |
1 |
(includes 1,2,4,5,6,7,8,9) |
| 2 |
273-8896 |
Retainer plate connection |
1 |
|
| 3 |
273-7564 |
Hose extraction system |
1 |
|
| 4 |
273-8894 |
Deflector roll set |
5 |
|
| 6 |
273-8889 |
Threaded pin M5 x 30mm |
2 |
|
| 7 |
273-8892 |
Retainer plate suction lips set |
1 |
|
| 8 |
273-8893 |
Suction lips set |
1 |
|
| 9 |
273-3545 |
Squeegee blade set oil resistant |
1 |
|
| 10 |
273-8890 |
Suction bar lifting kit |
1 |
|
|
|
- Commonly Asked For Parts - 273-9981 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
273-3542 |
Covering cap complete |
|
|
| 04 |
273-3545 |
Squeegee blade set oil resistant |
|
|
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
