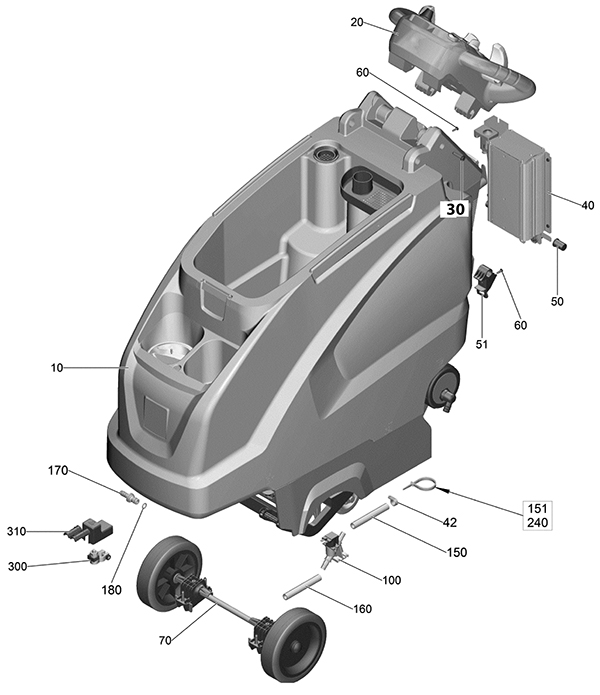

Parts List Complete for KARCHER B 40 C Bp


General Assembly-Model 1.783-312.0 - 273-9017
RefNbr Part Number Description Req Notes
10 N/A Not available 1 (solution tank)
20 N/A Not available 1 (control panel BAT C)
30 373-1666 Screw M8 x 35mm 4
40a N/A Not available 1 (electric equipment) (old version)
40b N/A Not available 1 (electric equipment) (new version)
42 273-4523 Hose clip (OBSOLETE) 1
50 273-0800 Bearing bush electronics 2
51 273-0801 Adapter 2
60 183-0075 Screw 5-16 x 10.9mm 4
70 N/A Not available 1 (axle)
100 173-5392 Solenoid valve 1
150 273-5847 Spiral hose (sold by the inch) 1m (to order as cut goods)
151 173-9063 Holder 4
160 273-5847 Spiral hose (sold by the inch) 1m (to order as cut goods)
170 273-3461 Hose stem 1
180 273-3462 O-ring seal 1
240 273-4485 Cable tie 1
300 273-0802 Pole binder 1
310 273-0803 Battery terminal covering cap 1
N/S N/A Not available 1 (documentation)
N/S 162-0042 12V 115Ah AGM battery (Group 31) 1
N/S 273-0804 Battery mounting kit 1
N/S 162-0042 12V 115Ah AGM battery (Group 31) 1
N/S 273-0805 Battery mounting kit 1

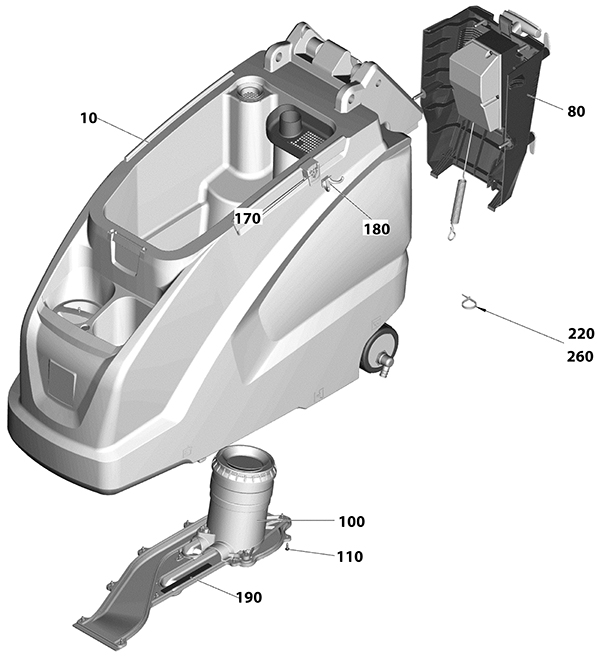

Solution Tank Assembly-Model 1.783-312.0 - 273-9018
RefNbr Part Number Description Req Notes
10 N/A Not available 1 (tank)
80 N/A Not available 1 (rear covering cap)
100 N/A Not available 1 (vacuum motor)
110 183-0075 Screw 5-16 x 10.9mm 13
170 273-4228 Adapter 1
180 373-1755 Double hook 1
190 273-1309 Sealing tape 1m (to order as cut goods)
220 273-1310 Cable tape 1
260 173-9897 Cable tie 1

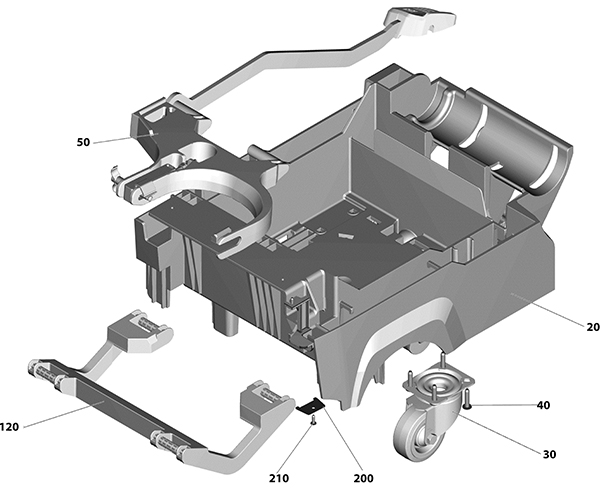

Frame Assembly-Model 1.783-312.0 - 273-9019
RefNbr Part Number Description Req Notes
20 273-1311 Frame 1
30 273-1312 Castor 2
40 373-1666 Screw M8 x 35mm 8
50 N/A Not available 1 (suspension brush head)
120 273-1313 Retaining bracket connecting rod 1
200 273-1314 Plate 1
210 183-0075 Screw 5-16 x 10.9mm 1

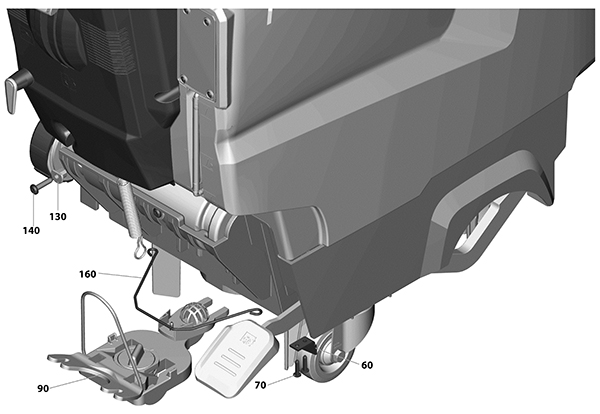

Suction Bar Lift Assembly-Model 1.783-312.0 - 273-9020
RefNbr Part Number Description Req Notes
60 273-1315 Sheet metal component 1
70 999-1425 Screw M5-.8 x 25mm pan head stainless steel 2
90 N/A Not available 1 (suction bar lift)
130 273-1316 Sleeve 3
140 373-1666 Screw M8 x 35mm 3
160 273-1317 Wire spring 1

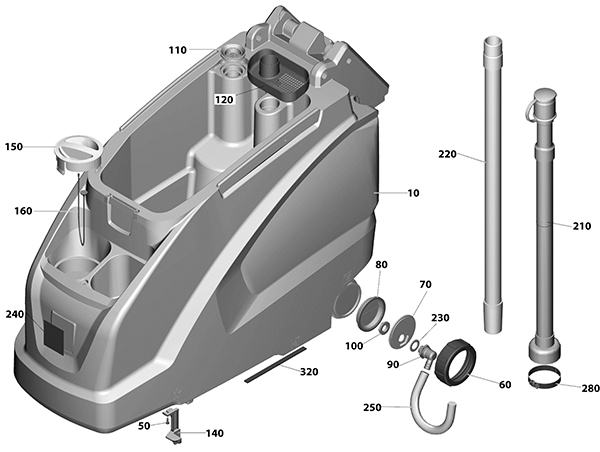

Water Tank Assembly-Model 1.783-312.0 - 273-9021
RefNbr Part Number Description Req Notes
10 273-1318 Tank 1
50 183-0075 Screw 5-16 x 10.9mm 3
60 273-4474 Water tank discharge cover 1
70 273-4475 Hose connection 1
80 373-4306 Discharge filter 1
90 273-1128 Angle bushing 1
100 173-5810 Nut 1/2 hex 1
110 273-2032 Strainer 1
120 273-1319 Tank bulk waste (yellow) 1
140 273-1320 Tank locking part 1
150 373-1654 Cover 1
160 373-1657 Rope 1
210 273-3588 Drain hose with cover (yellow) 1 (oil resistant)
220 273-1321 Suction hose 1
230 173-9064 Seal 1
240 373-1662 Decal 1
250 273-3667 Hose 1m (to order as cut goods)
280 273-1322 Hose clip 1
320 273-1323 Sealing tape 1m (to order as cut goods)

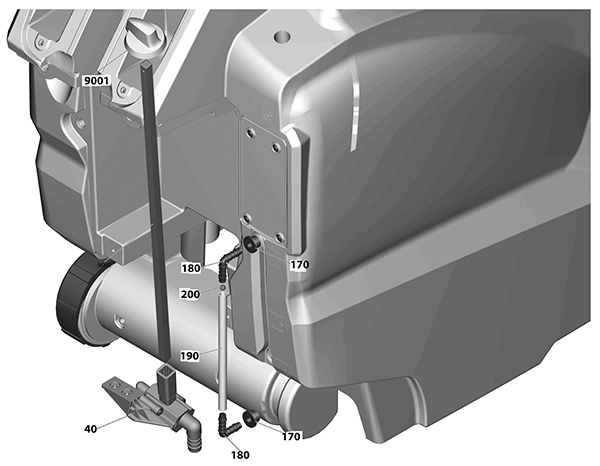

Ball Valve Handle Assembly-Model 1.783-312.0 - 273-9022
RefNbr Part Number Description Req Notes
40 273-1324 Ball valve complete 1
170 373-1652 Wire protection sleeve 2
180 373-1649 Elbow 2
190 273-1325 Silicon hose level indicator 1
200 373-1651 Level indicator sphere 1
9000 173-4492 Bar 1
9001 173-4491 Handle 1

Water Tank Seal Assembly-Model 1.783-312.0 - 273-9023
RefNbr Part Number Description Req Notes
290 273-1326 Screen filling system 1
300 273-9354 Fixing plate seal 1
310 183-0075 Screw 5-16 x 10.9mm 4

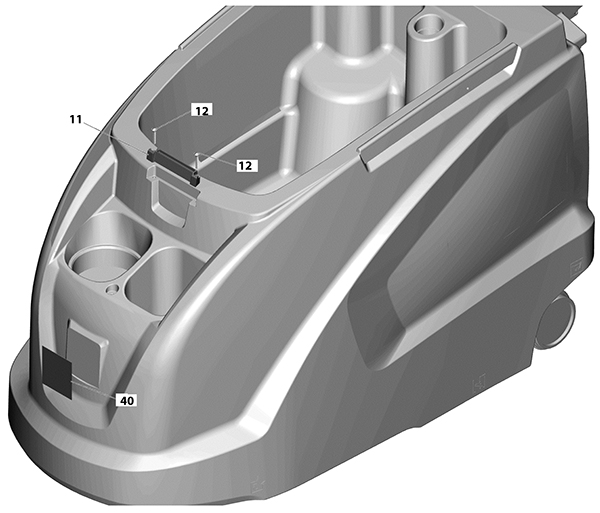

Tank Replacement Assembly-Model 1.783-312.0 - 273-9024
RefNbr Part Number Description Req Notes
11 273-1327 Tank cover add on part 1
12 273-0977 Screw M5-10.9 x 30mm 2
40 373-1662 Decal 1

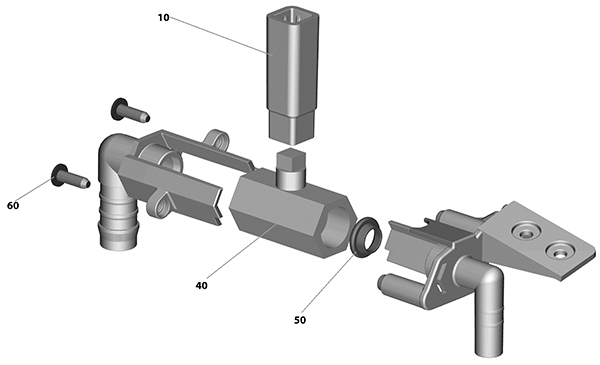

Ball Valve Assembly-Model 1.783-312.0 - 273-9025
RefNbr Part Number Description Req Notes
10 273-8557 Ball valve coupling 1
40 173-7630 Ball valve without handhold 1
50 273-1328 Ball valve seal 2
60 183-0075 Screw 5-16 x 10.9mm 2

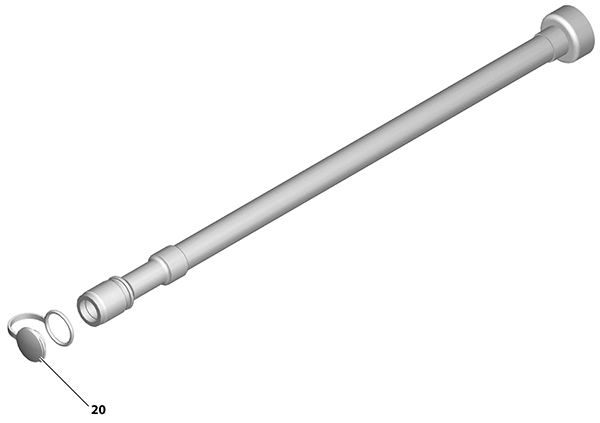

Drain Hose Cover Assembly-Model 1.783-312.0 - 273-9026
RefNbr Part Number Description Req Notes
20 273-1329 Drain hose cover (yellow) 1

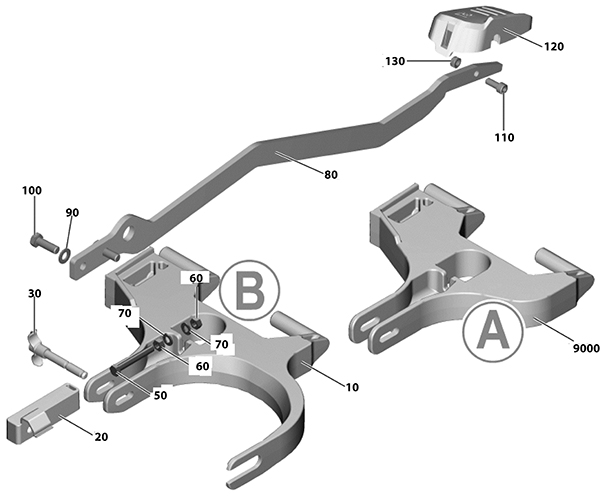

Suspension Brush Head Assembly-Model 1.783-312.0 - 273-9028
RefNbr Part Number Description Req Notes
10 273-1330 Supension brush head 1 (version A)
20 273-1331 Brush head adjusting element 1
30 273-1332 Brush head handhold bolt 1
50 999-1155 Screw M8-1.25 x 60mm hex head 1
60 999-1651 Nut M8-1 hex stainless steel 2
70 999-9097 Washer M8 flat stainless steel 2
80 273-1333 Brush head lever plate 1
90 273-6016 Washer 2
100 999-1302 Screw M10-1.5 x 30mm hex head 2
110 273-7847 Screw M8 x 20mm cylinder head 1
120 273-1334 Brush head pedal 1
130 999-1651 Nut M8-1 hex stainless steel 1
9000 273-1335 Brush head conversion kit 1 (version B)

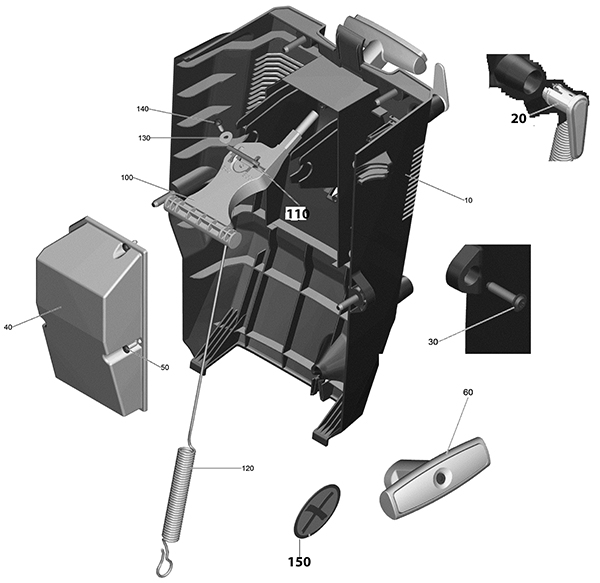

Rear Covering Cap Assembly-Model 1.783-312.0 - 273-9029
RefNbr Part Number Description Req Notes
10 273-1336 Covering cap 1
20 273-8868 Cable catch (yellow) 2
30 373-1666 Screw M8 x 35mm 4
40 273-1337 Rear cover covering cap 1
50 183-0075 Screw 5-16 x 10.9mm 3
60 273-1339 Set handhold adjustment 1
100 373-3062 Reinforced conscription suction bar 1
110 373-3071 Axle lever suction bar 1
120 373-3072 Extension spring 1
130 999-9100 Washer M5 flat stainless steel 1
140 183-0075 Screw 5-16 x 10.9mm 1
150 273-8163 Warning sign decal 1

Set Handhold Adjustment Assembly-Model 1.783-312.0 - 273-9031
RefNbr Part Number Description Req Notes
30 173-0780 Screw M5 x 20 countersunk 1
40 273-6060 Spring 1

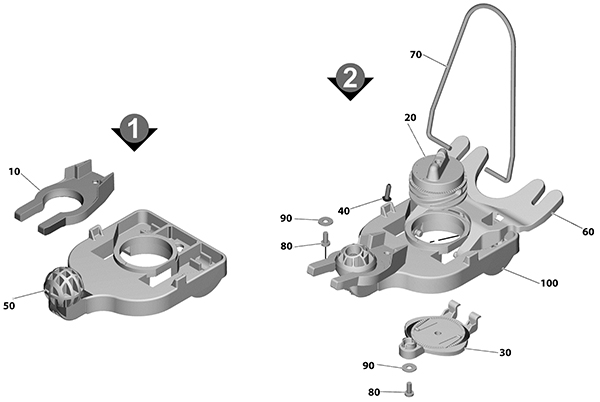

Suction Bar Lifting Assembly-Model 1.783-312.0 - 273-9032
RefNbr Part Number Description Req Notes
10 N/A Not available 1 (version 1) (stockpiling)
20 273-4233 Knob 1
30 373-1722 Cap 1
40 999-1425 Screw M5-.8 x 25mm pan head stainless steel 1
50 N/A Not available 1 (version 1) (stockpiling)
60 373-1723 Rocker 1
70 273-1340 Retaining bracket suction bar 1
80 273-1341 SCREW M5X12-A2/70-ISO 7045 (IN6RD) 2 (with microencapsulation)
90 999-9100 Washer M5 flat stainless steel 2
100 373-3057 Suction bar holder assembly 1 (version 2)

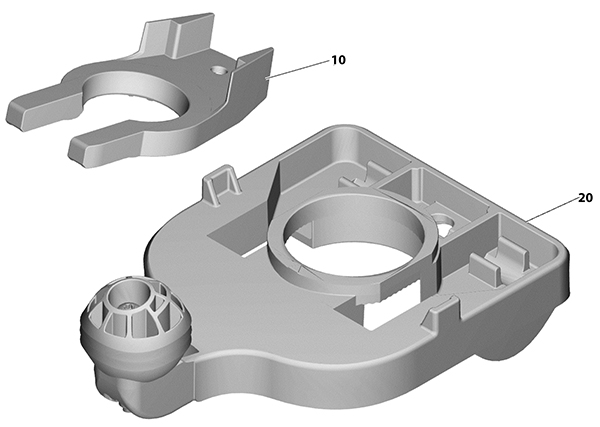

Suction Bar Holder Assembly-1-Model 1.783-312.0 - 273-9033
RefNbr Part Number Description Req Notes
10 273-4232 Plate 1
20 373-1721 Holder 1

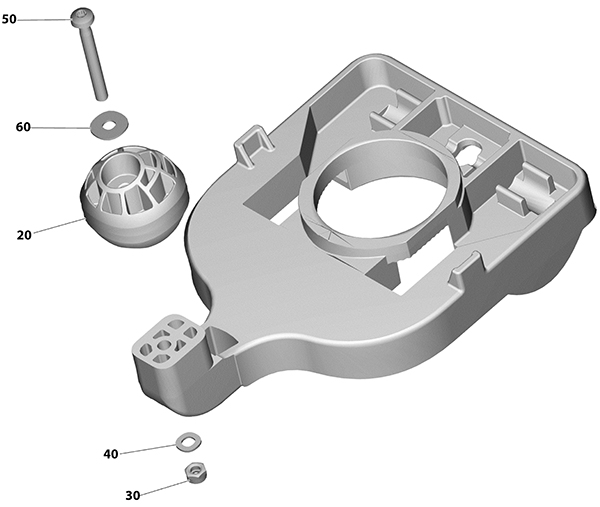

Suction Bar Holder Assembly-2-Model 1.783-312.0 - 273-9034
RefNbr Part Number Description Req Notes
20a 273-1342 Suction bar suspension sphere 1
20b 373-3057 Suction bar holder assembly 1 (for replacement)
30 183-4190 Nut hex 1
40 173-9042 Washer #5 1
50 273-1343 Screw M5 x 45-8.8 1
60 999-9100 Washer M5 flat stainless steel 1

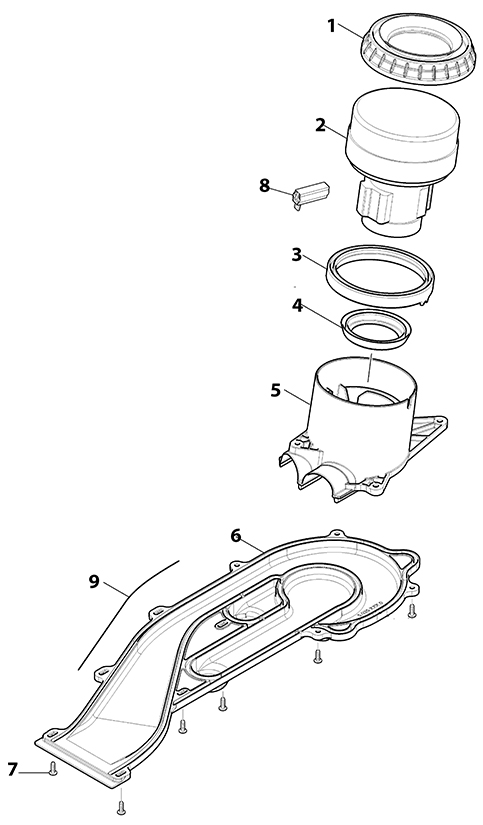

Vacuum Motor Assembly-Model 1.783-312.0 - 273-9035
RefNbr Part Number Description Req Notes
1 373-1730 Bearing 1
2 373-1637 Vacuum motor 1
3 373-1728 Joint ring 1
4 173-5828 Seal 1
5a 273-4532 Bottom air circulation turbine 1 (version 2)
5b 273-4532 Bottom air circulation turbine 1 (version 1)
6a 273-4533 Replacement air circulation turbine 1 (version 2)
6b 273-4531 Top air circulation turbine 1 (version 3)
6c N/A Not available 1 (version 1) (stockpiling)
7 183-0075 Screw 5-16 x 10.9mm 8
8 273-1344 Carbon brush set 1 (24V)
9 173-9040 Rubber seal string 1m (to order as cut goods)

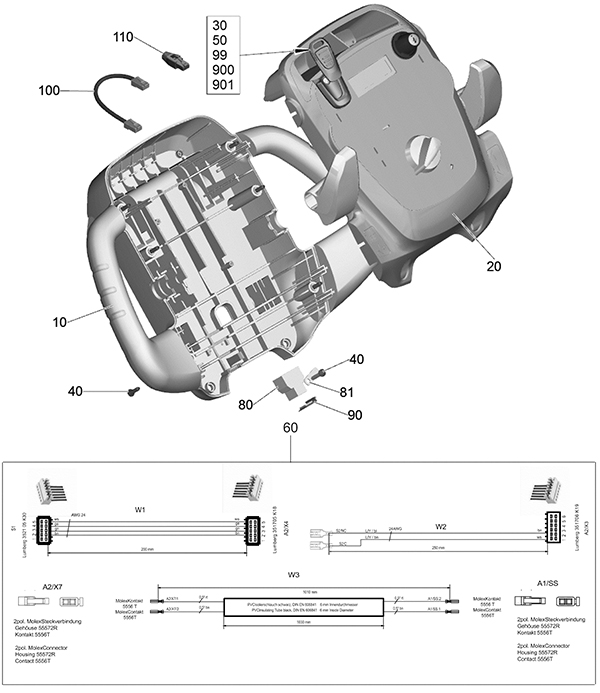

Control Panel Assembly- BAT C-Model 1.783-312.0 - 273-9036
RefNbr Part Number Description Req Notes
10a 273-1345 Housing control panel 1 (without slot for 90)
10b 273-1346 Housing bottom part 1 (with slot for 90)
20 N/A Not available 1 (covering cap control panel)
30 273-9166 Set key (yellow) 1
40 173-6202 Screw M5 x 20mm 7
50 273-9167 Key (grey) 1
60 273-1350 Control panel cable harness 1
80 273-1347 Y-spltter adapter 1
81 273-4526 Stiffener plate 1 (version 2)
90 273-9210 Rubber stopper 1
99a 273-9168 Set key (white) 1 (set with 5 pieces)
99b 273-3598 Key (red) (OBSOLETE) 1
100 273-1348 Cable patch (blue) 1
110 273-1349 Adaptor plug 1
900 273-9169 Key (white) 1
901 273-9166 Set key (yellow) 1

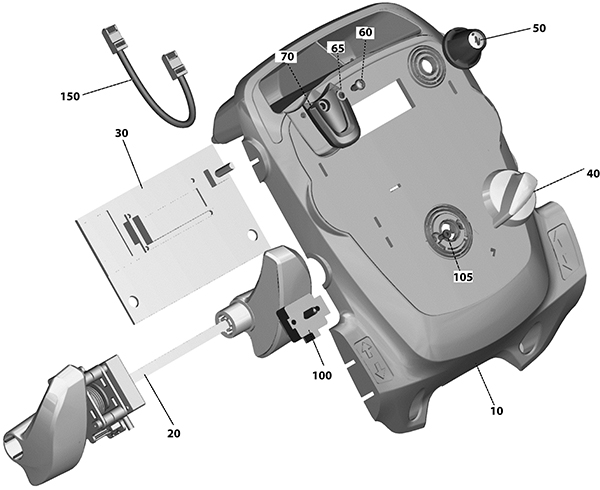

Control Panel Covering Assembly-BAT-Model 1.783-312.0 - 273-9038
RefNbr Part Number Description Req Notes
10a 273-1351 Control panel covering cap 1 (with slot for 273-9210)
10b 273-1345 Housing control panel 1 (without slot for 273-9210)
20 273-1353 Tachopraph set 1
30 273-1354 Circuit board 1
40a 273-9368 Knob w/ spring clip 1 (includes 40b)
40b 273-9368 Knob w/ spring clip 1
50 273-9364 Info panel 1
60 273-9373 Screw 5 x 12 1
65 173-9042 Washer #5 1
70 273-9372 Guide key 1
100 273-1355 Switch program selection 1
105 173-9084 Screw M4 x 12 countersunk 2
150 273-1356 Cable patch 1

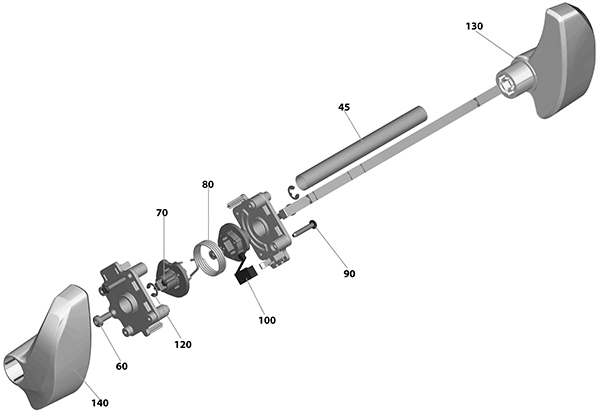

Tachopraph Assembly-Model 1.783-312.0 - 273-9039
RefNbr Part Number Description Req Notes
45 273-1358 Insulating hose 1m (to order as cut goods)
60 999-6690 Screw M5-.8 x 12mm hex head stainless steel 2
70 273-9982 Screw 3 x 12 2
80 273-1357 Torsion spring 1
90 173-6181 Screw M4 x 22mm 2
100 273-1359 Gold plated switch 1
120 173-5901 Washer lock 2
130 273-1361 Tachopraph right hand assembly 1
140 273-1360 Tachopraph left hand assembly 1

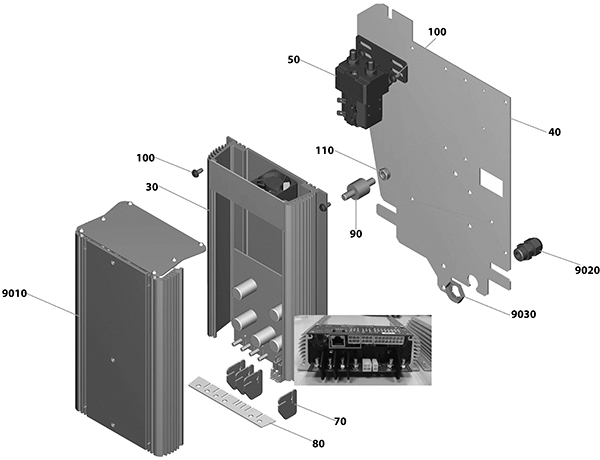

Electronic Assembly-1-Model 1.783-312.0 - 273-9041
RefNbr Part Number Description Req Notes
30a 273-1362 Electronics control system 1
30b 273-1373 Electronics control system 1
40 273-1368 Electronics base plate 1
50a 273-1363 120A relay 1
50b 183-0148 Power relay 1
50c 273-1374 Relay replacement set 1
70 273-1364 Electronics plate molded part 4
80 273-1369 Electronics molded part plate 1
90 273-1365 Isolator 1
100 183-0323 Screw M5-.8 x 10mm stainless steel 6
110 183-0341 Hex nut 1
9010 273-1366 Battery charger 1
9020 273-1367 Cable gland (black) 2
9030 N/A Not available 2 (stockpiling)

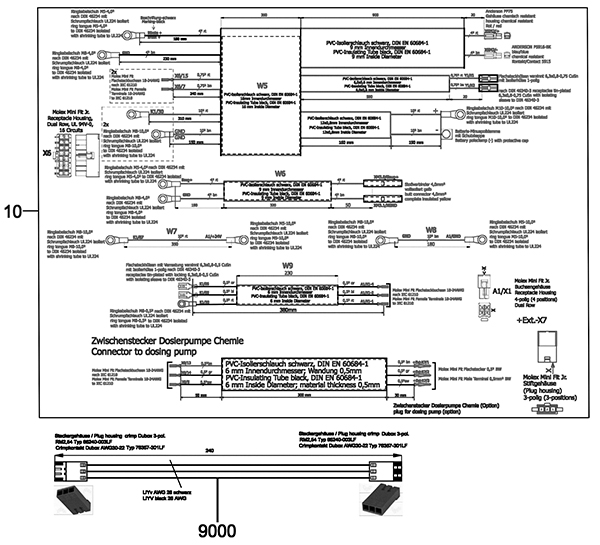

Electronic Assembly-2-Model 1.783-312.0 - 273-9042
RefNbr Part Number Description Req Notes
10 273-1370 Cable harness 1
9000 273-1371 Control system battery connecting cable 1

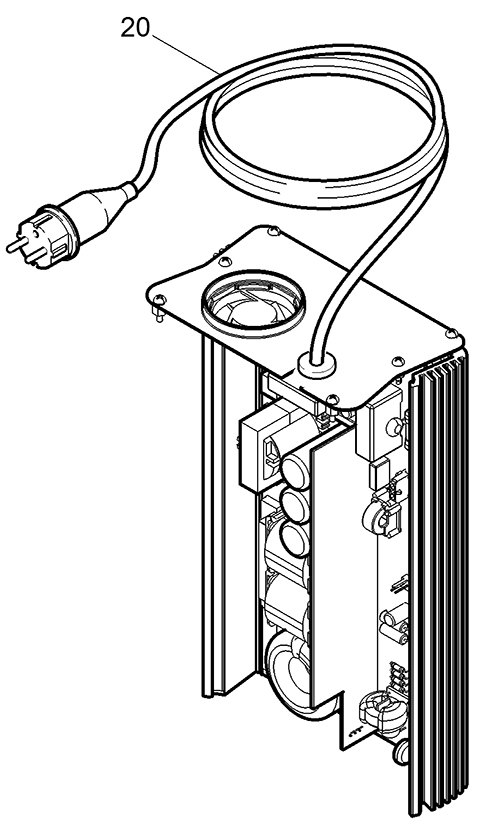

Battery Charger Assembly-Model 1.783-312.0 - 273-9043
RefNbr Part Number Description Req Notes
20 273-1372 Cable with plug 1

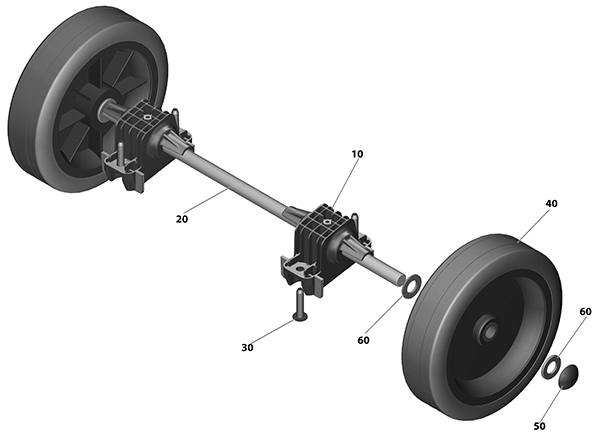

Axle Assembly-Model 1.783-312.0 - 273-9044
RefNbr Part Number Description Req Notes
10 273-1376 Axle holder (OBSOLETE) 2
20 273-1377 Wheel axle carriage 1
30 373-1666 Screw M8 x 35mm 4
40 273-1378 Wheel 2
50 373-1697 Lock washer 2
60 373-1698 Washer 4

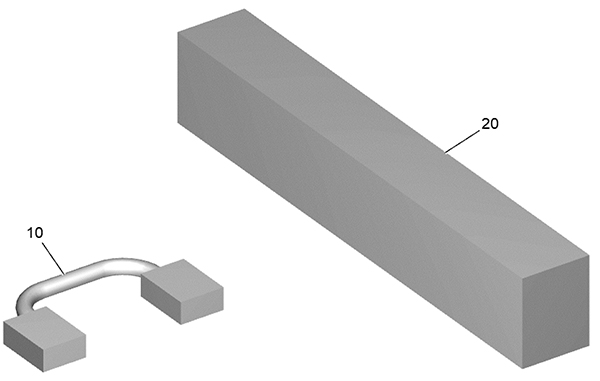

Battery Mounting Assembly-Model 1.783-312.0 - 273-9045
RefNbr Part Number Description Req Notes
10a 273-1380 320mm cable battery 1
10b 273-1381 200mm battery cable 1
20 N/A Not available 1 (battery distance holder)

- Batteries, Brushes, and Chargers - 273-9046
RefNbr Part Number Description Req Notes
273-1366 Battery charger 1
273-1372 Cable with plug 1
