Parts List Complete for KARCHER B 250 R

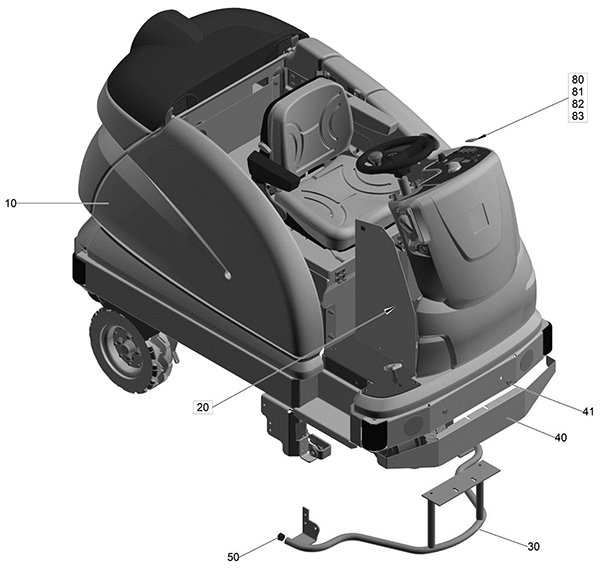

Electronic Overview-B 250 R Bp (2.480-003.7) - 273-9700
RefNbr Part Number Description Req Notes
10 N/A Not available 1 (basic machinery B 250 R/RI)
20 273-9161 Three phase drive electronic control 1
30 273-9162 Ram protection 1
40 273-9163 Ram protection plate 1
41 273-9164 Protecting cap 1
50 273-9165 Plug 2
80a 273-9166 Set key (yellow) 1 (set with 5 pieces)
80b 273-9166 Set key (yellow) 1
81 273-9167 Key (grey) 1
82 273-9168 Set key (white) 1 (set with 5 pieces)
83 273-9169 Key (white) 1

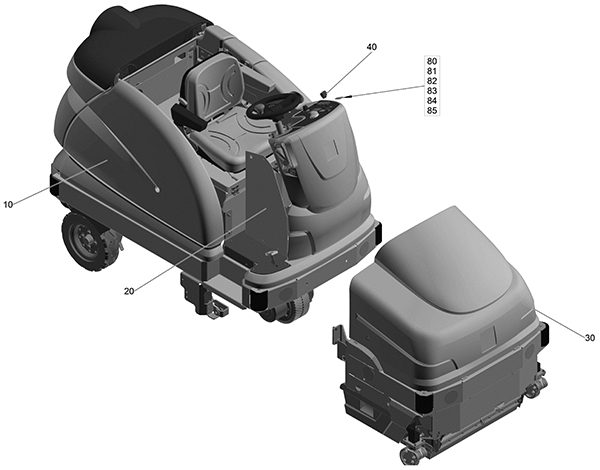

Electronic Overview-B 250 R I Bp (2.480-005.7) - 273-9701
RefNbr Part Number Description Req Notes
10 N/A Not available 1 (basic machinery B 250 R/RI)
20 N/A Not available 1 (electronic control three-phase drive B25)
30 N/A Not available 1 (sweep unit B 250 RI)
80 273-9166 Set key (yellow) 1
81 273-9167 Key (grey) 1
82 273-9168 Set key (white) 1
83 273-9169 Key (white) 1
84 273-9166 Set key (yellow) 1
85 273-3598 Key (red) (OBSOLETE) 1
N/S 373-1766 Pre sweep two pole switch 1

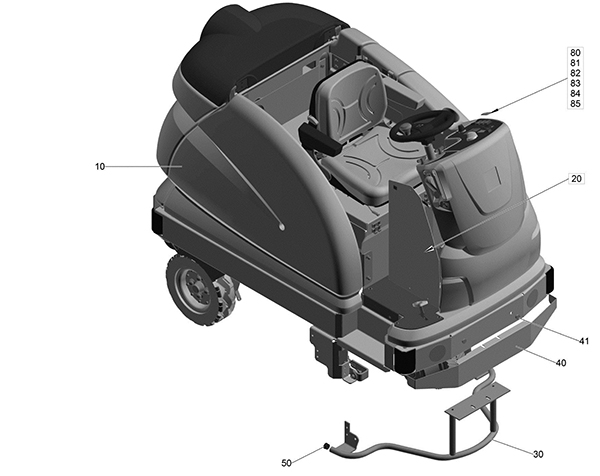

Electronic Overview-B 250 R Bp SB (2.480-004.7) - 273-9702
RefNbr Part Number Description Req Notes
10 N/A Not available 1 (basic machinery)
20 N/A Not available 1 (electronic control three-phase drive B25)
30 273-9162 Ram protection 1
40 273-9163 Ram protection plate 1
41 273-9164 Protecting cap 1
50 273-9165 Plug 2
80 273-9166 Set key (yellow) 1
81 273-9167 Key (grey) 1
82 273-9168 Set key (white) 1
83 273-9169 Key (white) 1
84 273-9166 Set key (yellow) 1
85 273-9166 Set key (yellow) 1

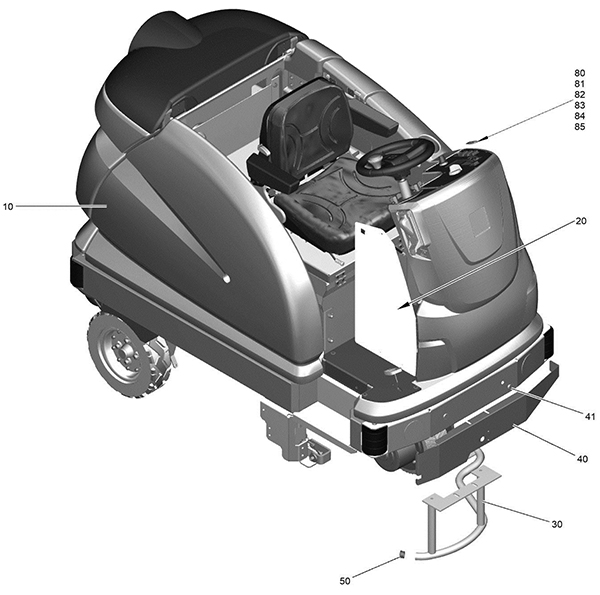

Electronic Overview-B 250 R Bp SSD (2.480-006.7) - 273-9703
RefNbr Part Number Description Req Notes
10 N/A Not available 1 (basic machinery)
20 N/A Not available 1 (electronic control three phase drive B25)
30 373-1767 Ram protection side scrubbing deck 1
40 373-1768 Ram protection plate 1
41 273-9164 Protecting cap 1
50 273-9165 Plug 2
80 273-9166 Set key (yellow) 1
81 273-9167 Key (grey) 1
82 273-9168 Set key (white) 1
83 273-9169 Key (white) 1
84 273-9166 Set key (yellow) 1
85 273-3598 Key (red) (OBSOLETE) 1

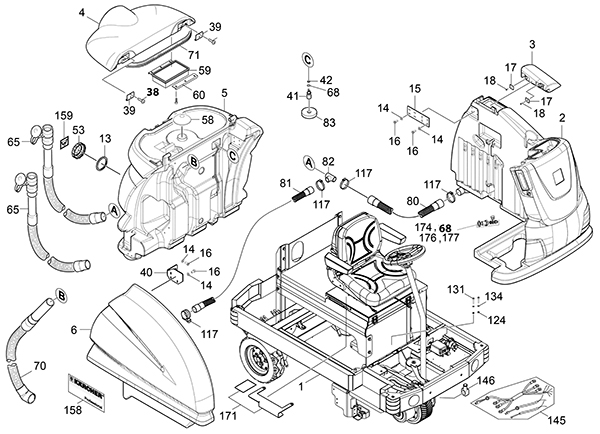

Basic Machinery Assembly-Tank-Model 1.480-231.2 - 273-9704
RefNbr Part Number Description Req Notes
1 N/A Not available 1 (carriage B 250 r)
2 273-9171 Fresh water tank 1
3 273-9172 Fresh water tank cover 1
4 273-9173 Waste water tank cover 1
5 273-9174 Waste water tank 1
6 273-9175 Side 1
13 273-3608 Seal 1
14 999-0150 Washer #8 medium split lock 13
15 273-9176 Sheet metal connection 1
16 273-3640 Screw 13
17 273-9177 Retaining plate 2
18 183-0075 Screw 5-16 x 10.9mm 17
38 273-6490 Screw 4 x 16 4
39 273-9178 Retaining plate 2
40 273-9179 Connection plate 1
41 373-1413 Float regulator 1
42 273-9180 Locknut 1
53 273-3607 Cap 1
58 273-9181 Rain top 1
59 273-3614 Filter 1
60 273-9182 Filter halter plate 2
65 273-9183 Drain hose 2
68 273-9184 Flat gasket 2
70 273-7797 Suction hose 1
71 273-8633 Sealing profile (sold by the inch) 2.8m
80 273-9185 350mm suction hose 1
81 273-9186 Hose 1
82 273-9187 T-piece pvc 1
83 273-7803 Float foam stop 1
117 273-9188 Hose clip 6
124 273-6081 Nut M6-4 hex 4
131 273-6057 Screw M6-8.8 x 35mm (OBSOLETE) 2
134 173-6297 Washer 2
145 273-9189 Three phase drive cable harness 1
146 273-9190 Protecting cap 3
158 273-9191 Side decal 2
159 273-9192 Discharge water decal 2
171 273-9193 Guard plate complete conversion kit 1
174 273-9194 Reducing nipple 1
176 173-9882 Washer serrated lock 1
177 173-9058 Nut M6-8 hex 1
178 273-9545 Tightening strap 1
179 373-1662 Decal 1
180 273-9214 Tank sensor tube 1
184 373-1769 Maintenance instruction decal 1

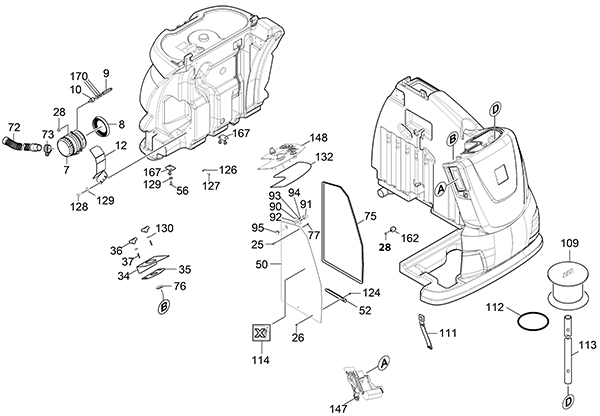

Basic Machinery Assembly-Control Panel-Model 1.480-231.2 - 273-9705
RefNbr Part Number Description Req Notes
7 273-3644 36V vacuum motor low noise 1
8 273-9197 Joint ring 1
9 183-0077 Bolt 3
10 273-7793 Rubber buffer 3
12 273-9198 Covering cap turbine plate 1
25 273-7457 Screw M6 x 25-8.8 1
26 273-7023 Screw M6 x 12 2
28 173-9058 Nut M6-8 hex 9
34 273-9199 Bracket 1
35 273-9220 Plate 1
36 273-3611 Wing nut 2
37 183-0415 Pin (threaded) 2
50 273-9200 Electric box welded cover plate 1
52 273-9201 Electric plate hook 1
56 273-7847 Screw M8 x 20mm cylinder head 4
72 173-9053 Suction tube 1
73 273-9202 Hose clip 1
75a 273-9203 Sealing tape 0.2m (tape)
75b 273-9204 Sealing profile 1m (profile)
76 273-9205 Wire protecting sleeve 1
77 999-1308 Nut M6-1 hex stainless steel 1
90 273-9206 Service brush retaining plate 1
91 273-9207 Adapter 1
92 273-9208 Sleeve 2
93 273-9209 Serrated lock washer 2
94 999-1419 Nut M3-.5 hex stainless steel 2
95 273-9210 Rubber stopper 1
109 273-9211 Water level sensor 1
111 273-9212 Earth strap 1
112 273-9213 O-ring 1
114 273-8163 Warning sign decal 1
124 273-6081 Nut M6-4 hex 4
126 273-9215 Pipe clamp 3
127 183-0281 Screw 3
128 273-8159 Screw M8 x 16 hex head 2
129 173-6204 Washer 8M 6
130 273-8187 Washer 2
132 173-9040 Rubber seal string 1
147 273-9216 Auto-fill-in 1
148 273-9217 Control panel 1
162 273-9218 Rubber buffer 6
167 273-9219 Plate spacer 2
170 173-5899 Washer 9

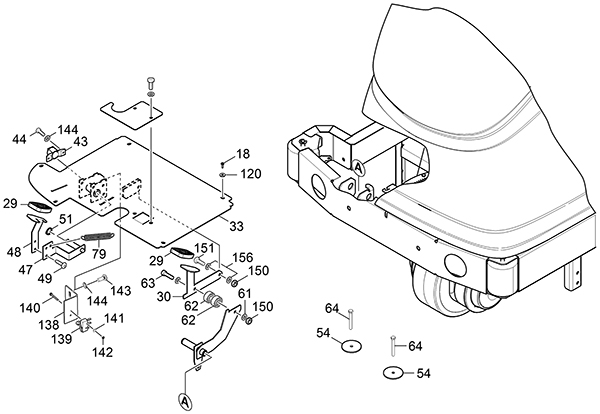

Basic Machinery Assembly-Brake Pedal-Model 1.480-231.2 - 273-9706
RefNbr Part Number Description Req Notes
18 183-0075 Screw 5-16 x 10.9mm 17
29 273-9221 Pedal coating 2
30 273-9222 Brake pedal plate 1
33 273-9223 Bottom plate complete 1
43 273-9224 Sensor control system 1
44 183-0323 Screw M5-.8 x 10mm stainless steel 2
47 273-9225 Pedal lever 1
48 273-9226 Pedal plate 1
49 273-5829 Screw M6-1 x 16mm stainless steel 4
51 173-6200 Locking ring 16 x 1 1
54 273-9227 Plate 2
61 273-8151 Washer 2
62 173-6208 Ball bearing 2
63 273-9228 Screw M8 x 35 cylinder head 1
64 999-6709 Screw M10-1.5 x 80mm hex head stainless steel 2
79 273-9230 Extension spring 1
120 273-9231 Washer 5
138 273-9232 Angle plate 1
139 273-9233 Micro switch 1
140 273-9234 Screw M2 x 20 2
141 273-9235 Nut M 2-8 2
142 273-9236 Washer 2
143 999-6690 Screw M5-.8 x 12mm hex head stainless steel 2
144 999-9100 Washer M5 flat stainless steel 4
150 183-0341 Hex nut 2
151 273-9238 Screw M8 x 30 hex head 1
156 999-9097 Washer M8 flat stainless steel 2
N/S 273-9547 Edge protection 2m
N/S 999-1651 Nut M8-1 hex stainless steel 1
183 173-9882 Washer serrated lock 1

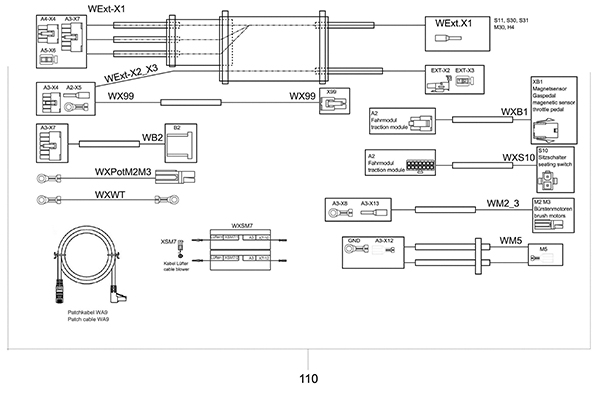

Basic Machinery Assembly-Wiring-Model 1.480-231.2 - 273-9707
RefNbr Part Number Description Req Notes
110 273-9546 Cable harness 1

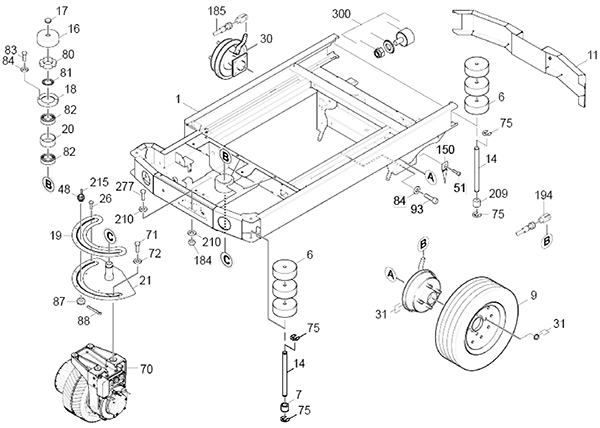

Carriage Assembly-Main-Model 1.480-231.2 - 273-9708
RefNbr Part Number Description Req Notes
1 273-9239 Frame 1
6 183-0289 Roller wheel 12
7 273-9240 Sleeve 2
9 273-9241 Super grip rear wheel 2
11 273-9242 Rear panel closing 1
14 273-9243 Bolt 14
16 273-9244 Cover 1
17 273-9245 Wire protecting sleeve 1
18 273-9246 Flange 1
19 273-9247 Segment steering plate 1
20 273-9248 Steering sleeve 1
21 273-9249 Flanged bearing 1
26 273-9250 Screw M6 x 16 hex head 7
30a 373-1770 Right hand wheel brake 1 (version 2)
30b 273-9251 Right hand wheel brake 1 (version 1)
31a 373-1771 Left hand wheel brake 1 (version 2)
31b 373-1772 Left hand wheel brake packaged 1 (version 1)
48 273-9253 Gear wheel 1
51 173-6287 Screw M5 x 16mm (OBSOLETE) 3
70 273-3609 Drive wheel 1
71 273-9254 Screw M12 x 30 hex head 4
72 173-6333 Washer 20
75 273-7031 Lock washer 8
80 273-9255 Nut KM8 slotted 1
81 273-9256 Locking plate 1
82 273-8095 Ball bearing 2
83 273-9238 Screw M8 x 30 hex head 4
84 999-9097 Washer M8 flat stainless steel 45
87 183-7460 Castel nut 1
88 183-7459 Cotter pin 1
93 273-8267 Screw M8 x 30 socket head 8
150 273-9258 Grounding tongue 1
184 999-1651 Nut M8-1 hex stainless steel 8
185 273-9259 Left hand bowden brake wire 1
194 373-1773 Right hand brake wire 1
209 273-9261 Bushing 2
210 173-6204 Washer 8M 10
215 273-9262 Parallel key 1
277 183-4164 Screw, hex head (Obsolete) 2
300 273-9263 Buffer bracket conversion kit (rubber) 1

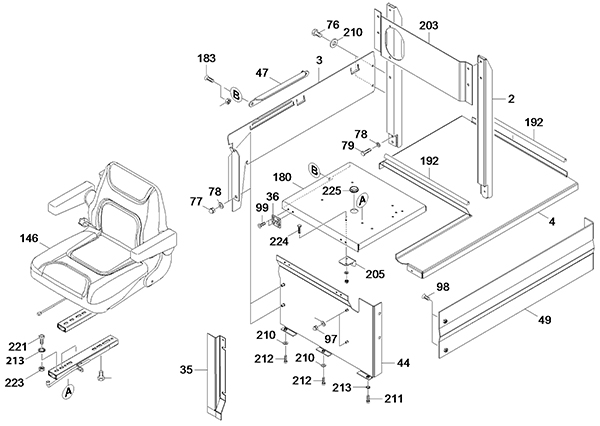

Carriage Assembly-Seat-Model 1.480-231.2 - 273-9709
RefNbr Part Number Description Req Notes
2 273-9264 Support plate 2
3 273-9265 Stay plate 1
4 273-9266 Battery cover plate 1
35 273-9267 Plate 1
36 273-9268 Hinge 2
44 273-9269 Seat plate 1
47 273-9270 Lever 1
49 273-9271 Stay plate 1
76 999-9092 Screw M8-1.25 x 20mm hex head stainless steel 4
77 373-1744 Nut 2
78 273-6016 Washer 18
79 273-9272 Screw M10 x 25-8.8 hex head 8
97 273-9548 Cap nut 2
98 273-9273 Screw M10 x 16 countersunk 2
99 373-1466 Screw M6 x 16mm 8
146a 273-9274 Comfort seat 1
146b 273-7798 Seat 1
180 273-9275 Seat plate 1
183 273-5822 Screw M8 x 16mm countersunk 1
192 273-9278 Edge protection 2
203 273-9279 Plate 1
205 273-9280 Plate 1
210 173-6204 Washer 8M 10
211 273-7847 Screw M8 x 20mm cylinder head 1
212 183-7547 Screw 2
213 173-9882 Washer serrated lock 5
221 273-3640 Screw 4
223 999-1651 Nut M8-1 hex stainless steel 4
224 273-8086 Screw M6 x 25 hex head 2
225 273-9282 Wire protecting sleeve 1

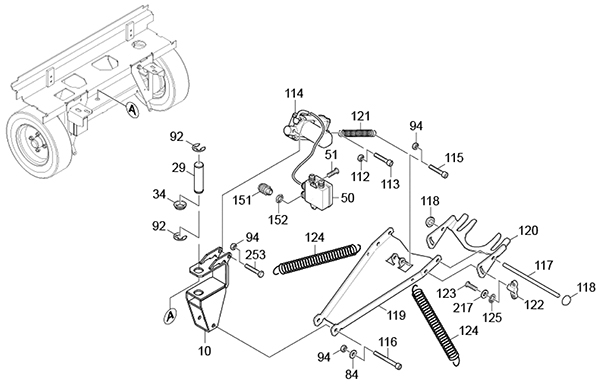

Carriage Assembly-Hoisting-Model 1.480-231.2 - 273-9710
RefNbr Part Number Description Req Notes
10 273-9283 Suction bar holder 1
29 273-9284 Retraction bolt suction beam 1
34 273-8135 Plain bearing 4
50 273-9285 Distribution box 1
51 173-6287 Screw M5 x 16mm (OBSOLETE) 3
84 999-9097 Washer M8 flat stainless steel 45
92 183-0372 Washer 2
94 273-7139 Nut M8-8 hex 17
112 999-1308 Nut M6-1 hex stainless steel 1
113 173-5898 Screw M6 x 30mm cylinder head 1
114 273-9286 36V hoisting motor 1
115 273-9287 Screw M8 x 40-8.8 1
116 273-9288 Screw M8 x 70-8.8 1
117 183-0342 Bar 1
118 173-6305 Lock washer 2
119 273-9289 Sheet metal component 1
120 273-9290 Rocker suction bar 1
121 273-9291 Extension spring 2
122 273-9292 M6 wing nut 2
123 183-0343 Screw 2
124 273-9293 Extension spring 2
125 273-9294 Toothed lock washer 2
151 273-9295 Cable gland 5
152 273-8525 Lock nut 5
217 999-1261 Washer M6 flat stainless steel 9
253 273-8130 Screw M8 x 45 hex head 1

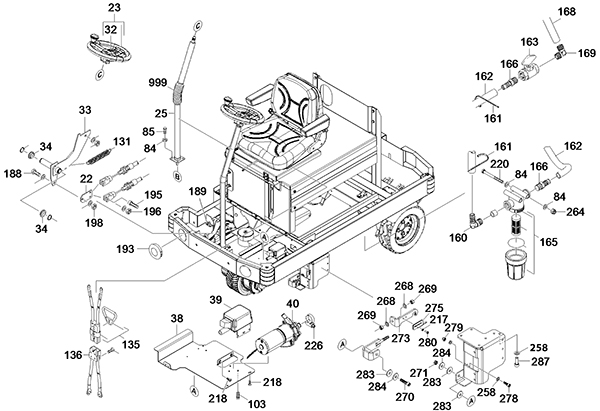

Carriage Assembly-Steering-Model 1.480-231.2 - 273-9711
RefNbr Part Number Description Req Notes
22 273-9296 Plate 1
23 273-9297 Steering wheel with handle 1 (includes 32)
25 373-1774 Steering rod 1
32 373-1775 Steering wheel cap 1
33 273-9299 Brake pedal lever 1
34 273-8135 Plain bearing 4
38 273-9300 Pump ball valve plate 1
39 273-4222 Analog ball valve 1
40 273-9302 Fresh water pump replacement 1
84 999-9097 Washer M8 flat stainless steel 45
85 273-9257 Screw M10 x 20 hex head 8
103 273-9303 Screw M4 x 12 3
131 273-9304 Extension spring 1
135a 273-9305 Connection cable 1 (red plug)
135b 273-9306 Battery connection cable harness 1 (gray plug)
135c 273-9344 Strain relief 1
136a 273-9307 Charging cable 1 (red plug)
136b 273-9308 Main power supply cable harness 1 (gray plug)
160 273-9309 Angle bushing 1
161 173-9063 Holder 8
162 273-5847 Spiral hose (sold by the inch) 0.22M
163 273-9310 1/2 inch stop cock 1
165 273-7795 Filter assembly 1
166 273-9325 1/2 inch hose stem 2
168 273-3667 Hose 0.2M
169 273-9311 1/2 inch elbow screw connector 1
188 273-8159 Screw M8 x 16 hex head 1
189 999-9202 Screw M8-1.25 x 65 hex zinc 1
193 273-9313 Cap 2
195 999-1320 Screw M6-1 x 20mm socket head stainless steel 4
196 273-6081 Nut M6-4 hex 6
198 183-0341 Hex nut 3
217 999-1261 Washer M6 flat stainless steel 9
218 273-7023 Screw M6 x 12 4
220 373-1776 Screw M8 x 90-8.8 hex head 2
226 273-9316 Hose clip 1
258 273-6016 Washer 18
264 273-7139 Nut M8-8 hex 6
268 273-6417 Washer 4
269 273-2055 Nut 4
270 273-9317 Screw M12 x 50 cylinder head 2
271 999-0503 Nut M12-1.75 hex stainless steel 2
273 273-9319 Left hand tie rod 1
275 273-9320 Left hand locking part 1
278 273-9321 Screw M10 x 30 cylinder head 4
279 999-6697 Nut M10-1.5 hex stainless steel 4
280 183-0093 Screw M6-1 x 16mm 4
283 273-9323 Washer 6
284 273-8317 Washer 4
287 273-9324 Screw M10 x 30 cylinder head 8
999 N/A Not available 1 (hose sleeve)
N/S 273-5847 Spiral hose (sold by the inch) 1M
N/S 273-3667 Hose 0.6M

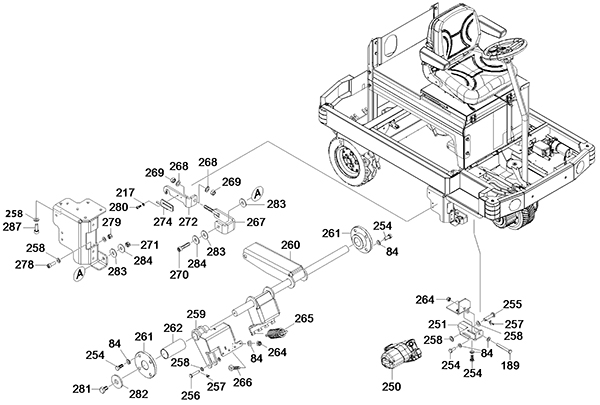

Carriage Assembly-Undercarriage-Model 1.480-231.2 - 273-9712
RefNbr Part Number Description Req Notes
84 999-9097 Washer M8 flat stainless steel 45
189 999-9202 Screw M8-1.25 x 65 hex zinc 1
217 999-1261 Washer M6 flat stainless steel 9
250 273-9529 24V hoisting motor 1
251 273-9530 Hoisting motor fixing bracket 1
254 999-9092 Screw M8-1.25 x 20mm hex head stainless steel 11
255 273-9531 Bolt 1
256 273-9532 Bolt 1
257 373-1350 Cotter 3 2
258 273-6016 Washer 18
259 273-9533 Lever 1
260 273-9534 Lever 1
261 273-9535 Bearing sleeve 2
262 273-9536 Bearing sleeve 1
264 273-7139 Nut M8-8 hex 6
265 273-8293 Extension spring 4
266 273-9537 Eye screw 4
267 273-9541 Front complete tie rod 2
268 273-6417 Washer 4
269 273-2055 Nut 4
270 273-9317 Screw M12 x 50 cylinder head 2
271 999-0503 Nut M12-1.75 hex stainless steel 2
272 273-9538 Right hand tie rod 1
274 273-9539 Right hand complete locking part 1
278 273-9321 Screw M10 x 30 cylinder head 4
279 999-6697 Nut M10-1.5 hex stainless steel 4
280 183-0093 Screw M6-1 x 16mm 4
281 273-8392 Screw M10 x 16 hex head 1
282 273-9540 Washer 1
283 273-9323 Washer 6
284 273-8317 Washer 4
287 273-9324 Screw M10 x 30 cylinder head 8
N/S 273-8137 Locking ring 2
N/S 273-9549 Sealing tape 1

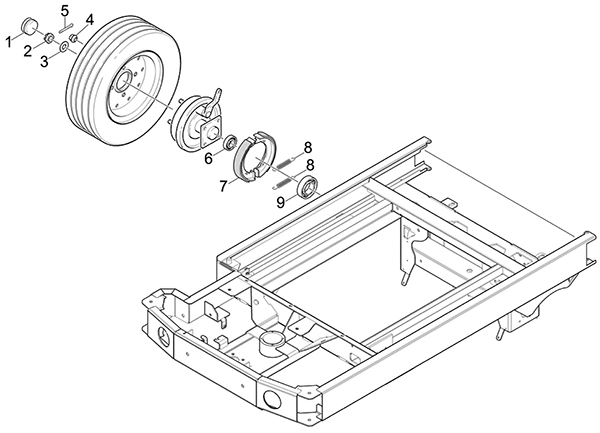

Right Wheel Brake Assembly-Model 1.480-231.2 - 273-9713
RefNbr Part Number Description Req Notes
1 273-9328 Cap brake drum 1
2 273-9329 Castle nut M16 x 1.5 1
3 273-9330 Brake drum washer 1
4 273-9331 Wheel nut M12 x 1.5 4
5 373-1350 Cotter 3 4
6 373-1777 Roller bearing 1
7 373-1352 Brake shoe 1
8 373-1351 Spring brake 2
9 N/A Not available 1 (stockpiling discontinued)

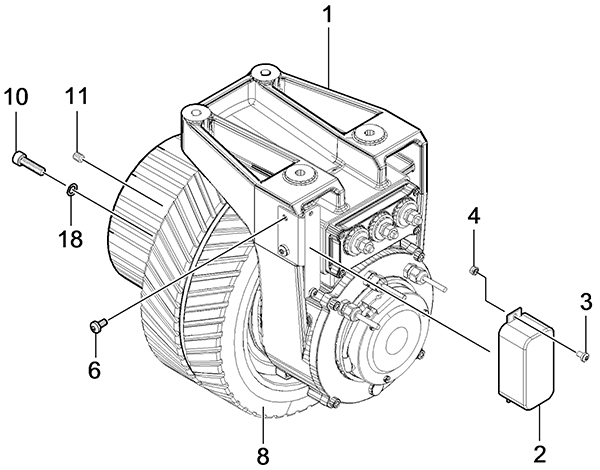

Wheel Drive Motor Assembly-Model 1.480-231.2 - 273-9714
RefNbr Part Number Description Req Notes
1 N/A Not available 1 (wheel drive motor 3-phase current)
2 273-9333 Cable socket 1
3 373-1355 Screw M4 x 8mm 2
4 999-1619 Nut M4 hex stainless steel 2
6 273-7023 Screw M6 x 12 2
8a 273-9335 Wheel 1
8b 373-1778 Wheel drive motor tire (supergrip) 1
10 273-9336 Screw M8 x 30 6
11 273-9337 Threaded pin M8 x 10 2
18 273-9338 Lock washer 6

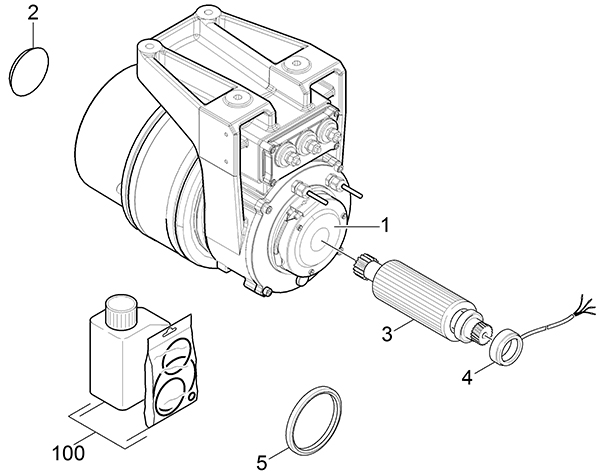

Wheel Drive Motor Assembly-3 phase current-Model 1.480-231.2 - 273-9715
RefNbr Part Number Description Req Notes
1a 273-7802 3 phase brake 1 (must order 1b when replacing)
1b 373-1779 Male plug connector 18-24 awg 2
2 273-9339 Closure cover 1
3 273-9340 Rotor 1
4 273-9341 Driving sensor bearing with cable 1
5 273-9342 Cassette seal 1
100 273-9343 Gasket set 1

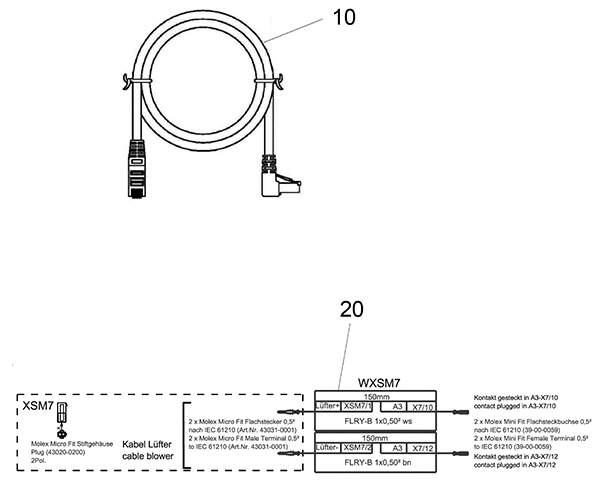

Cable Harness Assembly-Model 1.480-231.2 - 273-9716
RefNbr Part Number Description Req Notes
10 373-1780 Patch cable 1
20 273-9345 Blower cable adapter 1

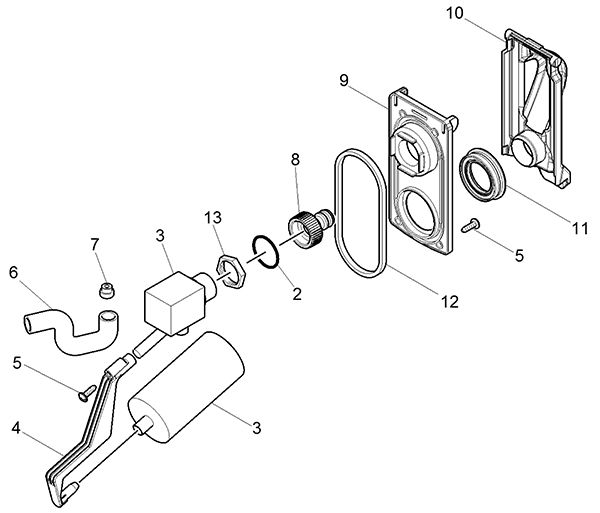

Float Assembly-Model 1.480-231.2 - 273-9717
RefNbr Part Number Description Req Notes
2 273-9346 O-ring seal 1
3 273-9347 Float regulator filling system 1
4 273-9348 Extension float 1
5 183-0075 Screw 5-16 x 10.9mm 5
6 273-9349 Form hose 1
7 273-9350 Sleeve 1
8 273-8517 Connection 1
9 273-9351 Float fixing plate 1
10 273-9352 Float cover plate (yellow) 1
11 273-9353 Float cover joint ring 1
12 273-9354 Fixing plate seal 1
13 273-9355 Nut 3/4 inch 1

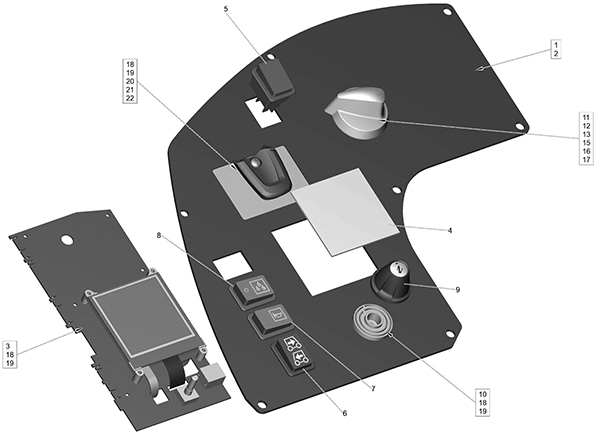

Control Panel Assembly-Main-Model 1.480-231.2 - 273-9718
RefNbr Part Number Description Req Notes
1 273-9356 Control panel covering cap 1
2 273-9357 Control panel foil 1
3 273-9358 Circuit board replacement 1
4 273-9359 Vision panel display 1
5 273-9360 Main switch 1
6 273-9361 Directional switch 1
7 273-9362 Push button two pole hooter 1
8 273-9363 Water switch 1
9 273-9364 Info panel 1
10 273-9365 Button housing 1
11 273-9366 O-ring seal 1
12 273-9367 Retainer switch 1
13a 273-9368 Knob w/ spring clip 1
13b 273-9368 Knob w/ spring clip 1
15 373-1781 Switch program selection 1
16 273-9370 Toothed lock washer 3
17 999-1619 Nut M4 hex stainless steel 3
18 999-1419 Nut M3-.5 hex stainless steel 12
19 273-9209 Serrated lock washer 12
20 273-9371 Carrier plate key 1
21 273-9372 Guide key 1
22 273-9373 Screw 5 x 12 1
N/S 273-9374 O-ring seal 1

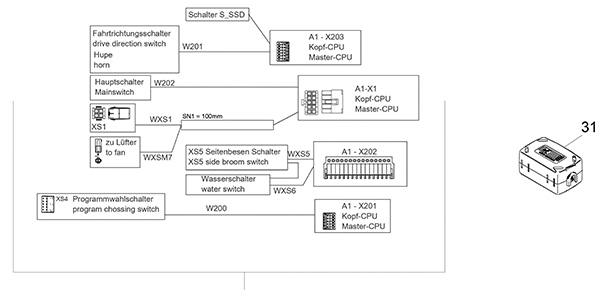

Control Panel Assembly-Harness-Model 1.480-231.2 - 273-9719
RefNbr Part Number Description Req Notes
30 273-9375 Control panel cable harness 1
31 273-4499 Ferrite core 1

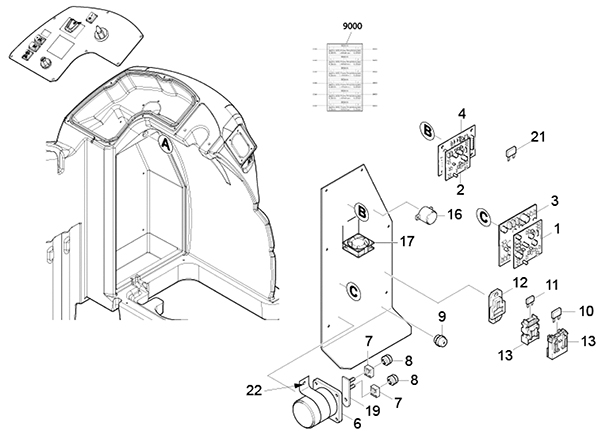

Electronic Drive Control Assembly-Model 1.480-231.2 - 273-9720
RefNbr Part Number Description Req Notes
1 273-9377 Control circuit board drive module 1
2 273-9378 Control circuit board lifting module 2
3 273-8395 Circuit control board 1
4 273-8400 Circuit control board accessory module 1
6 273-9379 Relay 1
7 273-8396 Fuse 2
8 273-9380 Nut with flange 2
9 273-9381 Isolator 1
10 273-9382 Fuse insert 1
11 273-9383 Fuse insert 1
12 273-9384 Plate 1
13 273-9385 Fuse holder 2
16 273-9386 Buzzer with brush 1
17 273-9387 12V blower 1
19 273-9388 Fuse plate replacement 1
21 273-9390 Adapter cable lifting module 1
22 273-9391 Connecting cable potential equalization 2
9000 273-9392 Six-pole cable bus 1
N/S 273-9389 Bus and control cable 1

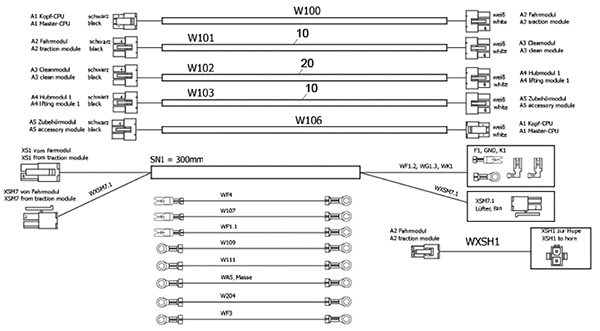

Bus and Control Cable Assembly-Model 1.480-231.2 - 273-9721
RefNbr Part Number Description Req Notes
10 273-9393 150mm cable bus 2
20 273-9394 400mm cable bus 1

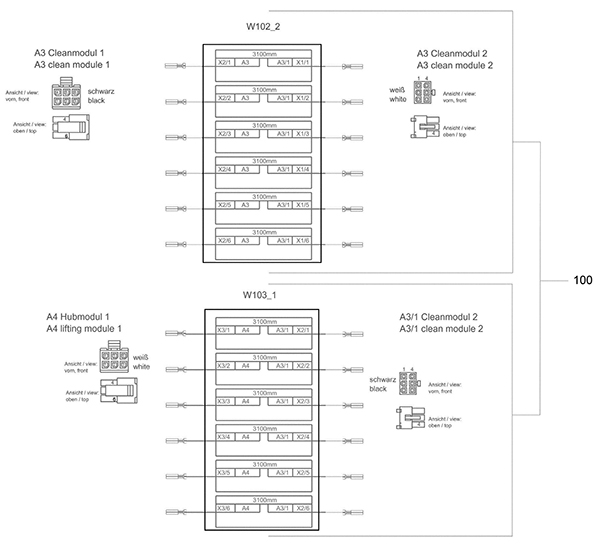

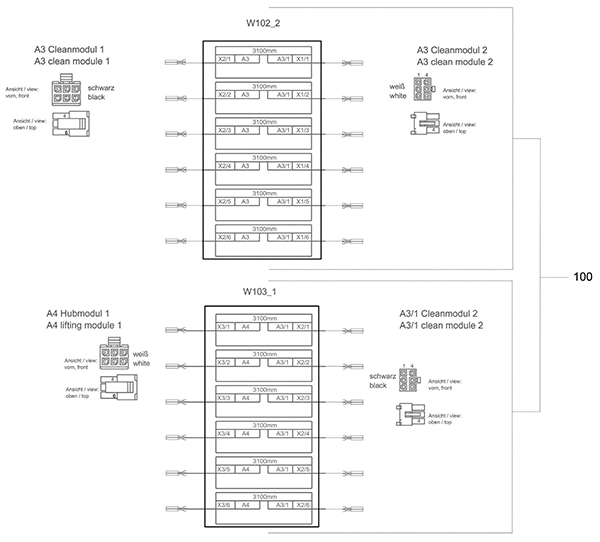

Bus and Control Cable Assembly-Wiring-Model 1.480-231.2 - 273-9722
RefNbr Part Number Description Req Notes
100 273-9395 Spare part set bus cable 1

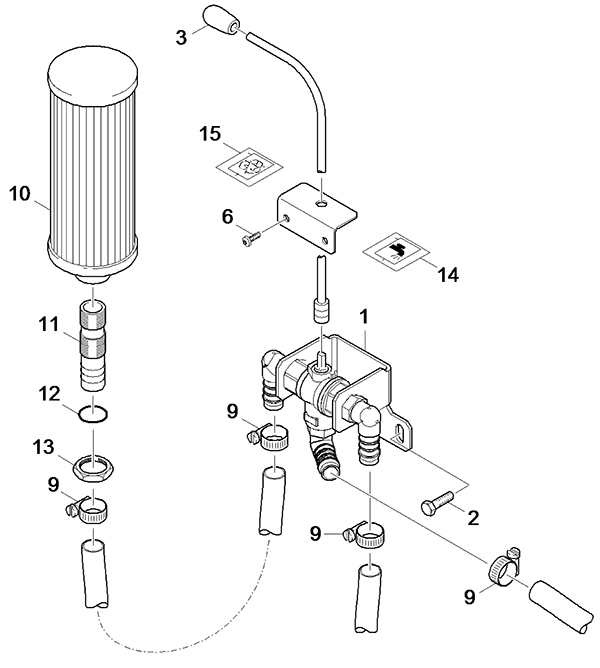

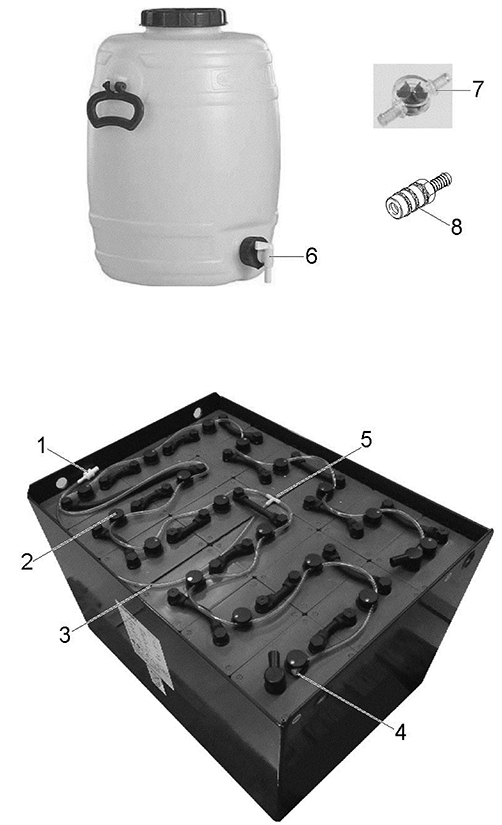

Battery Water Filling Assembly-Model 1.480-231.2 - 273-9723
RefNbr Part Number Description Req Notes
1 373-1783 Hose coupling 1
2 373-1784 Water filling plug 1 (quantity according to demand)
3 373-1785 Hose 1m (to order as cut goods)
4 373-1786 Plug 1
5 373-1787 T-hose nozzle 1
6 373-1782 Stop cock 1
7 373-1788 Flow monitor 1
8 373-1789 Hose coupling 1

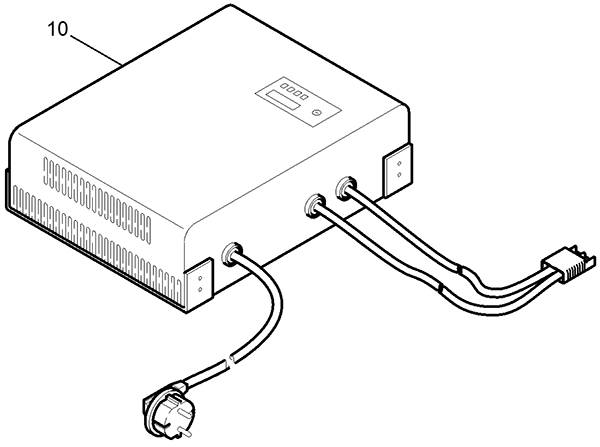

Battery Charger Assembly-Model 1.480-231.2 - 273-9724
RefNbr Part Number Description Req Notes
10a 373-1790 36V battery charger 1 (includes 10b-10c)
10b 373-1791 Power cable 1
10c 373-1792 Plug housing 1

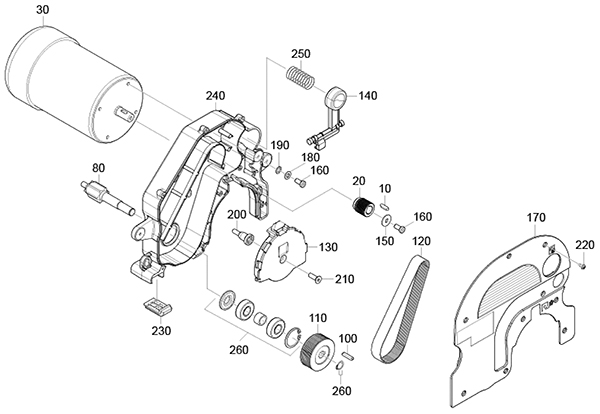

Transmission Brush-Head Assembly-Model 1.480-231.2 - 273-9725
RefNbr Part Number Description Req Notes
10 273-8184 Parallel key 1
20 373-1793 Belt pulley 1
30a 373-1795 Brush head motor 1
30b 373-1808 Carbon brush set 1
80a 373-1796 Driveshaft 1
80b 373-1794 Driveshaft 1
100 373-1481 Parallel key 1
110 373-1797 Belt pulley 1
120 373-1798 V- belt (ribbed) 1
130 373-1799 Holder-up 1
140 373-1800 Brush locking lever 1
150 173-6204 Washer 8M 1
160 273-3640 Screw 5
170 373-1801 Covering cap 1
180 999-0150 Washer #8 medium split lock 4
190 173-9882 Washer serrated lock 4
200 373-1802 Bolt holder-up 1
210 373-1803 Screw M8 x 25 1
220 183-0323 Screw M5-.8 x 10mm stainless steel 9
230 273-5816 Rocker 1
240 373-1804 Transmission retainer plate 1
250 373-1805 Pressure spring 1
260 373-1806 Ball bearing 1
N/S 373-1807 Transmission retainer plate assembly 1

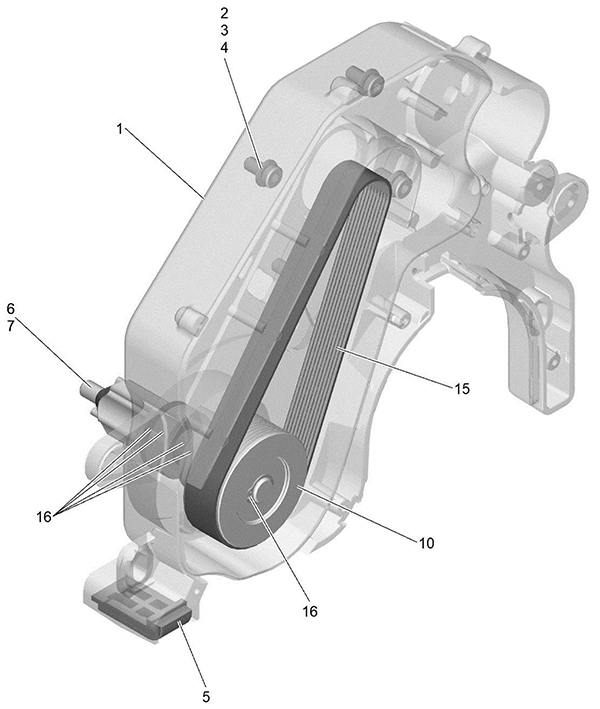

Transmission Retainer Plate Assembly-Model 1.480-231.2 - 273-9726
RefNbr Part Number Description Req Notes
1 373-1804 Transmission retainer plate 1
2 273-3640 Screw 4
3 999-0150 Washer #8 medium split lock 4
4 173-9882 Washer serrated lock 4
5 273-5816 Rocker 1
6 373-1796 Driveshaft 1
7 373-1481 Parallel key 1
10 373-1797 Belt pulley 1
15 373-1798 V- belt (ribbed) 1
16 373-1806 Ball bearing 1

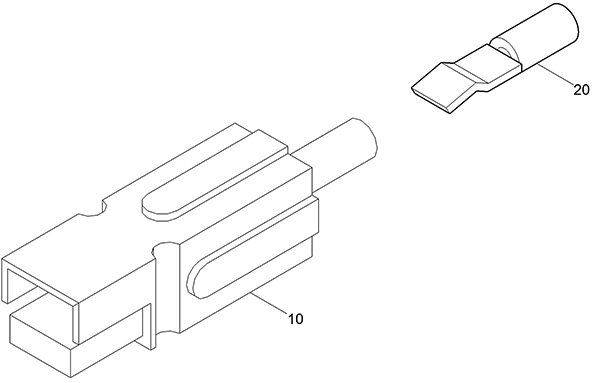

Set Plug Assembly-Model 1.480-231.2 - 273-9727
RefNbr Part Number Description Req Notes
10a 273-8608 Plug housing (blue) 1 (blue)
10b 273-8607 Plug housing (red) 1 (red)
20 373-1809 Plug contact 1

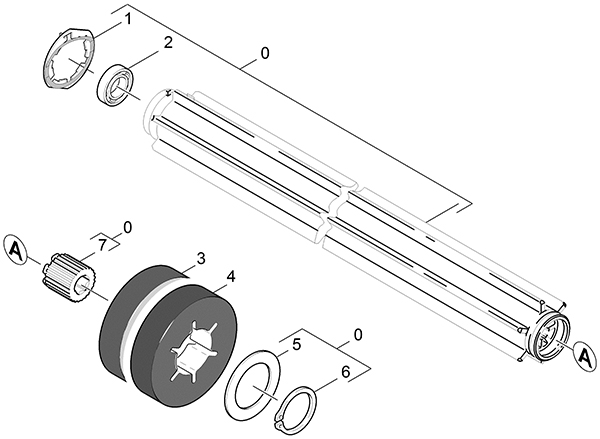

Roll Pad Assembly-Model 1.480-231.2 - 273-9728
RefNbr Part Number Description Req Notes
0a 373-1810 Roll pad 1 (includes 1-2, 5-7)
0b 373-1811 Roll pad 1 (includes 1-2, 5-7)
1 273-4738 Water closure 1
2 273-4739 Ball bearing 1
3a 373-1812 Pad with sleeve (green) 1 (r 100)
3b 373-1813 Pad with sleeve (green) 1 (r 120)
4a 373-1814 Pad with sleeve (red) 1 (r 100)
4b 373-1815 Pad with sleeve (red) 1 (r 120)
5 273-4741 Ring 1
6 273-4742 Locking ring 1
7 373-1816 Bushing 1

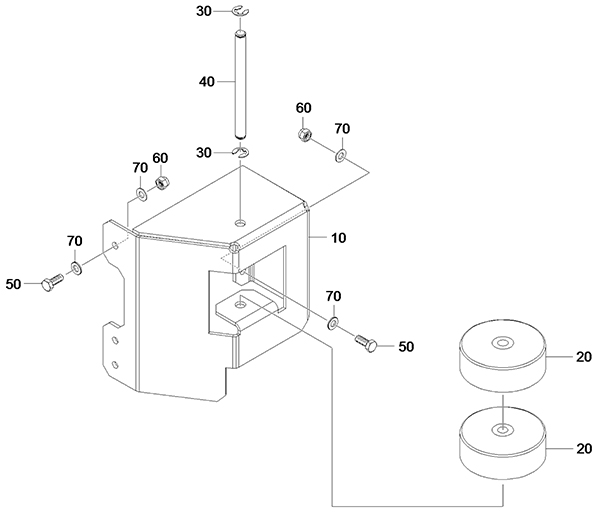

Deflector Assembly-Model 1.480-231.2 - 273-9729
RefNbr Part Number Description Req Notes
10a 373-1817 Left hand deflector 2 (left)
10b 373-1818 Right hand deflector 2 (right)
20 183-0289 Roller wheel 1
30 273-4671 Lock washer 2
40 273-9243 Bolt 1
50 999-9092 Screw M8-1.25 x 20mm hex head stainless steel 6
60 273-7139 Nut M8-8 hex 6
70 999-9097 Washer M8 flat stainless steel 12

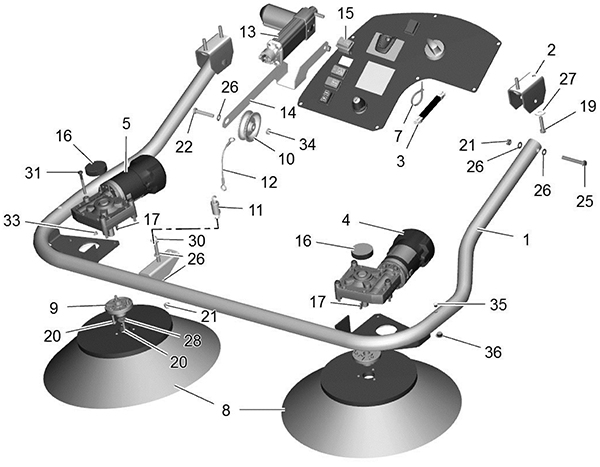

Side Broom Assembly-1 (optional)-Model 1.480-231.2 - 273-9730
RefNbr Part Number Description Req Notes
1 373-1834 Side broom retaining bracket 1
2 373-1823 Side broom holder 2
3 373-1820 Side broom cable harness 1
4 373-1824 Side broom motor conversion kit 1
5 373-1825 Side broom motor conversion kit 1
7 273-4548 Cable tie 6
8 273-7157 Side broom 2
9 373-1826 Hub 2
10 373-1821 Rope roller 1
11 273-9291 Extension spring 1
12 373-1827 Rope 1
13 373-1828 Side broom hoisting motor 1
14 373-1829 Hoisting motor plate 1
15 373-1766 Pre sweep two pole switch 1
16 273-8295 Protecting cap 2
17 273-5818 Parallel key 2
19 183-4214 Screw M8 x 35 hex head 4
20 183-0093 Screw M6-1 x 16mm 8
21 273-7139 Nut M8-8 hex 3
22 273-8130 Screw M8 x 45 hex head 2
25 999-1368 Screw M8-1.25 x 60mm hex head stainless steel 2
26 999-9097 Washer M8 flat stainless steel 8
27 173-6204 Washer 8M 4
28 173-9867 Washer 2
30 373-1831 Eye screw LA M8x70 -4.6-A2E DIN444 1
31 373-1832 Screw M 6x55-A2-70 (IN6RD) 6
33 999-1308 Nut M6-1 hex stainless steel 6
35 373-1833 Plug 2
36 373-1822 Ornamental hub cap 2

Side Broom Assembly-2 (optional)-Model 1.480-231.2 - 273-9731
RefNbr Part Number Description Req Notes
22 273-8130 Screw M8 x 45 hex head 2
23 373-1835 Screw M6 x 25-8.8 cylinder 1
24 273-6081 Nut M6-4 hex 1
26 999-9097 Washer M8 flat stainless steel 8
29 173-6297 Washer 1
32 373-1836 Sleeve spacer cylinder 1
34 183-0341 Hex nut 2

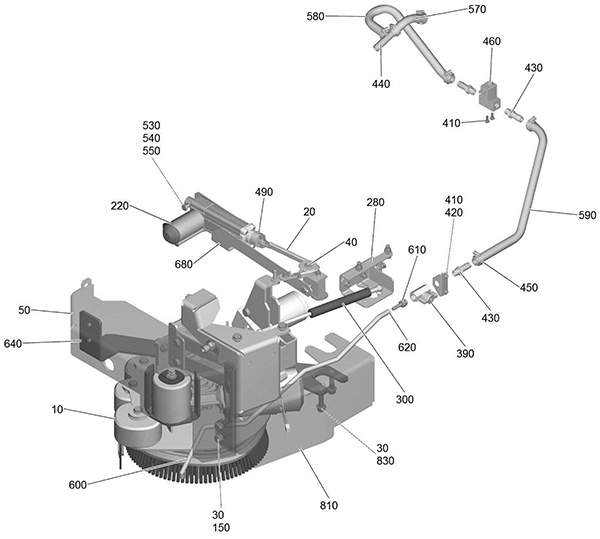

Side Scrubbing Deck Assembly-1-Model 1.480-231.2 - 273-9732
RefNbr Part Number Description Req Notes
10 N/A Not available 1 (assembly group side scrubbing deck)
20 N/A Not available 1 (assembly group chain)
30 273-6016 Washer 5
40 N/A Not available 1 (assembly group deflection chain)
50 N/A Not available 1 (assembly group ram protection lateral)
150 273-9272 Screw M10 x 25-8.8 hex head 3
220 373-1828 Side broom hoisting motor 1
280 N/A Not available 1 (retainer damper steering)
300 373-1837 Gas spring 1
390 373-1838 Ball valve 1
410 999-6690 Screw M5-.8 x 12mm hex head stainless steel 4
420 999-0740 Nut M5-.8 hex stainless steel 2
430 373-1839 Hose nozzle 3
440 373-1844 T-hose nozzle 1
450 273-4732 Hose clip 6
460 373-1840 Water solenoid valve 1
490 373-1836 Sleeve spacer cylinder 1
530 183-0341 Hex nut 1
540 999-9097 Washer M8 flat stainless steel 1
550 273-8130 Screw M8 x 45 hex head 1
570 273-5847 Spiral hose (sold by the inch) 0.10m
580 273-5847 Spiral hose (sold by the inch) 0.33m
590 273-5847 Spiral hose (sold by the inch) 0.42m
600 273-9057 Hose 0.8m
610 373-1841 Hose stem 1
620 273-4735 Hose clip 1
640 373-1842 Ram protection support 1
680 373-1829 Hoisting motor plate 1
810 373-1843 Side scrubbing deck ram protection 1
830 373-1845 Cylinder head screw M10x45-8.8-A2K DIN 2

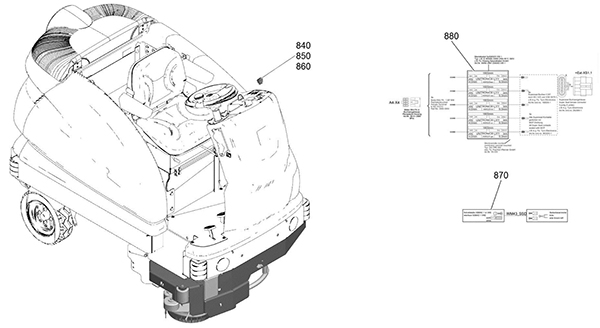

Side Scrubbing Deck Assembly-2-Model 1.480-231.2 - 273-9733
RefNbr Part Number Description Req Notes
840 373-1846 Pushbutton 1
850 373-1847 Decal 1
860 373-1766 Pre sweep two pole switch 1
870 373-1848 Cable brush motor 1
880 373-1849 Hoisting motor cable 1

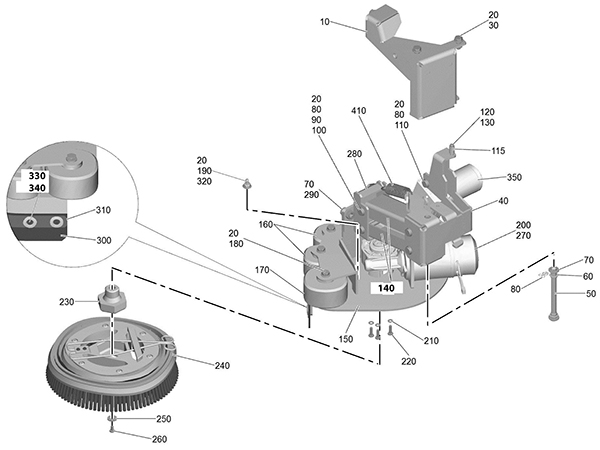

Side Group Scrubbing Deck Assembly-Model 1.480-231.2 - 273-9734
RefNbr Part Number Description Req Notes
10 373-1850 Fixing frame 1
20 273-6016 Washer 18
30 273-9272 Screw M10 x 25-8.8 hex head 3
40 373-1851 Welded swivel plate 1
50 373-1852 Bolt 1
60 373-1867 Plain bearing 2
70 173-6333 Washer 4
80 273-4446 Double spring clip 7
90 373-1853 Plain bearing with collar 8
100 373-1868 Bolt B 10x85 -St-A2E ISO 2341 4
110 273-9531 Bolt 2
115 273-5924 Sleeve suction bar 1
120 273-8124 Washer 1
130 999-6690 Screw M5-.8 x 12mm hex head stainless steel 1
140 373-1854 Lever 2
150 373-1855 Base plate 1
160 373-1856 Deflector roll 2
170 373-1857 Deflector roll 1
180 999-1321 Screw M10-1.5 x 70mm hex head stainless steel 3
190 373-1869 Nipple 1
200 373-1858 Gear mounting 1
210 999-1261 Washer M6 flat stainless steel 6
220 999-1224 Screw M6-1 x 20mm flat head phillips stainless steel 6
230 373-1859 Brush retainer 1
240 373-1860 Brush complete 1
250 173-9867 Washer 1
260 273-9061 Screw M6 x 12-A2/70-ISO7045 1
270 273-5818 Parallel key 1
280 373-1861 Retainer base plate 1
290 999-1223 Screw M12-1.75 x 25mm hex head stainless steel 2
300 373-1862 Side scrubber deck scraping lip 1
310 373-1863 Scraper lip retaining plate 1
320 273-4735 Hose clip 1
330 273-6452 Countersunk screw (OBSOLETE) 6
340 373-1864 Scraper lip fixing sleeve 6
350 373-1866 24V hoisting motor 1
410 373-1865 Extension spring 1

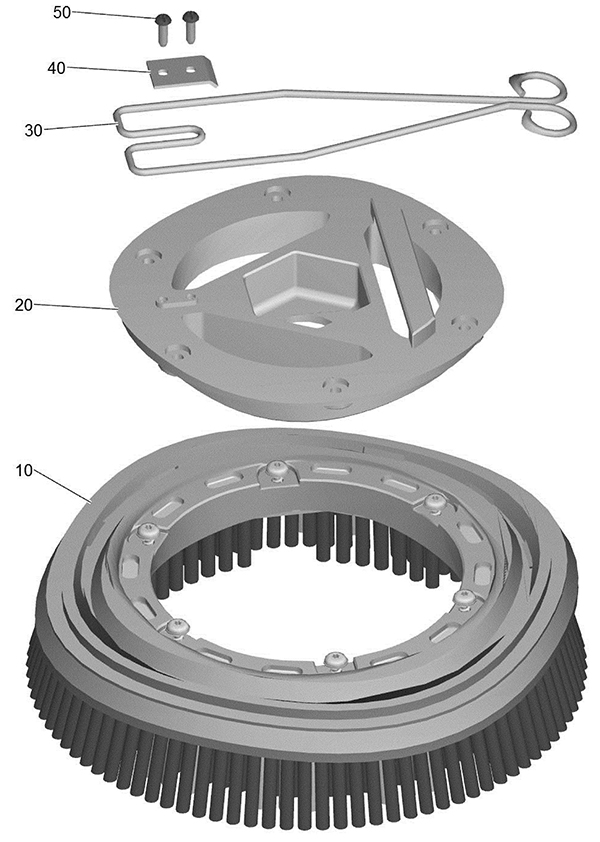

Brush Assembly-Model 1.480-231.2 - 273-9735
RefNbr Part Number Description Req Notes
10a 373-1871 300mm disc brush (red) 1
10b 273-0845 Brush retainer 1
20 373-1870 Hexagonal retainer brush 1
30 373-1872 Retainer spring 1
40 373-1873 Scrubbing deck side plate 1
50 183-0281 Screw 2

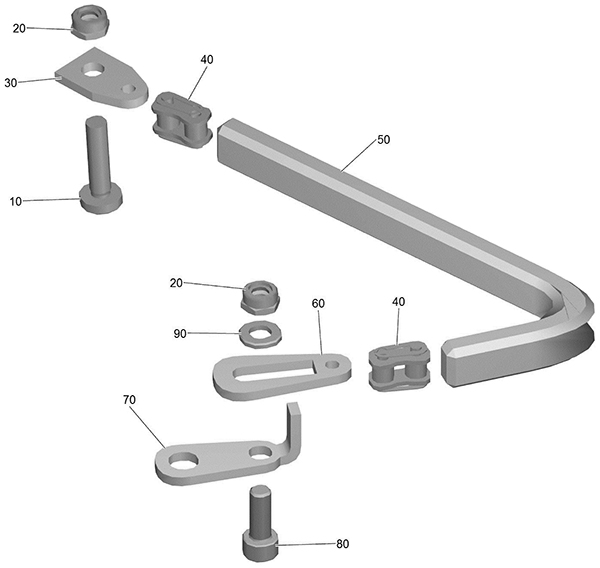

Chain Group Assembly-Model 1.480-231.2 - 273-9736
RefNbr Part Number Description Req Notes
10 273-7457 Screw M6 x 25-8.8 1
20 273-6081 Nut M6-4 hex 2
30 373-1875 Hoisting motor chain joint plate 1
40 373-1874 Chain 2
50 373-1876 Roller chain 1
60 373-1877 Adjustment plate 1
70 373-1878 Adjustment plate 1
80 183-0480 Screw (OBSOLETE) 1
90 999-1261 Washer M6 flat stainless steel 1

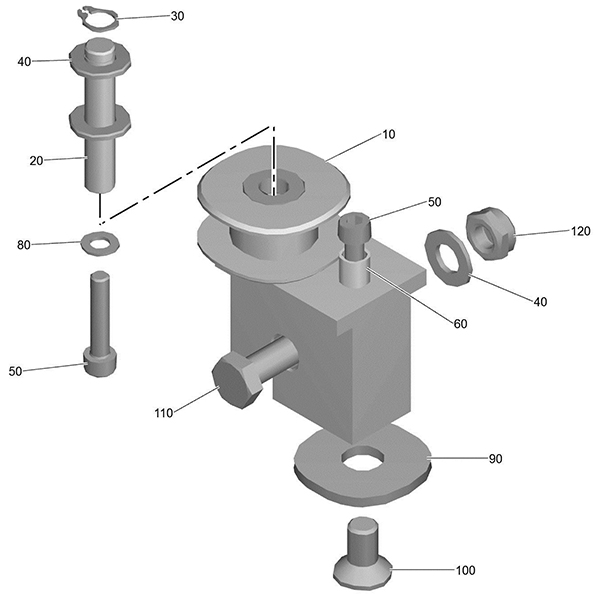

Deflection Chain Group Assembly-Model 1.480-231.2 - 273-9737
RefNbr Part Number Description Req Notes
10a 373-1879 Deflection pullley 1
10b 373-1882 Deflection pulley 1
10c 183-4094 Ball bearing 2
20 373-1880 Deflection pulley bolt 1
30 173-6304 Locking ring 1
40 999-9097 Washer M8 flat stainless steel 3
50 373-1881 Cylinder head screw 2
60 273-7484 Sleeve 1
80 999-9100 Washer M5 flat stainless steel 1
90 273-8343 Washer 1
100 273-5822 Screw M8 x 16mm countersunk 1
110 273-8130 Screw M8 x 45 hex head 1
120 183-0341 Hex nut 1

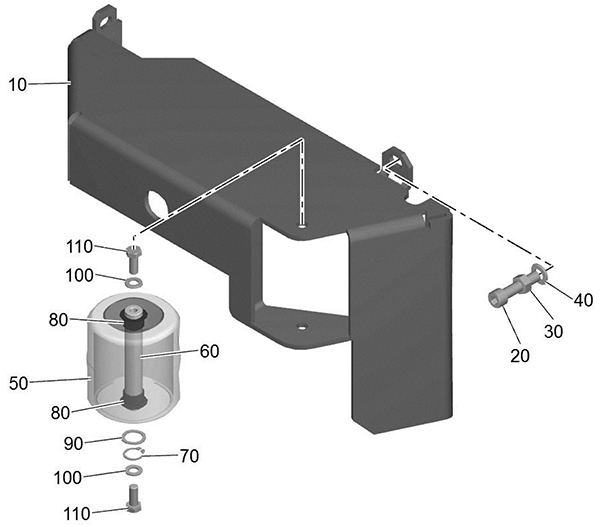

Lateral Ram Protection Assembly-Model 1.480-231.2 - 273-9738
RefNbr Part Number Description Req Notes
10 373-1883 Ram protection lateral assembly 1
20 999-1429 Bolt M10-1.5 x 60mm hex head stainless steel 1
30 273-5855 Nut M10 hex 1
40 273-6016 Washer 1
50 373-1884 Deflector roll 1
60 373-1885 Deflector roll bolt 1
70 173-6200 Locking ring 16 x 1 1
80 183-4078 Bearing bush 2
90 373-1886 Shim ring 1
100 999-9097 Washer M8 flat stainless steel 2
110 999-9092 Screw M8-1.25 x 20mm hex head stainless steel 2

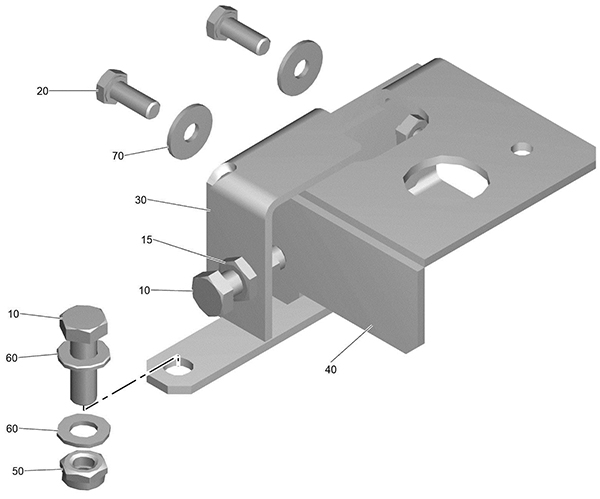

Damper Steering Retainer Assembly-Model 1.480-231.2 - 273-9739
RefNbr Part Number Description Req Notes
10 183-4164 Screw, hex head (Obsolete) 3
15 999-1651 Nut M8-1 hex stainless steel 1
20 273-9250 Screw M6 x 16 hex head 2
30 373-1887 Damper 1 (external)
40 373-1888 Damper 1 (internal)
50 183-0341 Hex nut 2
60 999-9097 Washer M8 flat stainless steel 4
70 173-5899 Washer 2

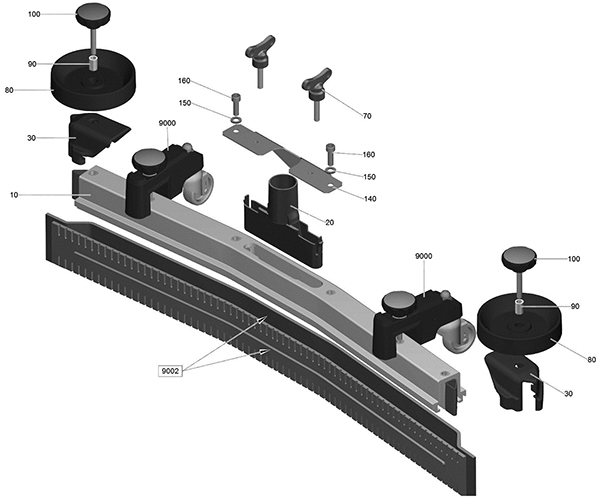

Squeegee Assembly-Curved-Model 1.480-231.2 - 273-9740
RefNbr Part Number Description Req Notes
10a N/A Not available 1 (suction bar pre-assembled curved 1400mm)
10b N/A Not available 1 (suction bar pre-assembled curved 1160mm)
20 273-3479 Suction nipple 1
30a 273-3475 Left and right end pieces 1
30b 373-1742 Left hand end piece 1 (left)
30c 373-1743 Right hand end piece 1 (right)
70 N/A Not available 2 (wing screw)
80 273-3481 Guide wheel 2
90 273-5924 Sleeve suction bar 2
100 273-7072 Star knob 2
150 999-0150 Washer #8 medium split lock 2
160 273-3477 Screw 2
9000a 373-1738 Support 2
9000b 273-3485 Squeegee roller assembly 2
9002a 373-1890 1400mm rear squeegee blade 1 (1400MM)
9002b 373-1891 1400mm squeegee blade set 1 (1400MM)
9002c 273-7800 Squeegee blade set 1 (1160MM)
9002d 373-1892 1160mm squeegee blade set 1 (1160MM)

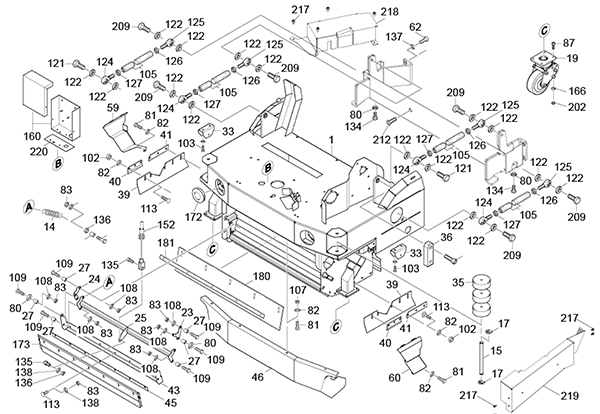

Sweep Unit Assembly-Frame-Model 1.480-231.2 - 273-9741
RefNbr Part Number Description Req Notes
1 373-1907 Frame 1
14 273-8060 Extension spring 2
15 273-9243 Bolt 2
17 273-7031 Lock washer 4
19a 373-1908 Wheel castor 2
19b 373-1986 Wheel 2
23 373-1893 Sheet metal component 1
24 373-1894 Right hand sheet metal component 1
25 373-1895 Carrier rod 1
27 373-1896 Bushing 8
33 373-1909 Side broom holder 2
35 183-0289 Roller wheel 6
36 373-1910 Sliding plate 2
39 273-8056 Side blade 2
40 273-8058 Side strip 2
41 273-8057 Rear side strip 2
43 373-1897 Plate 1
45 373-1898 Strip 1
46 373-1899 Plate skirt dusting box 1
59 373-1911 Right hand covering plate 1
60 373-1912 Left hand covering plate 1
62 273-7847 Screw M8 x 20mm cylinder head 14
80 273-7045 Washer 12
81 273-9250 Screw M6 x 16 hex head 10
82 173-6297 Washer 4
83 273-6081 Nut M6-4 hex 4
87 373-1409 Screw M8 x 35mm 8
102 999-1308 Nut M6-1 hex stainless steel 6
103 183-0093 Screw M6-1 x 16mm 8
105 373-1913 Lever bar 4
107 183-0262 Hex nut 3
108 173-5899 Washer 31
109 273-8086 Screw M6 x 25 hex head 8
113 183-0343 Screw 12
121 373-1914 Screw M16 x 40 4
122 173-5821 Washer M16 18
124 373-1915 Hinge top 4
125 373-1916 Left hand hinge 4
126 999-0764 Nut M16-2 hex nylon insert lock zinc plated 4
127 999-0764 Nut M16-2 hex nylon insert lock zinc plated 4
134 273-9272 Screw M10 x 25-8.8 hex head 2
135 999-1320 Screw M6-1 x 20mm socket head stainless steel 1
136 999-1308 Nut M6-1 hex stainless steel 35
137 999-9097 Washer M8 flat stainless steel 7
138 999-1261 Washer M6 flat stainless steel 20
152 373-1918 Bowden wire 1
160 N/A Not available 1 (electronics)
166 173-6305 Lock washer 2
172 273-9313 Cap 4
173 273-7161 Skirting 1
180 373-1903 Rear rubber lip 1
181 373-1919 Strip 1
202 999-1292 Nut M8 hex nickel plated brass 9
209 373-1901 Screw M16 x 45 4
212 373-1902 Screw M10 x 20 2
217 273-4463 Screw M5 x 8 flat head zinc 8
218 373-1904 Chain guard plate 1
219 373-1905 Belt guard plate 1
220 373-1906 Seal 1
N/S 273-8063 Handhold 1
N/S 273-9278 Edge protection 1m (to order as cut goods)

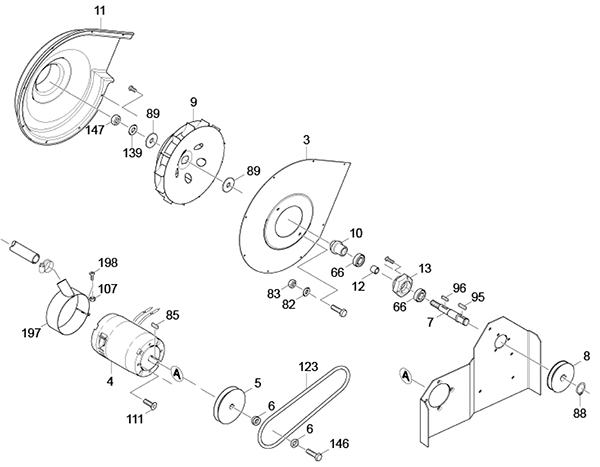

Sweep Unit Assembly-Motor-Model 1.480-231.2 - 273-9742
RefNbr Part Number Description Req Notes
3 373-1920 Sheet metal component 1
4 373-1922 Direct current motor 2
5 273-8310 Belt pulley 1
6 273-9261 Bushing 3
7 373-1923 Shaft 1
8 373-1921 Pulley belt 1
9 273-8316 Blower wheel 1
10 273-8314 Bushing 1
11 273-8319 Housing 1
12 273-8239 Bushing 1
13 373-1924 Flange cast 5
66 273-7160 Ball bearing 12
82 173-6297 Washer 4
83 273-6081 Nut M6-4 hex 4
85 273-9262 Parallel key 2
88 273-8312 Locking ring 7
89 273-8315 Spacer 2
95 273-5818 Parallel key 2
96 273-8184 Parallel key 2
107 183-0262 Hex nut 3
111 373-1466 Screw M6 x 16mm 4
123 373-1925 695mm round belt 1
139 173-6333 Washer 2
146 273-8209 Screw M6 x 20 hex head 2
147 999-0503 Nut M12-1.75 hex stainless steel 1
197 373-1926 Ring 2
198 173-9890 Screw M6 x 20 2
N/S 273-8317 Washer 5

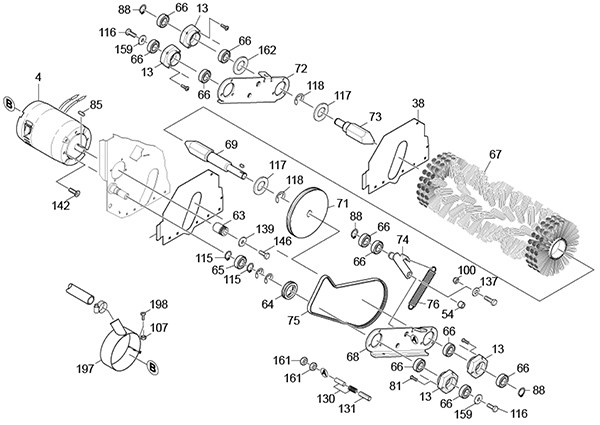

Sweep Unit Assembly-Roller-Model 1.480-231.2 - 273-9743
RefNbr Part Number Description Req Notes
4 373-1922 Direct current motor 2
13 373-1924 Flange cast 5
38 373-1930 Rolling mill plate flap 1
54 273-7509 Bushing 1
63 373-1931 Pulley belt 1
64 373-1927 Pulley belt 1
65 373-1932 Ball bearing 1
66 273-7160 Ball bearing 12
67 373-1933 Reversing rolling mill 1
68 373-1928 Left hand lever sheet metal component 1
69 373-1934 Carrier 1
71 273-8211 Belt pulley 1
72 373-1929 Right hand lever sheet metal component 1
73 273-7159 Carrier reversing rolling mill 1
74 373-1935 Sheet metal component 1
75 373-1936 Belt 1
76 373-1937 Extension spring 1
81 273-9250 Screw M6 x 16 hex head 10
85 273-9262 Parallel key 2
88 273-8312 Locking ring 7
100 273-7139 Nut M8-8 hex 3
107 183-0262 Hex nut 3
115 273-8241 Locking ring 2
116 273-8159 Screw M8 x 16 hex head 2
117 273-8186 Washer 2
118 273-8191 Washer locking 2
130 273-8195 Spring 2
131 273-8235 Bolt 2
137 999-9097 Washer M8 flat stainless steel 7
139 173-6333 Washer 2
142 183-0236 Screw 19
146 273-8209 Screw M6 x 20 hex head 2
159 173-6204 Washer 8M 8
161 373-1938 Nut M12-8-A3E 4
162 273-7492 Washer 16 1
197 373-1926 Ring 2
198 173-9890 Screw M6 x 20 2

Sweep Unit Assemby-Filter Box-Model 1.480-231.2 - 273-9744
RefNbr Part Number Description Req Notes
2 N/A Not available 1 (filter box complete)
18 373-1943 24V hoisting motor 1
31 373-1939 Cable cylinder coupler 1
32 373-1940 Sliding plate 1
80 273-7045 Washer 12
100 273-7139 Nut M8-8 hex 3
120 373-1944 Roller retainer plate 1
137 999-9097 Washer M8 flat stainless steel 7
151 373-1945 Roller chain 1
153 373-1946 Right hand bowden wire set 1
154 373-1947 Left hand bowden wire set 1
156 173-2935 Screw M4-.7 x 12mm 4
159 173-6204 Washer 8M 8
163 373-1948 Extension spring 1
164 273-4719 Screw M10 x 50mm hex head 2
165 999-6697 Nut M10-1.5 hex stainless steel 4
167 273-7853 Screw M6 X 30 countersink 2
168 N/A Not available 1 (screw)
169 273-4595 Bracket plate 1
174 373-1949 Seal filter box 1
185 373-1950 Micro switch 2
187 273-4594 Chain zinc plated (OBSOLETE) 0.2m (to order as cut goods)
207 183-4094 Ball bearing 2
214 373-1874 Chain 2
230 373-1941 Guide plate 2
231 183-0236 Screw 4
232 373-1942 Retaining plate 2
N/S 373-1419 Screw M6 x 16mm 4

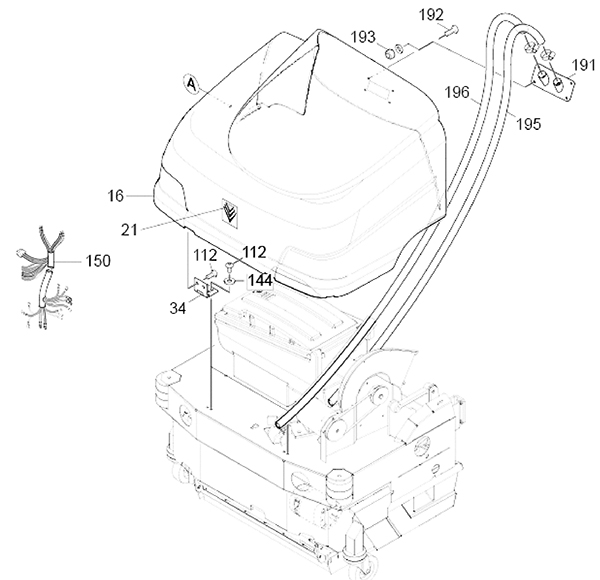

Sweep Unit Assemby-Cover-Model 1.480-231.2 - 273-9745
RefNbr Part Number Description Req Notes
16 373-1952 Cover 1
21 373-1951 Signet gel decal 1
34 373-1953 Hinge 2
112 273-7023 Screw M6 x 12 8
144 273-9231 Washer 4
150 N/A Not available 1 (cable harness pre-sweep unit)
191 373-1954 Air filter holder plate 1
192 183-0261 Screw (obsolete) 4
193 999-0740 Nut M5-.8 hex stainless steel 4
195 373-1955 Hose 1
196 373-1956 Hose 1

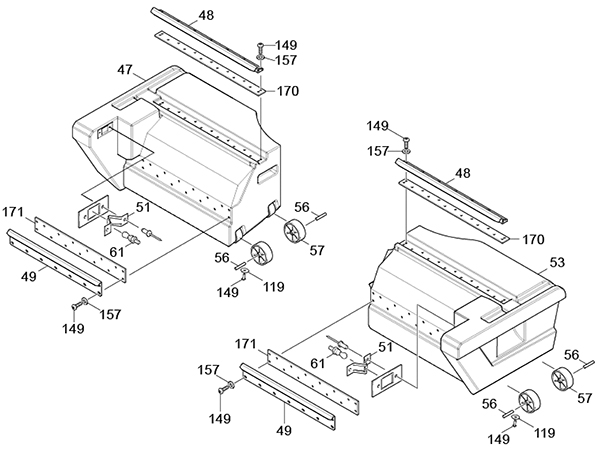

Sweep Unit Assemby-Sweep Tank-Model 1.480-231.2 - 273-9746
RefNbr Part Number Description Req Notes
47 373-1958 Right hand sweep tank 1
48 373-1959 Plate 2
49 373-1960 Suspension plate 2
51 273-7433 Spring 2
53 373-1961 Left hand sweep tank 1
56 373-1957 Bolt 8
57 183-2022 Wheel 8
61 373-1962 Locking plug 2
119 173-9867 Washer 2
149 999-0901 Screw M5-.8 x 16mm pan head phillips stainless steel 60
157 173-9042 Washer #5 60
170 373-1963 Plate 2
171 373-1964 Plate 2

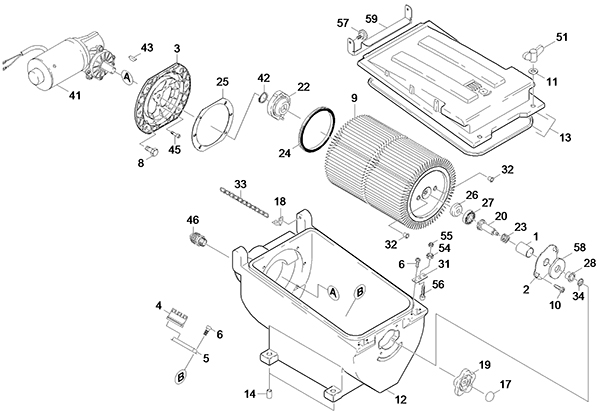

Filter Box Assembly-Model 1.480-231.2 - 273-9747
RefNbr Part Number Description Req Notes
1 373-1974 Hose 1
2 373-1975 Sheet metal component 1
3 373-1976 Flange 1
4 273-8331 Plate 2
5 273-8330 Bracket 2
6 173-2935 Screw M4-.7 x 12mm 12
8 999-0783 Screw M8-1.25 x 16mm hex head 6
9 373-1977 Filter element 1
10 273-7023 Screw M6 x 12 2
11 173-6204 Washer 8M 4
12 373-1978 Filter housing 1
13 373-1965 Cover 1
14 373-1966 Sleeve 2
17 173-6305 Lock washer 1
18 273-4595 Bracket plate 2
19 373-1979 Hand wheel 1
20 373-1967 Axle 1
22 373-1968 Carrier 1
23 373-1980 Spring 1
24 373-1969 Filter flange seal 1
25 373-1981 Flange seal filter box 1
26 373-1982 Carrier 1
27 173-6280 Ball bearing 1
28 373-1983 Plain bearing 1
31 373-1970 Strap 2
32 373-1971 Cap 2
33 273-4594 Chain zinc plated (OBSOLETE) 0.6m (to order as cut goods)
34 173-6333 Washer 1
41 273-8327 24V gear motor 1
42 273-6070 Locking ring 1
43 273-8326 Washer curved 1
45 183-0236 Screw 3
46 373-1984 Cable gland 1
51 273-3611 Wing nut 2
54 999-0503 Nut M12-1.75 hex stainless steel 1
55 999-1651 Nut M8-1 hex stainless steel 2
56 999-1426 Screw M8-1.25 x 45mm hex head stainless steel 2
57 373-1985 Star grip 2
58 373-1972 Seal filter box 1
59 373-1973 Angle plate 1
N/S 273-9228 Screw M8 x 35 cylinder head 2

Pre-Sweep Unit Cable Harness Assembly-Model 1.480-231.2 - 273-9748
RefNbr Part Number Description Req Notes
100 273-9395 Spare part set bus cable 1

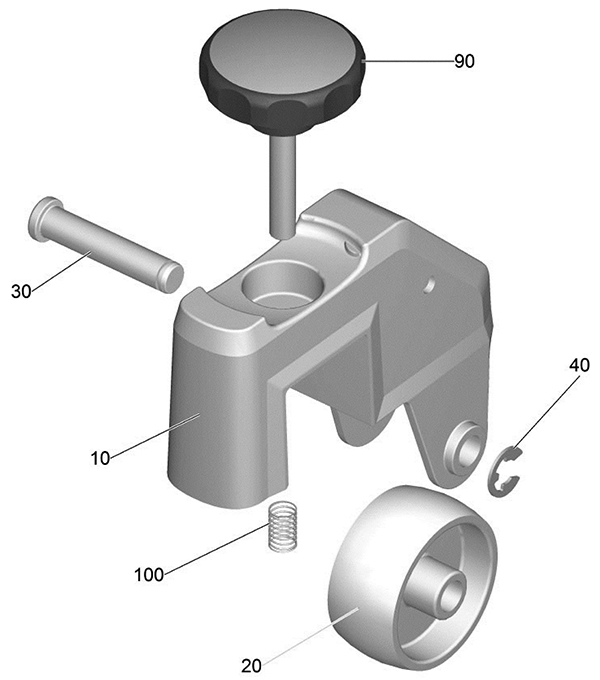

Roller Suction Bar Assembly-Model 1.480-231.2 - 273-9749
RefNbr Part Number Description Req Notes
10 273-3645 Roller holder weight 1
20 273-3489 Wheel 1
30 373-1746 Bolt 1
40 273-3488 Locking ring 1
90 273-3484 Star grip 1
100 273-3490 Pressure spring 1

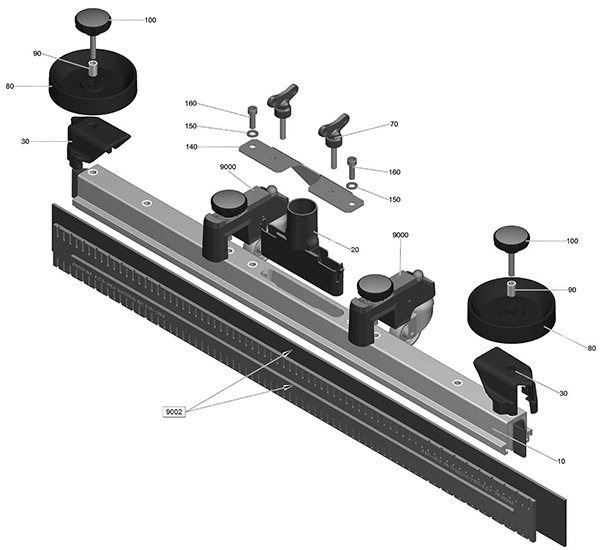

Squeegee Assembly-Straight-Model 1.480-231.2 - 273-9750
RefNbr Part Number Description Req Notes
10a N/A Not available 1 (suction bar pre-assembled straight 1420mm)
10b N/A Not available 1 (suction bar pre-assembled straight 1180mm)
20 273-3479 Suction nipple 1
30a 273-3475 Left and right end pieces 1 (set)
30b 373-1742 Left hand end piece 1 (left)
30c 373-1743 Right hand end piece 1 (right)
70 N/A Not available 2 (wing screw)
80 273-3481 Guide wheel 2
90 273-5924 Sleeve suction bar 2
100 273-7072 Star knob 2
140 273-3478 Suction bar support plate 1
150 999-0150 Washer #8 medium split lock 2
160 273-3477 Screw 2
9000a 373-1738 Support 2 (version 2)
9000b 273-3485 Squeegee roller assembly 2 (version 1)
9002a 373-1988 1420mm Linatex rubber lip set 1 (tearproof) (1420mm)
9002b 373-1990 1180mm Linatex squeegee blade set 1 (1180mm) (tearproof)
9002c 373-1890 1400mm rear squeegee blade 1 (1420mm)
9002d 273-7800 Squeegee blade set 1 (1180mm)
9002e 373-1891 1400mm squeegee blade set 1 (1420mm)
9002f 373-1991 1180mm squeegee blades 1 (1180mm)
9002g 373-1989 1420mm squeegee blades 1 (1420mm)
9002h 373-1892 1160mm squeegee blade set 1 (1180mm)
N/S 373-1987 Deflector roll stack formation 1

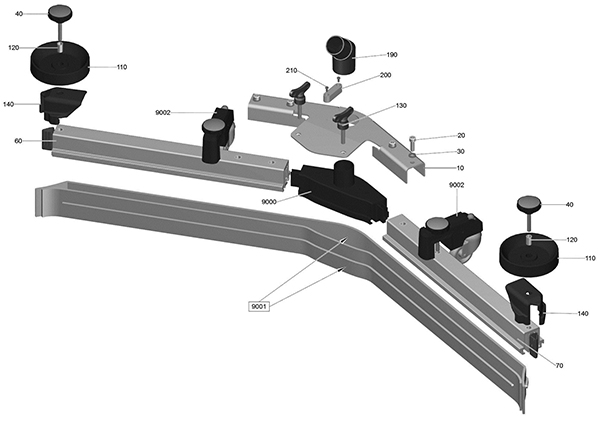

Squeegee Assembly-V-Shaped-Model 1.480-231.2 - 273-9751
RefNbr Part Number Description Req Notes
10 373-1992 Holder 1
20 273-3477 Screw 4
30 999-0150 Washer #8 medium split lock 4
40 373-1737 Star grip 2 (version 1)
60a N/A Not available 1 (profile pre-assembled right 1200mm)
60b N/A Not available 1 (profile pre-assembled right 1400mm)
70a N/A Not available 1 (profile pre-assembled left 1200mm)
70b N/A Not available 1 (profile pre-assembled left 1400mm)
110 273-3481 Guide wheel 2 (version 1)
120 273-5924 Sleeve suction bar 2 (version 2)
130 N/A Not available 2 (wing screw)
140 273-3475 Left and right end pieces 1
190 273-0873 Angle adapter pipe 1
200 273-0874 Level 1
210a 373-1452 Screw M4 x 16mm 2
210b 373-1355 Screw M4 x 8mm 2
9000 273-0875 Nipple suction assembly 1
9001a 373-1993 1334mm Linatex squeegee blade set 1 (tearproof) (1200mm)
9001b 373-1995 55 inch squeege blade set linatex 1 (tearproof) (1400mm)
9000c 373-1994 1200mm rubber squeegee blade set 1 (1200mm)
9001d 373-1996 55 inch squeegee blade set polyurethane 1 (1400mm)
9002 373-1738 Support 2
N/S 273-0876 Support roller 2
N/S 373-1987 Deflector roll stack formation 1
N/S 273-0870 Deflector roll assembly 1 (version 2)

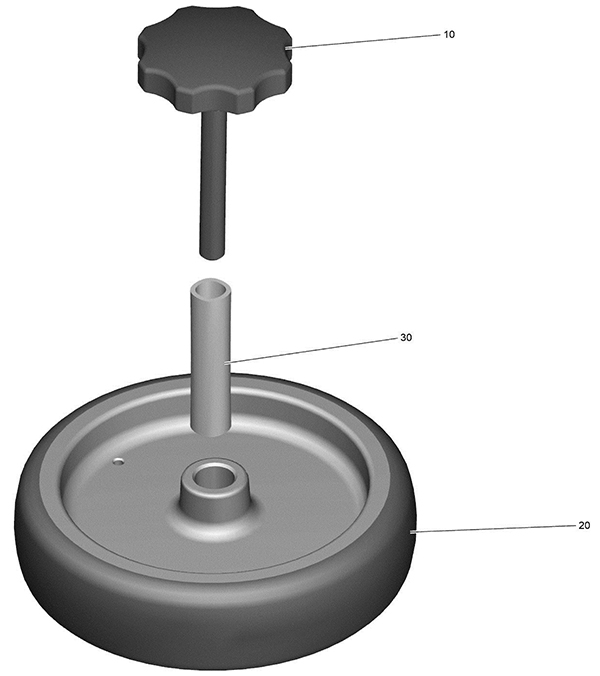

Deflector Roll Suction Bar Assembly-Model 1.480-231.2 - 273-9752
RefNbr Part Number Description Req Notes
10a 273-0877 Star grip knob 2
10b 273-0887 Handle 2
20a 273-0888 Wheel gummed 2
20b 273-0886 Deflector roll 2
30 273-0889 Sleeve suction bar 2

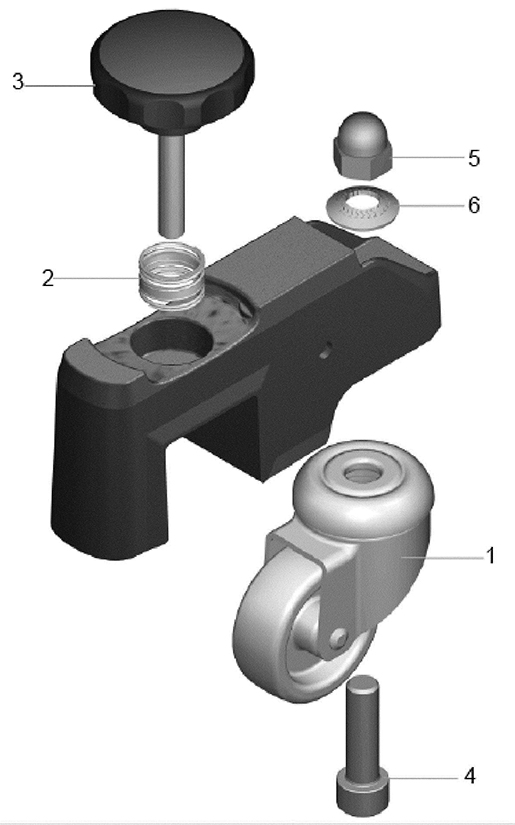

Roller Support Assembly-1-Model 1.480-231.2 - 273-9753
RefNbr Part Number Description Req Notes
1 373-1745 Castor 1
2 273-4235 Pressure spring 1
3 273-3484 Star grip 1
4 N/A Not available 1 (screw)
5 373-1744 Nut 1
6 N/A Not available 1 (washer)

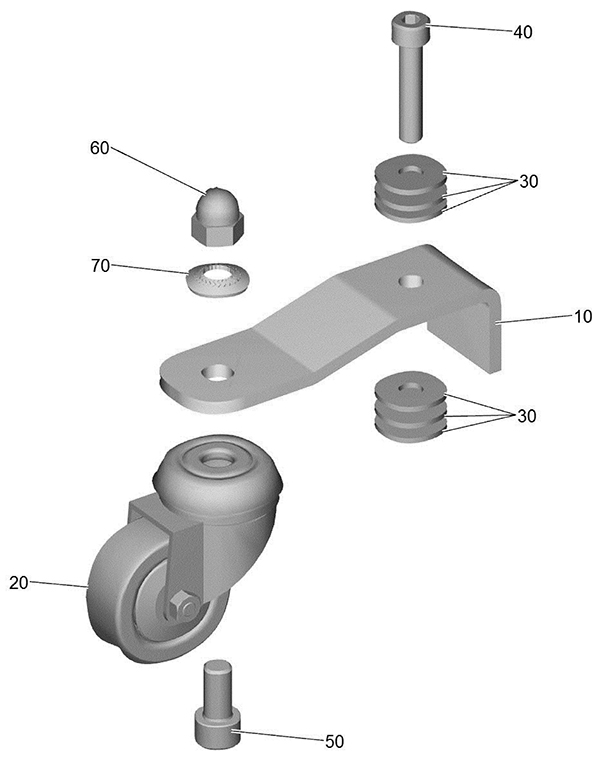

Roller Support Assembly-2-Model 1.480-231.2 - 273-9754
RefNbr Part Number Description Req Notes
10 273-0882 Castor suction bar retaining plate 1
20 373-1745 Castor 1
30 273-8187 Washer 6
40 183-0215 Cheese head screw (Obsolete) 1
50 183-0462 Screw 1
60 373-1744 Nut 1
70 N/A Not available 1 (washer)

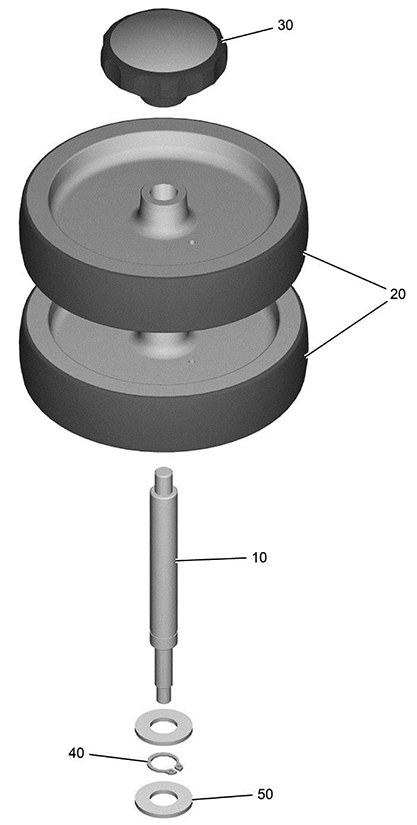

Deflector Roll Stack Assembly-Model 1.480-231.2 - 273-9755
RefNbr Part Number Description Req Notes
10 273-0885 Suction bar axle 2
20 273-0886 Deflector roll 4
30 173-6205 Knob (gray) 2
40 373-1700 Locking ring 2
50 273-6048 Washer 4

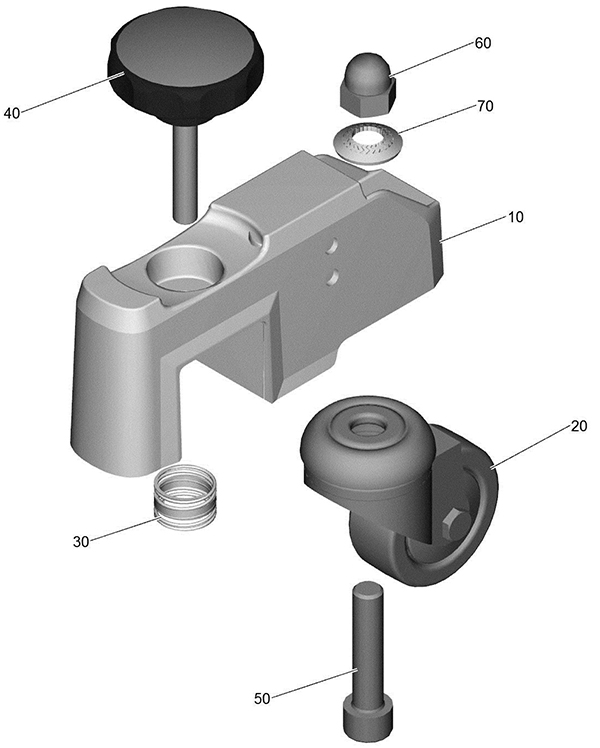

Deep Roller Support Assembly-Model 1.480-231.2 - 273-9756
RefNbr Part Number Description Req Notes
10 373-1997 Housing 1
20 373-1745 Castor 1
30 273-4235 Pressure spring 1
40 273-3484 Star grip 1
50 373-1845 Cylinder head screw M10x45-8.8-A2K DIN 1
60 373-1744 Nut 1
70 N/A Not available 1 (washer)

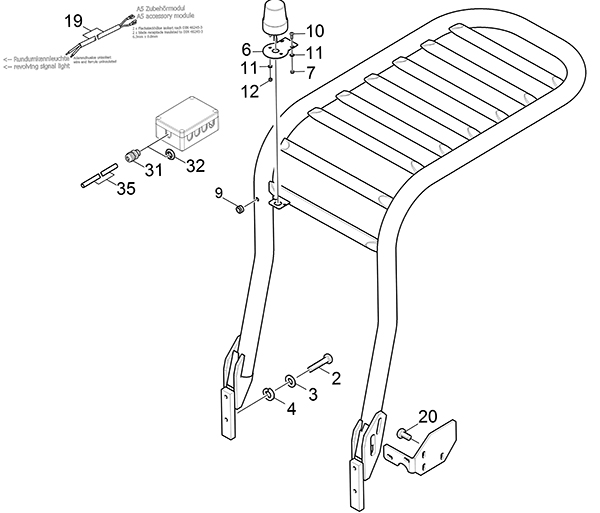

Revolving Protection Shield-Model 1.480-231.2 - 273-9757
RefNbr Part Number Description Req Notes
2 999-1902 Screw M6-1 x 35mm A4-70 hex stainless steel 4
3 273-7045 Washer 4
4 373-2000 Spring washer 4
6 373-2002 Plate 1
7 999-1308 Nut M6-1 hex stainless steel 2
9 273-0745 Cable gland 1
10 999-1224 Screw M6-1 x 20mm flat head phillips stainless steel 2
11 999-1261 Washer M6 flat stainless steel 2
12 999-1308 Nut M6-1 hex stainless steel 2
19 373-1998 Revolving light cable harness 1
20 173-9869 Screw M8 x 16 hex head 5
31 373-1349 Cable gland 1
32 273-8525 Lock nut 1
35 373-1999 Hose 0.04m
N/S 373-2001 Revolving signal light (orange) 1

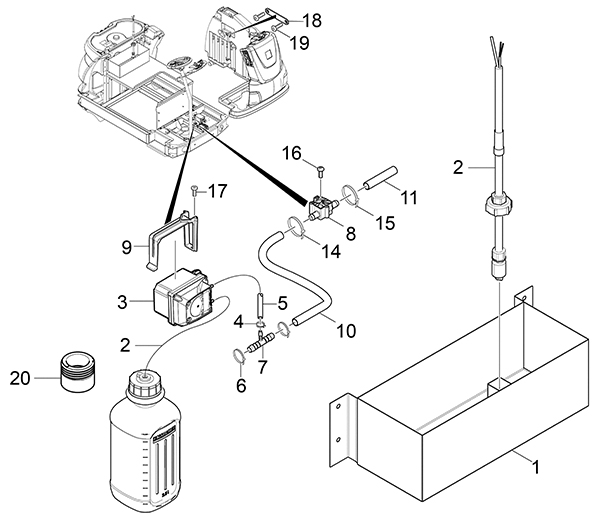

Cleaning Agents Metering Assembly-Model 1.480-231.2 - 273-9758
RefNbr Part Number Description Req Notes
1 373-2007 Cleaning agents tub 1
2a 373-2003 Suction lance 1
2b 373-2004 Suction lance 1
3a 373-2008 Dosing pump connection 1
3b 273-3509 Hose replacement kit 1
4 373-2009 Hose clip 3
5 273-9057 Hose 0.5m (to order as cut goods)
6 173-9063 Holder 6
7 373-2010 T-piece 1
8 273-3507 Flow meter 1
9 373-2005 Pump holder 1
10 273-4610 Hose 0.3m (to order as cut goods)
11 273-4610 Hose 0.25m (to order as cut goods)
14 373-2011 Cable tape 5
15 273-4548 Cable tie 1
16 173-2935 Screw M4-.7 x 12mm 3
17 999-6690 Screw M5-.8 x 12mm hex head stainless steel 1
18 373-2012 Retaining plate 1
19 183-0075 Screw 5-16 x 10.9mm 2
20 373-2006 Connection adapter 1

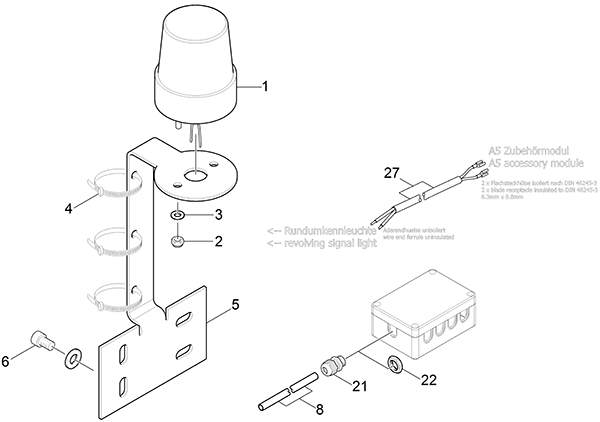

Revolving Light Assembly (optional)-Model 1.480-231.2 - 273-9759
RefNbr Part Number Description Req Notes
1 373-2001 Revolving signal light (orange) 1
2 999-1308 Nut M6-1 hex stainless steel 2
3 999-1261 Washer M6 flat stainless steel 2
4 273-9024 Cable tape 3
5 373-2013 Bracket 1
6 373-1363 Screw M8 x 20mm 4
8 373-1999 Hose 0.04m (to order as cut goods)
21 373-1349 Cable gland 1
22 273-8525 Lock nut 1
27 373-1998 Revolving light cable harness 1

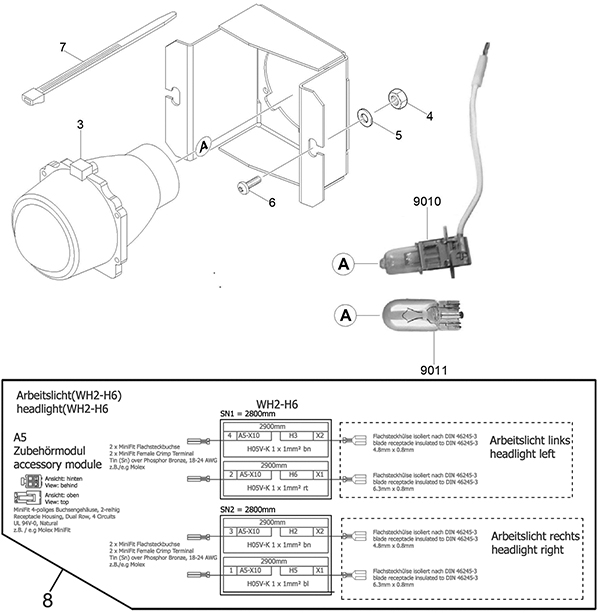

Headlight Assembly (optional)-Model 1.480-231.2 - 273-9760
RefNbr Part Number Description Req Notes
3 373-2015 Headlight 2
4 183-0262 Hex nut 4
5 173-6297 Washer 4
6 183-0281 Screw 8
7 273-4548 Cable tie 7
8 373-2014 Cable harness 1
9010 373-2016 24V 70W light bulb 1
9011 373-2017 24V 3W light bulb 1

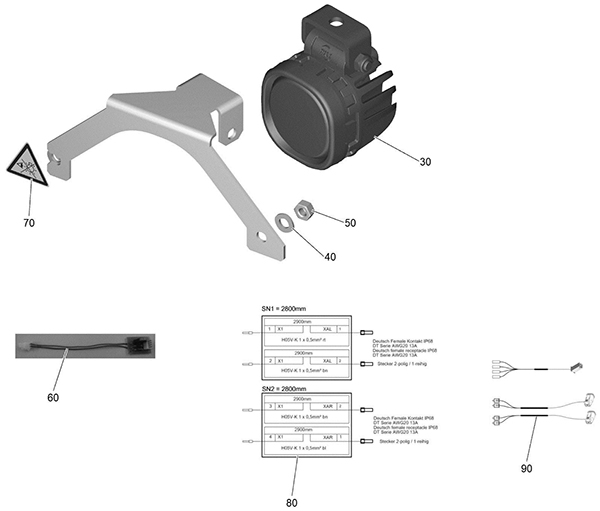

LED Operation Lighting Assembly-Model 1.480-231.2 - 273-9761
RefNbr Part Number Description Req Notes
30 373-2018 LED lamp 2
40 173-6297 Washer 4
50 183-0262 Hex nut 4
60 373-2019 Circuit board adapter 1
70 373-2020 Warning decal 2
80 373-2021 Cable harness 1
90 373-2022 Cable harness 1

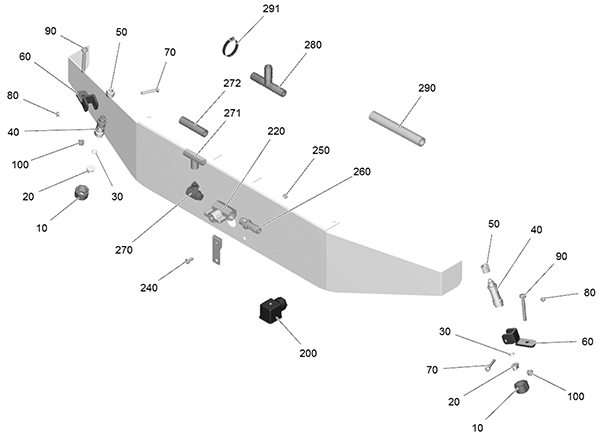

Spraying Nozzle Assembly-Model 1.480-231.2 - 273-9762
RefNbr Part Number Description Req Notes
10 173-5874 Nut 2
20 373-2024 Nozzle mouthpiece 2
30 173-5872 O-ring 6 x 2 2
40 173-5885 Fitting 2
50 173-5853 Spacer 2
60 373-2025 Nozzle holder 2
70 373-2023 Screw M5 x 30 2
80 999-0740 Nut M5-.8 hex stainless steel 2
90 373-2026 Screw M6 x 50 2
100 999-1308 Nut M6-1 hex stainless steel 2
200 373-1840 Water solenoid valve 1
220 373-1838 Ball valve 1
240 999-6690 Screw M5-.8 x 12mm hex head stainless steel 2
250 999-0740 Nut M5-.8 hex stainless steel 2
260 373-1839 Hose nozzle 3
270 373-2028 Elbow 1
271 373-2029 T-piece 1
272 373-2030 Hose 1.53m (to order as cut goods)
280 373-1844 T-hose nozzle 1
290 273-5847 Spiral hose (sold by the inch) 1.68m (to order as cut goods)
291 273-4732 Hose clip 6
N/S 373-2027 Screw m3 x 6 2

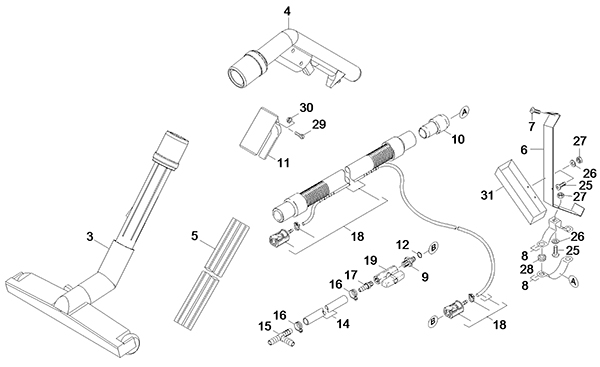

Vacuum Spray Assembly-Model 1.480-231.2 - 273-9763
RefNbr Part Number Description Req Notes
3 373-2032 Floor tool 1
4 173-5907 Handle assembly 1
5 373-2033 Suction tube 1
6 373-2034 Holder 1
7 183-0075 Screw 5-16 x 10.9mm 3
8 373-2035 Clamp 1
9 373-2031 Nipple 1
10 273-4723 Connecting sleeve 1
11 373-2036 Hook 1
12 173-5859 O-ring seal 1
14 273-4610 Hose 3
15 373-1844 T-hose nozzle 1
16 273-4732 Hose clip 4
17 373-1839 Hose nozzle 1
18 173-5850 8 foot suction hose 1
19 373-1838 Ball valve 1
25 173-6286 Screw M6 x 12mm 2
26 173-6297 Washer 2
27 999-1308 Nut M6-1 hex stainless steel 2
28 373-1366 Rubber bushing 2
29 N/A Not available 1 (screw)
30 373-1502 Nut 1
31 373-2037 Tub 1

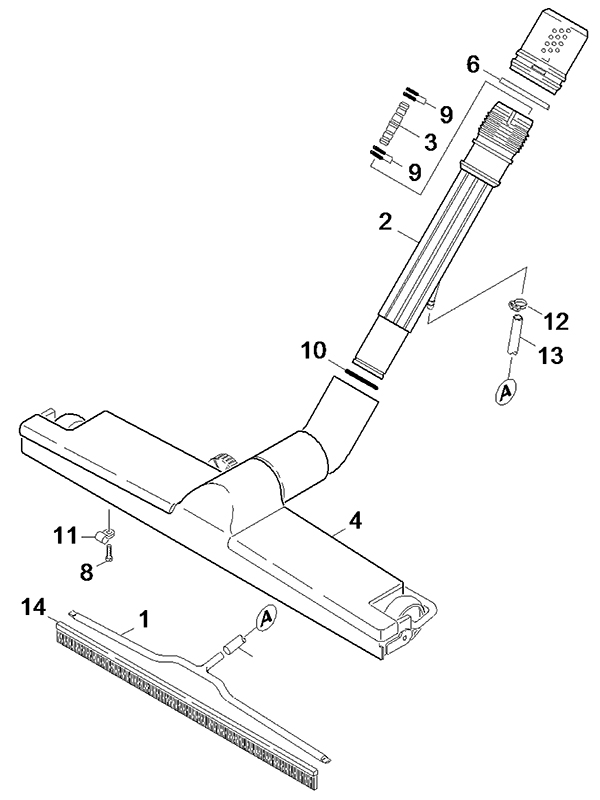

Floor Tool Assembly-Model 1.480-231.2 - 273-9764
RefNbr Part Number Description Req Notes
1 373-2039 Tube 1
2 373-2040 Suction tube 1
3 173-5882 Extension piece 1
4 373-2041 Nozzle 1
6 173-5894 Cap holder 1
8 173-2953 Screw M4-.7 x 12mm 2
9 173-5881 O-ring 6 x 1 4
10 173-5892 Gasket 1
11 373-2038 Pipe clamp 2
12 173-5883 Hose clamp 1
13 373-1999 Hose 0.235m
14 373-2042 Brush strip 1

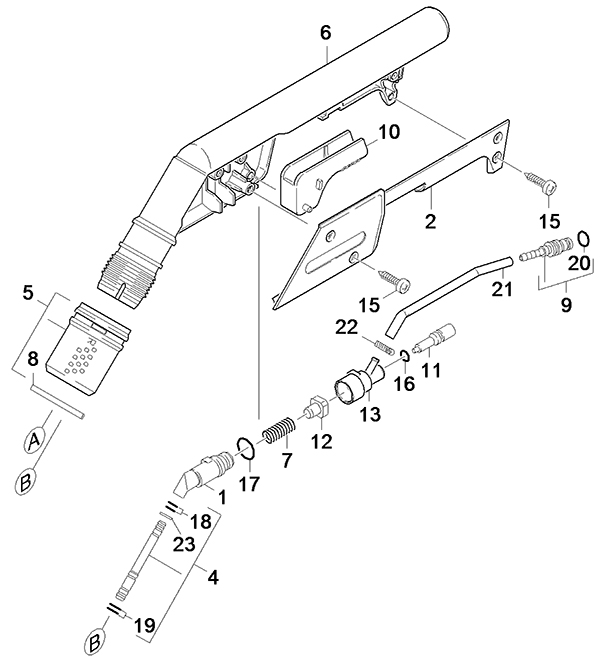

Handhold Assembly-Model 1.480-231.2 - 273-9765
RefNbr Part Number Description Req Notes
1 173-5903 Elbow joint 1
2 173-5905 Bracket 1
4 173-5902 Extension 1 (includes 18-19, 23)
5 173-5900 Cap 1 (includes 8)
6 373-2043 Handhold 1
7 173-5869 Spring 1
8 173-5894 Cap holder 1
9 173-5860 Hose stem 1 (includes 20)
10 173-5862 Lever 1
11 173-5866 Spindle 1
12 173-5868 Valve 1
13 173-5864 Valve housing 1
15 173-5867 Screw 4 x 12 4
16 173-5865 O-ring 1
17 173-5870 O-ring 1
18 173-5896 O-ring seal 2
19 173-5881 O-ring 6 x 1 2
20a 273-0368 O-ring 1
20b 173-5859 O-ring seal 1
21 173-5863 Hose 1
22 173-5861 Hose band clip 2
23 173-5901 Washer lock 1

Recycling Assembly-Model 1.480-231.2 - 273-9766
RefNbr Part Number Description Req Notes
1 N/A Not available 1 (valve complete)
2 999-1415 Screw M8-1.25 x 12mm hex head stainless steel 2
3 373-2048 Handhold 1
6 183-0075 Screw 5-16 x 10.9mm 2
9 373-2044 Hose clip 6
10 373-2049 Filter 1
11 373-2045 Hose stem 1
12 373-2050 O-ring 1
13 999-9009 Nut M22 x 1.5 hex plain finish 1
14 373-2046 Decal 1
15 373-2047 Recycling decal 1

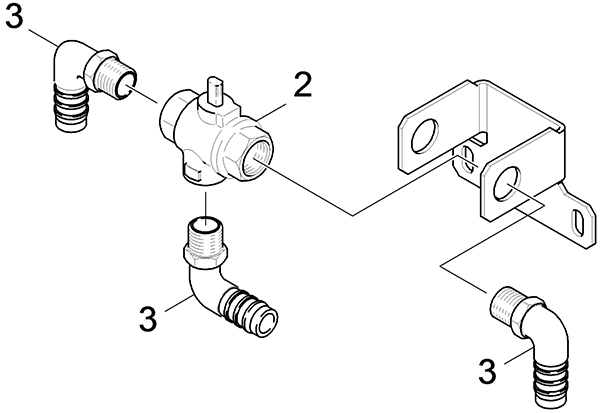

Valve Assembly-Model 1.480-231.2 - 273-9767
RefNbr Part Number Description Req Notes
2 373-2051 Three way cock 1
3 273-9309 Angle bushing 3

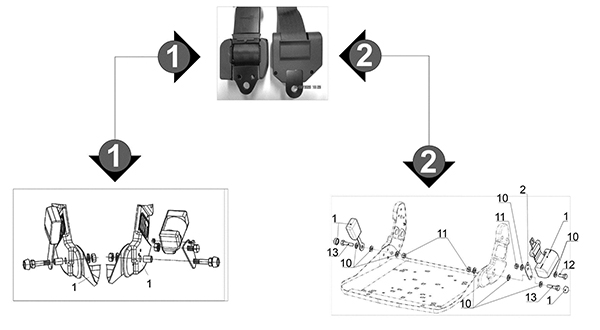

Safety Belt Assembly-Model 1.480-231.2 - 273-9768
RefNbr Part Number Description Req Notes
1a 373-2054 2-point safety belt 1 (version 1)
1b 373-2052 2-point safety belt 1 (version 2)
2 373-2053 Belt roller extension 1 (version 2)
10 373-2055 Washer 8 (version 2)
11 373-2056 Nut M10-10 3 (version 2)
12 999-1372 Bolt M10-1.5 x 25mm hex head stainless steel 1 (version 2)
13 273-8238 Screw M10 x 45 hex head 2

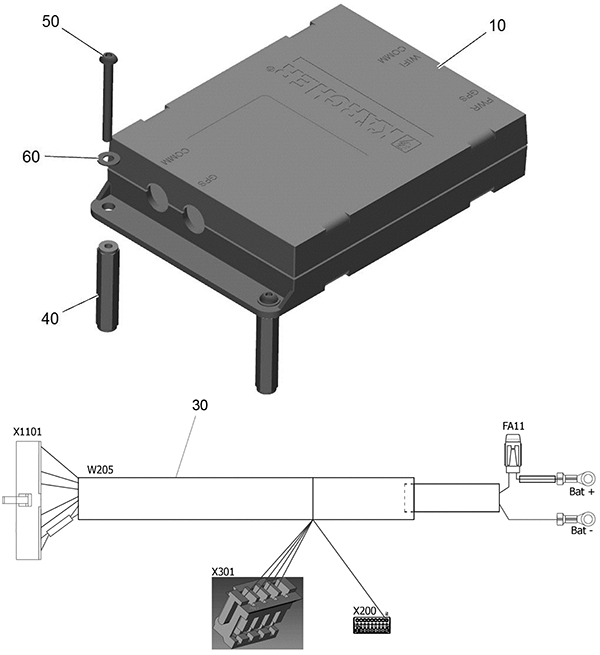

Router Assembly-Model 1.480-231.2 - 273-9769
RefNbr Part Number Description Req Notes
10 373-2057 Fleet services 1
30 373-2058 Cable harness 1
40 373-2059 Pin 3
50 373-2060 Screw M3 x 10 3
60 273-8091 Washer 3

- Batteries, Brushes, and Charger-Model 1.480-231.2 - 273-9770
RefNbr Part Number Description Req Notes
373-1790 36V battery charger 1
373-1871 300mm disc brush (red) 1
373-2062 Roller brush (red) 1 (red)
373-2063 Roller brush (orange) 1 (orange)
373-2064 Roller brush (white) 1 (white)
273-3653 Roller brush (black) 1 (black)
373-2065 Roller brush (green) 1 (green)
162-0005 6V 305Ah wet battery (SNSR) 1
162-0046 6V 335Ah AGM battery (Group J305) 1

- Commonly Asked For Parts - 373-9989
RefNbr Part Number Description Req Notes
1 373-3054 Curved suction bar
Webpage Problem Reporting
