Parts List Complete for KAIVAC Omniflex Spray and Vac YELLOW

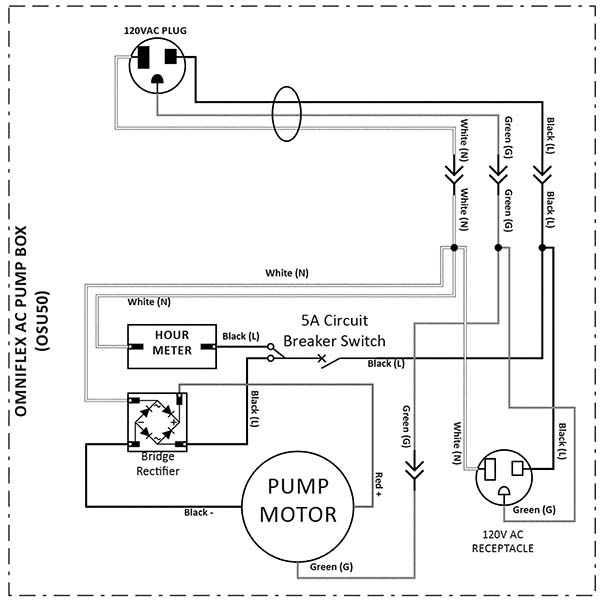

Pump Box Electrical Diagram -

RefNbr Part Number Description Req Notes

Handle Assembly - 225-1005
RefNbr Part Number Description Req Notes
1 225-0497 Handle grip 2
2 999-1544 Screw 8-32 x 1/2 truss head phillips stainless steel 2
3 225-0496 26 inch U handle assembly with posts 1 (includes 1-2)
4 225-1086 Straight handle 1 (includes 1-2)

Pump Box Assembly - 225-1007
RefNbr Part Number Description Req Notes
0a N/A Not available 1 (150 PSI black box assembly) (includes 1-12, 14-17a and 18)
0b 225-0531 500 PSI black box assembly 1 (includes 1-12, 17b and 19-22)
1 225-0145 Screw 3/4 inch stainless steel 4
2 225-0514 Pump box cover plate 1
3 225-0145 Screw 3/4 inch stainless steel 4
4 225-0331 Water line filter 1
5 225-0509 Hose barb 1
6 999-0424 Bolt 5/16-18 x 1 hex head stainless steel 2
7 225-0510 Pump box 1
8 225-0511 Hose clamp 1
9 225-0512 Plastic clamp 1
10a 225-0229 Quick connect injector 1 (OEM) (new unit)
10b 991-7129 Quick connect injector 1 (NON-OEM)
10c 225-0577 Quick connect injector 1 (old unit)
11 225-0228 Rubber grommet 1
12 225-0516 Water line 1
13 225-0107 5/16 u-nut 1 (not included in pump assemblies) (Before 06.2013)
14 225-0241 Hose barb 3/8 x 1/2 inch 1 (150PSI pump)
15 225-0083 90 degree straight elbow 1 (150PSI pump)
16 225-0083 90 degree straight elbow 1 (150PSI pump)
17a 225-0513 150PSI pump assembly (OBSOLETE) 1
17b 225-0333 500PSI pump assembly 1 (before 07.2013)
17c 225-1075 500PSI pump assembly 1 (after 07.2013)
18 225-0515 24 inch pulse hose assembly 1 (150PSI pump)
19 225-0372 Jumper wire (black) 1 (500PSI pump)
20 999-1230 Screw 10-24 x 1 hex head stainless steel 1 (500PSI pump)
21 225-0517 Return line 1 (500PSI pump)
22 225-0165 Hose clamp 1 (500PSI pump)

Control Panel Assembly - 225-1010
RefNbr Part Number Description Req Notes
1 225-0518 Power cord with strain relief 1
2 225-0403 Braided hose 1/4 inch x 2 ft 1
3 225-0181 Clamp 1
5 225-0286 Quick connect terminal 1
6 225-0480 5amp circuit breaker switch 1
7 225-0287 Hour meter 1
8 225-0520 Rubber grommet 1
9 225-0082 Hose clamp 1
10 225-0521 Chemical switch panel 1
11 225-0522 Single electric receptacle (black) (OBSOLETE) 1
12 225-0075 90 degree 1/8 inch male fitting 2
13a 225-0192 2 way brass valve viton seals 1/8 x 1/8 1 (includes 13b)
13b 225-0084 Knob (black) 1
14 225-0403 Braided hose 1/4 inch x 2 ft 1
15 225-0181 Clamp 1
21 225-1116 Universal water resistant switch panel 1
22 225-1095 36V 20amp female receptacle 1
23 225-0145 Screw 3/4 inch stainless steel 4
24 225-0518 Power cord with strain relief 1
25 N/A Not available 1 (jumper wire)
26 225-0286 Quick connect terminal 1
27 225-0287 Hour meter 1
28 225-0480 5amp circuit breaker switch 1

Vacuum Head Assembly - 225-1030
RefNbr Part Number Description Req Notes
0 225-0614 36V Vacuum head assembly (no cord reel model) 1
1 225-0093 2 inch plastic ball 1
2 225-0610 Float cage stainless steel 1
3 225-0611 Plastic float cage interface 1
4 225-0612 120V 15 ft extension cord 1
5 225-0613 Velcro cord connector 1
6a N/A Not available 1 (Vacuum head assembly - cord reel model) (This has been replaced with 0 and will not fit the tank that went with the domed style. Must also order 6b and 6c if needing to replace vacuum head)
6b 225-0646 Vacuum tank assembly (black) 1
6c 225-0612 120V 15 ft extension cord 1
7 225-0093 2 inch plastic ball 1
8 225-0500 Float cage 1
9 225-0499 Vacuum motor gasket 1
10 225-0615 Plug replacement kit 1

Vacuum Tank Assembly - 225-1055
RefNbr Part Number Description Req Notes
1a 225-0503 Recovery tank 1 (cord reel)
1b 225-1043 Vacuum tank assembly (yellow) 1 (no cord reel)
1c 225-1045 Vacuum tank (black) 1 (cord reel)
1d 225-1044 Vacuum tank (black) 1 (no cord reel)
2 225-0335 Drain hose 1
3 225-0602 Dump hose clamp 1
4 999-1544 Screw 8-32 x 1/2 truss head phillips stainless steel 1
5a 225-0603 Threaded caster 4
5b 225-0636 4 threaded caster kit 4
5c 225-0635 2 threaded caster replacement kit 4
6 225-0604 Caster insert 1
8 225-0498 Vacuum tank deflector 1
9 225-0606 Deflector screw 2
10 225-0607 Deflector nut 2
11 225-0282 9 inch strap 1
12 225-0014 Snap stud 2
13 225-0507 Cup 1
14 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated 1
15 225-0137 1/4 insert 1
16 225-0608 Vac tank securing strap 1
17 225-0353 Male snap 1
18 225-0501 Brass insert 1

AutoVac Assembly - 225-1555
RefNbr Part Number Description Req Notes
1 225-0014 Snap stud 1
2 225-0137 1/4 insert 2
3 999-0028 Washer 5/16 split lock plain finish 2
4 225-0637 Screw 1/4-20 2
5a 225-0626 Autovac hitch assembly 1 (includes 5b and 6)
5b 225-0626 Autovac hitch assembly 1
6 225-0591 Autovac plastic arm hitch (yellow) 1
7a 225-0599 Autovac spreader assembly 1 (includes 7b-13)
7b 225-0643 Arm mounting screw 2
8 225-0642 Microfiber pad holder 18 inch 1
9 225-0638 Arm 1
10 225-0116 Acorn nut 2
11a 225-0653 Snap strap for spreader 1
12 225-0014 Snap stud 1
13 225-0619 26.5 inch universal wet mop pad (pkg of 5) 1
14a 225-0600 Autovac vacuum assembly 1 (includes 14b-23)
14b 225-0434 28 inch squeegee assembly 1
15 225-0071 Stainless steel squeegee wheel with holder 1
16 225-0065 Squeegee blade 14 1/4 inch 1
17 225-0654 Stainless steel wheel and cap assembly 1
18 225-0014 Snap stud 1
19 225-0640 Vacuum assembly snap and strap 1
20 225-0590 Autovac vacuum arm 1
21 225-0644 Screw #12-24 x 5/8 2
22 225-0639 Vacuum plow 1
23 225-0644 Screw #12-24 x 5/8 1

Trolley Bucket Assembly - 225-2001
RefNbr Part Number Description Req Notes
1a N/A Not available (Yellow trolley)
1b 225-1020 Omniflex trolley - bucket
2 225-0489 Handle (black)
3 225-0170 Spigot
4 225-1022 Screw 10-14 x 3/4
5 225-0486 Locking caster
6 999-0686 Bolt 3/8-16 x 2 3/4 hex head stainless steel
7 225-0491 5 inch wheel
8 225-0490 Nylon spacer
9 999-1482 Nut 3/8-16 nylon lock stainless steel
N/S 225-2000 Bin
