Parts List Complete for KAIVAC Omniflex Dispense and Vac


Trolley-Bucket Assembly - 225-1004
RefNbr Part Number Description Req Notes
1 225-1020 Omniflex trolley - bucket 1
2a 225-0486 Locking caster 2
2b 225-1032 3 inch caster with no brake 2
3 999-0686 Bolt 3/8-16 x 2 3/4 hex head stainless steel 2
4 225-0491 5 inch wheel 2
5 999-1482 Nut 3/8-16 nylon lock stainless steel 2
6 225-1022 Screw 10-14 x 3/4 1
7a 225-0170 Spigot 1
7b 225-1030 2 hole spigot assembly (brown) 1
8 225-0305 O-ring for 3/8 inch qd coupler 1
9 225-0055 Finger filter 1
10 225-1023 1/2 inch fitting (grey) 1
11 225-1024 90 degree brass fitting 1
12 225-0617 Clamp 1
13 225-1025 9 inch sight tube 1
14 999-1544 Screw 8-32 x 1/2 truss head phillips stainless steel 1
15 225-0618 Tie down 1
16 225-0145 Screw 3/4 inch stainless steel 1
17 225-1026 Trolley post 1
18 225-0489 Handle (black) 1
19 225-0145 Screw 3/4 inch stainless steel 4
20 225-1027 Side tray 1
21 225-2054 Cord wrap horn 1 (spray and vac)
22a 999-0456 Screw 1/4-20 x 3/4 pan head phillips stainless steel 1 (requires 22b) (spray and vac)
22b 999-0609 Nut 1/4-20 hex stainless steel 1 (spray and vac)
22c 999-0523 Screw 1/4-20 x 1 1/2 pan head phillips stainless steel 1 (spray and vac)
N/S 225-1028 Counterweight 1 (dispense and vac)
N/S 225-1029 Washer 1 (dispense and vac)
N/S 225-1031 Screw 1 (dispense and vac)

Vacuum Tank Assembly - 225-1006
RefNbr Part Number Description Req Notes
1 225-0646 Vacuum tank assembly (black) 1
2 225-1034 Bottom vacuum tank 1
3 225-1035 Screw 8 x 3/4 1
4a 225-1036 2 inch caster 4 (after 07.2013)
4b 225-0636 4 threaded caster kit 4 (before 06.2013)
4c 225-0635 2 threaded caster replacement kit 4 (before 06.2013)
5 997-2003 Hose clamp 1
6 225-0335 Drain hose 1
7 225-1037 Lower clasp 1
8 225-1038 Hose post 1
9 225-1076 Insert for mold 4
10 225-0606 Deflector screw 4
11 225-0494 Neoprene washer 4
12 999-1544 Screw 8-32 x 1/2 truss head phillips stainless steel 1
13 225-1039 Drip tray 1
14 225-1040 Upper clasp 1
15 225-1076 Insert for mold 1
16 225-0606 Deflector screw 4
17 225-0494 Neoprene washer 4
18 225-1041 Post 4
19 999-0565 Screw 10 x 3/4 pan head phillips sheet metal 4
N/S 225-1087 15 foot vacuum hose with swivel cuff 1

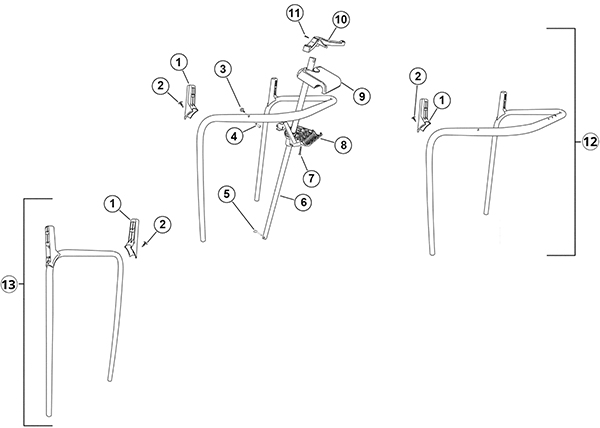

Handle Assembly - 225-1036
RefNbr Part Number Description Req Notes
1 225-0497 Handle grip 1
2 999-1544 Screw 8-32 x 1/2 truss head phillips stainless steel 1
3 225-0353 Male snap 1
4 225-1079 Female binding post 1
5 225-1080 Ring pin 1
6 225-1081 Throttle extension rod 1
7 225-1082 Screw 1
8 225-1083 Lower platform 1
9 225-1084 Throttle platform 1
10 225-1085 Throttle 1
11 225-1019 Screw 1
12 225-0496 26 inch U handle assembly with posts 1
13 225-1086 Straight handle 1

Vacuum Head Assembly - 225-1056
RefNbr Part Number Description Req Notes
1 225-0145 Screw 3/4 inch stainless steel 4
2a 225-1049 Vacuum motor handle (black) 1
2b 225-1050 Vacuum motor handle (orange) 1
3 225-1051 Vacuum motor top cover 1
4 225-1052 Vacuum motor middle cover 1
5a 225-1053 120V vacuum motor middle ring 1
5b 225-1054 36V vacuum motor middle ring 1
6 225-1055 Vacuum motor bottom cover 1
7 225-0611 Plastic float cage interface 1
8 225-1056 Screw 5/6 inch 4
9 225-0093 2 inch plastic ball 1
10 225-0610 Float cage stainless steel 1
11 225-1057 Screw #7 1/2 inch 4
12 225-1058 Vacuum motor basket 1
13 225-1059 36V 20amp male plug 1
14 225-0613 Velcro cord connector 1 (optional)
15 225-0612 120V 15 ft extension cord 1
N/S 225-0284 2 way rocker switch 1 (corded model)

Battery Box Assembly - 225-1057
RefNbr Part Number Description Req Notes
1 225-1060 Pump box top 1
2 999-0565 Screw 10 x 3/4 pan head phillips sheet metal 1
3 225-1061 Pump box bottom 1
4 225-0287 Hour meter 1
5 225-1062 Charge panel 1
6 999-0565 Screw 10 x 3/4 pan head phillips sheet metal 1
7 225-1064 Battery charge indicator 1
8 225-1173 9 inch snap and strap (orange) 1
9 225-0014 Snap stud 1
10 999-0565 Screw 10 x 3/4 pan head phillips sheet metal 1
11 225-1063 Receptacle panel 1
12 225-1066 Nut 1
13 225-1067 Screw #6-32 1
14 225-1095 36V 20amp female receptacle 1
15 225-1174 Battery side plate 1
16 225-1175 Battery bracket 1
17 225-1099 36V LI-Ion battery box assembly 1
18 999-0152 Nut 1/4-20 nylon insert lock zinc plated 2
19 999-0016 Washer 1/4 flat plain finish 2
20 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated 2
21 999-1099 Bolt 1/4-20 x 3/4 hex head stainless steel 1
22 225-0648 36V battery charger 1

Pump Box Assembly - 225-1058
RefNbr Part Number Description Req Notes
1a 225-0010 500PSI 45 foot pressure hose assembly (2 female connectors) 1 (OEM)
1b 991-2429 1/4 inch 45 foot hose with fittings and valve 1 (NON-OEM)
2a 225-0173 Spray gun assembly with 1/32 inch nozzle 1 (OEM)
2b 991-3023 Spray gun assembly with 1/32 inch nozzle 1 (NON-OEM)
3 225-0037 Metering tip pack 1
4a 225-0229 Quick connect injector 1 (OEM)
4b 991-7129 Quick connect injector 1 (NON-OEM)
5 225-0518 Power cord with strain relief 1
6 225-0480 5amp circuit breaker switch 1
7 225-0287 Hour meter 1
9 225-1060 Pump box top 1
10 999-0565 Screw 10 x 3/4 pan head phillips sheet metal 4
11 225-1072 Strain relief 1
12 999-1099 Bolt 1/4-20 x 3/4 hex head stainless steel 4
13 999-1230 Screw 10-24 x 1 hex head stainless steel 1
14 225-0137 1/4 insert 1
15 225-1061 Pump box bottom 1
16 225-0509 Hose barb 1
17 225-0331 Water line filter 1
18 999-0565 Screw 10 x 3/4 pan head phillips sheet metal 2
19 225-0631 25 foot power cord with GFCI 1

Autovac Assembly - 225-1555
RefNbr Part Number Description Req Notes
1 225-0014 Snap stud 1
2 225-0137 1/4 insert 2
3 999-0028 Washer 5/16 split lock plain finish 2
4 225-0637 Screw 1/4-20 2
5a 225-0626 Autovac hitch assembly 1 (includes 5b and 6)
5b 225-0626 Autovac hitch assembly 1
6 225-0591 Autovac plastic arm hitch (yellow) 1
7a 225-0599 Autovac spreader assembly 1 (includes 7b-13)
7b 225-0643 Arm mounting screw 2
8 225-0642 Microfiber pad holder 18 inch 1
9 225-0638 Arm 1
10 225-0116 Acorn nut 2
11a 225-0653 Snap strap for spreader 1
12 225-0014 Snap stud 1
13 225-0619 26.5 inch universal wet mop pad (pkg of 5) 1
14a 225-0600 Autovac vacuum assembly 1 (includes 14b-23)
14b 225-0434 28 inch squeegee assembly 1
15 225-0071 Stainless steel squeegee wheel with holder 1
16 225-0065 Squeegee blade 14 1/4 inch 1
17 225-0654 Stainless steel wheel and cap assembly 1
18 225-0014 Snap stud 1
19 225-0640 Vacuum assembly snap and strap 1
20 225-0590 Autovac vacuum arm 1
21 225-0644 Screw #12-24 x 5/8 2
22 225-0639 Vacuum plow 1
23 225-0644 Screw #12-24 x 5/8 1

Pump Assembly - 225-2000
RefNbr Part Number Description Req Notes
1 225-0516 Water line 1
2 225-0372 Jumper wire (black) 1
3 999-1230 Screw 10-24 x 1 hex head stainless steel 1
4 225-0390 Rectifier 1
5a 225-1075 500PSI pump assembly 1
6 225-0537 Pump head 1
7 225-0517 Return line 1
