Spray Gun Assembly - 225-0006 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000a |
225-0173 |
Spray gun assembly with 1/32 inch nozzle |
1 |
(assembly includes 001-005 and not shown) (OEM) |
| 000b |
991-3023 |
Spray gun assembly with 1/32 inch nozzle |
1 |
(NON-OEM) |
| 002 |
225-0087 |
Quick disconnect plug 1/4 |
1 |
|
| 003a |
225-0089 |
Idrojet nozzle |
1 |
|
| 003b |
991-3093 |
#2.0 variable nozzle |
1 |
|
| 004 |
225-0089 |
Idrojet nozzle |
1 |
|
| 005 |
225-0091 |
Nipple 1/4 close |
1 |
|
| N/S |
225-0303 |
Mini ball valve |
1 |
|
| N/S |
225-0090 |
Gun nozzle bearing |
1 |
|
|
|
Cover and Pump Motor Assembly - 225-0037 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
225-0252 |
Switch cover |
1 |
|
| 002 |
225-0145 |
Screw 3/4 inch stainless steel |
4 |
|
| 003 |
225-0321 |
Terminal block |
1 |
|
| 004 |
225-0195 |
Terminal block retainer screw |
1 |
|
| 005a |
225-0072 |
Rocker switch |
2 |
For units without blow motor |
| 005b |
225-0072 |
Rocker switch |
1 |
For units with blow motor |
| 006 |
225-0082 |
Hose clamp |
1 |
|
| 007 |
999-0032 |
Washer 3/8 USS flat plain finish |
4 |
|
| 008 |
999-0350 |
Bolt 3/8-16 x 1 1/2 hex head grade 5 zinc plated |
2 |
|
| 009 |
999-0638 |
Bolt 3/8-16 x 2 1/4 hex head |
2 |
|
| 010 |
225-0033 |
Yellow safety cap (white cap no longer available) |
1 |
|
| 011 |
225-0048 |
1/4 inch chemical hose (sold by the foot) |
3 ft |
|
| 013a |
225-0075 |
90 degree 1/8 inch male fitting |
2 |
Before SN 3307 |
| 013b |
225-0075 |
90 degree 1/8 inch male fitting |
1 |
After SN 3307 |
| 014 |
225-0192 |
2 way brass valve viton seals 1/8 x 1/8 |
1 |
|
| 015 |
225-0048 |
1/4 inch chemical hose (sold by the foot) |
3 ft |
|
| 016 |
225-0048 |
1/4 inch chemical hose (sold by the foot) |
1 ft |
|
| 019 |
999-1124 |
Screw 8-32 x 3/4 flat head square stainless steel |
4 |
|
| 020 |
225-0012 |
Screw #8 self drilling |
1 |
|
| 021 |
225-0222 |
Snap socket |
3 |
|
| 022 |
225-0164 |
Wire reinforced hose 1/2 x 12 inches |
1 |
Cut to 3 inches |
| 023a |
225-0051 |
Water filter (1/2 inch barbs on each side) |
1 |
|
| 023b |
991-9208 |
Strainer 1/2 HOSE 20 MESH |
1 |
(NON-OEM) |
| 023c |
225-0299 |
Stainless mesh filter screen |
1 |
Screen only |
| 023d |
225-0102 |
Bowl filter gasket |
1 |
Will need this if replacing screen |
| 024 |
225-0164 |
Wire reinforced hose 1/2 x 12 inches |
1 |
Cut to 10 1/2 inches |
| 026 |
225-0165 |
Hose clamp |
3 |
|
| 027 |
225-0058 |
Pulse hose |
1 |
|
| 028a |
225-0061 |
Unloader/check valve |
1 |
(OEM) |
| 028b |
991-7121 |
Unloader valve |
1 |
(NON-OEM) |
| 029 |
225-0059 |
3/8 quick disconnect coupling |
1 |
|
| 030 |
225-0281 |
17 inch strap |
1 |
|
| 031 |
225-0223 |
Snap button |
3 |
|
| 032a |
N/A |
Not available |
|
See pump page |
| 032b |
225-0226 |
AC/DC rectifier |
|
|
| 033 |
225-0048 |
1/4 inch chemical hose (sold by the foot) |
2 ft |
|
| 034 |
225-0220 |
Barb 1/4 x 1/2 |
1 |
|
| 035 |
225-0107 |
5/16 u-nut |
4 |
|
| 036a |
225-0120 |
Stainless steel trigger valve |
1 |
Stainless steel from SN 2000 on, if machine is around SN 1900 to SN 2100 please make sure its not a brass valve |
| 036b |
225-0322 |
Brass trigger valve |
1 |
Brass valve, used on newer machines |
| 037 |
225-0218 |
Reducer 1/4 x 1/8 |
1 |
|
| 038 |
225-0111 |
90 degree elbow |
1 |
|
| 039 |
999-0031 |
Bolt 5/16-18 x 1 hex head grade 5 zinc plated |
4 |
|
| 040 |
225-0217 |
Coupler 3/8 x 3/8 |
1 |
|
| 041b |
225-0104 |
Injector kit |
1 |
Includes the spring,o-ring and bearing only (used inside the injector) |
| 042 |
225-0290 |
1/8 NPT x 1/4 |
1 |
|
| 043 |
225-0282 |
9 inch strap |
1 |
|
| 044 |
225-0287 |
Hour meter |
1 |
|
| 045 |
225-0227 |
Switch plate |
1 |
|
| 046 |
225-0284 |
2 way rocker switch |
1 |
|
| 047a |
225-0286 |
Quick connect terminal |
1 |
|
| 047b |
225-0285 |
3 way switch for blow and vac |
1 |
|
| 048 |
225-0145 |
Screw 3/4 inch stainless steel |
4 |
|
| 049 |
225-0288 |
Quick connect terminal |
1 |
|
| 050 |
225-0283 |
Kaizen cover only |
1 |
|
| 061 |
225-0073 |
On/off switch |
1 |
For units with blow motor |
| N/S |
225-0315 |
Tote bag |
1 |
Will take the place of the hose hugger soon |
| N/S |
225-0318 |
Electrical box and Chemical line assembly |
|
|
| N/S |
225-0314 |
Hose hugger |
1 |
|
| N/S |
225-0036 |
33 feet blow hose |
1 |
|
| N/S |
225-0084 |
Knob (black) |
1 |
Chemical knob |
| N/S |
991-1303 |
2amp AGC glass tube fuse |
1 |
|
|
|

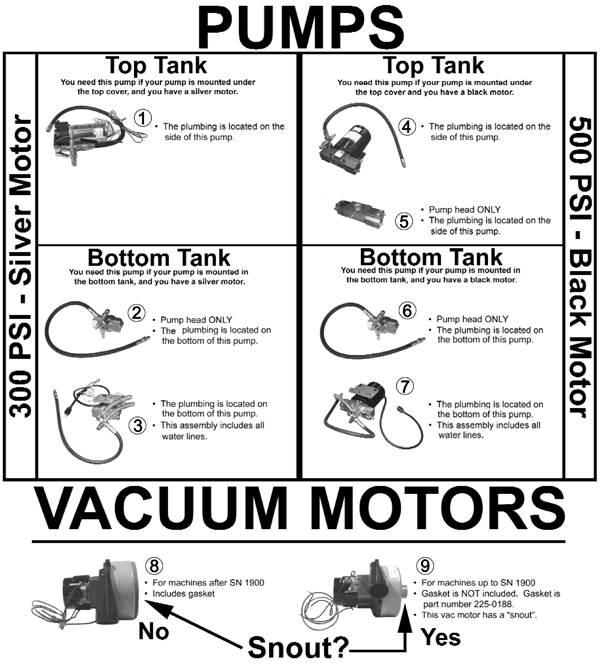

- Know Your Machine - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

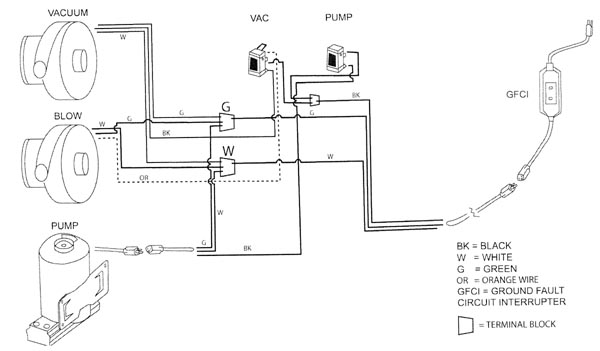

Wiring Diagram - Vac and Blow Motor - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

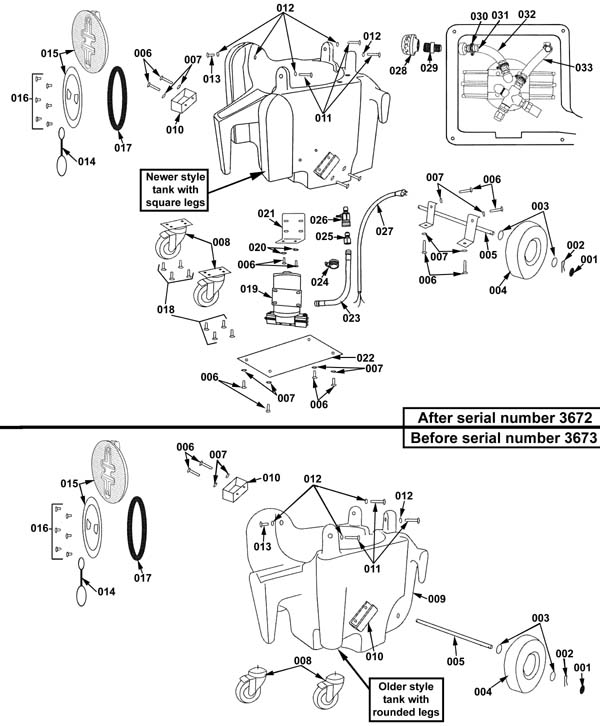

Water Tank Assembly - 225-0047 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
225-0025 |
Nut 5/8 push cap |
2 |
|
| 002 |
225-0235 |
Cotter pin |
4 |
|
| 003a |
999-0349 |
Washer 5/8 SAE flat |
4 |
Before SN 3673 |
| 003b |
999-0349 |
Washer 5/8 SAE flat |
16 |
After SN 3672 |
| 004 |
225-0265 |
Foam filled tire |
2 |
|
| 005a |
225-0233 |
Axle |
1 |
After SN 3307 |
| 005b |
225-0250 |
Axle 5/8 x 19 inch |
1 |
Before SN 3308 |
| 006a |
999-0020 |
Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated |
14 |
After SN 3672 |
| 006b |
999-0020 |
Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated |
4 |
Before SN 3673 |
| 007a |
999-0016 |
Washer 1/4 flat plain finish |
12 |
After SN 3672 |
| 007b |
999-0016 |
Washer 1/4 flat plain finish |
4 |
Before SN 3673 |
| 008a |
225-0255 |
5 inch caster wheel |
2 |
After SN 3672 |
| 008b |
225-0030 |
4 inch caster |
2 |
Before SN 3673 |
| 009 |
225-0231 |
Complete water tank |
1 |
|
| 010 |
225-0237 |
Tray |
1 |
Set of 2 |
| 011 |
999-0638 |
Bolt 3/8-16 x 2 1/4 hex head |
3 |
|
| 012 |
999-0617 |
Washer 3/8 x 1 flat stainless steel |
4 |
|
| 013a |
999-0562 |
Bolt 3/8-16 x 1 hex head stainless steel |
1 |
After SN 3672 |
| 013b |
999-0493 |
Bolt 3/8-16 x 3/4 hex head stainless steel |
1 |
Before SN 3673 |
| 014 |
164-0207 |
Plug strap |
1 |
|
| 015b |
225-0354 |
6 inch tank lid (black) |
1 |
|
| 015c |
225-0144 |
4 inch beckson lid |
1 |
|
| 016 |
225-0145 |
Screw 3/4 inch stainless steel |
6 |
|
| 017 |
225-0236 |
Tank lid gasket |
1 |
|
| 019a |
N/A |
Not available |
1 |
(see pump page) |
| 019b |
225-0226 |
AC/DC rectifier |
1 |
|
| 020 |
225-0258 |
Washer 1/4 large |
2 |
(after SN 3672 only) |
| 021 |
225-0259 |
Pump mounting plate |
1 |
(after SN 3672 only) |
| 022 |
225-0260 |
Bottom plate |
1 |
(after SN 3672 only) |
| 023 |
225-0261 |
Pulse hose |
1 |
|
| 024 |
225-0262 |
Rubber loop strap |
1 |
(after SN 3672 only) |
| 025 |
225-0263 |
Nipple 3/8 |
1 |
(after SN 3672 only) |
| 026a |
225-0229 |
Quick connect injector |
1 |
(after SN 3672 only) (OEM) |
| 026b |
991-7129 |
Quick connect injector |
1 |
(NON-OEM) |
| 027a |
225-0264 |
Power cord |
1 |
(after SN 3672 only) |
| 027b |
991-5005 |
14/3 replacement power cord 50 foot (yellow) |
1 |
(NON-OEM) (does not include strain relief) |
| 028 |
225-0267 |
Mushroom filter |
1 |
(after SN 3672 only) |
| 029 |
225-0266 |
Adapter |
1 |
(after SN 3672 only) |
| 030 |
225-0165 |
Hose clamp |
1 |
(after SN 3672 only) |
| 031 |
225-0241 |
Hose barb 3/8 x 1/2 inch |
1 |
(after SN 3672 only) |
| 032 |
225-0268 |
Water hose |
1 |
(after SN 3672 only) |
| 033 |
225-0269 |
Return line |
1 |
(after SN 3672 only) |
| N/S |
225-0323 |
Chemical filter assembly w/bowl (1/4 in barbs on each side) |
1 |
(SN 1402) |
|
|

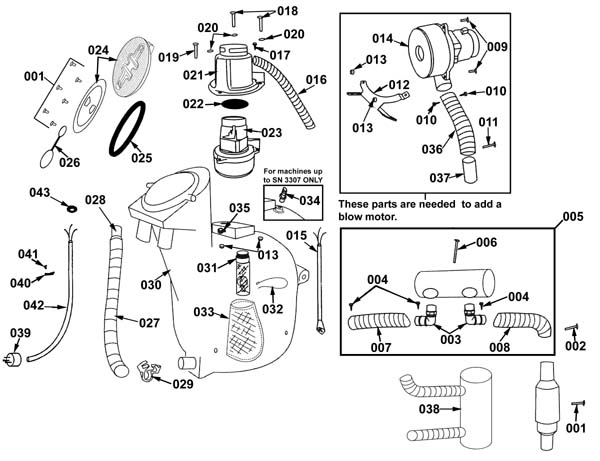

Vacuum Tank Assembly - 225-0048 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
225-0145 |
Screw 3/4 inch stainless steel |
7 |
|
| 002 |
999-0701 |
Bolt 1/4-20 x 2 3/4 hex head grade 5 zinc plated |
1 |
|
| 003 |
225-0278 |
90 degree elbow |
2 |
|
| 004 |
225-0012 |
Screw #8 self drilling |
3 |
|
| 005 |
225-0243 |
Pre-muffler assembly |
1 |
|
| 006 |
999-0165 |
Bolt 1/4-20 x 4 hex head grade 5 zinc plated |
1 |
|
| 007 |
225-0277 |
Pre muffler hose |
1 |
|
| 008 |
225-0279 |
Pre muffler hose |
1 |
|
| 009 |
999-0020 |
Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated |
2 |
|
| 010 |
225-0012 |
Screw #8 self drilling |
2 |
|
| 011 |
225-0185 |
Bolt 1/4-20 x 2-1/2 bar retainer |
1 |
|
| 012 |
225-0276 |
Motor bracket |
1 |
|
| 013 |
999-0152 |
Nut 1/4-20 nylon insert lock zinc plated |
4 |
|
| 014 |
225-0045 |
120V vacuum motor without inlet tube |
1 |
|
| 015 |
225-0280 |
Plug harness |
1 |
|
| 016 |
225-0274 |
Hose (sold by the foot) |
2 |
|
| 017 |
999-1124 |
Screw 8-32 x 3/4 flat head square stainless steel |
1 |
|
| 018 |
999-1127 |
Bolt 1/4-20 x 5 1/2 hex head hot dipped galvanized |
2 |
|
| 019 |
999-0682 |
Bolt 1/4-20 x 3 1/2 hex head grade 5 zinc plated |
1 |
|
| 020 |
999-0016 |
Washer 1/4 flat plain finish |
3 |
|
| 021 |
N/A |
Not available |
1 |
Vac cover - This part is no longer needed. |
| 022 |
225-0128 |
Muffler pad 2 x 2 inches |
1 |
|
| 023a |
225-0045 |
120V vacuum motor without inlet tube |
1 |
after SN 1890 |
| 023b |
225-0647 |
Old vacuum motor w/ inlet port (OBSOLETE) |
1 |
before SN 1890 |
| 024b |
225-0354 |
6 inch tank lid (black) |
1 |
|
| 024c |
225-0144 |
4 inch beckson lid |
1 |
|
| 025 |
225-0236 |
Tank lid gasket |
1 |
|
| 026 |
164-0207 |
Plug strap |
1 |
|
| 027a |
225-0270 |
Dump hose - one large grey cuff, one small black cuff |
1 |
|
| 027b |
225-0320 |
Dump hose - two small black cuffs |
1 |
|
| 028 |
225-0132 |
Black vacuum hose cuff |
2 |
for dump hose |
| 029 |
225-0271 |
Snap clamp |
1 |
|
| 030a |
225-0238 |
Vacuum tank sub assembly |
1 |
(includes 001, 024, 025, 027-029, and 031) (up to SN3307 ONLY) |
| 030b |
225-0309 |
Vacuum tank sub assembly |
1 |
(includes 001, 024, 025, 027-029, and 031) (SN3308 and after ONLY) |
| 033 |
225-0095 |
Filter bag |
1 |
|
| 034 |
225-0241 |
Hose barb 3/8 x 1/2 inch |
1 |
(Up to SN3307 ONLY) |
| 035 |
225-0273 |
Rubber loop strap |
3 |
|
| 036 |
225-0131 |
Vacuum hose (per foot) |
1 ft |
|
| 038 |
225-0243 |
Pre-muffler assembly |
1 |
(Up to SN3307 ONLY) |
| 039 |
991-2108 |
125V 15amp male replacement plug |
1 |
|
| 040 |
225-0176 |
3/8 inch cable clamp |
1 |
|
| 041 |
225-0012 |
Screw #8 self drilling |
1 |
|
| 042 |
225-0106 |
Electric wire |
1 |
|
| 043 |
225-0228 |
Rubber grommet |
1 |
|
| N/S |
225-0047 |
Large snap clamp |
1 |
|
| N/S |
225-0132 |
Black vacuum hose cuff |
2 |
|
| N/S |
225-0317 |
Vacuum hose (sold by the foot) |
6 ft |
|
|
|
Squeegee Tool Assembly - 225-0052 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
225-0062 |
Plastic wheel |
2 |
|
| 002 |
225-0063 |
Wheel holder |
2 |
|
| 003 |
225-0064 |
Holder screw |
2 |
|
| 004 |
225-0017 |
14 1/2 inch squeegee tool with wheels |
1 |
(includes 001 and 004-006) |
| 005 |
225-0065 |
Squeegee blade 14 1/4 inch |
2 |
|
| 006 |
225-0066 |
Tool coupling |
1 |
|
| 007 |
225-0067 |
Metal ring |
1 |
|
| 008 |
225-0547 |
Vac wand nut (black) |
1 |
|
| N/S |
225-0069 |
Glides |
2 |
(optional) (replaces wheel and wheel holder) |
| N/S |
225-0018 |
Aluminum vacuum wand (2 piece) |
1 |
|
| N/S |
225-0071 |
Stainless steel squeegee wheel with holder |
2 |
|
|
|

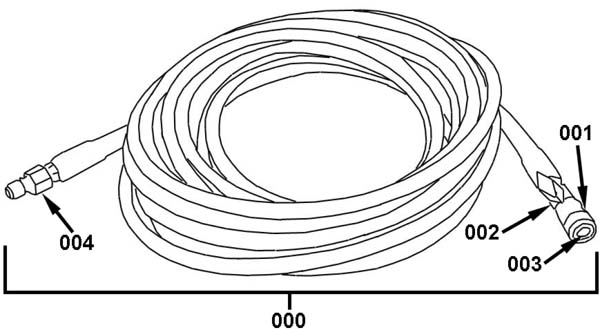

Old Pressure Hose Assembly - 225-0055 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000 |
225-0253 |
Old 50 foot pressure hose assembly (1 male/female connector) |
1 |
|
| 001 |
225-0194 |
1/4 quick disconnect coupler |
1 |
|
| 002 |
225-0303 |
Mini ball valve |
1 |
|
| 003 |
225-0304 |
O-ring for 1/4 inch qd coupler |
1 |
|
| 004 |
225-0230 |
3/8 inch male plug |
1 |
|
|
|
Wiring Diagram - Single Vac Motor - 225-0066 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 0.9835 |
225-0321 |
Terminal block |
|
wire hub |
|
|
Accessories - 225-0067 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001a |
225-0173 |
Spray gun assembly with 1/32 inch nozzle |
1 |
(OEM) |
| 001b |
991-3023 |
Spray gun assembly with 1/32 inch nozzle |
1 |
(NON-OEM) |
| 003 |
225-0004 |
Window squeegee |
1 |
|
| 004 |
172-2913 |
5 inch drain tool |
1 |
|
| 005 |
225-0037 |
Metering tip pack |
1 |
(includes (2) 225-0038, (2) 225-0041, (2) 225-0039, (2) 225-0040, (1) 225-0033, (1) allen wrench, and (1) chemical line cover) |
| 006 |
225-0041 |
Tan metering tips |
1 |
|
| 007 |
225-0040 |
Black metering tip |
1 |
|
| 008 |
225-0039 |
Aqua metering tip |
1 |
|
| 009 |
225-0038 |
Orange metering tips |
1 |
|
| 010a |
225-0297 |
33 foot slinky vacuum hose assembly |
1 |
(OEM) |
| 010b |
991-7122 |
33 foot vacuum hose with cuffs |
1 |
(NON-OEM) |
| 011 |
225-0134 |
50 foot vacuum hose assembly |
1 |
|
| 012 |
225-0297 |
33 foot slinky vacuum hose assembly |
1 |
|
| 013 |
225-0005 |
Blow nozzle |
1 |
|
| 014a |
225-0010 |
500PSI 45 foot pressure hose assembly (2 female connectors) |
1 |
(OEM) |
| 014b |
991-2429 |
1/4 inch 45 foot hose with fittings and valve |
1 |
(NON-OEM) |
| 015a |
225-0253 |
Old 50 foot pressure hose assembly (1 male/female connector) |
1 |
|
| 015b |
225-0316 |
Pressure hose adapter |
1 |
(use to connect two pressure hoses together) |
| 016a |
225-0020 |
50 foot extension cord with GFCI (yellow) |
1 |
(OEM) |
| 016b |
991-7120 |
12/3 extension cord 50 foot with GFCI (yellow) |
1 |
(NON-OEM) |
| 017 |
208-0052 |
GFCI receptacle |
1 |
|
| 018 |
225-0019 |
2 Piece vacuum wand and squeegee head assembly |
1 |
|
| 019a |
225-0017 |
14 1/2 inch squeegee tool with wheels |
1 |
|
| 019b |
225-0065 |
Squeegee blade 14 1/4 inch |
1 |
|
| 020a |
225-0018 |
Aluminum vacuum wand (2 piece) |
1 |
|
| 020b |
225-0066 |
Tool coupling |
1 |
|
| 020c |
225-0067 |
Metal ring |
1 |
|
| 020d |
225-0547 |
Vac wand nut (black) |
1 |
|
| 020e |
225-0538 |
Vacuum wand (1 piece) |
1 |
|
| 020f |
225-0547 |
Vac wand nut (black) |
1 |
|
| 020g |
225-0546 |
Vac wand coupler (black) |
1 |
|
| 022 |
225-0003 |
Deck brush (blue) (brush only) |
1 |
|
| 023 |
225-0006 |
Brush handle - HANDLE ONLY |
1 |
|
| 024 |
225-0405 |
Universal fill hose |
1 |
|
| 025 |
225-0336 |
Kai-grouter tool |
1 |
|
| 026 |
225-0414 |
Chemical bottle plug |
1 |
|
| 027 |
225-0434 |
28 inch squeegee assembly |
1 |
(education only) |
| 028 |
225-0441 |
8 inch swivel brush |
1 |
|
| 029 |
225-0479 |
Squeegee/brush tool |
1 |
|
| 030 |
225-0528 |
28 inch hard surface tool |
1 |
|
| 031 |
225-0529 |
Dry vac retro kit |
1 |
|
| 032 |
225-0530 |
KaiTurbine dry vac head |
1 |
|
| 033 |
225-0540 |
Carpet extraction brush |
1 |
|
| 034a |
225-0551 |
10 inch squeegee head with wheels |
1 |
|
| 034b |
225-0554 |
10 inch replacement squeegee blade |
1 |
|
| 035 |
225-0553 |
Ergo speed spreader |
1 |
|
| 036 |
N/A |
Not available |
1 |
(squeegee blade) |
| 037 |
225-0552 |
Replacement squeegee head with bristles |
1 |
|
| 039 |
225-0436 |
Flip top cap |
1 |
|
| 040 |
225-0442 |
Telescopic brush handle |
1 |
|
| 041 |
225-0534 |
One piece vacuum wand with strap and grout brush |
1 |
|
| 042 |
225-0550 |
Long barrel pressure gun (OBSOLETE) |
1 |
|
| 043a |
225-0439 |
25 foot vacuum hose |
1 |
(OEM) |
| 043b |
991-7132 |
25 foot vacuum hose |
1 |
(NON-OEM) |
| 044 |
225-0593 |
45 foot slinky vacuum hose assembly |
1 |
|
| 045a |
225-0413 |
Deluxe carpet extractor wand |
1 |
|
| 045b |
991-8039 |
1/4 inch brass vee jet 11003 |
1 |
|
| 046 |
225-0589 |
ARAMARK Metering tip kit |
1 |
(includes (2) 225-0039, (2) 225-0040, (2) 225-0585, (2) 225-0586, (2) 225-0587, (2) 225-0588, (2) 225-0581 and instruction sheet) |
| 047 |
225-0125 |
Upholstery tool assembly |
1 |
|
| 048 |
225-0440 |
20 foot stretch vacuum hose |
1 |
|
| N/S |
225-0549 |
Check valve |
1 |
|
| N/S |
225-0651 |
Vacuum wand and hose kit |
1 |
|
| N/S |
225-0468 |
Gatling gun grouter complete |
1 |
|
| N/S |
225-0120 |
Stainless steel trigger valve |
1 |
(For the Gatling grouter tool wand) |
| N/S |
225-0070 |
Dry vacuum brush head |
1 |
|
| N/S |
225-1117 |
1250 accessory kit |
|
(1200 Series) |
|
|
Pumps and Vacuum Motors - 225-1003 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
225-0183 |
300 PSI pump and motor assembly - Plumbing on side |
1 |
|
| 2 |
225-0311 |
300 PSI pump head ONLY - plumbing on bottom |
1 |
|
| 3a |
225-0310 |
300 PSI pump and motor assembly - plumbing on bottom (OBS) |
1 |
|
| 3b |
225-0257 |
300 PSI green pump with silver motor (OBSOLETE) |
1 |
|
| 4 |
225-0060 |
500 PSI pump and motor assembly - Plumbing on side (OBSOLETE |
1 |
|
| 5 |
225-0109 |
500 PSI pump head ONLY |
1 |
(plumbing will need to be moved from old one and used on this one) |
| 6 |
N/A |
Not available |
1 |
(Pump) |
| 7 |
225-0002 |
500 PSI pump and motor assembly - Plumbing on bottom |
1 |
|
| 8a |
225-0045 |
120V vacuum motor without inlet tube |
1 |
(OEM) |
| 8b |
991-9278 |
120V 2 stage vacuum motor dual ball tangential |
1 |
(NON-OEM) |
| 9a |
225-0647 |
Old vacuum motor w/ inlet port (OBSOLETE) |
1 |
(OEM) |
| 9b |
991-8523 |
120V 2 stage vacuum motor tangential with snout |
1 |
(NON-OEM) |
|
|
Recommended Stocking - 300PSI - 225-9991 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
208-0052 |
GFCI receptacle |
1 |
|
| 2 |
225-0017 |
14 1/2 inch squeegee tool with wheels |
1 |
|
| 3 |
225-0033 |
Yellow safety cap (white cap no longer available) |
1 |
|
| 4 |
225-0037 |
Metering tip pack |
3 |
Metering tip package includes 2 of each colored metering tip, a chemical cap, plastic safety cap, and allen wrench. |
| 5 |
225-0065 |
Squeegee blade 14 1/4 inch |
6 |
|
| 6a |
225-0173 |
Spray gun assembly with 1/32 inch nozzle |
1 |
(OEM) |
| 6b |
991-3023 |
Spray gun assembly with 1/32 inch nozzle |
1 |
(NON-OEM) |
|
|
Recommended Stocking - 500PSI - 225-9992 |
|
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
208-0052 |
GFCI receptacle |
1 |
|
| 2 |
225-0017 |
14 1/2 inch squeegee tool with wheels |
1 |
|
| 3 |
225-0033 |
Yellow safety cap (white cap no longer available) |
1 |
|
| 4 |
225-0037 |
Metering tip pack |
3 |
Metering tip package includes 2 of each colored metering tip, a chemical cap, plastic safety cap, and allen wrench. |
| 5 |
225-0065 |
Squeegee blade 14 1/4 inch |
6 |
|
| 6a |
225-0173 |
Spray gun assembly with 1/32 inch nozzle |
1 |
(OEM) |
| 6b |
991-3023 |
Spray gun assembly with 1/32 inch nozzle |
1 |
(NON-OEM) |
|
|
