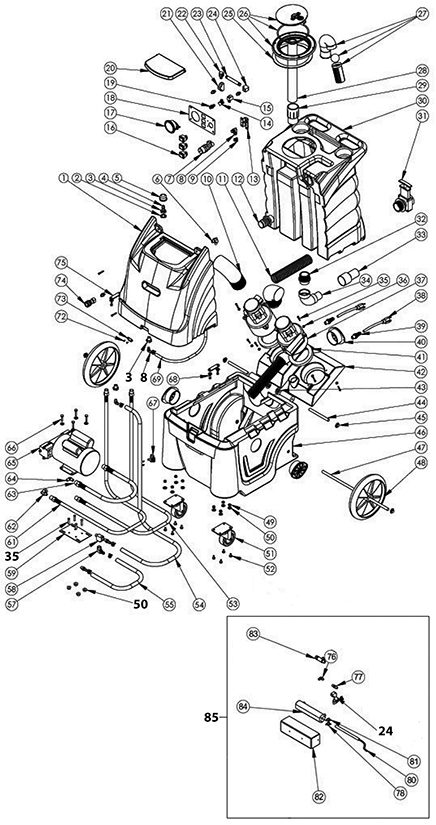

Entire Assembly - 992-1002 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
992-9739 |
12 gallon solution tank (blue granite) |
1 |
|
| 2 |
N/A |
Not available |
|
(included with 1) (insert molded into solution tank) |
| 3 |
228-4082 |
Bulkhead fitting |
4 |
|
| 4 |
N/A |
Not available |
|
(included with 3) (threaded end) |
| 5 |
228-4089 |
1/4 hex nipple |
1 |
|
| 6 |
228-8027 |
Solution screen |
2 |
|
| 7 |
228-4076 |
500psi regulator |
1 |
|
| 8 |
228-4092 |
90 degree barb |
4 |
(1pc included with 54) |
| 9 |
992-9740 |
3/4 inch hose clamp |
5 |
|
| 10 |
228-4065 |
Exhaust hose |
16 in |
|
| 11 |
228-4007 |
4 foot vacuum hose |
2 |
|
| 12 |
228-4095 |
1 1/2 inch barb fitting |
1 |
|
| 13 |
N/A |
Not available |
1 |
(included with 65) (bracket) |
| 14 |
228-4096 |
45 degree street elbow |
1 |
|
| 15 |
228-4090 |
90 degree street elbow |
1 |
|
| 16a |
228-4087 |
Lighted rocker switch |
1 |
|
| 16b |
228-4062 |
Rocker switch |
2 |
|
| 17 |
228-4086 |
200PSI extractor gauge |
1 |
|
| 18 |
228-4085 |
200PSI switch plate |
1 |
|
| 19 |
N/A |
Not available |
1 |
(included with 17) (connector) |
| 20 |
992-9741 |
12 gallon lid (blue granite) |
1 |
|
| 21 |
228-4099 |
1/4 inch brass tee |
2 |
|
| 22 |
228-4100 |
90 degree street elbow |
1 |
|
| 23 |
228-4101 |
1/4 inch brass nipple |
1 |
|
| 24 |
228-4102 |
90 degee brass elbow |
4 |
|
| 25 |
228-4103 |
Hatch cover gasket |
1 |
|
| 26 |
228-4063 |
Hatch cover |
1 |
|
| 27 |
228-4067 |
Stuf off valve |
1 |
|
| 28 |
228-4104 |
1 1/2 inch stand pipe |
52 in |
|
| 29 |
228-4105 |
Female adapter |
1 |
|
| 30 |
992-9742 |
12 gallon recovery tank (blue granite) |
1 |
|
| 33 |
228-4010 |
Standard hose cuff |
1 |
|
| 34 |
228-4107 |
90 degree street elbow |
3 |
|
| 35 |
228-4108 |
Motor manifold bolt |
10 |
|
| 37 |
228-4012 |
2 stage vacuum motor |
2 |
|
| 38 |
228-4060 |
Pigtail |
1 |
(includes 39a-39b) |
| 39a |
228-4061 |
Strain relief |
1 |
|
| 39b |
228-4109 |
Strain relief nut |
1 |
|
| 40 |
228-4110 |
Exhaust grate |
3 |
|
| 41 |
228-4072 |
Vacuum motor gasket |
2 |
|
| 42 |
228-4074 |
Motor manifold |
2 |
|
| 43 |
228-4111 |
Hinge keeper |
2 |
|
| 47 |
228-4115 |
19 inch axle |
1 |
|
| 51 |
992-1206 |
3 1/2 inch caster |
2 |
|
| 53 |
992-9743 |
1/2 inch x 54 inch clear hose |
1 |
(includes fittings and filter) |
| 54 |
228-4138 |
46 inch hose |
1 |
(includes 8 (1pc), 58) |
| 55 |
992-9744 |
30 inch black hose |
1 |
(includes 57,63,64) |
| 57 |
N/A |
Not available |
1 |
(hose fitting) (included with 55) |
| 58 |
N/A |
Not available |
1 |
(hose fitting) (included with 54) |
| 59 |
992-9745 |
Pump mount plate |
1 |
|
| 61 |
992-9746 |
67 inch black hose |
4 |
(includes 62 |
| 62 |
N/A |
Not available |
1 |
(hose fitting) (included with 61) |
| 63 |
N/A |
Not available |
1 |
(hose fitting) (included with 55) |
| 64 |
228-4121 |
Fitting |
1 |
(included with 55) |
| 65 |
228-4052 |
500 PSI pump |
1 |
(includes 13) |
| 69 |
228-4119 |
3000PSI hose (sold by the foot) |
1 |
|
| 74 |
228-4129 |
Female fitting |
1 |
|
| 80 |
228-4133 |
Heater element |
2 |
|
| 82 |
228-4135 |
Dual rod heater box |
1 |
|
| 83 |
228-4205 |
Relief valve |
1 |
|
| 84 |
228-4137 |
Dual rod heat exchanger tube |
1 |
|
| 85 |
992-3110 |
Heater pump |
1 |
(includes 29 (1pc), 76-78, 80-84) |
|
|
