Parts List Complete for JOHN DEERE BLOWER-BH25

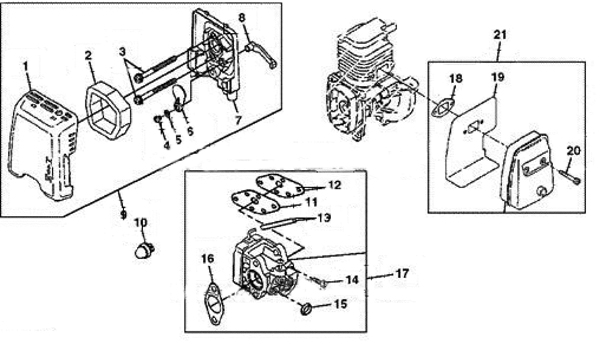

Muffler and Carburetor Assembly - 254-1090
RefNbr Part Number Description Req Notes
1 N/A Not available 1 (Cover) (only available in 254-1021)
2 254-1017 Air filter 1
3 254-1018 Screw M5-.8 x 60mm 2
4 N/A Not available 1 (Screw) (only available in 254-1021)
5 254-1019 Washer 1
7 N/A Not available 1 (Plate)(only available in 254-1021)
8 N/A Not available 1 (Lever) (only available in 254-1021)
9 254-1021 Air cleaner assembly 1 (includes 1-8)
10 254-1022 Air purge bulb 1
11 254-1023 Spacer 1
12 254-1024 Spacer 1
13 254-1025 Fuel line 1
14 254-1026 Screw M3 x 10mm 1
15 N/A Not available 1 (Holder) (only available in 254-1028)
16 254-1027 Carburetor gasket 1
17 254-1028 Carburetor kit 1 (includes 11-16)
18 254-1029 Muffler gasket 1
19 254-1030 Muffler insulator 1
20 254-1031 Screw M5 x 55mm 1
21 254-1032 Muffler assembly 1 (includes 18-20)

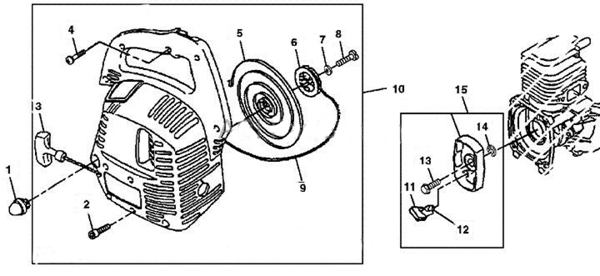

Starter Assembly - 254-1091
RefNbr Part Number Description Req Notes
1 254-1022 Air purge bulb 1
2 N/A Not available 6 (Screw) (only available in 254-1040)
3 254-1033 Grip 1
4 254-1034 Screw 2
5 254-1035 Spring 1
6 254-1036 Pulley 1
7 254-1037 Washer 1
8 254-1038 Screw 1
9 254-1039 Starter rope 1
10 254-1040 Recoil starter 1 (includes 2-9)
11 254-1041 Ratchet 1
12 254-1042 Return spring 1
13a 254-1043 Screw 1
13b 254-1045 Washer 1
14 254-1044 Snap ring 1
15 254-1046 Starter cup 1 (includes 11-14)

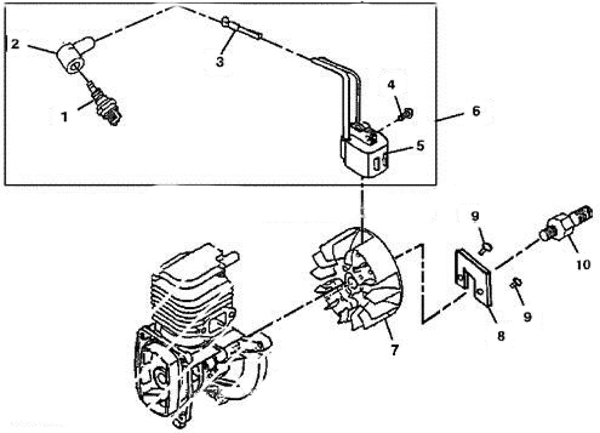

Ignition Assembly - 254-1092
RefNbr Part Number Description Req Notes
1 254-1047 Spark plug 1
2 N/A Not available 1 (Boot) (only available in 254-1051)
3 254-1048 Spring 1
4a N/A Not available 1 (Screw) (only available in 254-1051)
4b 254-1049 Washer 1
4c 254-1050 Spring lock 1
5 N/A Not available 1 (Module) (only available in 254-1051)
6 254-1051 Ignition kit 1 (includes 1-5)
7 254-1052 Rotor 1
8 254-1053 Weight 1
9 254-1054 Screw 2
10 254-1055 Fan shaft 1

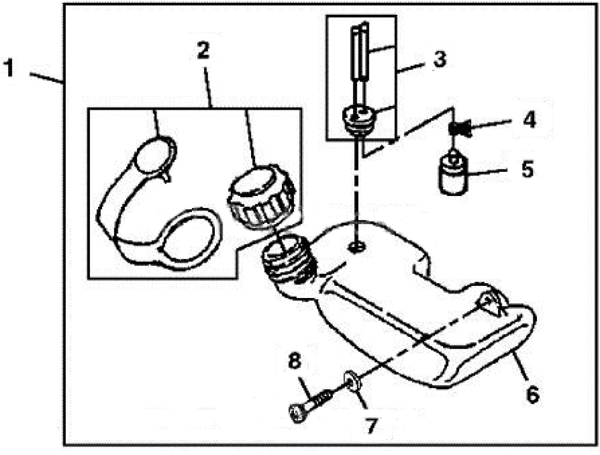

Fuel Tank Assembly - 254-1093
RefNbr Part Number Description Req Notes
1 254-1056 Fuel tank kit 1 (includes 2-8)
2 254-1057 Fuel cap 1
3 254-1058 Tube 1
4 254-1059 Hose clamp 1
5 254-1060 Fuel filter 1
6 N/A Not available 1 (Fuel tank) (only available in 254-1056)
7 254-1061 Washer 1
8 254-1062 Screw 1

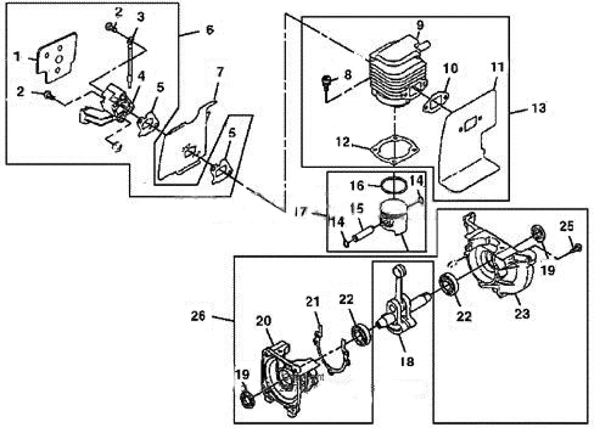

Cylinder Head Assembly - 254-1094
RefNbr Part Number Description Req Notes
1 254-1063 Insulator gasket 1
2 254-1064 Lock washer 2
3 254-1065 Wiring lead 1
4 254-1066 Adapter kit 1
5 N/A Not available 2 (Gasket)
6 N/A Not available (Heat dam assembly) (includes 1-5)
7 N/A Not available 1 (Carburetor insulator)
8a 254-1067 Screw 1
8b 254-1068 Washer 1
8c 254-1069 Lock washer 1
9 N/A Not available 1 (Cylinder) (only available in 254-1071)
10 254-1029 Muffler gasket 1
11 254-1030 Muffler insulator 1
12 254-1070 Cylinder gasket 1
13 254-1071 Cylinder assembly 1 (includes 8-12)
14 N/A Not available 2 (Wrist pin retainer)
15 254-1073 Piston pin 1
16 N/A Not available 1 (Piston ring)
17 N/A Not available 1 (Piston assembly) (includes 14-16)
18 254-1074 Crankshaft 1
19 254-1075 Oil seal 2
20 N/A Not available 1 (Crankcase starter side) (only available in 254-1078)
21 N/A Not available 1 (Crankcase gasket) (only available in 254-1078)
22 254-1076 Ball bearing 2
23 N/A Not available 1 (Crankcase output side) (only available in 254-1078)
25 254-1077 Screw 1
26 254-1078 Crankcase assembly 1 (includes 19-25)

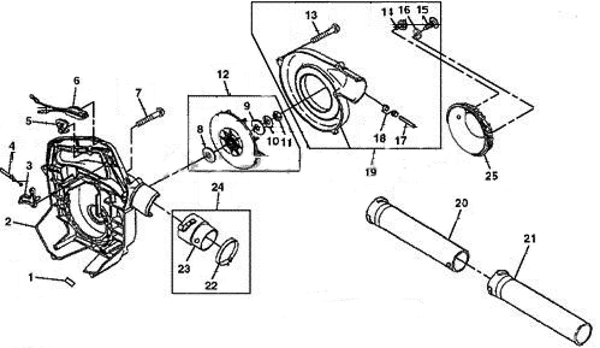

Blower Housing Assembly - 254-1095
RefNbr Part Number Description Req Notes
1 N/A Not available 1 (Spacer)
2 N/A Not available 1 (Inner case)
3 N/A Not available 1 (Trigger)
4 N/A Not available 1 (Cable)
5 N/A Not available 1 (Throttle lock)
6 N/A Not available 1 (Switch)
7a 254-1079 Screw 1
7b 254-1064 Lock washer 1
7c 254-1068 Washer 1
8 N/A Not available 1 (Washer) (only available in 254-1080)
9 N/A Not available 1 (Washer) (only available in 254-1080)
10 N/A Not available 1 (Washer) (only available in 254-1080)
11 N/A Not available 1 (Nut)(only available in 254-1080)
12 254-1080 Fan adapter kit 1 (includes 8-11)
13 254-1081 Screw M8 x 20mm 2
14 254-1082 Screw with washer 1
15 254-1083 Screw 1
16 254-1084 Washer 1
17 254-1085 Hinge 1
18 254-1086 Spring 1
19 N/A Not available 1 (Outer housing) (includes 13-18)
20 N/A Not available 1 (Rear tube)
21 N/A Not available 1 (Front tube)
22 N/A Not available 1 (Clamp) (only included in 254-1091)
23 N/A Not available 1 (Adapter) (only included in 254-1091)
24 254-1091 Adapter assembly 1 (includes 22-23)
25 254-1088 Grill 1
N/S 254-1089 BH25 decal 1
N/S 254-1090 Tool kit 1
