Parts List Complete for ICE i32BTL


- Pads - 16 inch - 255-1600
RefNbr Part Number Description Req Notes
01 255-1640 16 inch aqua plus burnishing pad (pkg of 5)
02 255-1635 16 inch Armadillo concrete scrubbing pad (pkg of 5)
03 255-1664 16 inch Blue ace pad (pkg of 5)
04 255-1642 16 inch Blue Jay burnishing pad (pkg of 5)
05 255-1612 16 inch Cure white pad (pkg of 5)
06 255-1677 16 inch Diamondback extreme stripping pad (pkg of 5)
07 255-1638 16 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2
08 255-1621 16 inch gorilla lite burnishing pad (pkg of 5)
09 255-1650 16 inch gorilla spray buff/polish/burnish pad (pkg of 5)
10 255-1665 16 inch Heat concrete bonding pad (pkg of 5)
11 255-1630 16 inch jaguar burnishing pad (pkg of 5)
12 255-1687 16 inch Melamine Mela-Kleen pad (pkg of 2)
13 255-1690 16 inch premium black stripping pad (pkg of 5)
14 255-1670 16 inch premium blue cleaning pad (pkg of 5)
15 255-1692 16 inch premium brown stripping pad (pkg of 5)
16 255-1680 16 inch premium green scrubbing pad (pkg of 5)
17 255-1660 16 inch premium red scrubbing pad (pkg of 5)
18 255-1652 16 inch premium tan polishing pad (pkg of 5)
19 255-1620 16 inch premium white polishing pad (pkg of 5)
20 255-1611 16 inch superspeed rubberized pad (pkg of 5)
21 255-1695 16 inch razorback stripping pad (pkg of 5)
22 255-1647 16 inch Redwood maroon floor prep pad (pkg of 10)
23 255-1655 16 inch Ruff non-abrasive brush pad (pkg of 2)
24 255-1623 16 inch sand screen driver pad (pkg of 2)
25 255-0132 16 inch Professional sand screen 100 grit (pkg of 10)
26 255-0133 16 inch Professional sand screen 120 grit (pkg of 10)
27 255-0134 16 inch Professional sand screen 150 grit (pkg of 10)
28 255-0135 16 inch Professional sand screen 180 grit (pkg of 10)
29 255-0136 16 inch Professional sand screen 220 grit (pkg of 10)
30 255-0137 16 inch Professional sand screen 400 grit (pkg of 10)
31 255-0130 16 inch Professional sand screen 60 grit (pkg of 10)
32 255-0131 16 inch Professional sand screen 80 grit (pkg of 10)
33 255-0217 16 inch Superscreen sand screen 100 grit (pkg of 10)
34 255-0218 16 inch Superscreen sand screen 120 grit (pkg of 10)
35 255-0219 16 inch Superscreen sand screen 150 grit (pkg of 10)
36 255-0220 16 inch Superscreen sand screen 180 grit (pkg of 10)
37 255-0221 16 inch Superscreen sand screen 220 grit (pkg of 10)
38 255-0222 16 inch Superscreen sand screen 400 grit (pkg of 10)
39 255-0215 16 inch Superscreen sand screen 60 grit (pkg of 10)
40 255-0216 16 inch Superscreen sand screen 80 grit (pkg of 10)
41 255-1624 16 inch Tiger carpet bonnet (pkg of 2)
42 255-9563 16 inch Diamond by Gorilla 11000 Grit (pkg of 2)
43 255-9560 16 inch Diamond by Gorilla 1500 Grit (pkg of 2)
44 255-9557 16 inch Diamond by Gorilla 200 Grit (pkg of 2)
45 255-9561 16 inch Diamond by Gorilla 3000 Grit (pkg of 2)
46 255-9558 16 inch Diamond by Gorilla 400 Grit (pkg of 2)
47 255-9559 16 inch Diamond by Gorilla 800 Grit (pkg of 2)
48 255-9562 16 inch Diamond by Gorilla 8000 Grit (pkg of 2)
49 255-9641 16 inch Diamond starter pack (1 of each grit)
50 255-1682 16 inch Turbostrip segmented rotary pad (pkg of 4)
51 255-1615 16 inch Duala clean and shine pad - low speed (pkg of 5)
52 255-1616 16 inch 2001 Duala clean and shine pad - high speed (pkg 5)

- Pad Holders - 275-9029
RefNbr Part Number Description Req Notes
1 991-2214 Center-Lok II pad holder - left hand thread (red)
2a 991-2201 Center-Lok II pad holder - right hand thread (black) (Pad driver side female, Floor side male)
2b 991-8577 Pad retainer (Pad driver side male, Floor side female)
3a 991-2202 Big mouth pad holder set (blue) (includes 3 screws)
3b 991-2205 Deep lock ring and pad grip ring
4 991-2203 Big mouth pad holder male thread portion
5 991-2206 Center-Lok 3 pad holder (includes 3 screws)
6 996-0372 Big mouth pad holder (left hand thread)
7 N/A Not available
8 991-2209 Split retainer - pad holder ring (OBSOLETE)
9 N/A Not available (replaced by #3 991-2202)
10 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE)

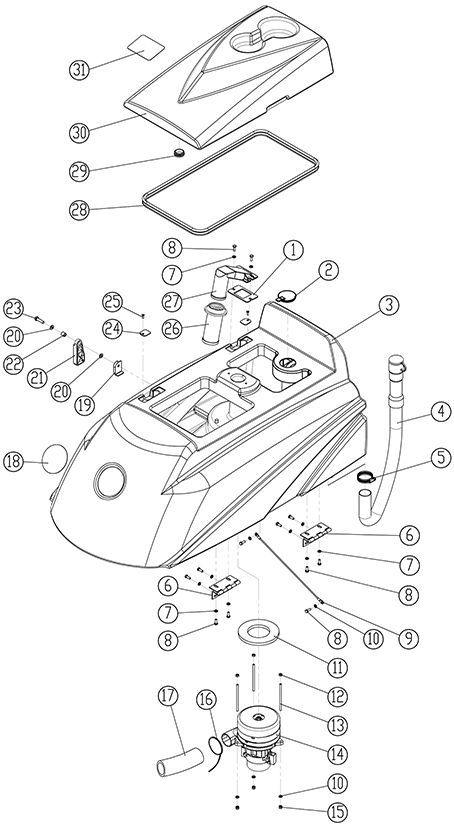

Recovery Tank Assembly - 278-1049
RefNbr Part Number Description Req Notes
1 278-0020 Gasket 1
2 278-0022 Cap 1
3 278-0989 Recovery tank 1
4 278-0024 Drain hose 1
5 278-0025 Hose clamp 1
6 278-0026 Hinge assembly 2
7 999-1803 Washer M6 flat fender stainless steel 10
8 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 12
9 278-0990 Cable 1
10 999-6714 Washer M6 x 12mm flat stainless steel 5
11 278-0036 Vacuum motor gasket 1
12 999-1308 Nut M6-1 hex stainless steel 3
13 278-0664 Stud M6 x 110mm 3
14a 278-0991 24V motor kit 1
14b 278-0552 Carbon brush (sold individually) 2
15 999-0497 Nut M6-1 nylon insert lock stainless steel 3
16 278-0043 Nylon tie 1
17 278-0042 Vacuum motor muffler 1
18 278-0029 ICE decal 1
19 278-0030 Bracket 1
20 999-9097 Washer M8 flat stainless steel 2
21 278-0032 Recovery tank support 1
22 278-0033 Spacer 1
23 999-0248 Bolt M8-1.25 x 30mm hex head full thread plain finish 1
24 278-0034 Plate 2
25 999-9109 Screw M5-.8 x 12mm pan head phillips stainless steel 2
26 278-1198 Shut-off float 1
27 278-0019 Float adapter 1
28 278-0001 Recovery tank lid gasket 1
29 278-0652 Cap 1
30 278-0993 Recovery tank cover 1
31 278-0015 Warning decal 1

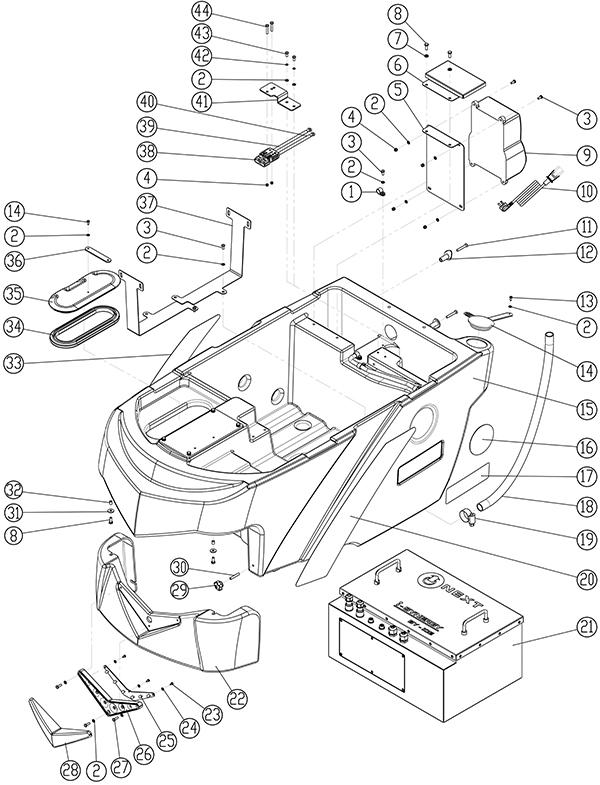

Solution Tank Assembly - 278-1050
RefNbr Part Number Description Req Notes
1 278-0323 P clamp 12
2 999-9100 Washer M5 flat stainless steel 32
3 999-9109 Screw M5-.8 x 12mm pan head phillips stainless steel 24
4 999-0953 Nut M5-.8 hex nylon insert lock stainless steel 6
5 278-0994 Bracket 1
6 278-0995 Charger cap 1
7 999-6714 Washer M6 x 12mm flat stainless steel 12
8 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 10
9 278-0987 Charger kit for the I28BTL 1
10 278-0583 Onboard battery charger cord (Old style-charger 8132020-US) 1 (old style for charger 8132020-US)
11 278-0121 Screw 2
12 278-0122 Power cord hook 2
13 278-0085 Screw 2
14 278-0668 Solution fill cap 1
15 278-0996 Solution tank 1
16 278-0029 ICE decal 2
17 278-0067 i-SYNERGY decal 2
18 278-1507 Clean tubing 1
19 278-0066 Clamp 1
20 278-0997 Left hand decal 1
21 278-1154 240amp lithium ion battery 1
22 278-0999 Front cover 1
23 278-0076 Screw 3
24 999-9089 Washer M4 flat stainless steel 5
25 278-0078 LED light kit 1
26 278-0079 LED light base 1
27 999-1671 Screw M5-.8 x 20mm pan head phillips stainless steel 3
28 278-0081 LED light cover 1
29 278-0468 Knob 2
30 278-0141 Screw M6 x 30mm 2
31 999-1803 Washer M6 flat fender stainless steel 4
32 278-0052 Bushing 2
33 278-1000 Right hand decal 1
34 278-0082 Seal 1
35 278-0083 Cover 1
36 278-0084 Strap 1
37 278-1508 Plate 2
38 278-1509 Connector housing 1
39 278-1510 Battery connect cable (red) 1
40 278-1511 Battery connect cable (black) 1
41 278-1512 Connector bracket 1
42 278-1513 M5 spring washer 2
43 278-0114 Bolt M5 x 12mm 2
44 999-1425 Screw M5-.8 x 25mm pan head stainless steel 2

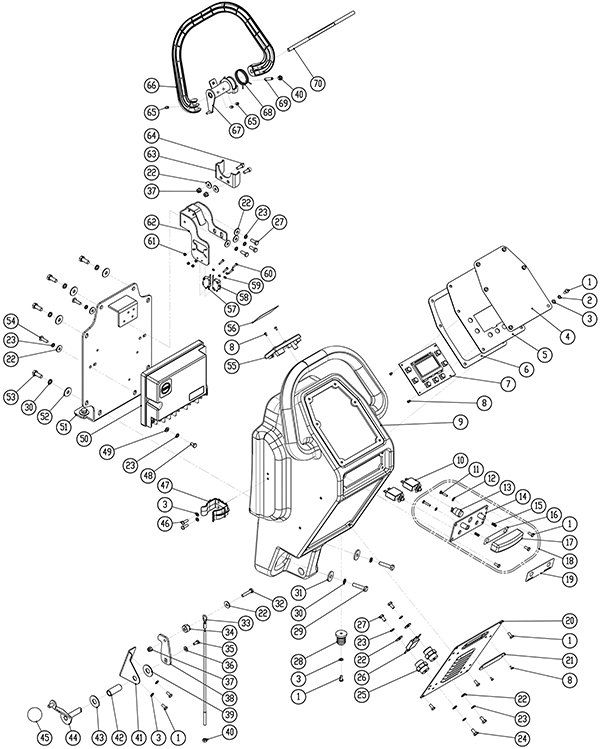

Control Console Assembly - 278-1051
RefNbr Part Number Description Req Notes
1 999-9109 Screw M5-.8 x 12mm pan head phillips stainless steel 17
2 999-9132 Washer M5 split lock stainless steel 6
3 999-9100 Washer M5 flat stainless steel 13
4a 278-1514 Control panel decal 1 (i28BTL)
4b 278-1515 Control panel decal 1 (i32BTL)
5 278-1516 Control panel 1
6 278-0096 Gasket 1
7 278-1517 Power control board panel 1
8 999-6715 Screw M3-.5 x 6mm pan head stainless steel 6
9 278-1518 Control housing 1 (i32BTL)
10 278-0101 5amp circuit breaker 2
11 278-0146 Screw M4 x 20mm 2
12 999-9089 Washer M4 flat stainless steel 2
13 278-0147 Emergency stop switch kit 1
14 278-0148 Circuit breaker base 1
15 278-0149 Spring 2
16 278-0150 LED light 1
17 278-0151 Emergency stop button 1
18 278-0152 Emergency stop switch kit 1
19 278-1519 Circuit breaker decal 1
20 278-0105 Battery plate 1
21 278-0106 Clear cover 1
22 999-1803 Washer M6 flat fender stainless steel 12
23 999-1117 Washer M6 split lock stainless steel 20
24 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 2
25 278-0405 Insulator 2
26 278-0404 150amp fuse 1
27 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 5
28 278-0109 Connector 1
29 999-0787 Bolt M8-1.25 x 40mm hex head full thread stainless steel 2
30 999-0674 Washer M8 split lock plain finish 12
31 999-6695 Washer M8 fender stainless steel 2
32 278-0111 Bolt M6 x 30mm 1
33 278-1011 Lift cable 1
34 278-0113 Lifting rope spacer 1
35 278-0114 Bolt M5 x 12mm 2
36 278-1909 Washer M5x15x10 stainless steel 1
37 999-0497 Nut M6-1 nylon insert lock stainless steel 3
38 278-0116 Baffle 1
39 278-0054 Washer 1
40 999-1308 Nut M6-1 hex stainless steel 2
41 278-0117 Bracket 1
42 278-0766 Sleeve 1
43 278-0119 Washer 1
44 278-0633 Squeegee lifting handle 1
45 278-0050 Ball knob 1
46 278-0104 Screw M5 x 15mm 2
47 278-0124 Drain hose clamp 1
48 278-0125 Bolt 10
49 278-0127 Washer 10
50 278-1520 Main controller 1 (i32BTL)
51 278-0129 Control console rear plate 1
53 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 10
54 278-0131 Screw 2
55 278-2020 RFID reader 1
56 278-0133 i-SYNERGY card scanning decal 1
57 278-0134 Micro switch 1
58 278-0154 Micro switch (3 terminal) 1
59 278-0089 Washer M3 tooth 4
60 278-0135 Screw M3 x 20mm 4
61 999-1161 Nut M3-.5 hex nylock stainless steel 4
62 278-0136 Switch bracket 1
63 278-0137 Spring bracket 1
64 278-0138 Screw M6 x 16mm 2
65 278-0007 Set screw 4
66 278-0006 Bail lever 1
67 278-0139 Actuator 1
68 278-0140 Spring 1
69 278-0141 Screw M6 x 30mm 1
70 278-0142 Shaft 1

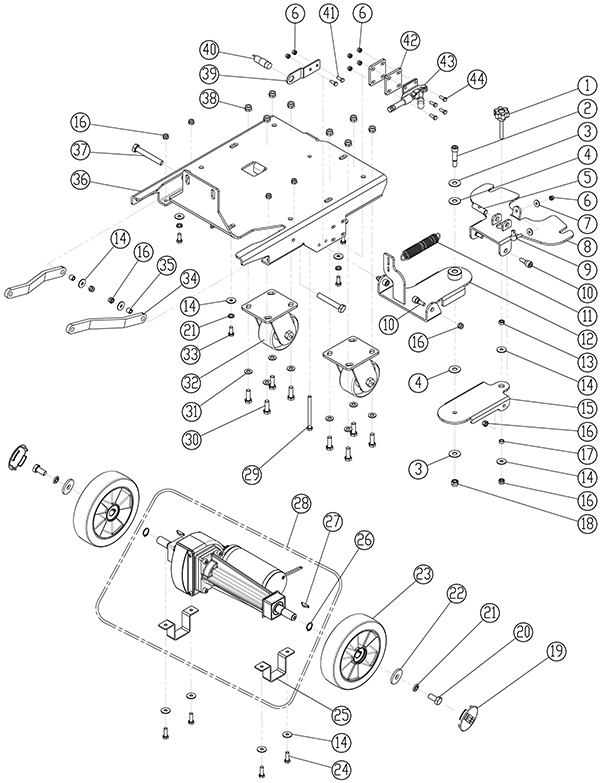

Frame and Transaxle Assembly - 278-1052
RefNbr Part Number Description Req Notes
2 278-0686 Shoulder bolt 1
3 278-0119 Washer 2
4 278-0164 Thrust washer 2
5 278-0704 Pin 1
6 999-0497 Nut M6-1 nylon insert lock stainless steel 7
7 999-1803 Washer M6 flat fender stainless steel 2
8 278-0690 Squeegee mount bracket 1
9 278-0168 Ball joint 1
10 278-0692 Shoulder bolt 4
11 278-0687 Spring 1
12 278-0688 Squeegee lift bracket 1
13 999-1424 Nut M8-1.25 hex stainless steel 2
15 278-0694 Swing bracket 1
16 999-0496 Nut M8-1.25 nylon insert lock stainless steel 11
17 278-0693 Bushing 1
18 999-0519 Nut M12-1.75 nylon insert lock stainless steel 1
19 278-0170 Wheel cover 2
20 999-0517 Bolt M8-1.25 x 16mm hex head full thread zinc 2
21 999-0674 Washer M8 split lock plain finish 7
22 999-6695 Washer M8 fender stainless steel 2
23a 278-0180 8 inch wheel 2
23b 278-0182 8 inch foam filled wheel 2 (optional)
23c 278-0182 8 inch foam filled wheel 2 (optional)
24 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel 4
25 278-1014 Transaxle bracket 2
26 278-0183 Retaining ring 2
27 278-0184 Woodruff key 2
28 278-1015 Transaxle 1 (includes 25-27)
29 999-9159 Bolt M8-1.0 x 100mm hex cap 1
30 278-0695 Bolt M10 x 30mm 8
31 999-9099 Washer M10 flat stainless steel 8
32 278-1016 4 inch caster 2
33 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 5
34 278-0701 Scrub head lifting arm 2
35 278-0702 Bushing 2
36 278-1017 Frame 1
37 278-1018 Bolt M8 x 55mm hex head 2
38 999-1120 Nut M10-1.5 nylon insert lock stainless steel 8
39 278-1521 Proximity sensor bracket 1
40 278-0179 Proximity sensor kit 1
41 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 2
42 278-1019 Spacer 2 (optional)
43 278-1020 Brake toggle clamp 1 (optional)
44 278-0111 Bolt M6 x 30mm 4

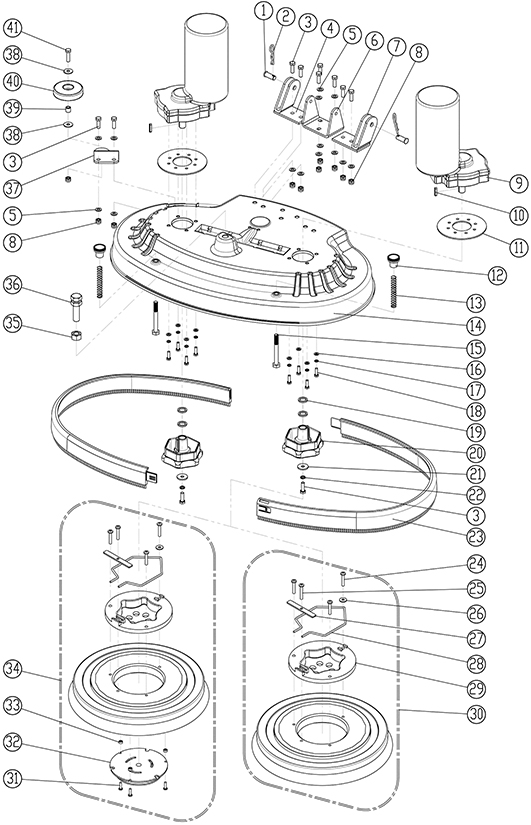

Scrub Head Assembly - 278-1053
RefNbr Part Number Description Req Notes
1 278-0705 Pin 2
2 278-0451 Cotter pin 2
3 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel 11
4 278-0540 Right hand scrub bracket 1
5 999-9097 Washer M8 flat stainless steel 14
6 278-0706 Actuator mounting bracket 1
7 278-0541 Left hand scrub bracket 1
8 999-0496 Nut M8-1.25 nylon insert lock stainless steel 10
9a 278-1021 24V brush motor 2
9b 278-1522 Carbon brush 2
10 278-0249 Square keyway 2
11 278-1523 Rubber spacer 2
12 278-0708 Knob 2
13 278-0709 Spring 2
14a 278-1022 Scrub head housing 1 (i28BTL)
14b 278-1134 Scrub head housing 1 (i32BTL)
15 278-0713 Bolt M10 x 90mm hex 2
16 999-6714 Washer M6 x 12mm flat stainless steel 8
17 999-1117 Washer M6 split lock stainless steel 8
18 999-0502 Bolt M6-1 x 20mm hex head full thread zinc 8
19 278-0472 Spacer 4
20 278-0473 Brush drive hub 2
21 999-6695 Washer M8 fender stainless steel 2
22 999-0674 Washer M8 split lock plain finish 2
23a 278-1023 Scrub head bumper 2 (i28BTL)
23b 278-0641 32 inch scrub head bumper (pkg of 2) 2 (i32BTL)
24 278-0711 Screw M6 x 35mm 12
25 278-0712 Screw M6 x 40mm 4
26 999-1803 Washer M6 flat fender stainless steel 4
27 278-1024 Retainer bar 4
28 278-1025 Spring 4
29 278-0474 Clutch plate 4
30a 278-1026 Brush assembly 2 (i28BTL) (optional) (includes 24-29)
30b 278-0476 16 inch brush 2 (i32BTL) (optional) (includes 24-29)
31 278-0203 Screw 6
32 278-0202 Center lok 2
33 278-0204 Spacer 6
34a 278-1027 Pad driver 2 (i28BTL) (includes 31-33)
34b 278-0478 15 inch pad holder 2 (i32BTL) (inclues 31-33)
35 278-0714 Nut M16 hex 1
36 278-0715 Adjustment stud M16 1
37 278-0716 Roller mounting bracket 1
39 278-0033 Spacer 1
40 278-0216 Bumper wheel 1
41 999-0248 Bolt M8-1.25 x 30mm hex head full thread plain finish 1

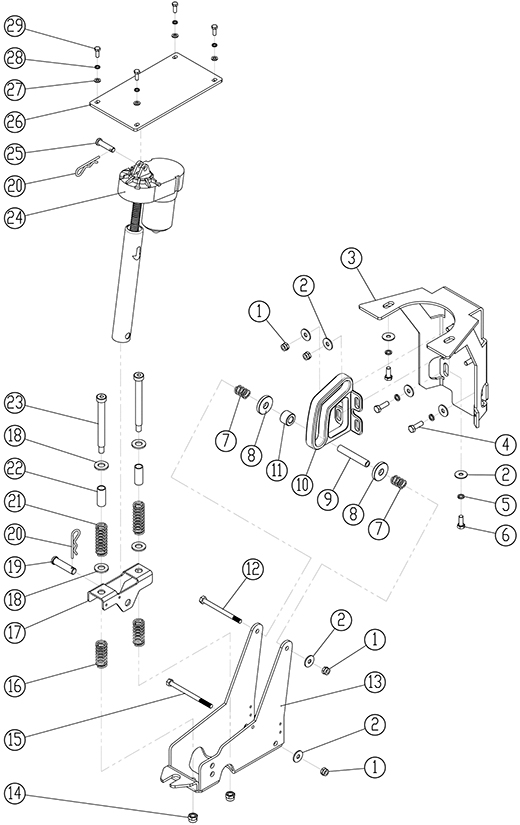

Scrub Head Lift Assembly - 278-1054
RefNbr Part Number Description Req Notes
1 999-0496 Nut M8-1.25 nylon insert lock stainless steel 6
3 278-0717 Guide mounting bracket 1
4 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel 2
5 999-0674 Washer M8 split lock plain finish 4
6 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 2
7 278-0718 Spring 2
8 278-0719 Washer 2
9 278-0720 Shaft 1
10 278-0721 Roller guide 1
11 278-0722 Roller 1
12 999-9159 Bolt M8-1.0 x 100mm hex cap 1
13 278-0723 Scrub lift bracket 1
14 278-0724 Nut 3/8 lock 2
15 278-1028 Bolt M8 x 110mm hex head 1
16 278-0725 Spring 2
17 278-0726 Spring bracket 1
18 278-0119 Washer 4
19 278-0727 Pin 1
20 278-0451 Cotter pin 2
21 278-0729 Spring 2
22 278-1029 Sleeve 2
23 278-0731 Bolt 3/8 shoulder 2
24 278-1030 Actuator 1
25 278-0448 Pin 1
26 278-0733 Actuator mounting bracket 1
27 999-6714 Washer M6 x 12mm flat stainless steel 4
28 999-1117 Washer M6 split lock stainless steel 4
29 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 4

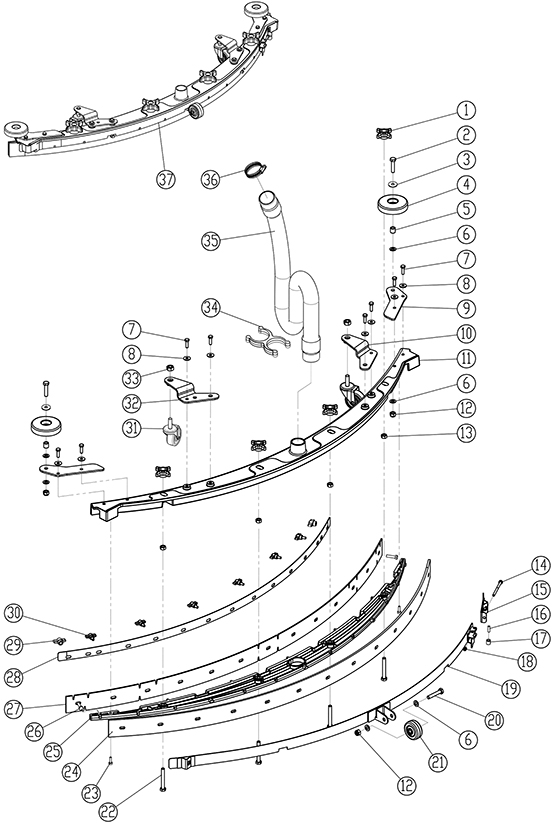

46 1/2 inch Squeegee Assembly - 278-1055
RefNbr Part Number Description Req Notes
1 278-0426 Knob 4
2 999-0786 Screw M8-1.25 x 35mm hex head stainless steel 2
4 278-0216 Bumper wheel 2
5 278-0033 Spacer 2
6 999-9097 Washer M8 flat stainless steel 6
7 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 8
8 999-1803 Washer M6 flat fender stainless steel 8
9 278-0734 Roller mounting bracket 2
10 278-0287 Right hand bracket 1
11a 278-0741 Squeegee housing 1 (old style)
11b 278-0772 Squeegee housing 1 (new style)
12 999-0496 Nut M8-1.25 nylon insert lock stainless steel 2
13 999-1424 Nut M8-1.25 hex stainless steel 4
14 999-9160 Screw M5-.8 x 75mm pan head 1
15 278-0495 Short clamp assembly 1
16 278-0297 Bushing 1
17 278-0298 Bushing 1
18 999-0953 Nut M5-.8 hex nylon insert lock stainless steel 1
19a 278-0773 Squeegee clamp assembly 1
19b 278-0735 Squeegee clamp assembly 1 (old style) (optional)
20 278-0219 Screw M8 1
21 278-0736 2 inch wheel 1
22 999-1368 Screw M8-1.25 x 60mm hex head stainless steel 4 (old style)
23 999-0901 Screw M5-.8 x 16mm pan head phillips stainless steel 2 (old style)
24a 278-0774 Squeegee blade linatex rear 1 (old style)
24b 278-1140 Squeegee blade poly urethane rear 1 (old style) (optional)
24c 278-0737 Squeegee blade linatex rear 1 (new style)
24d 278-1136 Squeegee blade poly urethane rear 1 (new style) (optional)
25a 278-0775 Squeegee retainer 1 (old style)
25b 278-0738 Retainer 1 (new style)
26 999-1087 Bolt M6-1 x 25mm hex head stainless steel 2 (old style)
27a 278-0776 Squeegee blade linatex front 1 (old style)
27b 278-1141 Squeegee blade poly urethane front 1 (old style) (optional)
27c 278-0739 Squeegee blade linatex front 1 (new style)
27d 278-1137 Squeegee blade poly urethane front 1 (new style) (optional)
28 278-0742 Front blade clamp 1 (old style)
29 278-0468 Knob 2 (old style)
30 278-0743 Knob M6 6 (old style)
31 278-0288 2 inch caster wheel 2
32 278-0294 Left hand bracket 1
33 999-6697 Nut M10-1.5 hex stainless steel 2
34 278-0299 Vacuum hose holder 1
35 278-0300 4 1/2 foot vacuum hose 1
36 278-0025 Hose clamp 1
37a 278-1524 46.5 inch squeegee assembly 1 (old style) (optional)
37b 278-0740 Squeegee assembly (new style) 1 (new style) (standard)

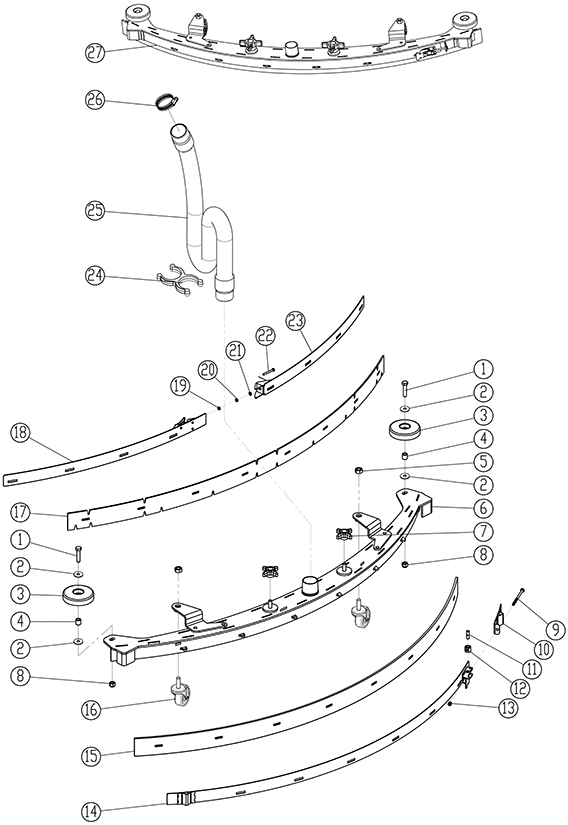

44 1/2 inch Optional Squeegee Assembly - 278-1056
RefNbr Part Number Description Req Notes
1 999-0786 Screw M8-1.25 x 35mm hex head stainless steel 2
3 278-0216 Bumper wheel 2
4 278-0033 Spacer 2
5 999-6697 Nut M10-1.5 hex stainless steel 2
6 278-1041 Squeegee housing 1
7 278-0426 Knob 2
8 999-0496 Nut M8-1.25 nylon insert lock stainless steel 2
9 999-9160 Screw M5-.8 x 75mm pan head 1
10 278-0495 Short clamp assembly 1
11 278-0297 Bushing 1
12 278-0298 Bushing 1
13 999-0953 Nut M5-.8 hex nylon insert lock stainless steel 1
14 278-1042 Squeegee clamp assembly 1
15a 278-1043 Squeegee blade rear 1
15b 278-1138 Squeegee blade poly urethane rear 1 (optional)
16 278-0288 2 inch caster wheel 2
17a 278-1044 Squeegee blade front 1
17b 278-1139 Squeegee blade poly urethane front 1 (optional)
18 278-1525 Left hand front clamp 1
19 278-1045 Hex nut 1
20 999-0954 Nut M4-.7 nylon insert lock stainless steel 1
21 999-9089 Washer M4 flat stainless steel 1
22 278-1046 Screw M4 x 35mm 1
23 278-1047 Left hand front clamp 1
24 278-0299 Vacuum hose holder 1
25 278-0300 4 1/2 foot vacuum hose 1
26 278-0025 Hose clamp 1
27 278-1048 44.5 squeegee assembly 1 (optional)

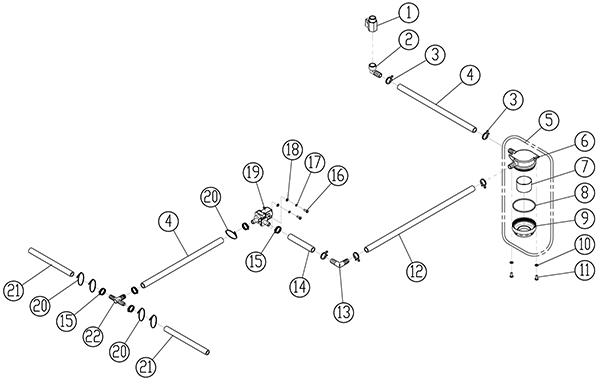

Solution Assembly - 278-1058
RefNbr Part Number Description Req Notes
1 278-0069 Ball valve 1
2 278-0070 Elbow 1
3 278-0303 Clamp 5
4 278-1036 Hose 12mm x 330mm 2
5 278-0307 Filter assembly 1 (includes 6-9)
6 278-0308 Filter assembly base 1
7 278-0310 40 mesh filter screen assembly 1
8 278-0311 O-ring 1
9 278-0312 Filter assembly cap 1
10 999-9100 Washer M5 flat stainless steel 2
11 999-9109 Screw M5-.8 x 12mm pan head phillips stainless steel 2
12 278-1037 Hose 12mm x 480mm 1
13 278-0305 Elbow 1
14 278-1038 Hose 12mm x 120mm 1
15 278-0244 Clamp 5
16 999-1645 Screw M4-.7 x 12mm hex head stainless steel 2
17 999-1954 Washer M4 lock 2
18 999-9089 Washer M4 flat stainless steel 2
19 278-2193 24V solenoid valve 1
20 278-0043 Nylon tie 5
21 278-1039 Hose 10mm x 180mm 2
22 278-1040 Tee fitting 1

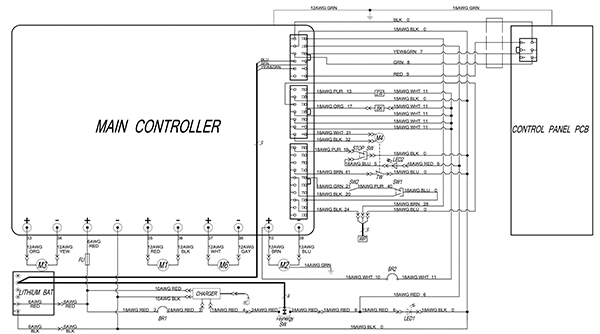

Wiring Diagram -

RefNbr Part Number Description Req Notes

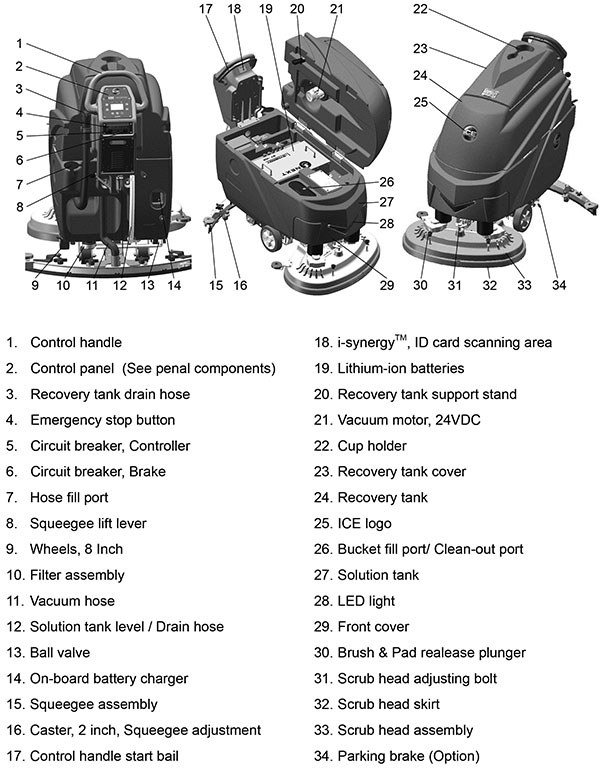

- Know Your Machine -

RefNbr Part Number Description Req Notes
Webpage Problem Reporting
