- Pads - 255-2000 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-2040 |
20 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 02 |
255-2035 |
20 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-2064 |
20 inch Blue ace pad (pkg of 5) |
|
|
| 04 |
255-2042 |
20 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 05 |
255-2012 |
20 inch Cure white pad (pkg of 5) |
|
|
| 06 |
255-2077 |
20 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 07 |
255-2038 |
20 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 08 |
255-2021 |
20 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 09 |
255-2050 |
20 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 10 |
255-2065 |
20 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 11 |
255-2030 |
20 inch jaguar burnishing pad (pkg of 5) |
|
|
| 12 |
255-2067 |
20 inch Laminated 2001 Gorilla polish pad (pkg of 5) |
|
|
| 13 |
255-2087 |
20 inch Melamine Mela-Kleen pad (pkg of 2) |
|
|
| 14 |
255-2068 |
20 inch Microclean daily cleaning pad (pkg of 2) |
|
|
| 15 |
255-2069 |
20 inch Micropolish polishing and burnishing pad (pkg of 2) |
|
|
| 16 |
255-2090 |
20 inch premium black stripping pad (pkg of 5) |
|
|
| 17 |
255-2070 |
20 inch premium blue cleaning pad (pkg of 5) |
|
|
| 18 |
255-2092 |
20 inch premium brown stripping pad (pkg of 5) |
|
|
| 19 |
255-2080 |
20 inch premium green scrubbing pad (pkg of 5) |
|
|
| 20 |
255-2060 |
20 inch premium red scrubbing pad (pkg of 5) |
|
|
| 21 |
255-2052 |
20 inch premium tan polishing pad (pkg of 5) |
|
|
| 22 |
255-2020 |
20 inch premium white polishing pad (pkg of 5) |
|
|
| 23 |
255-2011 |
20 inch superspeed rubberized pad (pkg of 5) |
|
|
| 24 |
255-2095 |
20 inch razorback stripping pad (pkg of 5) |
|
|
| 25 |
255-2047 |
20 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 26 |
255-2055 |
20 inch Ruff non-abrasive brush pad (pkg of 2) |
|
|
| 27 |
255-2023 |
20 inch sand screen driver pad (pkg of 2) |
|
|
| 28 |
255-0157 |
20 inch Professional sand screen 100 grit (pkg of 10) |
|
|
| 29 |
255-0021 |
20 inch Professional sand screen 120 grit (pkg of 10) |
|
|
| 30 |
255-0158 |
20 inch Professional sand screen 150 grit (pkg of 10) |
|
|
| 31 |
255-0159 |
20 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 32 |
255-0160 |
20 inch Professional sand screen 220 grit (pkg of 10) |
|
|
| 33 |
255-0161 |
20 inch Professional sand screen 400 grit (pkg of 10) |
|
|
| 34 |
255-0030 |
20 inch Professional sand screen 60 grit (pkg of 10) |
|
|
| 35 |
255-0020 |
20 inch Professional sand screen 80 grit (pkg of 10) |
|
|
| 36 |
255-0249 |
20 inch Superscreen sand screen 100 grit (pkg of 10) |
|
|
| 37 |
255-0250 |
20 inch Superscreen sand screen 120 grit (pkg of 10) |
|
|
| 38 |
255-0251 |
20 inch Superscreen sand screen 150 grit (pkg of 10) |
|
|
| 39 |
255-0252 |
20 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 40 |
255-0253 |
20 inch Superscreen sand screen 220 grit (pkg10) (OBSOLETE) |
|
|
| 41 |
255-0254 |
20 inch Superscreen sand screen 400 grit (pkg of 10) |
|
|
| 42 |
255-0247 |
20 inch Superscreen sand screen 60 grit (pkg of 10) |
|
|
| 43 |
255-0248 |
20 inch Superscreen sand screen 80 grit (pkg of 10) |
|
|
| 45 |
255-9591 |
20 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 46 |
255-9588 |
20 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 47 |
255-9585 |
20 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 48 |
255-9589 |
20 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 49 |
255-9586 |
20 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 50 |
255-9587 |
20 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 51 |
255-9590 |
20 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 52 |
255-9645 |
20 inch Diamond starter pack (1 of each grit) |
|
|
| 53 |
255-2082 |
20 inch Turbostrip segmented rotary pad (pkg of 4) |
|
|
| 54 |
255-2015 |
20 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 55 |
255-2016 |
20in 2001 Duala clean& shine pad-high speed(pkg 5) (OBSOLETE |
|
|
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|

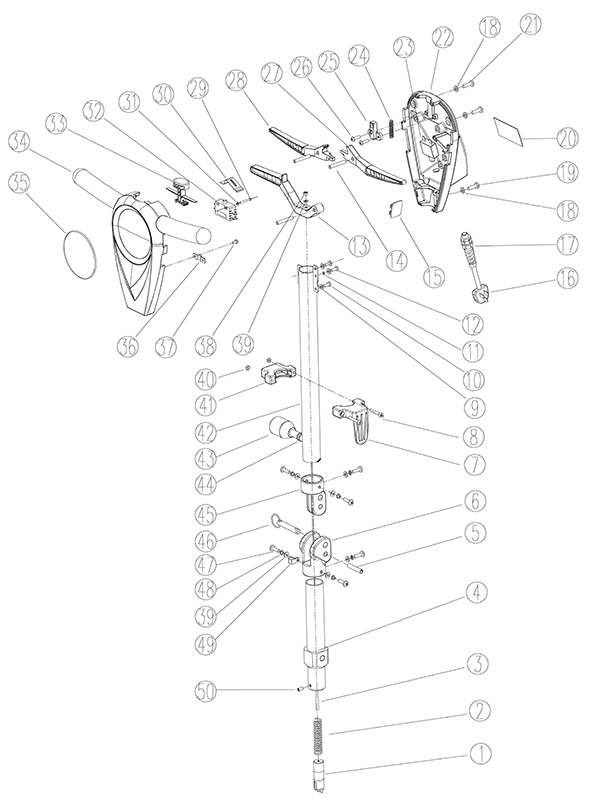

Handle Assembly - 278-0001 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
278-1184 |
Leveling spring |
1 |
|
| 3 |
278-1181 |
Leveling rod |
1 |
|
| 4 |
278-1875 |
Bottom tubing bracket |
1 |
|
| 8 |
999-1670 |
Screw M5-8 x 40mm hex head |
2 |
|
| 9 |
278-1055 |
Tooth washer 5 |
4 |
|
| 10 |
278-1056 |
Screw M5 x 12mm |
4 |
|
| 11 |
278-1058 |
Tooth washer 4 |
2 |
|
| 12 |
999-1645 |
Screw M4-.7 x 12mm hex head stainless steel |
1 |
|
| 13 |
278-1877 |
Leveling rod |
1 |
|
| 16a |
278-0983 |
50 foot power cord (yellow) |
1 |
|
| 16b |
991-5005 |
14/3 replacement power cord 50 foot (yellow) |
1 |
|
| 17 |
278-1057 |
Strain relief cord |
1 |
|
| 18 |
999-0876 |
Washer M6 split lock plain finish |
4 |
|
| 19 |
278-1064 |
Screw M6 x 35mm |
2 |
|
| 20 |
278-1878 |
Serial number |
1 |
|
| 21 |
278-1065 |
Screw M6 x 25mm |
2 |
|
| 23 |
278-1066 |
20amp circuit breaker |
1 |
|
| 24 |
278-1074 |
Safety spring |
1 |
|
| 26 |
278-1069 |
Screw M4 x 8mm |
2 |
|
| 27 |
278-1070 |
Right hand trigger switch |
1 |
|
| 28 |
278-1060 |
Left trigger switch |
1 |
|
| 29 |
278-0090 |
Screw M3 x 25mm |
2 |
|
| 30 |
278-1071 |
Safety spring |
1 |
|
| 31 |
278-0089 |
Washer M3 tooth |
2 |
|
| 33 |
278-1073 |
Safety bottom |
1 |
|
| 34 |
278-1075 |
Front cover |
1 |
|
| 37 |
278-1077 |
Screw M4 x 6mm |
2 |
|
| 38 |
999-0497 |
Nut M6-1 nylon insert lock stainless steel |
1 |
|
| 39 |
999-6714 |
Washer M6 x 12mm flat stainless steel |
6 |
|
| 40 |
999-0953 |
Nut M5-.8 hex nylon insert lock stainless steel |
2 |
|
| 42 |
278-1879 |
Top tubing bracket |
1 |
|
| 43 |
278-1084 |
Handle cord |
1 |
|
| 45 |
278-1911 |
Handle base |
1 |
|
| 48 |
999-1117 |
Washer M6 split lock stainless steel |
6 |
|
| 50 |
278-0231 |
Screw M6 x 10mm |
1 |
|
|
|

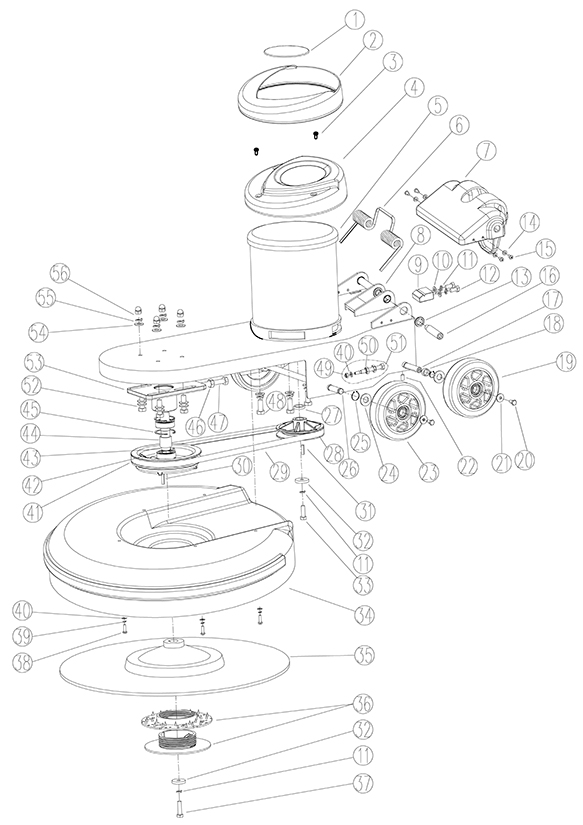

Base Assembly - 278-0002 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 3 |
999-9109 |
Screw M5-.8 x 12mm pan head phillips stainless steel |
3 |
|
| 5b |
278-1882 |
Carbon brush set |
1 |
|
| 6 |
278-1883 |
Twist spring |
1 |
|
| 7 |
278-1884 |
Twist spring cover |
1 |
|
| 8 |
278-1885 |
Housing frame |
1 |
|
| 9 |
278-1886 |
Position plate |
1 |
|
| 10 |
999-9097 |
Washer M8 flat stainless steel |
2 |
|
| 11 |
999-0674 |
Washer M8 split lock plain finish |
4 |
|
| 12 |
999-0517 |
Bolt M8-1.25 x 16mm hex head full thread zinc |
2 |
|
| 14 |
999-9089 |
Washer M4 flat stainless steel |
4 |
|
| 15 |
999-9101 |
Screw M4-.7 x 10mm pan head stainless steel |
4 |
|
| 18 |
278-1890 |
Wheel axle spacer |
2 |
|
| 19 |
278-1891 |
6 inch wheel |
2 |
|
| 20 |
999-1383 |
Screw M6-1 x 16mm hex head stainless steel |
4 |
|
| 21 |
999-1803 |
Washer M6 flat fender stainless steel |
4 |
|
| 23 |
278-1095 |
5 inch wheel |
2 |
|
| 24 |
278-1097 |
Washer M12.5 |
4 |
|
| 25 |
278-1892 |
12 diameter external retaining ring |
4 |
|
| 28 |
278-1895 |
Driving pulley |
1 |
|
| 30 |
278-1897 |
Driven shaft key |
1 |
|
| 32 |
999-9097 |
Washer M8 flat stainless steel |
2 |
|
| 33 |
999-0501 |
Bolt M8-1.25 x 25mm hex head full thread stainless steel |
1 |
|
| 35 |
278-1921 |
19 inch pad driver |
1 |
|
| 36 |
278-0201 |
Big mouth center lok |
1 |
|
| 37 |
999-1653 |
Screw M8-1.25 x 30mm hex head stainless steel |
1 |
|
| 38 |
999-1312 |
Screw M6-1 x 20mm hex head stainless steel |
5 |
|
| 39 |
999-1117 |
Washer M6 split lock stainless steel |
5 |
|
| 40 |
999-6714 |
Washer M6 x 12mm flat stainless steel |
7 |
|
| 41 |
278-1922 |
Driven pulley |
1 |
|
| 42 |
278-0907 |
Ball bearing |
2 |
|
| 43 |
278-1923 |
Driven shaft |
1 |
|
| 44 |
278-1924 |
Bearing spacer |
1 |
|
| 45 |
278-1925 |
Internal retaining ring |
2 |
|
| 46 |
999-1887 |
Nut M10-1 1/4 hex |
5 |
|
| 47 |
999-9081 |
Screw M10-1.5 x 65mm hex head stainless steel |
1 |
|
| 48 |
278-0946 |
Bolt M6 x 16mm hex head |
4 |
|
| 49 |
999-0497 |
Nut M6-1 nylon insert lock stainless steel |
1 |
|
| 51 |
278-1927 |
Screw rod M8 |
2 |
|
| 52 |
278-1928 |
Screw M10 x 32mm hex head |
4 |
|
| 53 |
278-1929 |
Driven shaft mounting plate |
1 |
|
| 54 |
999-9099 |
Washer M10 flat stainless steel |
16 |
|
| 55 |
278-1307 |
Washer lock |
8 |
|
| 56 |
278-1930 |
Nut M10 cap |
4 |
|
|
|

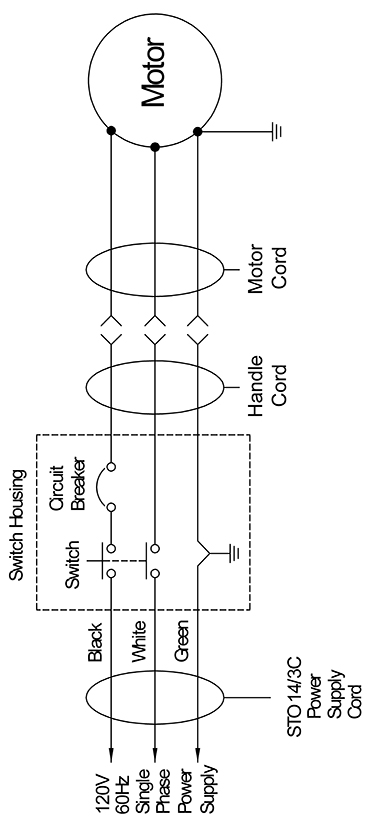

Wiring Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

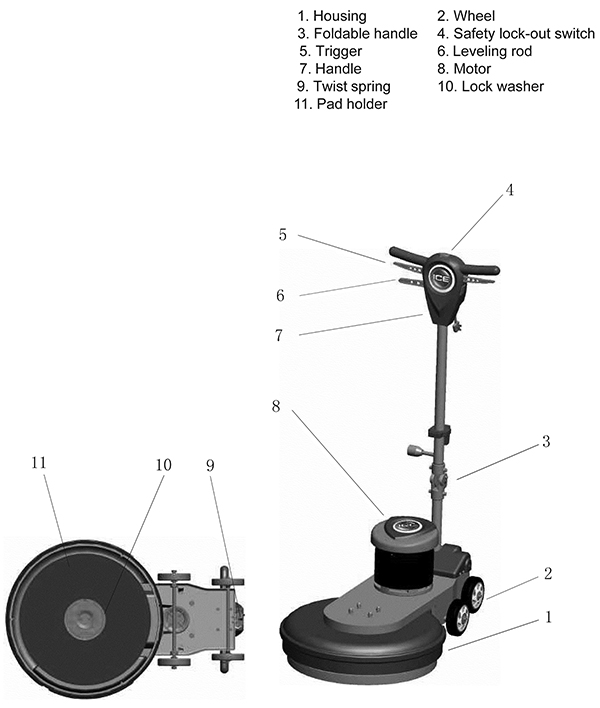

- Know Your Machine - |
|
