Parts List Complete for ICE I36BT


- Pads - 255-1800
RefNbr Part Number Description Req Notes
01 255-1840 18 inch aqua plus burnishing pad (pkg of 5)
02 255-1835 18 inch Armadillo concrete scrubbing pad (pkg of 5)
03 255-1864 18 inch Blue ace pad (pkg of 5)
04 255-1842 18 inch Blue Jay burnishing pad (pkg of 5)
05 255-1812 18 inch Cure white pad (pkg of 5)
06 255-1877 18 inch Diamondback extreme stripping pad (pkg of 5)
07 255-1838 18 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2
08 255-1821 18 inch gorilla lite burnishing pad (pkg of 5)
09 255-1850 18 inch gorilla spray buff/polish/burnish pad (pkg of 5)
10 255-1865 18 inch Heat concrete bonding pad (pkg of 5)
11 255-1830 18 inch jaguar burnishing pad (pkg of 5)
12 255-1890 18 inch premium black stripping pad (pkg of 5)
13 255-1870 18 inch premium blue cleaning pad (pkg of 5)
14 255-1892 18 inch premium brown stripping pad (pkg of 5)
15 255-1880 18 inch premium green scrubbing pad (pkg of 5)
16 255-1860 18 inch premium red scrubbing pad (pkg of 5)
17 255-1852 18 inch premium tan polishing pad (pkg of 5)
18 255-1820 18 inch premium white polishing pad (pkg of 5)
19 255-1811 18 inch superspeed rubberized pad (pkg of 5)
20 255-1895 18 inch razorback stripping pad (pkg of 5)
21 255-1847 18 inch Redwood maroon floor prep pad (pkg of 10)
22 255-1855 18 inch Ruff non-abrasive brush pad (pkg of 2)
23 255-1823 18 inch sand screen driver pad (pkg of 2)
24 255-0023 18 inch Professional sand screen 100 grit (pkg of 10)
25 255-0145 18 inch Professional sand screen 120 grit (pkg of 10)
26 255-0146 18 inch Professional sand screen 150 grit (pkg of 10)
27 255-0147 18 inch Professional sand screen 180 grit (pkg of 10)
28 255-0148 18 inch Professional sand screen 220 grit (pkg of 10)
29 255-0149 18 inch Professional sand screen 400 grit (pkg of 10)
30 255-0022 18 inch Professional sand screen 60 grit (pkg of 10)
31 255-0144 18 inch Professional sand screen 80 grit (pkg of 10)
32 255-0233 18 inch Superscreen sand screen 100 grit (pkg of 10)
33 255-0234 18 inch Superscreen sand screen 120 grit (pkg of 10)
34 255-0235 18 inch Superscreen sand screen 150 grit (pkg of 10)
35 255-0236 18 inch Superscreen sand screen 180 grit (pkg of 10)
36 255-0237 18 inch Superscreen sand screen 220 grit (pkg of 10)
37 255-0238 18 inch Superscreen sand screen 400 grit (pkg of 10)
38 255-0231 18 inch Superscreen sand screen 60 grit (pkg of 10)
39 255-0232 18 inch Superscreen sand screen 80 grit (pkg of 10)
40 255-1824 18 inch Tiger carpet bonnet (pkg of 2)
41 255-9577 18 inch Diamond by Gorilla 11000 Grit (pkg of 2)
42 255-9574 18 inch Diamond by Gorilla 1500 Grit (pkg of 2)
43 255-9571 18 inch Diamond by Gorilla 200 Grit (pkg of 2)
44 255-9575 18 inch Diamond by Gorilla 3000 Grit (pkg of 2)
45 255-9572 18 inch Diamond by Gorilla 400 Grit (pkg of 2)
46 255-9573 18 inch Diamond by Gorilla 800 Grit (pkg of 2)
47 255-9576 18 inch Diamond by Gorilla 8000 Grit (pkg of 2)
48 255-9643 18 inch Diamond starter pack (1 of each grit)
49 255-1882 18 inch Turbostrip segmented rotary pad (pkg of 4)
50 255-1815 18 inch Duala clean and shine pad - low speed (pkg of 5)
51 255-1816 18 inch 2001 Duala clean and shine pad - high speed (pkg 5)

- Pad Holders - 275-9029
RefNbr Part Number Description Req Notes
1 991-2214 Center-Lok II pad holder - left hand thread (red)
2a 991-2201 Center-Lok II pad holder - right hand thread (black) (Pad driver side female, Floor side male)
2b 991-8577 Pad retainer (Pad driver side male, Floor side female)
3a 991-2202 Big mouth pad holder set (blue) (includes 3 screws)
3b 991-2205 Deep lock ring and pad grip ring
4 991-2203 Big mouth pad holder male thread portion
5 991-2206 Center-Lok 3 pad holder (includes 3 screws)
6 996-0372 Big mouth pad holder (left hand thread)
7 N/A Not available
8 991-2209 Split retainer - pad holder ring (OBSOLETE)
9 N/A Not available (replaced by #3 991-2202)
10 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE)

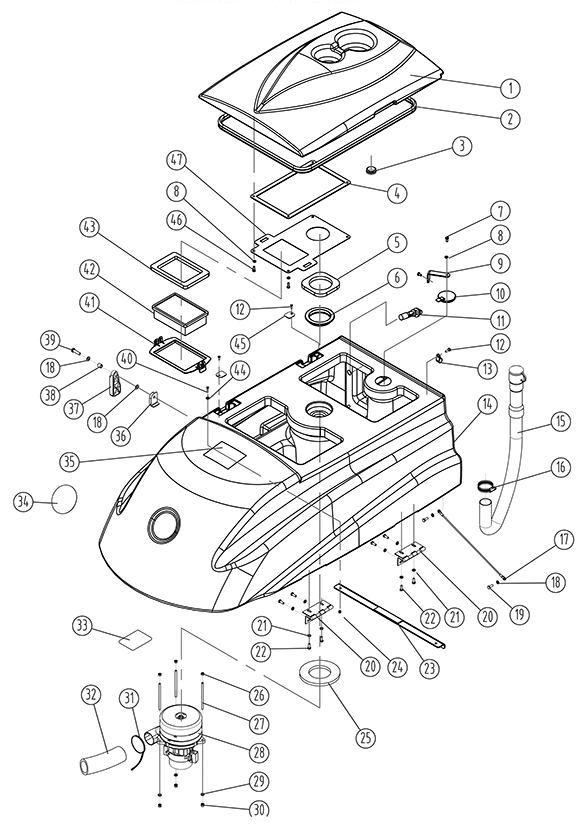

Recovery Tank Assembly - 278-1000
RefNbr Part Number Description Req Notes
1 278-0650 Recovery tank cover 1
2 278-0651 Seal 1
3 278-0652 Cap 1
4 278-0653 Gasket 1
5 278-0654 Screen gasket 1
6 278-0655 Screen 1
7 278-0085 Screw 2
8 999-9100 Washer M5 flat stainless steel 9
9 278-0084 Strap 1
10 278-0022 Cap 1
11 278-0570 Solution level sensor kit 1
12 999-9109 Screw M5-.8 x 12mm pan head phillips stainless steel 3
13 278-0093 P clamp 1
14 278-0656 Recovery tank 1
15 278-0024 Drain hose 1
16 278-0025 Hose clamp 1
18 999-9097 Washer M8 flat stainless steel 4
19 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 2
20 278-0026 Hinge assembly 2
21 999-1803 Washer M6 flat fender stainless steel 8
22 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 8
23 278-0658 Support bracket kit 1
24 999-0953 Nut M5-.8 hex nylon insert lock stainless steel 2
25 278-0036 Vacuum motor gasket 1
26 278-0037 Upholstery tool assembly 3
27 278-0664 Stud M6 x 110mm 3
28 278-0659 3 stage vacuum motor 1
29 999-6714 Washer M6 x 12mm flat stainless steel 5
30 999-0497 Nut M6-1 nylon insert lock stainless steel 3
31 278-0043 Nylon tie 1
32 278-0042 Vacuum motor muffler 1
33 278-0660 Battery label 1
34 278-0029 ICE decal 1
35 278-0015 Warning decal 1
36 278-0030 Bracket 1
37 278-0032 Recovery tank support 1
38 278-0033 Spacer 1
39 999-0248 Bolt M8-1.25 x 30mm hex head full thread plain finish 1
40 999-1671 Screw M5-.8 x 20mm pan head phillips stainless steel 2
41 278-0662 Bracket filter 1
42 278-0005 Dust filter 1
43 278-0378 Dust filter gasket 1
44 278-0665 Washer 2
45 278-0034 Plate 2
46 999-1601 Screw M5 x 10 flat head stainless steel 6
47 278-0663 Plate 1

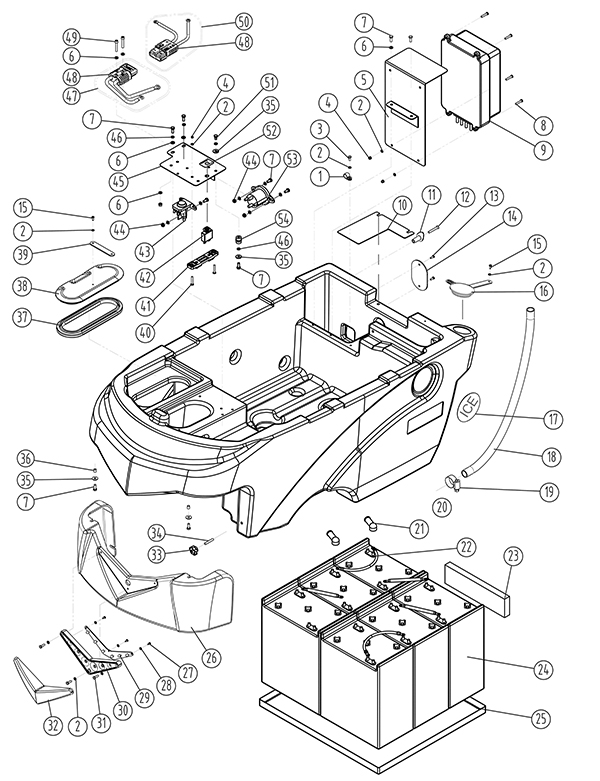

Solution Tank Assembly - 278-1001
RefNbr Part Number Description Req Notes
1 278-0323 P clamp 6
2 999-9100 Washer M5 flat stainless steel 20
3 999-9109 Screw M5-.8 x 12mm pan head phillips stainless steel 9
4 999-0953 Nut M5-.8 hex nylon insert lock stainless steel 6
5 278-0666 Onboard charger bracket 1
6 999-6714 Washer M6 x 12mm flat stainless steel 14
7 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 12
8 999-1425 Screw M5-.8 x 25mm pan head stainless steel 4
9 278-0667 Onboard charger kit 1
11 278-0122 Power cord hook 2
12 278-0121 Screw 2
13 999-1645 Screw M4-.7 x 12mm hex head stainless steel 2
14 278-0444 Cover 1
15 278-0085 Screw 2
16 278-0668 Solution fill cap 1
17 278-0029 ICE decal 2
19 278-0066 Clamp 1
20 278-0670 Solution tank 1
21 278-0556 Battery boot 12
23 278-0072 Battery spacer 4
24 162-0003 6V 225Ah wet battery (SNSR) 6
25 278-0671 Battery tray 1
26 278-1381 Front cover 1
27 278-0076 Screw 3
28 999-9089 Washer M4 flat stainless steel 3
29 278-0078 LED light kit 1
30 278-0079 LED light base 1
31 999-1671 Screw M5-.8 x 20mm pan head phillips stainless steel 3
32 278-0081 LED light cover 1
33 278-0426 Knob 2
34 278-0673 Set screw M8 x 30 2
35 999-1803 Washer M6 flat fender stainless steel 6
36 278-0052 Bushing 2
37 278-0082 Seal 1
38 278-0083 Cover 1
39 278-0084 Strap 1
40 999-1671 Screw M5-.8 x 20mm pan head phillips stainless steel 2
41 278-0675 Current transformer 1
42 278-0676 Circuit breaker 1
43 278-0677 Solenoid switch 1
44 999-0497 Nut M6-1 nylon insert lock stainless steel 4
45 278-0678 Solenoid switch bracket 1
46 999-1117 Washer M6 split lock stainless steel 6
47 278-0679 Battery connect cable kit 1
48 278-0679 Battery connect cable kit 2
49 278-0681 Screw M6 x 36mm 2
50 278-0682 Battery connect cable kit 1
51 999-1908 Screw M6-1 x 10mm hex head stainless steel 2
52 278-0684 Circuit breaker decal 2
53 278-0685 Solenoid switch 1
54 278-0405 Insulator 2

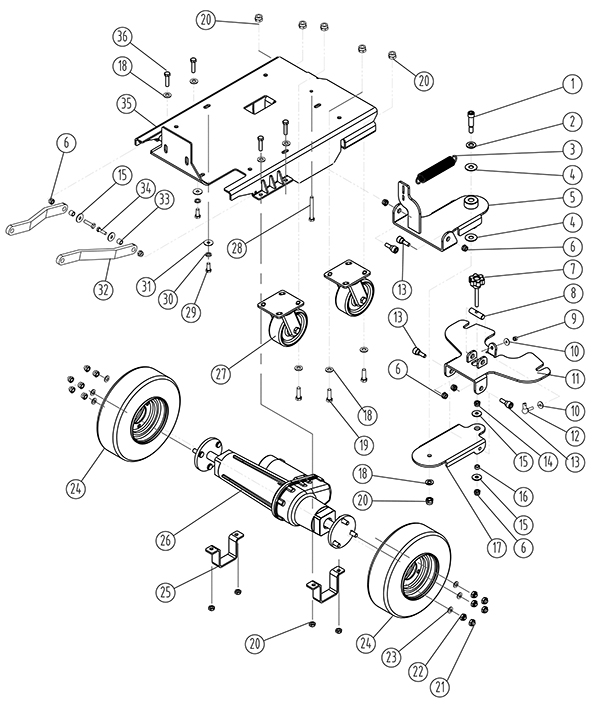

Frame and Drive Assembly - 278-1002
RefNbr Part Number Description Req Notes
1 278-0686 Shoulder bolt 1
2 278-0119 Washer 1
3 278-0687 Spring 1
4 278-0164 Thrust washer 2
5 278-0688 Squeegee lift bracket 1
6 999-0496 Nut M8-1.25 nylon insert lock stainless steel 7
7 278-0689 Knob 1
8 278-0704 Pin 1
9 999-0497 Nut M6-1 nylon insert lock stainless steel 5
10 999-1803 Washer M6 flat fender stainless steel 2
11 278-0690 Squeegee mount bracket 1
13 278-0692 Shoulder bolt 4
14 999-1424 Nut M8-1.25 hex stainless steel 1
16 278-0693 Bushing 14
17 278-0694 Swing bracket 1
18 999-9099 Washer M10 flat stainless steel 13
19 278-0695 Bolt M10 x 30mm 8
20 999-1120 Nut M10-1.5 nylon insert lock stainless steel 13
24a 278-0696 12 inch wheel (foam fill) 2
24b 278-0697 12 inch wheel (gray) (air filled) 2 (serial number 000103-000137)
26a 278-0698 Transaxle kit 1
26b 278-0699 Electronic brake kit 1
27 278-0700 5 inch caster 2
29 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 5
30 999-0674 Washer M8 split lock plain finish 5
31 999-6695 Washer M8 fender stainless steel 5
32 278-0701 Scrub head lifting arm 2
33 278-0702 Bushing 2
34 999-0248 Bolt M8-1.25 x 30mm hex head full thread plain finish 5
35 278-0539 Frame 1
36 278-0703 Screw 4

Scrub Head Assembly - 278-1003
RefNbr Part Number Description Req Notes
1 278-0540 Right hand scrub bracket 1
2 278-0705 Pin 2
3 278-0451 Cotter pin 2
4 999-9097 Washer M8 flat stainless steel 14
5 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel 11
6 278-0706 Actuator mounting bracket 1
7 278-0541 Left hand scrub bracket 1
8 999-0496 Nut M8-1.25 nylon insert lock stainless steel 10
9 278-0707 Brush motor 2
10 278-0249 Square keyway 2
11 278-0708 Knob 2
12 278-0709 Spring 2
13 278-0710 Scrub head housing 1
14 999-6714 Washer M6 x 12mm flat stainless steel 8
15 999-1117 Washer M6 split lock stainless steel 8
16 999-0502 Bolt M6-1 x 20mm hex head full thread zinc 8
17 278-0473 Brush drive hub 2
18 999-6695 Washer M8 fender stainless steel 2
19 999-0674 Washer M8 split lock plain finish 2
20 278-0641 32 inch scrub head bumper (pkg of 2) 1
21 278-0711 Screw M6 x 35mm 12
22 278-0712 Screw M6 x 40mm 4
23 999-1803 Washer M6 flat fender stainless steel 4
26 278-0474 Clutch plate 4
27 278-0476 16 inch brush 2
28 278-0203 Screw 6
29 278-0202 Center lok 2
30 278-0204 Spacer 6
31 278-0478 15 inch pad holder 2
32 278-0472 Spacer 4
33 278-0713 Bolt M10 x 90mm hex 2
34 278-0714 Nut M16 hex 1
35 278-0715 Adjustment stud M16 1
36 278-0716 Roller mounting bracket 1
38 278-0033 Spacer 1
39 278-0216 Bumper wheel 1
40 999-0248 Bolt M8-1.25 x 30mm hex head full thread plain finish 1

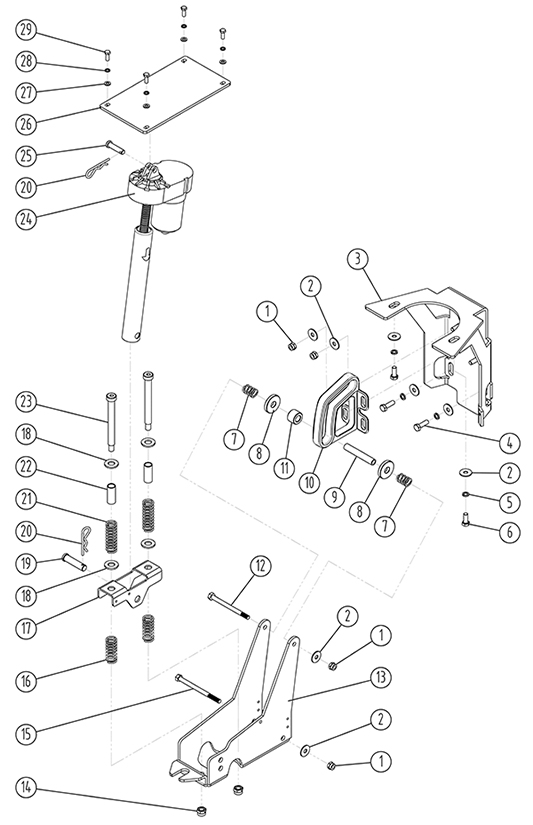

Scrub head Lift Assembly - 278-1004
RefNbr Part Number Description Req Notes
1 999-0496 Nut M8-1.25 nylon insert lock stainless steel 6
3 278-0717 Guide mounting bracket 1
4 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel 2
5 999-0674 Washer M8 split lock plain finish 4
6 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 2
7 278-0718 Spring 2
8 278-0719 Washer 2
9 278-0720 Shaft 1
10 278-0721 Roller guide 1
11 278-0722 Roller 1
12 999-9159 Bolt M8-1.0 x 100mm hex cap 1
13 278-0723 Scrub lift bracket 1
14 278-0724 Nut 3/8 lock 2
15 999-9159 Bolt M8-1.0 x 100mm hex cap 1
16 278-0725 Spring 2
17 278-0726 Spring bracket 1
18 278-0119 Washer 4
19 278-0727 Pin 1
20 278-0727 Pin 2
21 278-0729 Spring 2
22 278-0730 Spring 2
23 278-0718 Spring 2
24 278-0731 Bolt 3/8 shoulder 1
25 278-0448 Pin 1
26 278-0733 Actuator mounting bracket 1
27 999-6714 Washer M6 x 12mm flat stainless steel 4
28 999-1117 Washer M6 split lock stainless steel 4
29 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 4

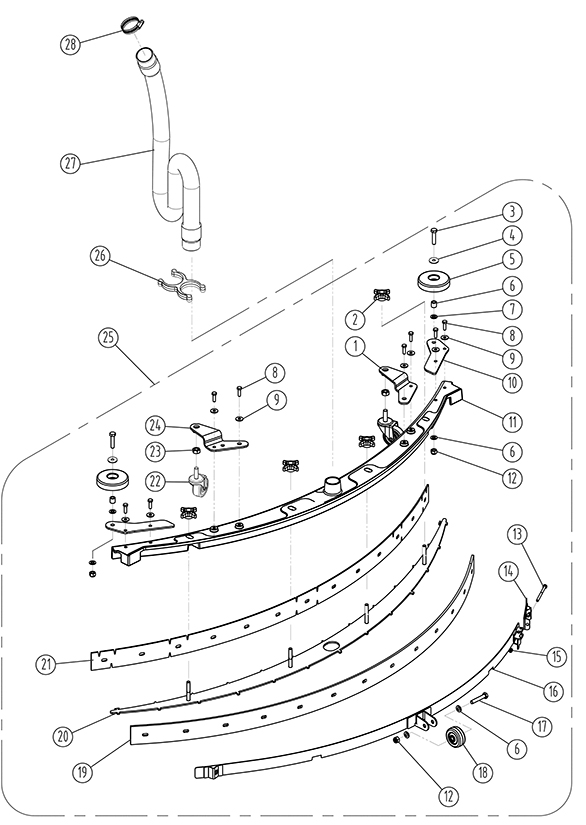

Squeegee Assembly - 46.5 inch - 278-1005
RefNbr Part Number Description Req Notes
1 278-0287 Right hand bracket 1
2 278-0426 Knob 4
3 999-0786 Screw M8-1.25 x 35mm hex head stainless steel 2
5 278-0216 Bumper wheel 2
6 278-0033 Spacer 2
7 999-9097 Washer M8 flat stainless steel 6
8 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 8
9 999-1803 Washer M6 flat fender stainless steel 8
10 278-0734 Roller mounting bracket 2
12 999-0496 Nut M8-1.25 nylon insert lock stainless steel 2
13 999-9160 Screw M5-.8 x 75mm pan head 1
14 278-0495 Short clamp assembly 1
15 999-0953 Nut M5-.8 hex nylon insert lock stainless steel 1
16 278-0735 Squeegee clamp assembly 1
17 278-0219 Screw M8 1
18 278-0736 2 inch wheel 1
19 278-0737 Squeegee blade linatex rear 1
20 278-0738 Retainer 1
21 278-0739 Squeegee blade linatex front 1
22 278-0288 2 inch caster wheel 2
23 999-6697 Nut M10-1.5 hex stainless steel 2
24 278-0294 Left hand bracket 1
25 278-0740 Squeegee assembly (new style) 1
26 278-0299 Vacuum hose holder 1
27 278-0300 4 1/2 foot vacuum hose 1
28 278-0025 Hose clamp 1

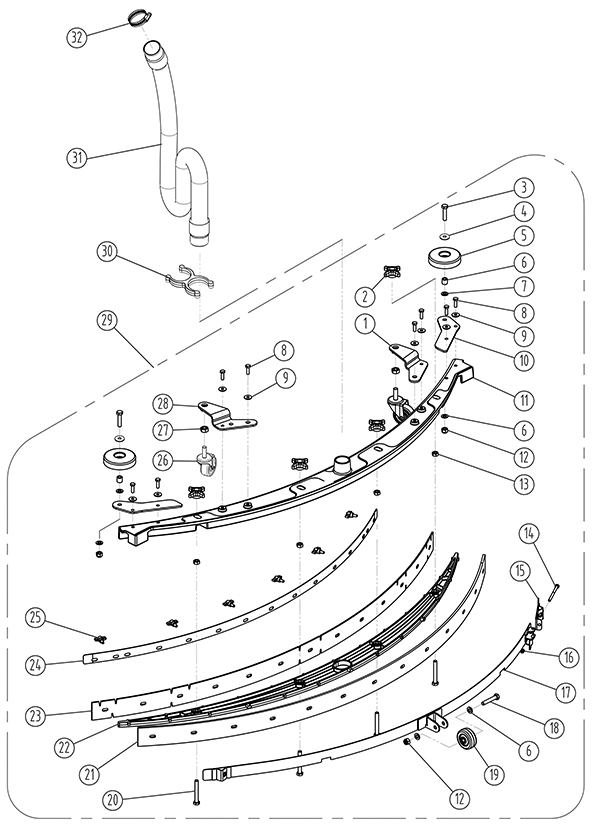

Squeegee Assembly- Old Style - 278-1006
RefNbr Part Number Description Req Notes
1 278-0287 Right hand bracket 1
2 278-0426 Knob 4
3 999-0786 Screw M8-1.25 x 35mm hex head stainless steel 2
5 278-0216 Bumper wheel 2
6 278-0033 Spacer 2
7 999-9097 Washer M8 flat stainless steel 2
8 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 8
9 999-1803 Washer M6 flat fender stainless steel 8
10 278-0734 Roller mounting bracket 2
11 278-0741 Squeegee housing 2
12 999-0496 Nut M8-1.25 nylon insert lock stainless steel 1
13 999-1424 Nut M8-1.25 hex stainless steel 2
14 999-9160 Screw M5-.8 x 75mm pan head 1
15 278-0495 Short clamp assembly 1
16 999-0953 Nut M5-.8 hex nylon insert lock stainless steel 1
17 278-0773 Squeegee clamp assembly 1
17 278-0735 Squeegee clamp assembly 1
18 278-0219 Screw M8 1
19 278-0736 2 inch wheel 1
20 999-1368 Screw M8-1.25 x 60mm hex head stainless steel 4
21 278-0774 Squeegee blade linatex rear 1
22 278-0775 Squeegee retainer 1
23 278-0776 Squeegee blade linatex front 1
24 278-0742 Front blade clamp 1
25 278-0743 Knob M6 6
26 278-0288 2 inch caster wheel 2
27 999-6697 Nut M10-1.5 hex stainless steel 2
28 278-0294 Left hand bracket 1
29 N/A Not available 1 (Squeegee assembly)
30 278-0299 Vacuum hose holder 1
31 278-0300 4 1/2 foot vacuum hose 1
32 278-0025 Hose clamp 1

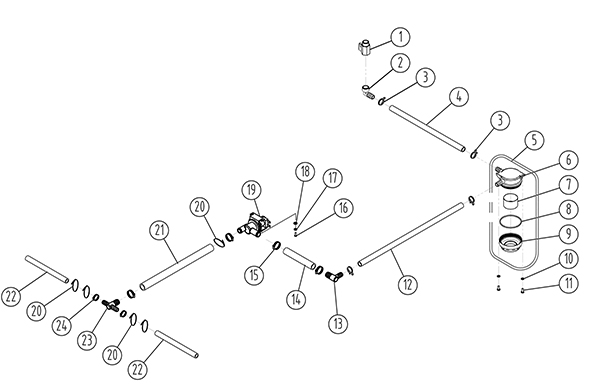

Solution Assembly - 278-1007
RefNbr Part Number Description Req Notes
1 278-0069 Ball valve 1
2 278-0070 Elbow 1
3 278-0303 Clamp 4
4 278-0744 Hose 1
5 278-0307 Filter assembly 1
6 278-0308 Filter assembly base 1
7 278-0310 40 mesh filter screen assembly 1
8 278-0311 O-ring 1
9 278-0312 Filter assembly cap 1
10 999-9100 Washer M5 flat stainless steel 1
11 999-9109 Screw M5-.8 x 12mm pan head phillips stainless steel 2
12 278-0747 Hose 1
13 278-0748 Barbed elbow 1
14 278-0749 Hose 1
15 278-0066 Clamp 4
16 999-9109 Screw M5-.8 x 12mm pan head phillips stainless steel 2
17 999-9132 Washer M5 split lock stainless steel 2
18 278-0751 Washer 2
19 278-0640 36V solenoid valve 1
20 278-0043 Nylon tie 5
21 278-0640 36V solenoid valve 1
22 278-0513 7 inch tube 2
23 278-0753 Plastic tee fitting 1
24 278-0244 Clamp 2

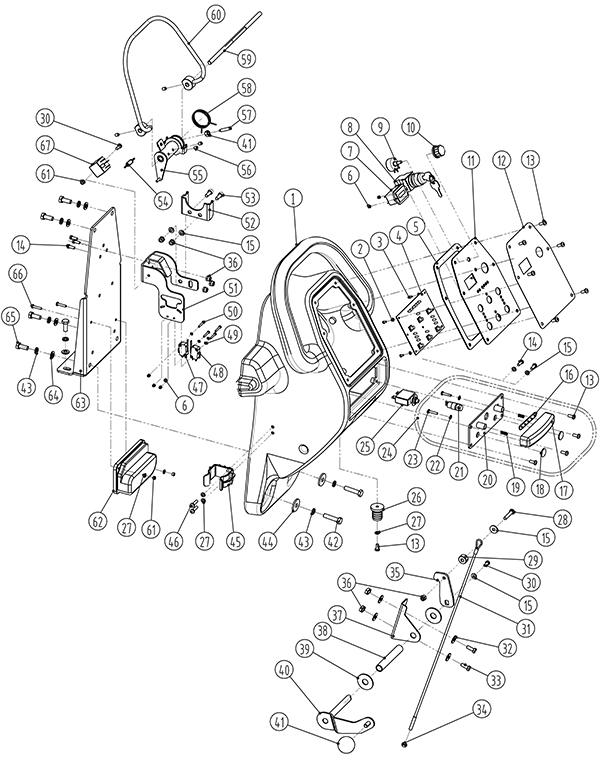

Control Console Assembly - 278-1008
RefNbr Part Number Description Req Notes
1 278-0750 Control console housing 1
2 999-1521 Washer M3 flat stainless steel 5
3 999-6715 Screw M3-.5 x 6mm pan head stainless steel 5
4 278-0754 PCD assembly 1
5 278-0096 Gasket 1
6 999-1161 Nut M3-.5 hex nylock stainless steel 6
7 278-0755 Timer 1
8 278-0756 Key switch 1
9 278-0757 Potentiometer kit 1
10 278-0758 Potentiometer knob 1
11 278-0759 Control panel 1
12 278-0760 Control panel decal 1
13 999-9109 Screw M5-.8 x 12mm pan head phillips stainless steel 12
14 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 5
15 999-1803 Washer M6 flat fender stainless steel 9
16 278-0761 LED light belt kit 1
17 278-0151 Emergency stop button 1
18 278-0762 Cap 2
19 278-0149 Spring 2
20 278-0148 Circuit breaker base 1
22 999-9089 Washer M4 flat stainless steel 4
23 278-0146 Screw M4 x 20mm 2
24 278-0764 Emergency stop 1
25 278-0676 Circuit breaker 1
26 278-0109 Connector 1
27 999-9100 Washer M5 flat stainless steel 5
28 278-0111 Bolt M6 x 30mm 1
29 278-0113 Lifting rope spacer 1
30 278-0114 Bolt M5 x 12mm 2
31 278-0765 Squeegee lift cable 1
32 278-1909 Washer M5x15x10 stainless steel 1
33 999-0502 Bolt M6-1 x 20mm hex head full thread zinc 2
34 278-0037 Upholstery tool assembly 2
35 278-0116 Baffle 1
36 999-0497 Nut M6-1 nylon insert lock stainless steel 8
37 278-0117 Bracket 1
38 278-0766 Sleeve 1
39 278-0119 Washer 2
40 278-0633 Squeegee lifting handle 1
41 278-0050 Ball knob 1
42 999-0787 Bolt M8-1.25 x 40mm hex head full thread stainless steel 2
43 999-0674 Washer M8 split lock plain finish 6
44 999-6695 Washer M8 fender stainless steel 2
45 278-0124 Drain hose clamp 1
46 999-0901 Screw M5-.8 x 16mm pan head phillips stainless steel 2
47 278-0154 Micro switch (3 terminal) 1
48 278-0134 Micro switch 1
49 278-0089 Washer M3 tooth 4
50 278-0135 Screw M3 x 20mm 4
51 278-0136 Switch bracket 1
52 278-0137 Spring bracket 1
53 278-0138 Screw M6 x 16mm 2
54 278-0767 Resistance 1
55 278-0139 Actuator 1
56 278-0007 Set screw 4
57 278-0141 Screw M6 x 30mm 1
58 278-0140 Spring 1
59 278-0142 Shaft 1
60 278-0006 Bail lever 1
61 999-0953 Nut M5-.8 hex nylon insert lock stainless steel 3
62 278-0769 Speed control board 1
63 278-0768 Control console rear plate 1
65 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 6
66 278-0770 Screw M5 x 35mm 2
67 278-0771 Relay 1

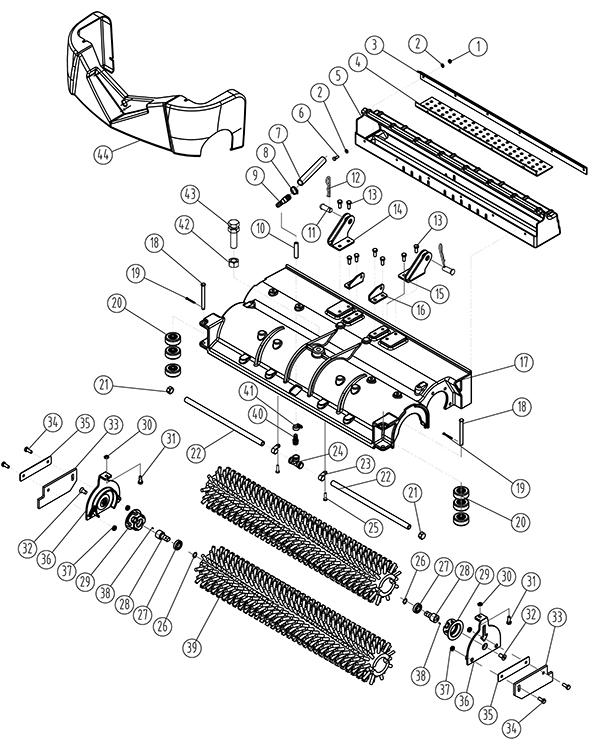

Cylindrical Scrub Head Assembly - 278-1009
RefNbr Part Number Description Req Notes
1 999-0497 Nut M6-1 nylon insert lock stainless steel 6
2 999-6714 Washer M6 x 12mm flat stainless steel 12
3 278-0777 Hopper lip 1
4 278-0778 Hopper strip 1
5 278-0779 Debris tray hopper 1
6 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 6
7 278-0780 Hose 1
8 278-0066 Clamp 1
9 278-0781 Barbed elbow 1
10 278-0782 Hose 1
11 278-0705 Pin 2
12 278-0451 Cotter pin 2
13 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 8
14 278-0783 Left hand scrub head lift bracket 1
15 278-0784 Right hand scrub head lift bracket 1
16 278-0785 Actuator mounting bracket 2
17 278-0786 Cylindrical housing 1
18 278-0787 Pin 2
19 278-0166 Cotter 2
20 278-0788 2 inch wheel 6
21 278-0238 End cap 2
22 278-0789 PVC hose 2
23 278-0241 Tee fitting 4
24 278-0241 Tee fitting 2
25 999-9109 Screw M5-.8 x 12mm pan head phillips stainless steel 4
26 278-0790 Retaining ring 2
27 278-0791 Bearing 2
28 278-0792 Idler shaft 2
29 278-0793 Brush idler plug 2
30 278-0794 Nut M8 2
31 999-0787 Bolt M8-1.25 x 40mm hex head full thread stainless steel 2
32 278-0236 Screw M10 x 20mm 2
33 278-0795 Cylindrical skirt 2
34 999-0517 Bolt M8-1.25 x 16mm hex head full thread zinc 4
35 278-0796 Skirt clamp 2
36 278-0797 Brush door 2
37 999-0496 Nut M8-1.25 nylon insert lock stainless steel 4
38 278-0798 Pin 2
39 278-0799 Cylindrical brush 2
40 278-0242 Straight joint 1
41 278-0244 Clamp 2
42 278-0714 Nut M16 hex 1
43 278-0715 Adjustment stud M16 1
44 278-0800 Front cover 1

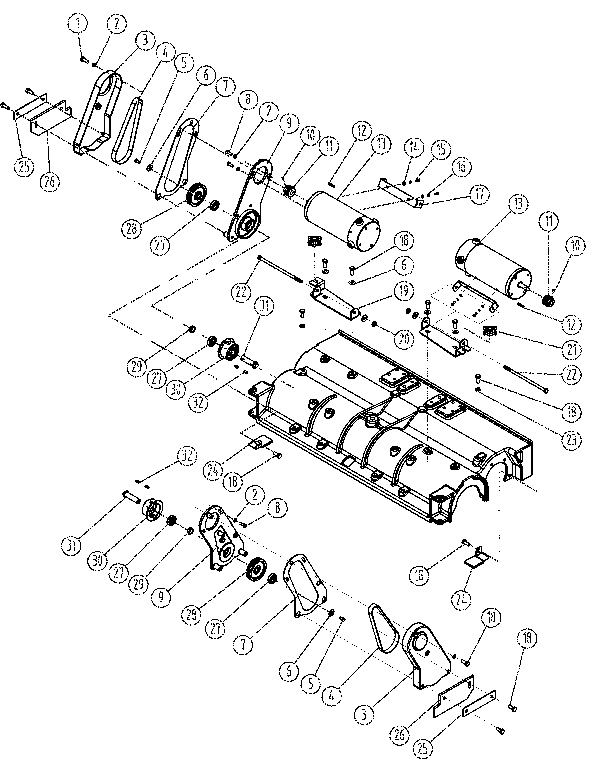

Cylindrical Scrub Drive Assembly - 278-1010
RefNbr Part Number Description Req Notes
1 278-0801 Screw M6 x 12mm socket head 4
2 999-6714 Washer M6 x 12mm flat stainless steel 8
3 278-0802 Belt cover 2
4 278-0803 Drive belt 2
5 999-0517 Bolt M8-1.25 x 16mm hex head full thread zinc 2
8 278-0138 Screw M6 x 16mm 4
9 278-0804 Motor mounting bracket 2
10 999-6712 Screw M5-.8 x 8mm socket cup point set 4
11 278-0805 Driving pulley 2
12 278-0807 Key 2
13 278-0806 36V motor assembly 2
14 278-0665 Washer 4
15 278-0114 Bolt M5 x 12mm 4
16 999-9132 Washer M5 split lock stainless steel 4
17 278-0808 Angled motor bracket 2
18 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 18
19 278-0809 Motor bracket 2
20 999-0496 Nut M8-1.25 nylon insert lock stainless steel 2
21 278-0045 Knob 2
22 278-0810 Bolt M8 x185mm head 2
23 278-0794 Nut M8 2
24 278-0812 Water deflector 2
25 278-0796 Skirt clamp 4
26 278-0795 Cylindrical skirt 4
27 278-0791 Bearing 4
28 278-0814 Driven pulley 2
29 278-0815 Bushing 2
30 278-0816 Brush drive plug 2
31 278-0817 Shaft 2
32 278-0818 Key 4

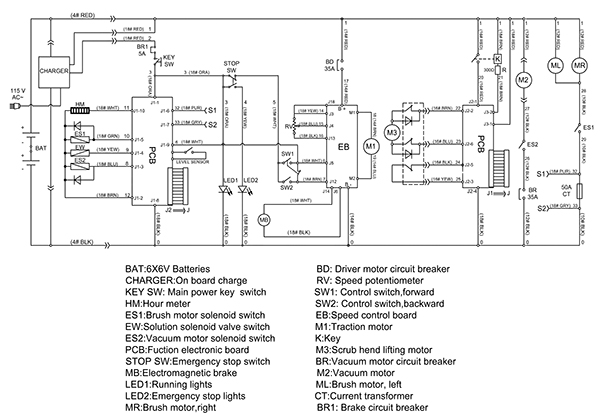

Wiring Diagram -

RefNbr Part Number Description Req Notes

- Commonly Asked For Parts - 278-9989
RefNbr Part Number Description Req Notes
01 278-0541 Left hand scrub bracket
02 278-0540 Right hand scrub bracket
03 278-0539 Frame
04 278-0640 36V solenoid valve
Webpage Problem Reporting
