Parts List Complete for ICE I24BT


- Pads - 255-1200
RefNbr Part Number Description Req Notes
01 255-1240 12 inch aqua plus burnishing pad (pkg of 20)
02 255-1235 12 inch Armadillo concrete scrubbing pad (pkg of 5)
03 255-1264 12 inch Blue ace pad (pkg of 20)
04 255-1242 12 inch Blue Jay burnishing pad (pkg of 20)
05 255-1212 12 inch Cure white pad (pkg of 5)
06 255-1277 12 inch Diamondback extreme stripping pad (pkg of 20)
07 255-1238 12 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2
08 255-1221 12 inch gorilla lite burnishing pad (pkg of 20)
09 255-1250 12 inch gorilla spray buff/polish/burnish pad (pkg of 20)
10 255-1265 12 inch Heat concrete bonding pad (pkg of 5)
11 255-1230 12 inch jaguar burnishing pad (pkg of 20)
12 255-1290 12 inch premium black stripping pad (pkg of 20)
13 255-1270 12 inch premium blue cleaning pad (pkg of 20)
14 255-1292 12 inch premium brown stripping pad (pkg of 20)
15 255-1280 12 inch premium green scrubbing pad (pkg of 20)
16 255-1260 12 inch premium red scrubbing pad (pkg of 20)
17 255-1252 12 inch premium tan polishing pad (pkg of 20)
18 255-1220 12 inch premium white polishing pad (pkg of 20)
19 255-1295 12 inch razorback stripping pad (pkg of 20)
20 255-1247 12 inch Redwood maroon floor prep pad (pkg of 10)
21 255-1255 12 inch Ruff non-abrasive brush pad (pkg of 2)
22 255-1211 12 inch superspeed rubberized pad (pkg of 20)
23 255-0193 12 inch Superscreen sand screen 100grit(pkg of 10) (OBSOLETE
24 255-0194 12 inch Superscreen sand screen 120 grit (pkg of 10)
25 255-0195 12 inch Superscreen sand screen 180 grit (pkg of 10)
26 255-0191 12 inch Superscreen sand screen 60 grit (pkg of 10)
27 255-0192 12 inch Superscreen sand screen 80 grit (pkg of 10)
28 255-0108 12 inch Professional sand screen 100 grit (pkg of 10)
29 255-0109 12 inch Professional sand screen 120 grit (pkg of 10)
30 255-0110 12 inch Professional sand screen 180 grit (pkg of 10)
31 255-0106 12 inch Professional sand screen 60 grit (pkg of 10)
32 255-0107 12 inch Professional sand screen 80 grit (pkg of 10)
34 255-1224 12 inch Tiger carpet bonnet (pkg of 2)
35 255-9535 12 inch Diamond by Gorilla 11000 Grit (pkg of 2)
36 255-9532 12 inch Diamond by Gorilla 1500 Grit (pkg of 2)
37 255-9529 12 inch Diamond by Gorilla 200 Grit (pkg of 2)
38 255-9533 12 inch Diamond by Gorilla 3000 Grit (pkg of 2)
39 255-9530 12 inch Diamond by Gorilla 400 Grit (pkg of 2)
40 255-9531 12 inch Diamond by Gorilla 800 Grit (pkg of 2)
41 255-9534 12 inch Diamond by Gorilla 8000 Grit (pkg of 2)
42 255-9637 12 inch Diamond starter pack (1 of each grit)
43 255-1215 12 inch Duala clean and shine pad - low speed (pkg of 5)
44 255-1216 12 inch 2001 Duala clean and shine pad-high speed (pkg of 5)

- Pad Holders - 275-9029
RefNbr Part Number Description Req Notes
1 991-2214 Center-Lok II pad holder - left hand thread (red)
2a 991-2201 Center-Lok II pad holder - right hand thread (black) (Pad driver side female, Floor side male)
2b 991-8577 Pad retainer (Pad driver side male, Floor side female)
3a 991-2202 Big mouth pad holder set (blue) (includes 3 screws)
3b 991-2205 Deep lock ring and pad grip ring
4 991-2203 Big mouth pad holder male thread portion
5 991-2206 Center-Lok 3 pad holder (includes 3 screws)
6 996-0372 Big mouth pad holder (left hand thread)
7 N/A Not available
8 991-2209 Split retainer - pad holder ring (OBSOLETE)
9 N/A Not available (replaced by #3 991-2202)
10 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE)

Recovery Tank Assembly - 278-0005
RefNbr Part Number Description Req Notes
1 278-0015 Warning decal 1
2 278-0016 Recovery tank cover 1
3 278-1356 Recovery tank cover seal 1
4 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 12
5 999-1803 Washer M6 flat fender stainless steel 10
6 278-0019 Float adapter 1
7 278-0020 Gasket 1
9 278-0022 Cap 1
10 278-0023 Recovery tank 1
11 278-0024 Drain hose 1
12 278-0025 Hose clamp 1
13 278-0026 Hinge assembly 2
14 278-0027 Cable 1
15 999-6714 Washer M6 x 12mm flat stainless steel 2
16 278-0029 ICE decal 1
17 278-0030 Bracket 1
18 999-9097 Washer M8 flat stainless steel 2
19 278-0032 Recovery tank support 1
20 278-0033 Spacer 1
21 999-0248 Bolt M8-1.25 x 30mm hex head full thread plain finish 1
22 278-0034 Plate 2
23 999-1645 Screw M4-.7 x 12mm hex head stainless steel 2

Vacuum Fan Assembly - 278-0006
RefNbr Part Number Description Req Notes
1 278-0036 Vacuum motor gasket 1
2 999-1308 Nut M6-1 hex stainless steel 3
3 278-0038 Stud 3
4 278-0039 Vacuum motor kit 1
5 999-6714 Washer M6 x 12mm flat stainless steel 7
6 999-0497 Nut M6-1 nylon insert lock stainless steel 3
7 278-0041 Bracket 1
8 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 4
9 278-0042 Vacuum motor muffler 1
10 278-0043 Nylon tie 2
11 278-0044 Charger cover 1
12 278-0045 Knob 1
13 278-0046 Bracket 1

Solution Tank Assembly - 278-0007
RefNbr Part Number Description Req Notes
1 278-0047 Down pressure decal 1
2 278-0048 Down pressure lever bracket 1
3 999-9097 Washer M8 flat stainless steel 2
4 999-0674 Washer M8 split lock plain finish 2
5 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 2
6 278-0050 Ball knob 1
7 278-0051 Down pressure lever 1
8 278-0052 Bushing 1
9 278-0053 Sleeve 1
10 278-0054 Washer 2
11 278-0055 Thrust bearing 2
12 278-0056 Spring 1
13 278-0057 Spring retainer 1
14 999-1592 Bolt M6-1 x 18mm hex head stainless steel 1
15a 278-0058 Spring link 2
15b 278-0059 Orbital head model spring link 2
16 999-0497 Nut M6-1 nylon insert lock stainless steel 1
17 999-9109 Screw M5-.8 x 12mm pan head phillips stainless steel 15
18 999-0953 Nut M5-.8 hex nylon insert lock stainless steel 1
19 278-0062 Spring 1
20 278-0063 Cargo net 1
21 278-0064 Clamp 4
22 999-1645 Screw M4-.7 x 12mm hex head stainless steel 4
23 278-0065 Tubing 1
24 278-0066 Clamp 1
25 278-0067 i-SYNERGY decal 2
26 278-0068 Solution tank 1
27 278-0069 Ball valve 1
28 278-0070 Elbow 1
29 278-0071 Connector 2
30 278-0072 Battery spacer 2
31 278-1353 110Ah Lithium ion battery pack 2
32 999-9100 Washer M5 flat stainless steel 17
33 278-0307 Filter assembly 1
34 278-0075 Left hand side decal 1
35 278-0076 Screw 4
36 999-9089 Washer M4 flat stainless steel 5
37 278-0078 LED light kit 1
38 278-0079 LED light base 1
39 999-1671 Screw M5-.8 x 20mm pan head phillips stainless steel 3
40 278-0081 LED light cover 1
41 278-0082 Seal 1
42 278-0083 Cover 1
43 278-0084 Strap 1
44 278-0085 Screw 1
45 278-0029 ICE decal 2
46 278-0086 Right hand side decal 1
47 999-1161 Nut M3-.5 hex nylock stainless steel 2
48 278-0088 Connector bracket 1
49 278-0089 Washer M3 tooth 2
50 278-0090 Screw M3 x 25mm 2
51 999-9132 Washer M5 split lock stainless steel 2
52 278-0092 Solution fill cap 1
53 278-0093 P clamp 9

Control Console Assembly - 278-0009
RefNbr Part Number Description Req Notes
1 999-9109 Screw M5-.8 x 12mm pan head phillips stainless steel 21
2 999-9132 Washer M5 split lock stainless steel 6
3 999-9100 Washer M5 flat stainless steel 13
4 278-2190 i20NBT control panel decal 1
5 278-0144 Control panel 1
6 278-0096 Gasket 1
7 278-0145 Control panel PCB 1
8 999-6715 Screw M3-.5 x 6mm pan head stainless steel 7
9 278-0099 Control housing 1
10 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 5
11 999-1803 Washer M6 flat fender stainless steel 10
12 278-0100 Squeegee storage bracket 1
13 278-0101 5amp circuit breaker 1
14 278-0146 Screw M4 x 20mm 2
15 999-9089 Washer M4 flat stainless steel 2
16 278-0147 Emergency stop switch kit 1
17 278-0148 Circuit breaker base 1
18 278-0149 Spring 2
19 278-0150 LED light 1
20 278-0151 Emergency stop button 1
21 278-0152 Emergency stop switch kit 1
22 278-0103 Circuit breaker decal 1
23 278-0104 Screw M5 x 15mm 4
24 999-0953 Nut M5-.8 hex nylon insert lock stainless steel 6
25 999-1161 Nut M3-.5 hex nylock stainless steel 6
26 278-0088 Connector bracket 1
27 278-0071 Connector 1
28 278-0089 Washer M3 tooth 6
29 278-0090 Screw M3 x 25mm 2
30 278-0105 Battery plate 1
31 278-0106 Clear cover 1
33 278-0107 Battery charger power cord kit (new style charger 813201-US) 1 (New style for charger 8132010-US)
35 278-0108 Battery charger clamp (OBSOLETE) 2
36 278-0109 Connector 1
37 999-0787 Bolt M8-1.25 x 40mm hex head full thread stainless steel 2
38 999-0674 Washer M8 split lock plain finish 12
39 999-6695 Washer M8 fender stainless steel 2
40 278-0111 Bolt M6 x 30mm 1
41 278-0112 Squeegee lift cable 1
42 278-0113 Lifting rope spacer 1
43 278-0114 Bolt M5 x 12mm 1
44 278-1909 Washer M5x15x10 stainless steel 1
45 999-0497 Nut M6-1 nylon insert lock stainless steel 3
46 278-0116 Baffle 1
47 278-0054 Washer 1
48 278-0037 Upholstery tool assembly 2
49 278-0117 Bracket 1
50 278-0118 Sleeve 1
51 278-0119 Washer 1
52a 278-0120 Squeegee lifting handle 1 (for version 2 console)
52b 278-0633 Squeegee lifting handle 1 (for version 1 console)
53 278-0050 Ball knob 1
54 278-0121 Screw 2
55 278-0122 Power cord hook 2
56 278-0123 Strain relief 1
57 278-0124 Drain hose clamp 1
58 278-0125 Bolt 8
59 999-1117 Washer M6 split lock stainless steel 13
60 278-0127 Washer 8
61 278-0153 Main controller 1
62 278-0129 Control console rear plate 1
64 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 10
65 278-0131 Screw 2
66 278-2020 RFID reader 1
67 278-0133 i-SYNERGY card scanning decal 1
68 278-0134 Micro switch 1
69 278-0154 Micro switch (3 terminal) 1
70 278-0135 Screw M3 x 20mm 4
71 278-0136 Switch bracket 1
72 278-0137 Spring bracket 1
73 278-0138 Screw M6 x 16mm 2
74 278-0007 Set screw 4
75 278-0006 Bail lever 1
76 278-0139 Actuator 1
77 278-0140 Spring 1
78 278-0141 Screw M6 x 30mm 1
79 278-0142 Shaft 1

Frame and Transaxle Assembly - 278-0011
RefNbr Part Number Description Req Notes
1 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 12
2 999-0674 Washer M8 split lock plain finish 15
4 278-0155 Main frame 1
5 999-1803 Washer M6 flat fender stainless steel 4
6 999-0497 Nut M6-1 nylon insert lock stainless steel 3
7 278-0156 Pedal locking bracket 1
8 278-0157 Washer 4
9 999-0519 Nut M12-1.75 nylon insert lock stainless steel 4
10 278-2193 24V solenoid valve 1
11 999-9089 Washer M4 flat stainless steel 2
12 999-1954 Washer M4 lock 2
13 999-1645 Screw M4-.7 x 12mm hex head stainless steel 4
14 278-0161 Spring 1
15 278-0162 Squeegee lift bracket 1
16 278-0163 Sleeve 4
17 278-0164 Thrust washer 4
18 278-0119 Washer 4
19 278-0165 Bolt M12 x 30mm 2
20 278-0166 Cotter 1
21 278-0167 Pin 1
22 278-0168 Ball joint 1
23 278-0169 Squeegee mounting bracket 1
24 278-0170 Wheel cover 2
25 999-0517 Bolt M8-1.25 x 16mm hex head full thread zinc 3
26 999-6695 Washer M8 fender stainless steel 2
27a 278-0180 8 inch wheel 2
27b 278-0182 8 inch foam filled wheel 2
27c 278-0182 8 inch foam filled wheel 2
28 999-9097 Washer M8 flat stainless steel 10
29 278-0183 Retaining ring 2
30 278-0184 Woodruff key 2
31 278-0185 Transaxle kit 1
32 999-0496 Nut M8-1.25 nylon insert lock stainless steel 10
33 278-0174 Nylon spacer 4
34 278-0033 Spacer 2
35 278-0175 Bushing 2
36 999-0787 Bolt M8-1.25 x 40mm hex head full thread stainless steel 2
37 278-0090 Screw M3 x 25mm 2
38 278-0089 Washer M3 tooth 2
39 278-0176 Microswitch 1
40 278-0177 Swivel caster 2
41 278-0178 Static strap 1
42 278-0179 Proximity sensor kit 1

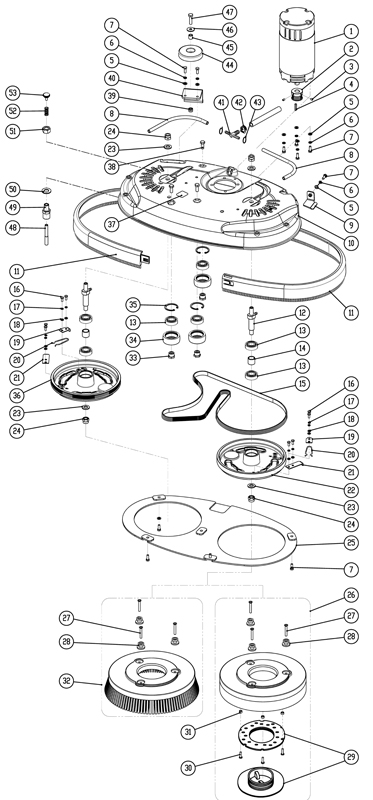

Scrub Head Assembly - 278-0014
RefNbr Part Number Description Req Notes
1 278-0246 24V brush motor 1
2 278-0247 Sheave 1
3 999-6712 Screw M5-.8 x 8mm socket cup point set 2
4 278-0249 Square keyway 1
5 999-6714 Washer M6 x 12mm flat stainless steel 7
6 999-1117 Washer M6 split lock stainless steel 7
7 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 12
8 278-0250 Tubing 2
9 278-0251 Guide belt bracket 1
10 278-0252 Scrub head housing 1
11 278-0253 Scrub head bumper 2
12 278-0254 Pulley shaft 2
13 278-0255 Bearing 7
14 278-0256 Bushing 2
15 278-0257 Belt 1
16 999-9109 Screw M5-.8 x 12mm pan head phillips stainless steel 8
17 999-9132 Washer M5 split lock stainless steel 8
18 999-9100 Washer M5 flat stainless steel 8
19 278-0193 Brush plate clamp 2
20 278-0194 Spring clip 2
21 278-0258 Brush plate clamp 2
22 278-0259 3 lug hub driver 1
23 278-0157 Washer 4
24 999-0519 Nut M12-1.75 nylon insert lock stainless steel 4
25 278-0260 Guard splash bracket 1
26a 278-0261 11 inch pad driver with lugs 2
26b 278-0262 11 inch pad holder 2
27 278-0197 Screw M6 x 35mm 12
28 278-0198 Stud 12
29a 991-2202 Big mouth pad holder set (blue) 2
29b 275-6264 Pad centering device 2
30 278-0203 Screw 6
31 278-0204 Spacer 6
32 278-0263 12 inch soft brush (white) 2
33 278-0264 Idler spacer 3
34 278-0265 Idler pulley 3
35 278-0266 Retaining ring 3
36 278-0267 3 lug drive hub 1
37 278-0212 Warning decal 1
38 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 3
39 999-0496 Nut M8-1.25 nylon insert lock stainless steel 1
40 278-0268 Wall roller bracket 1
41 278-0269 Plastic tee fitting 1
42 278-0244 Clamp 1
43 278-0043 Nylon tie 2
44 278-0216 Bumper wheel 1
45 278-0033 Spacer 1
47 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel 1
48 278-0270 Pin 1
49 278-0271 Guide 1
51 278-0213 Nut 1
52 278-0214 Spring 1
53 278-0215 Knob 1

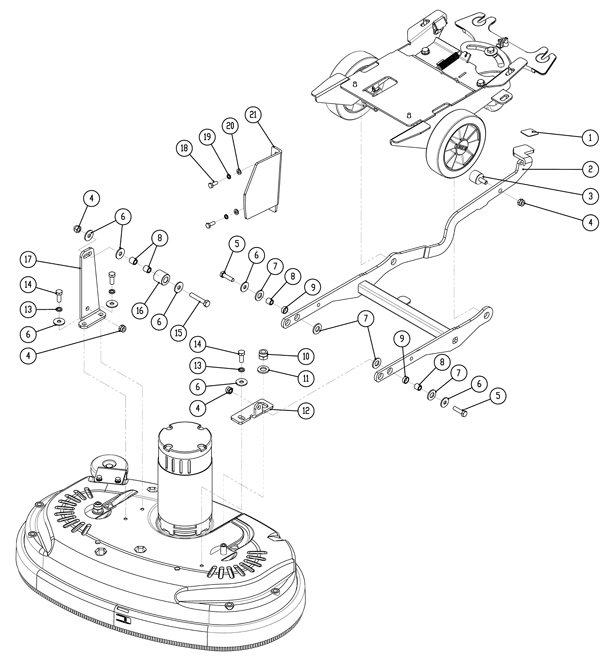

Scrub Head Lift Assembly - 278-0017
RefNbr Part Number Description Req Notes
1 278-0273 Non-slip mat 1
2 278-0274 Scrub head lift bracket 1
3 278-0275 Bumper 1
4 999-0496 Nut M8-1.25 nylon insert lock stainless steel 5
5 999-0248 Bolt M8-1.25 x 30mm hex head full thread plain finish 2
7 278-0174 Nylon spacer 4
8 278-0033 Spacer 4
9 278-0163 Sleeve 2
10 999-0519 Nut M12-1.75 nylon insert lock stainless steel 1
11 278-0157 Washer 1
12 278-0284 Left hand bracket 1
13 999-0674 Washer M8 split lock plain finish 3
14 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 3
15 278-0219 Screw M8 1
16 278-0280 Roller 1
17 278-0285 Right hand bracket 1
18 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 2
19 999-1117 Washer M6 split lock stainless steel 2
20 999-6714 Washer M6 x 12mm flat stainless steel 2
21 278-0286 Guide bracket 1

Squeegee Assembly - 278-0018
RefNbr Part Number Description Req Notes
1 999-0496 Nut M8-1.25 nylon insert lock stainless steel 2
3 278-0216 Bumper wheel 2
4 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 2
5 278-0033 Spacer 2
6 999-6714 Washer M6 x 12mm flat stainless steel 2
7 278-0287 Right hand bracket 1
8 278-0288 2 inch caster wheel 2
9 278-0296 Clamp assembly 1
10a 278-0010 Squeegee blade rear linatex 1
10b 278-0013 Squeegee blade rear polyurethane 1
11 278-0045 Knob 4
12 278-0289 Squeegee housing 1
13 999-0786 Screw M8-1.25 x 35mm hex head stainless steel 2
14 278-0636 Squeegee retainer stainless steel 1 (after SN 000527 model i20NB, after SN 000487 model i20NBT, after SN 000311 model i24BT)
15 278-0637 Plastic spacer 1 (after SN 000527 model i20NB, after SN 000487 model i20NBT, after SN 000311 model i24BT)
16 278-0638 Screw M5-.8 x 15mm flat head countersunk stainless steel 6 (after SN 000527 model i20NB, after SN 000487 model i20NBT, after SN 000311 model i24BT)
17 278-0291 Squeegee retainer kit 1 (includes 14-16) (after SN 000527 model i20NB, after SN 000487 model i20NBT, after SN 000311 model i24BT)
18a 278-0011 Squeegee blade front linatex 1
18b 278-0012 Squeegee blade front polyurethane 1
19 278-0292 Short clamp assembly 1
20 999-9160 Screw M5-.8 x 75mm pan head 1
21 278-0294 Left hand bracket 1
22 999-6697 Nut M10-1.5 hex stainless steel 2
23 278-0296 Clamp assembly 1
24 278-0297 Bushing 1
25 278-0298 Bushing 1
26 999-0953 Nut M5-.8 hex nylon insert lock stainless steel 1
27 278-0299 Vacuum hose holder 1
28 278-0300 4 1/2 foot vacuum hose 1
29a 278-0301 Squeegee assembly linatex 1 (includes 1-26)
29b 278-0639 Squeegee assembly polyurethane 1 (includes 1-26)
30 999-1424 Nut M8-1.25 hex stainless steel 4 (before SN 000528 model i20NB, before SN 000488 model i20NBT, before SN 000312 model i24BT)
31 N/A Not available 1 (Squeegee retainer) (replaced by 17) (before SN 000528 model i20NB, before SN 000488 model i20NBT, before SN 000312 model i24BT)
32 999-1368 Screw M8-1.25 x 60mm hex head stainless steel 4 (before SN 000528 model i20NB, before SN 000488 model i20NBT, before SN 000312 model i24BT)

Solution Assembly - 278-0019
RefNbr Part Number Description Req Notes
1 278-0070 Elbow 1
2 278-0069 Ball valve 1
3 278-0303 Clamp 5
4 278-0304 Tube 1
5 278-0305 Elbow 2
6 278-0306 Tubing 1
7a 278-0307 Filter assembly 1 (40 mesh filter assembly)
7b 278-0307 Filter assembly 1
8 278-0308 Filter assembly base 1
9 278-0310 40 mesh filter screen assembly 1
10 278-0311 O-ring 1
11 278-0312 Filter assembly cap 1
12 999-9100 Washer M5 flat stainless steel 2
13 999-9109 Screw M5-.8 x 12mm pan head phillips stainless steel 2
14 278-0306 Tubing 1
15 999-1645 Screw M4-.7 x 12mm hex head stainless steel 2
16 999-1954 Washer M4 lock 2
17 999-9089 Washer M4 flat stainless steel 2
18 278-2193 24V solenoid valve 1
19 278-0244 Clamp 5
20 278-0314 Tubing 1
21 278-0315 Tubing 1
22 278-0188 Water supply tube 1

Wiring Diagram - Part 1 - 278-0020
RefNbr Part Number Description Req Notes
1 278-0522 Power cord 1

Wiring Diagram - Part 2 -

RefNbr Part Number Description Req Notes
Webpage Problem Reporting
