Parts List Complete for ICE I18B

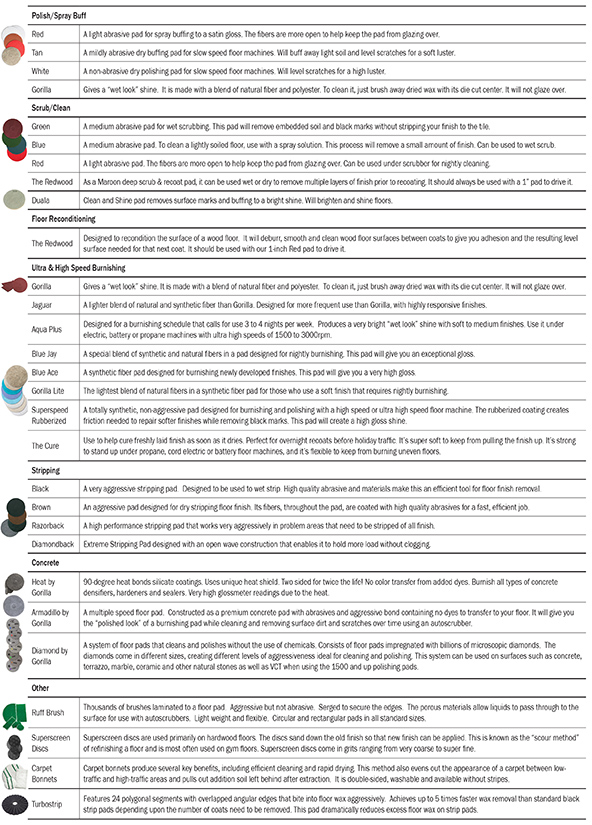

- Pads - 255-1800
RefNbr Part Number Description Req Notes
01 255-1840 18 inch aqua plus burnishing pad (pkg of 5)
01 255-1840 18 inch aqua plus burnishing pad (pkg of 5)
02 255-1835 18 inch Armadillo concrete scrubbing pad (pkg of 5)
02 255-1835 18 inch Armadillo concrete scrubbing pad (pkg of 5)
03 255-1864 18 inch Blue ace pad (pkg of 5)
03 255-1864 18 inch Blue ace pad (pkg of 5)
04 255-1842 18 inch Blue Jay burnishing pad (pkg of 5)
04 255-1842 18 inch Blue Jay burnishing pad (pkg of 5)
05 255-1812 18 inch Cure white pad (pkg of 5)
05 255-1812 18 inch Cure white pad (pkg of 5)
06 255-1877 18 inch Diamondback extreme stripping pad (pkg of 5)
06 255-1877 18 inch Diamondback extreme stripping pad (pkg of 5)
07 255-1838 18 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2
07 255-1838 18 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2
08 255-1821 18 inch gorilla lite burnishing pad (pkg of 5)
08 255-1821 18 inch gorilla lite burnishing pad (pkg of 5)
09 255-1850 18 inch gorilla spray buff/polish/burnish pad (pkg of 5)
09 255-1850 18 inch gorilla spray buff/polish/burnish pad (pkg of 5)
10 255-1865 18 inch Heat concrete bonding pad (pkg of 5)
10 255-1865 18 inch Heat concrete bonding pad (pkg of 5)
11 255-1830 18 inch jaguar burnishing pad (pkg of 5)
11 255-1830 18 inch jaguar burnishing pad (pkg of 5)
12 255-1890 18 inch premium black stripping pad (pkg of 5)
12 255-1890 18 inch premium black stripping pad (pkg of 5)
13 255-1870 18 inch premium blue cleaning pad (pkg of 5)
13 255-1870 18 inch premium blue cleaning pad (pkg of 5)
14 255-1892 18 inch premium brown stripping pad (pkg of 5)
14 255-1892 18 inch premium brown stripping pad (pkg of 5)
15 255-1880 18 inch premium green scrubbing pad (pkg of 5)
15 255-1880 18 inch premium green scrubbing pad (pkg of 5)
16 255-1860 18 inch premium red scrubbing pad (pkg of 5)
16 255-1860 18 inch premium red scrubbing pad (pkg of 5)
17 255-1852 18 inch premium tan polishing pad (pkg of 5)
17 255-1852 18 inch premium tan polishing pad (pkg of 5)
18 255-1820 18 inch premium white polishing pad (pkg of 5)
18 255-1820 18 inch premium white polishing pad (pkg of 5)
19 255-1811 18 inch superspeed rubberized pad (pkg of 5)
19 255-1811 18 inch superspeed rubberized pad (pkg of 5)
20 255-1895 18 inch razorback stripping pad (pkg of 5)
20 255-1895 18 inch razorback stripping pad (pkg of 5)
21 255-1847 18 inch Redwood maroon floor prep pad (pkg of 10)
21 255-1847 18 inch Redwood maroon floor prep pad (pkg of 10)
22 255-1855 18 inch Ruff non-abrasive brush pad (pkg of 2)
22 255-1855 18 inch Ruff non-abrasive brush pad (pkg of 2)
23 255-1823 18 inch sand screen driver pad (pkg of 2)
23 255-1823 18 inch sand screen driver pad (pkg of 2)
24 255-0023 18 inch Professional sand screen 100 grit (pkg of 10)
24 255-0023 18 inch Professional sand screen 100 grit (pkg of 10)
25 255-0145 18 inch Professional sand screen 120 grit (pkg of 10)
25 255-0145 18 inch Professional sand screen 120 grit (pkg of 10)
26 255-0146 18 inch Professional sand screen 150 grit (pkg of 10)
26 255-0146 18 inch Professional sand screen 150 grit (pkg of 10)
27 255-0147 18 inch Professional sand screen 180 grit (pkg of 10)
27 255-0147 18 inch Professional sand screen 180 grit (pkg of 10)
28 255-0148 18 inch Professional sand screen 220 grit (pkg of 10)
28 255-0148 18 inch Professional sand screen 220 grit (pkg of 10)
29 255-0149 18 inch Professional sand screen 400 grit (pkg of 10)
29 255-0149 18 inch Professional sand screen 400 grit (pkg of 10)
30 255-0022 18 inch Professional sand screen 60 grit (pkg of 10)
30 255-0022 18 inch Professional sand screen 60 grit (pkg of 10)
31 255-0144 18 inch Professional sand screen 80 grit (pkg of 10)
31 255-0144 18 inch Professional sand screen 80 grit (pkg of 10)
32 255-0233 18 inch Superscreen sand screen 100 grit (pkg of 10)
32 255-0233 18 inch Superscreen sand screen 100 grit (pkg of 10)
33 255-0234 18 inch Superscreen sand screen 120 grit (pkg of 10)
33 255-0234 18 inch Superscreen sand screen 120 grit (pkg of 10)
34 255-0235 18 inch Superscreen sand screen 150 grit (pkg of 10)
34 255-0235 18 inch Superscreen sand screen 150 grit (pkg of 10)
35 255-0236 18 inch Superscreen sand screen 180 grit (pkg of 10)
35 255-0236 18 inch Superscreen sand screen 180 grit (pkg of 10)
36 255-0237 18 inch Superscreen sand screen 220 grit (pkg of 10)
36 255-0237 18 inch Superscreen sand screen 220 grit (pkg of 10)
37 255-0238 18 inch Superscreen sand screen 400 grit (pkg of 10)
37 255-0238 18 inch Superscreen sand screen 400 grit (pkg of 10)
38 255-0231 18 inch Superscreen sand screen 60 grit (pkg of 10)
38 255-0231 18 inch Superscreen sand screen 60 grit (pkg of 10)
39 255-0232 18 inch Superscreen sand screen 80 grit (pkg of 10)
39 255-0232 18 inch Superscreen sand screen 80 grit (pkg of 10)
40 255-1824 18 inch Tiger carpet bonnet (pkg of 2)
40 255-1824 18 inch Tiger carpet bonnet (pkg of 2)
41 255-9577 18 inch Diamond by Gorilla 11000 Grit (pkg of 2)
41 255-9577 18 inch Diamond by Gorilla 11000 Grit (pkg of 2)
42 255-9574 18 inch Diamond by Gorilla 1500 Grit (pkg of 2)
42 255-9574 18 inch Diamond by Gorilla 1500 Grit (pkg of 2)
43 255-9571 18 inch Diamond by Gorilla 200 Grit (pkg of 2)
43 255-9571 18 inch Diamond by Gorilla 200 Grit (pkg of 2)
44 255-9575 18 inch Diamond by Gorilla 3000 Grit (pkg of 2)
44 255-9575 18 inch Diamond by Gorilla 3000 Grit (pkg of 2)
45 255-9572 18 inch Diamond by Gorilla 400 Grit (pkg of 2)
45 255-9572 18 inch Diamond by Gorilla 400 Grit (pkg of 2)
46 255-9573 18 inch Diamond by Gorilla 800 Grit (pkg of 2)
46 255-9573 18 inch Diamond by Gorilla 800 Grit (pkg of 2)
47 255-9576 18 inch Diamond by Gorilla 8000 Grit (pkg of 2)
47 255-9576 18 inch Diamond by Gorilla 8000 Grit (pkg of 2)
48 255-9643 18 inch Diamond starter pack (1 of each grit)
48 255-9643 18 inch Diamond starter pack (1 of each grit)
49 255-1882 18 inch Turbostrip segmented rotary pad (pkg of 4)
49 255-1882 18 inch Turbostrip segmented rotary pad (pkg of 4)
50 255-1815 18 inch Duala clean and shine pad - low speed (pkg of 5)
50 255-1815 18 inch Duala clean and shine pad - low speed (pkg of 5)
51 255-1816 18 inch 2001 Duala clean and shine pad - high speed (pkg 5)
51 255-1816 18 inch 2001 Duala clean and shine pad - high speed (pkg 5)

- Pad Holders - 275-9029
RefNbr Part Number Description Req Notes
1 991-2214 Center-Lok II pad holder - left hand thread (red)
2a 991-2201 Center-Lok II pad holder - right hand thread (black) (Pad driver side female, Floor side male)
2b 991-8577 Pad retainer (Pad driver side male, Floor side female)
3a 991-2202 Big mouth pad holder set (blue) (includes 3 screws)
3b 991-2205 Deep lock ring and pad grip ring
4 991-2203 Big mouth pad holder male thread portion
5 991-2206 Center-Lok 3 pad holder (includes 3 screws)
6 996-0372 Big mouth pad holder (left hand thread)
7 N/A Not available
8 991-2209 Split retainer - pad holder ring (OBSOLETE)
9 N/A Not available (replaced by #3 991-2202)
10 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE)

Recovery Tank Assembly - 278-9000
RefNbr Part Number Description Req Notes
1 278-0889 Recovery tank 1
3 278-0890 Left hand decal 1
4 278-0029 ICE decal 3
5 278-0024 Drain hose 1
6 278-0891 Connecting plate 1
7 278-0572 Bushing 1
8 999-1803 Washer M6 flat fender stainless steel 3
10 278-0025 Hose clamp 2
11a 278-0039 Vacuum motor kit 1
11b 278-0893 110V vacuum motor 1
12 278-0894 Vacuum hose 1
13 278-0846 Nut M6 self locking 3
14 999-1261 Washer M6 flat stainless steel 3
15 278-0895 Muffler 1
16 278-0036 Vacuum motor gasket 1
17 278-0038 Stud 3
18 999-1308 Nut M6-1 hex stainless steel 3
19 278-0896 Right hand decal 1
20 278-0851 Plate 2
21 999-9089 Washer M4 flat stainless steel 5
23 278-0019 Float adapter 1
24 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 2
25 278-0020 Gasket 1
26 278-0084 Strap 1
27 278-0076 Screw 1
28 278-0022 Cap 1
29 999-0954 Nut M4-.7 nylon insert lock stainless steel 1
30a 278-0552 Carbon brush (sold individually) 2
30b 278-0897 Carbon brush 2

Cover Tank Assembly - 278-9001
RefNbr Part Number Description Req Notes
1 278-0898 Tank cover 1
2a 278-0015 Warning decal 1
2b 278-0899 Warning decal 1
3 278-0652 Cap 1
4 278-0900 Gasket 1

Solution Tank Assembly - 278-9002
RefNbr Part Number Description Req Notes
1 278-0901 Solution tank 1
2 278-2022 Battery 2
3 278-0076 Screw 1
4 278-0468 Knob 1
5 278-0712 Screw M6 x 40mm 1
6 999-9089 Washer M4 flat stainless steel 1
7 278-0092 Solution fill cap 1
8 278-0903 Hose (clear) 1
9 278-0904 Caster bracket 1
10 278-0905 2 inch caster 1
11 999-1803 Washer M6 flat fender stainless steel 3
12 999-1117 Washer M6 split lock stainless steel 3
13 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 3
14 999-0248 Bolt M8-1.25 x 30mm hex head full thread plain finish 1
15 999-0674 Washer M8 split lock plain finish 3
17 278-0906 Wheel shaft 1
18 999-9097 Washer M8 flat stainless steel 2
19 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 4
20a 278-0171 8 inch wheel 2
20b 278-0907 Ball bearing 4
21 999-6695 Washer M8 fender stainless steel 2
22 278-0170 Wheel cover 2
23 278-0066 Clamp 1
24 278-0908 Right hand decal 1
25 278-0909 Bracket 1
26 999-1601 Screw M5 x 10 flat head stainless steel 4
27 999-9100 Washer M5 flat stainless steel 4
28 278-0093 P clamp 4
29 278-0556 Battery boot 4
30 278-0910 Left hand decal 1

Control Box Assembly - 278-9003
RefNbr Part Number Description Req Notes
1 278-0911 Rear panel 1
2 278-0751 Washer 9
3 278-0854 Screw M5 x 16mm pan head 5
4 999-9089 Washer M4 flat stainless steel 13
5 278-0771 Relay 1
6 278-0834 Self-locking nut M3 8
7 278-0857 Bracket for switch 1
8 999-1521 Washer M3 flat stainless steel 8
9 278-0855 Bracket 1
10 999-9097 Washer M8 flat stainless steel 6
11 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 6
12 278-0861 Bracket for control box 1
13 278-0912 24V battery charger 1
14 278-0050 Ball knob 1
15 278-0124 Drain hose clamp 1
16 278-0863 Screw M4 x 16mm pan head 2
17 278-0633 Squeegee lifting handle 1
18 278-0913 Control box 1
19 278-0914 Squeegee lift cable 1
20 278-0168 Ball joint 1
21 999-1803 Washer M6 flat fender stainless steel 4
22 278-0037 Upholstery tool assembly 2
23 999-6695 Washer M8 fender stainless steel 2
24 999-0248 Bolt M8-1.25 x 30mm hex head full thread plain finish 2
25 999-9109 Screw M5-.8 x 12mm pan head phillips stainless steel 1
26 278-0109 Connector 1
27 278-0583 Onboard battery charger cord (Old style-charger 8132020-US) 1 (old style for charger 8132020-US)
28 278-0868 Sealing gasket 1
29 278-0915 Panel 1
30 278-0866 Stopper 1
31 999-0901 Screw M5-.8 x 16mm pan head phillips stainless steel 2
32 999-0497 Nut M6-1 nylon insert lock stainless steel 1
33 278-0676 Circuit breaker 1
34 999-9100 Washer M5 flat stainless steel 1
35 278-0114 Bolt M5 x 12mm 1
36 278-0916 Baffle 1
37 278-0113 Lifting rope spacer 1
38 278-0111 Bolt M6 x 30mm 1
39 278-0917 Transparent plate 1
40 278-0918 16amp waterproof switch 2
41 278-0919 Wire buffer 1
42 278-0920 Wire clamp 1
44 278-0921 Strain relief 1
45 278-0922 Battery capacity indicator 1
47 278-0923 Panel decal 1
48 278-0924 Front panel 1
49 278-0142 Shaft 1
50 278-0872 Sealing gasket 1
51 999-1645 Screw M4-.7 x 12mm hex head stainless steel 4
52 999-1954 Washer M4 lock 2
53 999-9089 Washer M4 flat stainless steel 2
54 278-0879 Control handle 1
55 278-0875 Plate 1
56 278-0007 Set screw 4
57 278-0876 Hex bushing 1
58 278-0877 Spring rod 1
59 278-0878 Spring 1
60 999-1040 Screw M3-.5 x 20mm pan head 2
61 278-0089 Washer M3 tooth 2
62 278-0134 Micro switch 1
63 999-0953 Nut M5-.8 hex nylon insert lock stainless steel 7
64 278-0925 24V 30amp relay 1
65 999-0954 Nut M4-.7 nylon insert lock stainless steel 2

Brush Assembly - 278-9005
RefNbr Part Number Description Req Notes
1a 278-0930 24V brush motor kit 1
1b 278-0931 120V brush motor kit 1
2 278-0932 Adjusting handle 1
3 278-0933 Brush hanger 1
4 278-0934 Screw M10 x 65mm hex socket head 1
5 278-0935 Pin M12 x 20mm 2
6 278-0936 Decal 1
8 278-0937 Bearing 1
9 278-0938 Bearing housing 1
10 278-0939 Retaining ring 1
11 278-0940 Board assembly 1
12 278-0941 Brush plunger 1
13 999-0496 Nut M8-1.25 nylon insert lock stainless steel 1
14 999-9097 Washer M8 flat stainless steel 3
15 278-0033 Spacer 1
16 278-0216 Bumper wheel 1
17 278-0212 Warning decal 1
18 999-9109 Screw M5-.8 x 12mm pan head phillips stainless steel 2
19 999-9100 Washer M5 flat stainless steel 2
20 278-0193 Brush plate clamp 1
21 278-0194 Spring clip 1
22 278-0192 3 lug drive hub 1
23a 278-0942 18 inch brush 1
23b 278-0966 17 inch pad driver 1
23c 278-0201 Big mouth center lok 1
24 999-6695 Washer M8 fender stainless steel 1
25 278-0943 Splash guard 1
26 999-0674 Washer M8 split lock plain finish 1
27 278-0944 Bolt 5/16 x 1 hex head 1
28 999-0786 Screw M8-1.25 x 35mm hex head stainless steel 1
29 278-0714 Nut M16 hex 1
30 278-0945 Supporter 1
31 278-0946 Bolt M6 x 16mm hex head 1
32 999-9099 Washer M10 flat stainless steel 4
33 999-1087 Bolt M6-1 x 25mm hex head stainless steel 4
34 999-1803 Washer M6 flat fender stainless steel 8
35 999-1601 Screw M5 x 10 flat head stainless steel 1
36 278-0949 Screw M4 x 10mm 2
37 278-0950 Water inlet 1
38 278-0951 Motor bracket 1
39 278-0952 Brush cover 1
40 999-1601 Screw M5 x 10 flat head stainless steel 2
41 999-9100 Washer M5 flat stainless steel 4
42 999-9132 Washer M5 split lock stainless steel 5
43 278-0104 Screw M5 x 15mm 3
45 278-0954 Valve bracket 1
47 278-0085 Screw 2
48 278-0955 Cotter pin M2 x 40mm 2
49 278-0956 Washer 12.5 nylon 4
50 278-0957 Bracket 1
51 999-0497 Nut M6-1 nylon insert lock stainless steel 4
52 278-0958 Screw M10 x 40mm hex socket head 2
53 278-0959 Bushing 3
54 278-0960 Nut M10 self locking 1
55 278-0961 Washer 10.5 nylon 2
56 278-0962 Spacer 13 x 10.5 x 5.5 1
57 278-0963 Bracket 1
58 278-0964 Detent ring 1
59 278-0186 Square key 1
60 278-0965 Spacer 1
61 278-0161 Spring 1

Squeegee Holder Assembly - 278-9006
RefNbr Part Number Description Req Notes
1 278-0967 Squeegee mounting bracket 1
2 999-1803 Washer M6 flat fender stainless steel 3
3 999-1117 Washer M6 split lock stainless steel 3
4 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 3
5 278-0165 Bolt M12 x 30mm 2
6 278-0119 Washer 2
7 278-0164 Thrust washer 4
8 278-0161 Spring 1
9 278-0163 Sleeve 2
10 278-0969 Squeegee bracket 1
11 999-0519 Nut M12-1.75 nylon insert lock stainless steel 2
12 278-0169 Squeegee mounting bracket 1
13 278-0970 Pin M12 x 70mm 1
14 278-0166 Cotter 1

Solution System Assembly - 278-9007
RefNbr Part Number Description Req Notes
1 278-0244 Clamp 2
2 278-0971 Hose 1
3a 278-0972 24V solenoid valve 1
3b 278-0973 120V solenoid valve 1
4 278-0974 Hose 1
5 278-0303 Clamp 4
6 278-0307 Filter assembly 1
7 278-0975 Hose 1
8 278-0242 Straight joint 1
9 278-0829 Micro ball valve 1
10 278-0830 Elbow 1
11 278-0308 Filter assembly base 1
12 278-0311 O-ring 1
13 278-0310 40 mesh filter screen assembly 1
14 278-0312 Filter assembly cap 1
15 999-9089 Washer M4 flat stainless steel 2
16 999-1645 Screw M4-.7 x 12mm hex head stainless steel 2

Squeegee Assembly - 278-9008
RefNbr Part Number Description Req Notes
1 999-0496 Nut M8-1.25 nylon insert lock stainless steel 2
2 999-6695 Washer M8 fender stainless steel 4
3 278-0216 Bumper wheel 2
4 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 2
5 278-0033 Spacer 2
6 999-6714 Washer M6 x 12mm flat stainless steel 2
7 278-0287 Right hand bracket 1
8 278-0288 2 inch caster wheel 2
9 N/A Not available 1 (included in 23)
10a 278-0010 Squeegee blade rear linatex 1
10b 278-0013 Squeegee blade rear polyurethane 1
11 278-0045 Knob 4
12 278-0289 Squeegee housing 1
13 999-0786 Screw M8-1.25 x 35mm hex head stainless steel 2
14 278-0636 Squeegee retainer stainless steel 1
15 278-0637 Plastic spacer 1
16 278-0638 Screw M5-.8 x 15mm flat head countersunk stainless steel 6
17 278-0291 Squeegee retainer kit 1
18a 278-0011 Squeegee blade front linatex 1
18b 278-0012 Squeegee blade front polyurethane 1
19 278-0292 Short clamp assembly 1
20 999-9160 Screw M5-.8 x 75mm pan head 1
21 278-0294 Left hand bracket 1
22 999-6697 Nut M10-1.5 hex stainless steel 2
23 278-0296 Clamp assembly 1 (includes 9, 20, and 23-26)
24 278-0297 Bushing 1
25 278-0298 Bushing 1
26 999-0953 Nut M5-.8 hex nylon insert lock stainless steel 1
27 278-0894 Vacuum hose 1
28a 278-0301 Squeegee assembly linatex 1 (includes 1-26)
28b 278-0639 Squeegee assembly polyurethane 1 (includes 1-26)

Wiring Assembly -

RefNbr Part Number Description Req Notes

- Commonly Asked For Parts - 278-9988
RefNbr Part Number Description Req Notes
01 278-0538 Linear actuator kit

- Batteries, Brushes, and Chargers - 999-9111
RefNbr Part Number Description Req Notes
01 278-2022 Battery 2
02 278-0912 24V battery charger 1
03 278-0583 Onboard battery charger cord (Old style-charger 8132020-US) 1
04 278-0942 18 inch brush 1
Webpage Problem Reporting
